"deploy/git@developer.sourcefind.cn:wangsen/paddle_dbnet.git" did not exist on "2e984a5e19bd902ff97d5392c05fb312f194c258"
Unverified Commit 8bdc050c authored by Bin Lu's avatar Bin Lu Committed by GitHub
Browse files

Merge branch 'PaddlePaddle:dygraph' into dygraph

parents 7da39b93 cc01a59b
Hide whitespace changes
Inline Side-by-side
Showing with 234 additions and 11 deletions
tests/configs/ppocr_det_mobile_params.txt → PTDN/configs/ppocr_det_mobile_params.txt
View file @ 8bdc050c
===========================train_params===========================
model_name:ocr_det
python:python3.7
gpu_list:0|0,1
Global.use_gpu:True|True
Global.auto_cast:null
gpu_list:0|0,1|10.21.226.181,10.21.226.133;0,1
Global.use_gpu:True|True|True
Global.auto_cast:fp32|amp
Global.epoch_num:lite_train_infer=1|whole_train_infer=300
Global.save_model_dir:./output/
Train.loader.batch_size_per_card:lite_train_infer=2|whole_train_infer=4
......@@ -65,6 +65,8 @@ inference:./deploy/cpp_infer/build/ppocr det
null:null
--benchmark:True
===========================serving_params===========================
model_name:ocr_det
python:python3.7
trans_model:-m paddle_serving_client.convert
--dirname:./inference/ch_ppocr_mobile_v2.0_det_infer/
--model_filename:inference.pdmodel
......@@ -82,17 +84,17 @@ pipline:pipeline_http_client.py --image_dir=../../doc/imgs
===========================kl_quant_params===========================
infer_model:./inference/ch_ppocr_mobile_v2.0_det_infer/
infer_export:tools/export_model.py -c configs/det/ch_ppocr_v2.0/ch_det_mv3_db_v2.0.yml -o
infer_quant:False
infer_quant:True
inference:tools/infer/predict_det.py
--use_gpu:True|False
--enable_mkldnn:True|False
--cpu_threads:1|6
--rec_batch_num:1
--use_tensorrt:False|True
--precision:fp32|fp16|int8
--precision:int8
--det_model_dir:
--image_dir:./inference/ch_det_data_50/all-sum-510/
null:null
--benchmark:True
null:null
null:null
\ No newline at end of file
null:null
tests/configs/ppocr_det_server_params.txt → PTDN/configs/ppocr_det_server_params.txt
View file @ 8bdc050c
......@@ -49,4 +49,35 @@ inference:tools/infer/predict_det.py
--save_log_path:null
--benchmark:True
null:null
===========================cpp_infer_params===========================
use_opencv:True
infer_model:./inference/ch_ppocr_server_v2.0_det_infer/
infer_quant:False
inference:./deploy/cpp_infer/build/ppocr det
--use_gpu:True|False
--enable_mkldnn:True|False
--cpu_threads:1|6
--rec_batch_num:1
--use_tensorrt:False|True
--precision:fp32|fp16
--det_model_dir:
--image_dir:./inference/ch_det_data_50/all-sum-510/
null:null
--benchmark:True
===========================serving_params===========================
model_name:ocr_det_server
python:python3.7
trans_model:-m paddle_serving_client.convert
--dirname:./inference/ch_ppocr_server_v2.0_det_infer/
--model_filename:inference.pdmodel
--params_filename:inference.pdiparams
--serving_server:./deploy/pdserving/ppocr_det_mobile_2.0_serving/
--serving_client:./deploy/pdserving/ppocr_det_mobile_2.0_client/
serving_dir:./deploy/pdserving
web_service:web_service_det.py --config=config.yml --opt op.det.concurrency=1
op.det.local_service_conf.devices:null|0
op.det.local_service_conf.use_mkldnn:True|False
op.det.local_service_conf.thread_num:1|6
op.det.local_service_conf.use_trt:False|True
op.det.local_service_conf.precision:fp32|fp16|int8
pipline:pipeline_http_client.py --image_dir=../../doc/imgs
tests/configs/ppocr_rec_mobile_params.txt → PTDN/configs/ppocr_rec_mobile_params.txt
View file @ 8bdc050c
......@@ -65,6 +65,8 @@ inference:./deploy/cpp_infer/build/ppocr rec
null:null
--benchmark:True
===========================serving_params===========================
model_name:ocr_rec
python:python3.7
trans_model:-m paddle_serving_client.convert
--dirname:./inference/ch_ppocr_mobile_v2.0_rec_infer/
--model_filename:inference.pdmodel
......@@ -78,4 +80,4 @@ op.rec.local_service_conf.use_mkldnn:True|False
op.rec.local_service_conf.thread_num:1|6
op.rec.local_service_conf.use_trt:False|True
op.rec.local_service_conf.precision:fp32|fp16|int8
pipline:pipeline_http_client.py --image_dir=../../doc/imgs_words_en
\ No newline at end of file
pipline:pipeline_http_client.py --image_dir=../../doc/imgs_words_en
tests/configs/ppocr_rec_server_params.txt → PTDN/configs/ppocr_rec_server_params.txt
View file @ 8bdc050c
......@@ -65,12 +65,14 @@ inference:./deploy/cpp_infer/build/ppocr rec
null:null
--benchmark:True
===========================serving_params===========================
model_name:ocr_server_rec
python:python3.7
trans_model:-m paddle_serving_client.convert
--dirname:./inference/ch_ppocr_server_v2.0_rec_infer/
--model_filename:inference.pdmodel
--params_filename:inference.pdiparams
--serving_server:./deploy/pdserving/ppocr_rec_server_2.0_serving/
--serving_client:./deploy/pdserving/ppocr_rec_server_2.0_client/
--serving_server:./deploy/pdserving/ppocr_rec_mobile_2.0_serving/
--serving_client:./deploy/pdserving/ppocr_rec_mobile_2.0_client/
serving_dir:./deploy/pdserving
web_service:web_service_rec.py --config=config.yml --opt op.rec.concurrency=1
op.rec.local_service_conf.devices:null|0
......@@ -78,4 +80,4 @@ op.rec.local_service_conf.use_mkldnn:True|False
op.rec.local_service_conf.thread_num:1|6
op.rec.local_service_conf.use_trt:False|True
op.rec.local_service_conf.precision:fp32|fp16|int8
pipline:pipeline_http_client.py --image_dir=../../doc/imgs_words_en
\ No newline at end of file
pipline:pipeline_http_client.py --image_dir=../../doc/imgs_words_en
PTDN/docs/install.md 0 → 100644
View file @ 8bdc050c
## 环境配置
本教程适用于PTDN目录下基础功能测试的运行环境搭建。
推荐环境：
- CUDA 10.1
- CUDNN 7.6
- TensorRT 6.1.0.5 / 7.1
推荐docker镜像安装，按照如下命令创建镜像，当前目录映射到镜像中的`/paddle`目录下
```
nvidia-docker run --name paddle -it -v $PWD:/paddle paddlepaddle/paddle:latest-dev-cuda10.1-cudnn7-gcc82 /bin/bash
cd /paddle
# 安装带TRT的paddle
pip3.7 install https://paddle-wheel.bj.bcebos.com/with-trt/2.1.3/linux-gpu-cuda10.1-cudnn7-mkl-gcc8.2-trt6-avx/paddlepaddle_gpu-2.1.3.post101-cp37-cp37m-linux_x86_64.whl
# 安装AutoLog
git clone https://github.com/LDOUBLEV/AutoLog
cd AutoLog
pip3.7 install -r requirements.txt
python3.7 setup.py bdist_wheel
pip3.7 install ./dist/auto_log-1.0.0-py3-none-any.whl
# 下载OCR代码
cd ../
git clone https://github.com/PaddlePaddle/PaddleOCR
```
安装PaddleOCR依赖：
```
cd PaddleOCR
pip3.7 install -r requirements.txt
```
## FAQ :
Q. You are using Paddle compiled with TensorRT, but TensorRT dynamic library is not found. Ignore this if TensorRT is not needed.
A. 问题一般是当前安装paddle版本带TRT，但是本地环境找不到TensorRT的预测库，需要下载TensorRT库，解压后设置环境变量LD_LIBRARY_PATH;
如：
```
export LD_LIBRARY_PATH=/usr/local/python3.7.0/lib:/usr/local/nvidia/lib:/usr/local/nvidia/lib64:/paddle/package/TensorRT-6.0.1.5/lib
```
或者问题是下载的TensorRT版本和当前paddle中编译的TRT版本不匹配，需要下载版本相符的TRT。
PTDN/docs/test_inference_cpp.md 0 → 100644
View file @ 8bdc050c
# C++预测功能测试
C++预测功能测试的主程序为`test_inference_cpp.sh`，可以测试基于C++预测库的模型推理功能。
## 1. 测试结论汇总
基于训练是否使用量化，进行本测试的模型可以分为`正常模型`和`量化模型`，这两类模型对应的C++预测功能汇总如下：
| 模型类型 |device | batchsize | tensorrt | mkldnn | cpu多线程 |
| ---- | ---- | ---- | :----: | :----: | :----: |
| 正常模型 | GPU | 1/6 | fp32/fp16 | - | - |
| 正常模型 | CPU | 1/6 | - | fp32 | 支持 |
| 量化模型 | GPU | 1/6 | int8 | - | - |
| 量化模型 | CPU | 1/6 | - | int8 | 支持 |
## 2. 测试流程
### 2.1 功能测试
先运行`prepare.sh`准备数据和模型，然后运行`test_inference_cpp.sh`进行测试，最终在```PTDN/output```目录下生成`cpp_infer_*.log`后缀的日志文件。
```shell
bash PTDN/prepare.sh ./PTDN/configs/ppocr_det_mobile_params.txt "cpp_infer"
# 用法1:
bash PTDN/test_inference_cpp.sh ./PTDN/configs/ppocr_det_mobile_params.txt
# 用法2: 指定GPU卡预测，第三个传入参数为GPU卡号
bash PTDN/test_inference_cpp.sh ./PTDN/configs/ppocr_det_mobile_params.txt '1'
```
### 2.2 精度测试
使用compare_results.py脚本比较模型预测的结果是否符合预期，主要步骤包括：
- 提取日志中的预测坐标；
- 从本地文件中提取保存好的坐标结果；
- 比较上述两个结果是否符合精度预期，误差大于设置阈值时会报错。
#### 使用方式
运行命令：
```shell
python3.7 PTDN/compare_results.py --gt_file=./PTDN/results/cpp_*.txt --log_file=./PTDN/output/cpp_*.log --atol=1e-3 --rtol=1e-3
```
参数介绍：
- gt_file： 指向事先保存好的预测结果路径，支持*.txt 结尾，会自动索引*.txt格式的文件，文件默认保存在PTDN/result/ 文件夹下
- log_file: 指向运行PTDN/test_inference_cpp.sh 脚本的infer模式保存的预测日志，预测日志中打印的有预测结果，比如：文本框，预测文本，类别等等，同样支持cpp_infer_*.log格式传入
- atol: 设置的绝对误差
- rtol: 设置的相对误差
#### 运行结果

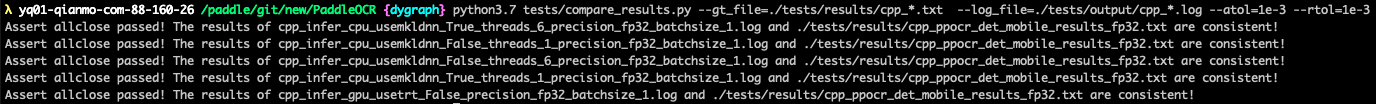

正常运行效果如下图：
<img src="compare_cpp_right.png" width="1000">

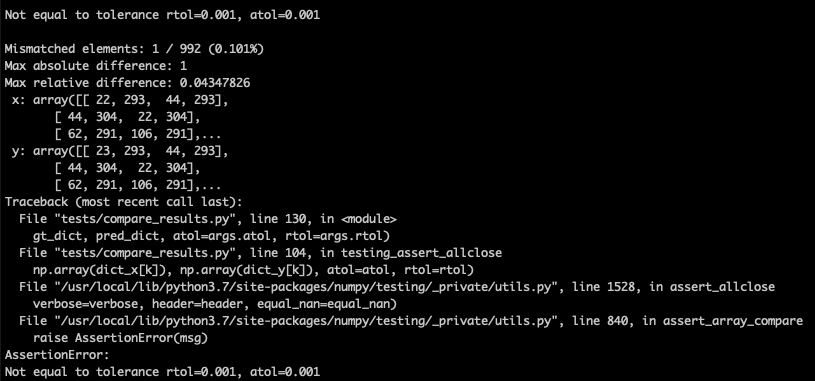

出现不一致结果时的运行输出：
<img src="compare_cpp_wrong.png" width="1000">
## 3. 更多教程
本文档为功能测试用，更详细的c++预测使用教程请参考：[服务器端C++预测](https://github.com/PaddlePaddle/PaddleOCR/tree/dygraph/deploy/cpp_infer)
PTDN/docs/test_serving.md 0 → 100644
View file @ 8bdc050c
# PaddleServing预测功能测试
PaddleServing预测功能测试的主程序为`test_serving.sh`，可以测试基于PaddleServing的部署功能。
## 1. 测试结论汇总
基于训练是否使用量化，进行本测试的模型可以分为`正常模型`和`量化模型`，这两类模型对应的C++预测功能汇总如下：
| 模型类型 |device | batchsize | tensorrt | mkldnn | cpu多线程 |
| ---- | ---- | ---- | :----: | :----: | :----: |
| 正常模型 | GPU | 1/6 | fp32/fp16 | - | - |
| 正常模型 | CPU | 1/6 | - | fp32 | 支持 |
| 量化模型 | GPU | 1/6 | int8 | - | - |
| 量化模型 | CPU | 1/6 | - | int8 | 支持 |
## 2. 测试流程
### 2.1 功能测试
先运行`prepare.sh`准备数据和模型，然后运行`test_serving.sh`进行测试，最终在```PTDN/output```目录下生成`serving_infer_*.log`后缀的日志文件。
```shell
bash PTDN/prepare.sh ./PTDN/configs/ppocr_det_mobile_params.txt "serving_infer"
# 用法:
bash PTND/test_serving.sh ./PTDN/configs/ppocr_det_mobile_params.txt
```
#### 运行结果
各测试的运行情况会打印在 `PTDN/output/results_serving.log` 中：
运行成功时会输出：
```
Run successfully with command - python3.7 pipeline_http_client.py --image_dir=../../doc/imgs > ../../tests/output/server_infer_cpu_usemkldnn_True_threads_1_batchsize_1.log 2>&1 !
Run successfully with command - xxxxx
...
```
运行失败时会输出：
```
Run failed with command - python3.7 pipeline_http_client.py --image_dir=../../doc/imgs > ../../tests/output/server_infer_cpu_usemkldnn_True_threads_1_batchsize_1.log 2>&1 !
Run failed with command - python3.7 pipeline_http_client.py --image_dir=../../doc/imgs > ../../tests/output/server_infer_cpu_usemkldnn_True_threads_6_batchsize_1.log 2>&1 !
Run failed with command - xxxxx
...
```
详细的预测结果会存在 PTDN/output/ 文件夹下，例如`server_infer_gpu_usetrt_True_precision_fp16_batchsize_1.log`中会返回检测框的坐标:
```
{'err_no': 0, 'err_msg': '', 'key': ['dt_boxes'], 'value': ['[[[ 78. 642.]\n [409. 640.]\n [409. 657.]\n
[ 78. 659.]]\n\n [[ 75. 614.]\n [211. 614.]\n [211. 635.]\n [ 75. 635.]]\n\n
[[103. 554.]\n [135. 554.]\n [135. 575.]\n [103. 575.]]\n\n [[ 75. 531.]\n
[347. 531.]\n [347. 549.]\n [ 75. 549.] ]\n\n [[ 76. 503.]\n [309. 498.]\n
[309. 521.]\n [ 76. 526.]]\n\n [[163. 462.]\n [317. 462.]\n [317. 493.]\n
[163. 493.]]\n\n [[324. 431.]\n [414. 431.]\n [414. 452.]\n [324. 452.]]\n\n
[[ 76. 412.]\n [208. 408.]\n [209. 424.]\n [ 76. 428.]]\n\n [[307. 409.]\n
[428. 409.]\n [428. 426.]\n [307 . 426.]]\n\n [[ 74. 385.]\n [217. 382.]\n
[217. 400.]\n [ 74. 403.]]\n\n [[308. 381.]\n [427. 380.]\n [427. 400.]\n
[308. 401.]]\n\n [[ 74. 363.]\n [195. 362.]\n [195. 378.]\n [ 74. 379.]]\n\n
[[303. 359.]\n [423. 357.]\n [423. 375.]\n [303. 377.]]\n\n [[ 70. 336.]\n
[239. 334.]\n [239. 354.]\ n [ 70. 356.]]\n\n [[ 70. 312.]\n [204. 310.]\n
[204. 327.]\n [ 70. 330.]]\n\n [[303. 308.]\n [419. 306.]\n [419. 326.]\n
[303. 328.]]\n\n [[113. 2 72.]\n [246. 270.]\n [247. 299.]\n [113. 301.]]\n\n
[[361. 269.]\n [384. 269.]\n [384. 296.]\n [361. 296.]]\n\n [[ 70. 250.]\n
[243. 246.]\n [243. 265.]\n [ 70. 269.]]\n\n [[ 65. 221.]\n [187. 220.]\n
[187. 240.]\n [ 65. 241.]]\n\n [[337. 216.]\n [382. 216.]\n [382. 240.]\n
[337. 240.]]\n\n [ [ 65. 196.]\n [247. 193.]\n [247. 213.]\n [ 65. 216.]]\n\n
[[296. 197.]\n [423. 191.]\n [424. 209.]\n [296. 215.]]\n\n [[ 65. 167.]\n [244. 167.]\n
[244. 186.]\n [ 65. 186.]]\n\n [[ 67. 139.]\n [290. 139.]\n [290. 159.]\n [ 67. 159.]]\n\n
[[ 68. 113.]\n [410. 113.]\n [410. 128.]\n [ 68. 129.] ]\n\n [[277. 87.]\n [416. 87.]\n
[416. 108.]\n [277. 108.]]\n\n [[ 79. 28.]\n [132. 28.]\n [132. 62.]\n [ 79. 62.]]\n\n
[[163. 17.]\n [410. 14.]\n [410. 50.]\n [163. 53.]]]']}
```
## 3. 更多教程
本文档为功能测试用，更详细的Serving预测使用教程请参考：[PPOCR 服务化部署](https://github.com/PaddlePaddle/PaddleOCR/blob/dygraph/deploy/pdserving/README_CN.md)
