+# UNET_pytorch
+## 论文
+`U-Net: Convolutional Networks for Biomedical Image Segmentation`
+
+- https://arxiv.org/abs/1505.04597
+## 模型结构
+ UNet（全名 U-Net）是一种用于图像分割的卷积神经网络（CNN）架构，UNet 的结构具有 U 形状，因此得名。
+
+![img](https://developer.hpccube.com/codes/yongshk/unet-pytorch/-/raw/main/doc/unet.png)
+## 算法原理
+U-Net 的核心原理如下：
+
+1. **编码器（Contracting Path）**：U-Net 的编码器由卷积层和池化层组成，用于捕捉图像的特征信息并逐渐减小分辨率。这一部分的任务是将输入图像缩小到一个低分辨率的特征图，同时保留有关图像内容的关键特征。
+2. **中间层（Bottleneck）**：在编码器和解码器之间，U-Net 包括一个中间层，通常由卷积层组成，用于进一步提取特征信息。
+3. **解码器（Expansive Path）**：U-Net 的解码器包括上采样层和卷积层，用于将特征图恢复到原始输入图像的分辨率。解码器的任务是将高级特征与低级特征相结合，以便生成分割结果。这一部分的结构与编码器相对称。
+
+![img](https://developer.hpccube.com/codes/yongshk/unet-pytorch/-/raw/main/doc/原理.png)
+## 环境配置
+### Docker（方法一）
+此处提供[光源](https://www.sourcefind.cn/#/service-details)拉取docker镜像的地址与使用步骤
+```
+docker pull image.sourcefind.cn:5000/dcu/admin/base/pytorch:1.10.0-centos7.6-dtk-23.04-py37-latest
+
+docker run -it --network=host --name=unet --privileged --device=/dev/kfd --device=/dev/dri --ipc=host --shm-size=32G  --group-add video --cap-add=SYS_PTRACE --security-opt seccomp=unconfined -u root --ulimit stack=-1:-1 --ulimit memlock=-1:-1 -v /root/unet:/home image.sourcefind.cn:5000/dcu/admin/base/pytorch:1.10.0-centos7.6-dtk-23.04-py37-latest
+```
+### Anaconda（方法二）
+此处提供本地配置、编译的详细步骤，例如：
+
+关于本项目DCU显卡所需的特殊深度学习库可从[光合](https://developer.hpccube.com/tool/)开发者社区下载安装。
+```
+DTK驱动：dtk23.04
+python：python3.7
+```
+`Tips：以上dtk驱动、python等DCU相关工具版本需要严格一一对应`
+
+其它非深度学习库参照requirements.txt安装：
+```
+pip install -r requirements.txt
+```
+## 数据集
+`Carvana`
+
+- https://www.kaggle.com/c/carvana-image-masking-challenge/data
+
+此处提供数据预处理脚本的使用方法
+```
+bash scripts/download_data.sh
+```
+项目中已提供用于试验训练的迷你数据集，训练数据目录结构如下，用于正常训练的完整数据集请按此目录结构进行制备：
+```
+ ── data
+    │   ├── imgs
+    │   ├──────fff9b3a5373f_01.jpg
+    │   ├──────fff9b3a5373f_02.jpg
+    │   └── masks
+    │   ├────── fff9b3a5373f_01.gif
+    │   ├────── fff9b3a5373f_02.gif
+```
+## 训练
+### 单机多卡
+```
+python -m torch.distributed.launch --nproc_per_node 4 train_ddp.py
+```
+
+### 单机单卡
+```
+python train.py
+```
+## 推理
+```
+python predict.py -i image.jpg -o output.jpg
+```

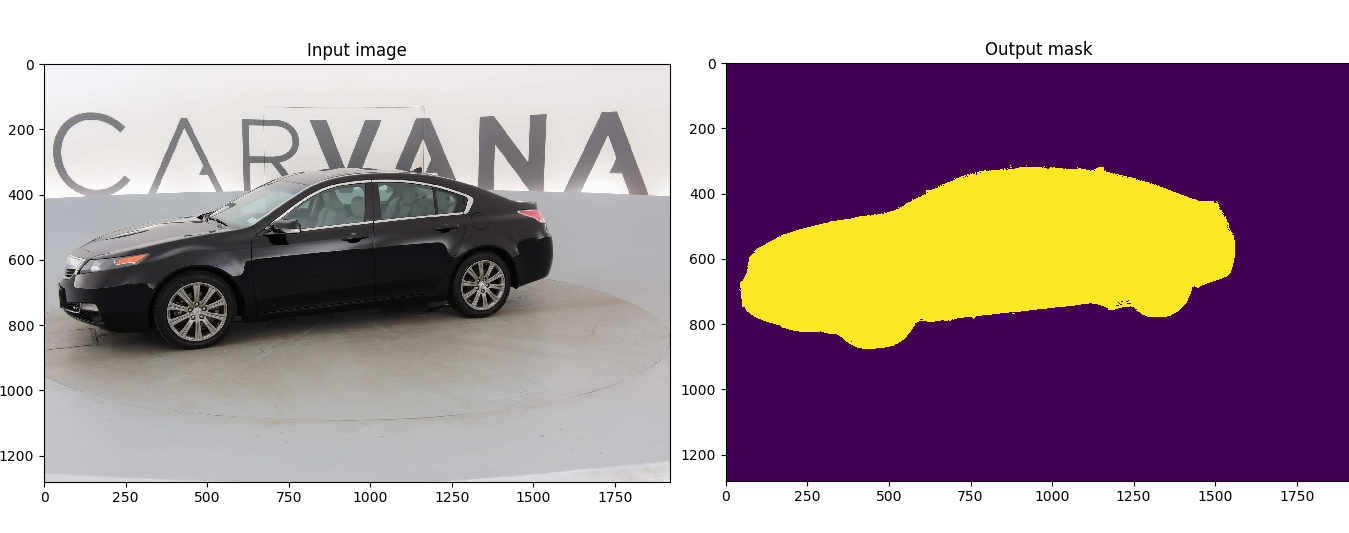

+## result
+![rusult](https://developer.hpccube.com/codes/yongshk/unet-pytorch/-/raw/main/doc/结果.png)
+
+### 精度
+测试数据：[test data](https://www.kaggle.com/c/carvana-image-masking-challenge/data)，使用的加速卡:Z100L。（采用iou系数）
+
+根据测试结果情况填写表格：
+| Unet | 精度 | 速度 |
+| :------: | :------: | :------: |
+| Carvana | 0.976 | 25.96 |
+## 应用场景
+### 算法类别
+
+`视觉、图像分割`
+
+### 热点应用行业
+`医学图像分析`、`卫星图像分析`、`自然图像分割`、`工业检测`
+
+## 源码仓库及问题反馈
+- https://developer.hpccube.com/codes/modelzoo/unet-pytorch
+## 参考资料
+- https://github.com/milesial/Pytorch-Unet

evaluate.py

+import torch
+import torch.nn.functional as F
+from tqdm import tqdm
+
+from utils.dice_score import multiclass_dice_coeff, dice_coeff, multiclass_iou_coeff, iou_coeff
+
+
+@torch.inference_mode()
+def evaluate(net, dataloader, device, amp):
+    net.eval()
+    num_val_batches = len(dataloader)
+    dice_score = 0
+
+    # iterate over the validation set
+    with torch.autocast(device.type if device.type != 'mps' else 'cpu', enabled=amp):
+        for batch in tqdm(dataloader, total=num_val_batches, desc='Validation round', unit='batch', leave=False):
+            image, mask_true = batch['image'], batch['mask']
+
+            # move images and labels to correct device and type
+            image = image.to(device=device, dtype=torch.float32, memory_format=torch.channels_last)
+            mask_true = mask_true.to(device=device, dtype=torch.long)
+
+            # predict the mask
+            mask_pred = net(image)
+
+            if net.n_classes == 1:
+                assert mask_true.min() >= 0 and mask_true.max() <= 1, 'True mask indices should be in [0, 1]'
+                mask_pred = (F.sigmoid(mask_pred) > 0.5).float()
+                # compute the Dice score
+                # dice_score += dice_coeff(mask_pred, mask_true, reduce_batch_first=False)
+                dice_score += iou_coeff(mask_pred, mask_true, reduce_batch_first=False)
+            else:
+                assert mask_true.min() >= 0 and mask_true.max() < net.n_classes, 'True mask indices should be in [0, n_classes['
+                # convert to one-hot format
+                mask_true = F.one_hot(mask_true, net.n_classes).permute(0, 3, 1, 2).float()
+                mask_pred = F.one_hot(mask_pred.argmax(dim=1), net.n_classes).permute(0, 3, 1, 2).float()
+                # compute the Dice score, ignoring background
+                # dice_score += multiclass_dice_coeff(mask_pred[:, 1:], mask_true[:, 1:], reduce_batch_first=False)
+                dice_score += multiclass_iou_coeff(mask_pred[:, 1:], mask_true[:, 1:], reduce_batch_first=False)
+
+    net.train()
+    return dice_score / max(num_val_batches, 1)

hubconf.py

+import torch
+from unet import UNet as _UNet
+
+def unet_carvana(pretrained=False, scale=0.5):
+    """
+    UNet model trained on the Carvana dataset ( https://www.kaggle.com/c/carvana-image-masking-challenge/data ).
+    Set the scale to 0.5 (50%) when predicting.
+    """
+    net = _UNet(n_channels=3, n_classes=2, bilinear=False)
+    if pretrained:
+        if scale == 0.5:
+            checkpoint = 'https://github.com/milesial/Pytorch-UNet/releases/download/v3.0/unet_carvana_scale0.5_epoch2.pth'
+        elif scale == 1.0:
+            checkpoint = 'https://github.com/milesial/Pytorch-UNet/releases/download/v3.0/unet_carvana_scale1.0_epoch2.pth'
+        else:
+            raise RuntimeError('Only 0.5 and 1.0 scales are available')
+        state_dict = torch.hub.load_state_dict_from_url(checkpoint, progress=True)
+        if 'mask_values' in state_dict:
+            state_dict.pop('mask_values')
+        net.load_state_dict(state_dict)
+
+    return net
+

predict.py

+import argparse
+import logging
+import os
+
+import numpy as np
+import torch
+import torch.nn.functional as F
+from PIL import Image
+from torchvision import transforms
+
+from utils.data_loading import BasicDataset
+from unet import UNet
+from utils.utils import plot_img_and_mask
+
+def predict_img(net,
+                full_img,
+                device,
+                scale_factor=1,
+                out_threshold=0.5):
+    net.eval()
+    img = torch.from_numpy(BasicDataset.preprocess(None, full_img, scale_factor, is_mask=False))
+    img = img.unsqueeze(0)
+    img = img.to(device=device, dtype=torch.float32)
+
+    with torch.no_grad():
+        output = net(img).cpu()
+        output = F.interpolate(output, (full_img.size[1], full_img.size[0]), mode='bilinear')
+        if net.n_classes > 1:
+            mask = output.argmax(dim=1)
+        else:
+            mask = torch.sigmoid(output) > out_threshold
+
+    return mask[0].long().squeeze().numpy()
+
+
+def get_args():
+    parser = argparse.ArgumentParser(description='Predict masks from input images')
+    parser.add_argument('--model', '-m', default='MODEL.pth', metavar='FILE',
+                        help='Specify the file in which the model is stored')
+    parser.add_argument('--input', '-i', metavar='INPUT', nargs='+', help='Filenames of input images', required=True)
+    parser.add_argument('--output', '-o', metavar='OUTPUT', nargs='+', help='Filenames of output images')
+    parser.add_argument('--viz', '-v', action='store_true',
+                        help='Visualize the images as they are processed')
+    parser.add_argument('--no-save', '-n', action='store_true', help='Do not save the output masks')
+    parser.add_argument('--mask-threshold', '-t', type=float, default=0.5,
+                        help='Minimum probability value to consider a mask pixel white')
+    parser.add_argument('--scale', '-s', type=float, default=0.5,
+                        help='Scale factor for the input images')
+    parser.add_argument('--bilinear', action='store_true', default=False, help='Use bilinear upsampling')
+    parser.add_argument('--classes', '-c', type=int, default=2, help='Number of classes')
+
+    return parser.parse_args()
+
+
+def get_output_filenames(args):
+    def _generate_name(fn):
+        return f'{os.path.splitext(fn)[0]}_OUT.png'
+
+    return args.output or list(map(_generate_name, args.input))
+
+
+def mask_to_image(mask: np.ndarray, mask_values):
+    if isinstance(mask_values[0], list):
+        out = np.zeros((mask.shape[-2], mask.shape[-1], len(mask_values[0])), dtype=np.uint8)
+    elif mask_values == [0, 1]:
+        out = np.zeros((mask.shape[-2], mask.shape[-1]), dtype=bool)
+    else:
+        out = np.zeros((mask.shape[-2], mask.shape[-1]), dtype=np.uint8)
+
+    if mask.ndim == 3:
+        mask = np.argmax(mask, axis=0)
+
+    for i, v in enumerate(mask_values):
+        out[mask == i] = v
+
+    return Image.fromarray(out)
+
+
+if __name__ == '__main__':
+    args = get_args()
+    logging.basicConfig(level=logging.INFO, format='%(levelname)s: %(message)s')
+
+    in_files = args.input
+    out_files = get_output_filenames(args)
+
+    net = UNet(n_channels=3, n_classes=args.classes, bilinear=args.bilinear)
+
+    device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
+    logging.info(f'Loading model {args.model}')
+    logging.info(f'Using device {device}')
+
+    net.to(device=device)
+    state_dict = torch.load(args.model, map_location=device)
+    mask_values = state_dict.pop('mask_values', [0, 1])
+    net.load_state_dict(state_dict)
+
+    logging.info('Model loaded!')
+
+    for i, filename in enumerate(in_files):
+        logging.info(f'Predicting image {filename} ...')
+        img = Image.open(filename)
+
+        mask = predict_img(net=net,
+                           full_img=img,
+                           scale_factor=args.scale,
+                           out_threshold=args.mask_threshold,
+                           device=device)
+
+        if not args.no_save:
+            out_filename = out_files[i]
+            result = mask_to_image(mask, mask_values)
+            result.save(out_filename)
+            logging.info(f'Mask saved to {out_filename}')
+
+        if args.viz:
+            logging.info(f'Visualizing results for image {filename}, close to continue...')
+            plot_img_and_mask(img, mask)

requirements.txt

+apex==0.1+f49ddd4.abi0.dtk2304.torch1.13
+matplotlib==3.5.3
+numpy==1.21.6
+Pillow==9.5.0
+Pillow==10.0.1
+torch==1.13.1+git55d300e.abi0.dtk2304
+torchvision==0.14.1+git9134838.abi0.dtk2304.torch1.13
+tqdm==4.65.0

scripts/download_data.sh

+#!/bin/bash
+
+if [[ ! -f ~/.kaggle/kaggle.json ]]; then
+  echo -n "Kaggle username: "
+  read USERNAME
+  echo
+  echo -n "Kaggle API key: "
+  read APIKEY
+
+  mkdir -p ~/.kaggle
+  echo "{\"username\":\"$USERNAME\",\"key\":\"$APIKEY\"}" > ~/.kaggle/kaggle.json
+  chmod 600 ~/.kaggle/kaggle.json
+fi
+
+pip install kaggle --upgrade
+
+kaggle competitions download -c carvana-image-masking-challenge -f train_hq.zip
+unzip train_hq.zip
+mv train_hq/* data/imgs/
+rm -d train_hq
+rm train_hq.zip
+
+kaggle competitions download -c carvana-image-masking-challenge -f train_masks.zip
+unzip train_masks.zip
+mv train_masks/* data/masks/
+rm -d train_masks
+rm train_masks.zip

train.py

+import argparse
+import logging
+import os
+import random
+import sys
+import torch
+import torch.nn as nn
+import torch.nn.functional as F
+import torchvision.transforms as transforms
+import torchvision.transforms.functional as TF
+from pathlib import Path
+from torch import optim
+from torch.utils.data import DataLoader, random_split
+from tqdm import tqdm
+
+import wandb
+from evaluate import evaluate
+from unet import UNet
+from utils.data_loading import BasicDataset, CarvanaDataset
+from utils.dice_score import dice_loss, iou_loss
+
+dir_img = Path('./data/imgs/')
+dir_mask = Path('./data/masks/')
+dir_checkpoint = Path('./checkpoints/')
+
+
+def train_model(
+        model,
+        device,
+        epochs: int = 5,
+        batch_size: int = 1,
+        learning_rate: float = 1e-5,
+        val_percent: float = 0.1,
+        save_checkpoint: bool = True,
+        img_scale: float = 0.5,
+        amp: bool = False,
+        weight_decay: float = 1e-8,
+        momentum: float = 0.999,
+        gradient_clipping: float = 1.0,
+):
+    # 1. Create dataset
+    try:
+        dataset = CarvanaDataset(dir_img, dir_mask, img_scale)
+    except (AssertionError, RuntimeError, IndexError):
+        dataset = BasicDataset(dir_img, dir_mask, img_scale)
+
+    # 2. Split into train / validation partitions
+    n_val = int(len(dataset) * val_percent)
+    n_train = len(dataset) - n_val
+    train_set, val_set = random_split(dataset, [n_train, n_val], generator=torch.Generator().manual_seed(0))
+
+    # 3. Create data loaders
+    loader_args = dict(batch_size=batch_size, num_workers=os.cpu_count(), pin_memory=True)
+    train_loader = DataLoader(train_set, shuffle=True, **loader_args)
+    val_loader = DataLoader(val_set, shuffle=False, drop_last=True, **loader_args)
+
+    # (Initialize logging)
+    experiment = wandb.init(project='U-Net', resume='allow', anonymous='must')
+    experiment.config.update(
+        dict(epochs=epochs, batch_size=batch_size, learning_rate=learning_rate,
+             val_percent=val_percent, save_checkpoint=save_checkpoint, img_scale=img_scale, amp=amp)
+    )
+
+    logging.info(f'''Starting training:
+        Epochs:          {epochs}
+        Batch size:      {batch_size}
+        Learning rate:   {learning_rate}
+        Training size:   {n_train}
+        Validation size: {n_val}
+        Checkpoints:     {save_checkpoint}
+        Device:          {device.type}
+        Images scaling:  {img_scale}
+        Mixed Precision: {amp}
+    ''')
+
+    # 4. Set up the optimizer, the loss, the learning rate scheduler and the loss scaling for AMP
+    optimizer = optim.RMSprop(model.parameters(),
+                              lr=learning_rate, weight_decay=weight_decay, momentum=momentum, foreach=True)
+    scheduler = optim.lr_scheduler.ReduceLROnPlateau(optimizer, 'max', patience=5)  # goal: maximize Dice score
+    grad_scaler = torch.cuda.amp.GradScaler(enabled=amp)
+    criterion = nn.CrossEntropyLoss() if model.n_classes > 1 else nn.BCEWithLogitsLoss()
+    global_step = 0
+
+    # 5. Begin training
+    for epoch in range(1, epochs + 1):
+        model.train()
+        epoch_loss = 0
+        with tqdm(total=n_train, desc=f'Epoch {epoch}/{epochs}', unit='img') as pbar:
+            for batch in train_loader:
+                images, true_masks = batch['image'], batch['mask']
+
+                assert images.shape[1] == model.n_channels, \
+                    f'Network has been defined with {model.n_channels} input channels, ' \
+                    f'but loaded images have {images.shape[1]} channels. Please check that ' \
+                    'the images are loaded correctly.'
+
+                images = images.to(device=device, dtype=torch.float32, memory_format=torch.channels_last)
+                true_masks = true_masks.to(device=device, dtype=torch.long)
+
+                with torch.autocast(device.type if device.type != 'mps' else 'cpu', enabled=amp):
+                    masks_pred = model(images)
+                    if model.n_classes == 1:
+                        loss = criterion(masks_pred.squeeze(1), true_masks.float())
+                        # loss += dice_loss(F.sigmoid(masks_pred.squeeze(1)), true_masks.float(), multiclass=False)
+                        loss += iou_loss(F.sigmoid(masks_pred.squeeze(1)), true_masks.float(), multiclass=False)
+                    else:
+                        loss = criterion(masks_pred, true_masks)
+                        # loss += dice_loss(
+                        #     F.softmax(masks_pred, dim=1).float(),
+                        #     F.one_hot(true_masks, model.n_classes).permute(0, 3, 1, 2).float(),
+                        #     multiclass=True
+                        # )
+                        loss += iou_loss(
+                            F.softmax(masks_pred, dim=1).float(),
+                            F.one_hot(true_masks, model.n_classes).permute(0, 3, 1, 2).float(),
+                            multiclass=True
+                        )
+
+                optimizer.zero_grad(set_to_none=True)
+                grad_scaler.scale(loss).backward()
+                torch.nn.utils.clip_grad_norm_(model.parameters(), gradient_clipping)
+                grad_scaler.step(optimizer)
+                grad_scaler.update()
+
+                pbar.update(images.shape[0])
+                global_step += 1
+                epoch_loss += loss.item()
+                experiment.log({
+                    'train loss': loss.item(),
+                    'step': global_step,
+                    'epoch': epoch
+                })
+                pbar.set_postfix(**{'loss (batch)': loss.item()})
+
+                # Evaluation round
+                division_step = (n_train // (5 * batch_size))
+                if division_step > 0:
+                    if global_step % division_step == 0:
+                        histograms = {}
+                        for tag, value in model.named_parameters():
+                            tag = tag.replace('/', '.')
+                            if not (torch.isinf(value) | torch.isnan(value)).any():
+                                histograms['Weights/' + tag] = wandb.Histogram(value.data.cpu())
+                            if not (torch.isinf(value.grad) | torch.isnan(value.grad)).any():
+                                histograms['Gradients/' + tag] = wandb.Histogram(value.grad.data.cpu())
+
+                        val_score = evaluate(model, val_loader, device, amp)
+                        scheduler.step(val_score)
+
+                        logging.info('Validation Dice score: {}'.format(val_score))
+                        try:
+                            experiment.log({
+                                'learning rate': optimizer.param_groups[0]['lr'],
+                                'validation Dice': val_score,
+                                'images': wandb.Image(images[0].cpu()),
+                                'masks': {
+                                    'true': wandb.Image(true_masks[0].float().cpu()),
+                                    'pred': wandb.Image(masks_pred.argmax(dim=1)[0].float().cpu()),
+                                },
+                                'step': global_step,
+                                'epoch': epoch,
+                                **histograms
+                            })
+                        except:
+                            pass
+
+        if save_checkpoint:
+            Path(dir_checkpoint).mkdir(parents=True, exist_ok=True)
+            state_dict = model.state_dict()
+            state_dict['mask_values'] = dataset.mask_values
+            torch.save(state_dict, str(dir_checkpoint / 'checkpoint_epoch{}.pth'.format(epoch)))
+            logging.info(f'Checkpoint {epoch} saved!')
+
+
+def get_args():
+    parser = argparse.ArgumentParser(description='Train the UNet on images and target masks')
+    parser.add_argument('--epochs', '-e', metavar='E', type=int, default=5, help='Number of epochs')
+    parser.add_argument('--batch-size', '-b', dest='batch_size', metavar='B', type=int, default=1, help='Batch size')
+    parser.add_argument('--learning-rate', '-l', metavar='LR', type=float, default=1e-5,
+                        help='Learning rate', dest='lr')
+    parser.add_argument('--load', '-f', type=str, default=False, help='Load model from a .pth file')
+    parser.add_argument('--scale', '-s', type=float, default=0.5, help='Downscaling factor of the images')
+    parser.add_argument('--validation', '-v', dest='val', type=float, default=10.0,
+                        help='Percent of the data that is used as validation (0-100)')
+    parser.add_argument('--amp', action='store_true', default=False, help='Use mixed precision')
+    parser.add_argument('--bilinear', action='store_true', default=False, help='Use bilinear upsampling')
+    parser.add_argument('--classes', '-c', type=int, default=2, help='Number of classes')
+
+    return parser.parse_args()
+
+
+if __name__ == '__main__':
+    args = get_args()
+
+    logging.basicConfig(level=logging.INFO, format='%(levelname)s: %(message)s')
+    device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
+    logging.info(f'Using device {device}')
+
+    # Change here to adapt to your data
+    # n_channels=3 for RGB images
+    # n_classes is the number of probabilities you want to get per pixel
+    model = UNet(n_channels=3, n_classes=args.classes, bilinear=args.bilinear)
+    model = model.to(memory_format=torch.channels_last)
+
+    logging.info(f'Network:\n'
+                 f'\t{model.n_channels} input channels\n'
+                 f'\t{model.n_classes} output channels (classes)\n'
+                 f'\t{"Bilinear" if model.bilinear else "Transposed conv"} upscaling')
+
+    if args.load:
+        state_dict = torch.load(args.load, map_location=device)
+        del state_dict['mask_values']
+        model.load_state_dict(state_dict)
+        logging.info(f'Model loaded from {args.load}')
+
+    model.to(device=device)
+    try:
+        train_model(
+            model=model,
+            epochs=args.epochs,
+            batch_size=args.batch_size,
+            learning_rate=args.lr,
+            device=device,
+            img_scale=args.scale,
+            val_percent=args.val / 100,
+            amp=args.amp
+        )
+    except torch.cuda.OutOfMemoryError:
+        logging.error('Detected OutOfMemoryError! '
+                      'Enabling checkpointing to reduce memory usage, but this slows down training. '
+                      'Consider enabling AMP (--amp) for fast and memory efficient training')
+        torch.cuda.empty_cache()
+        model.use_checkpointing()
+        train_model(
+            model=model,
+            epochs=args.epochs,
+            batch_size=args.batch_size,
+            learning_rate=args.lr,
+            device=device,
+            img_scale=args.scale,
+            val_percent=args.val / 100,
+            amp=args.amp
+        )

train_ddp.py

+import argparse
+import logging
+import os
+import torch
+import torch.nn as nn
+import torch.nn.functional as F
+from pathlib import Path
+from torch import optim
+from torch.utils.data import DataLoader, random_split
+from tqdm import tqdm
+from evaluate import evaluate
+from unet import UNet
+from utils.data_loading import BasicDataset, CarvanaDataset
+from utils.dice_score import dice_loss, iou_loss
+
+from torch.utils.data.distributed import DistributedSampler
+import torch.distributed as dist
+from torch.nn.parallel import DistributedDataParallel as DDP
+
+import wandb
+dir_img = Path('./data/imgs/')
+dir_mask = Path('./data/masks/')
+dir_checkpoint = Path('./checkpoints/')
+
+
+def train_model(
+        model,
+        device,
+        epochs: int = 5,
+        batch_size: int = 1,
+        learning_rate: float = 1e-5,
+        val_percent: float = 0.1,
+        save_checkpoint: bool = True,
+        img_scale: float = 0.5,
+        amp: bool = False,
+        weight_decay: float = 1e-8,
+        momentum: float = 0.999,
+        gradient_clipping: float = 1.0,
+        local_rank: int = 0,
+):
+    # 1. Create dataset
+    try:
+        dataset = CarvanaDataset(dir_img, dir_mask, img_scale)
+    except (AssertionError, RuntimeError, IndexError):
+        dataset = BasicDataset(dir_img, dir_mask, img_scale)
+
+    # 2. Split into train / validation partitions
+    n_val = int(len(dataset) * val_percent)
+    n_train = len(dataset) - n_val
+    train_set, val_set = random_split(dataset, [n_train, n_val], generator=torch.Generator().manual_seed(0))
+
+    # # 3. Create data loaders
+    # loader_args = dict(batch_size=batch_size, num_workers=os.cpu_count(), pin_memory=True)
+    # train_loader = DataLoader(train_set, shuffle=True, **loader_args)
+    # val_loader = DataLoader(val_set, shuffle=False, drop_last=True, **loader_args)
+
+    train_sampler = DistributedSampler(train_set)
+    val_sampler = DistributedSampler(val_set)
+
+    # 4. Create data loaders
+    loader_args = dict(batch_size=batch_size, num_workers=os.cpu_count(), pin_memory=True)
+    train_loader = DataLoader(train_set, sampler=train_sampler,  **loader_args)
+    val_loader = DataLoader(val_set, sampler=val_sampler, **loader_args)
+
+    # (Initialize logging)
+    experiment = wandb.init(project='U-Net', resume='allow', anonymous='must')
+    experiment.config.update(
+        dict(epochs=epochs, batch_size=batch_size, learning_rate=learning_rate,
+             val_percent=val_percent, save_checkpoint=save_checkpoint, img_scale=img_scale, amp=amp)
+    )
+
+    logging.info(f'''Starting training:
+        Epochs:          {epochs}
+        Batch size:      {batch_size}
+        Learning rate:   {learning_rate}
+        Training size:   {n_train}
+        Validation size: {n_val}
+        Checkpoints:     {save_checkpoint}
+        Device:          {device.type}
+        Images scaling:  {img_scale}
+        Mixed Precision: {amp}
+    ''')
+
+    # 4. Set up the optimizer, the loss, the learning rate scheduler and the loss scaling for AMP
+    optimizer = optim.RMSprop(model.parameters(),
+                              lr=learning_rate, weight_decay=weight_decay, momentum=momentum, foreach=True)
+    scheduler = optim.lr_scheduler.ReduceLROnPlateau(optimizer, 'max', patience=5)  # goal: maximize Dice score
+    grad_scaler = torch.cuda.amp.GradScaler(enabled=amp)
+    criterion = nn.CrossEntropyLoss().to(local_rank) if model.module.n_classes > 1 else nn.BCEWithLogitsLoss().to(local_rank)
+    global_step = 0
+
+    # 5. Begin training
+    for epoch in range(1, epochs + 1):
+        model.train()
+        epoch_loss = 0
+        with tqdm(total=n_train, desc=f'Epoch {epoch}/{epochs}', unit='img') as pbar:
+            for batch in train_loader:
+                images, true_masks = batch['image'], batch['mask']
+
+                assert images.shape[1] == model.module.n_channels, \
+                    f'Network has been defined with {model.module.n_channels} input channels, ' \
+                    f'but loaded images have {images.shape[1]} channels. Please check that ' \
+                    'the images are loaded correctly.'
+
+                images = images.to(device=device, dtype=torch.float32, memory_format=torch.channels_last)
+                true_masks = true_masks.to(device=device, dtype=torch.long)
+
+                with torch.autocast(device.type if device.type != 'mps' else 'cpu', enabled=amp):
+                    masks_pred = model(images)
+                    if model.module.n_classes == 1:
+                        loss = criterion(masks_pred.squeeze(1), true_masks.float())
+                        # loss += dice_loss(F.sigmoid(masks_pred.squeeze(1)), true_masks.float(), multiclass=False)
+                        loss += iou_loss(F.sigmoid(masks_pred.squeeze(1)), true_masks.float(), multiclass=False)
+                    else:
+                        loss = criterion(masks_pred, true_masks)
+                        # loss += dice_loss(
+                        #     F.softmax(masks_pred, dim=1).float(),
+                        #     F.one_hot(true_masks, model.module.n_classes).permute(0, 3, 1, 2).float(),
+                        #     multiclass=True
+                        # )
+                        loss += iou_loss(
+                            F.softmax(masks_pred, dim=1).float(),
+                            F.one_hot(true_masks, model.module.n_classes).permute(0, 3, 1, 2).float(),
+                            multiclass=True
+                        )
+
+                optimizer.zero_grad(set_to_none=True)
+                grad_scaler.scale(loss).backward()
+                torch.nn.utils.clip_grad_norm_(model.parameters(), gradient_clipping)
+                grad_scaler.step(optimizer)
+                grad_scaler.update()
+
+                pbar.update(images.shape[0])
+                global_step += 1
+                epoch_loss += loss.item()
+                experiment.log({
+                    'train loss': loss.item(),
+                    'step': global_step,
+                    'epoch': epoch
+                })
+                pbar.set_postfix(**{'loss (batch)': loss.item()})
+
+                # Evaluation round
+                division_step = (n_train // (5 * batch_size))
+                if division_step > 0:
+                    if global_step % division_step == 0:
+                        histograms = {}
+                        for tag, value in model.named_parameters():
+                            tag = tag.replace('/', '.')
+                            if not (torch.isinf(value) | torch.isnan(value)).any():
+                                histograms['Weights/' + tag] = wandb.Histogram(value.data.cpu())
+                            if not (torch.isinf(value.grad) | torch.isnan(value.grad)).any():
+                                histograms['Gradients/' + tag] = wandb.Histogram(value.grad.data.cpu())
+
+                        val_score = evaluate(model.module, val_loader, device, amp)
+                        scheduler.step(val_score)
+
+                        logging.info('Validation Dice score: {}'.format(val_score))
+                        try:
+                            experiment.log({
+                                'learning rate': optimizer.param_groups[0]['lr'],
+                                'validation Dice': val_score,
+                                'images': wandb.Image(images[0].cpu()),
+                                'masks': {
+                                    'true': wandb.Image(true_masks[0].float().cpu()),
+                                    'pred': wandb.Image(masks_pred.argmax(dim=1)[0].float().cpu()),
+                                },
+                                'step': global_step,
+                                'epoch': epoch,
+                                **histograms
+                            })
+                        except:
+                            pass
+
+        if save_checkpoint:
+            Path(dir_checkpoint).mkdir(parents=True, exist_ok=True)
+            state_dict = model.module.state_dict()
+            state_dict['mask_values'] = dataset.mask_values
+            torch.save(state_dict, str(dir_checkpoint / 'checkpoint_epoch{}.pth'.format(epoch)))
+            logging.info(f'Checkpoint {epoch} saved!')
+
+
+def get_args():
+    parser = argparse.ArgumentParser(description='Train the UNet on images and target masks')
+    parser.add_argument('--local_rank', type=int, default=-1)
+    parser.add_argument('--epochs', '-e', metavar='E', type=int, default=5, help='Number of epochs')
+    parser.add_argument('--batch-size', '-b', dest='batch_size', metavar='B', type=int, default=1, help='Batch size')
+    parser.add_argument('--learning-rate', '-l', metavar='LR', type=float, default=1e-5,
+                        help='Learning rate', dest='lr')
+    parser.add_argument('--load', '-f', type=str, default=False, help='Load model from a .pth file')
+    parser.add_argument('--scale', '-s', type=float, default=0.5, help='Downscaling factor of the images')
+    parser.add_argument('--validation', '-v', dest='val', type=float, default=10.0,
+                        help='Percent of the data that is used as validation (0-100)')
+    parser.add_argument('--amp', action='store_true', default=False, help='Use mixed precision')
+    parser.add_argument('--bilinear', action='store_true', default=False, help='Use bilinear upsampling')
+    parser.add_argument('--classes', '-c', type=int, default=2, help='Number of classes')
+
+    return parser.parse_args()
+
+
+if __name__ == '__main__':
+    args = get_args()
+    local_rank = args.local_rank
+    logging.basicConfig(level=logging.INFO, format='%(levelname)s: %(message)s')
+    device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
+    torch.cuda.set_device(local_rank)
+    dist.init_process_group(backend='nccl')
+    logging.info(f'Using device {device}')
+
+
+    model = UNet(n_channels=3, n_classes=args.classes, bilinear=args.bilinear)
+    model = model.to(memory_format=torch.channels_last)
+
+    logging.info(f'Network:\n'
+                 f'\t{model.n_channels} input channels\n'
+                 f'\t{model.n_classes} output channels (classes)\n'
+                 f'\t{"Bilinear" if model.bilinear else "Transposed conv"} upscaling')
+
+    if args.load:
+        state_dict = torch.load(args.load, map_location=device)
+        del state_dict['mask_values']
+        model.load_state_dict(state_dict)
+        logging.info(f'Model loaded from {args.load}')
+
+    model.to(local_rank)
+    model = DDP(model, device_ids=[local_rank], output_device=local_rank)
+    try:
+        train_model(
+            model=model,
+            epochs=args.epochs,
+            batch_size=args.batch_size,
+            learning_rate=args.lr,
+            device=device,
+            img_scale=args.scale,
+            val_percent=args.val / 100,
+            amp=args.amp,
+            local_rank=local_rank,
+        )
+    except torch.cuda.OutOfMemoryError:
+        logging.error('Detected OutOfMemoryError! '
+                      'Enabling checkpointing to reduce memory usage, but this slows down training. '
+                      'Consider enabling AMP (--amp) for fast and memory efficient training')
+        torch.cuda.empty_cache()
+        model.use_checkpointing()
+        train_model(
+            model=model,
+            epochs=args.epochs,
+            batch_size=args.batch_size,
+            learning_rate=args.lr,
+            device=device,
+            img_scale=args.scale,
+            val_percent=args.val / 100,
+            amp=args.amp,
+            local_rank=local_rank,
+        )
+

train_ddp启动.txt

+python -m torch.distributed.launch --nproc_per_node 4 train_ddp.py
+其中4为启动进程数（小于等于可用GPU数）
\ No newline at end of file

unet/__init__.py

+from .unet_model import UNet

unet/unet_model.py

+""" Full assembly of the parts to form the complete network """
+
+from .unet_parts import *
+
+
+class UNet(nn.Module):
+    def __init__(self, n_channels, n_classes, bilinear=False):
+        super(UNet, self).__init__()
+        self.n_channels = n_channels
+        self.n_classes = n_classes
+        self.bilinear = bilinear
+
+        self.inc = (DoubleConv(n_channels, 64))
+        self.down1 = (Down(64, 128))
+        self.down2 = (Down(128, 256))
+        self.down3 = (Down(256, 512))
+        factor = 2 if bilinear else 1
+        self.down4 = (Down(512, 1024 // factor))
+        self.up1 = (Up(1024, 512 // factor, bilinear))
+        self.up2 = (Up(512, 256 // factor, bilinear))
+        self.up3 = (Up(256, 128 // factor, bilinear))
+        self.up4 = (Up(128, 64, bilinear))
+        self.outc = (OutConv(64, n_classes))
+
+    def forward(self, x):
+        x1 = self.inc(x)
+        x2 = self.down1(x1)
+        x3 = self.down2(x2)
+        x4 = self.down3(x3)
+        x5 = self.down4(x4)
+        x = self.up1(x5, x4)
+        x = self.up2(x, x3)
+        x = self.up3(x, x2)
+        x = self.up4(x, x1)
+        logits = self.outc(x)
+        return logits
+
+    def use_checkpointing(self):
+        self.inc = torch.utils.checkpoint(self.inc)
+        self.down1 = torch.utils.checkpoint(self.down1)
+        self.down2 = torch.utils.checkpoint(self.down2)
+        self.down3 = torch.utils.checkpoint(self.down3)
+        self.down4 = torch.utils.checkpoint(self.down4)
+        self.up1 = torch.utils.checkpoint(self.up1)
+        self.up2 = torch.utils.checkpoint(self.up2)
+        self.up3 = torch.utils.checkpoint(self.up3)
+        self.up4 = torch.utils.checkpoint(self.up4)
+        self.outc = torch.utils.checkpoint(self.outc)
\ No newline at end of file

unet/unet_parts.py

+""" Parts of the U-Net model """
+
+import torch
+import torch.nn as nn
+import torch.nn.functional as F
+
+
+class DoubleConv(nn.Module):
+    """(convolution => [BN] => ReLU) * 2"""
+
+    def __init__(self, in_channels, out_channels, mid_channels=None):
+        super().__init__()
+        if not mid_channels:
+            mid_channels = out_channels
+        self.double_conv = nn.Sequential(
+            nn.Conv2d(in_channels, mid_channels, kernel_size=3, padding=1, bias=False),
+            nn.BatchNorm2d(mid_channels),
+            nn.ReLU(inplace=True),
+            nn.Conv2d(mid_channels, out_channels, kernel_size=3, padding=1, bias=False),
+            nn.BatchNorm2d(out_channels),
+            nn.ReLU(inplace=True)
+        )
+
+    def forward(self, x):
+        return self.double_conv(x)
+
+
+class Down(nn.Module):
+    """Downscaling with maxpool then double conv"""
+
+    def __init__(self, in_channels, out_channels):
+        super().__init__()
+        self.maxpool_conv = nn.Sequential(
+            nn.MaxPool2d(2),
+            DoubleConv(in_channels, out_channels)
+        )
+
+    def forward(self, x):
+        return self.maxpool_conv(x)
+
+
+class Up(nn.Module):
+    """Upscaling then double conv"""
+
+    def __init__(self, in_channels, out_channels, bilinear=True):
+        super().__init__()
+
+        # if bilinear, use the normal convolutions to reduce the number of channels
+        if bilinear:
+            self.up = nn.Upsample(scale_factor=2, mode='bilinear', align_corners=True)
+            self.conv = DoubleConv(in_channels, out_channels, in_channels // 2)
+        else:
+            self.up = nn.ConvTranspose2d(in_channels, in_channels // 2, kernel_size=2, stride=2)
+            self.conv = DoubleConv(in_channels, out_channels)
+
+    def forward(self, x1, x2):
+        x1 = self.up(x1)
+        # input is CHW
+        diffY = x2.size()[2] - x1.size()[2]
+        diffX = x2.size()[3] - x1.size()[3]
+
+        x1 = F.pad(x1, [diffX // 2, diffX - diffX // 2,
+                        diffY // 2, diffY - diffY // 2])
+        # if you have padding issues, see
+        # https://github.com/HaiyongJiang/U-Net-Pytorch-Unstructured-Buggy/commit/0e854509c2cea854e247a9c615f175f76fbb2e3a
+        # https://github.com/xiaopeng-liao/Pytorch-UNet/commit/8ebac70e633bac59fc22bb5195e513d5832fb3bd
+        x = torch.cat([x2, x1], dim=1)
+        return self.conv(x)
+
+
+class OutConv(nn.Module):
+    def __init__(self, in_channels, out_channels):
+        super(OutConv, self).__init__()
+        self.conv = nn.Conv2d(in_channels, out_channels, kernel_size=1)
+
+    def forward(self, x):
+        return self.conv(x)

utils/data_loading.py

+import logging
+import numpy as np
+import torch
+from PIL import Image
+from functools import lru_cache
+from functools import partial
+from itertools import repeat
+from multiprocessing import Pool
+from os import listdir
+from os.path import splitext, isfile, join
+from pathlib import Path
+from torch.utils.data import Dataset
+from tqdm import tqdm
+
+
+def load_image(filename):
+    ext = splitext(filename)[1]
+    if ext == '.npy':
+        return Image.fromarray(np.load(filename))
+    elif ext in ['.pt', '.pth']:
+        return Image.fromarray(torch.load(filename).numpy())
+    else:
+        return Image.open(filename)
+
+
+def unique_mask_values(idx, mask_dir, mask_suffix):
+    mask_file = list(mask_dir.glob(idx + mask_suffix + '.*'))[0]
+    mask = np.asarray(load_image(mask_file))
+    if mask.ndim == 2:
+        return np.unique(mask)
+    elif mask.ndim == 3:
+        mask = mask.reshape(-1, mask.shape[-1])
+        return np.unique(mask, axis=0)
+    else:
+        raise ValueError(f'Loaded masks should have 2 or 3 dimensions, found {mask.ndim}')
+
+
+class BasicDataset(Dataset):
+    def __init__(self, images_dir: str, mask_dir: str, scale: float = 1.0, mask_suffix: str = ''):
+        self.images_dir = Path(images_dir)
+        self.mask_dir = Path(mask_dir)
+        assert 0 < scale <= 1, 'Scale must be between 0 and 1'
+        self.scale = scale
+        self.mask_suffix = mask_suffix
+
+        self.ids = [splitext(file)[0] for file in listdir(images_dir) if isfile(join(images_dir, file)) and not file.startswith('.')]
+        if not self.ids:
+            raise RuntimeError(f'No input file found in {images_dir}, make sure you put your images there')
+
+        logging.info(f'Creating dataset with {len(self.ids)} examples')
+        logging.info('Scanning mask files to determine unique values')
+        with Pool() as p:
+            unique = list(tqdm(
+                p.imap(partial(unique_mask_values, mask_dir=self.mask_dir, mask_suffix=self.mask_suffix), self.ids),
+                total=len(self.ids)
+            ))
+
+        self.mask_values = list(sorted(np.unique(np.concatenate(unique), axis=0).tolist()))
+        logging.info(f'Unique mask values: {self.mask_values}')
+
+    def __len__(self):
+        return len(self.ids)
+
+    @staticmethod
+    def preprocess(mask_values, pil_img, scale, is_mask):
+        w, h = pil_img.size
+        newW, newH = int(scale * w), int(scale * h)
+        assert newW > 0 and newH > 0, 'Scale is too small, resized images would have no pixel'
+        pil_img = pil_img.resize((newW, newH), resample=Image.NEAREST if is_mask else Image.BICUBIC)
+        img = np.asarray(pil_img)
+
+        if is_mask:
+            mask = np.zeros((newH, newW), dtype=np.int64)
+            for i, v in enumerate(mask_values):
+                if img.ndim == 2:
+                    mask[img == v] = i
+                else:
+                    mask[(img == v).all(-1)] = i
+
+            return mask
+
+        else:
+            if img.ndim == 2:
+                img = img[np.newaxis, ...]
+            else:
+                img = img.transpose((2, 0, 1))
+
+            if (img > 1).any():
+                img = img / 255.0
+
+            return img
+
+    def __getitem__(self, idx):
+        name = self.ids[idx]
+        mask_file = list(self.mask_dir.glob(name + self.mask_suffix + '.*'))
+        img_file = list(self.images_dir.glob(name + '.*'))
+
+        assert len(img_file) == 1, f'Either no image or multiple images found for the ID {name}: {img_file}'
+        assert len(mask_file) == 1, f'Either no mask or multiple masks found for the ID {name}: {mask_file}'
+        mask = load_image(mask_file[0])
+        img = load_image(img_file[0])
+
+        assert img.size == mask.size, \
+            f'Image and mask {name} should be the same size, but are {img.size} and {mask.size}'
+
+        img = self.preprocess(self.mask_values, img, self.scale, is_mask=False)
+        mask = self.preprocess(self.mask_values, mask, self.scale, is_mask=True)
+
+        return {
+            'image': torch.as_tensor(img.copy()).float().contiguous(),
+            'mask': torch.as_tensor(mask.copy()).long().contiguous()
+        }
+
+
+class CarvanaDataset(BasicDataset):
+    def __init__(self, images_dir, mask_dir, scale=1):
+        super().__init__(images_dir, mask_dir, scale, mask_suffix='_mask')

utils/dice_score.py

+import torch
+from torch import Tensor
+
+
+def dice_coeff(input: Tensor, target: Tensor, reduce_batch_first: bool = False, epsilon: float = 1e-6):
+    # Average of Dice coefficient for all batches, or for a single mask
+    assert input.size() == target.size()
+    assert input.dim() == 3 or not reduce_batch_first
+
+    sum_dim = (-1, -2) if input.dim() == 2 or not reduce_batch_first else (-1, -2, -3)
+
+    inter = 2 * (input * target).sum(dim=sum_dim)
+    sets_sum = input.sum(dim=sum_dim) + target.sum(dim=sum_dim)
+    sets_sum = torch.where(sets_sum == 0, inter, sets_sum)
+
+    dice = (inter + epsilon) / (sets_sum + epsilon)
+    return dice.mean()
+
+
+def multiclass_dice_coeff(input: Tensor, target: Tensor, reduce_batch_first: bool = False, epsilon: float = 1e-6):
+    # Average of Dice coefficient for all classes
+    return dice_coeff(input.flatten(0, 1), target.flatten(0, 1), reduce_batch_first, epsilon)
+
+
+def dice_loss(input: Tensor, target: Tensor, multiclass: bool = False):
+    # Dice loss (objective to minimize) between 0 and 1
+    fn = multiclass_dice_coeff if multiclass else dice_coeff
+    return 1 - fn(input, target, reduce_batch_first=True)
+
+
+def iou_coeff(input: Tensor, target: Tensor, reduce_batch_first: bool = False, epsilon: float = 1e-6):
+    # Average of IoU for all batches, or for a single mask
+    assert input.size() == target.size()
+    assert input.dim() == 3 or not reduce_batch_first
+
+    sum_dim = (-1, -2) if input.dim() == 2 or not reduce_batch_first else (-1, -2, -3)
+
+    intersection = (input * target).sum(dim=sum_dim)
+    union = (input + target).sum(dim=sum_dim) - intersection
+    union = torch.where(union == 0, intersection, union)
+
+    iou = (intersection + epsilon) / (union + epsilon)
+    return iou.mean()
+
+
+def multiclass_iou_coeff(input: Tensor, target: Tensor, reduce_batch_first: bool = False, epsilon: float = 1e-6):
+    # Average of IoU for all classes
+    return iou_coeff(input.flatten(0, 1), target.flatten(0, 1), reduce_batch_first, epsilon)
+
+
+def iou_loss(input: Tensor, target: Tensor, multiclass: bool = False):
+    # IoU loss (objective to minimize) between 0 and 1
+    fn = multiclass_iou_coeff if multiclass else iou_coeff
+    return 1 - fn(input, target, reduce_batch_first=True)
