Merge branch 'main' into lmcafee/distrib-opt-nodupe

merge sequence parallelism's layernorm all-reduce into distributed optimizer.

README.md

-Megatron ([1](https://arxiv.org/pdf/1909.08053.pdf) and [2](https://arxiv.org/pdf/2104.04473.pdf)) is a large, powerful transformer developed by the Applied Deep Learning Research team at NVIDIA. This repository is for ongoing research on training large transformer language models at scale. We developed efficient, model-parallel (tensor and pipeline), and multi-node pre-training of transformer based models such as [GPT](https://arxiv.org/abs/2005.14165), [BERT](https://arxiv.org/pdf/1810.04805.pdf), and [T5](https://arxiv.org/abs/1910.10683) using mixed precision.
+Megatron ([1](https://arxiv.org/pdf/1909.08053.pdf), [2](https://arxiv.org/pdf/2104.04473.pdf), and [3](https://arxiv.org/pdf/2205.05198)) is a large, powerful transformer developed by the Applied Deep Learning Research team at NVIDIA. This repository is for ongoing research on training large transformer language models at scale. We developed efficient, model-parallel ([tensor](https://arxiv.org/pdf/1909.08053.pdf), [sequence](https://arxiv.org/pdf/2205.05198), and [pipeline](https://arxiv.org/pdf/2104.04473.pdf)), and multi-node pre-training of transformer based models such as [GPT](https://arxiv.org/abs/2005.14165), [BERT](https://arxiv.org/pdf/1810.04805.pdf), and [T5](https://arxiv.org/abs/1910.10683) using mixed precision.

 Below are some of the projects where we have directly used Megatron:
 * [BERT and GPT Studies Using Megatron](https://arxiv.org/pdf/1909.08053.pdf)
@@ -8,19 +8,26 @@ Below are some of the projects where we have directly used Megatron:
 * [Local Knowledge Powered Conversational Agents](https://arxiv.org/abs/2010.10150)
 * [MEGATRON-CNTRL: Controllable Story Generation with External Knowledge Using Large-Scale Language Models](https://www.aclweb.org/anthology/2020.emnlp-main.226.pdf)
 * [RACE Reading Comprehension Dataset Leaderboard](http://www.qizhexie.com/data/RACE_leaderboard.html)
-* [Scaling Language Model Training to a Trillion Parameters Using Megatron](https://arxiv.org/pdf/2104.04473.pdf)
 * [Training Question Answering Models From Synthetic Data](https://www.aclweb.org/anthology/2020.emnlp-main.468.pdf)
+* [Few-shot Instruction Prompts for Pretrained Language Models to Detect Social Biases](https://arxiv.org/abs/2112.07868)
+* [Exploring the Limits of Domain-Adaptive Training for Detoxifying Large-Scale Language Models](https://arxiv.org/abs/2202.04173)
+* [Using DeepSpeed and Megatron to Train Megatron-Turing NLG 530B, A Large-Scale Generative Language Model](https://arxiv.org/abs/2201.11990)
+* [Multi-Stage Prompting for Knowledgeable Dialogue Generation](https://arxiv.org/abs/2203.08745)

 Megatron is also used in [NeMo Megatron](https://developer.nvidia.com/nvidia-nemo#nemo-megatron), a framework to help enterprises overcome the challenges of building and training sophisticated natural language processing models with billions and trillions of parameters.

-Our codebase is capable of efficiently training very large (hundreds of billions of parameters) language models with both model and data parallelism. To demonstrate how the code scales with multiple GPUs and model sizes, we consider GPT models from 1 billion all the way to 1 trillion parameters. All models use a vocabulary size of 51,200 and a sequence length of 2048. We vary hidden size, number of attention heads, and number of layers to arrive at a specifc model size. As the model size increases, we also modestly increase the batch size. We leverage [NVIDIA's Selene supercomputer](https://www.top500.org/system/179842/) to perform scaling studies and use up to 3072 [A100](https://www.nvidia.com/en-us/data-center/a100/) GPUs for the largest model. Each cluster node has 8 NVIDIA 80GB A100 GPUs. The table below shows the model configurations along with the achieved FLOPs (both per GPU and aggregate over all GPUs). Note that these results are from benchmark runs and these models were not trained to convergence; however, the FLOPs are measured for end-to-end training, i.e., includes all operations including data loading, optimization, and even logging.
+Our codebase is capable of efficiently training very large (hundreds of billions of parameters) language models with both model and data parallelism. To demonstrate how the code scales with multiple GPUs and model sizes, we consider GPT models from 1 billion all the way to 1 trillion parameters. All models use a vocabulary size of 51,200 and a sequence length of 2048. We vary hidden size, number of attention heads, and number of layers to arrive at a specifc model size. As the model size increases, we also modestly increase the batch size. We leverage [NVIDIA's Selene supercomputer](https://www.top500.org/system/179842/) to perform scaling studies and use up to 3072 [A100](https://www.nvidia.com/en-us/data-center/a100/) GPUs for the largest model. Each cluster node has 8 NVIDIA 80GB A100 GPUs. The graph below shows that we scale nearly linear up to 1 trillion parameter models running on 3072 GPUs. Note that these results are from benchmark runs and these models were not trained to convergence; however, the FLOPs are measured for end-to-end training, i.e., includes all operations including data loading, optimization, and even logging.

-Additionally, the model parallel size column reports a combined tensor and pipeline parallelism degrees. For numbers larger than 8, typically tensor parallel of size 8 was used. So, for example, the 145B model reports the total model parallel size of 64, which means that this setup used TP=8 and PP=8.

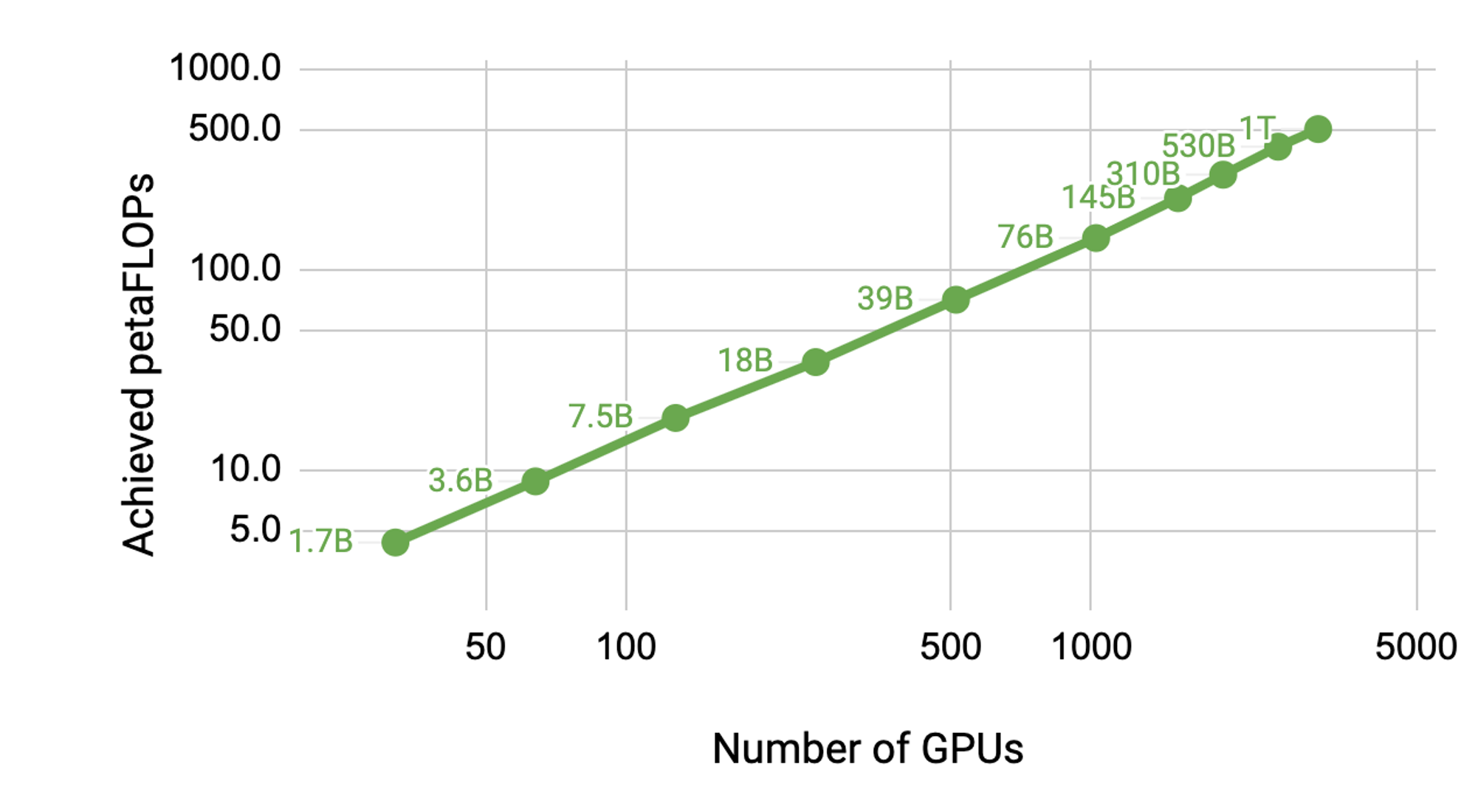

+![Scaling Graph](images/Achieved_petaFLOPs.png)

-![Cases](images/cases_april2021.png)
-
-All the cases from 1 billion to 1 trillion parameters achieve more than 43% half precision utilization, which is high for an end-to-end application. We observe that initially the utilization remains constant but as hidden size increases for larger models, utilization starts increasing and reaches 52% for the largest model. We also note that achieved aggregate petaFLOPs across all GPUs increases almost linearly with number of GPUs, demonstrating good weak scaling.
+The following table shows both model (MFU) and hardware (HFU) FLOPs utilization for select configurations up to 1T parameters (see [our paper](https://arxiv.org/pdf/2205.05198) for a description of how these are calculated). As the model size increases, we achieve better GPU utilization and for the one trillion parameter model, we reach a MFU and HFU of 56.3% and 57.0%, respectively. Note that these numbers are also measured on benchmark runs and in this case are measured using a data parallel size of one. Data parallelism introduces some overhead due to the gradient all-reduce required between the data parallel groups. However, for large transformer models, this overhead is not large and can almost entirely eliminted by overlapping the gradient all-reduce with backpropagation.

+| Model Size | Model FLOPs Utilization | Hardware FLOPs Utilization |
+| :---: | :---: | :---: |
+| 22B   | 41.5% | 43.7% |
+| 175B  | 51.4% | 52.8% |
+| 530B  | 56.0% | 57.0% |
+| 1T    | 56.3% | 57.0% |

 # Contents
    * [Contents](#contents)
@@ -257,7 +264,9 @@ The `examples/pretrain_{bert,gpt,t5}_distributed.sh` scripts use the PyTorch dis

 We use two types of parallelism: data and model parallelism. We facilitate two distributed data parallel implementations: a simple one of our own that performs gradient all-reduce at the end of back propagation step, and Torch's distributed data parallel wrapper that overlaps gradient reduction with back propagation computation. To switch between these two options use `--DDP-impl local` or `--DDP-impl torch`, respectively. As expected, Torch distributed data parallelism is more efficient at larger model sizes. For example, for the 8.3 billion parameters model running on 512 GPUs, the scaling increases from 60% to 76% when Torch's distributed data parallel is used. However, the overlapping method requires more memory and for some configurations (e.g., 2.5 billion parameters using 2-way model parallel and 1.2 billion parameters with no model parallel) can make the overall training slower as a result. We empirically found that using a smaller model in those cases improves the training time.

-Second, we developed a simple and efficient two-dimensional model-parallel approach. To use tensor model parallelism (splitting execution of a single transformer module over multiple GPUs), add the `--tensor-model-parallel-size` flag to specify the number of GPUs among which to split the model, along with the arguments passed to the distributed launcher as mentioned above. To use pipeline model parallelism (sharding the transformer modules into stages with an equal number of transformer modules on each stage, and then pipelining execution by breaking the batch into smaller microbatches), use the `--pipeline-model-parallel-size` flag to specify the number of stages to split the model into (e.g., splitting a model with 24 transformer layers across 4 stages would mean each stage gets 6 transformer layers each).
+Second, we developed a simple and efficient two-dimensional model-parallel approach. To use tensor model parallelism (splitting execution of a single transformer module over multiple GPUs), add the `--tensor-model-parallel-size` flag to specify the number of GPUs among which to split the model, along with the arguments passed to the distributed launcher as mentioned above. To use sequence parallelism specify `--sequence-parallel`, which requires tensor model parallel as it split among the same GPUs.
+
+To use pipeline model parallelism (sharding the transformer modules into stages with an equal number of transformer modules on each stage, and then pipelining execution by breaking the batch into smaller microbatches), use the `--pipeline-model-parallel-size` flag to specify the number of stages to split the model into (e.g., splitting a model with 24 transformer layers across 4 stages would mean each stage gets 6 transformer layers each).

 <!-- The number of microbatches in a per-pipeline minibatch is controlled by the `--num-microbatches-in-minibatch` argument. With `WORLD_SIZE` GPUs, `TENSOR_MP_SIZE` tensor-model-parallel size, `PIPELINE_MP_SIZE` pipeline-model-parallel-size, `WORLD_SIZE`/(`TENSOR_MP_SIZE` * `PIPELINE_MP_SIZE`) GPUs will be used for data parallelism. The default values for `--tensor-model-parallel-size` and `--pipeline-model-parallel-size` is 1, which will not implement either form of model parallelism. -->

@@ -291,6 +300,7 @@ python -m torch.distributed.launch $DISTRIBUTED_ARGS ./pretrain_<model>.py \
                 --data-path $DATA_PATH \
                 --tensor-model-parallel-size $TENSOR_MP_SIZE \
                 --pipeline-model-parallel-size $PIPELINE_MP_SIZE \
+                --sequence-parallel \
                 --DDP-impl torch
 </pre>

@@ -298,11 +308,13 @@ The interleaved pipelining schedule (more details in Section 2.2.2 of [our paper

 ## Activation Checkpointing and Recomputation

-To reduce GPU memory usage so deploy a large model to a training system, we support activation checkpointing and recomputation. We use a Transformer layer as the unit of checkpointing because the activation size bloats in the middle of a Transformer layer so checkpointing the input of a Transformer layer is storage-efficient. We support two activation checkpointing methods: `uniform` and `block`.
+To reduce GPU memory usage so deploy a large model to a training system, we support activation checkpointing and recomputation. We support two levels of recompute granularity: `selective` and `full`. Selective recomputation is the default and recommended in almost all cases. It saves the activations that take less space and are expensive to recompute and recomputes activations that take a lot of space but are relatively cheap to recompute (see [our paper](https://arxiv.org/pdf/2205.05198) for details). To enable selective activation recompute simply use `--recompute-activations`.
+
+For cases where memory is very tight, `full` checkpointing saves just the inputs to a transformer layer, or a block of transformer layers, and recomputes everything else. To turn on full activation recompute use `--recompute-granularity full`. When using full activation recomputation, there are two methods: `uniform` and `block`, chosen using the `--recompute-method` argument.

-Uniform method uniformly divides the Transformer layers into groups of layers and stores the input activations of each group in the memory. The baseline group size is 1 and, in this case, the input activation of each Transformer layer is checkpointed. When the GPU memory is insufficient, increasing the number of layers per group reduces the memory usage thus enables running a bigger model. For example, when using the number of layers per group of 4, the input activation of each group of 4 Transformer layers is checkpointed.
+* Uniform method uniformly divides the Transformer layers into groups of layers and stores the input activations of each group in the memory. The baseline group size is 1 and, in this case, the input activation of each Transformer layer is checkpointed. When the GPU memory is insufficient, increasing the number of layers per group reduces the memory usage thus enables running a bigger model. For example, when using the number of layers per group of 4, the input activation of each group of 4 Transformer layers is checkpointed.

-Block method checkpoints the input activations of a set number of individual Transformer layers per pipeline stage and do the rest of layers without any checkpointing. This method can be used to skip checkpointing some Transformer layers until the GPU memory is fully used, which is applicable only when there is unused GPU memory. Checkpointing fewer transformer layers avoids unnecessary activation recomputation in the backprop thus improves training performance. For example, when we specify 5 layers to checkpoint of 8 layers per pipeline stage, the input activations of only the first 5 Transformer layers are checkpointed and activation recomputation for the rest 3 layers is not needed in the backprop.
+* Block method checkpoints the input activations of a set number of individual Transformer layers per pipeline stage and do the rest of layers without any checkpointing. This method can be used to skip checkpointing some Transformer layers until the GPU memory is fully used, which is applicable only when there is unused GPU memory. Checkpointing fewer transformer layers avoids unnecessary activation recomputation in the backprop thus improves training performance. For example, when we specify 5 layers to checkpoint of 8 layers per pipeline stage, the input activations of only the first 5 Transformer layers are checkpointed and activation recomputation for the rest 3 layers is not needed in the backprop.


 ## GPT-3 Example

examples/pretrain_gpt_distributed_with_mp.sh

@@ -19,6 +19,7 @@ python -m torch.distributed.launch $DISTRIBUTED_ARGS \
        pretrain_gpt.py \
        --tensor-model-parallel-size 2 \
        --pipeline-model-parallel-size 2 \
+       --sequence-parallel \
        --num-layers 24 \
        --hidden-size 1024 \
        --num-attention-heads 16 \

megatron/arguments.py

@@ -103,14 +103,20 @@ def parse_args(extra_args_provider=None, defaults={},
     assert args.model_parallel_size is None, '--model-parallel-size is no ' \
         'longer valid, use --tensor-model-parallel-size instead'
     del args.model_parallel_size
+
     if args.checkpoint_activations:
-        args.activations_checkpoint_method = 'uniform'
+        args.recompute_granularity = 'full'
+        args.recompute_method = 'uniform'
         if args.rank == 0:
             print('--checkpoint-activations is no longer valid, '
-                  'use --activation-checkpoint-method instead. '
-                  'Defaulting to activation-checkpoint-method=uniform.')
+                  'use --recompute-granularity and --recompute-method  instead. '
+                  'Defaulting to recompute-granularity=full and recompute-method=uniform.')
     del args.checkpoint_activations

+    if args.recompute_activations:
+        args.recompute_granularity = 'selective'
+    del args.recompute_activations
+
     # Set input defaults.
     for key in defaults:
         # For default to be valid, it should not be provided in the
@@ -284,19 +290,32 @@ def parse_args(extra_args_provider=None, defaults={},
                   'pytorch v1.11 (nvidia pytorch container paired with v1.11). '
                   'Defaulting to no_persist_layer_norm=True')

-    # Activation checkpointing.
-    if args.distribute_checkpointed_activations:
+    # Activation recomputing.
+    if args.distribute_saved_activations:
         assert args.tensor_model_parallel_size > 1, 'can distribute ' \
-            'checkpointed activations only across tensor model ' \
+            'recomputed activations only across tensor model ' \
             'parallel groups'
-        assert args.activations_checkpoint_method is not None, \
-            'for distributed checkpoint activations to work you '\
-            'need to use a activation-checkpoint method '
+        assert args.recompute_granularity == 'full', \
+            'distributed recompute activations is only '\
+            'application to full recompute granularity'
+        assert args.recompute_method is not None, \
+            'for distributed recompute activations to work you '\
+            'need to use a recompute method '
         assert TORCH_MAJOR >= 1 and TORCH_MINOR >= 10, \
-            'distributed checkpoint activations are supported for pytorch ' \
+            'distributed recompute activations are supported for pytorch ' \
             'v1.10 and above (Nvidia Pytorch container >= 21.07). Current ' \
             'pytorch version is v%s.%s.' % (TORCH_MAJOR, TORCH_MINOR)

+    if args.recompute_granularity == 'selective':
+        assert args.recompute_method is None, \
+            'recompute method is not yet supported for ' \
+            'selective recomputing granularity'
+
+    # disable async_tensor_model_parallel_allreduce when
+    # model parallel memory optimization is enabled
+    if args.sequence_parallel:
+        args.async_tensor_model_parallel_allreduce = False
+
     _print_args(args)
     return args

@@ -477,27 +496,40 @@ def _add_training_args(parser):
                        ' (1024 - 16) / 8 = 126 intervals will increase'
                        'the batch size linearly to 1024. In each interval'
                        'we will use approximately 300000 / 126 = 2380 samples.')
-    group.add_argument('--checkpoint-activations', action='store_true',
-                       help='Checkpoint activation to allow for training '
+    group.add_argument('--recompute-activations', action='store_true',
+                       help='recompute activation to allow for training '
                        'with larger models, sequences, and batch sizes.')
-    group.add_argument('--distribute-checkpointed-activations',
+    group.add_argument('--recompute-granularity', type=str, default=None,
+                       choices=['full', 'selective'],
+                       help='Checkpoint activations to allow for training '
+                       'with larger models, sequences, and batch sizes. '
+                       'It is supported at two granularities 1) full: '
+                       'whole transformer layer is recomputed, '
+                       '2) selective: core attention part of the transformer '
+                       'layer is recomputed.')
+    group.add_argument('--distribute-saved-activations',
                        action='store_true',
-                       help='If set, distribute checkpointed activations '
+                       help='If set, distribute recomputed activations '
                        'across model parallel group.')
-    group.add_argument('--activations-checkpoint-method', type=str, default=None,
+    group.add_argument('--recompute-method', type=str, default=None,
                        choices=['uniform', 'block'],
                        help='1) uniform: uniformly divide the total number of '
-                       'Transformer layers and checkpoint the input activation of '
-                       'each divided chunk, '
-                       '2) checkpoint the input activations of only a set number of '
+                       'Transformer layers and recompute the input activation of '
+                       'each divided chunk at specified granularity, '
+                       '2) recompute the input activations of only a set number of '
                        'individual Transformer layers per pipeline stage and do the '
-                       'rest without any checkpointing'
-                       'default) do not apply activations checkpoint to any layers')
-    group.add_argument('--activations-checkpoint-num-layers', type=int, default=1,
+                       'rest without any recomputing at specified granularity'
+                       'default) do not apply activations recompute to any layers')
+    group.add_argument('--recompute-num-layers', type=int, default=1,
                        help='1) uniform: the number of Transformer layers in each '
-                       'uniformly divided checkpoint unit, '
+                       'uniformly divided recompute unit, '
                        '2) block: the number of individual Transformer layers '
-                       'to checkpoint within each pipeline stage.')
+                       'to recompute within each pipeline stage.')
+
+    # deprecated
+    group.add_argument('--checkpoint-activations', action='store_true',
+                       help='Checkpoint activation to allow for training '
+                       'with larger models, sequences, and batch sizes.')
     group.add_argument('--train-iters', type=int, default=None,
                        help='Total number of iterations to train over all '
                        'training runs. Note that either train-iters or '
@@ -546,6 +578,8 @@ def _add_training_args(parser):
                        'This kernel supports only a set of hidden sizes. Please '
                        'check persist_ln_hidden_sizes if your hidden '
                        'size is supported.')
+    group.add_argument('--sequence-parallel', action='store_true',
+                       help='Enable sequence parallel optimization.')
     group.add_argument('--no-gradient-accumulation-fusion',
                        action='store_false',
                        help='Disable fusing gradient accumulation to weight '

megatron/data/indexed_dataset.py

@@ -295,14 +295,19 @@ class IndexedDatasetBuilder(object):
         index = IndexedDataset(another_file)
         assert index.dtype == self.dtype

+        doc_offset = len(self.sizes)
+
         begin = self.data_offsets[-1]
-        for offset in index.data_offsets[1:]:
-            self.data_offsets.append(begin + offset)
+        for data_offset in index.data_offsets[1:]:
+            self.data_offsets.append(begin + data_offset)
         self.sizes.extend(index.sizes)
+
         begin = self.dim_offsets[-1]
         for dim_offset in index.dim_offsets[1:]:
             self.dim_offsets.append(begin + dim_offset)

+        self.doc_idx.extend((doc_offset + index.doc_idx)[1:])
+
         with open(data_file_path(another_file), 'rb') as f:
             while True:
                 data = f.read(1024)
@@ -556,8 +561,9 @@ class MMapIndexedDatasetBuilder(object):
         index = MMapIndexedDataset.Index(index_file_path(another_file))
         assert index.dtype == self._dtype

-        for size in index.sizes:
-            self._sizes.append(size)
+        offset = len(self._sizes)
+        self._sizes.extend(index.sizes)
+        self._doc_idx.extend((offset + index.doc_idx)[1:])

         # Concatenate data
         with open(data_file_path(another_file), 'rb') as f:

megatron/initialize.py

@@ -31,6 +31,8 @@ from megatron import mpu
 from megatron.global_vars import set_global_variables
 from megatron.mpu import (set_tensor_model_parallel_rank,
                           set_tensor_model_parallel_world_size)
+from megatron.model.transformer import bias_dropout_add_fused_train
+from megatron.model.fused_bias_gelu import bias_gelu


 def initialize_megatron(extra_args_provider=None, args_defaults={},
@@ -64,9 +66,6 @@ def initialize_megatron(extra_args_provider=None, args_defaults={},
             print('> setting random seeds to {} ...'.format(args.seed))
         _set_random_seed(args.seed, args.data_parallel_random_init)

-    # Set pytorch JIT layer fusion options.
-    _set_jit_fusion_options()
-
     args = get_args()
     if  args.lazy_mpu_init:
         args.use_cpu_initialization=True
@@ -230,7 +229,7 @@ def write_args_to_tensorboard():
                             global_step=args.iteration)


-def _set_jit_fusion_options():
+def set_jit_fusion_options():
     """Set PyTorch JIT layer fusion options."""
     # flags required to enable jit fusion kernels
     TORCH_MAJOR = int(torch.__version__.split('.')[0])
@@ -251,3 +250,51 @@ def _set_jit_fusion_options():
         torch._C._jit_override_can_fuse_on_cpu(True)
         torch._C._jit_override_can_fuse_on_gpu(True)

+    _warmup_jit_function()
+
+
+def _warmup_jit_function():
+    """ Compilie JIT functions before the main training steps """
+    args = get_args()
+    if args.bf16:
+        dtype = torch.bfloat16
+    elif args.fp16:
+        dtype = torch.float16
+    else:
+        dtype = torch.float32
+
+    # Warmup fused bias+gelu
+    bias = torch.rand(args.ffn_hidden_size // args.tensor_model_parallel_size,
+                      dtype=dtype, device='cuda')
+    input = torch.rand((args.seq_length, args.micro_batch_size,
+                        args.ffn_hidden_size // args.tensor_model_parallel_size),
+                       dtype=dtype, device='cuda')
+    # Warmup JIT fusions with the input grad_enable state of both forward
+    # prop and recomputation
+    for bias_grad, input_grad in zip([True, True], [False, True]):
+        bias.requires_grad, input.requires_grad = bias_grad, input_grad
+        for _ in range(5):
+            output = bias_gelu(bias, input)
+    del bias, input, output
+
+    # Warmup fused bias+dropout+add
+    if args.sequence_parallel:
+        seq_length = args.seq_length // mpu.get_tensor_model_parallel_world_size()
+    else:
+        seq_length = args.seq_length
+    input = torch.rand((seq_length, args.micro_batch_size, args.hidden_size),
+                       dtype=dtype, device='cuda')
+    residual = torch.rand((seq_length, args.micro_batch_size, args.hidden_size),
+                          dtype=dtype, device='cuda')
+    bias = torch.rand((args.hidden_size), dtype=dtype, device='cuda').expand_as(residual)
+    dropout_rate = 0.1
+    # Warmup JIT fusions with the input grad_enable state of both forward
+    # prop and recomputation
+    for input_grad, bias_grad, residual_grad in zip([False, True], [True, True], [True, True]):
+        input.requires_grad = input_grad
+        bias.requires_grad = bias_grad
+        residual.requires_grad = residual_grad
+        for _ in range(5):
+            output = bias_dropout_add_fused_train(input, bias, residual, dropout_rate)
+    del bias, input, residual, output
+    torch.cuda.empty_cache()

megatron/model/bert_model.py

@@ -78,7 +78,12 @@ class BertLMHead(MegatronModule):
         self.parallel_output = parallel_output

         self.dense = get_linear_layer(hidden_size, hidden_size, init_method)
-        self.layernorm = LayerNorm(hidden_size, eps=layernorm_epsilon)
+        setattr(self.dense.weight, 'sequence_parallel', args.sequence_parallel)
+        setattr(self.dense.bias, 'sequence_parallel', args.sequence_parallel)
+
+        self.layernorm = LayerNorm(hidden_size,
+                                   eps=layernorm_epsilon,
+                                   sequence_parallel=args.sequence_parallel)
         self.gelu = torch.nn.functional.gelu
         if args.openai_gelu:
             self.gelu = openai_gelu
@@ -110,14 +115,20 @@ def post_language_model_processing(lm_output, pooled_output,
         binary_logits = binary_head(pooled_output)

     if lm_labels is None:
-        return lm_logits, binary_logits
+        # [s b h] => [b s h]
+        return lm_logits.transpose(0,1).contiguous(), binary_logits
     else:
+        # [b s] => [s b]
+        lm_labels = lm_labels.transpose(0,1).contiguous()
+        # lm_logits : [s, b, h] and lm_labels: [s, b]
         if fp16_lm_cross_entropy:
             assert lm_logits.dtype == torch.half
             lm_loss = mpu.vocab_parallel_cross_entropy(lm_logits, lm_labels)
         else:
             lm_loss = mpu.vocab_parallel_cross_entropy(lm_logits.float(),
                                                        lm_labels)
+        # [s, b] => [b s]
+        lm_loss = lm_loss.transpose(0,1).contiguous()
         return lm_loss, binary_logits



megatron/model/biencoder_model.py

@@ -291,7 +291,7 @@ class PretrainedBertModel(MegatronModule):
         pool_mask = (input_ids == self.pad_id).unsqueeze(2)

         # Taking the representation of the [CLS] token of BERT
-        pooled_output = lm_output[:, 0, :]
+        pooled_output = lm_output[0, :, :]

         # Converting to float16 dtype
         pooled_output = pooled_output.to(lm_output.dtype)

megatron/model/fused_layer_norm.py

@@ -69,7 +69,9 @@ class FusedLayerNormAffineFunction(torch.autograd.Function):

 class MixedFusedLayerNorm(torch.nn.Module):

-  def __init__(self, normalized_shape, eps=1e-5, no_persist_layer_norm=True):
+  def __init__(self, normalized_shape, eps=1e-5,
+               no_persist_layer_norm=True,
+               sequence_parallel=False):
         super(MixedFusedLayerNorm, self).__init__()

         global fused_mix_prec_layer_norm_cuda
@@ -94,6 +96,11 @@ class MixedFusedLayerNorm(torch.nn.Module):
         self.bias = Parameter(torch.Tensor(*normalized_shape))
         self.reset_parameters()
         self.no_persist_layer_norm = no_persist_layer_norm
+        self.sequence_parallel = sequence_parallel
+
+        # set sequence parallelism flag on weight and bias parameters
+        setattr(self.weight, 'sequence_parallel', self.sequence_parallel)
+        setattr(self.bias, 'sequence_parallel', self.sequence_parallel)


   def reset_parameters(self):

megatron/model/gpt_model.py

@@ -32,20 +32,26 @@ def post_language_model_processing(lm_output, labels, logit_weights,
                                    parallel_output,
                                    fp16_lm_cross_entropy):

-    # Output.
+    # Output. Format [s b h]
     output = parallel_lm_logits(
         lm_output,
         logit_weights,
         parallel_output)

     if labels is None:
-        return output
+        # [s b h] => [b s h]
+        return output.transpose(0,1).contiguous()
     else:
+        # [b s] => [s b]
+        labels = labels.transpose(0,1).contiguous()
         if fp16_lm_cross_entropy:
             assert output.dtype == torch.half
             loss = mpu.vocab_parallel_cross_entropy(output, labels)
         else:
             loss = mpu.vocab_parallel_cross_entropy(output.float(), labels)
+
+        # [s b] => [b, s]
+        loss = loss.transpose(0,1).contiguous()
         return loss



megatron/model/language_model.py

@@ -26,23 +26,29 @@ from megatron.model.transformer import ParallelTransformer
 from megatron.model.utils import get_linear_layer
 from megatron.model.utils import init_method_normal, scaled_init_method_normal

+
 def parallel_lm_logits(input_, word_embeddings_weight, parallel_output,
                        bias=None):
     """LM logits using word embedding weights."""
     args = get_args()
     # Parallel logits.
-    if args.async_tensor_model_parallel_allreduce:
+    if args.async_tensor_model_parallel_allreduce or\
+            args.sequence_parallel:
         input_parallel = input_
-        async_grad_allreduce = mpu.get_tensor_model_parallel_world_size() > 1
+        model_parallel = mpu.get_tensor_model_parallel_world_size() > 1
+        async_grad_allreduce = args.async_tensor_model_parallel_allreduce and \
+            model_parallel and not args.sequence_parallel
     else:
         input_parallel = mpu.copy_to_tensor_model_parallel_region(input_)
         async_grad_allreduce = False
+
     # Matrix multiply.
-    logits_parallel = mpu.LinearWithGradAccumulationAndAsyncAllreduce.apply(
-            input_parallel, word_embeddings_weight, bias,
-            args.gradient_accumulation_fusion,
-            async_grad_allreduce)
+    logits_parallel = mpu.LinearWithGradAccumulationAndAsyncCommunication.apply(
+        input_parallel, word_embeddings_weight, bias,
+        args.gradient_accumulation_fusion,
+        async_grad_allreduce, args.sequence_parallel)
     # Gather if needed.
+
     if parallel_output:
         return logits_parallel

@@ -98,12 +104,23 @@ class Pooler(MegatronModule):

     def __init__(self, hidden_size, init_method):
         super(Pooler, self).__init__()
+        args = get_args()
         self.dense = get_linear_layer(hidden_size, hidden_size, init_method)
+        self.sequence_parallel = args.sequence_parallel
+

     def forward(self, hidden_states, sequence_index=0):
-        # hidden_states: [b, s, h]
+        # hidden_states: [s, b, h]
         # sequence_index: index of the token to pool.
-        pooled = hidden_states[:, sequence_index, :]
+
+        # gather data along sequence dimensions
+        # same pooler is run on all tensor parallel nodes
+        if self.sequence_parallel:
+            hidden_states = mpu.gather_from_sequence_parallel_region(
+                hidden_states,
+                to_model_parallel=False)
+
+        pooled = hidden_states[sequence_index, :, :]
         pooled = self.dense(pooled)
         pooled = torch.tanh(pooled)
         return pooled
@@ -164,6 +181,8 @@ class Embedding(MegatronModule):
         else:
             self.tokentype_embeddings = None

+        self.fp32_residual_connection = args.fp32_residual_connection
+        self.sequence_parallel = args.sequence_parallel
         # Embeddings dropout
         self.embedding_dropout = torch.nn.Dropout(embedding_dropout_prob)

@@ -205,8 +224,20 @@ class Embedding(MegatronModule):
         else:
             assert self.tokentype_embeddings is None

+        # Data format change to avoid explicit tranposes : [b s h] --> [s b h].
+        embeddings = embeddings.transpose(0, 1).contiguous()
+
+        # If the input flag for fp32 residual connection is set, convert for float.
+        if self.fp32_residual_connection:
+            embeddings = embeddings.float()
+
         # Dropout.
-        embeddings = self.embedding_dropout(embeddings)
+        if self.sequence_parallel:
+            embeddings = mpu.scatter_to_sequence_parallel_region(embeddings)
+            with mpu.get_cuda_rng_tracker().fork():
+                embeddings = self.embedding_dropout(embeddings)
+        else:
+            embeddings = self.embedding_dropout(embeddings)

         return embeddings


megatron/model/t5_model.py

@@ -152,19 +152,24 @@ class T5Model(MegatronModule):

         if self.post_process and self.add_decoder:
             decoder_output, encoder_output = lm_output
-            # Output.
+            # Output. [s, b, h]
             lm_logits = self.lm_head(decoder_output,
                                      self.word_embeddings_weight())

             if lm_labels is None:
-                return lm_logits
+                # [s b h] => [b s h]
+                return lm_logits.transpose(0,1).contiguous()
             else:
+                # [b s] => [s b]
+                lm_labels = lm_labels.transpose(0,1).contiguous()
                 if self.fp16_lm_cross_entropy:
                     assert lm_logits.dtype == torch.half
                     lm_loss = mpu.vocab_parallel_cross_entropy(lm_logits, lm_labels)
                 else:
                     lm_loss = mpu.vocab_parallel_cross_entropy(lm_logits.float(),
                                                                lm_labels)
+                # [s b] => [b s]
+                lm_loss = lm_loss.transpose(0,1).contiguous()
             return lm_loss
         elif self.add_decoder and not self.add_encoder:
             decoder_output, encoder_output = lm_output

megatron/model/vision/vit_backbone.py

@@ -21,7 +21,6 @@ import torch
 import apex
 import torch.nn.functional as F
 from megatron import get_args
-from megatron.model import LayerNorm
 from megatron.model.transformer import ParallelTransformer
 from megatron.model.utils import (
     get_linear_layer,
@@ -148,6 +147,7 @@ class VitBackbone(MegatronModule):
                  post_process=True,
                  class_token=True,
                  single_token_output=False,
+                 post_layer_norm=True,
                  drop_path_rate=0.0):
         super(VitBackbone, self).__init__(share_word_embeddings=False)
         args = get_args()
@@ -165,6 +165,7 @@ class VitBackbone(MegatronModule):
         self.pre_process = pre_process
         self.post_process = post_process
         self.class_token = class_token
+        self.post_layer_norm = post_layer_norm
         self.hidden_size = args.hidden_size
         self.patch_dim = args.patch_dim
         self.img_h = args.img_h
@@ -218,6 +219,7 @@ class VitBackbone(MegatronModule):
             self.scaled_init_method,
             pre_process=self.pre_process,
             post_process=self.post_process,
+            post_layer_norm=self.post_layer_norm,
             drop_path_rate=self.drop_path_rate
         )


megatron/mpu/__init__.py

@@ -49,18 +49,21 @@ from .initialize import get_virtual_pipeline_model_parallel_rank, set_virtual_pi
 from .initialize import initialize_model_parallel
 from .initialize import model_parallel_is_initialized

-from .layers import LinearWithGradAccumulationAndAsyncAllreduce
+from .layers import LinearWithGradAccumulationAndAsyncCommunication
 from .layers import ColumnParallelLinear
 from .layers import RowParallelLinear
 from .layers import VocabParallelEmbedding
 from .layers import (set_tensor_model_parallel_attributes,
                      set_defaults_if_not_set_tensor_model_parallel_attributes,
                      copy_tensor_model_parallel_attributes)
-
-from .mappings import copy_to_tensor_model_parallel_region
-from .mappings import gather_from_tensor_model_parallel_region
-from .mappings import reduce_from_tensor_model_parallel_region
-from .mappings import scatter_to_tensor_model_parallel_region
+
+from .mappings import  copy_to_tensor_model_parallel_region
+from .mappings import  reduce_from_tensor_model_parallel_region
+from .mappings import  scatter_to_tensor_model_parallel_region
+from .mappings import  gather_from_tensor_model_parallel_region
+from .mappings import  scatter_to_sequence_parallel_region
+from .mappings import  gather_from_sequence_parallel_region
+from .mappings import  reduce_scatter_to_sequence_parallel_region

 from .random import checkpoint
 from .random import get_cuda_rng_tracker

megatron/mpu/layers.py

@@ -30,20 +30,21 @@ from .initialize import get_tensor_model_parallel_world_size
 from .initialize import get_tensor_model_parallel_group
 from .mappings import copy_to_tensor_model_parallel_region
 from .mappings import gather_from_tensor_model_parallel_region
+from .mappings import gather_from_sequence_parallel_region
 from .mappings import reduce_from_tensor_model_parallel_region
 from .mappings import scatter_to_tensor_model_parallel_region
+from .mappings import reduce_scatter_to_sequence_parallel_region
+
 from .random import get_cuda_rng_tracker
 from .utils import divide
 from .utils import split_tensor_along_last_dim
 from .utils import VocabUtility
 from megatron import get_args

-
 _MODEL_PARALLEL_ATTRIBUTE_DEFAULTS = {'tensor_model_parallel': False,
                                       'partition_dim': -1,
                                       'partition_stride': 1}

-
 def param_is_not_tensor_parallel_duplicate(param):
     return (hasattr(param, 'tensor_model_parallel') and
             param.tensor_model_parallel) or (
@@ -199,35 +200,80 @@ class VocabParallelEmbedding(torch.nn.Module):
         return output


-class LinearWithGradAccumulationAndAsyncAllreduce(torch.autograd.Function):
+class LinearWithGradAccumulationAndAsyncCommunication(torch.autograd.Function):
     """
-    Linear layer execution with asynchronous all-reduce and gradient accumulation
+    Linear layer execution with asynchronous communication and gradient accumulation
     fusion in backprop.
     """
+
     @staticmethod
     def forward(ctx, input, weight, bias, gradient_accumulation_fusion,
-                async_grad_allreduce):
+                async_grad_allreduce, sequence_parallel):
         ctx.save_for_backward(input, weight)
         ctx.use_bias = bias is not None
         ctx.gradient_accumulation_fusion = gradient_accumulation_fusion
         ctx.async_grad_allreduce = async_grad_allreduce
-        output = torch.matmul(input, weight.t())
+        ctx.sequence_parallel = sequence_parallel
+
+        if sequence_parallel:
+            world_size = get_tensor_model_parallel_world_size()
+            dim_size = list(input.size())
+            dim_size[0] = dim_size[0] * world_size
+
+            all_gather_buffer = \
+                torch.empty(dim_size, dtype=input.dtype,
+                            device=torch.cuda.current_device(),
+                            requires_grad=False)
+            torch.distributed._all_gather_base(
+                all_gather_buffer,
+                input,
+                group=get_tensor_model_parallel_group())
+            total_input = all_gather_buffer
+        else:
+            total_input = input
+
+        output = torch.matmul(total_input, weight.t())
         if bias is not None:
             output = output + bias
         return output

     @staticmethod
     def backward(ctx, grad_output):
-        import fused_dense_cuda
         input, weight = ctx.saved_tensors
         use_bias = ctx.use_bias
+
+        if ctx.sequence_parallel:
+            world_size = get_tensor_model_parallel_world_size()
+            dim_size = list(input.size())
+            dim_size[0] = dim_size[0] * world_size
+
+            all_gather_buffer = \
+                torch.empty(dim_size, dtype=input.dtype,
+                            device=torch.cuda.current_device(),
+                            requires_grad=False)
+
+            handle = torch.distributed._all_gather_base(
+                all_gather_buffer,
+                input,
+                group=get_tensor_model_parallel_group(), async_op=True)
+
+            # Delay the start of intput gradient computation shortly (3us) to have
+            # gather scheduled first and have GPU resources allocated
+            _ = torch.empty(1, device=grad_output.device) + 1
+            total_input = all_gather_buffer
+        else:
+            total_input = input
         grad_input = grad_output.matmul(weight)

+        if ctx.sequence_parallel:
+            handle.wait()
+
         # Convert the tensor shapes to 2D for execution compatibility
         grad_output = grad_output.view(grad_output.shape[0] * grad_output.shape[1],
                                        grad_output.shape[2])
-        input = input.view(input.shape[0] * input.shape[1], input.shape[2])
-
+        total_input = total_input.view(total_input.shape[0] * total_input.shape[1],
+				       total_input.shape[2])
+
         if ctx.async_grad_allreduce:
             # Asynchronous all-reduce
             handle = torch.distributed.all_reduce(
@@ -235,15 +281,38 @@ class LinearWithGradAccumulationAndAsyncAllreduce(torch.autograd.Function):
             # Delay the start of weight gradient computation shortly (3us) to have
             # all-reduce scheduled first and have GPU resources allocated
             _ = torch.empty(1, device=grad_output.device) + 1
+
+        if ctx.sequence_parallel:
+            assert not ctx.async_grad_allreduce
+            dim_size = list(input.size())
+            sub_grad_input = torch.empty(dim_size, dtype=input.dtype,
+                                         device=torch.cuda.current_device(),
+                                         requires_grad=False)
+            # reduce_scatter
+            handle = torch.distributed._reduce_scatter_base(sub_grad_input, grad_input,
+                                                            group=get_tensor_model_parallel_group(),
+                                                            async_op=True)
+            # Delay the start of weight gradient computation shortly (3us) to have
+            # reduce scatter scheduled first and have GPU resources allocated
+            _ = torch.empty(1, device=grad_output.device) + 1
+
+
         if ctx.gradient_accumulation_fusion:
-            fused_dense_cuda.wgrad_gemm_accum_fp32(input, grad_output, weight.main_grad)
+            import fused_dense_cuda
+            fused_dense_cuda.wgrad_gemm_accum_fp32(total_input, grad_output, weight.main_grad)
             grad_weight = None
         else:
-            grad_weight = grad_output.t().matmul(input)
+            grad_weight = grad_output.t().matmul(total_input)
         grad_bias = grad_output.sum(dim=0) if use_bias else None
+
+        if ctx.sequence_parallel:
+            handle.wait()
+            return sub_grad_input, grad_weight, grad_bias, None, None, None
+
         if ctx.async_grad_allreduce:
             handle.wait()
-        return grad_input, grad_weight, grad_bias, None, None
+
+        return grad_input, grad_weight, grad_bias, None, None, None


 class ColumnParallelLinear(torch.nn.Module):
@@ -323,23 +392,28 @@ class ColumnParallelLinear(torch.nn.Module):
         self.async_tensor_model_parallel_allreduce = (
                 args.async_tensor_model_parallel_allreduce and
                 world_size > 1)
+        self.sequence_parallel = (
+                args.sequence_parallel and
+                world_size > 1)
+        assert not self.async_tensor_model_parallel_allreduce or \
+            not self.sequence_parallel
         self.gradient_accumulation_fusion = args.gradient_accumulation_fusion

-
     def forward(self, input_):
         bias = self.bias if not self.skip_bias_add else None

-        if self.async_tensor_model_parallel_allreduce:
+        if self.async_tensor_model_parallel_allreduce or \
+                self.sequence_parallel:
             input_parallel = input_
         else:
-            # Set up backprop all-reduce.
             input_parallel = copy_to_tensor_model_parallel_region(input_)
         # Matrix multiply.
-        output_parallel = LinearWithGradAccumulationAndAsyncAllreduce.apply(
+        output_parallel = LinearWithGradAccumulationAndAsyncCommunication.apply(
             input_parallel, self.weight, bias, self.gradient_accumulation_fusion,
-            self.async_tensor_model_parallel_allreduce)
+            self.async_tensor_model_parallel_allreduce, self.sequence_parallel)
         if self.gather_output:
             # All-gather across the partitions.
+            assert not self.sequence_parallel
             output = gather_from_tensor_model_parallel_region(output_parallel)
         else:
             output = output_parallel
@@ -420,26 +494,34 @@ class RowParallelLinear(torch.nn.Module):
                 self.bias = Parameter(torch.empty(
                     self.output_size, device=torch.cuda.current_device(),
                     dtype=args.params_dtype))
+            setattr(self.bias, 'sequence_parallel', args.sequence_parallel)
+
             # Always initialize bias to zero.
             with torch.no_grad():
                 self.bias.zero_()
         else:
             self.register_parameter('bias', None)
+        self.sequence_parallel = args.sequence_parallel
         self.gradient_accumulation_fusion = args.gradient_accumulation_fusion


+
     def forward(self, input_):
         # Set up backprop all-reduce.
         if self.input_is_parallel:
             input_parallel = input_
         else:
+            assert not self.sequence_parallel
             input_parallel = scatter_to_tensor_model_parallel_region(input_)
         # Matrix multiply.
-        output_parallel = LinearWithGradAccumulationAndAsyncAllreduce.apply(
+        output_parallel = LinearWithGradAccumulationAndAsyncCommunication.apply(
             input_parallel, self.weight, None,
-            self.gradient_accumulation_fusion, None)
+            self.gradient_accumulation_fusion, None, None)
         # All-reduce across all the partitions.
-        output_ = reduce_from_tensor_model_parallel_region(output_parallel)
+        if self.sequence_parallel:
+            output_ = reduce_scatter_to_sequence_parallel_region(output_parallel)
+        else:
+            output_ = reduce_from_tensor_model_parallel_region(output_parallel)
         if not self.skip_bias_add:
             output = output_ + self.bias if self.bias is not None else output_
             output_bias = None

megatron/mpu/mappings.py

@@ -32,13 +32,13 @@ def _reduce(input_):
     return input_


-def _split(input_):
+def _split_along_last_dim(input_):
     """Split the tensor along its last dimension and keep the
     corresponding slice."""

     world_size = get_tensor_model_parallel_world_size()
     # Bypass the function if we are using only 1 GPU.
-    if world_size==1:
+    if world_size == 1:
         return input_

     # Split along last dimension.
@@ -51,12 +51,34 @@ def _split(input_):
     return output


-def _gather(input_):
+def _split_along_first_dim(input_):
+    """Split the tensor along its first dimension and keep the
+    corresponding slice."""
+
+    world_size = get_tensor_model_parallel_world_size()
+    # Bypass the function if we are using only 1 GPU.
+    if world_size == 1:
+        return input_
+
+    # Split along first dimension.
+    dim_size = input_.size()[0]
+    assert dim_size % world_size == 0, \
+        "First dimension of the tensor should be divisible by tensor parallel size"
+    local_dim_size = dim_size // world_size
+    rank = get_tensor_model_parallel_rank()
+    dim_offset = rank * local_dim_size
+
+    output = input_[dim_offset:dim_offset+local_dim_size].contiguous()
+
+    return output
+
+
+def _gather_along_last_dim(input_):
     """Gather tensors and concatinate along the last dimension."""

     world_size = get_tensor_model_parallel_world_size()
     # Bypass the function if we are using only 1 GPU.
-    if world_size==1:
+    if world_size == 1:
         return input_

     # Size and dimension.
@@ -73,6 +95,44 @@ def _gather(input_):
     return output


+def _gather_along_first_dim(input_):
+    """Gather tensors and concatinate along the first dimension."""
+
+    world_size = get_tensor_model_parallel_world_size()
+    # Bypass the function if we are using only 1 GPU.
+    if world_size == 1:
+        return input_
+
+    dim_size = list(input_.size())
+    dim_size[0] = dim_size[0] * world_size
+
+    output = torch.empty(dim_size, dtype=input_.dtype,
+                         device=torch.cuda.current_device())
+    torch.distributed._all_gather_base(output, input_.contiguous(),
+                                       group=get_tensor_model_parallel_group())
+
+    return output
+
+def _reduce_scatter_along_first_dim(input_):
+    """Reduce-scatter the input tensor across model parallel group."""
+    world_size = get_tensor_model_parallel_world_size()
+    # Bypass the function if we are using only 1 GPU.
+    if world_size == 1:
+        return input_
+
+    dim_size = list(input_.size())
+    assert dim_size[0] % world_size == 0, \
+        "First dimension of the tensor should be divisible by tensor parallel size"
+
+    dim_size[0] = dim_size[0] // world_size
+
+    output = torch.empty(dim_size, dtype=input_.dtype,
+                         device=torch.cuda.current_device())
+    torch.distributed._reduce_scatter_base(output, input_.contiguous(),
+                                           group=get_tensor_model_parallel_group())
+    return output
+
+
 class _CopyToModelParallelRegion(torch.autograd.Function):
     """Pass the input to the model parallel region."""

@@ -110,15 +170,15 @@ class _ScatterToModelParallelRegion(torch.autograd.Function):

     @staticmethod
     def symbolic(graph, input_):
-        return _split(input_)
+        return _split_along_last_dim(input_)

     @staticmethod
     def forward(ctx, input_):
-        return _split(input_)
+        return _split_along_last_dim(input_)

     @staticmethod
     def backward(ctx, grad_output):
-        return _gather(grad_output)
+        return _gather_along_last_dim(grad_output)


 class _GatherFromModelParallelRegion(torch.autograd.Function):
@@ -126,15 +186,69 @@ class _GatherFromModelParallelRegion(torch.autograd.Function):

     @staticmethod
     def symbolic(graph, input_):
-        return _gather(input_)
+        return _gather_along_last_dim(input_)

     @staticmethod
     def forward(ctx, input_):
-        return _gather(input_)
+        return _gather_along_last_dim(input_)

     @staticmethod
     def backward(ctx, grad_output):
-        return _split(grad_output)
+        return _split_along_last_dim(grad_output)
+
+
+class _ScatterToSequenceParallelRegion(torch.autograd.Function):
+    """Split the input and keep only the corresponding chuck to the rank."""
+
+    @staticmethod
+    def symbolic(graph, input_):
+        return _split_along_first_dim(input_)
+
+    @staticmethod
+    def forward(ctx, input_):
+        return _split_along_first_dim(input_)
+
+    @staticmethod
+    def backward(ctx, grad_output):
+        return _gather_along_first_dim(grad_output)
+
+
+class _GatherFromSequenceParallelRegion(torch.autograd.Function):
+    """Gather the input from sequence parallel region and concatinate."""
+
+    @staticmethod
+    def symbolic(graph, input_, to_model_parallel=True):
+        return _gather_along_first_dim(input_)
+
+    @staticmethod
+    def forward(ctx, input_, to_model_parallel=True):
+        ctx.to_model_parallel = to_model_parallel
+        return _gather_along_first_dim(input_)
+
+    @staticmethod
+    def backward(ctx, grad_output):
+        to_model_parallel = ctx.to_model_parallel
+
+        if to_model_parallel:
+            return _reduce_scatter_along_first_dim(grad_output), None
+        else:
+            return _split_along_first_dim(grad_output), None
+
+
+class _ReduceScatterToSequenceParallelRegion(torch.autograd.Function):
+    """Reduce scatter the input from the model parallel region."""
+
+    @staticmethod
+    def symbolic(graph, input_):
+        return _reduce_scatter_along_first_dim(input_)
+
+    @staticmethod
+    def forward(ctx, input_):
+        return _reduce_scatter_along_first_dim(input_)
+
+    @staticmethod
+    def backward(ctx, grad_output):
+        return _gather_along_first_dim(grad_output)


 # -----------------
@@ -155,3 +269,16 @@ def scatter_to_tensor_model_parallel_region(input_):

 def gather_from_tensor_model_parallel_region(input_):
     return _GatherFromModelParallelRegion.apply(input_)
+
+
+def scatter_to_sequence_parallel_region(input_):
+    return _ScatterToSequenceParallelRegion.apply(input_)
+
+
+def gather_from_sequence_parallel_region(input_, to_model_parallel=True):
+    return _GatherFromSequenceParallelRegion.apply(input_, to_model_parallel)
+
+
+def reduce_scatter_to_sequence_parallel_region(input_):
+    return _ReduceScatterToSequenceParallelRegion.apply(input_)
+

megatron/mpu/random.py

@@ -307,10 +307,10 @@ class CheckpointFunction(torch.autograd.Function):
               tracked/set/reset.
     """
     @staticmethod
-    def forward(ctx, run_function, distribute_checkpointed_activations, *args):
+    def forward(ctx, run_function, distribute_saved_activations, *args):
         ctx.run_function = run_function
-        ctx.distribute_checkpointed_activations \
-            = distribute_checkpointed_activations
+        ctx.distribute_saved_activations \
+            = distribute_saved_activations

         # Copy the rng states.
         ctx.fwd_cpu_rng_state = torch.get_rng_state()
@@ -322,7 +322,7 @@ class CheckpointFunction(torch.autograd.Function):

         # Divide hidden states across model parallel group and only keep
         # the chunk corresponding to the current rank.
-        if distribute_checkpointed_activations:
+        if distribute_saved_activations:
             ctx.input_0_shape = args[0].data.shape
             safely_set_viewless_tensor_data(
                 args[0],
@@ -339,7 +339,7 @@ class CheckpointFunction(torch.autograd.Function):
             raise RuntimeError("Checkpointing is not compatible with .grad(), "
                                "please use .backward() if possible")
         inputs = ctx.saved_tensors
-        if ctx.distribute_checkpointed_activations:
+        if ctx.distribute_saved_activations:
             safely_set_viewless_tensor_data(
                 inputs[0],
                 gather_split_1d_tensor(inputs[0].data).view(ctx.input_0_shape))
@@ -372,8 +372,8 @@ class CheckpointFunction(torch.autograd.Function):
         return (None, None) + grads


-def checkpoint(function, distribute_checkpointed_activations, *args):
+def checkpoint(function, distribute_saved_activations, *args):
     """Checkpoint a model or part of the model.
     This has been directly copied from torch.utils.checkpoint."""
     return CheckpointFunction.apply(function,
-                                    distribute_checkpointed_activations, *args)
+                                    distribute_saved_activations, *args)

megatron/optimizer/__init__.py

@@ -17,7 +17,6 @@ from apex.optimizers import FusedAdam as Adam
 from apex.optimizers import FusedSGD as SGD

 from megatron import get_args
-from megatron.model import LayerNorm

 from .distrib_optimizer import DistributedOptimizer
 from .grad_scaler import ConstantGradScaler, DynamicGradScaler

megatron/optimizer/optimizer.py

@@ -514,7 +514,6 @@ class Float16OptimizerWithFloat16Params(MixedPrecisionOptimizer):
                         if param in self.optimizer.state:
                             self.optimizer.state[main_param] \
                                 = self.optimizer.state.pop(param)
-
                     # fp32 params.
                     elif param.type() == 'torch.cuda.FloatTensor':
                         fp32_params_this_group.append(param)
@@ -532,10 +531,6 @@ class Float16OptimizerWithFloat16Params(MixedPrecisionOptimizer):
                 fp32_from_float16_params_this_group)
             self.fp32_from_fp32_groups.append(fp32_params_this_group)

-        # Leverage state_dict() and load_state_dict() to
-        # recast preexisting per-param state tensors
-        self.optimizer.load_state_dict(self.optimizer.state_dict())
-

     def zero_grad(self, set_to_none=True):
         """We only need to zero the model related parameters, i.e.,
