PPOCRLabel/README.md
View file @ 78d51971
English | [简体中文](README_ch.md)
# PPOCRLabel
PPOCRLabel是一款适用于OCR领域的半自动化图形标注工具，使用python3和pyqt5编写，支持矩形框标注和四点标注模式，导出格式可直接用于PPOCR检测和识别模型的训练。
PPOCRLabel is a semi-automatic graphic annotation tool suitable for OCR field. It is written in python3 and pyqt5, supporting rectangular box annotation and four-point annotation modes. Annotations can be directly used for the training of PPOCR detection and recognition models.
<img src="./data/gif/steps_en.gif" width="100%"/>
## Installation
<img src="./data/gif/steps.gif" width="100%"/>
### 1. Install PaddleOCR
## 安装
Refer to [PaddleOCR installation document](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/doc/doc_ch/installation.md) to prepare PaddleOCR
### 1. 安装PaddleOCR
参考[PaddleOCR安装文档](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/doc/doc_ch/installation.md)准备好PaddleOCR
### 2. Install PPOCRLabel
### 2. 安装PPOCRLabel
#### Windows + Anaconda
Download and install [Anaconda](https://www.anaconda.com/download/#download) (Python 3+)
```
pip install pyqt5
cd ./PPOCRLabel # 将目录切换到PPOCRLabel文件夹下
python PPOCRLabel.py --lang ch
cd ./PPOCRLabel # Change the directory to the PPOCRLabel folder
python PPOCRLabel.py
```
#### Ubuntu Linux
......@@ -23,78 +29,97 @@ python PPOCRLabel.py --lang ch
```
pip3 install pyqt5
pip3 install trash-cli
cd ./PPOCRLabel # 将目录切换到PPOCRLabel文件夹下
python3 PPOCRLabel.py --lang ch
cd ./PPOCRLabel # Change the directory to the PPOCRLabel folder
python3 PPOCRLabel.py
```
#### macOS
```
pip3 install pyqt5
pip3 uninstall opencv-python # 由于mac版本的opencv与pyqt有冲突，需先手动卸载opencv
pip3 install opencv-contrib-python-headless # 安装headless版本的open-cv
cd ./PPOCRLabel # 将目录切换到PPOCRLabel文件夹下
python3 PPOCRLabel.py --lang ch
pip3 uninstall opencv-python # Uninstall opencv manually as it conflicts with pyqt
pip3 install opencv-contrib-python-headless # Install the headless version of opencv
cd ./PPOCRLabel # Change the directory to the PPOCRLabel folder
python3 PPOCRLabel.py
```
## 使用
## Usage
### Steps
1. Build and launch using the instructions above.
2. Click 'Open Dir' in Menu/File to select the folder of the picture.<sup>[1]</sup>
3. Click 'Auto recognition', use PPOCR model to automatically annotate images which marked with 'X' <sup>[2]</sup>before the file name.
4. Create Box:
4.1 Click 'Create RectBox' or press 'W' in English keyboard mode to draw a new rectangle detection box. Click and release left mouse to select a region to annotate the text area.
### 操作步骤
4.2 Press 'P' to enter four-point labeling mode which enables you to create any four-point shape by clicking four points with the left mouse button in succession and DOUBLE CLICK the left mouse as the signal of labeling completion.
1. 安装与运行：使用上述命令安装与运行程序。
2. 打开文件夹：在菜单栏点击 “文件” - "打开目录" 选择待标记图片的文件夹<sup>[1]</sup>.
3. 自动标注：点击 ”自动标注“，使用PPOCR超轻量模型对图片文件名前图片状态<sup>[2]</sup>为 “X” 的图片进行自动标注。
4. 手动标注：点击 “矩形标注”（推荐直接在英文模式下点击键盘中的 “W”)，用户可对当前图片中模型未检出的部分进行手动绘制标记框。点击键盘P，则使用四点标注模式（或点击“编辑” - “四点标注”），用户依次点击4个点后，双击左键表示标注完成。
5. 标记框绘制完成后，用户点击 “确认”，检测框会先被预分配一个 “待识别” 标签。
6. 重新识别：将图片中的所有检测画绘制/调整完成后，点击 “重新识别”，PPOCR模型会对当前图片中的**所有检测框**重新识别<sup>[3]</sup>。
7. 内容更改：双击识别结果，对不准确的识别结果进行手动更改。
8. 确认标记：点击 “确认”，图片状态切换为 “√”，跳转至下一张（此时不会直接将结果写入文件）。
9. 删除：点击 “删除图像”，图片将会被删除至回收站。
10. 保存结果：用户可以通过菜单中“文件-保存标记结果”手动保存，同时程序也会在用户每确认10张图片后自动保存一次。手动确认过的标记将会被存放在所打开图片文件夹下的*Label.txt*中。在菜单栏点击 “文件” - "保存识别结果"后，会将此类图片的识别训练数据保存在*crop_img*文件夹下，识别标签保存在*rec_gt.txt*中<sup>[4]</sup>。
5. After the marking frame is drawn, the user clicks "OK", and the detection frame will be pre-assigned a "TEMPORARY" label.
### 注意
6. Click 're-Recognition', model will rewrite ALL recognition results in ALL detection box<sup>[3]</sup>.
[1] PPOCRLabel以文件夹为基本标记单位，打开待标记的图片文件夹后，不会在窗口栏中显示图片，而是在点击 "选择文件夹" 之后直接将文件夹下的图片导入到程序中。
7. Double click the result in 'recognition result' list to manually change inaccurate recognition results.
[2] 图片状态表示本张图片用户是否手动保存过，未手动保存过即为 “X”，手动保存过为 “√”。点击 “自动标注”按钮后，PPOCRLabel不会对状态为 “√” 的图片重新标注。
8. Click "Check", the image status will switch to "√",then the program automatically jump to the next(The results will not be written directly to the file at this time).
[3] 点击“重新识别”后，模型会对图片中的识别结果进行覆盖。因此如果在此之前手动更改过识别结果，有可能在重新识别后产生变动。
9. Click "Delete Image" and the image will be deleted to the recycle bin.
[4] PPOCRLabel产生的文件放置于标记图片文件夹下，包括一下几种，请勿手动更改其中内容，否则会引起程序出现异常。
10. Labeling result: the user can save manually through the menu "File - Save Label", while the program will also save automatically after every 10 images confirmed by the user.the manually checked label will be stored in *Label.txt* under the opened picture folder.
Click "PaddleOCR"-"Save Recognition Results" in the menu bar, the recognition training data of such pictures will be saved in the *crop_img* folder, and the recognition label will be saved in *rec_gt.txt*<sup>[4]</sup>.
| 文件名 | 说明 |
### Note
[1] PPOCRLabel uses the opened folder as the project. After opening the image folder, the picture will not be displayed in the dialog. Instead, the pictures under the folder will be directly imported into the program after clicking "Open Dir".
[2] The image status indicates whether the user has saved the image manually. If it has not been saved manually it is "X", otherwise it is "√", PPOCRLabel will not relabel pictures with a status of "√".
[3] After clicking "Re-recognize", the model will overwrite ALL recognition results in the picture.
Therefore, if the recognition result has been manually changed before, it may change after re-recognition.
[4] The files produced by PPOCRLabel can be found under the opened picture folder including the following, please do not manually change the contents, otherwise it will cause the program to be abnormal.
| File name | Description |
| :-----------: | :----------------------------------------------------------: |
| Label.txt | 检测标签，可直接用于PPOCR检测模型训练。用户每保存10张检测结果后，程序会进行自动写入。当用户关闭应用程序或切换文件路径后同样会进行写入。 |
| fileState.txt | 图片状态标记文件，保存当前文件夹下已经被用户手动确认过的图片名称。 |
| Cache.cach | 缓存文件，保存模型自动识别的结果。 |
| rec_gt.txt | 识别标签。可直接用于PPOCR识别模型训练。需用户手动点击菜单栏“文件” - "保存识别结果"后产生。 |
| crop_img | 识别数据。按照检测框切割后的图片。与rec_gt.txt同时产生。 |
| Label.txt | The detection label file can be directly used for PPOCR detection model training. After the user saves 10 label results, the file will be automatically saved. It will also be written when the user closes the application or changes the file folder. |
| fileState.txt | The picture status file save the image in the current folder that has been manually confirmed by the user. |
| Cache.cach | Cache files to save the results of model recognition. |
| rec_gt.txt | The recognition label file, which can be directly used for PPOCR identification model training, is generated after the user clicks on the menu bar "File"-"Save recognition result". |
| crop_img | The recognition data, generated at the same time with *rec_gt.txt* |
## Explanation
### Built-in Model
- Default model: PPOCRLabel uses the Chinese and English ultra-lightweight OCR model in PaddleOCR by default, supports Chinese, English and number recognition, and multiple language detection.
- Model language switching: Changing the built-in model language is supportable by clicking "PaddleOCR"-"Choose OCR Model" in the menu bar. Currently supported languages​include French, German, Korean, and Japanese.
For specific model download links, please refer to [PaddleOCR Model List](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/doc/doc_en/models_list_en.md#multilingual-recognition-modelupdating)
## 说明
### 内置模型
- Custom model: The model trained by users can be replaced by modifying PPOCRLabel.py in [PaddleOCR class instantiation](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/PPOCRLabel/PPOCRLabel.py#L110) referring [Custom Model Code](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/doc/doc_en/whl_en.md#use-custom-model)
- 默认模型：PPOCRLabel默认使用PaddleOCR中的中英文超轻量OCR模型，支持中英文与数字识别，多种语言检测。
### Export partial recognition results
- 模型语言切换：用户可通过菜单栏中 "PaddleOCR" - "选择模型" 切换内置模型语言，目前支持的语言包括法文、德文、韩文、日文。具体模型下载链接可参考[PaddleOCR模型列表](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/doc/doc_ch/models_list.md).
For some data that are difficult to recognize, the recognition results will not be exported by **unchecking** the corresponding tags in the recognition results checkbox.
- 自定义模型：用户可根据[自定义模型代码使用](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/doc/doc_ch/whl.md#%E8%87%AA%E5%AE%9A%E4%B9%89%E6%A8%A1%E5%9E%8B)，通过修改PPOCRLabel.py中针对[PaddleOCR类的实例化](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/PPOCRLabel/PPOCRLabel.py#L110)替换成自己训练的模型。
*Note: The status of the checkboxes in the recognition results still needs to be saved manually by clicking Save Button.*
### 导出部分识别结果
### Error message
针对部分难以识别的数据，通过在识别结果的复选框中**取消勾选**相应的标记，其识别结果不会被导出。
- If paddleocr is installed with whl, it has a higher priority than calling PaddleOCR class with paddleocr.py, which may cause an exception if whl package is not updated.
*注意：识别结果中的复选框状态仍需用户手动点击保存后才能保留*
- For Linux users, if you get an error starting with **objc[XXXXX]** when opening the software, it proves that your opencv version is too high. It is recommended to install version 4.2:
### 错误提示
- 如果同时使用whl包安装了paddleocr，其优先级大于通过paddleocr.py调用PaddleOCR类，whl包未更新时会导致程序异常。
- PPOCRLabel**不支持对中文文件名**的图片进行自动标注。
- 针对Linux用户：：如果您在打开软件过程中出现**objc[XXXXX]**开头的错误，证明您的opencv版本太高，建议安装4.2版本：
```
pip install opencv-python==4.2.0.32
```
- 如果出现''Missing string id '开头的错误，需要重新编译资源：
```
pyrcc5 -o libs/resources.py resources.qrc
```
### 参考资料
```
pip install opencv-python==4.2.0.32
```
- If you get an error starting with **Missing string id **,you need to recompile resources:
```
pyrcc5 -o libs/resources.py resources.qrc
```
### Related
1.[Tzutalin. LabelImg. Git code (2015)](https://github.com/tzutalin/labelImg)
PPOCRLabel/README_ch.md 0 → 100644
View file @ 78d51971
[English](README.md) | 简体中文
# PPOCRLabel
PPOCRLabel是一款适用于OCR领域的半自动化图形标注工具，使用python3和pyqt5编写，支持矩形框标注和四点标注模式，导出格式可直接用于PPOCR检测和识别模型的训练。
<img src="./data/gif/steps.gif" width="100%"/>
## 安装
### 1. 安装PaddleOCR
参考[PaddleOCR安装文档](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/doc/doc_ch/installation.md)准备好PaddleOCR
### 2. 安装PPOCRLabel
#### Windows + Anaconda
```
pip install pyqt5
cd ./PPOCRLabel # 将目录切换到PPOCRLabel文件夹下
python PPOCRLabel.py --lang ch
```
#### Ubuntu Linux
```
pip3 install pyqt5
pip3 install trash-cli
cd ./PPOCRLabel # 将目录切换到PPOCRLabel文件夹下
python3 PPOCRLabel.py --lang ch
```
#### macOS
```
pip3 install pyqt5
pip3 uninstall opencv-python # 由于mac版本的opencv与pyqt有冲突，需先手动卸载opencv
pip3 install opencv-contrib-python-headless # 安装headless版本的open-cv
cd ./PPOCRLabel # 将目录切换到PPOCRLabel文件夹下
python3 PPOCRLabel.py --lang ch
```
## 使用
### 操作步骤
1. 安装与运行：使用上述命令安装与运行程序。
2. 打开文件夹：在菜单栏点击 “文件” - "打开目录" 选择待标记图片的文件夹<sup>[1]</sup>.
3. 自动标注：点击 ”自动标注“，使用PPOCR超轻量模型对图片文件名前图片状态<sup>[2]</sup>为 “X” 的图片进行自动标注。
4. 手动标注：点击 “矩形标注”（推荐直接在英文模式下点击键盘中的 “W”)，用户可对当前图片中模型未检出的部分进行手动绘制标记框。点击键盘P，则使用四点标注模式（或点击“编辑” - “四点标注”），用户依次点击4个点后，双击左键表示标注完成。
5. 标记框绘制完成后，用户点击 “确认”，检测框会先被预分配一个 “待识别” 标签。
6. 重新识别：将图片中的所有检测画绘制/调整完成后，点击 “重新识别”，PPOCR模型会对当前图片中的**所有检测框**重新识别<sup>[3]</sup>。
7. 内容更改：双击识别结果，对不准确的识别结果进行手动更改。
8. 确认标记：点击 “确认”，图片状态切换为 “√”，跳转至下一张（此时不会直接将结果写入文件）。
9. 删除：点击 “删除图像”，图片将会被删除至回收站。
10. 保存结果：用户可以通过菜单中“文件-保存标记结果”手动保存，同时程序也会在用户每确认10张图片后自动保存一次。手动确认过的标记将会被存放在所打开图片文件夹下的*Label.txt*中。在菜单栏点击 “文件” - "保存识别结果"后，会将此类图片的识别训练数据保存在*crop_img*文件夹下，识别标签保存在*rec_gt.txt*中<sup>[4]</sup>。
### 注意
[1] PPOCRLabel以文件夹为基本标记单位，打开待标记的图片文件夹后，不会在窗口栏中显示图片，而是在点击 "选择文件夹" 之后直接将文件夹下的图片导入到程序中。
[2] 图片状态表示本张图片用户是否手动保存过，未手动保存过即为 “X”，手动保存过为 “√”。点击 “自动标注”按钮后，PPOCRLabel不会对状态为 “√” 的图片重新标注。
[3] 点击“重新识别”后，模型会对图片中的识别结果进行覆盖。因此如果在此之前手动更改过识别结果，有可能在重新识别后产生变动。
[4] PPOCRLabel产生的文件放置于标记图片文件夹下，包括一下几种，请勿手动更改其中内容，否则会引起程序出现异常。
| 文件名 | 说明 |
| :-----------: | :----------------------------------------------------------: |
| Label.txt | 检测标签，可直接用于PPOCR检测模型训练。用户每保存10张检测结果后，程序会进行自动写入。当用户关闭应用程序或切换文件路径后同样会进行写入。 |
| fileState.txt | 图片状态标记文件，保存当前文件夹下已经被用户手动确认过的图片名称。 |
| Cache.cach | 缓存文件，保存模型自动识别的结果。 |
| rec_gt.txt | 识别标签。可直接用于PPOCR识别模型训练。需用户手动点击菜单栏“文件” - "保存识别结果"后产生。 |
| crop_img | 识别数据。按照检测框切割后的图片。与rec_gt.txt同时产生。 |
## 说明
### 内置模型
- 默认模型：PPOCRLabel默认使用PaddleOCR中的中英文超轻量OCR模型，支持中英文与数字识别，多种语言检测。
- 模型语言切换：用户可通过菜单栏中 "PaddleOCR" - "选择模型" 切换内置模型语言，目前支持的语言包括法文、德文、韩文、日文。具体模型下载链接可参考[PaddleOCR模型列表](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/doc/doc_ch/models_list.md).
- 自定义模型：用户可根据[自定义模型代码使用](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/doc/doc_ch/whl.md#%E8%87%AA%E5%AE%9A%E4%B9%89%E6%A8%A1%E5%9E%8B)，通过修改PPOCRLabel.py中针对[PaddleOCR类的实例化](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/PPOCRLabel/PPOCRLabel.py#L110)替换成自己训练的模型。
### 导出部分识别结果
针对部分难以识别的数据，通过在识别结果的复选框中**取消勾选**相应的标记，其识别结果不会被导出。
*注意：识别结果中的复选框状态仍需用户手动点击保存后才能保留*
### 错误提示
- 如果同时使用whl包安装了paddleocr，其优先级大于通过paddleocr.py调用PaddleOCR类，whl包未更新时会导致程序异常。
- PPOCRLabel**不支持对中文文件名**的图片进行自动标注。
- 针对Linux用户：：如果您在打开软件过程中出现**objc[XXXXX]**开头的错误，证明您的opencv版本太高，建议安装4.2版本：
```
pip install opencv-python==4.2.0.32
```
- 如果出现''Missing string id '开头的错误，需要重新编译资源：
```
pyrcc5 -o libs/resources.py resources.qrc
```
### 参考资料
1.[Tzutalin. LabelImg. Git code (2015)](https://github.com/tzutalin/labelImg)
PPOCRLabel/README_en.md deleted 100644 → 0
View file @ bd314018
# PPOCRLabel
PPOCRLabel is a semi-automatic graphic annotation tool suitable for OCR field. It is written in python3 and pyqt5, supporting rectangular box annotation and four-point annotation modes. Annotations can be directly used for the training of PPOCR detection and recognition models.
<img src="./data/gif/steps_en.gif" width="100%"/>
## Installation
### 1. Install PaddleOCR
Refer to [PaddleOCR installation document](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/doc/doc_ch/installation.md) to prepare PaddleOCR
### 2. Install PPOCRLabel
#### Windows + Anaconda
Download and install [Anaconda](https://www.anaconda.com/download/#download) (Python 3+)
```
pip install pyqt5
cd ./PPOCRLabel # Change the directory to the PPOCRLabel folder
python PPOCRLabel.py
```
#### Ubuntu Linux
```
pip3 install pyqt5
pip3 install trash-cli
cd ./PPOCRLabel # Change the directory to the PPOCRLabel folder
python3 PPOCRLabel.py
```
#### macOS
```
pip3 install pyqt5
pip3 uninstall opencv-python # Uninstall opencv manually as it conflicts with pyqt
pip3 install opencv-contrib-python-headless # Install the headless version of opencv
cd ./PPOCRLabel # Change the directory to the PPOCRLabel folder
python3 PPOCRLabel.py
```
## Usage
### Steps
1. Build and launch using the instructions above.
2. Click 'Open Dir' in Menu/File to select the folder of the picture.<sup>[1]</sup>
3. Click 'Auto recognition', use PPOCR model to automatically annotate images which marked with 'X' <sup>[2]</sup>before the file name.
4. Create Box:
4.1 Click 'Create RectBox' or press 'W' in English keyboard mode to draw a new rectangle detection box. Click and release left mouse to select a region to annotate the text area.
4.2 Press 'P' to enter four-point labeling mode which enables you to create any four-point shape by clicking four points with the left mouse button in succession and DOUBLE CLICK the left mouse as the signal of labeling completion.
5. After the marking frame is drawn, the user clicks "OK", and the detection frame will be pre-assigned a "TEMPORARY" label.
6. Click 're-Recognition', model will rewrite ALL recognition results in ALL detection box<sup>[3]</sup>.
7. Double click the result in 'recognition result' list to manually change inaccurate recognition results.
8. Click "Check", the image status will switch to "√",then the program automatically jump to the next(The results will not be written directly to the file at this time).
9. Click "Delete Image" and the image will be deleted to the recycle bin.
10. Labeling result: the user can save manually through the menu "File - Save Label", while the program will also save automatically after every 10 images confirmed by the user.the manually checked label will be stored in *Label.txt* under the opened picture folder.
Click "PaddleOCR"-"Save Recognition Results" in the menu bar, the recognition training data of such pictures will be saved in the *crop_img* folder, and the recognition label will be saved in *rec_gt.txt*<sup>[4]</sup>.
### Note
[1] PPOCRLabel uses the opened folder as the project. After opening the image folder, the picture will not be displayed in the dialog. Instead, the pictures under the folder will be directly imported into the program after clicking "Open Dir".
[2] The image status indicates whether the user has saved the image manually. If it has not been saved manually it is "X", otherwise it is "√", PPOCRLabel will not relabel pictures with a status of "√".
[3] After clicking "Re-recognize", the model will overwrite ALL recognition results in the picture.
Therefore, if the recognition result has been manually changed before, it may change after re-recognition.
[4] The files produced by PPOCRLabel can be found under the opened picture folder including the following, please do not manually change the contents, otherwise it will cause the program to be abnormal.
| File name | Description |
| :-----------: | :----------------------------------------------------------: |
| Label.txt | The detection label file can be directly used for PPOCR detection model training. After the user saves 10 label results, the file will be automatically saved. It will also be written when the user closes the application or changes the file folder. |
| fileState.txt | The picture status file save the image in the current folder that has been manually confirmed by the user. |
| Cache.cach | Cache files to save the results of model recognition. |
| rec_gt.txt | The recognition label file, which can be directly used for PPOCR identification model training, is generated after the user clicks on the menu bar "File"-"Save recognition result". |
| crop_img | The recognition data, generated at the same time with *rec_gt.txt* |
## Explanation
### Built-in Model
- Default model: PPOCRLabel uses the Chinese and English ultra-lightweight OCR model in PaddleOCR by default, supports Chinese, English and number recognition, and multiple language detection.
- Model language switching: Changing the built-in model language is supportable by clicking "PaddleOCR"-"Choose OCR Model" in the menu bar. Currently supported languages​include French, German, Korean, and Japanese.
For specific model download links, please refer to [PaddleOCR Model List](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/doc/doc_en/models_list_en.md#multilingual-recognition-modelupdating)
- Custom model: The model trained by users can be replaced by modifying PPOCRLabel.py in [PaddleOCR class instantiation](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/PPOCRLabel/PPOCRLabel.py#L110) referring [Custom Model Code](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/doc/doc_en/whl_en.md#use-custom-model)
### Export partial recognition results
For some data that are difficult to recognize, the recognition results will not be exported by **unchecking** the corresponding tags in the recognition results checkbox.
*Note: The status of the checkboxes in the recognition results still needs to be saved manually by clicking Save Button.*
### Error message
- If paddleocr is installed with whl, it has a higher priority than calling PaddleOCR class with paddleocr.py, which may cause an exception if whl package is not updated.
- For Linux users, if you get an error starting with **objc[XXXXX]** when opening the software, it proves that your opencv version is too high. It is recommended to install version 4.2:
```
pip install opencv-python==4.2.0.32
```
- If you get an error starting with **Missing string id **,you need to recompile resources:
```
pyrcc5 -o libs/resources.py resources.qrc
```
### Related
1.[Tzutalin. LabelImg. Git code (2015)](https://github.com/tzutalin/labelImg)
README.md
View file @ 78d51971
English | [简体中文](README_ch.md)
## Introduction
PaddleOCR aims to create rich, leading, and practical OCR tools that help users train better models and apply them into practice.
PaddleOCR aims to create multilingual, awesome, leading, and practical OCR tools that help users train better models and apply them into practice.
## Notice
PaddleOCR supports both dynamic graph and static graph programming paradigm
- Dynamic graph: dygraph branch (default), **supported by paddle 2.0rc1+ ([installation](./doc/doc_en/installation_en.md))**
- Static graph: develop branch
**Recent updates**
- 2020.12.15 update Data synthesis tool, i.e., [Style-Text](./StyleText/README.md)，easy to synthesize a large number of images which are similar to the target scene image.
- 2020.11.25 Update a new data annotation tool, i.e., [PPOCRLabel](./PPOCRLabel/README.md), which is helpful to improve the labeling efficiency. Moreover, the labeling results can be used in training of the PP-OCR system directly.
- 2020.9.22 Update the PP-OCR technical article, https://arxiv.org/abs/2009.09941
- 2020.9.19 Update the ultra lightweight compressed ppocr_mobile_slim series models, the overall model size is 3.5M (see [PP-OCR Pipline](#PP-OCR-Pipline)), suitable for mobile deployment. [Model Downloads](#Supported-Chinese-model-list)
- 2020.9.17 Update the ultra lightweight ppocr_mobile series and general ppocr_server series Chinese and English ocr models, which are comparable to commercial effects. [Model Downloads](#Supported-Chinese-model-list)
- 2020.9.17 update [English recognition model](./doc/doc_en/models_list_en.md#english-recognition-model) and [Multilingual recognition model](doc/doc_en/models_list_en.md#english-recognition-model), `German`, `French`, `Japanese` and `Korean` have been supported. Models for more languages will continue to be updated.
- 2020.8.24 Support the use of PaddleOCR through whl package installation，pelease refer [PaddleOCR Package](./doc/doc_en/whl_en.md)
- 2020.8.21 Update the replay and PPT of the live lesson at Bilibili on August 18, lesson 2, easy to learn and use OCR tool spree. [Get Address](https://aistudio.baidu.com/aistudio/education/group/info/1519)
- [more](./doc/doc_en/update_en.md)
## Features
- PPOCR series of high-quality pre-trained models, comparable to commercial effects
- Ultra lightweight ppocr_mobile series models: detection (2.6M) + direction classifier (0.9M) + recognition (4.6M) = 8.1M
- General ppocr_server series models: detection (47.2M) + direction classifier (0.9M) + recognition (107M) = 155.1M
- Ultra lightweight compression ppocr_mobile_slim series models: detection (1.4M) + direction classifier (0.5M) + recognition (1.6M) = 3.5M
- Support Chinese, English, and digit recognition, vertical text recognition, and long text recognition
- Support multi-language recognition: Korean, Japanese, German, French
- Ultra lightweight ppocr_mobile series models: detection (3.0M) + direction classifier (1.4M) + recognition (5.0M) = 9.4M
- General ppocr_server series models: detection (47.1M) + direction classifier (1.4M) + recognition (94.9M) = 143.4M
- Support Chinese, English, and digit recognition, vertical text recognition, and long text recognition
- Support multi-language recognition: Korean, Japanese, German, French
- Rich toolkits related to the OCR areas
- Semi-automatic data annotation tool, i.e., PPOCRLabel: support fast and efficient data annotation

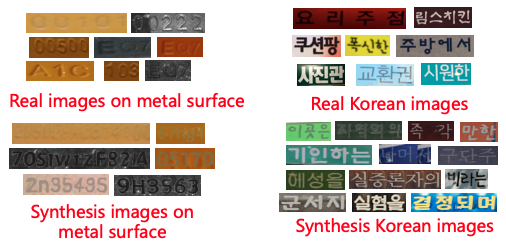

- Data synthesis tool, i.e., Style-Text: easy to synthesize a large number of images which are similar to the target scene image
- Support user-defined training, provides rich predictive inference deployment solutions
- Support PIP installation, easy to use
- Support Linux, Windows, MacOS and other systems
......@@ -26,12 +30,21 @@ PaddleOCR aims to create rich, leading, and practical OCR tools that help users
## Visualization
<div align="center">
<img src="doc/imgs_results/1101.jpg" width="800">
<img src="doc/imgs_results/1103.jpg" width="800">
<img src="doc/imgs_results/ch_ppocr_mobile_v2.0/test_add_91.jpg" width="800">
<img src="doc/imgs_results/ch_ppocr_mobile_v2.0/00018069.jpg" width="800">
</div>
The above pictures are the visualizations of the general ppocr_server model. For more effect pictures, please see [More visualizations](./doc/doc_en/visualization_en.md).
<a name="Community"></a>
## Community
- Scan the QR code below with your Wechat, you can access to official technical exchange group. Look forward to your participation.
<div align="center">
<img src="./doc/joinus.PNG" width = "200" height = "200" />
</div>
## Quick Experience
You can also quickly experience the ultra-lightweight OCR : [Online Experience](https://www.paddlepaddle.org.cn/hub/scene/ocr)
......@@ -48,55 +61,62 @@ Mobile DEMO experience (based on EasyEdge and Paddle-Lite, supports iOS and Andr
<a name="Supported-Chinese-model-list"></a>
## PP-OCR 1.1 series model list（Update on Sep 17）
## PP-OCR 2.0 series model list（Update on Dec 15）
**Note** : Compared with [models 1.1](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/doc/doc_en/models_list_en.md), which are trained with static graph programming paradigm, models 2.0 are the dynamic graph trained version and achieve close performance.
| Model introduction | Model name | Recommended scene | Detection model | Direction classifier | Recognition model |
| ------------------------------------------------------------ | ---------------------------- | ----------------- | ------------------------------------------------------------ | ------------------------------------------------------------ | ------------------------------------------------------------ |
| Chinese and English ultra-lightweight OCR model (8.1M) | ch_ppocr_mobile_v1.1_xx | Mobile & server | [inference model](https://paddleocr.bj.bcebos.com/20-09-22/mobile/det/ch_ppocr_mobile_v1.1_det_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/20-09-22/mobile/det/ch_ppocr_mobile_v1.1_det_train.tar) | [inference model](https://paddleocr.bj.bcebos.com/20-09-22/cls/ch_ppocr_mobile_v1.1_cls_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/20-09-22/cls/ch_ppocr_mobile_v1.1_cls_train.tar) | [inference model](https://paddleocr.bj.bcebos.com/20-09-22/mobile/rec/ch_ppocr_mobile_v1.1_rec_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/20-09-22/mobile/rec/ch_ppocr_mobile_v1.1_rec_pre.tar) |
| Chinese and English general OCR model (155.1M) | ch_ppocr_server_v1.1_xx | Server | [inference model](https://paddleocr.bj.bcebos.com/20-09-22/server/det/ch_ppocr_server_v1.1_det_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/20-09-22/server/det/ch_ppocr_server_v1.1_det_train.tar) | [inference model](https://paddleocr.bj.bcebos.com/20-09-22/cls/ch_ppocr_mobile_v1.1_cls_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/20-09-22/cls/ch_ppocr_mobile_v1.1_cls_train.tar) | [inference model](https://paddleocr.bj.bcebos.com/20-09-22/server/rec/ch_ppocr_server_v1.1_rec_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/20-09-22/server/rec/ch_ppocr_server_v1.1_rec_pre.tar) |
| Chinese and English ultra-lightweight compressed OCR model (3.5M) | ch_ppocr_mobile_slim_v1.1_xx | Mobile | [inference model](https://paddleocr.bj.bcebos.com/20-09-22/mobile-slim/det/ch_ppocr_mobile_v1.1_det_prune_infer.tar) / [slim model](https://paddleocr.bj.bcebos.com/20-09-22/mobile/lite/ch_ppocr_mobile_v1.1_det_prune_opt.nb) | [inference model](https://paddleocr.bj.bcebos.com/20-09-22/cls/ch_ppocr_mobile_v1.1_cls_quant_infer.tar) / [slim model](https://paddleocr.bj.bcebos.com/20-09-22/mobile/lite/ch_ppocr_mobile_v1.1_cls_quant_opt.nb) | [inference model](https://paddleocr.bj.bcebos.com/20-09-22/mobile-slim/rec/ch_ppocr_mobile_v1.1_rec_quant_infer.tar) / [slim model](https://paddleocr.bj.bcebos.com/20-09-22/mobile/lite/ch_ppocr_mobile_v1.1_rec_quant_opt.nb) |
| Chinese and English ultra-lightweight OCR model (9.4M) | ch_ppocr_mobile_v2.0_xx | Mobile & server |[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_det_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_det_train.tar)|[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar) |[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_rec_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_rec_pre.tar) |
| Chinese and English general OCR model (143.4M) | ch_ppocr_server_v2.0_xx | Server |[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_det_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_det_train.tar) |[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_traingit.tar) |[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_rec_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_rec_pre.tar) |
For more model downloads (including multiple languages), please refer to [PP-OCR v1.1 series model downloads](./doc/doc_en/models_list_en.md)
For more model downloads (including multiple languages), please refer to [PP-OCR v2.0 series model downloads](./doc/doc_en/models_list_en.md).
For a new language request, please refer to [Guideline for new language_requests](#language_requests).
## Tutorials
- [Installation](./doc/doc_en/installation_en.md)
- [Quick Start](./doc/doc_en/quickstart_en.md)
- [Code Structure](./doc/doc_en/tree_en.md)
- Algorithm introduction
- Algorithm Introduction
- [Text Detection Algorithm](./doc/doc_en/algorithm_overview_en.md)
- [Text Recognition Algorithm](./doc/doc_en/algorithm_overview_en.md)
- [PP-OCR Pipline](#PP-OCR-Pipline)
- Model training/evaluation
- [PP-OCR Pipeline](#PP-OCR-Pipeline)
- Model Training/Evaluation
- [Text Detection](./doc/doc_en/detection_en.md)
- [Text Recognition](./doc/doc_en/recognition_en.md)
- [Direction Classification](./doc/doc_en/angle_class_en.md)
- [Yml Configuration](./doc/doc_en/config_en.md)
- Inference and Deployment
- [Quick inference based on pip](./doc/doc_en/whl_en.md)
- [Quick Inference Based on PIP](./doc/doc_en/whl_en.md)
- [Python Inference](./doc/doc_en/inference_en.md)
- [C++ Inference](./deploy/cpp_infer/readme_en.md)
- [Serving](./deploy/hubserving/readme_en.md)
- [Mobile](./deploy/lite/readme_en.md)
- [Model Quantization](./deploy/slim/quantization/README_en.md)
- [Model Compression](./deploy/slim/prune/README_en.md)
- [Benchmark](./doc/doc_en/benchmark_en.md)
- [Mobile](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/deploy/lite/readme_en.md)
- [Benchmark](./doc/doc_en/benchmark_en.md)
- Data Annotation and Synthesis
- [Semi-automatic Annotation Tool: PPOCRLabel](./PPOCRLabel/README.md)
- [Data Synthesis Tool: Style-Text](./StyleText/README.md)
- [Other Data Annotation Tools](./doc/doc_en/data_annotation_en.md)
- [Other Data Synthesis Tools](./doc/doc_en/data_synthesis_en.md)
- Datasets
- [General OCR Datasets(Chinese/English)](./doc/doc_en/datasets_en.md)
- [HandWritten_OCR_Datasets(Chinese)](./doc/doc_en/handwritten_datasets_en.md)
- [Various OCR Datasets(multilingual)](./doc/doc_en/vertical_and_multilingual_datasets_en.md)
- [Data Annotation Tools](./doc/doc_en/data_annotation_en.md)
- [Data Synthesis Tools](./doc/doc_en/data_synthesis_en.md)
- [Visualization](#Visualization)
- [New language requests](#language_requests)
- [FAQ](./doc/doc_en/FAQ_en.md)
- [Community](#Community)
- [References](./doc/doc_en/reference_en.md)
- [License](#LICENSE)
- [Contribution](#CONTRIBUTION)
<a name="PP-OCR-Pipline"></a>
## PP-OCR Pipline
<a name="PP-OCR-Pipeline"></a>
## PP-OCR Pipeline
<div align="center">
<img src="./doc/ppocr_framework.png" width="800">
......@@ -109,30 +129,41 @@ PP-OCR is a practical ultra-lightweight OCR system. It is mainly composed of thr
## Visualization [more](./doc/doc_en/visualization_en.md)
- Chinese OCR model
<div align="center">
<img src="./doc/imgs_results/1102.jpg" width="800">
<img src="./doc/imgs_results/1104.jpg" width="800">
<img src="./doc/imgs_results/1106.jpg" width="800">
<img src="./doc/imgs_results/1105.jpg" width="800">
<img src="./doc/imgs_results/ch_ppocr_mobile_v2.0/test_add_91.jpg" width="800">
<img src="./doc/imgs_results/ch_ppocr_mobile_v2.0/00015504.jpg" width="800">
<img src="./doc/imgs_results/ch_ppocr_mobile_v2.0/00056221.jpg" width="800">
<img src="./doc/imgs_results/ch_ppocr_mobile_v2.0/rotate_00052204.jpg" width="800">
</div>
- English OCR model
<div align="center">
<img src="./doc/imgs_results/img_12.jpg" width="800">
<img src="./doc/imgs_results/ch_ppocr_mobile_v2.0/img_12.jpg" width="800">
</div>
- Multilingual OCR model
<div align="center">
<img src="./doc/imgs_results/1110.jpg" width="800">
<img src="./doc/imgs_results/1112.jpg" width="800">
<img src="./doc/imgs_results/french_0.jpg" width="800">
<img src="./doc/imgs_results/korean.jpg" width="800">
</div>
<a name="Community"></a>
## Community
Scan the QR code below with your Wechat and completing the questionnaire, you can access to official technical exchange group.
<div align="center">
<img src="./doc/joinus.PNG" width = "200" height = "200" />
</div>
<a name="language_requests"></a>
## Guideline for new language requests
If you want to request a new language support, a PR with 2 following files are needed：
1. In folder [ppocr/utils/dict](./ppocr/utils/dict),
it is necessary to submit the dict text to this path and name it with `{language}_dict.txt` that contains a list of all characters. Please see the format example from other files in that folder.
2. In folder [ppocr/utils/corpus](./ppocr/utils/corpus),
it is necessary to submit the corpus to this path and name it with `{language}_corpus.txt` that contains a list of words in your language.
Maybe, 50000 words per language is necessary at least.
Of course, the more, the better.
If your language has unique elements, please tell me in advance within any way, such as useful links, wikipedia and so on.
More details, please refer to [Multilingual OCR Development Plan](https://github.com/PaddlePaddle/PaddleOCR/issues/1048).
<a name="LICENSE"></a>
## License
......@@ -149,3 +180,7 @@ We welcome all the contributions to PaddleOCR and appreciate for your feedback v
- Thanks [authorfu](https://github.com/authorfu) for contributing Android demo and [xiadeye](https://github.com/xiadeye) contributing iOS demo, respectively.
- Thanks [BeyondYourself](https://github.com/BeyondYourself) for contributing many great suggestions and simplifying part of the code style.
- Thanks [tangmq](https://gitee.com/tangmq) for contributing Dockerized deployment services to PaddleOCR and supporting the rapid release of callable Restful API services.
- Thanks [lijinhan](https://github.com/lijinhan) for contributing a new way, i.e., java SpringBoot, to achieve the request for the Hubserving deployment.
- Thanks [Mejans](https://github.com/Mejans) for contributing the Occitan corpus and character set.
- Thanks [LKKlein](https://github.com/LKKlein) for contributing a new deploying package with the Golang program language.
- Thanks [Evezerest](https://github.com/Evezerest), [ninetailskim](https://github.com/ninetailskim), [edencfc](https://github.com/edencfc), [BeyondYourself](https://github.com/BeyondYourself) and [1084667371](https://github.com/1084667371) for contributing a new data annotation tool, i.e., PPOCRLabel。
README_ch.md
View file @ 78d51971
......@@ -2,16 +2,16 @@
## 简介
PaddleOCR旨在打造一套丰富、领先、且实用的OCR工具库，助力使用者训练出更好的模型，并应用落地。
## 注意
PaddleOCR同时支持动态图与静态图两种编程范式
- 动态图版本：dygraph分支（默认），需将paddle版本升级至2.0rc1+（[快速安装](./doc/doc_ch/installation.md)）
- 静态图版本：develop分支
**近期更新**
- 2020.12.15 更新数据合成工具[Style-Text](./StyleText/README_ch.md)，可以批量合成大量与目标场景类似的图像，在多个场景验证，效果明显提升。
- 2020.12.07 [FAQ](./doc/doc_ch/FAQ.md)新增5个高频问题，总数124个，并且计划以后每周一都会更新，欢迎大家持续关注。
- 2020.11.25 更新半自动标注工具[PPOCRLabel](./PPOCRLabel/README.md)，辅助开发者高效完成标注任务，输出格式与PP-OCR训练任务完美衔接。
- 2020.11.25 更新半自动标注工具[PPOCRLabel](./PPOCRLabel/README_ch.md)，辅助开发者高效完成标注任务，输出格式与PP-OCR训练任务完美衔接。
- 2020.9.22 更新PP-OCR技术文章，https://arxiv.org/abs/2009.09941
- 2020.9.19 更新超轻量压缩ppocr_mobile_slim系列模型，整体模型3.5M(详见[PP-OCR Pipeline](#PP-OCR))，适合在移动端部署使用。[模型下载](#模型下载)
- 2020.9.17 更新超轻量ppocr_mobile系列和通用ppocr_server系列中英文ocr模型，媲美商业效果。[模型下载](#模型下载)
- 2020.9.17 更新[英文识别模型](./doc/doc_ch/models_list.md#英文识别模型)和[多语言识别模型](doc/doc_ch/models_list.md#多语言识别模型)，已支持`德语、法语、日语、韩语`，更多语种识别模型将持续更新。
- 2020.8.24 支持通过whl包安装使用PaddleOCR，具体参考[Paddleocr Package使用说明](./doc/doc_ch/whl.md)
- 2020.8.21 更新8月18日B站直播课回放和PPT，课节2，易学易用的OCR工具大礼包，[获取地址](https://aistudio.baidu.com/aistudio/education/group/info/1519)
- [More](./doc/doc_ch/update.md)
......@@ -19,11 +19,13 @@ PaddleOCR旨在打造一套丰富、领先、且实用的OCR工具库，助力
## 特性
- PPOCR系列高质量预训练模型，准确的识别效果
- 超轻量ppocr_mobile移动端系列：检测（2.6M）+方向分类器（0.9M）+ 识别（4.6M）= 8.1M
- 通用ppocr_server系列：检测（47.2M）+方向分类器（0.9M）+ 识别（107M）= 155.1M
- 超轻量压缩ppocr_mobile_slim系列：检测（1.4M）+方向分类器（0.5M）+ 识别（1.6M）= 3.5M
- 支持中英文数字组合识别、竖排文本识别、长文本识别
- 支持多语言识别：韩语、日语、德语、法语
- 超轻量ppocr_mobile移动端系列：检测（3.0M）+方向分类器（1.4M）+ 识别（5.0M）= 9.4M
- 通用ppocr_server系列：检测（47.1M）+方向分类器（1.4M）+ 识别（94.9M）= 143.4M
- 支持中英文数字组合识别、竖排文本识别、长文本识别
- 支持多语言识别：韩语、日语、德语、法语
- 丰富易用的OCR相关工具组件
- 半自动数据标注工具PPOCRLabel：支持快速高效的数据标注
- 数据合成工具Style-Text：批量合成大量与目标场景类似的图像
- 支持用户自定义训练，提供丰富的预测推理部署方案
- 支持PIP快速安装使用
- 可运行于Linux、Windows、MacOS等多种系统
......@@ -31,8 +33,8 @@ PaddleOCR旨在打造一套丰富、领先、且实用的OCR工具库，助力
## 效果展示
<div align="center">
<img src="doc/imgs_results/1101.jpg" width="800">
<img src="doc/imgs_results/1103.jpg" width="800">
<img src="doc/imgs_results/ch_ppocr_mobile_v2.0/test_add_91.jpg" width="800">
<img src="doc/imgs_results/ch_ppocr_mobile_v2.0/00018069.jpg" width="800">
</div>
上图是通用ppocr_server模型效果展示，更多效果图请见[效果展示页面](./doc/doc_ch/visualization.md)。
......@@ -47,15 +49,15 @@ PaddleOCR旨在打造一套丰富、领先、且实用的OCR工具库，助力
<img src="./doc/ocr-android-easyedge.png" width = "200" height = "200" />
</div>
- 代码体验：从[快速安装](./doc/doc_ch/installation.md) 开始
- 代码体验：从[快速安装](./doc/doc_ch/quickstart.md) 开始
<a name="模型下载"></a>
## PP-OCR 2.0系列模型列表（更新中）
**说明** ：2.0版模型和[1.1版模型](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/doc/doc_ch/models_list.md)的主要区别在于动态图训练vs.静态图训练，模型性能上无明显差距。
| 模型简介 | 模型名称 |推荐场景 | 检测模型 | 方向分类器 | 识别模型 |
| ------------ | --------------- | ----------------|---- | ---------- | -------- |
| 中英文超轻量OCR模型（8.1M） | ch_ppocr_mobile_v2.0_xx |移动端&服务器端|[推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_det_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_det_train.tar)|[推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar) |[推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_rec_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_rec_pre.tar) |
| 中英文通用OCR模型（143M） |ch_ppocr_server_v2.0_xx|服务器端 |[推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_det_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_det_train.tar) |[推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar) |[推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_rec_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_rec_pre.tar) |
| 中英文超轻量OCR模型（9.4M） | ch_ppocr_mobile_v2.0_xx |移动端&服务器端|[推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_det_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_det_train.tar)|[推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar) |[推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_rec_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_rec_pre.tar) |
| 中英文通用OCR模型（143.4M） |ch_ppocr_server_v2.0_xx|服务器端 |[推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_det_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_det_train.tar) |[推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar) |[推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_rec_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_rec_pre.tar) |
更多模型下载（包括多语言），可以参考[PP-OCR v2.0 系列模型下载](./doc/doc_ch/models_list.md)
......@@ -78,27 +80,26 @@ PaddleOCR旨在打造一套丰富、领先、且实用的OCR工具库，助力
- [基于C++预测引擎推理](./deploy/cpp_infer/readme.md)
- [服务化部署](./deploy/hubserving/readme.md)
- [端侧部署](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/deploy/lite/readme.md)
- [模型量化](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/deploy/slim/quantization/README.md)
- [模型裁剪](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/deploy/slim/prune/README.md)
- [Benchmark](./doc/doc_ch/benchmark.md)
- 数据集
- [通用中英文OCR数据集](./doc/doc_ch/datasets.md)
- [手写中文OCR数据集](./doc/doc_ch/handwritten_datasets.md)
- [垂类多语言OCR数据集](./doc/doc_ch/vertical_and_multilingual_datasets.md)
- [常用数据标注工具](./doc/doc_ch/data_annotation.md)
- [常用数据合成工具](./doc/doc_ch/data_synthesis.md)
- 数据标注与合成
- [半自动标注工具PPOCRLabel](./PPOCRLabel/README_ch.md)
- [数据合成工具Style-Text](./StyleText/README_ch.md)
- [其它数据标注工具](./doc/doc_ch/data_annotation.md)
- [其它数据合成工具](./doc/doc_ch/data_synthesis.md)
- [效果展示](#效果展示)
- FAQ
- [【精选】OCR精选10个问题](./doc/doc_ch/FAQ.md)
- [【理论篇】OCR通用21个问题](./doc/doc_ch/FAQ.md)
- [【实战篇】PaddleOCR实战53个问题](./doc/doc_ch/FAQ.md)
- [【理论篇】OCR通用30个问题](./doc/doc_ch/FAQ.md)
- [【实战篇】PaddleOCR实战84个问题](./doc/doc_ch/FAQ.md)
- [技术交流群](#欢迎加入PaddleOCR技术交流群)
- [参考文献](./doc/doc_ch/reference.md)
- [许可证书](#许可证书)
- [贡献代码](#贡献代码)
***注意：动态图端侧部署仍在开发中，目前仅支持动态图训练、python端预测，C++预测，
如果您有需要移动端部署案例或者量化裁剪，请切换到静态图分支；***
<a name="PP-OCR"></a>
## PP-OCR Pipline
......@@ -112,10 +113,10 @@ PP-OCR是一个实用的超轻量OCR系统。主要由DB文本检测、检测框
## 效果展示 [more](./doc/doc_ch/visualization.md)
- 中文模型
<div align="center">
<img src="./doc/imgs_results/1102.jpg" width="800">
<img src="./doc/imgs_results/1104.jpg" width="800">
<img src="./doc/imgs_results/1106.jpg" width="800">
<img src="./doc/imgs_results/1105.jpg" width="800">
<img src="./doc/imgs_results/ch_ppocr_mobile_v2.0/test_add_91.jpg" width="800">
<img src="./doc/imgs_results/ch_ppocr_mobile_v2.0/00015504.jpg" width="800">
<img src="./doc/imgs_results/ch_ppocr_mobile_v2.0/00056221.jpg" width="800">
<img src="./doc/imgs_results/ch_ppocr_mobile_v2.0/rotate_00052204.jpg" width="800">
</div>
- 英文模型
......@@ -125,8 +126,8 @@ PP-OCR是一个实用的超轻量OCR系统。主要由DB文本检测、检测框
- 其他语言模型
<div align="center">
<img src="./doc/imgs_results/1110.jpg" width="800">
<img src="./doc/imgs_results/1112.jpg" width="800">
<img src="./doc/imgs_results/french_0.jpg" width="800">
<img src="./doc/imgs_results/korean.jpg" width="800">
</div>
<a name="欢迎加入PaddleOCR技术交流群"></a>
......
README_en.md deleted 100644 → 0
View file @ bd314018
English | [简体中文](README_ch.md)
## Introduction
PaddleOCR aims to create multilingual, awesome, leading, and practical OCR tools that help users train better models and apply them into practice.
**Recent updates**
- 2020.11.25 Update a new data annotation tool, i.e., [PPOCRLabel](./PPOCRLabel/README_en.md), which is helpful to improve the labeling efficiency. Moreover, the labeling results can be used in training of the PP-OCR system directly.
- 2020.9.22 Update the PP-OCR technical article, https://arxiv.org/abs/2009.09941
- 2020.9.19 Update the ultra lightweight compressed ppocr_mobile_slim series models, the overall model size is 3.5M (see [PP-OCR Pipeline](#PP-OCR-Pipeline)), suitable for mobile deployment. [Model Downloads](#Supported-Chinese-model-list)
- 2020.9.17 Update the ultra lightweight ppocr_mobile series and general ppocr_server series Chinese and English ocr models, which are comparable to commercial effects. [Model Downloads](#Supported-Chinese-model-list)
- 2020.9.17 update [English recognition model](./doc/doc_en/models_list_en.md#english-recognition-model) and [Multilingual recognition model](doc/doc_en/models_list_en.md#english-recognition-model), `English`, `Chinese`, `German`, `French`, `Japanese` and `Korean` have been supported. Models for more languages will continue to be updated.
- 2020.8.24 Support the use of PaddleOCR through whl package installation，please refer [PaddleOCR Package](./doc/doc_en/whl_en.md)
- 2020.8.21 Update the replay and PPT of the live lesson at Bilibili on August 18, lesson 2, easy to learn and use OCR tool spree. [Get Address](https://aistudio.baidu.com/aistudio/education/group/info/1519)
- [more](./doc/doc_en/update_en.md)
## Features
- PPOCR series of high-quality pre-trained models, comparable to commercial effects
- Ultra lightweight ppocr_mobile series models: detection (2.6M) + direction classifier (0.9M) + recognition (4.6M) = 8.1M
- General ppocr_server series models: detection (47.2M) + direction classifier (0.9M) + recognition (107M) = 155.1M
- Ultra lightweight compression ppocr_mobile_slim series models: detection (1.4M) + direction classifier (0.5M) + recognition (1.6M) = 3.5M
- Support Chinese, English, and digit recognition, vertical text recognition, and long text recognition
- Support multi-language recognition: Korean, Japanese, German, French
- Support user-defined training, provides rich predictive inference deployment solutions
- Support PIP installation, easy to use
- Support Linux, Windows, MacOS and other systems
## Visualization
<div align="center">
<img src="doc/imgs_results/1101.jpg" width="800">
<img src="doc/imgs_results/1103.jpg" width="800">
</div>
The above pictures are the visualizations of the general ppocr_server model. For more effect pictures, please see [More visualizations](./doc/doc_en/visualization_en.md).
<a name="Community"></a>
## Community
- Scan the QR code below with your Wechat, you can access to official technical exchange group. Look forward to your participation.
<div align="center">
<img src="./doc/joinus.PNG" width = "200" height = "200" />
</div>
## Quick Experience
You can also quickly experience the ultra-lightweight OCR : [Online Experience](https://www.paddlepaddle.org.cn/hub/scene/ocr)
Mobile DEMO experience (based on EasyEdge and Paddle-Lite, supports iOS and Android systems): [Sign in to the website to obtain the QR code for installing the App](https://ai.baidu.com/easyedge/app/openSource?from=paddlelite)
Also, you can scan the QR code below to install the App (**Android support only**)
<div align="center">
<img src="./doc/ocr-android-easyedge.png" width = "200" height = "200" />
</div>
- [**OCR Quick Start**](./doc/doc_en/quickstart_en.md)
<a name="Supported-Chinese-model-list"></a>
## PP-OCR 2.0 series model list（Update on Sep 17）
| Model introduction | Model name | Recommended scene | Detection model | Direction classifier | Recognition model |
| ------------------------------------------------------------ | ---------------------------- | ----------------- | ------------------------------------------------------------ | ------------------------------------------------------------ | ------------------------------------------------------------ |
| Chinese and English ultra-lightweight OCR model (8.1M) | ch_ppocr_mobile_v2.0_xx | Mobile & server |[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_det_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_det_train.tar)|[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar) |[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_rec_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_rec_pre.tar) |
| Chinese and English general OCR model (143M) | ch_ppocr_server_v2.0_xx | Server |[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_det_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_det_train.tar) |[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_traingit.tar) |[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_rec_infer.tar) / [pre-trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_rec_pre.tar) |
For more model downloads (including multiple languages), please refer to [PP-OCR v2.0 series model downloads](./doc/doc_en/models_list_en.md).
For a new language request, please refer to [Guideline for new language_requests](#language_requests).
## Tutorials
- [Installation](./doc/doc_en/installation_en.md)
- [Quick Start](./doc/doc_en/quickstart_en.md)
- [Code Structure](./doc/doc_en/tree_en.md)
- Algorithm Introduction
- [Text Detection Algorithm](./doc/doc_en/algorithm_overview_en.md)
- [Text Recognition Algorithm](./doc/doc_en/algorithm_overview_en.md)
- [PP-OCR Pipeline](#PP-OCR-Pipeline)
- Model Training/Evaluation
- [Text Detection](./doc/doc_en/detection_en.md)
- [Text Recognition](./doc/doc_en/recognition_en.md)
- [Direction Classification](./doc/doc_en/angle_class_en.md)
- [Yml Configuration](./doc/doc_en/config_en.md)
- Inference and Deployment
- [Quick Inference Based on PIP](./doc/doc_en/whl_en.md)
- [Python Inference](./doc/doc_en/inference_en.md)
- [C++ Inference](./deploy/cpp_infer/readme_en.md)
- [Serving](./deploy/hubserving/readme_en.md)
- [Mobile](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/deploy/lite/readme_en.md)
- [Model Quantization](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/deploy/slim/quantization/README_en.md)
- [Model Compression](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/deploy/slim/prune/README_en.md)
- [Benchmark](./doc/doc_en/benchmark_en.md)
- Data Annotation and Synthesis
- [Semi-automatic Annotation Tool](./PPOCRLabel/README_en.md)
- [Data Annotation Tools](./doc/doc_en/data_annotation_en.md)
- [Data Synthesis Tools](./doc/doc_en/data_synthesis_en.md)
- Datasets
- [General OCR Datasets(Chinese/English)](./doc/doc_en/datasets_en.md)
- [HandWritten_OCR_Datasets(Chinese)](./doc/doc_en/handwritten_datasets_en.md)
- [Various OCR Datasets(multilingual)](./doc/doc_en/vertical_and_multilingual_datasets_en.md)
- [Visualization](#Visualization)
- [New language requests](#language_requests)
- [FAQ](./doc/doc_en/FAQ_en.md)
- [Community](#Community)
- [References](./doc/doc_en/reference_en.md)
- [License](#LICENSE)
- [Contribution](#CONTRIBUTION)
***Note: The dynamic graphs branch is still under development.
Currently, only dynamic graph training, python-end prediction, and C++ prediction are supported.
If you need mobile-end deployment cases or quantitative demo,
please use the static graph branch.***
<a name="PP-OCR-Pipeline"></a>
## PP-OCR Pipeline
<div align="center">
<img src="./doc/ppocr_framework.png" width="800">
</div>
PP-OCR is a practical ultra-lightweight OCR system. It is mainly composed of three parts: DB text detection, detection frame correction and CRNN text recognition. The system adopts 19 effective strategies from 8 aspects including backbone network selection and adjustment, prediction head design, data augmentation, learning rate transformation strategy, regularization parameter selection, pre-training model use, and automatic model tailoring and quantization to optimize and slim down the models of each module. The final results are an ultra-lightweight Chinese and English OCR model with an overall size of 3.5M and a 2.8M English digital OCR model. For more details, please refer to the PP-OCR technical article (https://arxiv.org/abs/2009.09941). Besides, The implementation of the FPGM Pruner and PACT quantization is based on [PaddleSlim](https://github.com/PaddlePaddle/PaddleSlim).
## Visualization [more](./doc/doc_en/visualization_en.md)
- Chinese OCR model
<div align="center">
<img src="./doc/imgs_results/1102.jpg" width="800">
<img src="./doc/imgs_results/1104.jpg" width="800">
<img src="./doc/imgs_results/1106.jpg" width="800">
<img src="./doc/imgs_results/1105.jpg" width="800">
</div>
- English OCR model
<div align="center">
<img src="./doc/imgs_results/img_12.jpg" width="800">
</div>
- Multilingual OCR model
<div align="center">
<img src="./doc/imgs_results/1110.jpg" width="800">
<img src="./doc/imgs_results/1112.jpg" width="800">
</div>
<a name="language_requests"></a>
## Guideline for new language requests
If you want to request a new language support, a PR with 2 following files are needed：
1. In folder [ppocr/utils/dict](https://github.com/PaddlePaddle/PaddleOCR/tree/develop/ppocr/utils/dict),
it is necessary to submit the dict text to this path and name it with `{language}_dict.txt` that contains a list of all characters. Please see the format example from other files in that folder.
2. In folder [ppocr/utils/corpus](https://github.com/PaddlePaddle/PaddleOCR/tree/develop/ppocr/utils/corpus),
it is necessary to submit the corpus to this path and name it with `{language}_corpus.txt` that contains a list of words in your language.
Maybe, 50000 words per language is necessary at least.
Of course, the more, the better.
If your language has unique elements, please tell me in advance within any way, such as useful links, wikipedia and so on.
More details, please refer to [Multilingual OCR Development Plan](https://github.com/PaddlePaddle/PaddleOCR/issues/1048).
<a name="LICENSE"></a>
## License
This project is released under <a href="https://github.com/PaddlePaddle/PaddleOCR/blob/master/LICENSE">Apache 2.0 license</a>
<a name="CONTRIBUTION"></a>
## Contribution
We welcome all the contributions to PaddleOCR and appreciate for your feedback very much.
- Many thanks to [Khanh Tran](https://github.com/xxxpsyduck) and [Karl Horky](https://github.com/karlhorky) for contributing and revising the English documentation.
- Many thanks to [zhangxin](https://github.com/ZhangXinNan) for contributing the new visualize function、add .gitgnore and discard set PYTHONPATH manually.
- Many thanks to [lyl120117](https://github.com/lyl120117) for contributing the code for printing the network structure.
- Thanks [xiangyubo](https://github.com/xiangyubo) for contributing the handwritten Chinese OCR datasets.
- Thanks [authorfu](https://github.com/authorfu) for contributing Android demo and [xiadeye](https://github.com/xiadeye) contributing iOS demo, respectively.
- Thanks [BeyondYourself](https://github.com/BeyondYourself) for contributing many great suggestions and simplifying part of the code style.
- Thanks [tangmq](https://gitee.com/tangmq) for contributing Dockerized deployment services to PaddleOCR and supporting the rapid release of callable Restful API services.
- Thanks [lijinhan](https://github.com/lijinhan) for contributing a new way, i.e., java SpringBoot, to achieve the request for the Hubserving deployment.
- Thanks [Mejans](https://github.com/Mejans) for contributing the Occitan corpus and character set.
- Thanks [LKKlein](https://github.com/LKKlein) for contributing a new deploying package with the Golang program language.
- Thanks [Evezerest](https://github.com/Evezerest), [ninetailskim](https://github.com/ninetailskim), [edencfc](https://github.com/edencfc), [BeyondYourself](https://github.com/BeyondYourself) and [1084667371](https://github.com/1084667371) for contributing a new data annotation tool, i.e., PPOCRLabel。
StyleText/README.md 0 → 100644
View file @ 78d51971
English | [简体中文](README_ch.md)
## Style Text
### Contents
- [1. Introduction](#Introduction)
- [2. Preparation](#Preparation)
- [3. Quick Start](#Quick_Start)
- [4. Applications](#Applications)
- [5. Code Structure](#Code_structure)
<a name="Introduction"></a>
### Introduction
<div align="center">
<img src="doc/images/3.png" width="800">
</div>
<div align="center">
<img src="doc/images/9.png" width="600">
</div>
The Style-Text data synthesis tool is a tool based on Baidu's self-developed text editing algorithm "Editing Text in the Wild" [https://arxiv.org/abs/1908.03047](https://arxiv.org/abs/1908.03047).
Different from the commonly used GAN-based data synthesis tools, the main framework of Style-Text includes:
* (1) Text foreground style transfer module.
* (2) Background extraction module.
* (3) Fusion module.
After these three steps, you can quickly realize the image text style transfer. The following figure is some results of the data synthesis tool.
<div align="center">
<img src="doc/images/10.png" width="1000">
</div>
<a name="Preparation"></a>
#### Preparation
1. Please refer the [QUICK INSTALLATION](../doc/doc_en/installation_en.md) to install PaddlePaddle. Python3 environment is strongly recommended.
2. Download the pretrained models and unzip:
```bash
cd StyleText
wget https://paddleocr.bj.bcebos.com/dygraph_v2.0/style_text/style_text_models.zip
unzip style_text_models.zip
```
If you save the model in another location, please modify the address of the model file in `configs/config.yml`, and you need to modify these three configurations at the same time:
```
bg_generator:
pretrain: style_text_rec/bg_generator
...
text_generator:
pretrain: style_text_models/text_generator
...
fusion_generator:
pretrain: style_text_models/fusion_generator
```
<a name="Quick_Start"></a>
### Quick Start
#### Synthesis single image
1. You can run `tools/synth_image` and generate the demo image, which is saved in the current folder.
```python
python3 -m tools.synth_image -c configs/config.yml --style_image examples/style_images/2.jpg --text_corpus PaddleOCR --language en
```
* Note: The language options is correspond to the corpus. Currently, the tool only supports English, Simplified Chinese and Korean.
For example, enter the following image and corpus `PaddleOCR`.
<div align="center">
<img src="examples/style_images/2.jpg" width="300">
</div>
The result `fake_fusion.jpg` will be generated.
<div align="center">
<img src="doc/images/4.jpg" width="300">
</div>
What's more, the medium result `fake_bg.jpg` will also be saved, which is the background output.
<div align="center">
<img src="doc/images/7.jpg" width="300">
</div>
`fake_text.jpg` * `fake_text.jpg` is the generated image with the same font style as `Style Input`.
<div align="center">
<img src="doc/images/8.jpg" width="300">
</div>
#### Batch synthesis
In actual application scenarios, it is often necessary to synthesize pictures in batches and add them to the training set. StyleText can use a batch of style pictures and corpus to synthesize data in batches. The synthesis process is as follows:
1. The referenced dataset can be specifed in `configs/dataset_config.yml`:
* `Global`：
* `output_dir:`：Output synthesis data path.
* `StyleSampler`：
* `image_home`：style images' folder.
* `label_file`：Style images' file list. If label is provided, then it is the label file path.
* `with_label`：Whether the `label_file` is label file list.
* `CorpusGenerator`：
* `method`：Method of CorpusGenerator，supports `FileCorpus` and `EnNumCorpus`. If `EnNumCorpus` is used，No other configuration is needed，otherwise you need to set `corpus_file` and `language`.
* `language`：Language of the corpus.
* `corpus_file`: Filepath of the corpus.
We provide a general dataset containing Chinese, English and Korean (50,000 images in all) for your trial ([download link](https://paddleocr.bj.bcebos.com/dygraph_v2.0/style_text/chkoen_5w.tar)), some examples are given below :
<div align="center">
<img src="doc/images/5.png" width="800">
</div>
2. You can run the following command to start synthesis task:
``` bash
python -m tools.synth_dataset.py -c configs/dataset_config.yml
```
<a name="Applications"></a>
### Applications
We take two scenes as examples, which are metal surface English number recognition and general Korean recognition, to illustrate practical cases of using StyleText to synthesize data to improve text recognition. The following figure shows some examples of real scene images and composite images:
<div align="center">
<img src="doc/images/11.png" width="800">
</div>
After adding the above synthetic data for training, the accuracy of the recognition model is improved, which is shown in the following table:
| Scenario | Characters | Raw Data | Test Data | Only Use Raw Data</br>Recognition Accuracy | New Synthetic Data | Simultaneous Use of Synthetic Data</br>Recognition Accuracy | Index Improvement |
| -------- | ---------- | -------- | -------- | -------------------------- | ------------ | ---------------------- | -------- |
| Metal surface | English and numbers | 2203 | 650 | 0.5938 | 20000 | 0.7546 | 16% |
| Random background | Korean | 5631 | 1230 | 0.3012 | 100000 | 0.5057 | 20% |
<a name="Code_structure"></a>
### Code Structure
```
StyleText
|-- arch // Network module files.
| |-- base_module.py
| |-- decoder.py
| |-- encoder.py
| |-- spectral_norm.py
| `-- style_text_rec.py
|-- configs // Config files.
| |-- config.yml
| `-- dataset_config.yml
|-- engine // Synthesis engines.
| |-- corpus_generators.py // Sample corpus from file or generate random corpus.
| |-- predictors.py // Predict using network.
| |-- style_samplers.py // Sample style images.
| |-- synthesisers.py // Manage other engines to synthesis images.
| |-- text_drawers.py // Generate standard input text images.
| `-- writers.py // Write synthesis images and labels into files.
|-- examples // Example files.
| |-- corpus
| | `-- example.txt
| |-- image_list.txt
| `-- style_images
| |-- 1.jpg
| `-- 2.jpg
|-- fonts // Font files.
| |-- ch_standard.ttf
| |-- en_standard.ttf
| `-- ko_standard.ttf
|-- tools // Program entrance.
| |-- __init__.py
| |-- synth_dataset.py // Synthesis dataset.
| `-- synth_image.py // Synthesis image.
`-- utils // Module of basic functions.
|-- config.py
|-- load_params.py
|-- logging.py
|-- math_functions.py
`-- sys_funcs.py
```
StyleText/README_ch.md 0 → 100644
View file @ 78d51971
简体中文 | [English](README.md)
## Style Text
### 目录
- [一、工具简介](#工具简介)
- [二、环境配置](#环境配置)
- [三、快速上手](#快速上手)
- [四、应用案例](#应用案例)
- [五、代码结构](#代码结构)
<a name="工具简介"></a>
### 一、工具简介
<div align="center">
<img src="doc/images/3.png" width="800">
</div>
<div align="center">
<img src="doc/images/1.png" width="600">
</div>
Style-Text数据合成工具是基于百度自研的文本编辑算法《Editing Text in the Wild》https://arxiv.org/abs/1908.03047
不同于常用的基于GAN的数据合成工具，Style-Text主要框架包括：1.文本前景风格迁移模块 2.背景抽取模块 3.融合模块。经过这样三步，就可以迅速实现图像文本风格迁移。下图是一些该数据合成工具效果图。
<div align="center">
<img src="doc/images/2.png" width="1000">
</div>
<a name="环境配置"></a>
### 二、环境配置
1. 参考[快速安装](../doc/doc_ch/installation.md)，安装PaddleOCR。
2. 进入`StyleText`目录，下载模型，并解压：
```bash
cd StyleText
wget https://paddleocr.bj.bcebos.com/dygraph_v2.0/style_text/style_text_models.zip
unzip style_text_models.zip
```
如果您将模型保存再其他位置，请在`configs/config.yml`中修改模型文件的地址，修改时需要同时修改这三个配置：
```
bg_generator:
pretrain: style_text_models/bg_generator
...
text_generator:
pretrain: style_text_models/text_generator
...
fusion_generator:
pretrain: style_text_models/fusion_generator
```
<a name="快速上手"></a>
### 三、快速上手
#### 合成单张图
输入一张风格图和一段文字语料，运行tools/synth_image，合成单张图片，结果图像保存在当前目录下：
```python
python3 -m tools.synth_image -c configs/config.yml --style_image examples/style_images/2.jpg --text_corpus PaddleOCR --language en
```
* 注意：语言选项和语料相对应，目前该工具只支持英文、简体中文和韩语。
例如，输入如下图片和语料"PaddleOCR":
<div align="center">
<img src="examples/style_images/2.jpg" width="300">
</div>
生成合成数据`fake_fusion.jpg`：
<div align="center">
<img src="doc/images/4.jpg" width="300">
</div>
除此之外，程序还会生成并保存中间结果`fake_bg.jpg`：为风格参考图去掉文字后的背景；
<div align="center">
<img src="doc/images/7.jpg" width="300">
</div>
`fake_text.jpg`：是用提供的字符串，仿照风格参考图中文字的风格，生成在灰色背景上的文字图片。
<div align="center">
<img src="doc/images/8.jpg" width="300">
</div>
#### 批量合成
在实际应用场景中，经常需要批量合成图片，补充到训练集中。Style-Text可以使用一批风格图片和语料，批量合成数据。合成过程如下：
1. 在`configs/dataset_config.yml`中配置目标场景风格图像和语料的路径，具体如下：
* `Global`：
* `output_dir:`：保存合成数据的目录。
* `StyleSampler`：
* `image_home`：风格图片目录；
* `label_file`：风格图片路径列表文件，如果所用数据集有label，则label_file为label文件路径；
* `with_label`：标志`label_file`是否为label文件。
* `CorpusGenerator`：
* `method`：语料生成方法，目前有`FileCorpus`和`EnNumCorpus`可选。如果使用`EnNumCorpus`，则不需要填写其他配置，否则需要修改`corpus_file`和`language`；
* `language`：语料的语种；
* `corpus_file`: 语料文件路径。
Style-Text也提供了一批中英韩5万张通用场景数据用作文本风格图像，便于合成场景丰富的文本图像，下图给出了一些示例。
中英韩5万张通用场景数据: [下载地址](https://paddleocr.bj.bcebos.com/dygraph_v2.0/style_text/chkoen_5w.tar)
<div align="center">
<img src="doc/images/5.png" width="800">
</div>
2. 运行`tools/synth_dataset`合成数据：
``` bash
python -m tools.synth_dataset -c configs/dataset_config.yml
```
<a name="应用案例"></a>
### 四、应用案例
下面以金属表面英文数字识别和通用韩语识别两个场景为例，说明使用Style-Text合成数据，来提升文本识别效果的实际案例。下图给出了一些真实场景图像和合成图像的示例：
<div align="center">
<img src="doc/images/6.png" width="800">
</div>
在添加上述合成数据进行训练后，识别模型的效果提升，如下表所示：
| 场景 | 字符 | 原始数据 | 测试数据 | 只使用原始数据</br>识别准确率 | 新增合成数据 | 同时使用合成数据</br>识别准确率 | 指标提升 |
| -------- | ---------- | -------- | -------- | -------------------------- | ------------ | ---------------------- | -------- |
| 金属表面 | 英文和数字 | 2203 | 650 | 0.5938 | 20000 | 0.7546 | 16% |
| 随机背景 | 韩语 | 5631 | 1230 | 0.3012 | 100000 | 0.5057 | 20% |
<a name="代码结构"></a>
### 五、代码结构
```
StyleText
|-- arch // 网络结构定义文件
| |-- base_module.py
| |-- decoder.py
| |-- encoder.py
| |-- spectral_norm.py
| `-- style_text_rec.py
|-- configs // 配置文件
| |-- config.yml
| `-- dataset_config.yml
|-- engine // 数据合成引擎
| |-- corpus_generators.py // 从文本采样或随机生成语料
| |-- predictors.py // 调用网络生成数据
| |-- style_samplers.py // 采样风格图片
| |-- synthesisers.py // 调度各个模块，合成数据
| |-- text_drawers.py // 生成标准文字图片，用作输入
| `-- writers.py // 将合成的图片和标签写入本地目录
|-- examples // 示例文件
| |-- corpus
| | `-- example.txt
| |-- image_list.txt
| `-- style_images
| |-- 1.jpg
| `-- 2.jpg
|-- fonts // 字体文件
| |-- ch_standard.ttf
| |-- en_standard.ttf
| `-- ko_standard.ttf
|-- tools // 程序入口
| |-- __init__.py
| |-- synth_dataset.py // 批量合成数据
| `-- synth_image.py // 合成单张图片
`-- utils // 其他基础功能模块
|-- config.py
|-- load_params.py
|-- logging.py
|-- math_functions.py
`-- sys_funcs.py
```
StyleText/arch/base_module.py 0 → 100644
View file @ 78d51971
# Copyright (c) 2020 PaddlePaddle Authors. All Rights Reserve.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
import paddle
import paddle.nn as nn
from arch.spectral_norm import spectral_norm
class CBN(nn.Layer):
def __init__(self,
name,
in_channels,
out_channels,
kernel_size,
stride=1,
padding=0,
dilation=1,
groups=1,
use_bias=False,
norm_layer=None,
act=None,
act_attr=None):
super(CBN, self).__init__()
if use_bias:
bias_attr = paddle.ParamAttr(name=name + "_bias")
else:
bias_attr = None
self._conv = paddle.nn.Conv2D(
in_channels=in_channels,
out_channels=out_channels,
kernel_size=kernel_size,
stride=stride,
padding=padding,
dilation=dilation,
groups=groups,
weight_attr=paddle.ParamAttr(name=name + "_weights"),
bias_attr=bias_attr)
if norm_layer:
self._norm_layer = getattr(paddle.nn, norm_layer)(
num_features=out_channels, name=name + "_bn")
else:
self._norm_layer = None
if act:
if act_attr:
self._act = getattr(paddle.nn, act)(**act_attr,
name=name + "_" + act)
else:
self._act = getattr(paddle.nn, act)(name=name + "_" + act)
else:
self._act = None
def forward(self, x):
out = self._conv(x)
if self._norm_layer:
out = self._norm_layer(out)
if self._act:
out = self._act(out)
return out
class SNConv(nn.Layer):
def __init__(self,
name,
in_channels,
out_channels,
kernel_size,
stride=1,
padding=0,
dilation=1,
groups=1,
use_bias=False,
norm_layer=None,
act=None,
act_attr=None):
super(SNConv, self).__init__()
if use_bias:
bias_attr = paddle.ParamAttr(name=name + "_bias")
else:
bias_attr = None
self._sn_conv = spectral_norm(
paddle.nn.Conv2D(
in_channels=in_channels,
out_channels=out_channels,
kernel_size=kernel_size,
stride=stride,
padding=padding,
dilation=dilation,
groups=groups,
weight_attr=paddle.ParamAttr(name=name + "_weights"),
bias_attr=bias_attr))
if norm_layer:
self._norm_layer = getattr(paddle.nn, norm_layer)(
num_features=out_channels, name=name + "_bn")
else:
self._norm_layer = None
if act:
if act_attr:
self._act = getattr(paddle.nn, act)(**act_attr,
name=name + "_" + act)
else:
self._act = getattr(paddle.nn, act)(name=name + "_" + act)
else:
self._act = None
def forward(self, x):
out = self._sn_conv(x)
if self._norm_layer:
out = self._norm_layer(out)
if self._act:
out = self._act(out)
return out
class SNConvTranspose(nn.Layer):
def __init__(self,
name,
in_channels,
out_channels,
kernel_size,
stride=1,
padding=0,
output_padding=0,
dilation=1,
groups=1,
use_bias=False,
norm_layer=None,
act=None,
act_attr=None):
super(SNConvTranspose, self).__init__()
if use_bias:
bias_attr = paddle.ParamAttr(name=name + "_bias")
else:
bias_attr = None
self._sn_conv_transpose = spectral_norm(
paddle.nn.Conv2DTranspose(
in_channels=in_channels,
out_channels=out_channels,
kernel_size=kernel_size,
stride=stride,
padding=padding,
output_padding=output_padding,
dilation=dilation,
groups=groups,
weight_attr=paddle.ParamAttr(name=name + "_weights"),
bias_attr=bias_attr))
if norm_layer:
self._norm_layer = getattr(paddle.nn, norm_layer)(
num_features=out_channels, name=name + "_bn")
else:
self._norm_layer = None
if act:
if act_attr:
self._act = getattr(paddle.nn, act)(**act_attr,
name=name + "_" + act)
else:
self._act = getattr(paddle.nn, act)(name=name + "_" + act)
else:
self._act = None
def forward(self, x):
out = self._sn_conv_transpose(x)
if self._norm_layer:
out = self._norm_layer(out)
if self._act:
out = self._act(out)
return out
class MiddleNet(nn.Layer):
def __init__(self, name, in_channels, mid_channels, out_channels,
use_bias):
super(MiddleNet, self).__init__()
self._sn_conv1 = SNConv(
name=name + "_sn_conv1",
in_channels=in_channels,
out_channels=mid_channels,
kernel_size=1,
use_bias=use_bias,
norm_layer=None,
act=None)
self._pad2d = nn.Pad2D(padding=[1, 1, 1, 1], mode="replicate")
self._sn_conv2 = SNConv(
name=name + "_sn_conv2",
in_channels=mid_channels,
out_channels=mid_channels,
kernel_size=3,
use_bias=use_bias)
self._sn_conv3 = SNConv(
name=name + "_sn_conv3",
in_channels=mid_channels,
out_channels=out_channels,
kernel_size=1,
use_bias=use_bias)
def forward(self, x):
sn_conv1 = self._sn_conv1.forward(x)
pad_2d = self._pad2d.forward(sn_conv1)
sn_conv2 = self._sn_conv2.forward(pad_2d)
sn_conv3 = self._sn_conv3.forward(sn_conv2)
return sn_conv3
class ResBlock(nn.Layer):
def __init__(self, name, channels, norm_layer, use_dropout, use_dilation,
use_bias):
super(ResBlock, self).__init__()
if use_dilation:
padding_mat = [1, 1, 1, 1]
else:
padding_mat = [0, 0, 0, 0]
self._pad1 = nn.Pad2D(padding_mat, mode="replicate")
self._sn_conv1 = SNConv(
name=name + "_sn_conv1",
in_channels=channels,
out_channels=channels,
kernel_size=3,
padding=0,
norm_layer=norm_layer,
use_bias=use_bias,
act="ReLU",
act_attr=None)
if use_dropout:
self._dropout = nn.Dropout(0.5)
else:
self._dropout = None
self._pad2 = nn.Pad2D([1, 1, 1, 1], mode="replicate")
self._sn_conv2 = SNConv(
name=name + "_sn_conv2",
in_channels=channels,
out_channels=channels,
kernel_size=3,
norm_layer=norm_layer,
use_bias=use_bias,
act="ReLU",
act_attr=None)
def forward(self, x):
pad1 = self._pad1.forward(x)
sn_conv1 = self._sn_conv1.forward(pad1)
pad2 = self._pad2.forward(sn_conv1)
sn_conv2 = self._sn_conv2.forward(pad2)
return sn_conv2 + x
StyleText/arch/decoder.py 0 → 100644
View file @ 78d51971
# Copyright (c) 2020 PaddlePaddle Authors. All Rights Reserve.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
import paddle
import paddle.nn as nn
from arch.base_module import SNConv, SNConvTranspose, ResBlock
class Decoder(nn.Layer):
def __init__(self, name, encode_dim, out_channels, use_bias, norm_layer,
act, act_attr, conv_block_dropout, conv_block_num,
conv_block_dilation, out_conv_act, out_conv_act_attr):
super(Decoder, self).__init__()
conv_blocks = []
for i in range(conv_block_num):
conv_blocks.append(
ResBlock(
name="{}_conv_block_{}".format(name, i),
channels=encode_dim * 8,
norm_layer=norm_layer,
use_dropout=conv_block_dropout,
use_dilation=conv_block_dilation,
use_bias=use_bias))
self.conv_blocks = nn.Sequential(*conv_blocks)
self._up1 = SNConvTranspose(
name=name + "_up1",
in_channels=encode_dim * 8,
out_channels=encode_dim * 4,
kernel_size=3,
stride=2,
padding=1,
output_padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._up2 = SNConvTranspose(
name=name + "_up2",
in_channels=encode_dim * 4,
out_channels=encode_dim * 2,
kernel_size=3,
stride=2,
padding=1,
output_padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._up3 = SNConvTranspose(
name=name + "_up3",
in_channels=encode_dim * 2,
out_channels=encode_dim,
kernel_size=3,
stride=2,
padding=1,
output_padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._pad2d = paddle.nn.Pad2D([1, 1, 1, 1], mode="replicate")
self._out_conv = SNConv(
name=name + "_out_conv",
in_channels=encode_dim,
out_channels=out_channels,
kernel_size=3,
use_bias=use_bias,
norm_layer=None,
act=out_conv_act,
act_attr=out_conv_act_attr)
def forward(self, x):
if isinstance(x, (list, tuple)):
x = paddle.concat(x, axis=1)
output_dict = dict()
output_dict["conv_blocks"] = self.conv_blocks.forward(x)
output_dict["up1"] = self._up1.forward(output_dict["conv_blocks"])
output_dict["up2"] = self._up2.forward(output_dict["up1"])
output_dict["up3"] = self._up3.forward(output_dict["up2"])
output_dict["pad2d"] = self._pad2d.forward(output_dict["up3"])
output_dict["out_conv"] = self._out_conv.forward(output_dict["pad2d"])
return output_dict
class DecoderUnet(nn.Layer):
def __init__(self, name, encode_dim, out_channels, use_bias, norm_layer,
act, act_attr, conv_block_dropout, conv_block_num,
conv_block_dilation, out_conv_act, out_conv_act_attr):
super(DecoderUnet, self).__init__()
conv_blocks = []
for i in range(conv_block_num):
conv_blocks.append(
ResBlock(
name="{}_conv_block_{}".format(name, i),
channels=encode_dim * 8,
norm_layer=norm_layer,
use_dropout=conv_block_dropout,
use_dilation=conv_block_dilation,
use_bias=use_bias))
self._conv_blocks = nn.Sequential(*conv_blocks)
self._up1 = SNConvTranspose(
name=name + "_up1",
in_channels=encode_dim * 8,
out_channels=encode_dim * 4,
kernel_size=3,
stride=2,
padding=1,
output_padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._up2 = SNConvTranspose(
name=name + "_up2",
in_channels=encode_dim * 8,
out_channels=encode_dim * 2,
kernel_size=3,
stride=2,
padding=1,
output_padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._up3 = SNConvTranspose(
name=name + "_up3",
in_channels=encode_dim * 4,
out_channels=encode_dim,
kernel_size=3,
stride=2,
padding=1,
output_padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._pad2d = paddle.nn.Pad2D([1, 1, 1, 1], mode="replicate")
self._out_conv = SNConv(
name=name + "_out_conv",
in_channels=encode_dim,
out_channels=out_channels,
kernel_size=3,
use_bias=use_bias,
norm_layer=None,
act=out_conv_act,
act_attr=out_conv_act_attr)
def forward(self, x, y, feature2, feature1):
output_dict = dict()
output_dict["conv_blocks"] = self._conv_blocks(
paddle.concat(
(x, y), axis=1))
output_dict["up1"] = self._up1.forward(output_dict["conv_blocks"])
output_dict["up2"] = self._up2.forward(
paddle.concat(
(output_dict["up1"], feature2), axis=1))
output_dict["up3"] = self._up3.forward(
paddle.concat(
(output_dict["up2"], feature1), axis=1))
output_dict["pad2d"] = self._pad2d.forward(output_dict["up3"])
output_dict["out_conv"] = self._out_conv.forward(output_dict["pad2d"])
return output_dict
class SingleDecoder(nn.Layer):
def __init__(self, name, encode_dim, out_channels, use_bias, norm_layer,
act, act_attr, conv_block_dropout, conv_block_num,
conv_block_dilation, out_conv_act, out_conv_act_attr):
super(SingleDecoder, self).__init__()
conv_blocks = []
for i in range(conv_block_num):
conv_blocks.append(
ResBlock(
name="{}_conv_block_{}".format(name, i),
channels=encode_dim * 4,
norm_layer=norm_layer,
use_dropout=conv_block_dropout,
use_dilation=conv_block_dilation,
use_bias=use_bias))
self._conv_blocks = nn.Sequential(*conv_blocks)
self._up1 = SNConvTranspose(
name=name + "_up1",
in_channels=encode_dim * 4,
out_channels=encode_dim * 4,
kernel_size=3,
stride=2,
padding=1,
output_padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._up2 = SNConvTranspose(
name=name + "_up2",
in_channels=encode_dim * 8,
out_channels=encode_dim * 2,
kernel_size=3,
stride=2,
padding=1,
output_padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._up3 = SNConvTranspose(
name=name + "_up3",
in_channels=encode_dim * 4,
out_channels=encode_dim,
kernel_size=3,
stride=2,
padding=1,
output_padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._pad2d = paddle.nn.Pad2D([1, 1, 1, 1], mode="replicate")
self._out_conv = SNConv(
name=name + "_out_conv",
in_channels=encode_dim,
out_channels=out_channels,
kernel_size=3,
use_bias=use_bias,
norm_layer=None,
act=out_conv_act,
act_attr=out_conv_act_attr)
def forward(self, x, feature2, feature1):
output_dict = dict()
output_dict["conv_blocks"] = self._conv_blocks.forward(x)
output_dict["up1"] = self._up1.forward(output_dict["conv_blocks"])
output_dict["up2"] = self._up2.forward(
paddle.concat(
(output_dict["up1"], feature2), axis=1))
output_dict["up3"] = self._up3.forward(
paddle.concat(
(output_dict["up2"], feature1), axis=1))
output_dict["pad2d"] = self._pad2d.forward(output_dict["up3"])
output_dict["out_conv"] = self._out_conv.forward(output_dict["pad2d"])
return output_dict
StyleText/arch/encoder.py 0 → 100644
View file @ 78d51971
# Copyright (c) 2020 PaddlePaddle Authors. All Rights Reserve.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
import paddle
import paddle.nn as nn
from arch.base_module import SNConv, SNConvTranspose, ResBlock
class Encoder(nn.Layer):
def __init__(self, name, in_channels, encode_dim, use_bias, norm_layer,
act, act_attr, conv_block_dropout, conv_block_num,
conv_block_dilation):
super(Encoder, self).__init__()
self._pad2d = paddle.nn.Pad2D([3, 3, 3, 3], mode="replicate")
self._in_conv = SNConv(
name=name + "_in_conv",
in_channels=in_channels,
out_channels=encode_dim,
kernel_size=7,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._down1 = SNConv(
name=name + "_down1",
in_channels=encode_dim,
out_channels=encode_dim * 2,
kernel_size=3,
stride=2,
padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._down2 = SNConv(
name=name + "_down2",
in_channels=encode_dim * 2,
out_channels=encode_dim * 4,
kernel_size=3,
stride=2,
padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._down3 = SNConv(
name=name + "_down3",
in_channels=encode_dim * 4,
out_channels=encode_dim * 4,
kernel_size=3,
stride=2,
padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
conv_blocks = []
for i in range(conv_block_num):
conv_blocks.append(
ResBlock(
name="{}_conv_block_{}".format(name, i),
channels=encode_dim * 4,
norm_layer=norm_layer,
use_dropout=conv_block_dropout,
use_dilation=conv_block_dilation,
use_bias=use_bias))
self._conv_blocks = nn.Sequential(*conv_blocks)
def forward(self, x):
out_dict = dict()
x = self._pad2d(x)
out_dict["in_conv"] = self._in_conv.forward(x)
out_dict["down1"] = self._down1.forward(out_dict["in_conv"])
out_dict["down2"] = self._down2.forward(out_dict["down1"])
out_dict["down3"] = self._down3.forward(out_dict["down2"])
out_dict["res_blocks"] = self._conv_blocks.forward(out_dict["down3"])
return out_dict
class EncoderUnet(nn.Layer):
def __init__(self, name, in_channels, encode_dim, use_bias, norm_layer,
act, act_attr):
super(EncoderUnet, self).__init__()
self._pad2d = paddle.nn.Pad2D([3, 3, 3, 3], mode="replicate")
self._in_conv = SNConv(
name=name + "_in_conv",
in_channels=in_channels,
out_channels=encode_dim,
kernel_size=7,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._down1 = SNConv(
name=name + "_down1",
in_channels=encode_dim,
out_channels=encode_dim * 2,
kernel_size=3,
stride=2,
padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._down2 = SNConv(
name=name + "_down2",
in_channels=encode_dim * 2,
out_channels=encode_dim * 2,
kernel_size=3,
stride=2,
padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._down3 = SNConv(
name=name + "_down3",
in_channels=encode_dim * 2,
out_channels=encode_dim * 2,
kernel_size=3,
stride=2,
padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._down4 = SNConv(
name=name + "_down4",
in_channels=encode_dim * 2,
out_channels=encode_dim * 2,
kernel_size=3,
stride=2,
padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._up1 = SNConvTranspose(
name=name + "_up1",
in_channels=encode_dim * 2,
out_channels=encode_dim * 2,
kernel_size=3,
stride=2,
padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
self._up2 = SNConvTranspose(
name=name + "_up2",
in_channels=encode_dim * 4,
out_channels=encode_dim * 4,
kernel_size=3,
stride=2,
padding=1,
use_bias=use_bias,
norm_layer=norm_layer,
act=act,
act_attr=act_attr)
def forward(self, x):
output_dict = dict()
x = self._pad2d(x)
output_dict['in_conv'] = self._in_conv.forward(x)
output_dict['down1'] = self._down1.forward(output_dict['in_conv'])
output_dict['down2'] = self._down2.forward(output_dict['down1'])
output_dict['down3'] = self._down3.forward(output_dict['down2'])
output_dict['down4'] = self._down4.forward(output_dict['down3'])
output_dict['up1'] = self._up1.forward(output_dict['down4'])
output_dict['up2'] = self._up2.forward(
paddle.concat(
(output_dict['down3'], output_dict['up1']), axis=1))
output_dict['concat'] = paddle.concat(
(output_dict['down2'], output_dict['up2']), axis=1)
return output_dict
StyleText/arch/spectral_norm.py 0 → 100644
View file @ 78d51971
# Copyright (c) 2020 PaddlePaddle Authors. All Rights Reserve.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
import paddle
import paddle.nn as nn
import paddle.nn.functional as F
def normal_(x, mean=0., std=1.):
temp_value = paddle.normal(mean, std, shape=x.shape)
x.set_value(temp_value)
return x
class SpectralNorm(object):
def __init__(self, name='weight', n_power_iterations=1, dim=0, eps=1e-12):
self.name = name
self.dim = dim
if n_power_iterations <= 0:
raise ValueError('Expected n_power_iterations to be positive, but '
'got n_power_iterations={}'.format(
n_power_iterations))
self.n_power_iterations = n_power_iterations
self.eps = eps
def reshape_weight_to_matrix(self, weight):
weight_mat = weight
if self.dim != 0:
# transpose dim to front
weight_mat = weight_mat.transpose([
self.dim,
* [d for d in range(weight_mat.dim()) if d != self.dim]
])
height = weight_mat.shape[0]
return weight_mat.reshape([height, -1])
def compute_weight(self, module, do_power_iteration):
weight = getattr(module, self.name + '_orig')
u = getattr(module, self.name + '_u')
v = getattr(module, self.name + '_v')
weight_mat = self.reshape_weight_to_matrix(weight)
if do_power_iteration:
with paddle.no_grad():
for _ in range(self.n_power_iterations):
v.set_value(
F.normalize(
paddle.matmul(
weight_mat,
u,
transpose_x=True,
transpose_y=False),
axis=0,
epsilon=self.eps, ))
u.set_value(
F.normalize(
paddle.matmul(weight_mat, v),
axis=0,
epsilon=self.eps, ))
if self.n_power_iterations > 0:
u = u.clone()
v = v.clone()
sigma = paddle.dot(u, paddle.mv(weight_mat, v))
weight = weight / sigma
return weight
def remove(self, module):
with paddle.no_grad():
weight = self.compute_weight(module, do_power_iteration=False)
delattr(module, self.name)
delattr(module, self.name + '_u')
delattr(module, self.name + '_v')
delattr(module, self.name + '_orig')
module.add_parameter(self.name, weight.detach())
def __call__(self, module, inputs):
setattr(
module,
self.name,
self.compute_weight(
module, do_power_iteration=module.training))
@staticmethod
def apply(module, name, n_power_iterations, dim, eps):
for k, hook in module._forward_pre_hooks.items():
if isinstance(hook, SpectralNorm) and hook.name == name:
raise RuntimeError(
"Cannot register two spectral_norm hooks on "
"the same parameter {}".format(name))
fn = SpectralNorm(name, n_power_iterations, dim, eps)
weight = module._parameters[name]
with paddle.no_grad():
weight_mat = fn.reshape_weight_to_matrix(weight)
h, w = weight_mat.shape
# randomly initialize u and v
u = module.create_parameter([h])
u = normal_(u, 0., 1.)
v = module.create_parameter([w])
v = normal_(v, 0., 1.)
u = F.normalize(u, axis=0, epsilon=fn.eps)
v = F.normalize(v, axis=0, epsilon=fn.eps)
# delete fn.name form parameters, otherwise you can not set attribute
del module._parameters[fn.name]
module.add_parameter(fn.name + "_orig", weight)
# still need to assign weight back as fn.name because all sorts of
# things may assume that it exists, e.g., when initializing weights.
# However, we can't directly assign as it could be an Parameter and
# gets added as a parameter. Instead, we register weight * 1.0 as a plain
# attribute.
setattr(module, fn.name, weight * 1.0)
module.register_buffer(fn.name + "_u", u)
module.register_buffer(fn.name + "_v", v)
module.register_forward_pre_hook(fn)
return fn
def spectral_norm(module,
name='weight',
n_power_iterations=1,
eps=1e-12,
dim=None):
if dim is None:
if isinstance(module, (nn.Conv1DTranspose, nn.Conv2DTranspose,
nn.Conv3DTranspose, nn.Linear)):
dim = 1
else:
dim = 0
SpectralNorm.apply(module, name, n_power_iterations, dim, eps)
return module
StyleText/arch/style_text_rec.py 0 → 100644
View file @ 78d51971
# Copyright (c) 2020 PaddlePaddle Authors. All Rights Reserve.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
import paddle
import paddle.nn as nn
from arch.base_module import MiddleNet, ResBlock
from arch.encoder import Encoder
from arch.decoder import Decoder, DecoderUnet, SingleDecoder
from utils.load_params import load_dygraph_pretrain
from utils.logging import get_logger
class StyleTextRec(nn.Layer):
def __init__(self, config):
super(StyleTextRec, self).__init__()
self.logger = get_logger()
self.text_generator = TextGenerator(config["Predictor"][
"text_generator"])
self.bg_generator = BgGeneratorWithMask(config["Predictor"][
"bg_generator"])
self.fusion_generator = FusionGeneratorSimple(config["Predictor"][
"fusion_generator"])
bg_generator_pretrain = config["Predictor"]["bg_generator"]["pretrain"]
text_generator_pretrain = config["Predictor"]["text_generator"][
"pretrain"]
fusion_generator_pretrain = config["Predictor"]["fusion_generator"][
"pretrain"]
load_dygraph_pretrain(
self.bg_generator,
self.logger,
path=bg_generator_pretrain,
load_static_weights=False)
load_dygraph_pretrain(
self.text_generator,
self.logger,
path=text_generator_pretrain,
load_static_weights=False)
load_dygraph_pretrain(
self.fusion_generator,
self.logger,
path=fusion_generator_pretrain,
load_static_weights=False)
def forward(self, style_input, text_input):
text_gen_output = self.text_generator.forward(style_input, text_input)
fake_text = text_gen_output["fake_text"]
fake_sk = text_gen_output["fake_sk"]
bg_gen_output = self.bg_generator.forward(style_input)
bg_encode_feature = bg_gen_output["bg_encode_feature"]
bg_decode_feature1 = bg_gen_output["bg_decode_feature1"]
bg_decode_feature2 = bg_gen_output["bg_decode_feature2"]
fake_bg = bg_gen_output["fake_bg"]
fusion_gen_output = self.fusion_generator.forward(fake_text, fake_bg)
fake_fusion = fusion_gen_output["fake_fusion"]
return {
"fake_fusion": fake_fusion,
"fake_text": fake_text,
"fake_sk": fake_sk,
"fake_bg": fake_bg,
}
class TextGenerator(nn.Layer):
def __init__(self, config):
super(TextGenerator, self).__init__()
name = config["module_name"]
encode_dim = config["encode_dim"]
norm_layer = config["norm_layer"]
conv_block_dropout = config["conv_block_dropout"]
conv_block_num = config["conv_block_num"]
conv_block_dilation = config["conv_block_dilation"]
if norm_layer == "InstanceNorm2D":
use_bias = True
else:
use_bias = False
self.encoder_text = Encoder(
name=name + "_encoder_text",
in_channels=3,
encode_dim=encode_dim,
use_bias=use_bias,
norm_layer=norm_layer,
act="ReLU",
act_attr=None,
conv_block_dropout=conv_block_dropout,
conv_block_num=conv_block_num,
conv_block_dilation=conv_block_dilation)
self.encoder_style = Encoder(
name=name + "_encoder_style",
in_channels=3,
encode_dim=encode_dim,
use_bias=use_bias,
norm_layer=norm_layer,
act="ReLU",
act_attr=None,
conv_block_dropout=conv_block_dropout,
conv_block_num=conv_block_num,
conv_block_dilation=conv_block_dilation)
self.decoder_text = Decoder(
name=name + "_decoder_text",
encode_dim=encode_dim,
out_channels=int(encode_dim / 2),
use_bias=use_bias,
norm_layer=norm_layer,
act="ReLU",
act_attr=None,
conv_block_dropout=conv_block_dropout,
conv_block_num=conv_block_num,
conv_block_dilation=conv_block_dilation,
out_conv_act="Tanh",
out_conv_act_attr=None)
self.decoder_sk = Decoder(
name=name + "_decoder_sk",
encode_dim=encode_dim,
out_channels=1,
use_bias=use_bias,
norm_layer=norm_layer,
act="ReLU",
act_attr=None,
conv_block_dropout=conv_block_dropout,
conv_block_num=conv_block_num,
conv_block_dilation=conv_block_dilation,
out_conv_act="Sigmoid",
out_conv_act_attr=None)
self.middle = MiddleNet(
name=name + "_middle_net",
in_channels=int(encode_dim / 2) + 1,
mid_channels=encode_dim,
out_channels=3,
use_bias=use_bias)
def forward(self, style_input, text_input):
style_feature = self.encoder_style.forward(style_input)["res_blocks"]
text_feature = self.encoder_text.forward(text_input)["res_blocks"]
fake_c_temp = self.decoder_text.forward([text_feature,
style_feature])["out_conv"]
fake_sk = self.decoder_sk.forward([text_feature,
style_feature])["out_conv"]
fake_text = self.middle(paddle.concat((fake_c_temp, fake_sk), axis=1))
return {"fake_sk": fake_sk, "fake_text": fake_text}
class BgGeneratorWithMask(nn.Layer):
def __init__(self, config):
super(BgGeneratorWithMask, self).__init__()
name = config["module_name"]
encode_dim = config["encode_dim"]
norm_layer = config["norm_layer"]
conv_block_dropout = config["conv_block_dropout"]
conv_block_num = config["conv_block_num"]
conv_block_dilation = config["conv_block_dilation"]
self.output_factor = config.get("output_factor", 1.0)
if norm_layer == "InstanceNorm2D":
use_bias = True
else:
use_bias = False
self.encoder_bg = Encoder(
name=name + "_encoder_bg",
in_channels=3,
encode_dim=encode_dim,
use_bias=use_bias,
norm_layer=norm_layer,
act="ReLU",
act_attr=None,
conv_block_dropout=conv_block_dropout,
conv_block_num=conv_block_num,
conv_block_dilation=conv_block_dilation)
self.decoder_bg = SingleDecoder(
name=name + "_decoder_bg",
encode_dim=encode_dim,
out_channels=3,
use_bias=use_bias,
norm_layer=norm_layer,
act="ReLU",
act_attr=None,
conv_block_dropout=conv_block_dropout,
conv_block_num=conv_block_num,
conv_block_dilation=conv_block_dilation,
out_conv_act="Tanh",
out_conv_act_attr=None)
self.decoder_mask = Decoder(
name=name + "_decoder_mask",
encode_dim=encode_dim // 2,
out_channels=1,
use_bias=use_bias,
norm_layer=norm_layer,
act="ReLU",
act_attr=None,
conv_block_dropout=conv_block_dropout,
conv_block_num=conv_block_num,
conv_block_dilation=conv_block_dilation,
out_conv_act="Sigmoid",
out_conv_act_attr=None)
self.middle = MiddleNet(
name=name + "_middle_net",
in_channels=3 + 1,
mid_channels=encode_dim,
out_channels=3,
use_bias=use_bias)
def forward(self, style_input):
encode_bg_output = self.encoder_bg(style_input)
decode_bg_output = self.decoder_bg(encode_bg_output["res_blocks"],
encode_bg_output["down2"],
encode_bg_output["down1"])
fake_c_temp = decode_bg_output["out_conv"]
fake_bg_mask = self.decoder_mask.forward(encode_bg_output[
"res_blocks"])["out_conv"]
fake_bg = self.middle(
paddle.concat(
(fake_c_temp, fake_bg_mask), axis=1))
return {
"bg_encode_feature": encode_bg_output["res_blocks"],
"bg_decode_feature1": decode_bg_output["up1"],
"bg_decode_feature2": decode_bg_output["up2"],
"fake_bg": fake_bg,
"fake_bg_mask": fake_bg_mask,
}
class FusionGeneratorSimple(nn.Layer):
def __init__(self, config):
super(FusionGeneratorSimple, self).__init__()
name = config["module_name"]
encode_dim = config["encode_dim"]
norm_layer = config["norm_layer"]
conv_block_dropout = config["conv_block_dropout"]
conv_block_dilation = config["conv_block_dilation"]
if norm_layer == "InstanceNorm2D":
use_bias = True
else:
use_bias = False
self._conv = nn.Conv2D(
in_channels=6,
out_channels=encode_dim,
kernel_size=3,
stride=1,
padding=1,
groups=1,
weight_attr=paddle.ParamAttr(name=name + "_conv_weights"),
bias_attr=False)
self._res_block = ResBlock(
name="{}_conv_block".format(name),
channels=encode_dim,
norm_layer=norm_layer,
use_dropout=conv_block_dropout,
use_dilation=conv_block_dilation,
use_bias=use_bias)
self._reduce_conv = nn.Conv2D(
in_channels=encode_dim,
out_channels=3,
kernel_size=3,
stride=1,
padding=1,
groups=1,
weight_attr=paddle.ParamAttr(name=name + "_reduce_conv_weights"),
bias_attr=False)
def forward(self, fake_text, fake_bg):
fake_concat = paddle.concat((fake_text, fake_bg), axis=1)
fake_concat_tmp = self._conv(fake_concat)
output_res = self._res_block(fake_concat_tmp)
fake_fusion = self._reduce_conv(output_res)
return {"fake_fusion": fake_fusion}
StyleText/configs/config.yml 0 → 100644
View file @ 78d51971
Global:
output_num: 10
output_dir: output_data
use_gpu: false
image_height: 32
image_width: 320
TextDrawer:
fonts:
en: fonts/en_standard.ttf
ch: fonts/ch_standard.ttf
ko: fonts/ko_standard.ttf
Predictor:
method: StyleTextRecPredictor
algorithm: StyleTextRec
scale: 0.00392156862745098
mean:
- 0.5
- 0.5
- 0.5
std:
- 0.5
- 0.5
- 0.5
expand_result: false
bg_generator:
pretrain: style_text_models/bg_generator
module_name: bg_generator
generator_type: BgGeneratorWithMask
encode_dim: 64
norm_layer: null
conv_block_num: 4
conv_block_dropout: false
conv_block_dilation: true
output_factor: 1.05
text_generator:
pretrain: style_text_models/text_generator
module_name: text_generator
generator_type: TextGenerator
encode_dim: 64
norm_layer: InstanceNorm2D
conv_block_num: 4
conv_block_dropout: false
conv_block_dilation: true
fusion_generator:
pretrain: style_text_models/fusion_generator
module_name: fusion_generator
generator_type: FusionGeneratorSimple
encode_dim: 64
norm_layer: null
conv_block_num: 4
conv_block_dropout: false
conv_block_dilation: true
Writer:
method: SimpleWriter
StyleText/configs/dataset_config.yml 0 → 100644
View file @ 78d51971
Global:
output_num: 10
output_dir: output_data
use_gpu: false
image_height: 32
image_width: 320
standard_font: fonts/en_standard.ttf
TextDrawer:
fonts:
en: fonts/en_standard.ttf
ch: fonts/ch_standard.ttf
ko: fonts/ko_standard.ttf
StyleSampler:
method: DatasetSampler
image_home: examples
label_file: examples/image_list.txt
with_label: true
CorpusGenerator:
method: FileCorpus
language: ch
corpus_file: examples/corpus/example.txt
Predictor:
method: StyleTextRecPredictor
algorithm: StyleTextRec
scale: 0.00392156862745098
mean:
- 0.5
- 0.5
- 0.5
std:
- 0.5
- 0.5
- 0.5
expand_result: false
bg_generator:
pretrain: models/style_text_rec/bg_generator
module_name: bg_generator
generator_type: BgGeneratorWithMask
encode_dim: 64
norm_layer: null
conv_block_num: 4
conv_block_dropout: false
conv_block_dilation: true
output_factor: 1.05
text_generator:
pretrain: models/style_text_rec/text_generator
module_name: text_generator
generator_type: TextGenerator
encode_dim: 64
norm_layer: InstanceNorm2D
conv_block_num: 4
conv_block_dropout: false
conv_block_dilation: true
fusion_generator:
pretrain: models/style_text_rec/fusion_generator
module_name: fusion_generator
generator_type: FusionGeneratorSimple
encode_dim: 64
norm_layer: null
conv_block_num: 4
conv_block_dropout: false
conv_block_dilation: true
Writer:
method: SimpleWriter
Markdown is supported
0% or .
You are about to add 0 people to the discussion. Proceed with caution.
Finish editing this message first!
Please register or to comment
