Merge branch 'PaddlePaddle:dygraph' into dygraph

PPOCRLabel/PPOCRLabel.py

@@ -1733,7 +1733,7 @@ class MainWindow(QMainWindow):
             width, height = self.image.width(), self.image.height()
             for shape in self.canvas.lockedShapes:
                 box = [[int(p[0] * width), int(p[1] * height)] for p in shape['ratio']]
-                assert len(box) == 4
+                # assert len(box) == 4
                 result = [(shape['transcription'], 1)]
                 result.insert(0, box)
                 self.result_dic_locked.append(result)

README.md

@@ -68,6 +68,8 @@ PaddleOCR support a variety of cutting-edge algorithms related to OCR, and devel

 | Model introduction                                           | Model name                   | Recommended scene | Detection model                                              | Direction classifier                                         | Recognition model                                            |
 | ------------------------------------------------------------ | ---------------------------- | ----------------- | ------------------------------------------------------------ | ------------------------------------------------------------ | ------------------------------------------------------------ |
+| Chinese and English ultra-lightweight PP-OCRv3 model（16.2M）     | ch_PP-OCRv3_xx          | Mobile & Server | [inference model](https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_det_infer.tar) / [trained model](https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_det_distill_train.tar) | [inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar) | [inference model](https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_rec_infer.tar) / [trained model](https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_rec_train.tar) |
+| English ultra-lightweight PP-OCRv3 model（13.4M）     | en_PP-OCRv3_xx          | Mobile & Server | [inference model](https://paddleocr.bj.bcebos.com/PP-OCRv3/english/en_PP-OCRv3_det_infer.tar) / [trained model](https://paddleocr.bj.bcebos.com/PP-OCRv3/english/en_PP-OCRv3_det_distill_train.tar) | [inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar) | [inference model](https://paddleocr.bj.bcebos.com/PP-OCRv3/english/en_PP-OCRv3_rec_infer.tar) / [trained model](https://paddleocr.bj.bcebos.com/PP-OCRv3/english/en_PP-OCRv3_rec_train.tar) |
 | Chinese and English ultra-lightweight PP-OCRv2 model（11.6M） |  ch_PP-OCRv2_xx |Mobile & Server|[inference model](https://paddleocr.bj.bcebos.com/PP-OCRv2/chinese/ch_PP-OCRv2_det_infer.tar) / [trained model](https://paddleocr.bj.bcebos.com/PP-OCRv2/chinese/ch_PP-OCRv2_det_distill_train.tar)| [inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar) |[inference model](https://paddleocr.bj.bcebos.com/PP-OCRv2/chinese/ch_PP-OCRv2_rec_infer.tar) / [trained model](https://paddleocr.bj.bcebos.com/PP-OCRv2/chinese/ch_PP-OCRv2_rec_train.tar)|
 | Chinese and English ultra-lightweight PP-OCR model (9.4M)       | ch_ppocr_mobile_v2.0_xx      | Mobile & server   |[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_det_infer.tar) / [trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_det_train.tar)|[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar) |[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_rec_infer.tar) / [trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_rec_train.tar)      |
 | Chinese and English general PP-OCR model (143.4M)               | ch_ppocr_server_v2.0_xx      | Server            |[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_det_infer.tar) / [trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_det_train.tar)    |[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar)    |[inference model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_rec_infer.tar) / [trained model](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_rec_train.tar)  |

README_ch.md

@@ -71,6 +71,8 @@ PaddleOCR旨在打造一套丰富、领先、且实用的OCR工具库，助力

 | 模型简介                              | 模型名称                | 推荐场景        | 检测模型                                                     | 方向分类器                                                   | 识别模型                                                     |
 | ------------------------------------- | ----------------------- | --------------- | ------------------------------------------------------------ | ------------------------------------------------------------ | ------------------------------------------------------------ |
+| 中英文超轻量PP-OCRv3模型（16.2M）     | ch_PP-OCRv3_xx          | 移动端&服务器端 | [推理模型](https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_det_infer.tar) / [训练模型](https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_det_distill_train.tar) | [推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar) | [推理模型](https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_rec_infer.tar) / [训练模型](https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_rec_train.tar) |
+| 英文超轻量PP-OCRv3模型（13.4M）     | en_PP-OCRv3_xx          | 移动端&服务器端 | [推理模型](https://paddleocr.bj.bcebos.com/PP-OCRv3/english/en_PP-OCRv3_det_infer.tar) / [训练模型](https://paddleocr.bj.bcebos.com/PP-OCRv3/english/en_PP-OCRv3_det_distill_train.tar) | [推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar) | [推理模型](https://paddleocr.bj.bcebos.com/PP-OCRv3/english/en_PP-OCRv3_rec_infer.tar) / [训练模型](https://paddleocr.bj.bcebos.com/PP-OCRv3/english/en_PP-OCRv3_rec_train.tar) |
 | 中英文超轻量PP-OCRv2模型（13.0M）     | ch_PP-OCRv2_xx          | 移动端&服务器端 | [推理模型](https://paddleocr.bj.bcebos.com/PP-OCRv2/chinese/ch_PP-OCRv2_det_infer.tar) / [训练模型](https://paddleocr.bj.bcebos.com/PP-OCRv2/chinese/ch_PP-OCRv2_det_distill_train.tar) | [推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar) | [推理模型](https://paddleocr.bj.bcebos.com/PP-OCRv2/chinese/ch_PP-OCRv2_rec_infer.tar) / [训练模型](https://paddleocr.bj.bcebos.com/PP-OCRv2/chinese/ch_PP-OCRv2_rec_train.tar) |
 | 中英文超轻量PP-OCR mobile模型（9.4M） | ch_ppocr_mobile_v2.0_xx | 移动端&服务器端 | [推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_det_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_det_train.tar) | [推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar) | [推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_rec_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_rec_pre.tar) |
 | 中英文通用PP-OCR server模型（143.4M） | ch_ppocr_server_v2.0_xx | 服务器端        | [推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_det_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_det_train.tar) | [推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_cls_train.tar) | [推理模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_rec_infer.tar) / [预训练模型](https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_server_v2.0_rec_pre.tar) |

applications/多模态表单识别.md

@@ -16,7 +16,7 @@
 <center><img src='https://ai-studio-static-online.cdn.bcebos.com/9bd844b970f94e5ba0bc0c5799bd819ea9b1861bb306471fabc2d628864d418e'></center>
 <center>图1 多模态表单识别流程图</center>

-注：欢迎再AIStudio领取免费算力体验线上实训，项目链接: 多模态表单识别](https://aistudio.baidu.com/aistudio/projectdetail/3815918)(配备Tesla V100、A100等高级算力资源)
+注：欢迎再AIStudio领取免费算力体验线上实训，项目链接: [多模态表单识别](https://aistudio.baidu.com/aistudio/projectdetail/3815918)(配备Tesla V100、A100等高级算力资源)




configs/det/ch_PP-OCRv3/ch_PP-OCRv3_det_dml.yml

+Global:
+  use_gpu: true
+  epoch_num: 1200
+  log_smooth_window: 20
+  print_batch_step: 2
+  save_model_dir: ./output/ch_db_mv3/
+  save_epoch_step: 1200
+  # evaluation is run every 5000 iterations after the 4000th iteration
+  eval_batch_step: [3000, 2000]
+  cal_metric_during_train: False
+  pretrained_model: ./pretrain_models/MobileNetV3_large_x0_5_pretrained
+  checkpoints:
+  save_inference_dir:
+  use_visualdl: False
+  infer_img: doc/imgs_en/img_10.jpg
+  save_res_path: ./output/det_db/predicts_db.txt
+
+Architecture:
+  name: DistillationModel
+  algorithm: Distillation
+  model_type: det
+  Models:
+    Student:
+      return_all_feats: false
+      model_type: det
+      algorithm: DB
+      Backbone:
+        name: ResNet
+        in_channels: 3
+        layers: 50
+      Neck:
+        name: LKPAN
+        out_channels: 256
+      Head:
+        name: DBHead
+        kernel_list: [7,2,2]
+        k: 50
+    Student2:
+      return_all_feats: false
+      model_type: det
+      algorithm: DB
+      Backbone:
+        name: ResNet
+        in_channels: 3
+        layers: 50
+      Neck:
+        name: LKPAN
+        out_channels: 256
+      Head:
+        name: DBHead
+        kernel_list: [7,2,2]
+        k: 50
+
+
+Loss:
+  name: CombinedLoss
+  loss_config_list:
+  - DistillationDMLLoss:
+      model_name_pairs:
+      - ["Student", "Student2"]
+      maps_name: "thrink_maps"
+      weight: 1.0
+      act: "softmax"
+      model_name_pairs: ["Student", "Student2"]
+      key: maps
+  - DistillationDBLoss:
+      weight: 1.0
+      model_name_list: ["Student", "Student2"]
+      # key: maps
+      name: DBLoss
+      balance_loss: true
+      main_loss_type: DiceLoss
+      alpha: 5
+      beta: 10
+      ohem_ratio: 3
+
+
+Optimizer:
+  name: Adam
+  beta1: 0.9
+  beta2: 0.999
+  lr:
+    name: Cosine
+    learning_rate: 0.001
+    warmup_epoch: 2
+  regularizer:
+    name: 'L2'
+    factor: 0
+
+PostProcess:
+  name: DistillationDBPostProcess
+  model_name: ["Student", "Student2"]
+  key: head_out
+  thresh: 0.3
+  box_thresh: 0.6
+  max_candidates: 1000
+  unclip_ratio: 1.5
+
+Metric:
+  name: DistillationMetric
+  base_metric_name: DetMetric
+  main_indicator: hmean
+  key: "Student"
+
+Train:
+  dataset:
+    name: SimpleDataSet
+    data_dir: ./train_data/icdar2015/text_localization/
+    label_file_list:
+      - ./train_data/icdar2015/text_localization/train_icdar2015_label.txt
+    ratio_list: [1.0]
+    transforms:
+      - DecodeImage: # load image
+          img_mode: BGR
+          channel_first: False
+      - DetLabelEncode: # Class handling label
+      - CopyPaste:
+      - IaaAugment:
+          augmenter_args:
+            - { 'type': Fliplr, 'args': { 'p': 0.5 } }
+            - { 'type': Affine, 'args': { 'rotate': [-10, 10] } }
+            - { 'type': Resize, 'args': { 'size': [0.5, 3] } }
+      - EastRandomCropData:
+          size: [960, 960]
+          max_tries: 50
+          keep_ratio: true
+      - MakeBorderMap:
+          shrink_ratio: 0.4
+          thresh_min: 0.3
+          thresh_max: 0.7
+      - MakeShrinkMap:
+          shrink_ratio: 0.4
+          min_text_size: 8
+      - NormalizeImage:
+          scale: 1./255.
+          mean: [0.485, 0.456, 0.406]
+          std: [0.229, 0.224, 0.225]
+          order: 'hwc'
+      - ToCHWImage:
+      - KeepKeys:
+          keep_keys: ['image', 'threshold_map', 'threshold_mask', 'shrink_map', 'shrink_mask'] # the order of the dataloader list
+  loader:
+    shuffle: True
+    drop_last: False
+    batch_size_per_card: 8
+    num_workers: 4
+
+Eval:
+  dataset:
+    name: SimpleDataSet
+    data_dir: ./train_data/icdar2015/text_localization/
+    label_file_list:
+      - ./train_data/icdar2015/text_localization/test_icdar2015_label.txt
+    transforms:
+      - DecodeImage: # load image
+          img_mode: BGR
+          channel_first: False
+      - DetLabelEncode: # Class handling label
+      - DetResizeForTest:
+#           image_shape: [736, 1280]
+      - NormalizeImage:
+          scale: 1./255.
+          mean: [0.485, 0.456, 0.406]
+          std: [0.229, 0.224, 0.225]
+          order: 'hwc'
+      - ToCHWImage:
+      - KeepKeys:
+          keep_keys: ['image', 'shape', 'polys', 'ignore_tags']
+  loader:
+    shuffle: False
+    drop_last: False
+    batch_size_per_card: 1 # must be 1
+    num_workers: 2

configs/rec/ch_PP-OCRv3/ch_PP-OCRv3_rec.yml → configs/rec/PP-OCRv3/ch_PP-OCRv3_rec.yml

@@ -71,7 +71,7 @@ PostProcess:
 Metric:
   name: RecMetric
   main_indicator: acc
-  ignore_space: True
+  ignore_space: False

 Train:
   dataset:

configs/rec/ch_PP-OCRv3/ch_PP-OCRv3_rec_distillation.yml → configs/rec/PP-OCRv3/ch_PP-OCRv3_rec_distillation.yml

@@ -129,7 +129,7 @@ Loss:
       key: head_out
       multi_head: True
   - DistillationSARLoss:
-      weight: 1.0
+      weight: 0.5
       model_name_list: ["Student", "Teacher"]
       key: head_out
       multi_head: True
@@ -145,7 +145,7 @@ Metric:
   base_metric_name: RecMetric
   main_indicator: acc
   key: "Student"
-  ignore_space: True
+  ignore_space: False

 Train:
   dataset:

deploy/Jetson/readme.md

+
+# Jetson部署PaddleOCR模型
+
+本节介绍PaddleOCR在Jetson NX、TX2、nano、AGX等系列硬件的部署。
+
+
+## 1. 环境准备
+
+需要准备一台Jetson开发板，如果需要TensorRT预测，需准备好TensorRT环境，建议使用7.1.3版本的TensorRT；
+
+1. Jetson安装PaddlePaddle
+
+PaddlePaddle下载[链接](https://www.paddlepaddle.org.cn/inference/user_guides/download_lib.html#python)
+请选择适合的您Jetpack版本、cuda版本、trt版本的安装包。
+
+安装命令：
+```shell
+# 安装paddle，以paddlepaddle_gpu-2.3.0rc0-cp36-cp36m-linux_aarch64.whl 为例
+pip3 install -U paddlepaddle_gpu-2.3.0rc0-cp36-cp36m-linux_aarch64.whl
+```
+
+
+2. 下载PaddleOCR代码并安装依赖
+
+首先 clone PaddleOCR 代码：
+```
+git clone https://github.com/PaddlePaddle/PaddleOCR
+```
+
+然后，安装依赖：
+```
+cd PaddleOCR
+pip3 install -r requirements.txt
+```
+
+*注：jetson硬件CPU较差，依赖安装较慢，请耐心等待*
+
+
+## 2. 执行预测
+
+从[文档](https://github.com/PaddlePaddle/PaddleOCR/blob/dygraph/doc/doc_ch/ppocr_introduction.md#6-%E6%A8%A1%E5%9E%8B%E5%BA%93) 模型库中获取PPOCR模型，下面以PP-OCRv3模型为例，介绍在PPOCR模型在jetson上的使用方式：
+
+下载并解压PP-OCRv3模型
+```
+wget https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_det_infer.tar
+wget https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_rec_infer.tar
+tar xf ch_PP-OCRv3_det_infer.tar
+tar xf ch_PP-OCRv3_rec_infer.tar
+```
+
+执行文本检测预测：
+```
+cd PaddleOCR
+python3 tools/infer/predict_det.py --det_model_dir=./inference/ch_PP-OCRv2_det_infer/  --image_dir=./doc/imgs/french_0.jpg  --use_gpu=True
+```
+
+执行命令后在终端会打印出预测的信息，并在 `./inference_results/` 下保存可视化结果。
+![](./images/det_res_french_0.jpg)
+
+
+执行文本识别预测：
+```
+python3 tools/infer/predict_det.py --rec_model_dir=./inference/ch_PP-OCRv2_rec_infer/  --image_dir=./doc/imgs_words/en/word_2.png  --use_gpu=True --rec_image_shape="3,48,320"
+```
+
+执行命令后在终端会打印出预测的信息，输出如下：
+```
+[2022/04/28 15:41:45] root INFO: Predicts of ./doc/imgs_words/en/word_2.png:('yourself', 0.98084533)
+```
+

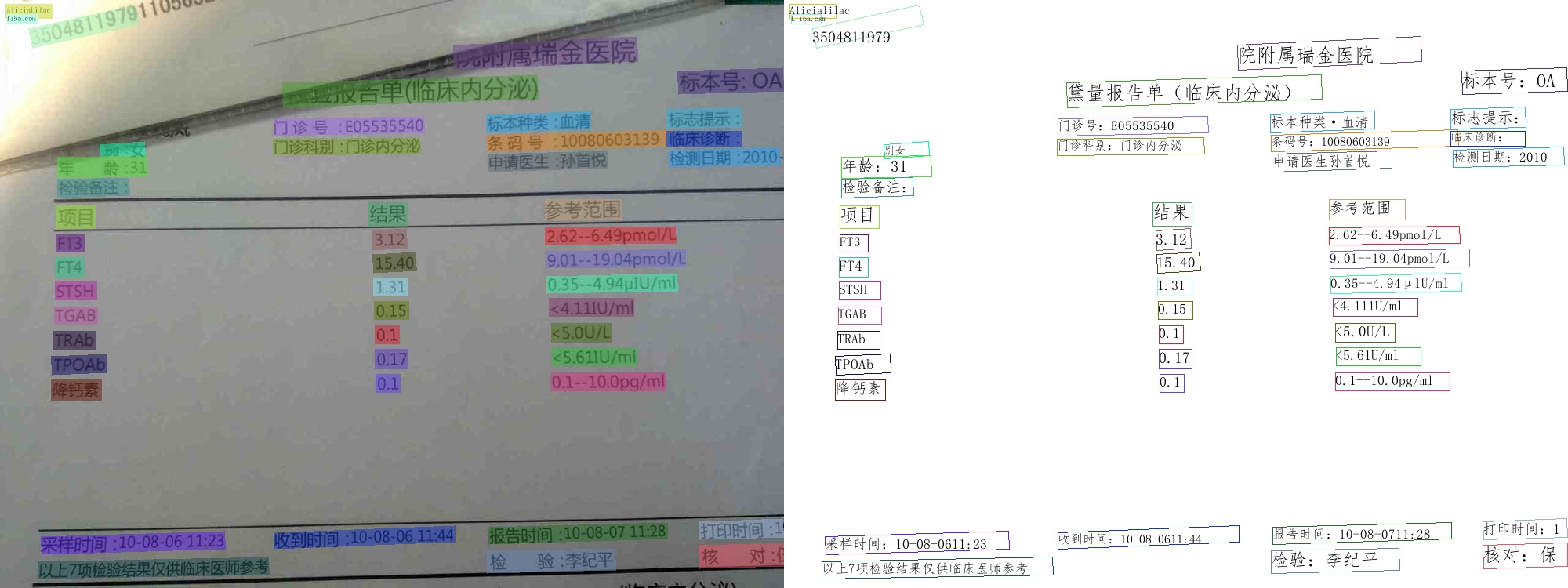

+执行文本检测+文本识别串联预测：
+
+```
+python3 tools/infer/predict_system.py --det_model_dir=./inference/ch_PP-OCRv2_det_infer/ --rec_model_dir=./inference/ch_PP-OCRv2_rec_infer/ --image_dir=./doc/imgs/ --use_gpu=True --rec_image_shape="3,48,320"
+```
+
+执行命令后在终端会打印出预测的信息，并在 `./inference_results/` 下保存可视化结果。
+![](./images/00057937.jpg)
+
+开启TRT预测只需要在以上命令基础上设置`--use_tensorrt=True`即可：
+```
+python3 tools/infer/predict_system.py --det_model_dir=./inference/ch_PP-OCRv2_det_infer/ --rec_model_dir=./inference/ch_PP-OCRv2_rec_infer/ --image_dir=./doc/imgs/00057937.jpg --use_gpu=True --use_tensorrt=True --rec_image_shape="3,48,320"
+```
+
+更多ppocr模型预测请参考[文档](../../doc/doc_ch/models_list.md)

deploy/Jetson/readme_en.md

+
+# Jetson Deployment for PaddleOCR
+
+This section introduces the deployment of PaddleOCR on Jetson NX, TX2, nano, AGX and other series of hardware.
+
+
+## 1. Prepare Environment
+
+You need to prepare a Jetson development hardware. If you need TensorRT, you need to prepare the TensorRT environment. It is recommended to use TensorRT version 7.1.3;
+
+1. Install PaddlePaddle in Jetson
+
+The PaddlePaddle download [link](https://www.paddlepaddle.org.cn/inference/user_guides/download_lib.html#python)
+Please select the appropriate installation package for your Jetpack version, cuda version, and trt version. Here, we download paddlepaddle_gpu-2.3.0rc0-cp36-cp36m-linux_aarch64.whl.
+
+Install PaddlePaddle：
+```shell
+pip3 install -U paddlepaddle_gpu-2.3.0rc0-cp36-cp36m-linux_aarch64.whl
+```
+
+
+2. Download PaddleOCR code and install dependencies
+
+Clone the PaddleOCR code:
+```
+git clone https://github.com/PaddlePaddle/PaddleOCR
+```
+
+and install dependencies：
+```
+cd PaddleOCR
+pip3 install -r requirements.txt
+```
+
+*Note: Jetson hardware CPU is poor, dependency installation is slow, please wait patiently*
+
+## 2. Perform prediction
+
+Obtain the PPOCR model from the [document](https://github.com/PaddlePaddle/PaddleOCR/blob/dygraph/doc/doc_en/ppocr_introduction_en.md#6-model-zoo) model library. The following takes the PP-OCRv3 model as an example to introduce the use of the PPOCR model on Jetson:
+
+Download and unzip the PP-OCRv3 models.
+```
+wget https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_det_infer.tar
+wget https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_rec_infer.tar
+tar xf ch_PP-OCRv3_det_infer.tar
+tar xf ch_PP-OCRv3_rec_infer.tar
+```
+
+The text detection inference:
+```
+cd PaddleOCR
+python3 tools/infer/predict_det.py --det_model_dir=./inference/ch_PP-OCRv2_det_infer/  --image_dir=./doc/imgs/french_0.jpg  --use_gpu=True
+```
+
+After executing the command, the predicted information will be printed out in the terminal, and the visualization results will be saved in the `./inference_results/` directory.
+![](./images/det_res_french_0.jpg)
+
+
+The text recognition inference:
+```
+python3 tools/infer/predict_det.py --rec_model_dir=./inference/ch_PP-OCRv2_rec_infer/  --image_dir=./doc/imgs_words/en/word_2.png  --use_gpu=True --rec_image_shape="3,48,320"
+```
+
+After executing the command, the predicted information will be printed on the terminal, and the output is as follows:
+```
+[2022/04/28 15:41:45] root INFO: Predicts of ./doc/imgs_words/en/word_2.png:('yourself', 0.98084533)
+```
+
+The text  detection and text recognition inference:
+
+```
+python3 tools/infer/predict_system.py --det_model_dir=./inference/ch_PP-OCRv2_det_infer/ --rec_model_dir=./inference/ch_PP-OCRv2_rec_infer/ --image_dir=./doc/imgs/00057937.jpg --use_gpu=True --rec_image_shape="3,48,320"
+```
+
+After executing the command, the predicted information will be printed out in the terminal, and the visualization results will be saved in the `./inference_results/` directory.
+![](./images/00057937.jpg)
+
+To enable TRT prediction, you only need to set `--use_tensorrt=True` on the basis of the above command:
+```
+python3 tools/infer/predict_system.py --det_model_dir=./inference/ch_PP-OCRv2_det_infer/ --rec_model_dir=./inference/ch_PP-OCRv2_rec_infer/ --image_dir=./doc/imgs/  --rec_image_shape="3,48,320" --use_gpu=True --use_tensorrt=True
+```
+
+For more ppocr model predictions, please refer to[document](../../doc/doc_en/models_list_en.md)

deploy/cpp_infer/readme.md

@@ -208,6 +208,8 @@ Execute the built executable file:
 ./build/ppocr [--param1] [--param2] [...]
 ```

+**Note**:ppocr uses the `PP-OCRv3` model by default, and the input shape used by the recognition model is `3, 48, 320`, so if you use the recognition function, you need to add the parameter `--rec_img_h=48`, if you do not use the default `PP-OCRv3` model, you do not need to set this parameter.
+
 Specifically,

 ##### 1. det+cls+rec：
@@ -220,6 +222,7 @@ Specifically,
     --det=true \
     --rec=true \
     --cls=true \
+    --rec_img_h=48\
 ```

 ##### 2. det+rec：
@@ -231,6 +234,7 @@ Specifically,
     --det=true \
     --rec=true \
     --cls=false \
+    --rec_img_h=48\
 ```

 ##### 3. det
@@ -250,6 +254,7 @@ Specifically,
     --det=false \
     --rec=true \
     --cls=true \
+    --rec_img_h=48\
 ```

 ##### 5. rec
@@ -260,6 +265,7 @@ Specifically,
     --det=false \
     --rec=true \
     --cls=false \
+    --rec_img_h=48\
 ```

 ##### 6. cls
@@ -335,10 +341,10 @@ The detection results will be shown on the screen, which is as follows.
 ```bash
 predict img: ../../doc/imgs/12.jpg
 ../../doc/imgs/12.jpg
-0       det boxes: [[79,553],[399,541],[400,573],[80,585]] rec text: 打浦路252935号 rec score: 0.933757
-1       det boxes: [[31,509],[510,488],[511,529],[33,549]] rec text: 绿洲仕格维花园公寓 rec score: 0.951745
-2       det boxes: [[181,456],[395,448],[396,480],[182,488]] rec text: 打浦路15号 rec score: 0.91956
-3       det boxes: [[43,413],[480,391],[481,428],[45,450]] rec text: 上海斯格威铂尔多大酒店 rec score: 0.915914
+0       det boxes: [[74,553],[427,542],[428,571],[75,582]] rec text: 打浦路252935号 rec score: 0.947724
+1       det boxes: [[23,507],[513,488],[515,529],[24,548]] rec text: 绿洲仕格维花园公寓 rec score: 0.993728
+2       det boxes: [[187,456],[399,448],[400,480],[188,488]] rec text: 打浦路15号 rec score: 0.964994
+3       det boxes: [[42,413],[483,391],[484,428],[43,450]] rec text: 上海斯格威铂尔大酒店 rec score: 0.980086
 The detection visualized image saved in ./output//12.jpg
 ```


deploy/cpp_infer/readme_ch.md

@@ -213,6 +213,9 @@ CUDNN_LIB_DIR=/your_cudnn_lib_dir

 本demo支持系统串联调用，也支持单个功能的调用，如，只使用检测或识别功能。

+**注意** ppocr默认使用`PP-OCRv3`模型，识别模型使用的输入shape为`3,48,320`, 因此如果使用识别功能，需要添加参数`--rec_img_h=48`，如果不使用默认的`PP-OCRv3`模型，则无需设置该参数。
+
+
 运行方式：
 ```shell
 ./build/ppocr [--param1] [--param2] [...]
@@ -229,6 +232,7 @@ CUDNN_LIB_DIR=/your_cudnn_lib_dir
     --det=true \
     --rec=true \
     --cls=true \
+    --rec_img_h=48\
 ```

 ##### 2. 检测+识别：
@@ -240,6 +244,7 @@ CUDNN_LIB_DIR=/your_cudnn_lib_dir
     --det=true \
     --rec=true \
     --cls=false \
+    --rec_img_h=48\
 ```

 ##### 3. 检测：
@@ -259,6 +264,7 @@ CUDNN_LIB_DIR=/your_cudnn_lib_dir
     --det=false \
     --rec=true \
     --cls=true \
+    --rec_img_h=48\
 ```

 ##### 5. 识别：
@@ -269,6 +275,7 @@ CUDNN_LIB_DIR=/your_cudnn_lib_dir
     --det=false \
     --rec=true \
     --cls=false \
+    --rec_img_h=48\
 ```

 ##### 6. 分类：
@@ -343,10 +350,10 @@ CUDNN_LIB_DIR=/your_cudnn_lib_dir
 ```bash
 predict img: ../../doc/imgs/12.jpg
 ../../doc/imgs/12.jpg
-0       det boxes: [[79,553],[399,541],[400,573],[80,585]] rec text: 打浦路252935号 rec score: 0.933757
-1       det boxes: [[31,509],[510,488],[511,529],[33,549]] rec text: 绿洲仕格维花园公寓 rec score: 0.951745
-2       det boxes: [[181,456],[395,448],[396,480],[182,488]] rec text: 打浦路15号 rec score: 0.91956
-3       det boxes: [[43,413],[480,391],[481,428],[45,450]] rec text: 上海斯格威铂尔多大酒店 rec score: 0.915914
+0       det boxes: [[74,553],[427,542],[428,571],[75,582]] rec text: 打浦路252935号 rec score: 0.947724
+1       det boxes: [[23,507],[513,488],[515,529],[24,548]] rec text: 绿洲仕格维花园公寓 rec score: 0.993728
+2       det boxes: [[187,456],[399,448],[400,480],[188,488]] rec text: 打浦路15号 rec score: 0.964994
+3       det boxes: [[42,413],[483,391],[484,428],[43,450]] rec text: 上海斯格威铂尔大酒店 rec score: 0.980086
 The detection visualized image saved in ./output//12.jpg
 ```


deploy/slim/quantization/README.md

@@ -22,9 +22,7 @@
 ### 1. 安装PaddleSlim

 ```bash
-git clone https://github.com/PaddlePaddle/PaddleSlim.git
-cd PaddleSlim
-python setup.py install
+pip3 install paddleslim==2.2.2
 ```

 ### 2. 准备训练好的模型
@@ -43,7 +41,15 @@ python deploy/slim/quantization/quant.py -c configs/det/ch_ppocr_v2.0/ch_det_mv3
 wget https://paddleocr.bj.bcebos.com/dygraph_v2.0/ch/ch_ppocr_mobile_v2.0_det_train.tar
 tar -xf ch_ppocr_mobile_v2.0_det_train.tar
 python deploy/slim/quantization/quant.py -c configs/det/ch_ppocr_v2.0/ch_det_mv3_db_v2.0.yml -o Global.pretrained_model=./ch_ppocr_mobile_v2.0_det_train/best_accuracy   Global.save_model_dir=./output/quant_model
+```
+
+模型蒸馏和模型量化可以同时使用，以PPOCRv3检测模型为例：
+```
+# 下载检测预训练模型：
+wget https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_det_distill_train.tar
+tar xf https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_det_distill_train.tar

+python deploy/slim/quantization/quant.py -c configs/det/ch_PP-OCRv3_det/ch_PP-OCRv3_det_cml.yml -o Global.pretrained_model='./ch_PP-OCRv3_det_distill_train/best_accuracy'   Global.save_model_dir=./output/quant_model_distill/
 ```
 如果要训练识别模型的量化，修改配置文件和加载的模型参数即可。


deploy/slim/quantization/README_en.md

@@ -25,9 +25,7 @@ After training, if you want to further compress the model size and accelerate th
 ### 1. Install PaddleSlim

 ```bash
-git clone https://github.com/PaddlePaddle/PaddleSlim.git
-cd PaddlSlim
-python setup.py install
+pip3 install paddleslim==2.2.2
 ```


@@ -52,6 +50,17 @@ python deploy/slim/quantization/quant.py -c configs/det/ch_ppocr_v2.0/ch_det_mv3
 ```


+Model distillation and model quantization can be used at the same time, taking the PPOCRv3 detection model as an example:
+```
+# download provided model
+wget https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_det_distill_train.tar
+tar xf https://paddleocr.bj.bcebos.com/PP-OCRv3/chinese/ch_PP-OCRv3_det_distill_train.tar
+
+python deploy/slim/quantization/quant.py -c configs/det/ch_PP-OCRv3_det/ch_PP-OCRv3_det_cml.yml -o Global.pretrained_model='./ch_PP-OCRv3_det_distill_train/best_accuracy'   Global.save_model_dir=./output/quant_model_distill/
+```
+
+If you want to quantify the text recognition model, you can modify the configuration file and loaded model parameters.
+
 ### 4. Export inference model

 Once we got the model after pruning and fine-tuning, we can export it as an inference model for the deployment of predictive tasks:

deploy/slim/quantization/export_model.py

@@ -17,9 +17,9 @@ import sys

 __dir__ = os.path.dirname(os.path.abspath(__file__))
 sys.path.append(__dir__)
-sys.path.append(os.path.abspath(os.path.join(__dir__, '..', '..', '..')))
-sys.path.append(
-    os.path.abspath(os.path.join(__dir__, '..', '..', '..', 'tools')))
+sys.path.insert(0, os.path.abspath(os.path.join(__dir__, '..', '..', '..')))
+sys.path.insert(
+    0, os.path.abspath(os.path.join(__dir__, '..', '..', '..', 'tools')))

 import argparse

@@ -129,7 +129,6 @@ def main():
     quanter.quantize(model)

     load_model(config, model)
-    model.eval()

     # build metric
     eval_class = build_metric(config['Metric'])
@@ -142,6 +141,7 @@ def main():
     # start eval
     metric = program.eval(model, valid_dataloader, post_process_class,
                           eval_class, model_type, use_srn)
+    model.eval()

     logger.info('metric eval ***************')
     for k, v in metric.items():
@@ -156,7 +156,6 @@ def main():
     if arch_config["algorithm"] in ["Distillation", ]:  # distillation model
         archs = list(arch_config["Models"].values())
         for idx, name in enumerate(model.model_name_list):
-            model.model_list[idx].eval()
             sub_model_save_path = os.path.join(save_path, name, "inference")
             export_single_model(model.model_list[idx], archs[idx],
                                 sub_model_save_path, logger, quanter)
