Merge pull request #5948 from tink2123/cherry-pick-serving

[cherry-pick] update readme and add bbox in result

deploy/pdserving/README.md

@@ -36,7 +36,6 @@ PaddleOCR operating environment and Paddle Serving operating environment are nee
 1. Please prepare PaddleOCR operating environment reference [link](../../doc/doc_ch/installation.md).
    Download the corresponding paddlepaddle whl package according to the environment, it is recommended to install version 2.2.2.

-
 2. The steps of PaddleServing operating environment prepare are as follows:


@@ -194,6 +193,52 @@ The recognition model is the same.
     2021-05-13 03:42:36,979         chl2(In: ['rec'], Out: ['@DAGExecutor']) size[0/0]
     ```

+## C++ Serving
+
+Service deployment based on python obviously has the advantage of convenient secondary development. However, the real application often needs to pursue better performance. PaddleServing also provides a more performant C++ deployment version.
+
+The C++ service deployment is the same as python in the environment setup and data preparation stages, the difference is when the service is started and the client sends requests.
+
+| Language | Speed ​​| Secondary development | Do you need to compile |
+|-----|-----|---------|------------|
+| C++ | fast | Slightly difficult | Single model prediction does not need to be compiled, multi-model concatenation needs to be compiled |
+| python | general | easy | single-model/multi-model no compilation required |
+
+1. Compile Serving
+
+   To improve predictive performance, C++ services also provide multiple model concatenation services. Unlike Python Pipeline services, multiple model concatenation requires the pre - and post-model processing code to be written on the server side, so local recompilation is required to generate serving. Specific may refer to the official document: [how to compile Serving](https://github.com/PaddlePaddle/Serving/blob/v0.8.3/doc/Compile_EN.md)
+
+2. Run the following command to start the service.
+    ```
+    # Start the service and save the running log in log.txt
+    python3 -m paddle_serving_server.serve --model ppocrv2_det_serving ppocrv2_rec_serving --op GeneralDetectionOp GeneralInferOp --port 9293 &>log.txt &
+    ```
+    After the service is successfully started, a log similar to the following will be printed in log.txt
+    ![](./imgs/start_server.png)
+
+3. Send service request
+
+   Due to the need for pre and post-processing in the C++Server part, in order to speed up the input to the C++Server is only the base64 encoded string of the picture, it needs to be manually modified
+   Change the feed_type field and shape field in ppocrv2_det_client/serving_client_conf.prototxt to the following:
+
+   ```
+    feed_var {
+    name: "x"
+    alias_name: "x"
+    is_lod_tensor: false
+    feed_type: 20
+    shape: 1
+    }
+   ```
+
+   start the client:
+
+    ```
+    python3 ocr_cpp_client.py ppocrv2_det_client ppocrv2_rec_client
+    ```
+    After successfully running, the predicted result of the model will be printed in the cmd window. An example of the result is:
+    ![](./imgs/results.png)
+
 ## WINDOWS Users

 Windows does not support Pipeline Serving, if we want to lauch paddle serving on Windows, we should use Web Service, for more infomation please refer to [Paddle Serving for Windows Users](https://github.com/PaddlePaddle/Serving/blob/develop/doc/Windows_Tutorial_EN.md)

deploy/pdserving/README_CN.md

@@ -6,6 +6,7 @@ PaddleOCR提供2种服务部署方式：
 - 基于PaddleHub Serving的部署：代码路径为"`./deploy/hubserving`"，使用方法参考[文档](../../deploy/hubserving/readme.md)；
 - 基于PaddleServing的部署：代码路径为"`./deploy/pdserving`"，按照本教程使用。

+
 # 基于PaddleServing的服务部署

 本文档将介绍如何使用[PaddleServing](https://github.com/PaddlePaddle/Serving/blob/develop/README_CN.md)工具部署PP-OCR动态图模型的pipeline在线服务。
@@ -17,6 +18,8 @@ PaddleOCR提供2种服务部署方式：

 更多有关PaddleServing服务化部署框架介绍和使用教程参考[文档](https://github.com/PaddlePaddle/Serving/blob/develop/README_CN.md)。

+AIStudio演示案例可参考 [基于PaddleServing的OCR服务化部署实战](https://aistudio.baidu.com/aistudio/projectdetail/3630726)。
+
 ## 目录
 - [环境准备](#环境准备)
 - [模型转换](#模型转换)
@@ -30,7 +33,6 @@ PaddleOCR提供2种服务部署方式：
 需要准备PaddleOCR的运行环境和Paddle Serving的运行环境。

 - 准备PaddleOCR的运行环境[链接](../../doc/doc_ch/installation.md)
-  根据环境下载对应的paddlepaddle whl包，推荐安装2.2.2版本

 - 准备PaddleServing的运行环境，步骤如下

@@ -106,7 +108,7 @@ python3 -m paddle_serving_client.convert --dirname ./ch_PP-OCRv2_rec_infer/ \
 1. 下载PaddleOCR代码，若已下载可跳过此步骤
     ```
     git clone https://github.com/PaddlePaddle/PaddleOCR
-
+
     # 进入到工作目录
     cd PaddleOCR/deploy/pdserving/
     ```
@@ -132,7 +134,7 @@ python3 -m paddle_serving_client.convert --dirname ./ch_PP-OCRv2_rec_infer/ \
     python3 pipeline_http_client.py
     ```

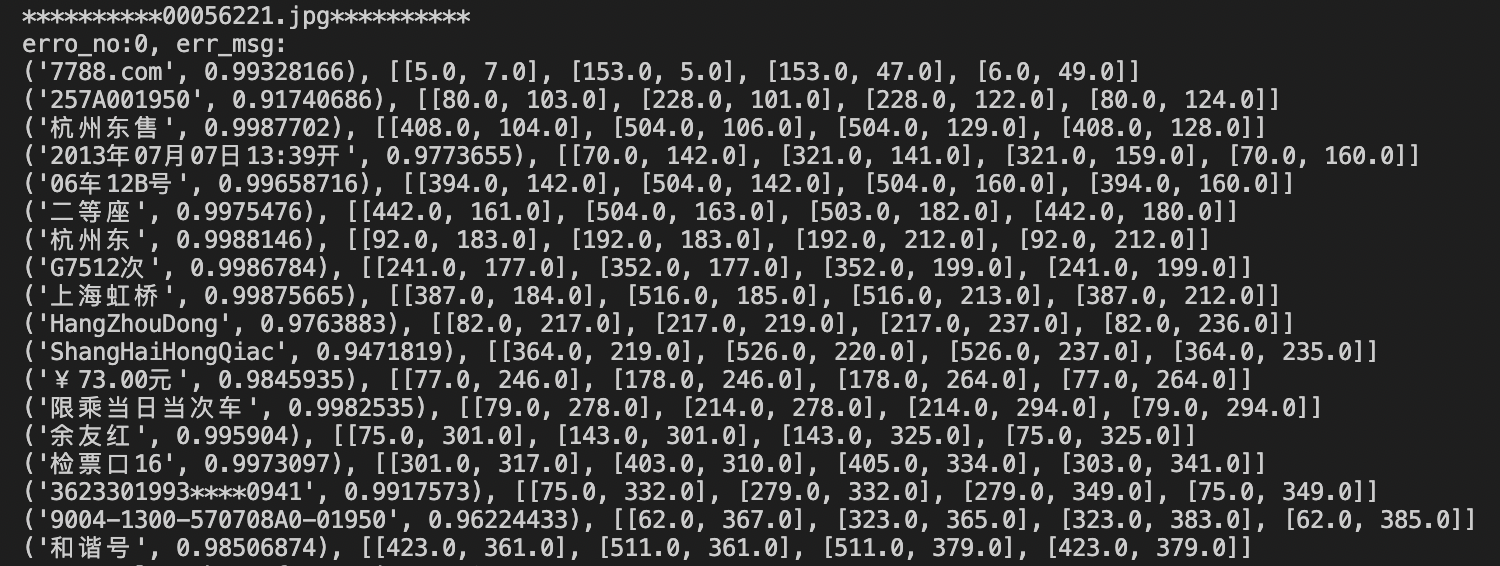

     成功运行后，模型预测的结果会打印在cmd窗口中，结果示例为：
-    ![](./imgs/results.png)
+    ![](./imgs/pipeline_result.png)

     调整 config.yml 中的并发个数获得最大的QPS, 一般检测和识别的并发数为2：1
     ```
@@ -187,6 +189,73 @@ python3 -m paddle_serving_client.convert --dirname ./ch_PP-OCRv2_rec_infer/ \
     2021-05-13 03:42:36,979         chl2(In: ['rec'], Out: ['@DAGExecutor']) size[0/0]
     ```

+<a name="C++"></a>
+## Paddle Serving C++ 部署
+
+基于python的服务部署，显然具有二次开发便捷的优势，然而真正落地应用，往往需要追求更优的性能。PaddleServing 也提供了性能更优的C++部署版本。
+
+C++ 服务部署在环境搭建和数据准备阶段与 python 相同，区别在于启动服务和客户端发送请求时不同。
+
+| 语言 | 速度 | 二次开发 | 是否需要编译 |
+|-----|-----|---------|------------|
+| C++ | 很快 | 略有难度 | 单模型预测无需编译，多模型串联需要编译 |
+| python | 一般 ｜ 容易 | 单模型/多模型 均无需编译|
+
+1. 准备 Serving 环境
+
+为了提高预测性能，C++ 服务同样提供了多模型串联服务。与python pipeline服务不同，多模型串联的过程中需要将模型前后处理代码写在服务端，因此需要在本地重新编译生成serving。
+
+首先需要下载Serving代码库, 把OCR文本检测预处理相关代码替换到Serving库中
+```
+git clone https://github.com/PaddlePaddle/Serving
+
+cp -rf general_detection_op.cpp Serving/core/general-server/op
+
+```
+
+具体可参考官方文档：[如何编译Serving](https://github.com/PaddlePaddle/Serving/blob/v0.8.3/doc/Compile_CN.md)，注意需要开启 WITH_OPENCV 选项。
+
+完成编译后，注意要安装编译出的三个whl包，并设置SERVING_BIN环境变量。
+
+2. 启动服务可运行如下命令：
+
+一个服务启动两个模型串联，只需要在--model后依次按顺序传入模型文件夹的相对路径，且需要在--op后依次传入自定义C++OP类名称：
+
+    ```
+    # 启动服务，运行日志保存在log.txt
+    python3 -m paddle_serving_server.serve --model ppocrv2_det_serving ppocrv2_rec_serving --op GeneralDetectionOp GeneralInferOp --port 9293 &>log.txt &
+    ```
+    成功启动服务后，log.txt中会打印类似如下日志
+    ![](./imgs/start_server.png)
+
+3. 发送服务请求：
+
+   由于需要在C++Server部分进行前后处理，为了加速传入C++Server的仅仅是图片的base64编码的字符串，故需要手动修改
+   ppocrv2_det_client/serving_client_conf.prototxt 中 feed_type 字段 和 shape 字段，修改成如下内容：
+   ```
+    feed_var {
+    name: "x"
+    alias_name: "x"
+    is_lod_tensor: false
+    feed_type: 20
+    shape: 1
+    }
+   ```
+   启动客户端
+   ```
+    python3 ocr_cpp_client.py ppocrv2_det_client ppocrv2_rec_client
+   ```
+
+    成功运行后，模型预测的结果会打印在cmd窗口中，结果示例为：
+    ![](./imgs/results.png)
+
+    在浏览器中输入服务器 ip:端口号，可以看到当前服务的实时QPS。(端口号范围需要是8000-9000)
+
+    在200张真实图片上测试，把检测长边限制为960。T4 GPU 上 QPS 峰值可达到51左右,约为pipeline的 2.12 倍。
+
+    ![](./imgs/c++_qps.png)
+
+
 <a name="Windows用户"></a>
 ## Windows用户


deploy/pdserving/general_detection_op.cpp

+// Copyright (c) 2020 PaddlePaddle Authors. All Rights Reserved.
+//
+// Licensed under the Apache License, Version 2.0 (the "License");
+// you may not use this file except in compliance with the License.
+// You may obtain a copy of the License at
+//
+//     http://www.apache.org/licenses/LICENSE-2.0
+//
+// Unless required by applicable law or agreed to in writing, software
+// distributed under the License is distributed on an "AS IS" BASIS,
+// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+// See the License for the specific language governing permissions and
+// limitations under the License.
+
+#include "core/general-server/op/general_detection_op.h"
+#include "core/predictor/framework/infer.h"
+#include "core/predictor/framework/memory.h"
+#include "core/predictor/framework/resource.h"
+#include "core/util/include/timer.h"
+#include <algorithm>
+#include <iostream>
+#include <memory>
+#include <sstream>
+
+/*
+#include "opencv2/imgcodecs/legacy/constants_c.h"
+#include "opencv2/imgproc/types_c.h"
+*/
+
+namespace baidu {
+namespace paddle_serving {
+namespace serving {
+
+using baidu::paddle_serving::Timer;
+using baidu::paddle_serving::predictor::MempoolWrapper;
+using baidu::paddle_serving::predictor::general_model::Tensor;
+using baidu::paddle_serving::predictor::general_model::Response;
+using baidu::paddle_serving::predictor::general_model::Request;
+using baidu::paddle_serving::predictor::InferManager;
+using baidu::paddle_serving::predictor::PaddleGeneralModelConfig;
+
+int GeneralDetectionOp::inference() {
+  VLOG(2) << "Going to run inference";
+  const std::vector<std::string> pre_node_names = pre_names();
+  if (pre_node_names.size() != 1) {
+    LOG(ERROR) << "This op(" << op_name()
+               << ") can only have one predecessor op, but received "
+               << pre_node_names.size();
+    return -1;
+  }
+  const std::string pre_name = pre_node_names[0];
+
+  const GeneralBlob *input_blob = get_depend_argument<GeneralBlob>(pre_name);
+  if (!input_blob) {
+    LOG(ERROR) << "input_blob is nullptr,error";
+    return -1;
+  }
+  uint64_t log_id = input_blob->GetLogId();
+  VLOG(2) << "(logid=" << log_id << ") Get precedent op name: " << pre_name;
+
+  GeneralBlob *output_blob = mutable_data<GeneralBlob>();
+  if (!output_blob) {
+    LOG(ERROR) << "output_blob is nullptr,error";
+    return -1;
+  }
+  output_blob->SetLogId(log_id);
+
+  if (!input_blob) {
+    LOG(ERROR) << "(logid=" << log_id
+               << ") Failed mutable depended argument, op:" << pre_name;
+    return -1;
+  }
+
+  const TensorVector *in = &input_blob->tensor_vector;
+  TensorVector *out = &output_blob->tensor_vector;
+
+  int batch_size = input_blob->_batch_size;
+  VLOG(2) << "(logid=" << log_id << ") input batch size: " << batch_size;
+
+  output_blob->_batch_size = batch_size;
+
+  std::vector<int> input_shape;
+  int in_num = 0;
+  void *databuf_data = NULL;
+  char *databuf_char = NULL;
+  size_t databuf_size = 0;
+  // now only support single string
+  char *total_input_ptr = static_cast<char *>(in->at(0).data.data());
+  std::string base64str = total_input_ptr;
+
+  float ratio_h{};
+  float ratio_w{};
+
+  cv::Mat img = Base2Mat(base64str);
+  cv::Mat srcimg;
+  cv::Mat resize_img;
+
+  cv::Mat resize_img_rec;
+  cv::Mat crop_img;
+  img.copyTo(srcimg);
+
+  this->resize_op_.Run(img, resize_img, this->max_side_len_, ratio_h, ratio_w,
+                       this->use_tensorrt_);
+
+  this->normalize_op_.Run(&resize_img, this->mean_det, this->scale_det,
+                          this->is_scale_);
+
+  std::vector<float> input(1 * 3 * resize_img.rows * resize_img.cols, 0.0f);
+  this->permute_op_.Run(&resize_img, input.data());
+
+  TensorVector *real_in = new TensorVector();
+  if (!real_in) {
+    LOG(ERROR) << "real_in is nullptr,error";
+    return -1;
+  }
+
+  for (int i = 0; i < in->size(); ++i) {
+    input_shape = {1, 3, resize_img.rows, resize_img.cols};
+    in_num = std::accumulate(input_shape.begin(), input_shape.end(), 1,
+                             std::multiplies<int>());
+    databuf_size = in_num * sizeof(float);
+    databuf_data = MempoolWrapper::instance().malloc(databuf_size);
+    if (!databuf_data) {
+      LOG(ERROR) << "Malloc failed, size: " << databuf_size;
+      return -1;
+    }
+    memcpy(databuf_data, input.data(), databuf_size);
+    databuf_char = reinterpret_cast<char *>(databuf_data);
+    paddle::PaddleBuf paddleBuf(databuf_char, databuf_size);
+    paddle::PaddleTensor tensor_in;
+    tensor_in.name = in->at(i).name;
+    tensor_in.dtype = paddle::PaddleDType::FLOAT32;
+    tensor_in.shape = {1, 3, resize_img.rows, resize_img.cols};
+    tensor_in.lod = in->at(i).lod;
+    tensor_in.data = paddleBuf;
+    real_in->push_back(tensor_in);
+  }
+
+  Timer timeline;
+  int64_t start = timeline.TimeStampUS();
+  timeline.Start();
+
+  if (InferManager::instance().infer(engine_name().c_str(), real_in, out,
+                                     batch_size)) {
+    LOG(ERROR) << "(logid=" << log_id
+               << ") Failed do infer in fluid model: " << engine_name().c_str();
+    return -1;
+  }
+  delete real_in;
+
+  std::vector<int> output_shape;
+  int out_num = 0;
+  void *databuf_data_out = NULL;
+  char *databuf_char_out = NULL;
+  size_t databuf_size_out = 0;
+  // this is special add for PaddleOCR postprecess
+  int infer_outnum = out->size();
+  for (int k = 0; k < infer_outnum; ++k) {
+    int n2 = out->at(k).shape[2];
+    int n3 = out->at(k).shape[3];
+    int n = n2 * n3;
+
+    float *out_data = static_cast<float *>(out->at(k).data.data());
+    std::vector<float> pred(n, 0.0);
+    std::vector<unsigned char> cbuf(n, ' ');
+
+    for (int i = 0; i < n; i++) {
+      pred[i] = float(out_data[i]);
+      cbuf[i] = (unsigned char)((out_data[i]) * 255);
+    }
+
+    cv::Mat cbuf_map(n2, n3, CV_8UC1, (unsigned char *)cbuf.data());
+    cv::Mat pred_map(n2, n3, CV_32F, (float *)pred.data());
+
+    const double threshold = this->det_db_thresh_ * 255;
+    const double maxvalue = 255;
+    cv::Mat bit_map;
+    cv::threshold(cbuf_map, bit_map, threshold, maxvalue, cv::THRESH_BINARY);
+    cv::Mat dilation_map;
+    cv::Mat dila_ele =
+        cv::getStructuringElement(cv::MORPH_RECT, cv::Size(2, 2));
+    cv::dilate(bit_map, dilation_map, dila_ele);
+    boxes = post_processor_.BoxesFromBitmap(pred_map, dilation_map,
+                                            this->det_db_box_thresh_,
+                                            this->det_db_unclip_ratio_);
+
+    boxes = post_processor_.FilterTagDetRes(boxes, ratio_h, ratio_w, srcimg);
+
+    float max_wh_ratio = 0.0f;
+    std::vector<cv::Mat> crop_imgs;
+    std::vector<cv::Mat> resize_imgs;
+    int max_resize_w = 0;
+    int max_resize_h = 0;
+    int box_num = boxes.size();
+    std::vector<std::vector<float>> output_rec;
+    for (int i = 0; i < box_num; ++i) {
+      cv::Mat line_img = GetRotateCropImage(img, boxes[i]);
+      float wh_ratio = float(line_img.cols) / float(line_img.rows);
+      max_wh_ratio = max_wh_ratio > wh_ratio ? max_wh_ratio : wh_ratio;
+      crop_imgs.push_back(line_img);
+    }
+
+    for (int i = 0; i < box_num; ++i) {
+      cv::Mat resize_img;
+      crop_img = crop_imgs[i];
+      this->resize_op_rec.Run(crop_img, resize_img, max_wh_ratio,
+                              this->use_tensorrt_);
+
+      this->normalize_op_.Run(&resize_img, this->mean_rec, this->scale_rec,
+                              this->is_scale_);
+
+      max_resize_w = std::max(max_resize_w, resize_img.cols);
+      max_resize_h = std::max(max_resize_h, resize_img.rows);
+      resize_imgs.push_back(resize_img);
+    }
+    int buf_size = 3 * max_resize_h * max_resize_w;
+    output_rec = std::vector<std::vector<float>>(
+        box_num, std::vector<float>(buf_size, 0.0f));
+    for (int i = 0; i < box_num; ++i) {
+      resize_img_rec = resize_imgs[i];
+
+      this->permute_op_.Run(&resize_img_rec, output_rec[i].data());
+    }
+
+    // Inference.
+    output_shape = {box_num, 3, max_resize_h, max_resize_w};
+    out_num = std::accumulate(output_shape.begin(), output_shape.end(), 1,
+                              std::multiplies<int>());
+    databuf_size_out = out_num * sizeof(float);
+    databuf_data_out = MempoolWrapper::instance().malloc(databuf_size_out);
+    if (!databuf_data_out) {
+      LOG(ERROR) << "Malloc failed, size: " << databuf_size_out;
+      return -1;
+    }
+    int offset = buf_size * sizeof(float);
+    for (int i = 0; i < box_num; ++i) {
+      memcpy(databuf_data_out + i * offset, output_rec[i].data(), offset);
+    }
+    databuf_char_out = reinterpret_cast<char *>(databuf_data_out);
+    paddle::PaddleBuf paddleBuf(databuf_char_out, databuf_size_out);
+    paddle::PaddleTensor tensor_out;
+    tensor_out.name = "x";
+    tensor_out.dtype = paddle::PaddleDType::FLOAT32;
+    tensor_out.shape = output_shape;
+    tensor_out.data = paddleBuf;
+    out->push_back(tensor_out);
+  }
+  out->erase(out->begin(), out->begin() + infer_outnum);
+
+  int64_t end = timeline.TimeStampUS();
+  CopyBlobInfo(input_blob, output_blob);
+  AddBlobInfo(output_blob, start);
+  AddBlobInfo(output_blob, end);
+  return 0;
+}
+
+cv::Mat GeneralDetectionOp::Base2Mat(std::string &base64_data) {
+  cv::Mat img;
+  std::string s_mat;
+  s_mat = base64Decode(base64_data.data(), base64_data.size());
+  std::vector<char> base64_img(s_mat.begin(), s_mat.end());
+  img = cv::imdecode(base64_img, cv::IMREAD_COLOR); // CV_LOAD_IMAGE_COLOR
+  return img;
+}
+
+std::string GeneralDetectionOp::base64Decode(const char *Data, int DataByte) {
+  const char DecodeTable[] = {
+      0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
+      0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,  0,
+      0,  0,  0,  0,  0,  0,  0,  0,  0,
+      62, // '+'
+      0,  0,  0,
+      63,                                     // '/'
+      52, 53, 54, 55, 56, 57, 58, 59, 60, 61, // '0'-'9'
+      0,  0,  0,  0,  0,  0,  0,  0,  1,  2,  3,  4,  5,  6,  7,  8,  9,
+      10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, // 'A'-'Z'
+      0,  0,  0,  0,  0,  0,  26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36,
+      37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, // 'a'-'z'
+  };
+
+  std::string strDecode;
+  int nValue;
+  int i = 0;
+  while (i < DataByte) {
+    if (*Data != '\r' && *Data != '\n') {
+      nValue = DecodeTable[*Data++] << 18;
+      nValue += DecodeTable[*Data++] << 12;
+      strDecode += (nValue & 0x00FF0000) >> 16;
+      if (*Data != '=') {
+        nValue += DecodeTable[*Data++] << 6;
+        strDecode += (nValue & 0x0000FF00) >> 8;
+        if (*Data != '=') {
+          nValue += DecodeTable[*Data++];
+          strDecode += nValue & 0x000000FF;
+        }
+      }
+      i += 4;
+    } else // 回车换行,跳过
+    {
+      Data++;
+      i++;
+    }
+  }
+  return strDecode;
+}
+
+cv::Mat
+GeneralDetectionOp::GetRotateCropImage(const cv::Mat &srcimage,
+                                       std::vector<std::vector<int>> box) {
+  cv::Mat image;
+  srcimage.copyTo(image);
+  std::vector<std::vector<int>> points = box;
+
+  int x_collect[4] = {box[0][0], box[1][0], box[2][0], box[3][0]};
+  int y_collect[4] = {box[0][1], box[1][1], box[2][1], box[3][1]};
+  int left = int(*std::min_element(x_collect, x_collect + 4));
+  int right = int(*std::max_element(x_collect, x_collect + 4));
+  int top = int(*std::min_element(y_collect, y_collect + 4));
+  int bottom = int(*std::max_element(y_collect, y_collect + 4));
+
+  cv::Mat img_crop;
+  image(cv::Rect(left, top, right - left, bottom - top)).copyTo(img_crop);
+
+  for (int i = 0; i < points.size(); i++) {
+    points[i][0] -= left;
+    points[i][1] -= top;
+  }
+
+  int img_crop_width = int(sqrt(pow(points[0][0] - points[1][0], 2) +
+                                pow(points[0][1] - points[1][1], 2)));
+  int img_crop_height = int(sqrt(pow(points[0][0] - points[3][0], 2) +
+                                 pow(points[0][1] - points[3][1], 2)));
+
+  cv::Point2f pts_std[4];
+  pts_std[0] = cv::Point2f(0., 0.);
+  pts_std[1] = cv::Point2f(img_crop_width, 0.);
+  pts_std[2] = cv::Point2f(img_crop_width, img_crop_height);
+  pts_std[3] = cv::Point2f(0.f, img_crop_height);
+
+  cv::Point2f pointsf[4];
+  pointsf[0] = cv::Point2f(points[0][0], points[0][1]);
+  pointsf[1] = cv::Point2f(points[1][0], points[1][1]);
+  pointsf[2] = cv::Point2f(points[2][0], points[2][1]);
+  pointsf[3] = cv::Point2f(points[3][0], points[3][1]);
+
+  cv::Mat M = cv::getPerspectiveTransform(pointsf, pts_std);
+
+  cv::Mat dst_img;
+  cv::warpPerspective(img_crop, dst_img, M,
+                      cv::Size(img_crop_width, img_crop_height),
+                      cv::BORDER_REPLICATE);
+
+  if (float(dst_img.rows) >= float(dst_img.cols) * 1.5) {
+    cv::Mat srcCopy = cv::Mat(dst_img.rows, dst_img.cols, dst_img.depth());
+    cv::transpose(dst_img, srcCopy);
+    cv::flip(srcCopy, srcCopy, 0);
+    return srcCopy;
+  } else {
+    return dst_img;
+  }
+}
+
+DEFINE_OP(GeneralDetectionOp);
+
+} // namespace serving
+} // namespace paddle_serving
+} // namespace baidu

deploy/pdserving/ocr_cpp_client.py

@@ -45,10 +45,8 @@ for img_file in os.listdir(test_img_dir):
         image_data = file.read()
     image = cv2_to_base64(image_data)
     res_list = []
-    #print(image)
     fetch_map = client.predict(
         feed={"x": image}, fetch=["save_infer_model/scale_0.tmp_1"], batch=True)
-    print("fetrch map:", fetch_map)
     one_batch_res = ocr_reader.postprocess(fetch_map, with_score=True)
     for res in one_batch_res:
         res_list.append(res[0])

deploy/pdserving/pipeline_http_client.py

@@ -34,12 +34,28 @@ test_img_dir = args.image_dir
 for idx, img_file in enumerate(os.listdir(test_img_dir)):
     with open(os.path.join(test_img_dir, img_file), 'rb') as file:
         image_data1 = file.read()
+    # print file name
+    print('{}{}{}'.format('*' * 10, img_file, '*' * 10))

     image = cv2_to_base64(image_data1)

-    for i in range(1):
-        data = {"key": ["image"], "value": [image]}
-        r = requests.post(url=url, data=json.dumps(data))
-        print(r.json())
-
+    data = {"key": ["image"], "value": [image]}
+    r = requests.post(url=url, data=json.dumps(data))
+    result = r.json()
+    print("erro_no:{}, err_msg:{}".format(result["err_no"], result["err_msg"]))
+    # check success
+    if result["err_no"] == 0:
+        ocr_result = result["value"][0]
+        try:
+            for item in eval(ocr_result):
+                # return transcription and points
+                print("{}, {}".format(item[0], item[1]))
+        except Exception as e:
+            print("No results")
+            continue
+
+    else:
+        print(
+            "For details about error message, see PipelineServingLogs/pipeline.log"
+        )
 print("==> total number of test imgs: ", len(os.listdir(test_img_dir)))

deploy/pdserving/web_service.py

@@ -15,6 +15,7 @@ from paddle_serving_server.web_service import WebService, Op

 import logging
 import numpy as np
+import copy
 import cv2
 import base64
 # from paddle_serving_app.reader import OCRReader
@@ -36,7 +37,7 @@ class DetOp(Op):
         self.filter_func = FilterBoxes(10, 10)
         self.post_func = DBPostProcess({
             "thresh": 0.3,
-            "box_thresh": 0.5,
+            "box_thresh": 0.6,
             "max_candidates": 1000,
             "unclip_ratio": 1.5,
             "min_size": 3
@@ -79,8 +80,10 @@ class RecOp(Op):
         raw_im = input_dict["image"]
         data = np.frombuffer(raw_im, np.uint8)
         im = cv2.imdecode(data, cv2.IMREAD_COLOR)
-        dt_boxes = input_dict["dt_boxes"]
-        dt_boxes = self.sorted_boxes(dt_boxes)
+        self.dt_list = input_dict["dt_boxes"]
+        self.dt_list = self.sorted_boxes(self.dt_list)
+        # deepcopy to save origin dt_boxes
+        dt_boxes = copy.deepcopy(self.dt_list)
         feed_list = []
         img_list = []
         max_wh_ratio = 0
@@ -126,25 +129,29 @@ class RecOp(Op):
                 imgs[id] = norm_img
             feed = {"x": imgs.copy()}
             feed_list.append(feed)
-
         return feed_list, False, None, ""

     def postprocess(self, input_dicts, fetch_data, data_id, log_id):
-        res_list = []
+        rec_list = []
+        dt_num = len(self.dt_list)
         if isinstance(fetch_data, dict):
             if len(fetch_data) > 0:
                 rec_batch_res = self.ocr_reader.postprocess(
                     fetch_data, with_score=True)
                 for res in rec_batch_res:
-                    res_list.append(res[0])
+                    rec_list.append(res)
         elif isinstance(fetch_data, list):
             for one_batch in fetch_data:
                 one_batch_res = self.ocr_reader.postprocess(
                     one_batch, with_score=True)
                 for res in one_batch_res:
-                    res_list.append(res[0])
-
-        res = {"res": str(res_list)}
+                    rec_list.append(res)
+        result_list = []
+        for i in range(dt_num):
+            text = rec_list[i]
+            dt_box = self.dt_list[i]
+            result_list.append([text, dt_box.tolist()])
+        res = {"result": str(result_list)}
         return res, None, ""
