# YOLOv9
## 论文
- https://arxiv.org/abs/2402.13616

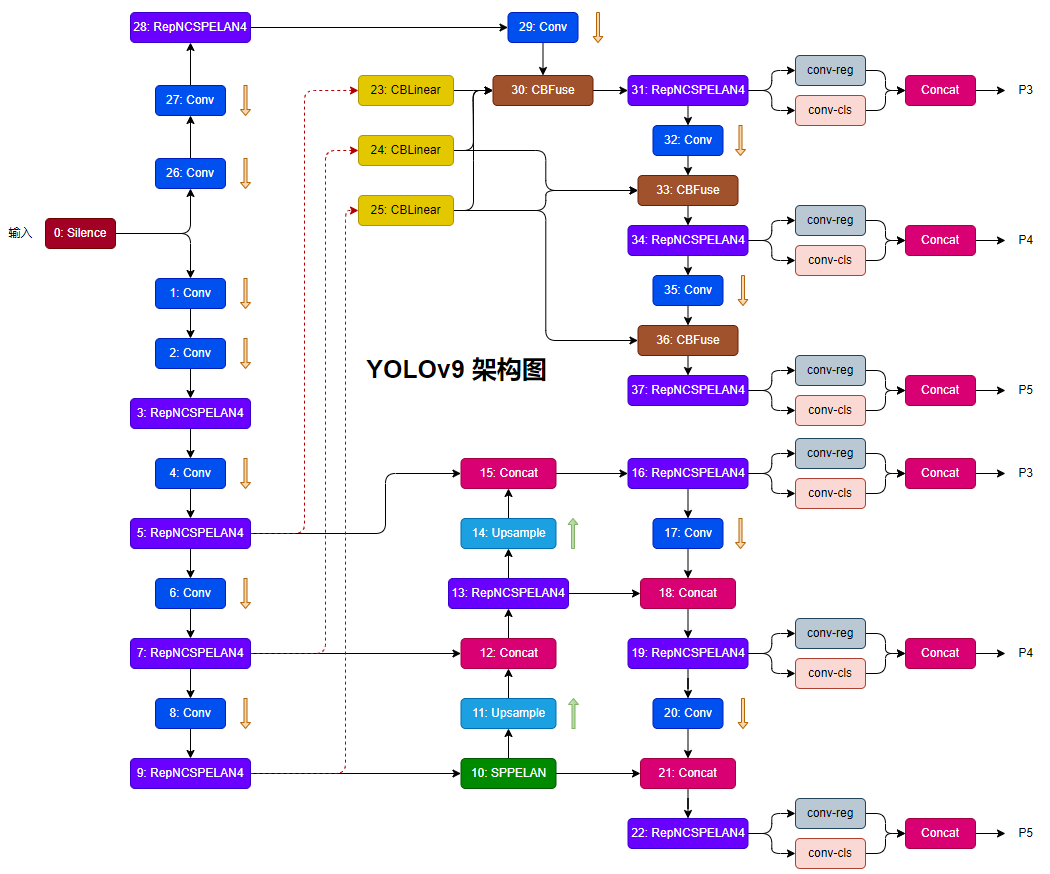

## 模型结构
YOLOv9将可编程梯度信息 (PGI) 概念与通用 ELAN (GELAN)架构相结合而开发,代表了准确性、速度和效率方面的重大飞跃。
<div align=center>
<img src="./doc/yolov9-model.png"/>
</div>
## 算法原理
Yolov9将可编程梯度信息(PGI)和GLEAN(用于对象检测的生成潜在嵌入)架构集成到YOLOv9中可以增强其在对象检测任务中的性能。可编程梯度信息(PGI)概念,有助于通过辅助可逆分支生成可靠的梯度。这确保深度特征保留执行目标任务所需的关键特征,解决深度神经网络前馈过程中信息丢失的问题。通用ELAN(GELAN)架构,旨在优化参数、计算复杂度、准确性和推理速度。通过允许用户为不同的推理设备选择合适的计算模块,GELAN 增强了 YOLOv9 的灵活性和效率。实验结果表明,YOLOv9 在 MS COCO 等基准数据集上的目标检测任务中实现了最佳性能。它在准确性、速度和整体性能方面超越了现有的实时物体检测器,使其成为需要物体检测功能的各种应用的最先进的解决方案。

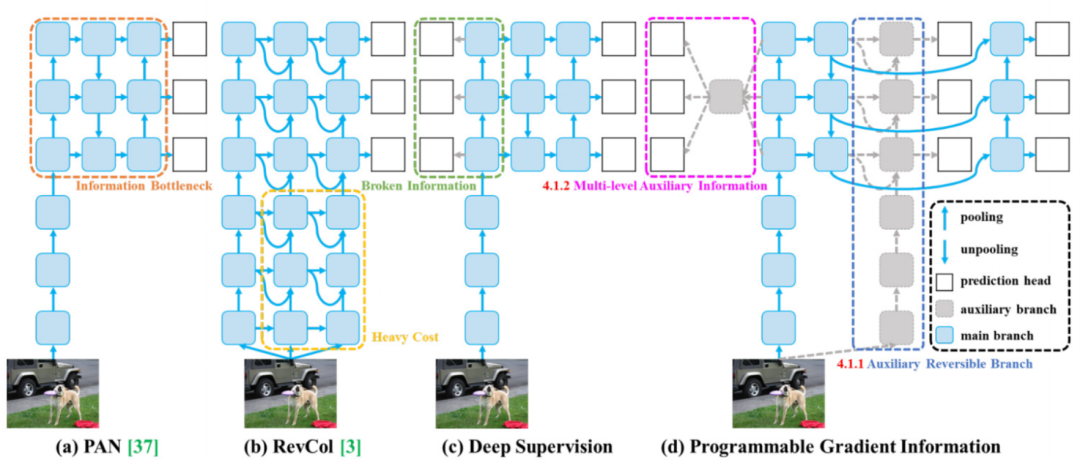

<div align=center>
<img src="./doc/pgi.png"/>
</div>
PGI主要包括主分支, 辅助可逆分支, 多级辅助信息三个组成部分。PGI推理过程仅使用主分支,因此不需要任何额外的推理成本。

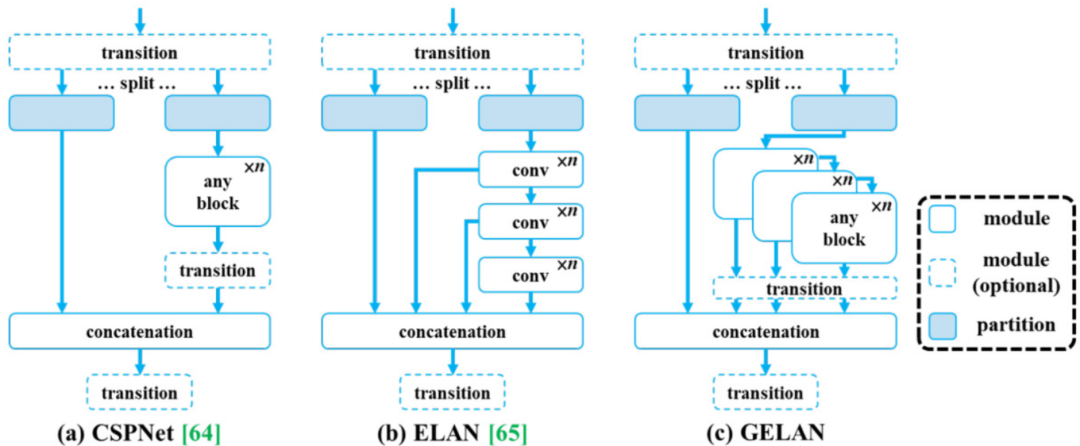

<div align=center>
<img src="./doc/gelan.png"/>
</div>
YOLOv9提出了新网络架构——GELAN。GELAN通过结合两种神经网络架构,即结合用梯度路径规划(CSPNet)和(ELAN)设计了一种广义的高效层聚合网络(GELAN);GELAN综合考虑了轻量级、推理速度和准确度。GELAN整体架构如上图所示。YOLOv9将ELAN的能力进行了泛化,原始ELAN仅使用卷积层的堆叠,而GELAN可以使用任何计算块作为基础Module。
## 环境配置
### Docker(方法一)
[光源](https://www.sourcefind.cn/#/service-list)中拉取docker镜像:
```
docker pull image.sourcefind.cn:5000/dcu/admin/base/pytorch:1.13.1-centos7.6-dtk23.10-py310
```
创建容器并挂载目录进行开发:
```
docker run -it --name {name} --shm-size=1024G --device=/dev/kfd --device=/dev/dri/ --privileged --cap-add=SYS_PTRACE --security-opt seccomp=unconfined --ulimit memlock=-1:-1 --ipc=host --network host --group-add video -v /parastor/DL_DATA:/home/data:ro -v /public/DL_DATA:/home/data2:ro -v /opt/hyhal:/opt/hyhal:ro -v /parastor/home/:/home/ {docker_image} /bin/bash
# 修改1 {name} 需要改为自定义名称,建议命名{框架_dtk版本_使用者姓名},如果有特殊用途可在命名框架前添加命名
# 修改2 {docker_image} 需要需要创建容器的对应镜像名称,如: pytorch:1.10.0-centos7.6-dtk-23.04-py37-latest【镜像名称:tag名称】
# 修改3 -v 挂载路径到容器指定路径
```
### Dockerfile(方法二)
```
docker build --no-cache -t yolov9_pytorch:1.0 .
docker run xxx
```
### Anaconda(方法三)
线上节点推荐使用conda进行环境配置。
创建python=3.10的conda环境
```
conda create -n yolov9 python=3.10
```
关于本项目DCU显卡所需的特殊深度学习库可从[光合](https://developer.hpccube.com/tool/)开发者社区下载安装。
```
DTK驱动:dtk23.10
python:python3.10
pytorch:1.13.1
```
`Tips:以上dtk驱动、python、paddle等DCU相关工具版本需要严格一一对应`
其它非深度学习库参照requirements.txt安装:
```
pip install -r requirements.txt
```
## 数据集
`MS COCO`
- 此处填写公司网盘数据url下载地址
- 训练集[train](http://images.cocodataset.org/zips/train2017.zip),验证集[val](http://images.cocodataset.org/zips/val2017.zip),测试集[test](http://images.cocodataset.org/zips/test2017.zip),以及标签[label](https://github.com/WongKinYiu/yolov7/releases/download/v0.1/coco2017labels-segments.zip)
## 训练
权重文件下载[weight](https://github.com/WongKinYiu/yolov9/releases/download/v0.1/yolov9-c.pt)
### 单机多卡
```
python -m torch.distributed.launch --nproc_per_node 8 --master_port 9527 train_dual.py --workers 8 --device 0,1,2,3,4,5,6,7 --sync-bn --batch 128 --data data/coco.yaml --img 640 --cfg models/detect/yolov9-c.yaml --weights yolov9-c.pt --name yolov9-c --hyp hyp.scratch-high.yaml --min-items 0 --epochs 500 --close-mosaic 15
```
### 单机单卡
```
python train_dual.py --workers 8 --device 0 --batch 16 --data data/coco.yaml --img 640 --cfg models/detect/yolov9-c.yaml --weights yolov9-c.pt --name yolov9-c --hyp hyp.scratch-high.yaml --min-items 0 --epochs 500 --close-mosaic 15
```
## 推理
运行yolov9推理
```
python detect_dual.py --source './data/images/horses.jpg' --img 640 --device 0 --weights './yolov9-c.pt' --name yolov9_c_640_detect
```

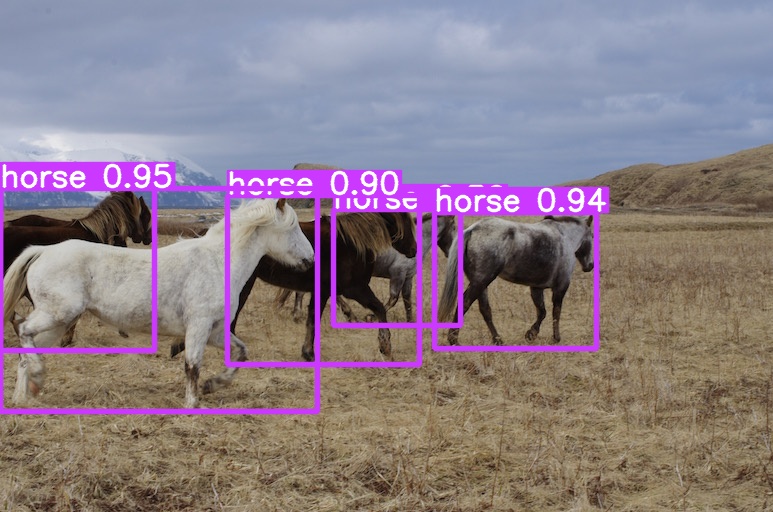

## result
<div align=center>
<img src="./doc/horses_prediction.jpg"/>
</div>
### 精度
测试数据:[test](http://images.cocodataset.org/zips/test2017.zip)
测试指标:
Average Precision (AP) @[ IoU=0.50:0.95 | area= all | maxDets=100 ] = 0.530
Average Precision (AP) @[ IoU=0.50 | area= all | maxDets=100 ] = 0.703
Average Precision (AP) @[ IoU=0.75 | area= all | maxDets=100 ] = 0.578
Average Precision (AP) @[ IoU=0.50:0.95 | area= small | maxDets=100 ] = 0.363
Average Precision (AP) @[ IoU=0.50:0.95 | area=medium | maxDets=100 ] = 0.585
Average Precision (AP) @[ IoU=0.50:0.95 | area= large | maxDets=100 ] = 0.691
Average Recall (AR) @[ IoU=0.50:0.95 | area= all | maxDets= 1 ] = 0.392
Average Recall (AR) @[ IoU=0.50:0.95 | area= all | maxDets= 10 ] = 0.651
Average Recall (AR) @[ IoU=0.50:0.95 | area= all | maxDets=100 ] = 0.700
Average Recall (AR) @[ IoU=0.50:0.95 | area= small | maxDets=100 ] = 0.539
Average Recall (AR) @[ IoU=0.50:0.95 | area=medium | maxDets=100 ] = 0.759
Average Recall (AR) @[ IoU=0.50:0.95 | area= large | maxDets=100 ] = 0.847
## 应用场景
### 算法类别
目标检测、目标分割
### 热点应用行业
安防、交通、教育
## 源码仓库及问题反馈
[https://developer.hpccube.com/codes/modelzoo/yolov9_pytorch](https://developer.hpccube.com/codes/modelzoo/yolov9_pytorch)
## 参考资料
[https://github.com/WongKinYiu/yolov9](https://github.com/WongKinYiu/yolov9)
import argparse
import platform
import sys
import time
from pathlib import Path
import pandas as pd
FILE = Path(__file__).resolve()
ROOT = FILE.parents[0] # YOLO root directory
if str(ROOT) not in sys.path:
sys.path.append(str(ROOT)) # add ROOT to PATH
# ROOT = ROOT.relative_to(Path.cwd()) # relative
import export
from models.experimental import attempt_load
from models.yolo import SegmentationModel
from segment.val import run as val_seg
from utils import notebook_init
from utils.general import LOGGER, check_yaml, file_size, print_args
from utils.torch_utils import select_device
from val import run as val_det
def run(
weights=ROOT / 'yolo.pt', # weights path
imgsz=640, # inference size (pixels)
batch_size=1, # batch size
data=ROOT / 'data/coco.yaml', # dataset.yaml path
device='', # cuda device, i.e. 0 or 0,1,2,3 or cpu
half=False, # use FP16 half-precision inference
test=False, # test exports only
pt_only=False, # test PyTorch only
hard_fail=False, # throw error on benchmark failure
):
y, t = [], time.time()
device = select_device(device)
model_type = type(attempt_load(weights, fuse=False)) # DetectionModel, SegmentationModel, etc.
for i, (name, f, suffix, cpu, gpu) in export.export_formats().iterrows(): # index, (name, file, suffix, CPU, GPU)
try:
assert i not in (9, 10), 'inference not supported' # Edge TPU and TF.js are unsupported
assert i != 5 or platform.system() == 'Darwin', 'inference only supported on macOS>=10.13' # CoreML
if 'cpu' in device.type:
assert cpu, 'inference not supported on CPU'
if 'cuda' in device.type:
assert gpu, 'inference not supported on GPU'
# Export
if f == '-':
w = weights # PyTorch format
else:
w = export.run(weights=weights, imgsz=[imgsz], include=[f], device=device, half=half)[-1] # all others
assert suffix in str(w), 'export failed'
# Validate
if model_type == SegmentationModel:
result = val_seg(data, w, batch_size, imgsz, plots=False, device=device, task='speed', half=half)
metric = result[0][7] # (box(p, r, map50, map), mask(p, r, map50, map), *loss(box, obj, cls))
else: # DetectionModel:
result = val_det(data, w, batch_size, imgsz, plots=False, device=device, task='speed', half=half)
metric = result[0][3] # (p, r, map50, map, *loss(box, obj, cls))
speed = result[2][1] # times (preprocess, inference, postprocess)
y.append([name, round(file_size(w), 1), round(metric, 4), round(speed, 2)]) # MB, mAP, t_inference
except Exception as e:
if hard_fail:
assert type(e) is AssertionError, f'Benchmark --hard-fail for {name}: {e}'
LOGGER.warning(f'WARNING ⚠️ Benchmark failure for {name}: {e}')
y.append([name, None, None, None]) # mAP, t_inference
if pt_only and i == 0:
break # break after PyTorch
# Print results
LOGGER.info('\n')
parse_opt()
notebook_init() # print system info
c = ['Format', 'Size (MB)', 'mAP50-95', 'Inference time (ms)'] if map else ['Format', 'Export', '', '']
py = pd.DataFrame(y, columns=c)
LOGGER.info(f'\nBenchmarks complete ({time.time() - t:.2f}s)')
LOGGER.info(str(py if map else py.iloc[:, :2]))
if hard_fail and isinstance(hard_fail, str):
metrics = py['mAP50-95'].array # values to compare to floor
floor = eval(hard_fail) # minimum metric floor to pass
assert all(x > floor for x in metrics if pd.notna(x)), f'HARD FAIL: mAP50-95 < floor {floor}'
return py
def test(
weights=ROOT / 'yolo.pt', # weights path
imgsz=640, # inference size (pixels)
batch_size=1, # batch size
data=ROOT / 'data/coco128.yaml', # dataset.yaml path
device='', # cuda device, i.e. 0 or 0,1,2,3 or cpu
half=False, # use FP16 half-precision inference
test=False, # test exports only
pt_only=False, # test PyTorch only
hard_fail=False, # throw error on benchmark failure
):
y, t = [], time.time()
device = select_device(device)
for i, (name, f, suffix, gpu) in export.export_formats().iterrows(): # index, (name, file, suffix, gpu-capable)
try:
w = weights if f == '-' else \
export.run(weights=weights, imgsz=[imgsz], include=[f], device=device, half=half)[-1] # weights
assert suffix in str(w), 'export failed'
y.append([name, True])
except Exception:
y.append([name, False]) # mAP, t_inference
# Print results
LOGGER.info('\n')
parse_opt()
notebook_init() # print system info
py = pd.DataFrame(y, columns=['Format', 'Export'])
LOGGER.info(f'\nExports complete ({time.time() - t:.2f}s)')
LOGGER.info(str(py))
return py
def parse_opt():
parser = argparse.ArgumentParser()
parser.add_argument('--weights', type=str, default=ROOT / 'yolo.pt', help='weights path')
parser.add_argument('--imgsz', '--img', '--img-size', type=int, default=640, help='inference size (pixels)')
parser.add_argument('--batch-size', type=int, default=1, help='batch size')
parser.add_argument('--data', type=str, default=ROOT / 'data/coco128.yaml', help='dataset.yaml path')
parser.add_argument('--device', default='', help='cuda device, i.e. 0 or 0,1,2,3 or cpu')
parser.add_argument('--half', action='store_true', help='use FP16 half-precision inference')
parser.add_argument('--test', action='store_true', help='test exports only')
parser.add_argument('--pt-only', action='store_true', help='test PyTorch only')
parser.add_argument('--hard-fail', nargs='?', const=True, default=False, help='Exception on error or < min metric')
opt = parser.parse_args()
opt.data = check_yaml(opt.data) # check YAML
print_args(vars(opt))
return opt
def main(opt):
test(**vars(opt)) if opt.test else run(**vars(opt))
if __name__ == "__main__":
opt = parse_opt()
main(opt)
