# RetinaFace人脸检测器
## 模型简介
RetinaFace是一个经典的人脸检测模型(https://arxiv.org/abs/1905.00641),采用了SSD架构。
![image-20221215140647406](../Images/RetinaFace_01.png)
本示例采用了如下的开源实现:https://github.com/biubug6/Pytorch_Retinaface,作者提供了restnet50 和mobilenet0.25两个预训练模型,本示例使用了mobilenet0.25预训练模型,将mobilenet0.25预训练模型下载下来后,保存到Pytorch_Retinaface工程的weights目录。
## 模型转换
在将mobilenet0.25预训练模型转换为onnx文件的时候,本示例需要对作者提供的python代码做如下改变:
### 修改models/retinaface.py
1. **将ClassHead类修改为如下实现**
```
class ClassHead(nn.Module):
def __init__(self,inchannels=512,num_anchors=3):
super(ClassHead,self).__init__()
self.num_anchors = num_anchors
self.conv1x1 = nn.Conv2d(inchannels,self.num_anchors*2,kernel_size=(1,1),stride=1,padding=0)
def forward(self,x):
out = self.conv1x1(x)
return out
```
由于本示例的C++推理代码已经实现了permute操作,所以这里需要去掉out.permute(0,2,3,1).contiguous()。
2. **将BboxHead类修改为如下实现**
```
class BboxHead(nn.Module):
def __init__(self,inchannels=512,num_anchors=3):
super(BboxHead,self).__init__()
self.conv1x1 = nn.Conv2d(inchannels,num_anchors*4,kernel_size=(1,1),stride=1,padding=0)
def forward(self,x):
out = self.conv1x1(x)
return out
```
与ClassHead一样,需要去掉permute操作。
3. **将RetinaFace类的forward修改为如下实现**
```
def forward(self,inputs):
out = self.body(inputs)
# FPN
fpn = self.fpn(out)
# SSH
feature1 = self.ssh1(fpn[0])
feature2 = self.ssh2(fpn[1])
feature3 = self.ssh3(fpn[2])
features = [feature1, feature2, feature3]
bbox_regressions = [self.BboxHead[i](feature) for i, feature in enumerate(features)]
classifications = [self.ClassHead[i](feature) for i, feature in enumerate(features)]
output=(bbox_regressions[0],classifications[0],bbox_regressions[1],classifications[1],bbox_regressions[2],classifications[2])
return output
```
本示例去掉了landmark检测功能,所以需要去掉forward中的landmark部分,bbox_regressions和classifications需要删除torch.cat操作,同时需要修改output为(bbox_regressions[0],classifications[0],bbox_regressions[1],classifications[1],bbox_regressions[2],classifications[2])。
### 修改data/config.py
将cfg_mnet中的'pretrain': True,修改为'pretrain': False,
### 修改convert_to_onnx.py
导出onnx模型的时候,需要修改原来的output_names,可以直接删除torch.onnx._export()的output_names参数或者手动指定每个输出节点的名字,如果直接删除了output_names参数,则会生成一个随机名,本示例直接删除了output_names参数,同时本示例修改了onnx文件名output_onnx,修改后的main函数如下:
```
if __name__ == '__main__':
torch.set_grad_enabled(False)
cfg = None
if args.network == "mobile0.25":
cfg = cfg_mnet
elif args.network == "resnet50":
cfg = cfg_re50
# net and model
net = RetinaFace(cfg=cfg, phase = 'test')
net = load_model(net, args.trained_model, args.cpu)
net.eval()
print('Finished loading model!')
print(net)
device = torch.device("cpu" if args.cpu else "cuda")
net = net.to(device)
# ------------------------ export -----------------------------
output_onnx = 'mobilenet0.25_Final.onnx'
print("==> Exporting model to ONNX format at '{}'".format(output_onnx))
input_names = ["input0"]
output_names = ["output0"]
inputs = torch.randn(1, 3, args.long_side, args.long_side).to(device)
torch_out = torch.onnx._export(net, inputs, output_onnx, export_params=True, verbose=False,
input_names=input_names)
```
注意:如果需要修改模型的输入大小,可以修改args.long_side参数,默认为640x640。
完成上述修改后,执行python convert_to_onnx.py命令就可以实现模型转换了,转换成功后会在当前目录生成mobilenet0.25_Final.onnx文件,下面就可以进行推理了。本示例将修改好的工程保存到了samples工程中的Resource/Models/Detector/RetinaFace目录中,在Pytorch_Retinaface目录中执行python convert_to_onnx.py命令可以直接生成onnx文件。
## 检测器参数设置
samples工程中的Resource/Configuration.xml文件的DetectorRetinaFace节点表示RetinaFace检测器的参数,这些参数是根据Pytorch_Retinaface工程中的data/config.py文件中的cfg_mnet来设置的,下面我们看一下是如何通过cfg_mnet来设置的。
2. **设置anchor大小**
cfg_mnet的min_sizes表示每一个priorbox层的anchor大小,我们可以看到该模型一共有3个priorbox层,第一层anchor大小为16和32,第二层anchor大小为64和128,第三层anchor大小为256和512,注意:**Configuration.xml中priorbox层的顺序要与onnx文件中的输出节点顺序保持一致**,通过netron (https://netron.app/) 可以看到首先输出的是467和470节点,这两个节点对应的是特征图最大的检测层,所以对应的anchor大小为16和32,最后输出的是469和472节点,这两个节点对应的是特征图最小的检测层,所以对应的anchor大小为256和512,
![image-20221215153957174](../Images/RetinaFace_02.png)
所以Configuration.xml配置文件中的参数设置如下:
```
<!--priorbox层的个数-->
<PriorBoxLayerNumber>3</PriorBoxLayerNumber>
<!--每个priorbox层的minisize-->
<MinSize11>16</MinSize11>
<MinSize12>32</MinSize12>
<MinSize21>64</MinSize21>
<MinSize22>128</MinSize22>
<MinSize31>256</MinSize31>
<MinSize32>512</MinSize32>
```
3. **设置Flip和Clip**
cfg_mnet中的clip为False,所以Configuration.xml中对应的参数设置为0即可,由于只有一个宽高比为1的anchor,所以Flip设置为0。
```
<Flip1>0</Flip1>
<Flip2>0</Flip2>
<Flip3>0</Flip3>
<Clip1>0</Clip1>
<Clip2>0</Clip2>
<Clip3>0</Clip3>
```
4. **设置anchor的宽高比**
由于RetinaFace只包含宽高比为1的anchor,所以这里不需要设置宽高比。
5. **设置每个priorbox层的步长**
cfg_mnet中的steps表示每个priorbox层的步长,所以三个priorbox的步长依次为8,16,32,对应的Configuration.xml的设置如下:
```
<!--每个priorbox层的step-->
<PriorBoxStepWidth1>8</PriorBoxStepWidth1><!--第一个priorbox层的step的width-->
<PriorBoxStepWidth2>16</PriorBoxStepWidth2>
<PriorBoxStepWidth3>32</PriorBoxStepWidth3>
<PriorBoxStepHeight1>8</PriorBoxStepHeight1><!--第一个priorbox层的step的height-->
<PriorBoxStepHeight2>16</PriorBoxStepHeight2>
<PriorBoxStepHeight3>32</PriorBoxStepHeight3>
```
6. **设置DetectionOutput层的参数**
由于本示例模型是一个人脸检测模型,所以只有两类目标(背景和人脸),所以ClassNumber为2,DetectionOutput层的其他参数可以根据实际情况做微调,本示例中采用如下设置:
```
<TopK>400</TopK>
<KeepTopK>200</KeepTopK>
<NMSThreshold>0.3</NMSThreshold>
<ConfidenceThreshold>0.9</ConfidenceThreshold>
```
## 预处理
在将数据输入到模型之前,需要对图像做如下预处理操作:
1. 减去均值,RetinaFace训练的时候对图像做了减均值的操作(train.py文件中的第38行),注意均值的顺序是BGR顺序。
2. 转换数据排布为NCHW
本示例代码采用了OpenCV的cv::dnn::blobFromImage()函数实现了预处理操作:
```
ErrorCode DetectorRetinaFace::Detect(const cv::Mat &srcImage,std::vector<ResultOfDetection> &resultsOfDetection)
{
...
// 预处理并转换为NCHW
cv::Mat inputBlob;
blobFromImage(srcImage, // 输入数据
inputBlob, // 输出数据
scale, // 1
inputSize, // SSD输入大小,本示例为640x480
meanValue,// (104,117,123)
swapRB, // false
false);
...
}
```
## 推理
模型转换成功并且设置好检测器参数之后就可以执行推理了。
```
ErrorCode DetectorRetinaFace::Detect(const cv::Mat &srcImage,std::vector<ResultOfDetection> &resultsOfDetection)
{
...
// 输入数据
migraphx::parameter_map inputData;
inputData[inputName]= migraphx::argument{inputShape, (float*)inputBlob.data};
// 推理
std::vector<migraphx::argument> inferenceResults=net.eval(inputData);
vector<vector<float>> regressions;
vector<vector<float>> classifications;
for(int i=0;i<ssdParameter.numberOfPriorBoxLayer;++i) // 执行Permute操作
{
int numberOfPriorBox=ssdParameter.detectInputChn[i]/(4*(ssdParameter.priorBoxHeight[i] * ssdParameter.priorBoxWidth[i]));
// BboxHead
std::vector<float> regression;
migraphx::argument result0 = inferenceResults[2*i];
result0.visit([&](auto output) { regression.assign(output.begin(), output.end()); });
regression=PermuteLayer(regression,ssdParameter.priorBoxWidth[i],ssdParameter.priorBoxHeight[i],numberOfPriorBox*4);
regressions.push_back(regression);
// ClassHead
std::vector<float> classification;
migraphx::argument result1 = inferenceResults[2*i+1];
result1.visit([&](auto output) { classification.assign(output.begin(), output.end()); });
classification=PermuteLayer(classification,ssdParameter.priorBoxWidth[i],ssdParameter.priorBoxHeight[i],numberOfPriorBox*ssdParameter.classNum);
classifications.push_back(classification);
}
// 对推理结果进行处理,得到最后SSD检测的结果
GetResult(classifications,regressions,resultsOfDetection);
// 转换到原图坐标
for(int i=0;i<resultsOfDetection.size();++i)
{
float ratioOfWidth=(1.0*srcImage.cols)/inputSize.width;
float ratioOfHeight=(1.0*srcImage.rows)/inputSize.height;
resultsOfDetection[i].boundingBox.x*=ratioOfWidth;
resultsOfDetection[i].boundingBox.width*=ratioOfWidth;
resultsOfDetection[i].boundingBox.y*=ratioOfHeight;
resultsOfDetection[i].boundingBox.height*=ratioOfHeight;
}
// 按照置信度排序
sort(resultsOfDetection.begin(), resultsOfDetection.end(),CompareConfidence);
return SUCCESS;
}
```
1. net.eval(inputData)返回推理结果,顺序与onnx输出保持一致,可以通过netron查看输出节点顺序,其中inferenceResults[2 * i]表示每个检测层的BboxHead的输出,inferenceResults [2 * i + 1]表示每个检测层的ClassHead的输出。
1. 经过PermuteLayer处理之后的所有检测层数据通过GetResult()得到最后的输出结果,注意这里的输出结果还不是最后的检测结果,最后需要转换到原图坐标才能够得到最终的检测结果。
## 运行示例
根据samples工程中的README.md构建成功C++ samples后,在build目录下输入如下命令运行该示例:
```
./MIGraphX_Samples 2
```
![image-20221215164140724](../Images/RetinaFace_03.png)
\ No newline at end of file
# RetinaFace人脸检测器
## 模型简介
RetinaFace是一个经典的人脸检测模型(https://arxiv.org/abs/1905.00641),采用了SSD架构。
![image-20221215140647406](../Images/RetinaFace_01.png)
本示例采用了如下的开源实现:https://github.com/biubug6/Pytorch_Retinaface,作者提供了restnet50 和mobilenet0.25两个预训练模型,本示例使用了mobilenet0.25预训练模型,将mobilenet0.25预训练模型下载下来后,保存到Pytorch_Retinaface工程的weights目录。
## 模型转换
通过下面的步骤可以将mobilenet0.25预训练转换成onnx文件:
1. 修改data/config.py:将cfg_mnet中的'pretrain': True,修改为'pretrain': False,
2. 执行如下命令就可以将weights目录下的mobilenet0.25_Final.pth模型转换为onnx文件了
```
# 进入Pytorch_Retinaface工程根目录
cd <path_to_Pytorch_Retinaface>
# 转换模型
python convert_to_onnx.py
```
注意:如果需要修改模型的输入大小,可以修改args.long_side参数,默认为640x640。
模型转换成功后,会在当前目录生成FaceDetector.onnx文件,利用该模型就可以使用MIGraphX进行推理了,本示例在samples工程中的Python/RetinaFace目录中提供了已经修改好的代码,在该目录下执行python convert_to_onnx.py可以直接生成onnx文件。
## 推理
Pytorch_Retinaface工程提供了原始Pytorch版本的推理测试代码detect.py,我们只需要将其中使用Pytorch推理的部分转换为MIGraphX推理就可以了,samples工程中的Python/RetinaFace/detect.py文件为已经转换好的推理代码,下面我们看一下是如何转换的:
1. 将加载模型部分修改为migraphx的方式加载
```
# 加载模型
model = migraphx.parse_onnx("./FaceDetector.onnx")
```
2. 模型加载成功后,需要通过model.compile进行编译,可以通过device_id设置使用哪一块设备
```
model.compile(t=migraphx.get_target("gpu"),device_id=0)
```
3. 编译成功后,就可以输入图像进行推理了,由于本示例使用的onnx模型的输入大小是640x640,所以对于输入图像需要先resize到640x640
```
# resize到onnx模型输入大小
image_path = "./curve/test.jpg"
img_raw = cv2.imread(image_path, cv2.IMREAD_COLOR)
img_raw = cv2.resize(img_raw, (640,640))
```
4. 预处理部分跟作者的代码保持一致即可,这部分不需要修改
5. 下面是最关键的一步,将pytorch推理net(img)转换为MIGraphX推理migraphx_run(model,args.cpu,img),其中migraphx_run实现如下:
```
def migraphx_run(model,cpu,data_tensor):
# 将输入的tensor数据转换为numpy
if cpu:
data_numpy=data_tensor.cpu().numpy()
device = torch.device("cpu")
else:
data_numpy=data_tensor.detach().cpu().numpy()
device = torch.device("cuda")
img_data = np.zeros(data_numpy.shape).astype("float32")
for i in range(data_numpy.shape[0]):
img_data[i, :, :, :] = data_numpy[i, :, :, :]
# 执行推理
result = model.run({model.get_parameter_names()[0]: migraphx.argument(img_data)})
# 将结果转换为tensor
result0=torch.from_numpy(np.array(result[0], copy=False)).to(device)
result1=torch.from_numpy(np.array(result[1], copy=False)).to(device)
result2=torch.from_numpy(np.array(result[2], copy=False)).to(device)
return (result0,result1,result2)
```
首先需要将tensor数据转换为numpy,转换好的数据保存在img_data中,然后通过{model.get_parameter_names()[0]: migraphx.argument(img_data)}创建MIGraphX的输入数据,并使用model.run执行推理,result为推理返回的结果,然后通过torch.from_numpy的方式转换为tensor类型并返回,为了保持与Pytorch推理结果的格式一致,转换的时候需要注意输出结果的顺序,MIGraphX的输出结果顺序与onnx中保持一致,可以通过netron (https://netron.app/) 查看:
![image-20221215200807445](../Images/RetinaFace_04.png)
所以第一个输出结果对应pytorch结果中的loc,第二个对应conf, 第三个对应landms,所以返回的结果是(result0,result1,result2)。
6. 推理执行成功后,需要执行后处理才能得到最终的检测结果,由于我们模型推理输出的格式与原始的Pytorch模型输出是一致的,所以后处理可以直接使用原来的,不需要修改。
## 运行示例
1. 参考《MIGraphX教程》中的安装方法安装MIGraphX并设置好PYTHONPATH
2. 安装Pytorch
3. 安装依赖:
```
# 进入migraphx samples工程根目录
cd <path_to_migraphx_samples>
# 进入示例程序目录
cd Python/RetinaFace
# 安装依赖
pip install -r requirements.txt
```
4. 运行示例:
```
python detect.py
```
![image-20221215202711987](../Images/RetinaFace_05.png)
\ No newline at end of file
# YOLOV3检测器
## 模型简介
YOLOV3是由Joseph Redmon和Ali Farhadi在《YOLOv3: An Incremental Improvement》论文中提出的单阶段检测模型,算法基本思想首先通过特征提取网络对输入提取特征,backbone部分由YOLOV2时期的Darknet19进化至Darknet53加深了网络层数,引入了Resnet中的跨层加和操作;然后结合不同卷积层的特征实现多尺度训练,一共有13x13、26x26、52x52三种分辨率,分别用来预测大、中、小的物体;每种分辨率的特征图将输入图像分成不同数量的格子,每个格子预测B个bounding box,每个bounding box预测内容包括: Location(x, y, w, h)、Confidence Score和C个类别的概率,因此YOLOv3输出层的channel数为B*(5 + C)。YOLOv3的loss函数也有三部分组成:Location误差,Confidence误差和分类误差。
<img src="../Images/YOLOV3_02.jpg" alt="YOLOV3_02" />
本示例采用如下的开源实现:https://github.com/ultralytics/yolov3,作者在V9.6.0版本中提供多种不同的YOLOV3预训练模型,其中包括yolov3、yolov3-fixed、yolov3-spp、yolov3-tiny四个版本。本示例选择yolov3-tiny.pt预训练模型进行构建MIGraphX推理,下载YOLOV3的预训练模型yolov3-tiny.pt保存在Pytorch_YOLOV3工程的weights目录。
## 环境配置
运行YOLOV3模型的Python示例首先需要进行环境配置,包括安装torch、torchvision以及程序运行所需要的依赖。
1、安装torch、torchvision
2、安装程序运行的依赖
```
# 进入Pytorch_YOLOV3工程根目录
cd <path_to_Pytorch_YOLOV3>
# 安装程序运行的依赖
pip install -r requirement.txt
```
## 模型转换
官方提供的YOLOV3源码中包含导出onnx模型的程序,通过下面的步骤可以将yolov3-tiny.pt预训练模型转换成onnx格式:
```
# 进入Pytorch_YOLOV3工程根目录
cd <path_to_Pytorch_YOLOV3>
# 转换模型
python export.py --weights ./weights/yolov3-tiny.pt --imgsz 416 416 --include onnx
```
注意:官方源码提供的模型转换的程序中包含更多的功能,例如动态shape模型的导出,可根据需要进行添加相关参数。
## 模型推理
### 图片预处理
待检测图片输入模型进行检测之前需要进行预处理,主要包括调整输入的尺寸,归一化等操作。
1. 转换数据排布为NCHW
2. 归一化[0.0, 1.0]
3. 调整输入数据的尺寸为(1,3,416,416)
```
def prepare_input(self, image):
self.img_height, self.img_width = image.shape[:2]
input_img = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# 调整图像的尺寸
input_img = cv2.resize(input_img, (self.inputWidth, self.inputHeight))
# 维度转换HWC->CHW
input_img = input_img.transpose(2, 0, 1)
# 维度拓展,增加batch维度
input_img = np.expand_dims(input_img, 0)
input_img = np.ascontiguousarray(input_img)
input_img = input_img.astype(np.float32)
# 归一化
input_img = input_img / 255
return input_img
```
其中模型输入的inputWidth、inputHeight通过migraphx对输入模型进行解析获取,代码位置见YOLOV3类初始化位置。
```
class YOLOv3:
def __init__(self, path, obj_thres=0.5, conf_thres=0.25, iou_thres=0.5):
self.objectThreshold = obj_thres
self.confThreshold = conf_thres
self.nmsThreshold = iou_thres
# 获取模型检测的类别信息
self.classNames = list(map(lambda x: x.strip(), open('./weights/coco.names', 'r').readlines()))
# 解析推理模型
self.model = migraphx.parse_onnx(path)
# 获取模型的输入name
self.inputName = self.model.get_parameter_names()[0]
# 获取模型的输入尺寸
inputShape = self.model.get_parameter_shapes()[self.inputName].lens()
self.inputHeight = int(inputShape[2])
self.inputWidth = int(inputShape[3])
```
### 推理
输入图片预处理完成之后开始进行推理,首先需要利用migraphx进行编译,然后对输入数据进行前向计算得到模型的输出result,在detect函数中调用定义的process_output函数对result进行后处理,得到图片中含有物体的anchor坐标信息、类别置信度、类别ID。
```
def detect(self, image):
# 输入图片预处理
input_img = self.prepare_input(image)
# 模型编译
self.model.compile(t=migraphx.get_target("gpu"), device_id=0) # device_id: 设置GPU设备,默认为0号设备
print("Success to compile")
# 执行推理
print("Start to inference")
start = time.time()
result = self.model.run({self.model.get_parameter_names()[0]: migraphx.argument(input_img)})
print('net forward time: {:.4f}'.format(time.time() - start))
# 模型输出结果后处理
boxes, scores, class_ids = self.process_output(result)
return boxes, scores, class_ids
```
其中对migraphx推理输出result进行后处理,首先需要对生成的anchor根据是否有物体阈值objectThreshold、置信度阈值confThreshold进行筛选,相关过程定义在process_output函数中。获取筛选后的anchor的坐标信息之后,需要将坐标映射到原图中的位置,相关过程定义在rescale_boxes函数中。
```
def process_output(self, output):
predictions = np.squeeze(output[0])
# 筛选包含物体的anchor
obj_conf = predictions[:, 4]
predictions = predictions[obj_conf > self.objectThreshold]
obj_conf = obj_conf[obj_conf > self.objectThreshold]
# 筛选大于置信度阈值的anchor
predictions[:, 5:] *= obj_conf[:, np.newaxis]
scores = np.max(predictions[:, 5:], axis=1)
valid_scores = scores > self.confThreshold
predictions = predictions[valid_scores]
scores = scores[valid_scores]
# 获取最高置信度分数对应的类别ID
class_ids = np.argmax(predictions[:, 5:], axis=1)
# 获取每个物体对应的anchor
boxes = self.extract_boxes(predictions)
# 执行非极大值抑制消除冗余anchor
indices = cv2.dnn.NMSBoxes(boxes.tolist(), scores.tolist(), self.confThreshold, self.nmsThreshold).flatten()
return boxes[indices], scores[indices], class_ids[indices]
def rescale_boxes(self, boxes):
# 对anchor尺寸进行变换
input_shape = np.array([self.inputWidth, self.inputHeight, self.inputWidth, self.inputHeight])
boxes = np.divide(boxes, input_shape, dtype=np.float32)
boxes *= np.array([self.img_width, self.img_height, self.img_width, self.img_height])
return boxes
```
根据获取的detect函数输出的boxes、scores、class_ids信息在原图进行结果可视化,包括用绘制图片中检测到的物体位置、类别和置信度分数,得到最终的YOLOV3目标检测结果输出。
```
def draw_detections(self, image, boxes, scores, class_ids):
for box, score, class_id in zip(boxes, scores, class_ids):
cx, cy, w, h = box.astype(int)
# 绘制检测物体框
cv2.rectangle(image, (cx, cy), (cx + w, cy + h), (0, 255, 255), thickness=2)
label = self.classNames[class_id]
label = f'{label} {int(score * 100)}%'
labelSize, baseLine = cv2.getTextSize(label, cv2.FONT_HERSHEY_SIMPLEX, 0.5, 1)
cv2.putText(image, label, (cx, cy - 10), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 255), thickness=2)
return image
```
## 运行示例
1.参考《MIGraphX教程》中的安装方法安装MIGraphX并设置好PYTHONPATH
2.运行示例
```
# 进入migraphx samples工程根目录
cd <path_to_migraphx_samples>
#进入示例程序目录
cd Python/Detector/YOLOV3
# 运行示例
python detect_migraphx.py --imgpath ./data/images/dog.jpg --modelpath ./weights/yolov3-tiny.onnx --objectThreshold 0.4 --confThreshold 0.2 --nmsThreshold 0.4
```
输入参数中可根据需要进行修改,程序运行结束会在当前目录生成YOLOV3检测结果图片。
![YOLOV3_03](../Images/YOLOV3_03.jpg)
# YOLOV5检测器
## 模型简介
YOLOV5是一种单阶段目标检测算法,该算法在YOLOV4的基础上添加了一些新的改进思路,使其速度与精度都得到了极大的性能提升。具体包括:输入端的Mosaic数据增强、自适应锚框计算、自适应图片缩放操作;主干网络的Focus结构与CSP结构;Neck端的FPN+PAN结构;输出端的损失函数GIOU_Loss以及预测框筛选的DIOU_nms。网络结构如图所示。
<img src="../Images/YOLOV5_01.jpg" alt="YOLOV5_01" style="zoom: 67%;" />
YOLOV5的官方源码地址:https://github.com/ultralytics/yolov5,官方源码中具有YOLOV5n、YOLOV5s、YOLOV5m、YOLOV5l等不同的版本。本示例采用YOLOV5s版本进行MIGraphX推理示例构建,下载YOLOV5s的预训练模型yolov5s.pt保存在Pytorch_YOLOV5工程的weights目录。
## 环境配置
运行YOLOV5模型的Python示例首先需要进行环境配置,包括安装torch、torchvision以及程序运行所需要的依赖。
1、安装torch、torchvision
2、安装程序运行的依赖
```
# 进入Pytorch_YOLOV5工程根目录
cd <path_to_Pytorch_YOLOV5>
# 安装程序运行的依赖
pip install -r requirement.txt
```
## 模型转换
官方提供的YOLOV5源码中包含导出onnx模型的程序,通过下面的步骤可以将yolov5s.pt预训练模型转换成onnx格式:
```
# 进入Pytorch_YOLOV5工程根目录
cd <path_to_Pytorch_YOLOV5>
# 转换模型
python export.py --weights ./weights/yolov5s.pt --imgsz 608 608 --include onnx
```
注意:官方源码提供的模型转换的程序中包含更多的功能,例如动态shape模型的导出,可根据需要进行添加相关参数。
## 模型推理
### 图片预处理
待检测图片输入模型进行检测之前需要进行预处理,主要包括调整输入的尺寸,归一化等操作。
1. 转换数据排布为NCHW
2. 归一化[0.0, 1.0]
3. 调整输入数据的尺寸为(1,3,608,608)
```
def prepare_input(self, image):
self.img_height, self.img_width = image.shape[:2]
input_img = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# 调整图像的尺寸
input_img = cv2.resize(input_img, (self.inputWidth, self.inputHeight))
# 维度转换HWC->CHW
input_img = input_img.transpose(2, 0, 1)
# 维度拓展,增加batch维度
input_img = np.expand_dims(input_img, 0)
input_img = np.ascontiguousarray(input_img)
input_img = input_img.astype(np.float32)
# 归一化
input_img = input_img / 255
return input_img
```
其中模型输入的inputWidth、inputHeight通过migraphx对输入模型进行解析获取,代码位置见YOLOV5类初始化位置。
```
class YOLOv5:
def __init__(self, path, obj_thres=0.5, conf_thres=0.25, iou_thres=0.5):
self.objectThreshold = obj_thres
self.confThreshold = conf_thres
self.nmsThreshold = iou_thres
# 获取模型检测的类别信息
self.classNames = list(map(lambda x: x.strip(), open('./weights/coco.names', 'r').readlines()))
# 解析推理模型
self.model = migraphx.parse_onnx(path)
# 获取模型的输入name
self.inputName = self.model.get_parameter_names()[0]
# 获取模型的输入尺寸
inputShape = self.model.get_parameter_shapes()[self.inputName].lens()
self.inputHeight = int(inputShape[2])
self.inputWidth = int(inputShape[3])
```
### 推理
输入图片预处理完成之后开始进行推理,首先需要利用migraphx进行编译,然后对输入数据进行前向计算得到模型的输出result,在detect函数中调用定义的process_output函数对result进行后处理,得到图片中含有物体的anchor坐标信息、类别置信度、类别ID。
```
def detect(self, image):
# 输入图片预处理
input_img = self.prepare_input(image)
# 模型编译
self.model.compile(t=migraphx.get_target("gpu"), device_id=0) # device_id: 设置GPU设备,默认为0号设备
print("Success to compile")
# 执行推理
print("Start to inference")
start = time.time()
result = self.model.run({self.model.get_parameter_names()[0]: migraphx.argument(input_img)})
print('net forward time: {:.4f}'.format(time.time() - start))
# 模型输出结果后处理
boxes, scores, class_ids = self.process_output(result)
return boxes, scores, class_ids
```
其中对migraphx推理输出result进行后处理,首先需要对生成的anchor根据是否有物体阈值objectThreshold、置信度阈值confThreshold进行筛选,相关过程定义在process_output函数中。获取筛选后的anchor的坐标信息之后,需要将坐标映射到原图中的位置,相关过程定义在rescale_boxes函数中。
```
def process_output(self, output):
predictions = np.squeeze(output[0])
# 筛选包含物体的anchor
obj_conf = predictions[:, 4]
predictions = predictions[obj_conf > self.objectThreshold]
obj_conf = obj_conf[obj_conf > self.objectThreshold]
# 筛选大于置信度阈值的anchor
predictions[:, 5:] *= obj_conf[:, np.newaxis]
scores = np.max(predictions[:, 5:], axis=1)
valid_scores = scores > self.confThreshold
predictions = predictions[valid_scores]
scores = scores[valid_scores]
# 获取最高置信度分数对应的类别ID
class_ids = np.argmax(predictions[:, 5:], axis=1)
# 获取每个物体对应的anchor
boxes = self.extract_boxes(predictions)
# 执行非极大值抑制消除冗余anchor
indices = cv2.dnn.NMSBoxes(boxes.tolist(), scores.tolist(), self.confThreshold, self.nmsThreshold).flatten()
return boxes[indices], scores[indices], class_ids[indices]
def rescale_boxes(self, boxes):
# 对anchor尺寸进行变换
input_shape = np.array([self.inputWidth, self.inputHeight, self.inputWidth, self.inputHeight])
boxes = np.divide(boxes, input_shape, dtype=np.float32)
boxes *= np.array([self.img_width, self.img_height, self.img_width, self.img_height])
return boxes
```
根据获取的detect函数输出的boxes、scores、class_ids信息在原图进行结果可视化,包括用绘制图片中检测到的物体位置、类别和置信度分数,得到最终的YOLOV5目标检测结果输出。
```
def draw_detections(self, image, boxes, scores, class_ids):
for box, score, class_id in zip(boxes, scores, class_ids):
cx, cy, w, h = box.astype(int)
# 绘制检测物体框
cv2.rectangle(image, (cx, cy), (cx + w, cy + h), (0, 255, 255), thickness=2)
label = self.classNames[class_id]
label = f'{label} {int(score * 100)}%'
labelSize, baseLine = cv2.getTextSize(label, cv2.FONT_HERSHEY_SIMPLEX, 0.5, 1)
cv2.putText(image, label, (cx, cy - 10), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 255), thickness=2)
return image
```
## 运行示例
1.参考《MIGraphX教程》中的安装方法安装MIGraphX并设置好PYTHONPATH
2.运行示例
```
# 进入migraphx samples工程根目录
cd <path_to_migraphx_samples>
#进入示例程序目录
cd Python/Detector/YOLOV5
# 运行示例
python detect_migraphx.py --imgpath ./data/images/bus.jpg --modelpath ./weights/yolov5s.onnx --objectThreshold 0.5 --confThreshold 0.25 --nmsThreshold 0.5
```
输入参数中可根据需要进行修改,程序运行结束会在当前目录生成YOLOV5检测结果图片。
<img src="../Images/YOLOV5_03.jpg" alt="YOLOV5_02" style="zoom:67%;" />
\ No newline at end of file
# YOLOV7检测器
## 模型简介

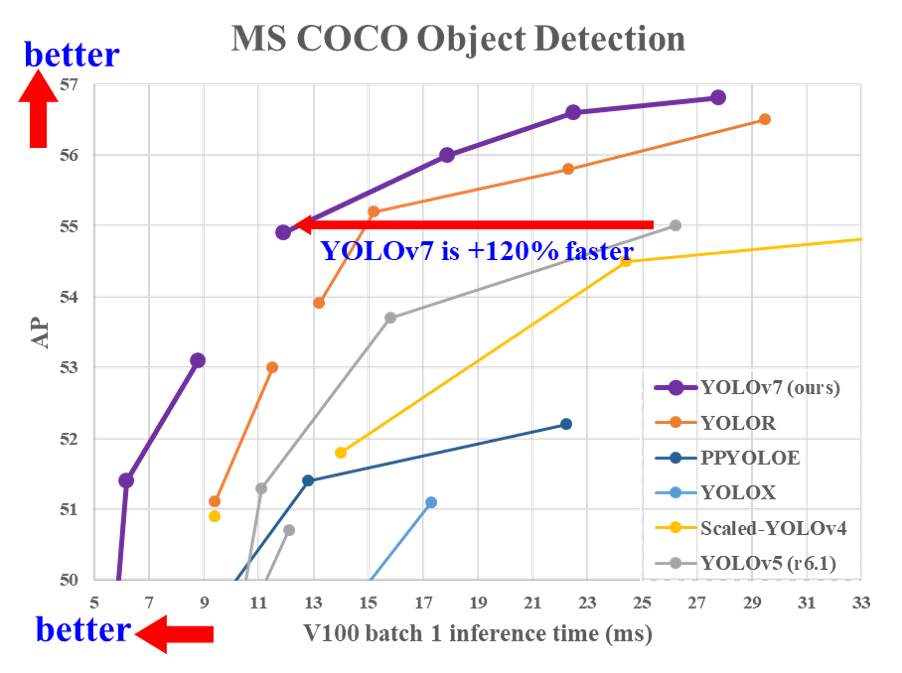

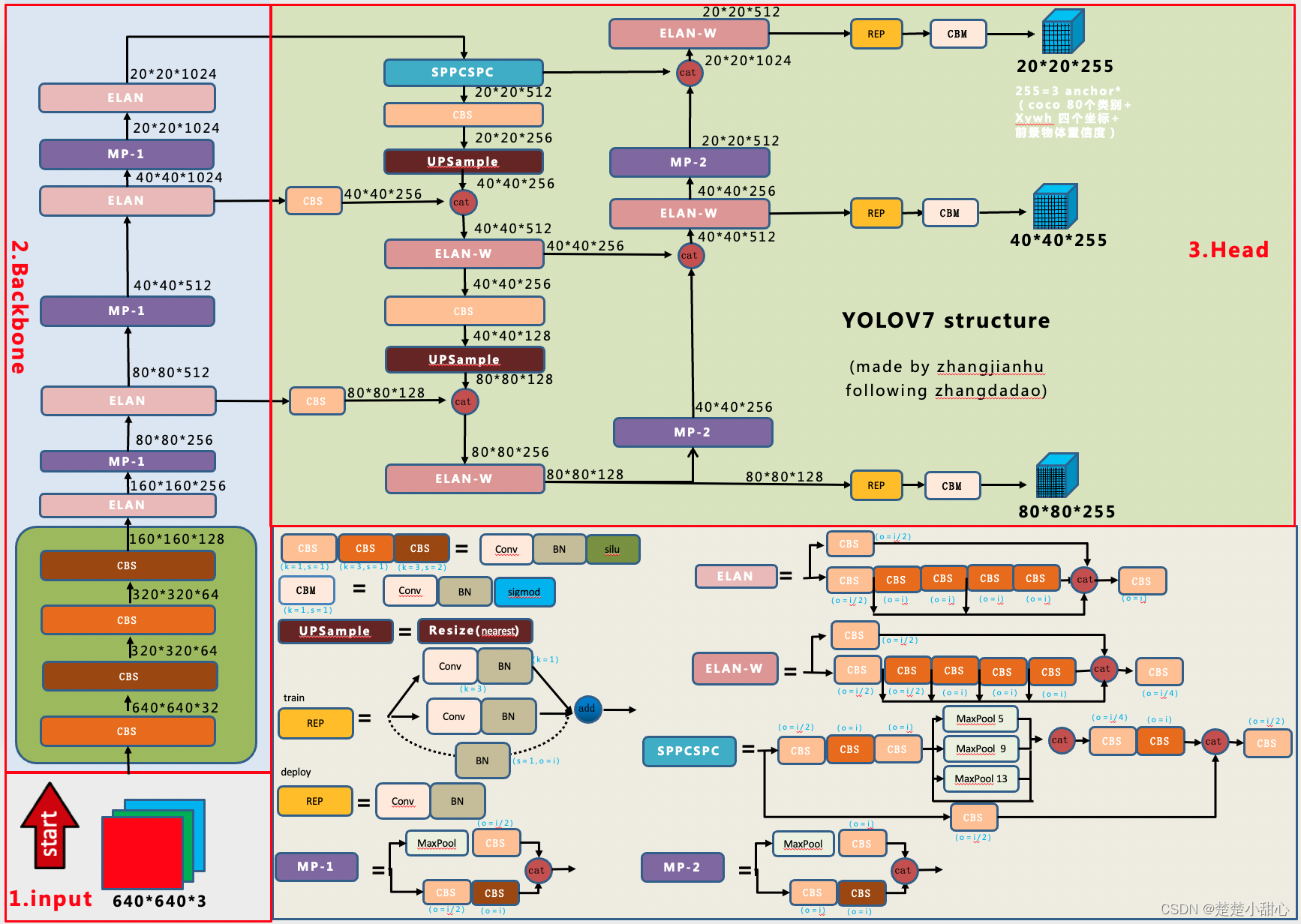

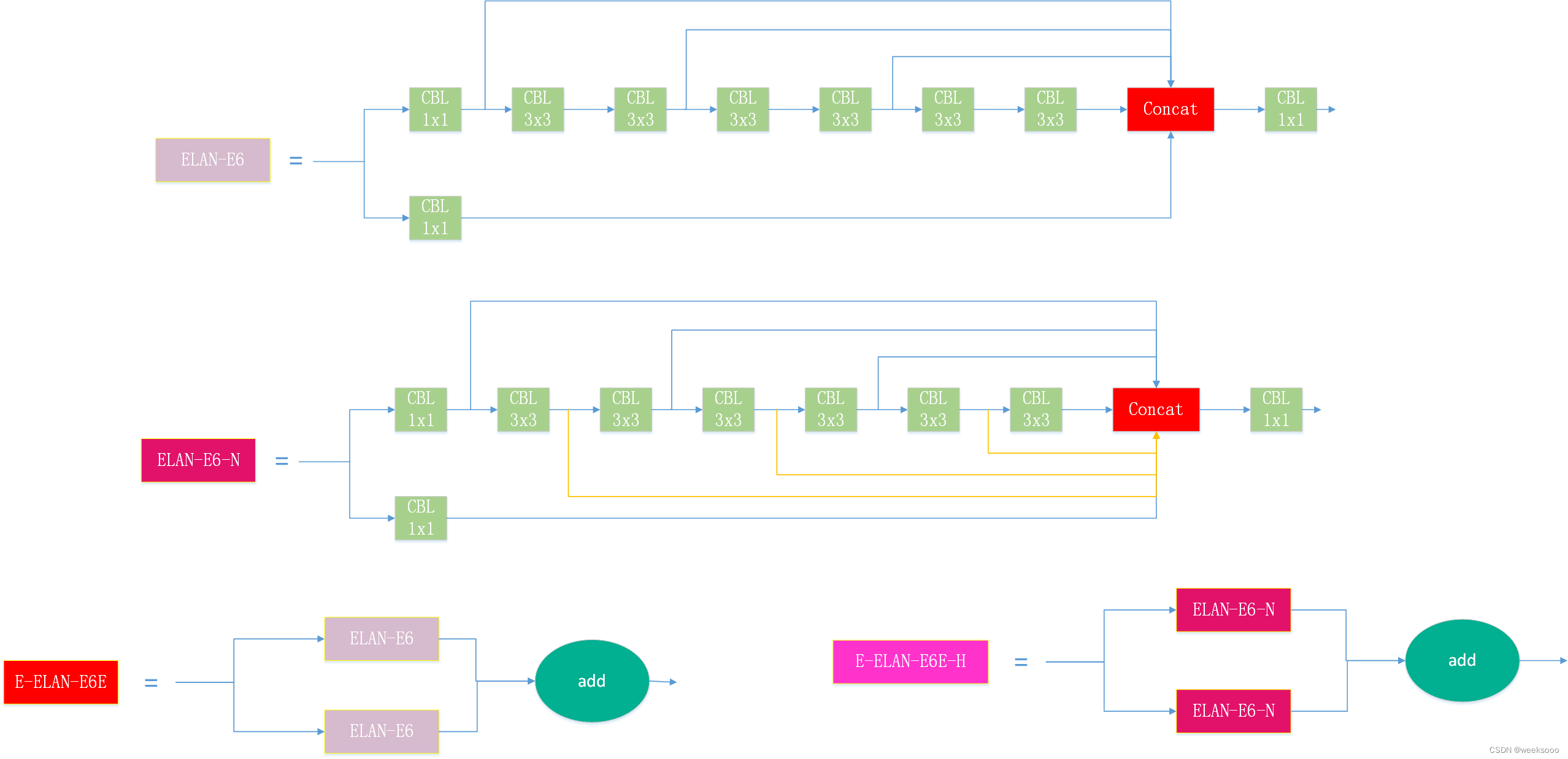

YOLOV7是2022年最新出现的一种YOLO系列目标检测模型,在论文 [YOLOv7: Trainable bag-of-freebies sets new state-of-the-art for real-time object detectors](https://arxiv.org/abs/2207.02696)中提出。
<img src="../Images/YOLOV7_02.png" alt="YOLOV7_02" style="zoom:67%;" />
本示例采用YOLOv7的官方源码:https://github.com/WongKinYiu/yolov7,作者提供了多个预训练模型,本示例使用yolov7-tiny.pt预训练模型,将yolov7-tiny.pt预训练模型下载下来后,保存到Pytorch_YOLOV7工程的weights目录。
## 环境配置
运行YOLOV7模型的Python示例首先需要进行环境配置,包括安装torch、torchvision以及程序运行所需要的依赖。
1、安装torch、torchvision
2、安装程序运行的依赖
```
# 进入Pytorch_YOLOV7工程根目录
cd <path_to_Pytorch_YOLOV7>
# 安装程序运行的依赖
pip install -r requirement.txt
```
## 模型转换
通过下面的步骤可以将yolov7-tiny.pt预训练模型转换成onnx格式:
```
# 进入Pytorch_YOLOV7工程根目录
cd <path_to_Pytorch_YOLOV7>
#转换模型
python export.py --weights ./weight/yolov7-tiny.pt --img-size 640 640
```
注意:如果需要修改onnx模型的输入大小,可以调整--img-size参数,同时模型输入batch默认为1,若想修改可以通过添加--batch-size设置,程序运行结束后,在当前目录下会生成onnx格式的YOLOV7模型,并将该模型保存到了samples工程中的Resource/Models/Detector/YOLOV7目录中,可以用来MIGraphX加载推理。
## 模型推理
### 图片预处理
待检测图片输入模型进行检测之前需要进行预处理,主要包括调整输入的尺寸,归一化等操作。
1. 转换数据排布为NCHW
2. 调整输入数据的尺寸为(1,3,640,640)
```python
def prepare_input(self, image):
self.img_height, self.img_width = image.shape[:2]
input_img = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# 调整图像的尺寸为YOLOV7的输入尺寸
input_img = cv2.resize(input_img, (self.inputWidth, self.inputHeight))
# 调整输入数据的维度
input_img = input_img.transpose(2, 0, 1)
# 拓展维度,增加batch维度
input_img = np.expand_dims(input_img, 0)
input_img = np.ascontiguousarray(input_img)
input_img = input_img.astype(np.float32)
# 归一化[0.0, 1.0]
input_img = input_img / 255
return input_img
```
其中模型输入的inputWidth、inputHeight通过migraphx对输入模型进行解析获取,代码位置见YOLOV7类初始化位置。
```
class YOLOv7:
def __init__(self, path, obj_thres=0.5, conf_thres=0.7, iou_thres=0.5):
self.objectThreshold = obj_thres
self.confThreshold = conf_thres
self.nmsThreshold = iou_thres
# 获取模型检测的类别信息
self.classNames = list(map(lambda x: x.strip(), open('./weights/coco.names', 'r').readlines()))
# 解析推理模型
self.model = migraphx.parse_onnx(path)
# 获取模型的输入name
self.inputName = self.model.get_parameter_names()[0]
# 获取模型的输入尺寸
inputShape = self.model.get_parameter_shapes()[self.inputName].lens()
self.inputHeight = int(inputShape[2])
self.inputWidth = int(inputShape[3])
```
### 推理
输入图片预处理完成之后开始进行推理,首先需要利用migraphx进行编译,然后对输入数据进行前向计算得到模型的输出result,在detect函数中调用定义的process_output函数对result进行后处理,得到图片中含有物体的anchor坐标信息、类别置信度、类别ID。
```
def detect(self, image):
# 输入图片预处理
input_img = self.prepare_input(image)
# 模型编译
self.model.compile(t=migraphx.get_target("gpu"), device_id=0) # device_id: 设置GPU设备,默认为0号设备
print("Success to compile")
# 执行推理
print("Start to inference")
start = time.time()
result = self.model.run({self.model.get_parameter_names()[0]: migraphx.argument(input_img)})
print('net forward time: {:.4f}'.format(time.time() - start))
# 模型输出结果后处理
boxes, scores, class_ids = self.process_output(result)
return boxes, scores, class_ids
```
其中对migraphx推理输出result进行后处理,首先需要对生成的anchor根据是否有物体阈值objectThreshold、置信度阈值confThreshold进行筛选,相关过程定义在process_output函数中。获取筛选后的anchor的坐标信息之后,需要将坐标映射到原图中的位置,相关过程定义在rescale_boxes函数中。
```
def process_output(self, output):
predictions = np.squeeze(output[0])
# 筛选包含物体的anchor
obj_conf = predictions[:, 4]
predictions = predictions[obj_conf > self.objectThreshold]
obj_conf = obj_conf[obj_conf > self.objectThreshold]
# 筛选大于置信度阈值的anchor
predictions[:, 5:] *= obj_conf[:, np.newaxis]
scores = np.max(predictions[:, 5:], axis=1)
valid_scores = scores > self.confThreshold
predictions = predictions[valid_scores]
scores = scores[valid_scores]
# 获取最高置信度分数对应的类别ID
class_ids = np.argmax(predictions[:, 5:], axis=1)
# 获取每个物体对应的anchor
boxes = self.extract_boxes(predictions)
# 执行非极大值抑制消除冗余anchor
indices = cv2.dnn.NMSBoxes(boxes.tolist(), scores.tolist(), self.confThreshold, self.nmsThreshold).flatten()
return boxes[indices], scores[indices], class_ids[indices]
def rescale_boxes(self, boxes):
# 对anchor尺寸进行变换
input_shape = np.array([self.inputWidth, self.inputHeight, self.inputWidth, self.inputHeight])
boxes = np.divide(boxes, input_shape, dtype=np.float32)
boxes *= np.array([self.img_width, self.img_height, self.img_width, self.img_height])
return boxes
```
根据获取的detect函数输出的boxes、scores、class_ids信息在原图进行结果可视化,包括用绘制图片中检测到的物体位置、类别和置信度分数,得到最终的YOLOV7目标检测结果输出。
```
def draw_detections(self, image, boxes, scores, class_ids):
for box, score, class_id in zip(boxes, scores, class_ids):
cx, cy, w, h = box.astype(int)
# 绘制检测物体框
cv2.rectangle(image, (cx, cy), (cx + w, cy + h), (0, 255, 255), thickness=2)
label = self.classNames[class_id]
label = f'{label} {int(score * 100)}%'
labelSize, baseLine = cv2.getTextSize(label, cv2.FONT_HERSHEY_SIMPLEX, 0.5, 1)
cv2.putText(image, label, (cx, cy - 10), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 255), thickness=2)
return image
```
## 运行示例
1.参考《MIGraphX教程》中的安装方法安装MIGraphX并设置好PYTHONPATH
2.运行示例
```
# 进入migraphx samples工程根目录
cd <path_to_migraphx_samples>
#进入示例程序目录
cd Python/Detector/YOLOV7
# 运行示例
python detect_migraphx.py --imgpath ./inference/images/bus.jpg --modelpath ./weights/yolov7-tiny.onnx --objectThreshold 0.5 --confThreshold 0.25 --nmsThreshold 0.5
```
输入参数中可根据需要进行修改,程序运行结束会在当前目录生成YOLOV7检测结果图片。
<img src="../Images/YOLOV7_01.jpg" alt="YOLOV7_01" style="zoom:67%;" />
# Video_TVM # YoloV7
## 目录 ## 论文
- [文件列表](#文件列表)
- [项目介绍](#项目介绍)
- [环境配置](#环境配置)
- [编译运行](#编译运行)
- [模型介绍](#模型介绍)
- [源码仓库](#源码仓库)
## 文件列表 YOLOv7: Trainable bag-of-freebies sets new state-of-the-art for real-time object detectors
```
├── Doc - https://arxiv.org/pdf/2207.02696.pdf
├── include
├── lib ## 模型结构
├── Makefile
├── model.properties YOLOV7是2022年最新出现的一种YOLO系列目标检测模型,该模型的网络结构包括三个部分:input、backbone和head。
├── prepare_test_libs.py
├── README.md <img src="./Doc/YoloV7_model.png" alt="YOLOV7_02" style="zoom:67%;" />
├── Resource
├── run_example.sh ## 算法原理
└── src
├── yolov3t_deploy.cc
├── yolov5s_deploy.cc
└── yolov7t_deploy.cc
```
## 项目介绍 YOLOv7的作者提出了 Extended-ELAN (E-ELAN)结构。E-ELAN采用了ELAN类似的特征聚合和特征转移流程,仅在计算模块中采用了类似ShuffleNet的分组卷积、扩张模块和混洗模块,最终通过聚合模块融合特征。通过采
用这种方法可以获得更加多样的特征,同时提高参数的计算和利用效率。
基于CPU解码的视频TVM推理范例 <img src="./Doc/YoloV7_suanfa.png" alt="YOLOV7_suanfa" style="zoom:67%;" />
## 环境配置 ## 环境配置
### Docker(方法一)
推荐使用docker方式运行,提供[光源](https://www.sourcefind.cn/#/service-list)拉取的docker镜像 拉取镜像
``` ```plaintext
docker pull image.sourcefind.cn:5000/dcu/admin/base/custom:decode-ffmpeg-tvm-0.11_dtk22.10_py38_centos-7.6 docker pull image.sourcefind.cn:5000/dcu/admin/base/custom:decode-ffmpeg-tvm-0.11_dtk22.10_py38_centos-7.6
``` ```
## 编译运行 创建并启动容器:
```plaintext
docker run --shm-size 16g --network=host --name=video_tvm --privileged --device=/dev/kfd --device=/dev/dri --group-add video --cap-add=SYS_PTRACE --security-opt seccomp=unconfined -v $PWD/video_tvm:/home/video_tvm -it <Your Image ID> /bin/bash
```
### Dockerfile(方法二)
```
cd ./docker
docker build --no-cache -t video_tvm:test .
docker run --shm-size 16g --network=host --name=video_tvm --privileged --device=/dev/kfd --device=/dev/dri --group-add video --cap-add=SYS_PTRACE --security-opt seccomp=unconfined -v $PWD/video_tvm:/home/video_tvm -it <Your Image ID> /bin/bash
```
## 数据集
根据提供的视频文件,进行目标检测。
## 推理
### 编译工程
``` ```
git clone https://developer.hpccube.com/codes/modelzoo/video_tvm.git git clone https://developer.hpccube.com/codes/modelzoo/video_tvm.git
cd video_tvm cd video_tvm
./run_example.sh ./run_example.sh
``` ```
根据提示选择要运行的示例程序。比如执行:
### 运行示例
``` ```
根据提示选择要运行的示例程序,比如执行:
./run_example.sh 1 ./run_example.sh 1
``` ```
运行CPU解码并运行YOLOV3推理示例程序 运行CPU解码并运行YOLOV3推理示例程序
## result
![img](./Doc/image.gif)
## 模型介绍 ### 精度
模型介绍参考Doc目录下说明文档. ## 应用场景
### 算法类别
`目标检测`
### 热点应用行业
`监控`,`交通`,`教育`
## 源码仓库及问题反馈 ## 源码仓库及问题反馈
https://developer.hpccube.com/codes/modelzoo/video_tvm.git http://developer.hpccube.com/codes/modelzoo/video_tvm.git
## 参考资料
https://github.com/WongKinYiu/yolov7
FROM image.sourcefind.cn:5000/dcu/admin/base/custom:decode-ffmpeg-tvm-0.11_dtk22.10_py38_centos-7.6
# 模型唯一标识
modelCode = 279
# 模型名称 # 模型名称
modelName=Video_TVM modelName=video_tvm
# 模型描述 # 模型描述
modelDescription=Video TVM是用于视频类的推理,使用ffmpeg解码,范例包含yolov3-tiny、yolov5s、yolov7-tiny模型 modelDescription=video tvm是用于视频类的推理,使用ffmpeg cpu解码,tvm推理框架
# 应用场景(多个标签以英文逗号分割) # 应用场景
appScenario=推理,inference,TVM,目标检测,视频解码,video appScenario=推理,目标检测,视频解码,监控,交通,教育
# 框架类型(多个标签以英文逗号分割) # 框架类型
frameType=TVM frameType=tvm
Markdown is supported
0% or .
You are about to add 0 people to the discussion. Proceed with caution.
Finish editing this message first!
Please register or to comment
