add RepPoints support (#1256)

* add reppoints head, reppoints detector and the config files.

* add reppoints generator, target and the center-based assigner.

* add readme for RepPoints
parent c3acdfd1
Hide whitespace changes
Inline Side-by-side
Showing with 2274 additions and 2 deletions
configs/reppoints/README.md 0 → 100644
View file @ ea9b20af
# RepPoints: Point Set Representation for Object Detection
By [Ze Yang](https://yangze.tech/), [Shaohui Liu](http://b1ueber2y.me/), and [Han Hu](https://ancientmooner.github.io/).
We provide code support and configuration files to reproduce the results in the paper for
["RepPoints: Point Set Representation for Object Detection"](https://arxiv.org/abs/1904.11490) on COCO object detection.
## Introduction
**RepPoints**, initially described in [arXiv](https://arxiv.org/abs/1904.11490), is a new representation method for visual objects, on which visual understanding tasks are typically centered. Visual object representation, aiming at both geometric description and appearance feature extraction, is conventionally achieved by `bounding box + RoIPool (RoIAlign)`. The bounding box representation is convenient to use; however, it provides only a rectangular localization of objects that lacks geometric precision and may consequently degrade feature quality. Our new representation, RepPoints, models objects by a `point set` instead of a `bounding box`, which learns to adaptively position themselves over an object in a manner that circumscribes the object’s `spatial extent` and enables `semantically aligned feature extraction`. This richer and more flexible representation maintains the convenience of bounding boxes while facilitating various visual understanding applications. This repo demonstrated the effectiveness of RepPoints for COCO object detection.
Another feature of this repo is the demonstration of an `anchor-free detector`, which can be as effective as state-of-the-art anchor-based detection methods. The anchor-free detector can utilize either `bounding box` or `RepPoints` as the basic object representation.
<div align="center">
<img src="reppoints.png" width="400px" />

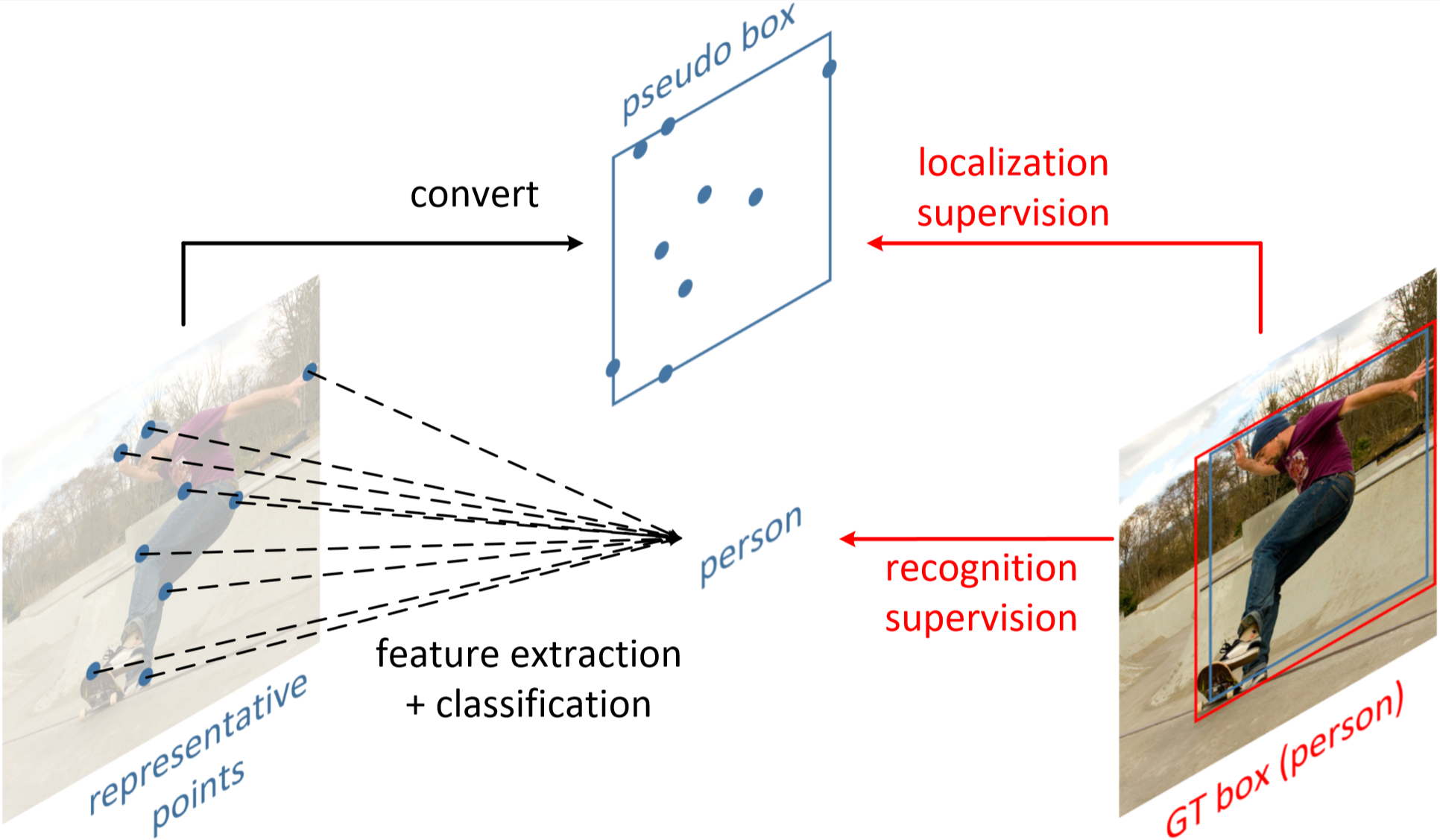

<p>Learning RepPoints in Object Detection.</p>
</div>
## Citing RepPoints
```
@inproceedings{yang2019reppoints,
title={RepPoints: Point Set Representation for Object Detection},
author={Yang, Ze and Liu, Shaohui and Hu, Han and Wang, Liwei and Lin, Stephen},
booktitle={The IEEE International Conference on Computer Vision (ICCV)},
month={Oct},
year={2019}
}
```
## Results and models
The results on COCO 2017val are shown in the table below.
| Method | Backbone | Anchor | convert func | Lr schd | box AP | Download |
| :----: | :------: | :-------: | :------: | :-----: | :----: | :------: |
| BBox | R-50-FPN | single | - | 1x | 36.3|[model](https://drive.google.com/open?id=1TaVAFGZP2i7RwtlQjy3LBH1WI-YRH774) |
| BBox | R-50-FPN | none | - | 1x | 37.3| [model](https://drive.google.com/open?id=1hpfu-I7gtZnIb0NU2WvUvaZz_dm-THuZ) |
| RepPoints | R-50-FPN | none | partial MinMax | 1x | 38.1| [model](https://drive.google.com/open?id=11zFtdKH-QGz_zH7vlcIih6FQAjV84CWc) |
| RepPoints | R-50-FPN | none | MinMax | 1x | 38.2| [model](https://drive.google.com/open?id=1Cg9818dpkL-9qjmYdkhrY_BRiQFjV4xu) |
| RepPoints | R-50-FPN | none | moment | 1x | 38.2| [model](https://drive.google.com/open?id=1rQg-lE-5nuqO1bt6okeYkti4Q-EaBsu_) |
| RepPoints | R-50-FPN | none | moment | 2x | 38.6| [model](https://drive.google.com/open?id=1TfR-5geVviKhRoXL9JP6cG3fkN2itbBU) |
| RepPoints | R-50-FPN | none | moment | 2x (ms train) | 40.8| [model](https://drive.google.com/open?id=1oaHTIaP51oB5HJ6GWV3WYK19lMm9iJO6) |
| RepPoints | R-50-FPN | none | moment | 2x (ms train&ms test) | 42.2| |
| RepPoints | R-101-FPN | none | moment | 2x | 40.3| [model](https://drive.google.com/open?id=1BAmGeUQ_zVQi2u7rgOuPQem2EjXDLgWm) |
| RepPoints | R-101-FPN | none | moment | 2x (ms train) | 42.3| [model](https://drive.google.com/open?id=14Lf0p4fXElXaxFu8stk3hek3bY8tNENX) |
| RepPoints | R-101-FPN | none | moment | 2x (ms train&ms test) | 44.1| |
| RepPoints | R-101-FPN-DCN | none | moment | 2x | 43.0| [model](https://drive.google.com/open?id=1hpptxpb4QtNuB-HnV5wHbDltPHhlYq4z) |
| RepPoints | R-101-FPN-DCN | none | moment | 2x (ms train) | 44.8| [model](https://drive.google.com/open?id=1fsTckK99HYjOURwcFeHfy5JRRtsCajfX) |
| RepPoints | R-101-FPN-DCN | none | moment | 2x (ms train&ms test) | 46.4| |
| RepPoints | X-101-FPN-DCN | none | moment | 2x | 44.5| [model](https://drive.google.com/open?id=1Y8vqaqU88-FEqqwl6Zb9exD5O246yrMR) |
| RepPoints | X-101-FPN-DCN | none | moment | 2x (ms train) | 45.6| [model](https://drive.google.com/open?id=1nr9gcVWxzeakbfPC6ON9yvKOuLzj_RrJ) |
| RepPoints | X-101-FPN-DCN | none | moment | 2x (ms train&ms test) | 46.8| |
**Notes:**
- `R-xx`, `X-xx` denote the ResNet and ResNeXt architectures, respectively.
- `DCN` denotes replacing 3x3 conv with the 3x3 deformable convolution in `c3-c5` stages of backbone.
- `none` in the `anchor` column means 2-d `center point` (x,y) is used to represent the initial object hypothesis. `single` denotes one 4-d anchor box (x,y,w,h) with IoU based label assign criterion is adopted.
- `moment`, `partial MinMax`, `MinMax` in the `convert func` column are three functions to convert a point set to a pseudo box.
- `ms` denotes multi-scale training or multi-scale test.
- Note the results here are slightly different from those reported in the paper, due to framework change. While the original paper uses an [MXNet](https://mxnet.apache.org/) implementation, we re-implement the method in [PyTorch](https://pytorch.org/) based on mmdetection.
configs/reppoints/bbox_r50_grid_center_fpn_1x.py 0 → 100644
View file @ ea9b20af
# model settings
norm_cfg = dict(type='GN', num_groups=32, requires_grad=True)
model = dict(
type='RepPointsDetector',
pretrained='torchvision://resnet50',
backbone=dict(
type='ResNet',
depth=50,
num_stages=4,
out_indices=(0, 1, 2, 3),
frozen_stages=1,
style='pytorch'),
neck=dict(
type='FPN',
in_channels=[256, 512, 1024, 2048],
out_channels=256,
start_level=1,
add_extra_convs=True,
num_outs=5,
norm_cfg=norm_cfg),
bbox_head=dict(
type='RepPointsHead',
num_classes=81,
in_channels=256,
feat_channels=256,
point_feat_channels=256,
stacked_convs=3,
num_points=9,
gradient_mul=0.1,
point_strides=[8, 16, 32, 64, 128],
point_base_scale=4,
norm_cfg=norm_cfg,
loss_cls=dict(
type='FocalLoss',
use_sigmoid=True,
gamma=2.0,
alpha=0.25,
loss_weight=1.0),
loss_bbox_init=dict(type='SmoothL1Loss', beta=0.11, loss_weight=0.5),
loss_bbox_refine=dict(type='SmoothL1Loss', beta=0.11, loss_weight=1.0),
transform_method='minmax',
use_grid_points=True))
# training and testing settings
train_cfg = dict(
init=dict(
assigner=dict(type='PointAssigner', scale=4, pos_num=1),
allowed_border=-1,
pos_weight=-1,
debug=False),
refine=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.5,
neg_iou_thr=0.4,
min_pos_iou=0,
ignore_iof_thr=-1),
allowed_border=-1,
pos_weight=-1,
debug=False))
test_cfg = dict(
nms_pre=1000,
min_bbox_size=0,
score_thr=0.05,
nms=dict(type='nms', iou_thr=0.5),
max_per_img=100)
# dataset settings
dataset_type = 'CocoDataset'
data_root = 'data/coco/'
img_norm_cfg = dict(
mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
train_pipeline = [
dict(type='LoadImageFromFile'),
dict(type='LoadAnnotations', with_bbox=True),
dict(type='Resize', img_scale=(1333, 800), keep_ratio=True),
dict(type='RandomFlip', flip_ratio=0.5),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='DefaultFormatBundle'),
dict(type='Collect', keys=['img', 'gt_bboxes', 'gt_labels']),
]
test_pipeline = [
dict(type='LoadImageFromFile'),
dict(
type='MultiScaleFlipAug',
img_scale=(1333, 800),
flip=False,
transforms=[
dict(type='Resize', keep_ratio=True),
dict(type='RandomFlip'),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='ImageToTensor', keys=['img']),
dict(type='Collect', keys=['img']),
])
]
data = dict(
imgs_per_gpu=2,
workers_per_gpu=2,
train=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_train2017.json',
img_prefix=data_root + 'train2017/',
pipeline=train_pipeline),
val=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline),
test=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline))
# optimizer
optimizer = dict(type='SGD', lr=0.01, momentum=0.9, weight_decay=0.0001)
optimizer_config = dict(grad_clip=dict(max_norm=35, norm_type=2))
# learning policy
lr_config = dict(
policy='step',
warmup='linear',
warmup_iters=500,
warmup_ratio=1.0 / 3,
step=[8, 11])
checkpoint_config = dict(interval=1)
# yapf:disable
log_config = dict(
interval=50,
hooks=[
dict(type='TextLoggerHook'),
# dict(type='TensorboardLoggerHook')
])
# yapf:enable
# runtime settings
total_epochs = 12
device_ids = range(8)
dist_params = dict(backend='nccl')
log_level = 'INFO'
work_dir = './work_dirs/bbox_r50_grid_center_fpn_1x'
load_from = None
resume_from = None
auto_resume = True
workflow = [('train', 1)]
configs/reppoints/bbox_r50_grid_fpn_1x.py 0 → 100644
View file @ ea9b20af
# model settings
norm_cfg = dict(type='GN', num_groups=32, requires_grad=True)
model = dict(
type='RepPointsDetector',
pretrained='torchvision://resnet50',
backbone=dict(
type='ResNet',
depth=50,
num_stages=4,
out_indices=(0, 1, 2, 3),
frozen_stages=1,
style='pytorch'),
neck=dict(
type='FPN',
in_channels=[256, 512, 1024, 2048],
out_channels=256,
start_level=1,
add_extra_convs=True,
num_outs=5,
norm_cfg=norm_cfg),
bbox_head=dict(
type='RepPointsHead',
num_classes=81,
in_channels=256,
feat_channels=256,
point_feat_channels=256,
stacked_convs=3,
num_points=9,
gradient_mul=0.1,
point_strides=[8, 16, 32, 64, 128],
point_base_scale=4,
norm_cfg=norm_cfg,
loss_cls=dict(
type='FocalLoss',
use_sigmoid=True,
gamma=2.0,
alpha=0.25,
loss_weight=1.0),
loss_bbox_init=dict(type='SmoothL1Loss', beta=0.11, loss_weight=0.5),
loss_bbox_refine=dict(type='SmoothL1Loss', beta=0.11, loss_weight=1.0),
transform_method='minmax',
use_grid_points=True))
# training and testing settings
train_cfg = dict(
init=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.5,
neg_iou_thr=0.4,
min_pos_iou=0,
ignore_iof_thr=-1),
allowed_border=-1,
pos_weight=-1,
debug=False),
refine=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.5,
neg_iou_thr=0.4,
min_pos_iou=0,
ignore_iof_thr=-1),
allowed_border=-1,
pos_weight=-1,
debug=False))
test_cfg = dict(
nms_pre=1000,
min_bbox_size=0,
score_thr=0.05,
nms=dict(type='nms', iou_thr=0.5),
max_per_img=100)
# dataset settings
dataset_type = 'CocoDataset'
data_root = 'data/coco/'
img_norm_cfg = dict(
mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
train_pipeline = [
dict(type='LoadImageFromFile'),
dict(type='LoadAnnotations', with_bbox=True),
dict(type='Resize', img_scale=(1333, 800), keep_ratio=True),
dict(type='RandomFlip', flip_ratio=0.5),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='DefaultFormatBundle'),
dict(type='Collect', keys=['img', 'gt_bboxes', 'gt_labels']),
]
test_pipeline = [
dict(type='LoadImageFromFile'),
dict(
type='MultiScaleFlipAug',
img_scale=(1333, 800),
flip=False,
transforms=[
dict(type='Resize', keep_ratio=True),
dict(type='RandomFlip'),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='ImageToTensor', keys=['img']),
dict(type='Collect', keys=['img']),
])
]
data = dict(
imgs_per_gpu=2,
workers_per_gpu=2,
train=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_train2017.json',
img_prefix=data_root + 'train2017/',
pipeline=train_pipeline),
val=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline),
test=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline))
# optimizer
optimizer = dict(type='SGD', lr=0.01, momentum=0.9, weight_decay=0.0001)
optimizer_config = dict(grad_clip=dict(max_norm=35, norm_type=2))
# learning policy
lr_config = dict(
policy='step',
warmup='linear',
warmup_iters=500,
warmup_ratio=1.0 / 3,
step=[8, 11])
checkpoint_config = dict(interval=1)
# yapf:disable
log_config = dict(
interval=50,
hooks=[
dict(type='TextLoggerHook'),
# dict(type='TensorboardLoggerHook')
])
# yapf:enable
# runtime settings
total_epochs = 12
device_ids = range(8)
dist_params = dict(backend='nccl')
log_level = 'INFO'
work_dir = './work_dirs/bbox_r50_grid_fpn_1x'
load_from = None
resume_from = None
auto_resume = True
workflow = [('train', 1)]
configs/reppoints/reppoints_minmax_r50_fpn_1x.py 0 → 100644
View file @ ea9b20af
# model settings
norm_cfg = dict(type='GN', num_groups=32, requires_grad=True)
model = dict(
type='RepPointsDetector',
pretrained='torchvision://resnet50',
backbone=dict(
type='ResNet',
depth=50,
num_stages=4,
out_indices=(0, 1, 2, 3),
frozen_stages=1,
style='pytorch'),
neck=dict(
type='FPN',
in_channels=[256, 512, 1024, 2048],
out_channels=256,
start_level=1,
add_extra_convs=True,
num_outs=5,
norm_cfg=norm_cfg),
bbox_head=dict(
type='RepPointsHead',
num_classes=81,
in_channels=256,
feat_channels=256,
point_feat_channels=256,
stacked_convs=3,
num_points=9,
gradient_mul=0.1,
point_strides=[8, 16, 32, 64, 128],
point_base_scale=4,
norm_cfg=norm_cfg,
loss_cls=dict(
type='FocalLoss',
use_sigmoid=True,
gamma=2.0,
alpha=0.25,
loss_weight=1.0),
loss_bbox_init=dict(type='SmoothL1Loss', beta=0.11, loss_weight=0.5),
loss_bbox_refine=dict(type='SmoothL1Loss', beta=0.11, loss_weight=1.0),
transform_method='minmax'))
# training and testing settings
train_cfg = dict(
init=dict(
assigner=dict(type='PointAssigner', scale=4, pos_num=1),
allowed_border=-1,
pos_weight=-1,
debug=False),
refine=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.5,
neg_iou_thr=0.4,
min_pos_iou=0,
ignore_iof_thr=-1),
allowed_border=-1,
pos_weight=-1,
debug=False))
test_cfg = dict(
nms_pre=1000,
min_bbox_size=0,
score_thr=0.05,
nms=dict(type='nms', iou_thr=0.5),
max_per_img=100)
# dataset settings
dataset_type = 'CocoDataset'
data_root = 'data/coco/'
img_norm_cfg = dict(
mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
train_pipeline = [
dict(type='LoadImageFromFile'),
dict(type='LoadAnnotations', with_bbox=True),
dict(type='Resize', img_scale=(1333, 800), keep_ratio=True),
dict(type='RandomFlip', flip_ratio=0.5),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='DefaultFormatBundle'),
dict(type='Collect', keys=['img', 'gt_bboxes', 'gt_labels']),
]
test_pipeline = [
dict(type='LoadImageFromFile'),
dict(
type='MultiScaleFlipAug',
img_scale=(1333, 800),
flip=False,
transforms=[
dict(type='Resize', keep_ratio=True),
dict(type='RandomFlip'),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='ImageToTensor', keys=['img']),
dict(type='Collect', keys=['img']),
])
]
data = dict(
imgs_per_gpu=2,
workers_per_gpu=2,
train=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_train2017.json',
img_prefix=data_root + 'train2017/',
pipeline=train_pipeline),
val=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline),
test=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline))
# optimizer
optimizer = dict(type='SGD', lr=0.01, momentum=0.9, weight_decay=0.0001)
optimizer_config = dict(grad_clip=dict(max_norm=35, norm_type=2))
# learning policy
lr_config = dict(
policy='step',
warmup='linear',
warmup_iters=500,
warmup_ratio=1.0 / 3,
step=[8, 11])
checkpoint_config = dict(interval=1)
# yapf:disable
log_config = dict(
interval=50,
hooks=[
dict(type='TextLoggerHook'),
# dict(type='TensorboardLoggerHook')
])
# yapf:enable
# runtime settings
total_epochs = 12
device_ids = range(8)
dist_params = dict(backend='nccl')
log_level = 'INFO'
work_dir = './work_dirs/reppoints_minmax_r50_fpn_1x'
load_from = None
resume_from = None
auto_resume = True
workflow = [('train', 1)]
configs/reppoints/reppoints_moment_r101_dcn_fpn_2x.py 0 → 100644
View file @ ea9b20af
# model settings
norm_cfg = dict(type='GN', num_groups=32, requires_grad=True)
model = dict(
type='RepPointsDetector',
pretrained='torchvision://resnet101',
backbone=dict(
type='ResNet',
depth=101,
num_stages=4,
out_indices=(0, 1, 2, 3),
frozen_stages=1,
style='pytorch',
dcn=dict(
modulated=False, deformable_groups=1, fallback_on_stride=False),
stage_with_dcn=(False, True, True, True)),
neck=dict(
type='FPN',
in_channels=[256, 512, 1024, 2048],
out_channels=256,
start_level=1,
add_extra_convs=True,
num_outs=5,
norm_cfg=norm_cfg),
bbox_head=dict(
type='RepPointsHead',
num_classes=81,
in_channels=256,
feat_channels=256,
point_feat_channels=256,
stacked_convs=3,
num_points=9,
gradient_mul=0.1,
point_strides=[8, 16, 32, 64, 128],
point_base_scale=4,
norm_cfg=norm_cfg,
loss_cls=dict(
type='FocalLoss',
use_sigmoid=True,
gamma=2.0,
alpha=0.25,
loss_weight=1.0),
loss_bbox_init=dict(type='SmoothL1Loss', beta=0.11, loss_weight=0.5),
loss_bbox_refine=dict(type='SmoothL1Loss', beta=0.11, loss_weight=1.0),
transform_method='moment'))
# training and testing settings
train_cfg = dict(
init=dict(
assigner=dict(type='PointAssigner', scale=4, pos_num=1),
allowed_border=-1,
pos_weight=-1,
debug=False),
refine=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.5,
neg_iou_thr=0.4,
min_pos_iou=0,
ignore_iof_thr=-1),
allowed_border=-1,
pos_weight=-1,
debug=False))
test_cfg = dict(
nms_pre=1000,
min_bbox_size=0,
score_thr=0.05,
nms=dict(type='nms', iou_thr=0.5),
max_per_img=100)
# dataset settings
dataset_type = 'CocoDataset'
data_root = 'data/coco/'
img_norm_cfg = dict(
mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
train_pipeline = [
dict(type='LoadImageFromFile'),
dict(type='LoadAnnotations', with_bbox=True),
dict(type='Resize', img_scale=(1333, 800), keep_ratio=True),
dict(type='RandomFlip', flip_ratio=0.5),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='DefaultFormatBundle'),
dict(type='Collect', keys=['img', 'gt_bboxes', 'gt_labels']),
]
test_pipeline = [
dict(type='LoadImageFromFile'),
dict(
type='MultiScaleFlipAug',
img_scale=(1333, 800),
flip=False,
transforms=[
dict(type='Resize', keep_ratio=True),
dict(type='RandomFlip'),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='ImageToTensor', keys=['img']),
dict(type='Collect', keys=['img']),
])
]
data = dict(
imgs_per_gpu=2,
workers_per_gpu=2,
train=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_train2017.json',
img_prefix=data_root + 'train2017/',
pipeline=train_pipeline),
val=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline),
test=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline))
# optimizer
optimizer = dict(type='SGD', lr=0.01, momentum=0.9, weight_decay=0.0001)
optimizer_config = dict(grad_clip=dict(max_norm=35, norm_type=2))
# learning policy
lr_config = dict(
policy='step',
warmup='linear',
warmup_iters=500,
warmup_ratio=1.0 / 3,
step=[16, 22])
checkpoint_config = dict(interval=1)
# yapf:disable
log_config = dict(
interval=50,
hooks=[
dict(type='TextLoggerHook'),
# dict(type='TensorboardLoggerHook')
])
# yapf:enable
# runtime settings
total_epochs = 24
device_ids = range(8)
dist_params = dict(backend='nccl')
log_level = 'INFO'
work_dir = './work_dirs/reppoints_moment_r101_dcn_fpn_2x'
load_from = None
resume_from = None
auto_resume = True
workflow = [('train', 1)]
configs/reppoints/reppoints_moment_r101_dcn_fpn_2x_mt.py 0 → 100644
View file @ ea9b20af
# model settings
norm_cfg = dict(type='GN', num_groups=32, requires_grad=True)
model = dict(
type='RepPointsDetector',
pretrained='torchvision://resnet101',
backbone=dict(
type='ResNet',
depth=101,
num_stages=4,
out_indices=(0, 1, 2, 3),
frozen_stages=1,
style='pytorch',
dcn=dict(
modulated=False, deformable_groups=1, fallback_on_stride=False),
stage_with_dcn=(False, True, True, True)),
neck=dict(
type='FPN',
in_channels=[256, 512, 1024, 2048],
out_channels=256,
start_level=1,
add_extra_convs=True,
num_outs=5,
norm_cfg=norm_cfg),
bbox_head=dict(
type='RepPointsHead',
num_classes=81,
in_channels=256,
feat_channels=256,
point_feat_channels=256,
stacked_convs=3,
num_points=9,
gradient_mul=0.1,
point_strides=[8, 16, 32, 64, 128],
point_base_scale=4,
norm_cfg=norm_cfg,
loss_cls=dict(
type='FocalLoss',
use_sigmoid=True,
gamma=2.0,
alpha=0.25,
loss_weight=1.0),
loss_bbox_init=dict(type='SmoothL1Loss', beta=0.11, loss_weight=0.5),
loss_bbox_refine=dict(type='SmoothL1Loss', beta=0.11, loss_weight=1.0),
transform_method='moment'))
# training and testing settings
train_cfg = dict(
init=dict(
assigner=dict(type='PointAssigner', scale=4, pos_num=1),
allowed_border=-1,
pos_weight=-1,
debug=False),
refine=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.5,
neg_iou_thr=0.4,
min_pos_iou=0,
ignore_iof_thr=-1),
allowed_border=-1,
pos_weight=-1,
debug=False))
test_cfg = dict(
nms_pre=1000,
min_bbox_size=0,
score_thr=0.05,
nms=dict(type='nms', iou_thr=0.5),
max_per_img=100)
# dataset settings
dataset_type = 'CocoDataset'
data_root = 'data/coco/'
img_norm_cfg = dict(
mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
train_pipeline = [
dict(type='LoadImageFromFile'),
dict(type='LoadAnnotations', with_bbox=True),
dict(
type='Resize',
img_scale=[(1333, 480), (1333, 960)],
keep_ratio=True,
multiscale_mode='range'),
dict(type='RandomFlip', flip_ratio=0.5),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='DefaultFormatBundle'),
dict(type='Collect', keys=['img', 'gt_bboxes', 'gt_labels']),
]
test_pipeline = [
dict(type='LoadImageFromFile'),
dict(
type='MultiScaleFlipAug',
img_scale=(1333, 800),
flip=False,
transforms=[
dict(type='Resize', keep_ratio=True),
dict(type='RandomFlip'),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='ImageToTensor', keys=['img']),
dict(type='Collect', keys=['img']),
])
]
data = dict(
imgs_per_gpu=2,
workers_per_gpu=2,
train=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_train2017.json',
img_prefix=data_root + 'train2017/',
pipeline=train_pipeline),
val=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline),
test=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline))
# optimizer
optimizer = dict(type='SGD', lr=0.01, momentum=0.9, weight_decay=0.0001)
optimizer_config = dict(grad_clip=dict(max_norm=35, norm_type=2))
# learning policy
lr_config = dict(
policy='step',
warmup='linear',
warmup_iters=500,
warmup_ratio=1.0 / 3,
step=[16, 22])
checkpoint_config = dict(interval=1)
# yapf:disable
log_config = dict(
interval=50,
hooks=[
dict(type='TextLoggerHook'),
# dict(type='TensorboardLoggerHook')
])
# yapf:enable
# runtime settings
total_epochs = 24
device_ids = range(8)
dist_params = dict(backend='nccl')
log_level = 'INFO'
work_dir = './work_dirs/reppoints_moment_r101_dcn_fpn_2x_mt'
load_from = None
resume_from = None
auto_resume = True
workflow = [('train', 1)]
configs/reppoints/reppoints_moment_r101_fpn_2x.py 0 → 100644
View file @ ea9b20af
# model settings
norm_cfg = dict(type='GN', num_groups=32, requires_grad=True)
model = dict(
type='RepPointsDetector',
pretrained='torchvision://resnet101',
backbone=dict(
type='ResNet',
depth=101,
num_stages=4,
out_indices=(0, 1, 2, 3),
frozen_stages=1,
style='pytorch'),
neck=dict(
type='FPN',
in_channels=[256, 512, 1024, 2048],
out_channels=256,
start_level=1,
add_extra_convs=True,
num_outs=5,
norm_cfg=norm_cfg),
bbox_head=dict(
type='RepPointsHead',
num_classes=81,
in_channels=256,
feat_channels=256,
point_feat_channels=256,
stacked_convs=3,
num_points=9,
gradient_mul=0.1,
point_strides=[8, 16, 32, 64, 128],
point_base_scale=4,
norm_cfg=norm_cfg,
loss_cls=dict(
type='FocalLoss',
use_sigmoid=True,
gamma=2.0,
alpha=0.25,
loss_weight=1.0),
loss_bbox_init=dict(type='SmoothL1Loss', beta=0.11, loss_weight=0.5),
loss_bbox_refine=dict(type='SmoothL1Loss', beta=0.11, loss_weight=1.0),
transform_method='moment'))
# training and testing settings
train_cfg = dict(
init=dict(
assigner=dict(type='PointAssigner', scale=4, pos_num=1),
allowed_border=-1,
pos_weight=-1,
debug=False),
refine=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.5,
neg_iou_thr=0.4,
min_pos_iou=0,
ignore_iof_thr=-1),
allowed_border=-1,
pos_weight=-1,
debug=False))
test_cfg = dict(
nms_pre=1000,
min_bbox_size=0,
score_thr=0.05,
nms=dict(type='nms', iou_thr=0.5),
max_per_img=100)
# dataset settings
dataset_type = 'CocoDataset'
data_root = 'data/coco/'
img_norm_cfg = dict(
mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
train_pipeline = [
dict(type='LoadImageFromFile'),
dict(type='LoadAnnotations', with_bbox=True),
dict(type='Resize', img_scale=(1333, 800), keep_ratio=True),
dict(type='RandomFlip', flip_ratio=0.5),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='DefaultFormatBundle'),
dict(type='Collect', keys=['img', 'gt_bboxes', 'gt_labels']),
]
test_pipeline = [
dict(type='LoadImageFromFile'),
dict(
type='MultiScaleFlipAug',
img_scale=(1333, 800),
flip=False,
transforms=[
dict(type='Resize', keep_ratio=True),
dict(type='RandomFlip'),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='ImageToTensor', keys=['img']),
dict(type='Collect', keys=['img']),
])
]
data = dict(
imgs_per_gpu=2,
workers_per_gpu=2,
train=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_train2017.json',
img_prefix=data_root + 'train2017/',
pipeline=train_pipeline),
val=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline),
test=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline))
# optimizer
optimizer = dict(type='SGD', lr=0.01, momentum=0.9, weight_decay=0.0001)
optimizer_config = dict(grad_clip=dict(max_norm=35, norm_type=2))
# learning policy
lr_config = dict(
policy='step',
warmup='linear',
warmup_iters=500,
warmup_ratio=1.0 / 3,
step=[16, 22])
checkpoint_config = dict(interval=1)
# yapf:disable
log_config = dict(
interval=50,
hooks=[
dict(type='TextLoggerHook'),
# dict(type='TensorboardLoggerHook')
])
# yapf:enable
# runtime settings
total_epochs = 24
device_ids = range(8)
dist_params = dict(backend='nccl')
log_level = 'INFO'
work_dir = './work_dirs/reppoints_moment_r101_fpn_2x'
load_from = None
resume_from = None
auto_resume = True
workflow = [('train', 1)]
configs/reppoints/reppoints_moment_r101_fpn_2x_mt.py 0 → 100644
View file @ ea9b20af
# model settings
norm_cfg = dict(type='GN', num_groups=32, requires_grad=True)
model = dict(
type='RepPointsDetector',
pretrained='torchvision://resnet101',
backbone=dict(
type='ResNet',
depth=101,
num_stages=4,
out_indices=(0, 1, 2, 3),
frozen_stages=1,
style='pytorch'),
neck=dict(
type='FPN',
in_channels=[256, 512, 1024, 2048],
out_channels=256,
start_level=1,
add_extra_convs=True,
num_outs=5,
norm_cfg=norm_cfg),
bbox_head=dict(
type='RepPointsHead',
num_classes=81,
in_channels=256,
feat_channels=256,
point_feat_channels=256,
stacked_convs=3,
num_points=9,
gradient_mul=0.1,
point_strides=[8, 16, 32, 64, 128],
point_base_scale=4,
norm_cfg=norm_cfg,
loss_cls=dict(
type='FocalLoss',
use_sigmoid=True,
gamma=2.0,
alpha=0.25,
loss_weight=1.0),
loss_bbox_init=dict(type='SmoothL1Loss', beta=0.11, loss_weight=0.5),
loss_bbox_refine=dict(type='SmoothL1Loss', beta=0.11, loss_weight=1.0),
transform_method='moment'))
# training and testing settings
train_cfg = dict(
init=dict(
assigner=dict(type='PointAssigner', scale=4, pos_num=1),
allowed_border=-1,
pos_weight=-1,
debug=False),
refine=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.5,
neg_iou_thr=0.4,
min_pos_iou=0,
ignore_iof_thr=-1),
allowed_border=-1,
pos_weight=-1,
debug=False))
test_cfg = dict(
nms_pre=1000,
min_bbox_size=0,
score_thr=0.05,
nms=dict(type='nms', iou_thr=0.5),
max_per_img=100)
# dataset settings
dataset_type = 'CocoDataset'
data_root = 'data/coco/'
img_norm_cfg = dict(
mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
train_pipeline = [
dict(type='LoadImageFromFile'),
dict(type='LoadAnnotations', with_bbox=True),
dict(
type='Resize',
img_scale=[(1333, 480), (1333, 960)],
keep_ratio=True,
multiscale_mode='range'),
dict(type='RandomFlip', flip_ratio=0.5),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='DefaultFormatBundle'),
dict(type='Collect', keys=['img', 'gt_bboxes', 'gt_labels']),
]
test_pipeline = [
dict(type='LoadImageFromFile'),
dict(
type='MultiScaleFlipAug',
img_scale=(1333, 800),
flip=False,
transforms=[
dict(type='Resize', keep_ratio=True),
dict(type='RandomFlip'),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='ImageToTensor', keys=['img']),
dict(type='Collect', keys=['img']),
])
]
data = dict(
imgs_per_gpu=2,
workers_per_gpu=2,
train=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_train2017.json',
img_prefix=data_root + 'train2017/',
pipeline=train_pipeline),
val=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline),
test=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline))
# optimizer
optimizer = dict(type='SGD', lr=0.01, momentum=0.9, weight_decay=0.0001)
optimizer_config = dict(grad_clip=dict(max_norm=35, norm_type=2))
# learning policy
lr_config = dict(
policy='step',
warmup='linear',
warmup_iters=500,
warmup_ratio=1.0 / 3,
step=[16, 22])
checkpoint_config = dict(interval=1)
# yapf:disable
log_config = dict(
interval=50,
hooks=[
dict(type='TextLoggerHook'),
# dict(type='TensorboardLoggerHook')
])
# yapf:enable
# runtime settings
total_epochs = 24
device_ids = range(8)
dist_params = dict(backend='nccl')
log_level = 'INFO'
work_dir = './work_dirs/reppoints_moment_r101_fpn_2x_mt'
load_from = None
resume_from = None
auto_resume = True
workflow = [('train', 1)]
configs/reppoints/reppoints_moment_r50_fpn_1x.py 0 → 100644
View file @ ea9b20af
# model settings
norm_cfg = dict(type='GN', num_groups=32, requires_grad=True)
model = dict(
type='RepPointsDetector',
pretrained='torchvision://resnet50',
backbone=dict(
type='ResNet',
depth=50,
num_stages=4,
out_indices=(0, 1, 2, 3),
frozen_stages=1,
style='pytorch'),
neck=dict(
type='FPN',
in_channels=[256, 512, 1024, 2048],
out_channels=256,
start_level=1,
add_extra_convs=True,
num_outs=5,
norm_cfg=norm_cfg),
bbox_head=dict(
type='RepPointsHead',
num_classes=81,
in_channels=256,
feat_channels=256,
point_feat_channels=256,
stacked_convs=3,
num_points=9,
gradient_mul=0.1,
point_strides=[8, 16, 32, 64, 128],
point_base_scale=4,
norm_cfg=norm_cfg,
loss_cls=dict(
type='FocalLoss',
use_sigmoid=True,
gamma=2.0,
alpha=0.25,
loss_weight=1.0),
loss_bbox_init=dict(type='SmoothL1Loss', beta=0.11, loss_weight=0.5),
loss_bbox_refine=dict(type='SmoothL1Loss', beta=0.11, loss_weight=1.0),
transform_method='moment'))
# training and testing settings
train_cfg = dict(
init=dict(
assigner=dict(type='PointAssigner', scale=4, pos_num=1),
allowed_border=-1,
pos_weight=-1,
debug=False),
refine=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.5,
neg_iou_thr=0.4,
min_pos_iou=0,
ignore_iof_thr=-1),
allowed_border=-1,
pos_weight=-1,
debug=False))
test_cfg = dict(
nms_pre=1000,
min_bbox_size=0,
score_thr=0.05,
nms=dict(type='nms', iou_thr=0.5),
max_per_img=100)
# dataset settings
dataset_type = 'CocoDataset'
data_root = 'data/coco/'
img_norm_cfg = dict(
mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
train_pipeline = [
dict(type='LoadImageFromFile'),
dict(type='LoadAnnotations', with_bbox=True),
dict(type='Resize', img_scale=(1333, 800), keep_ratio=True),
dict(type='RandomFlip', flip_ratio=0.5),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='DefaultFormatBundle'),
dict(type='Collect', keys=['img', 'gt_bboxes', 'gt_labels']),
]
test_pipeline = [
dict(type='LoadImageFromFile'),
dict(
type='MultiScaleFlipAug',
img_scale=(1333, 800),
flip=False,
transforms=[
dict(type='Resize', keep_ratio=True),
dict(type='RandomFlip'),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='ImageToTensor', keys=['img']),
dict(type='Collect', keys=['img']),
])
]
data = dict(
imgs_per_gpu=2,
workers_per_gpu=2,
train=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_train2017.json',
img_prefix=data_root + 'train2017/',
pipeline=train_pipeline),
val=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline),
test=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline))
# optimizer
optimizer = dict(type='SGD', lr=0.01, momentum=0.9, weight_decay=0.0001)
optimizer_config = dict(grad_clip=dict(max_norm=35, norm_type=2))
# learning policy
lr_config = dict(
policy='step',
warmup='linear',
warmup_iters=500,
warmup_ratio=1.0 / 3,
step=[8, 11])
checkpoint_config = dict(interval=1)
# yapf:disable
log_config = dict(
interval=50,
hooks=[
dict(type='TextLoggerHook'),
# dict(type='TensorboardLoggerHook')
])
# yapf:enable
# runtime settings
total_epochs = 12
device_ids = range(8)
dist_params = dict(backend='nccl')
log_level = 'INFO'
work_dir = './work_dirs/reppoints_moment_r50_fpn_1x'
load_from = None
resume_from = None
auto_resume = True
workflow = [('train', 1)]
configs/reppoints/reppoints_moment_r50_fpn_2x.py 0 → 100644
View file @ ea9b20af
# model settings
norm_cfg = dict(type='GN', num_groups=32, requires_grad=True)
model = dict(
type='RepPointsDetector',
pretrained='torchvision://resnet50',
backbone=dict(
type='ResNet',
depth=50,
num_stages=4,
out_indices=(0, 1, 2, 3),
frozen_stages=1,
style='pytorch'),
neck=dict(
type='FPN',
in_channels=[256, 512, 1024, 2048],
out_channels=256,
start_level=1,
add_extra_convs=True,
num_outs=5,
norm_cfg=norm_cfg),
bbox_head=dict(
type='RepPointsHead',
num_classes=81,
in_channels=256,
feat_channels=256,
point_feat_channels=256,
stacked_convs=3,
num_points=9,
gradient_mul=0.1,
point_strides=[8, 16, 32, 64, 128],
point_base_scale=4,
norm_cfg=norm_cfg,
loss_cls=dict(
type='FocalLoss',
use_sigmoid=True,
gamma=2.0,
alpha=0.25,
loss_weight=1.0),
loss_bbox_init=dict(type='SmoothL1Loss', beta=0.11, loss_weight=0.5),
loss_bbox_refine=dict(type='SmoothL1Loss', beta=0.11, loss_weight=1.0),
transform_method='moment'))
# training and testing settings
train_cfg = dict(
init=dict(
assigner=dict(type='PointAssigner', scale=4, pos_num=1),
allowed_border=-1,
pos_weight=-1,
debug=False),
refine=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.5,
neg_iou_thr=0.4,
min_pos_iou=0,
ignore_iof_thr=-1),
allowed_border=-1,
pos_weight=-1,
debug=False))
test_cfg = dict(
nms_pre=1000,
min_bbox_size=0,
score_thr=0.05,
nms=dict(type='nms', iou_thr=0.5),
max_per_img=100)
# dataset settings
dataset_type = 'CocoDataset'
data_root = 'data/coco/'
img_norm_cfg = dict(
mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
train_pipeline = [
dict(type='LoadImageFromFile'),
dict(type='LoadAnnotations', with_bbox=True),
dict(type='Resize', img_scale=(1333, 800), keep_ratio=True),
dict(type='RandomFlip', flip_ratio=0.5),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='DefaultFormatBundle'),
dict(type='Collect', keys=['img', 'gt_bboxes', 'gt_labels']),
]
test_pipeline = [
dict(type='LoadImageFromFile'),
dict(
type='MultiScaleFlipAug',
img_scale=(1333, 800),
flip=False,
transforms=[
dict(type='Resize', keep_ratio=True),
dict(type='RandomFlip'),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='ImageToTensor', keys=['img']),
dict(type='Collect', keys=['img']),
])
]
data = dict(
imgs_per_gpu=2,
workers_per_gpu=2,
train=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_train2017.json',
img_prefix=data_root + 'train2017/',
pipeline=train_pipeline),
val=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline),
test=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline))
# optimizer
optimizer = dict(type='SGD', lr=0.01, momentum=0.9, weight_decay=0.0001)
optimizer_config = dict(grad_clip=dict(max_norm=35, norm_type=2))
# learning policy
lr_config = dict(
policy='step',
warmup='linear',
warmup_iters=500,
warmup_ratio=1.0 / 3,
step=[16, 22])
checkpoint_config = dict(interval=1)
# yapf:disable
log_config = dict(
interval=50,
hooks=[
dict(type='TextLoggerHook'),
# dict(type='TensorboardLoggerHook')
])
# yapf:enable
# runtime settings
total_epochs = 24
device_ids = range(8)
dist_params = dict(backend='nccl')
log_level = 'INFO'
work_dir = './work_dirs/reppoints_moment_r50_fpn_2x'
load_from = None
resume_from = None
auto_resume = True
workflow = [('train', 1)]
configs/reppoints/reppoints_moment_r50_fpn_2x_mt.py 0 → 100644
View file @ ea9b20af
# model settings
norm_cfg = dict(type='GN', num_groups=32, requires_grad=True)
model = dict(
type='RepPointsDetector',
pretrained='torchvision://resnet50',
backbone=dict(
type='ResNet',
depth=50,
num_stages=4,
out_indices=(0, 1, 2, 3),
frozen_stages=1,
style='pytorch'),
neck=dict(
type='FPN',
in_channels=[256, 512, 1024, 2048],
out_channels=256,
start_level=1,
add_extra_convs=True,
num_outs=5,
norm_cfg=norm_cfg),
bbox_head=dict(
type='RepPointsHead',
num_classes=81,
in_channels=256,
feat_channels=256,
point_feat_channels=256,
stacked_convs=3,
num_points=9,
gradient_mul=0.1,
point_strides=[8, 16, 32, 64, 128],
point_base_scale=4,
norm_cfg=norm_cfg,
loss_cls=dict(
type='FocalLoss',
use_sigmoid=True,
gamma=2.0,
alpha=0.25,
loss_weight=1.0),
loss_bbox_init=dict(type='SmoothL1Loss', beta=0.11, loss_weight=0.5),
loss_bbox_refine=dict(type='SmoothL1Loss', beta=0.11, loss_weight=1.0),
transform_method='moment'))
# training and testing settings
train_cfg = dict(
init=dict(
assigner=dict(type='PointAssigner', scale=4, pos_num=1),
allowed_border=-1,
pos_weight=-1,
debug=False),
refine=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.5,
neg_iou_thr=0.4,
min_pos_iou=0,
ignore_iof_thr=-1),
allowed_border=-1,
pos_weight=-1,
debug=False))
test_cfg = dict(
nms_pre=1000,
min_bbox_size=0,
score_thr=0.05,
nms=dict(type='nms', iou_thr=0.5),
max_per_img=100)
# dataset settings
dataset_type = 'CocoDataset'
data_root = 'data/coco/'
img_norm_cfg = dict(
mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
train_pipeline = [
dict(type='LoadImageFromFile'),
dict(type='LoadAnnotations', with_bbox=True),
dict(
type='Resize',
img_scale=[(1333, 480), (1333, 960)],
keep_ratio=True,
multiscale_mode='range'),
dict(type='RandomFlip', flip_ratio=0.5),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='DefaultFormatBundle'),
dict(type='Collect', keys=['img', 'gt_bboxes', 'gt_labels']),
]
test_pipeline = [
dict(type='LoadImageFromFile'),
dict(
type='MultiScaleFlipAug',
img_scale=(1333, 800),
flip=False,
transforms=[
dict(type='Resize', keep_ratio=True),
dict(type='RandomFlip'),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='ImageToTensor', keys=['img']),
dict(type='Collect', keys=['img']),
])
]
data = dict(
imgs_per_gpu=2,
workers_per_gpu=2,
train=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_train2017.json',
img_prefix=data_root + 'train2017/',
pipeline=train_pipeline),
val=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline),
test=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline))
# optimizer
optimizer = dict(type='SGD', lr=0.01, momentum=0.9, weight_decay=0.0001)
optimizer_config = dict(grad_clip=dict(max_norm=35, norm_type=2))
# learning policy
lr_config = dict(
policy='step',
warmup='linear',
warmup_iters=500,
warmup_ratio=1.0 / 3,
step=[16, 22])
checkpoint_config = dict(interval=1)
# yapf:disable
log_config = dict(
interval=50,
hooks=[
dict(type='TextLoggerHook'),
# dict(type='TensorboardLoggerHook')
])
# yapf:enable
# runtime settings
total_epochs = 24
device_ids = range(8)
dist_params = dict(backend='nccl')
log_level = 'INFO'
work_dir = './work_dirs/reppoints_moment_r50_fpn_2x_mt'
load_from = None
resume_from = None
auto_resume = True
workflow = [('train', 1)]
configs/reppoints/reppoints_moment_x101_dcn_fpn_2x.py 0 → 100644
View file @ ea9b20af
# model settings
norm_cfg = dict(type='GN', num_groups=32, requires_grad=True)
model = dict(
type='RepPointsDetector',
pretrained='open-mmlab://resnext101_32x4d',
backbone=dict(
type='ResNeXt',
depth=101,
groups=32,
base_width=4,
num_stages=4,
out_indices=(0, 1, 2, 3),
frozen_stages=1,
style='pytorch',
dcn=dict(
modulated=False,
groups=32,
deformable_groups=1,
fallback_on_stride=False),
stage_with_dcn=(False, True, True, True)),
neck=dict(
type='FPN',
in_channels=[256, 512, 1024, 2048],
out_channels=256,
start_level=1,
add_extra_convs=True,
num_outs=5,
norm_cfg=norm_cfg),
bbox_head=dict(
type='RepPointsHead',
num_classes=81,
in_channels=256,
feat_channels=256,
point_feat_channels=256,
stacked_convs=3,
num_points=9,
gradient_mul=0.1,
point_strides=[8, 16, 32, 64, 128],
point_base_scale=4,
norm_cfg=norm_cfg,
loss_cls=dict(
type='FocalLoss',
use_sigmoid=True,
gamma=2.0,
alpha=0.25,
loss_weight=1.0),
loss_bbox_init=dict(type='SmoothL1Loss', beta=0.11, loss_weight=0.5),
loss_bbox_refine=dict(type='SmoothL1Loss', beta=0.11, loss_weight=1.0),
transform_method='moment'))
# training and testing settings
train_cfg = dict(
init=dict(
assigner=dict(type='PointAssigner', scale=4, pos_num=1),
allowed_border=-1,
pos_weight=-1,
debug=False),
refine=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.5,
neg_iou_thr=0.4,
min_pos_iou=0,
ignore_iof_thr=-1),
allowed_border=-1,
pos_weight=-1,
debug=False))
test_cfg = dict(
nms_pre=1000,
min_bbox_size=0,
score_thr=0.05,
nms=dict(type='nms', iou_thr=0.5),
max_per_img=100)
# dataset settings
dataset_type = 'CocoDataset'
data_root = 'data/coco/'
img_norm_cfg = dict(
mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
train_pipeline = [
dict(type='LoadImageFromFile'),
dict(type='LoadAnnotations', with_bbox=True),
dict(type='Resize', img_scale=(1333, 800), keep_ratio=True),
dict(type='RandomFlip', flip_ratio=0.5),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='DefaultFormatBundle'),
dict(type='Collect', keys=['img', 'gt_bboxes', 'gt_labels']),
]
test_pipeline = [
dict(type='LoadImageFromFile'),
dict(
type='MultiScaleFlipAug',
img_scale=(1333, 800),
flip=False,
transforms=[
dict(type='Resize', keep_ratio=True),
dict(type='RandomFlip'),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='ImageToTensor', keys=['img']),
dict(type='Collect', keys=['img']),
])
]
data = dict(
imgs_per_gpu=2,
workers_per_gpu=2,
train=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_train2017.json',
img_prefix=data_root + 'train2017/',
pipeline=train_pipeline),
val=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline),
test=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline))
# optimizer
optimizer = dict(type='SGD', lr=0.01, momentum=0.9, weight_decay=0.0001)
optimizer_config = dict(grad_clip=dict(max_norm=35, norm_type=2))
# learning policy
lr_config = dict(
policy='step',
warmup='linear',
warmup_iters=500,
warmup_ratio=1.0 / 3,
step=[16, 22])
checkpoint_config = dict(interval=1)
# yapf:disable
log_config = dict(
interval=50,
hooks=[
dict(type='TextLoggerHook'),
# dict(type='TensorboardLoggerHook')
])
# yapf:enable
# runtime settings
total_epochs = 24
device_ids = range(8)
dist_params = dict(backend='nccl')
log_level = 'INFO'
work_dir = './work_dirs/reppoints_moment_x101_dcn_fpn_2x'
load_from = None
resume_from = None
auto_resume = True
workflow = [('train', 1)]
configs/reppoints/reppoints_moment_x101_dcn_fpn_2x_mt.py 0 → 100644
View file @ ea9b20af
# model settings
norm_cfg = dict(type='GN', num_groups=32, requires_grad=True)
model = dict(
type='RepPointsDetector',
pretrained='open-mmlab://resnext101_32x4d',
backbone=dict(
type='ResNeXt',
depth=101,
groups=32,
base_width=4,
num_stages=4,
out_indices=(0, 1, 2, 3),
frozen_stages=1,
style='pytorch',
dcn=dict(
modulated=False,
groups=32,
deformable_groups=1,
fallback_on_stride=False),
stage_with_dcn=(False, True, True, True)),
neck=dict(
type='FPN',
in_channels=[256, 512, 1024, 2048],
out_channels=256,
start_level=1,
add_extra_convs=True,
num_outs=5,
norm_cfg=norm_cfg),
bbox_head=dict(
type='RepPointsHead',
num_classes=81,
in_channels=256,
feat_channels=256,
point_feat_channels=256,
stacked_convs=3,
num_points=9,
gradient_mul=0.1,
point_strides=[8, 16, 32, 64, 128],
point_base_scale=4,
norm_cfg=norm_cfg,
loss_cls=dict(
type='FocalLoss',
use_sigmoid=True,
gamma=2.0,
alpha=0.25,
loss_weight=1.0),
loss_bbox_init=dict(type='SmoothL1Loss', beta=0.11, loss_weight=0.5),
loss_bbox_refine=dict(type='SmoothL1Loss', beta=0.11, loss_weight=1.0),
transform_method='moment'))
# training and testing settings
train_cfg = dict(
init=dict(
assigner=dict(type='PointAssigner', scale=4, pos_num=1),
allowed_border=-1,
pos_weight=-1,
debug=False),
refine=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.5,
neg_iou_thr=0.4,
min_pos_iou=0,
ignore_iof_thr=-1),
allowed_border=-1,
pos_weight=-1,
debug=False))
test_cfg = dict(
nms_pre=1000,
min_bbox_size=0,
score_thr=0.05,
nms=dict(type='nms', iou_thr=0.5),
max_per_img=100)
# dataset settings
dataset_type = 'CocoDataset'
data_root = 'data/coco/'
img_norm_cfg = dict(
mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
train_pipeline = [
dict(type='LoadImageFromFile'),
dict(type='LoadAnnotations', with_bbox=True),
dict(
type='Resize',
img_scale=[(1333, 480), (1333, 960)],
keep_ratio=True,
multiscale_mode='range'),
dict(type='RandomFlip', flip_ratio=0.5),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='DefaultFormatBundle'),
dict(type='Collect', keys=['img', 'gt_bboxes', 'gt_labels']),
]
test_pipeline = [
dict(type='LoadImageFromFile'),
dict(
type='MultiScaleFlipAug',
img_scale=(1333, 800),
flip=False,
transforms=[
dict(type='Resize', keep_ratio=True),
dict(type='RandomFlip'),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='ImageToTensor', keys=['img']),
dict(type='Collect', keys=['img']),
])
]
data = dict(
imgs_per_gpu=2,
workers_per_gpu=2,
train=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_train2017.json',
img_prefix=data_root + 'train2017/',
pipeline=train_pipeline),
val=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline),
test=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline))
# optimizer
optimizer = dict(type='SGD', lr=0.01, momentum=0.9, weight_decay=0.0001)
optimizer_config = dict(grad_clip=dict(max_norm=35, norm_type=2))
# learning policy
lr_config = dict(
policy='step',
warmup='linear',
warmup_iters=500,
warmup_ratio=1.0 / 3,
step=[16, 22])
checkpoint_config = dict(interval=1)
# yapf:disable
log_config = dict(
interval=50,
hooks=[
dict(type='TextLoggerHook'),
# dict(type='TensorboardLoggerHook')
])
# yapf:enable
# runtime settings
total_epochs = 24
device_ids = range(8)
dist_params = dict(backend='nccl')
log_level = 'INFO'
work_dir = './work_dirs/reppoints_moment_x101_dcn_fpn_2x_mt'
load_from = None
resume_from = None
auto_resume = True
workflow = [('train', 1)]
configs/reppoints/reppoints_partial_minmax_r50_fpn_1x.py 0 → 100644
View file @ ea9b20af
# model settings
norm_cfg = dict(type='GN', num_groups=32, requires_grad=True)
model = dict(
type='RepPointsDetector',
pretrained='torchvision://resnet50',
backbone=dict(
type='ResNet',
depth=50,
num_stages=4,
out_indices=(0, 1, 2, 3),
frozen_stages=1,
style='pytorch'),
neck=dict(
type='FPN',
in_channels=[256, 512, 1024, 2048],
out_channels=256,
start_level=1,
add_extra_convs=True,
num_outs=5,
norm_cfg=norm_cfg),
bbox_head=dict(
type='RepPointsHead',
num_classes=81,
in_channels=256,
feat_channels=256,
point_feat_channels=256,
stacked_convs=3,
num_points=9,
gradient_mul=0.1,
point_strides=[8, 16, 32, 64, 128],
point_base_scale=4,
norm_cfg=norm_cfg,
loss_cls=dict(
type='FocalLoss',
use_sigmoid=True,
gamma=2.0,
alpha=0.25,
loss_weight=1.0),
loss_bbox_init=dict(type='SmoothL1Loss', beta=0.11, loss_weight=0.5),
loss_bbox_refine=dict(type='SmoothL1Loss', beta=0.11, loss_weight=1.0),
transform_method='partial_minmax'))
# training and testing settings
train_cfg = dict(
init=dict(
assigner=dict(type='PointAssigner', scale=4, pos_num=1),
allowed_border=-1,
pos_weight=-1,
debug=False),
refine=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.5,
neg_iou_thr=0.4,
min_pos_iou=0,
ignore_iof_thr=-1),
allowed_border=-1,
pos_weight=-1,
debug=False))
test_cfg = dict(
nms_pre=1000,
min_bbox_size=0,
score_thr=0.05,
nms=dict(type='nms', iou_thr=0.5),
max_per_img=100)
# dataset settings
dataset_type = 'CocoDataset'
data_root = 'data/coco/'
img_norm_cfg = dict(
mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
train_pipeline = [
dict(type='LoadImageFromFile'),
dict(type='LoadAnnotations', with_bbox=True),
dict(type='Resize', img_scale=(1333, 800), keep_ratio=True),
dict(type='RandomFlip', flip_ratio=0.5),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='DefaultFormatBundle'),
dict(type='Collect', keys=['img', 'gt_bboxes', 'gt_labels']),
]
test_pipeline = [
dict(type='LoadImageFromFile'),
dict(
type='MultiScaleFlipAug',
img_scale=(1333, 800),
flip=False,
transforms=[
dict(type='Resize', keep_ratio=True),
dict(type='RandomFlip'),
dict(type='Normalize', **img_norm_cfg),
dict(type='Pad', size_divisor=32),
dict(type='ImageToTensor', keys=['img']),
dict(type='Collect', keys=['img']),
])
]
data = dict(
imgs_per_gpu=2,
workers_per_gpu=2,
train=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_train2017.json',
img_prefix=data_root + 'train2017/',
pipeline=train_pipeline),
val=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline),
test=dict(
type=dataset_type,
ann_file=data_root + 'annotations/instances_val2017.json',
img_prefix=data_root + 'val2017/',
pipeline=test_pipeline))
# optimizer
optimizer = dict(type='SGD', lr=0.01, momentum=0.9, weight_decay=0.0001)
optimizer_config = dict(grad_clip=dict(max_norm=35, norm_type=2))
# learning policy
lr_config = dict(
policy='step',
warmup='linear',
warmup_iters=500,
warmup_ratio=1.0 / 3,
step=[8, 11])
checkpoint_config = dict(interval=1)
# yapf:disable
log_config = dict(
interval=50,
hooks=[
dict(type='TextLoggerHook'),
# dict(type='TensorboardLoggerHook')
])
# yapf:enable
# runtime settings
total_epochs = 12
device_ids = range(8)
dist_params = dict(backend='nccl')
log_level = 'INFO'
work_dir = './work_dirs/reppoints_partial_minmax_r50_fpn_1x'
load_from = None
resume_from = None
auto_resume = True
workflow = [('train', 1)]
mmdet/core/anchor/__init__.py
View file @ ea9b20af
from .anchor_generator import AnchorGenerator from .anchor_generator import AnchorGenerator
from .anchor_target import anchor_inside_flags, anchor_target from .anchor_target import anchor_inside_flags, anchor_target
from .guided_anchor_target import ga_loc_target, ga_shape_target from .guided_anchor_target import ga_loc_target, ga_shape_target
from .point_generator import PointGenerator
from .point_target import point_target
__all__ = [ __all__ = [
'AnchorGenerator', 'anchor_target', 'anchor_inside_flags', 'ga_loc_target', 'AnchorGenerator', 'anchor_target', 'anchor_inside_flags', 'ga_loc_target',
'ga_shape_target' 'ga_shape_target', 'PointGenerator', 'point_target'
] ]
mmdet/core/anchor/point_generator.py 0 → 100644
View file @ ea9b20af
import torch
class PointGenerator(object):
def _meshgrid(self, x, y, row_major=True):
xx = x.repeat(len(y))
yy = y.view(-1, 1).repeat(1, len(x)).view(-1)
if row_major:
return xx, yy
else:
return yy, xx
def grid_points(self, featmap_size, stride=16, device='cuda'):
feat_h, feat_w = featmap_size
shift_x = torch.arange(0., feat_w, device=device) * stride
shift_y = torch.arange(0., feat_h, device=device) * stride
shift_xx, shift_yy = self._meshgrid(shift_x, shift_y)
stride = shift_x.new_full((shift_xx.shape[0], ), stride)
shifts = torch.stack([shift_xx, shift_yy, stride], dim=-1)
all_points = shifts.to(device)
return all_points
def valid_flags(self, featmap_size, valid_size, device='cuda'):
feat_h, feat_w = featmap_size
valid_h, valid_w = valid_size
assert valid_h <= feat_h and valid_w <= feat_w
valid_x = torch.zeros(feat_w, dtype=torch.uint8, device=device)
valid_y = torch.zeros(feat_h, dtype=torch.uint8, device=device)
valid_x[:valid_w] = 1
valid_y[:valid_h] = 1
valid_xx, valid_yy = self._meshgrid(valid_x, valid_y)
valid = valid_xx & valid_yy
return valid
mmdet/core/anchor/point_target.py 0 → 100644
View file @ ea9b20af
import torch
from ..bbox import PseudoSampler, assign_and_sample, build_assigner
from ..utils import multi_apply
def point_target(proposals_list,
valid_flag_list,
gt_bboxes_list,
img_metas,
cfg,
gt_bboxes_ignore_list=None,
gt_labels_list=None,
label_channels=1,
sampling=True,
unmap_outputs=True):
"""Compute corresponding GT box and classification targets for proposals.
Args:
points_list (list[list]): Multi level points of each image.
valid_flag_list (list[list]): Multi level valid flags of each image.
gt_bboxes_list (list[Tensor]): Ground truth bboxes of each image.
img_metas (list[dict]): Meta info of each image.
cfg (dict): train sample configs.
Returns:
tuple
"""
num_imgs = len(img_metas)
assert len(proposals_list) == len(valid_flag_list) == num_imgs
# points number of multi levels
num_level_proposals = [points.size(0) for points in proposals_list[0]]
# concat all level points and flags to a single tensor
for i in range(num_imgs):
assert len(proposals_list[i]) == len(valid_flag_list[i])
proposals_list[i] = torch.cat(proposals_list[i])
valid_flag_list[i] = torch.cat(valid_flag_list[i])
# compute targets for each image
if gt_bboxes_ignore_list is None:
gt_bboxes_ignore_list = [None for _ in range(num_imgs)]
if gt_labels_list is None:
gt_labels_list = [None for _ in range(num_imgs)]
(all_labels, all_label_weights, all_bbox_gt, all_proposals,
all_proposal_weights, pos_inds_list, neg_inds_list) = multi_apply(
point_target_single,
proposals_list,
valid_flag_list,
gt_bboxes_list,
gt_bboxes_ignore_list,
gt_labels_list,
cfg=cfg,
label_channels=label_channels,
sampling=sampling,
unmap_outputs=unmap_outputs)
# no valid points
if any([labels is None for labels in all_labels]):
return None
# sampled points of all images
num_total_pos = sum([max(inds.numel(), 1) for inds in pos_inds_list])
num_total_neg = sum([max(inds.numel(), 1) for inds in neg_inds_list])
labels_list = images_to_levels(all_labels, num_level_proposals)
label_weights_list = images_to_levels(all_label_weights,
num_level_proposals)
bbox_gt_list = images_to_levels(all_bbox_gt, num_level_proposals)
proposals_list = images_to_levels(all_proposals, num_level_proposals)
proposal_weights_list = images_to_levels(all_proposal_weights,
num_level_proposals)
return (labels_list, label_weights_list, bbox_gt_list, proposals_list,
proposal_weights_list, num_total_pos, num_total_neg)
def images_to_levels(target, num_level_grids):
"""Convert targets by image to targets by feature level.
[target_img0, target_img1] -> [target_level0, target_level1, ...]
"""
target = torch.stack(target, 0)
level_targets = []
start = 0
for n in num_level_grids:
end = start + n
level_targets.append(target[:, start:end].squeeze(0))
start = end
return level_targets
def point_target_single(flat_proposals,
valid_flags,
gt_bboxes,
gt_bboxes_ignore,
gt_labels,
cfg,
label_channels=1,
sampling=True,
unmap_outputs=True):
inside_flags = valid_flags
if not inside_flags.any():
return (None, ) * 7
# assign gt and sample proposals
proposals = flat_proposals[inside_flags, :]
if sampling:
assign_result, sampling_result = assign_and_sample(
proposals, gt_bboxes, gt_bboxes_ignore, None, cfg)
else:
bbox_assigner = build_assigner(cfg.assigner)
assign_result = bbox_assigner.assign(proposals, gt_bboxes,
gt_bboxes_ignore, gt_labels)
bbox_sampler = PseudoSampler()
sampling_result = bbox_sampler.sample(assign_result, proposals,
gt_bboxes)
num_valid_proposals = proposals.shape[0]
bbox_gt = proposals.new_zeros([num_valid_proposals, 4])
pos_proposals = torch.zeros_like(proposals)
proposals_weights = proposals.new_zeros([num_valid_proposals, 4])
labels = proposals.new_zeros(num_valid_proposals, dtype=torch.long)
label_weights = proposals.new_zeros(num_valid_proposals, dtype=torch.float)
pos_inds = sampling_result.pos_inds
neg_inds = sampling_result.neg_inds
if len(pos_inds) > 0:
pos_gt_bboxes = sampling_result.pos_gt_bboxes
bbox_gt[pos_inds, :] = pos_gt_bboxes
pos_proposals[pos_inds, :] = proposals[pos_inds, :]
proposals_weights[pos_inds, :] = 1.0
if gt_labels is None:
labels[pos_inds] = 1
else:
labels[pos_inds] = gt_labels[sampling_result.pos_assigned_gt_inds]
if cfg.pos_weight <= 0:
label_weights[pos_inds] = 1.0
else:
label_weights[pos_inds] = cfg.pos_weight
if len(neg_inds) > 0:
label_weights[neg_inds] = 1.0
# map up to original set of proposals
if unmap_outputs:
num_total_proposals = flat_proposals.size(0)
labels = unmap(labels, num_total_proposals, inside_flags)
label_weights = unmap(label_weights, num_total_proposals, inside_flags)
bbox_gt = unmap(bbox_gt, num_total_proposals, inside_flags)
pos_proposals = unmap(pos_proposals, num_total_proposals, inside_flags)
proposals_weights = unmap(proposals_weights, num_total_proposals,
inside_flags)
return (labels, label_weights, bbox_gt, pos_proposals, proposals_weights,
pos_inds, neg_inds)
def unmap(data, count, inds, fill=0):
""" Unmap a subset of item (data) back to the original set of items (of
size count) """
if data.dim() == 1:
ret = data.new_full((count, ), fill)
ret[inds] = data
else:
new_size = (count, ) + data.size()[1:]
ret = data.new_full(new_size, fill)
ret[inds, :] = data
return ret
mmdet/core/bbox/assigners/__init__.py
View file @ ea9b20af
...@@ -2,7 +2,9 @@ from .approx_max_iou_assigner import ApproxMaxIoUAssigner ...@@ -2,7 +2,9 @@ from .approx_max_iou_assigner import ApproxMaxIoUAssigner
from .assign_result import AssignResult from .assign_result import AssignResult
from .base_assigner import BaseAssigner from .base_assigner import BaseAssigner
from .max_iou_assigner import MaxIoUAssigner from .max_iou_assigner import MaxIoUAssigner
from .point_assigner import PointAssigner
__all__ = [ __all__ = [
'BaseAssigner', 'MaxIoUAssigner', 'ApproxMaxIoUAssigner', 'AssignResult' 'BaseAssigner', 'MaxIoUAssigner', 'ApproxMaxIoUAssigner', 'AssignResult',
'PointAssigner'
] ]
mmdet/core/bbox/assigners/point_assigner.py 0 → 100644
View file @ ea9b20af
import torch
from .assign_result import AssignResult
from .base_assigner import BaseAssigner
class PointAssigner(BaseAssigner):
"""Assign a corresponding gt bbox or background to each point.
Each proposals will be assigned with `0`, or a positive integer
indicating the ground truth index.
- 0: negative sample, no assigned gt
- positive integer: positive sample, index (1-based) of assigned gt
"""
def __init__(self, scale=4, pos_num=3):
self.scale = scale
self.pos_num = pos_num
def assign(self, points, gt_bboxes, gt_bboxes_ignore=None, gt_labels=None):
"""Assign gt to points.
This method assign a gt bbox to every points set, each points set
will be assigned with 0, or a positive number.
0 means negative sample, positive number is the index (1-based) of
assigned gt.
The assignment is done in following steps, the order matters.
1. assign every points to 0
2. A point is assigned to some gt bbox if
(i) the point is within the k closest points to the gt bbox
(ii) the distance between this point and the gt is smaller than
other gt bboxes
Args:
points (Tensor): points to be assigned, shape(n, 3) while last
dimension stands for (x, y, stride).
gt_bboxes (Tensor): Groundtruth boxes, shape (k, 4).
gt_bboxes_ignore (Tensor, optional): Ground truth bboxes that are
labelled as `ignored`, e.g., crowd boxes in COCO.
gt_labels (Tensor, optional): Label of gt_bboxes, shape (k, ).
Returns:
:obj:`AssignResult`: The assign result.
"""
if points.shape[0] == 0 or gt_bboxes.shape[0] == 0:
raise ValueError('No gt or bboxes')
points_xy = points[:, :2]
points_stride = points[:, 2]
points_lvl = torch.log2(
points_stride).int() # [3...,4...,5...,6...,7...]
lvl_min, lvl_max = points_lvl.min(), points_lvl.max()
num_gts, num_points = gt_bboxes.shape[0], points.shape[0]
# assign gt box
gt_bboxes_xy = (gt_bboxes[:, :2] + gt_bboxes[:, 2:]) / 2
gt_bboxes_wh = (gt_bboxes[:, 2:] - gt_bboxes[:, :2]).clamp(min=1e-6)
scale = self.scale
gt_bboxes_lvl = ((torch.log2(gt_bboxes_wh[:, 0] / scale) +
torch.log2(gt_bboxes_wh[:, 1] / scale)) / 2).int()
gt_bboxes_lvl = torch.clamp(gt_bboxes_lvl, min=lvl_min, max=lvl_max)
# stores the assigned gt index of each point
assigned_gt_inds = points.new_zeros((num_points, ), dtype=torch.long)
# stores the assigned gt dist (to this point) of each point
assigned_gt_dist = points.new_full((num_points, ), float('inf'))
points_range = torch.arange(points.shape[0])
for idx in range(num_gts):
gt_lvl = gt_bboxes_lvl[idx]
# get the index of points in this level
lvl_idx = gt_lvl == points_lvl
points_index = points_range[lvl_idx]
# get the points in this level
lvl_points = points_xy[lvl_idx, :]
# get the center point of gt
gt_point = gt_bboxes_xy[[idx], :]
# get width and height of gt
gt_wh = gt_bboxes_wh[[idx], :]
# compute the distance between gt center and
# all points in this level
points_gt_dist = ((lvl_points - gt_point) / gt_wh).norm(dim=1)
# find the nearest k points to gt center in this level
min_dist, min_dist_index = torch.topk(
points_gt_dist, self.pos_num, largest=False)
# the index of nearest k points to gt center in this level
min_dist_points_index = points_index[min_dist_index]
# The less_than_recorded_index stores the index
# of min_dist that is less then the assigned_gt_dist. Where
# assigned_gt_dist stores the dist from previous assigned gt
# (if exist) to each point.
less_than_recorded_index = min_dist < assigned_gt_dist[
min_dist_points_index]
# The min_dist_points_index stores the index of points satisfy:
# (1) it is k nearest to current gt center in this level.
# (2) it is closer to current gt center than other gt center.
min_dist_points_index = min_dist_points_index[
less_than_recorded_index]
# assign the result
assigned_gt_inds[min_dist_points_index] = idx + 1
assigned_gt_dist[min_dist_points_index] = min_dist[
less_than_recorded_index]
if gt_labels is not None:
assigned_labels = assigned_gt_inds.new_zeros((num_points, ))
pos_inds = torch.nonzero(assigned_gt_inds > 0).squeeze()
if pos_inds.numel() > 0:
assigned_labels[pos_inds] = gt_labels[
assigned_gt_inds[pos_inds] - 1]
else:
assigned_labels = None
return AssignResult(
num_gts, assigned_gt_inds, None, labels=assigned_labels)
Markdown is supported
0% or .
You are about to add 0 people to the discussion. Proceed with caution.
Finish editing this message first!
Please register or to comment
