add quick demo for inference

demo/inference_demo.py

+from mmdet.apis import init_detector, inference_detector, show_result_pyplot, show_result_ins
+import mmcv
+
+
+config_file = '../configs/solo/decoupled_solo_r50_fpn_8gpu_3x.py'
+# download the checkpoint from model zoo and put it in `checkpoints/`
+checkpoint_file = '../checkpoints/DECOUPLED_SOLO_R50_3x.pth'
+
+# build the model from a config file and a checkpoint file
+model = init_detector(config_file, checkpoint_file, device='cuda:0')
+
+# test a single image
+img = 'demo.jpg'
+result = inference_detector(model, img)
+

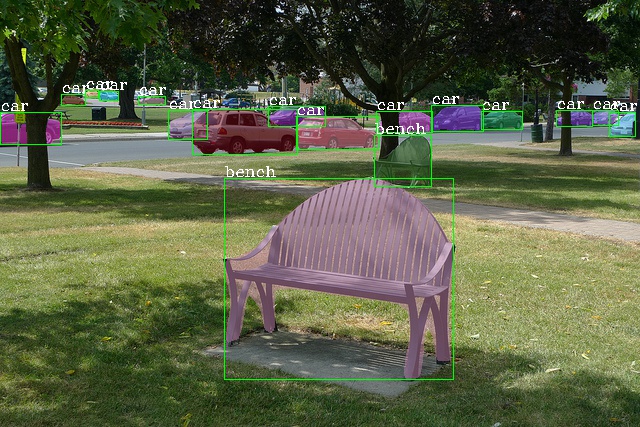

+show_result_ins(img, result, model.CLASSES, score_thr=0.25, out_file="demo_out.jpg")

mmdet/apis/__init__.py

 from .inference import (async_inference_detector, inference_detector,
-                        init_detector, show_result, show_result_pyplot)
+                        init_detector, show_result, show_result_pyplot, show_result_ins)
 from .train import get_root_logger, set_random_seed, train_detector

 __all__ = [
     'get_root_logger', 'set_random_seed', 'train_detector', 'init_detector',
     'async_inference_detector', 'inference_detector', 'show_result',
-    'show_result_pyplot'
+    'show_result_pyplot', 'show_result_ins'
 ]

mmdet/apis/inference.py

@@ -12,6 +12,8 @@ from mmdet.core import get_classes
 from mmdet.datasets.pipelines import Compose
 from mmdet.models import build_detector

+import cv2
+from scipy import ndimage

 def init_detector(config, checkpoint=None, device='cuda:0'):
     """Initialize a detector from config file.
@@ -202,3 +204,85 @@ def show_result_pyplot(img,
         img, result, class_names, score_thr=score_thr, show=False)
     plt.figure(figsize=fig_size)
     plt.imshow(mmcv.bgr2rgb(img))
+
+
+def show_result_ins(img,
+                    result,
+                    class_names,
+                    score_thr=0.3,
+                    sort_by_density=False,
+                    out_file=None):
+    """Visualize the instance segmentation results on the image.
+
+    Args:
+        img (str or np.ndarray): Image filename or loaded image.
+        result (tuple[list] or list): The instance segmentation result.
+        class_names (list[str] or tuple[str]): A list of class names.
+        score_thr (float): The threshold to visualize the masks.
+        sort_by_density (bool): sort the masks by their density.
+        out_file (str, optional): If specified, the visualization result will
+            be written to the out file instead of shown in a window.
+
+    Returns:
+        np.ndarray or None: If neither `show` nor `out_file` is specified, the
+            visualized image is returned, otherwise None is returned.
+    """
+
+    assert isinstance(class_names, (tuple, list))
+    img = mmcv.imread(img)
+    img_show = img.copy()
+    h, w, _ = img.shape
+
+    cur_result = result[0]
+    seg_label = cur_result[0]
+    seg_label = seg_label.cpu().numpy().astype(np.uint8)
+    cate_label = cur_result[1]
+    cate_label = cate_label.cpu().numpy()
+    score = cur_result[2].cpu().numpy()
+
+    vis_inds = score > score_thr
+    seg_label = seg_label[vis_inds]
+    num_mask = seg_label.shape[0]
+    cate_label = cate_label[vis_inds]
+    cate_score = score[vis_inds]
+
+    if sort_by_density:
+        mask_density = []
+        for idx in range(num_mask):
+            cur_mask = seg_label[idx, :, :]
+            cur_mask = mmcv.imresize(cur_mask, (w, h))
+            cur_mask = (cur_mask > 0.5).astype(np.int32)
+            mask_density.append(cur_mask.sum())
+        orders = np.argsort(mask_density)
+        seg_label = seg_label[orders]
+        cate_label = cate_label[orders]
+        cate_score = cate_score[orders]
+
+    np.random.seed(42)
+    color_masks = [
+        np.random.randint(0, 256, (1, 3), dtype=np.uint8)
+        for _ in range(num_mask)
+    ]
+    for idx in range(num_mask):
+        idx = -(idx+1)
+        cur_mask = seg_label[idx, :, :]
+        cur_mask = mmcv.imresize(cur_mask, (w, h))
+        cur_mask = (cur_mask > 0.5).astype(np.uint8)
+        if cur_mask.sum() == 0:
+            continue
+        color_mask = color_masks[idx]
+        cur_mask_bool = cur_mask.astype(np.bool)
+        img_show[cur_mask_bool] = img[cur_mask_bool] * 0.5 + color_mask * 0.5
+
+        cur_cate = cate_label[idx]
+        cur_score = cate_score[idx]
+        label_text = class_names[cur_cate]
+        #label_text += '|{:.02f}'.format(cur_score)
+        center_y, center_x = ndimage.measurements.center_of_mass(cur_mask)
+        vis_pos = (max(int(center_x) - 10, 0), int(center_y))
+        cv2.putText(img_show, label_text, vis_pos,
+                        cv2.FONT_HERSHEY_COMPLEX, 0.3, (255, 255, 255))  # green
+    if out_file is None:
+        return img
+    else:
+        mmcv.imwrite(img_show, out_file)

tools/test_ins_vis.py

@@ -33,10 +33,8 @@ def vis_seg(data, result, img_norm_cfg, data_id, colors, score_thr, save_dir):

         seg_label = cur_result[0]
         seg_label = seg_label.cpu().numpy().astype(np.uint8)
-
         cate_label = cur_result[1]
         cate_label = cate_label.cpu().numpy()
-
         score = cur_result[2].cpu().numpy()

         vis_inds = score > score_thr
@@ -51,7 +49,6 @@ def vis_seg(data, result, img_norm_cfg, data_id, colors, score_thr, save_dir):
             cur_mask = mmcv.imresize(cur_mask, (w, h))
             cur_mask = (cur_mask > 0.5).astype(np.int32)
             mask_density.append(cur_mask.sum())
-
         orders = np.argsort(mask_density)
         seg_label = seg_label[orders]
         cate_label = cate_label[orders]
@@ -63,25 +60,13 @@ def vis_seg(data, result, img_norm_cfg, data_id, colors, score_thr, save_dir):
             cur_mask = seg_label[idx, :,:]
             cur_mask = mmcv.imresize(cur_mask, (w, h))
             cur_mask = (cur_mask > 0.5).astype(np.uint8)
-
             if cur_mask.sum() == 0:
                continue
-
             color_mask = np.random.randint(
                 0, 256, (1, 3), dtype=np.uint8)
             cur_mask_bool = cur_mask.astype(np.bool)
             seg_show[cur_mask_bool] = img_show[cur_mask_bool] * 0.5 + color_mask * 0.5

-        for idx in range(num_mask):
-            idx = -(idx+1)
-
-            cur_mask = seg_label[idx, :, :]
-            cur_mask = mmcv.imresize(cur_mask, (w, h))
-            cur_mask = (cur_mask > 0.5).astype(np.uint8)
-
-            if cur_mask.sum() == 0:
-                continue
-
             cur_cate = cate_label[idx]
             cur_score = cate_score[idx]

@@ -92,7 +77,6 @@ def vis_seg(data, result, img_norm_cfg, data_id, colors, score_thr, save_dir):
             vis_pos = (max(int(center_x) - 10, 0), int(center_y))
             cv2.putText(seg_show, label_text, vis_pos,
                         cv2.FONT_HERSHEY_COMPLEX, 0.3, (255, 255, 255))  # green
-
         mmcv.imwrite(seg_show, '{}/{}.jpg'.format(save_dir, data_id))
