Initial commit

efficient_sam/two_way_transformer.py

+import math
+from typing import Tuple, Type
+import torch
+from torch import nn, Tensor
+from .mlp import MLPBlock
+
+
+
+
+class TwoWayTransformer(nn.Module):
+    def __init__(
+        self,
+        depth: int,
+        embedding_dim: int,
+        num_heads: int,
+        mlp_dim: int,
+        activation: Type[nn.Module],
+        normalize_before_activation: bool,
+        attention_downsample_rate: int = 2,
+    ) -> None:
+        """
+        A transformer decoder that attends to an input image using
+        queries whose positional embedding is supplied.
+
+        Args:
+          depth (int): number of layers in the transformer
+          embedding_dim (int): the channel dimension for the input embeddings
+          num_heads (int): the number of heads for multihead attention. Must
+            divide embedding_dim
+          mlp_dim (int): the channel dimension internal to the MLP block
+          activation (nn.Module): the activation to use in the MLP block
+        """
+        super().__init__()
+        self.depth = depth
+        self.embedding_dim = embedding_dim
+        self.num_heads = num_heads
+        self.mlp_dim = mlp_dim
+        self.layers = nn.ModuleList()
+
+        for i in range(depth):
+            curr_layer = TwoWayAttentionBlock(
+                embedding_dim=embedding_dim,
+                num_heads=num_heads,
+                mlp_dim=mlp_dim,
+                activation=activation,
+                normalize_before_activation=normalize_before_activation,
+                attention_downsample_rate=attention_downsample_rate,
+                skip_first_layer_pe=(i == 0),
+            )
+            self.layers.append(curr_layer)
+
+        self.final_attn_token_to_image = AttentionForTwoWayAttentionBlock(
+            embedding_dim,
+            num_heads,
+            downsample_rate=attention_downsample_rate,
+        )
+        self.norm_final_attn = nn.LayerNorm(embedding_dim)
+
+    def forward(
+        self,
+        image_embedding: Tensor,
+        image_pe: Tensor,
+        point_embedding: Tensor,
+    ) -> Tuple[Tensor, Tensor]:
+        """
+        Args:
+          image_embedding (torch.Tensor): image to attend to. Should be shape
+            B x embedding_dim x h x w for any h and w.
+          image_pe (torch.Tensor): the positional encoding to add to the image. Must
+            have the same shape as image_embedding.
+          point_embedding (torch.Tensor): the embedding to add to the query points.
+            Must have shape B x N_points x embedding_dim for any N_points.
+
+        Returns:
+          torch.Tensor: the processed point_embedding
+          torch.Tensor: the processed image_embedding
+        """
+
+        # BxCxHxW -> BxHWxC == B x N_image_tokens x C
+        bs, c, h, w = image_embedding.shape
+        image_embedding = image_embedding.flatten(2).permute(0, 2, 1)
+        image_pe = image_pe.flatten(2).permute(0, 2, 1)
+
+        # Prepare queries
+        queries = point_embedding
+        keys = image_embedding
+
+        # Apply transformer blocks and final layernorm
+        for idx, layer in enumerate(self.layers):
+            queries, keys = layer(
+                queries=queries,
+                keys=keys,
+                query_pe=point_embedding,
+                key_pe=image_pe,
+            )
+
+        # Apply the final attention layer from the points to the image
+        q = queries + point_embedding
+        k = keys + image_pe
+        attn_out = self.final_attn_token_to_image(q=q, k=k, v=keys)
+        queries = queries + attn_out
+        queries = self.norm_final_attn(queries)
+        return queries, keys
+
+
+class TwoWayAttentionBlock(nn.Module):
+    def __init__(
+        self,
+        embedding_dim: int,
+        num_heads: int,
+        mlp_dim: int,
+        activation: Type[nn.Module],
+        normalize_before_activation: bool,
+        attention_downsample_rate: int = 2,
+        skip_first_layer_pe: bool = False,
+    ) -> None:
+        """
+        A transformer block with four layers: (1) self-attention of sparse
+        inputs, (2) cross attention of sparse inputs to dense inputs, (3) mlp
+        block on sparse inputs, and (4) cross attention of dense inputs to sparse
+        inputs.
+
+        Arguments:
+          embedding_dim (int): the channel dimension of the embeddings
+          num_heads (int): the number of heads in the attention layers
+          mlp_dim (int): the hidden dimension of the mlp block
+          activation (nn.Module): the activation of the mlp block
+          skip_first_layer_pe (bool): skip the PE on the first layer
+        """
+        super().__init__()
+        self.self_attn = AttentionForTwoWayAttentionBlock(embedding_dim, num_heads)
+        self.norm1 = nn.LayerNorm(embedding_dim)
+
+        self.cross_attn_token_to_image = AttentionForTwoWayAttentionBlock(
+            embedding_dim,
+            num_heads,
+            downsample_rate=attention_downsample_rate,
+        )
+        self.norm2 = nn.LayerNorm(embedding_dim)
+
+        self.mlp = MLPBlock(
+            embedding_dim,
+            mlp_dim,
+            embedding_dim,
+            1,
+            activation,
+        )
+
+        self.norm3 = nn.LayerNorm(embedding_dim)
+
+        self.norm4 = nn.LayerNorm(embedding_dim)
+        self.cross_attn_image_to_token = AttentionForTwoWayAttentionBlock(
+            embedding_dim,
+            num_heads,
+            downsample_rate=attention_downsample_rate,
+        )
+
+        self.skip_first_layer_pe = skip_first_layer_pe
+
+    def forward(
+        self, queries: Tensor, keys: Tensor, query_pe: Tensor, key_pe: Tensor
+    ) -> Tuple[Tensor, Tensor]:
+        # Self attention block
+        if not self.skip_first_layer_pe:
+            queries = queries + query_pe
+        attn_out = self.self_attn(q=queries, k=queries, v=queries)
+        queries = queries + attn_out
+        queries = self.norm1(queries)
+
+        # Cross attention block, tokens attending to image embedding
+        q = queries + query_pe
+        k = keys + key_pe
+        attn_out = self.cross_attn_token_to_image(q=q, k=k, v=keys)
+        queries = queries + attn_out
+        queries = self.norm2(queries)
+
+        # MLP block
+        mlp_out = self.mlp(queries)
+        queries = queries + mlp_out
+        queries = self.norm3(queries)
+
+        # Cross attention block, image embedding attending to tokens
+        q = queries + query_pe
+        k = keys + key_pe
+        attn_out = self.cross_attn_image_to_token(q=k, k=q, v=queries)
+        keys = keys + attn_out
+        keys = self.norm4(keys)
+
+        return queries, keys
+
+
+class AttentionForTwoWayAttentionBlock(nn.Module):
+    """
+    An attention layer that allows for downscaling the size of the embedding
+    after projection to queries, keys, and values.
+    """
+
+    def __init__(
+        self,
+        embedding_dim: int,
+        num_heads: int,
+        downsample_rate: int = 1,
+    ) -> None:
+        super().__init__()
+        self.embedding_dim = embedding_dim
+        self.internal_dim = embedding_dim // downsample_rate
+        self.num_heads = num_heads
+        assert (
+            self.internal_dim % num_heads == 0
+        ), "num_heads must divide embedding_dim."
+        self.c_per_head = self.internal_dim / num_heads
+        self.inv_sqrt_c_per_head = 1.0 / math.sqrt(self.c_per_head)
+
+        self.q_proj = nn.Linear(embedding_dim, self.internal_dim)
+        self.k_proj = nn.Linear(embedding_dim, self.internal_dim)
+        self.v_proj = nn.Linear(embedding_dim, self.internal_dim)
+        self.out_proj = nn.Linear(self.internal_dim, embedding_dim)
+        self._reset_parameters()
+
+    def _reset_parameters(self) -> None:
+        # The fan_out is incorrect, but matches pytorch's initialization
+        # for which qkv is a single 3*embedding_dim x embedding_dim matrix
+        fan_in = self.embedding_dim
+        fan_out = 3 * self.internal_dim
+        # Xavier uniform with our custom fan_out
+        bnd = math.sqrt(6 / (fan_in + fan_out))
+        nn.init.uniform_(self.q_proj.weight, -bnd, bnd)
+        nn.init.uniform_(self.k_proj.weight, -bnd, bnd)
+        nn.init.uniform_(self.v_proj.weight, -bnd, bnd)
+        # out_proj.weight is left with default initialization, like pytorch attention
+        nn.init.zeros_(self.q_proj.bias)
+        nn.init.zeros_(self.k_proj.bias)
+        nn.init.zeros_(self.v_proj.bias)
+        nn.init.zeros_(self.out_proj.bias)
+
+    def _separate_heads(self, x: Tensor, num_heads: int) -> Tensor:
+        b, n, c = x.shape
+        x = x.reshape(b, n, num_heads, c // num_heads)
+        return x.transpose(1, 2)  # B x N_heads x N_tokens x C_per_head
+
+    def _recombine_heads(self, x: Tensor) -> Tensor:
+        b, n_heads, n_tokens, c_per_head = x.shape
+        x = x.transpose(1, 2)
+        return x.reshape(b, n_tokens, n_heads * c_per_head)  # B x N_tokens x C
+
+    def forward(self, q: Tensor, k: Tensor, v: Tensor) -> Tensor:
+        # Input projections
+        q = self.q_proj(q)
+        k = self.k_proj(k)
+        v = self.v_proj(v)
+
+        # Separate into heads
+        q = self._separate_heads(q, self.num_heads)
+        k = self._separate_heads(k, self.num_heads)
+        v = self._separate_heads(v, self.num_heads)
+
+        # Attention
+        _, _, _, c_per_head = q.shape
+        attn = q @ k.permute(0, 1, 3, 2)  # B x N_heads x N_tokens x N_tokens
+        attn = attn * self.inv_sqrt_c_per_head
+        attn = torch.softmax(attn, dim=-1)
+        # Get output
+        out = attn @ v
+        out = self._recombine_heads(out)
+        out = self.out_proj(out)
+        return out

export_to_onnx.py

+#ONNX export code is from [labelme annotation tool](https://github.com/labelmeai/efficient-sam). Huge thanks to Kentaro Wada.
+
+import onnxruntime
+import torch
+
+from efficient_sam.build_efficient_sam import build_efficient_sam_vits
+from efficient_sam.build_efficient_sam import build_efficient_sam_vitt
+
+import onnx_models
+
+
+def export_onnx(onnx_model, output, dynamic_axes, dummy_inputs, output_names):
+    with open(output, "wb") as f:
+        print(f"Exporting onnx model to {output}...")
+        torch.onnx.export(
+            onnx_model,
+            tuple(dummy_inputs.values()),
+            f,
+            export_params=True,
+            verbose=False,
+            opset_version=17,
+            do_constant_folding=True,
+            input_names=list(dummy_inputs.keys()),
+            output_names=output_names,
+            dynamic_axes=dynamic_axes,
+        )
+
+    inference_session = onnxruntime.InferenceSession(output)
+    output = inference_session.run(
+        output_names=output_names,
+        input_feed={k: v.numpy() for k, v in dummy_inputs.items()},
+    )
+    print(output_names)
+    print([output_i.shape for output_i in output])
+
+
+def export_onnx_esam(model, output):
+    onnx_model = onnx_models.OnnxEfficientSam(model=model)
+    dynamic_axes = {
+        "batched_images": {0: "batch", 2: "height", 3: "width"},
+        "batched_point_coords": {2: "num_points"},
+        "batched_point_labels": {2: "num_points"},
+    }
+    dummy_inputs = {
+        "batched_images": torch.randn(1, 3, 1080, 1920, dtype=torch.float),
+        "batched_point_coords": torch.randint(
+            low=0, high=1080, size=(1, 1, 5, 2), dtype=torch.float
+        ),
+        "batched_point_labels": torch.randint(
+            low=0, high=4, size=(1, 1, 5), dtype=torch.float
+        ),
+    }
+    output_names = ["output_masks", "iou_predictions"]
+    export_onnx(
+        onnx_model=onnx_model,
+        output=output,
+        dynamic_axes=dynamic_axes,
+        dummy_inputs=dummy_inputs,
+        output_names=output_names,
+    )
+
+
+def export_onnx_esam_encoder(model, output):
+    onnx_model = onnx_models.OnnxEfficientSamEncoder(model=model)
+    dynamic_axes = {
+        "batched_images": {0: "batch", 2: "height", 3: "width"},
+    }
+    dummy_inputs = {
+        "batched_images": torch.randn(1, 3, 1080, 1920, dtype=torch.float),
+    }
+    output_names = ["image_embeddings"]
+    export_onnx(
+        onnx_model=onnx_model,
+        output=output,
+        dynamic_axes=dynamic_axes,
+        dummy_inputs=dummy_inputs,
+        output_names=output_names,
+    )
+
+
+def export_onnx_esam_decoder(model, output):
+    onnx_model = onnx_models.OnnxEfficientSamDecoder(model=model)
+    dynamic_axes = {
+        "image_embeddings": {0: "batch"},
+        "batched_point_coords": {2: "num_points"},
+        "batched_point_labels": {2: "num_points"},
+    }
+    dummy_inputs = {
+        "image_embeddings": torch.randn(1, 256, 64, 64, dtype=torch.float),
+        "batched_point_coords": torch.randint(
+            low=0, high=1080, size=(1, 1, 5, 2), dtype=torch.float
+        ),
+        "batched_point_labels": torch.randint(
+            low=0, high=4, size=(1, 1, 5), dtype=torch.float
+        ),
+        "orig_im_size": torch.tensor([1080, 1920], dtype=torch.long),
+    }
+    output_names = ["output_masks", "iou_predictions"]
+    export_onnx(
+        onnx_model=onnx_model,
+        output=output,
+        dynamic_axes=dynamic_axes,
+        dummy_inputs=dummy_inputs,
+        output_names=output_names,
+    )
+
+
+def main():
+    # faster
+    export_onnx_esam(
+        model=build_efficient_sam_vitt(),
+        output="weights/efficient_sam_vitt.onnx",
+    )
+    export_onnx_esam_encoder(
+        model=build_efficient_sam_vitt(),
+        output="weights/efficient_sam_vitt_encoder.onnx",
+    )
+    export_onnx_esam_decoder(
+        model=build_efficient_sam_vitt(),
+        output="weights/efficient_sam_vitt_decoder.onnx",
+    )
+
+    # more accurate
+    export_onnx_esam(
+        model=build_efficient_sam_vits(),
+        output="weights/efficient_sam_vits.onnx",
+    )
+    export_onnx_esam_encoder(
+        model=build_efficient_sam_vits(),
+        output="weights/efficient_sam_vits_encoder.onnx",
+    )
+    export_onnx_esam_decoder(
+        model=build_efficient_sam_vits(),
+        output="weights/efficient_sam_vits_decoder.onnx",
+    )
+
+
+if __name__ == "__main__":
+    main()

export_to_torchscript.py

+import torch
+from efficient_sam.build_efficient_sam import build_efficient_sam_vitt, build_efficient_sam_vits
+# from squeeze_sam.build_squeeze_sam import build_squeeze_sam
+import zipfile
+import os
+
+# Efficient SAM (VIT-tiny)
+torch.jit.save(torch.jit.script(build_efficient_sam_vitt()), "torchscripted_model/efficient_sam_vitt_torchscript.pt")
+
+# Efficient SAM (VIT-small)
+# Since VIT-small is >100MB, we store the zip file.
+with zipfile.ZipFile("weights/efficient_sam_vits.pt.zip", 'r') as zip_ref:
+    zip_ref.extractall("weights")
+torch.jit.save(torch.jit.script(build_efficient_sam_vits()), "torchscripted_model/efficient_sam_vits_torchscript.pt")
+
+# Squeeze SAM (UNET)
+# torch.jit.save(torch.jit.script(build_squeeze_sam()), "torchscripted_model/squeeze_sam_torchscript.pt")

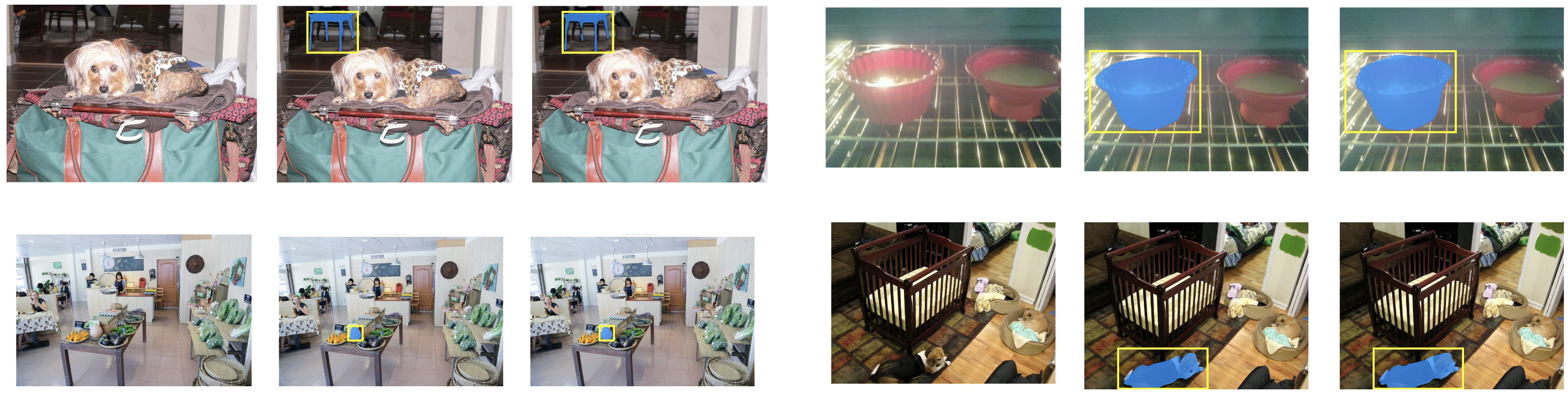

inference_box_prompt.py

+import matplotlib.pyplot as plt
+import numpy as np
+import torch
+from torchvision.transforms import ToTensor
+from PIL import Image
+import io
+DEVICE = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
+print(DEVICE)
+def run_ours_box_or_points(img_path, pts_sampled, pts_labels, model):
+    model = model.to(DEVICE)
+    image_np = np.array(Image.open(img_path))
+    img_tensor = ToTensor()(image_np)
+    img_tensor = img_tensor.to(DEVICE)
+    pts_sampled = torch.reshape(torch.tensor(pts_sampled), [1, 1, -1, 2])
+    pts_labels = torch.reshape(torch.tensor(pts_labels), [1, 1, -1])
+    pts_sampled = pts_sampled.to(DEVICE)
+    pts_labels = pts_labels.to(DEVICE)
+    predicted_logits, predicted_iou = model(
+        img_tensor[None, ...],
+        pts_sampled,
+        pts_labels,
+    )
+    sorted_ids = torch.argsort(predicted_iou, dim=-1, descending=True)
+    predicted_iou = torch.take_along_dim(predicted_iou, sorted_ids, dim=2)
+    predicted_logits = torch.take_along_dim(
+        predicted_logits, sorted_ids[..., None, None], dim=2
+    )
+
+    return torch.ge(predicted_logits[0, 0, 0, :, :], 0).cpu().detach().numpy()
+
+def show_mask(mask, ax, random_color=False):
+    if random_color:
+        color = np.concatenate([np.random.random(3), np.array([0.6])], axis=0)
+    else:
+        color = np.array([30 / 255, 144 / 255, 255 / 255, 0.8])
+    h, w = mask.shape[-2:]
+    mask_image = mask.reshape(h, w, 1) * color.reshape(1, 1, -1)
+    ax.imshow(mask_image)
+
+
+def show_points(coords, labels, ax, marker_size=375):
+    pos_points = coords[labels == 1]
+    neg_points = coords[labels == 0]
+    ax.scatter(
+        pos_points[:, 0],
+        pos_points[:, 1],
+        color="green",
+        marker="*",
+        s=marker_size,
+        edgecolor="white",
+        linewidth=1.25,
+    )
+    ax.scatter(
+        neg_points[:, 0],
+        neg_points[:, 1],
+        color="red",
+        marker="*",
+        s=marker_size,
+        edgecolor="white",
+        linewidth=1.25,
+    )
+
+
+def show_box(box, ax):
+    x0, y0 = box[0], box[1]
+    w, h = box[2] - box[0], box[3] - box[1]
+    ax.add_patch(
+        plt.Rectangle((x0, y0), w, h, edgecolor="yellow", facecolor=(0, 0, 0, 0), lw=5)
+    )
+
+def show_anns_ours(mask, ax):
+    ax.set_autoscale_on(False)
+    img = np.ones((mask.shape[0], mask.shape[1], 4))
+    img[:, :, 3] = 0
+    color_mask = [0, 1, 0, 0.7]
+    img[np.logical_not(mask)] = color_mask
+    ax.imshow(img)
+from efficient_sam.build_efficient_sam import build_efficient_sam_vitt, build_efficient_sam_vits
+# from squeeze_sam.build_squeeze_sam import build_squeeze_sam
+import zipfile
+
+efficient_sam_vitt_model = build_efficient_sam_vitt()
+efficient_sam_vitt_model.eval()
+
+# Since EfficientSAM-S checkpoint file is >100MB, we store the zip file.
+with zipfile.ZipFile("weights/efficient_sam_vits.pt.zip", 'r') as zip_ref:
+    zip_ref.extractall("weights")
+efficient_sam_vits_model = build_efficient_sam_vits()
+efficient_sam_vits_model.eval()
+
+# squeeze_sam_model = build_squeeze_sam()
+# squeeze_sam_model.eval()
+x1=400
+y1=200
+x2=800
+y2=600
+w=x2-x1
+h=y2-y1
+
+fig, ax = plt.subplots(1, 3, figsize=(30, 30))
+input_point = np.array([[x1, y1], [x2, y2]])
+input_label = np.array([2,3])
+image_path = "figs/examples/dogs.jpg"
+image = np.array(Image.open(image_path))
+show_points(input_point, input_label, ax[0])
+show_box([x1,y1,x2,y2], ax[0])
+ax[0].imshow(image)
+
+
+ax[1].imshow(image)
+mask_efficient_sam_vitt = run_ours_box_or_points(image_path, input_point, input_label, efficient_sam_vitt_model)
+show_anns_ours(mask_efficient_sam_vitt, ax[1])
+ax[1].title.set_text("EfficientSAM (VIT-tiny)")
+ax[1].axis('off')
+
+ax[2].imshow(image)
+mask_efficient_sam_vits = run_ours_box_or_points(image_path, input_point, input_label, efficient_sam_vits_model)
+show_anns_ours(mask_efficient_sam_vits, ax[2])
+ax[2].title.set_text("EfficientSAM (VIT-small)")
+ax[2].axis('off')
+
+
+# ax[3].imshow(image)
+# mask_squeeze_sam = run_ours_box_or_points(image_path, input_point, input_label, squeeze_sam_model)
+# show_anns_ours(mask_squeeze_sam, ax[3])
+# ax[3].title.set_text("SqueezeSAM")
+# ax[3].axis('off')
+
+plt.savefig("results/efficientsam_box.png", bbox_inches='tight')
\ No newline at end of file

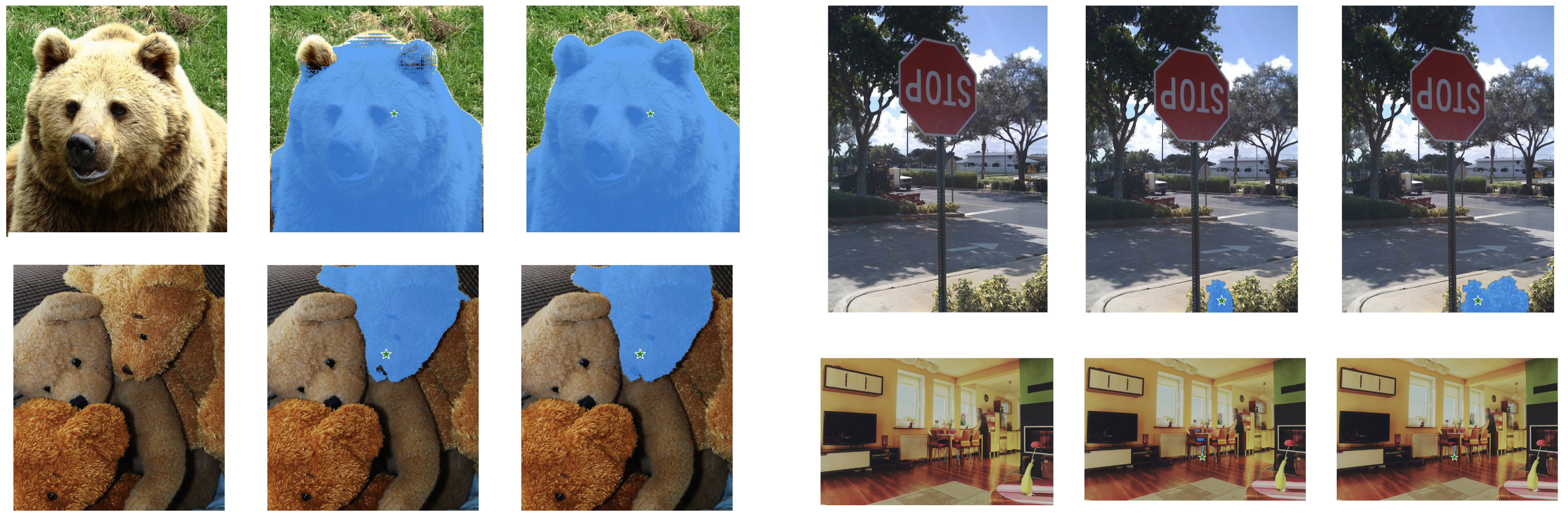

inference_point_prompt.py

+import matplotlib.pyplot as plt
+import numpy as np
+import torch
+from torchvision.transforms import ToTensor
+from PIL import Image
+import io
+DEVICE = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
+print(DEVICE)
+def run_ours_box_or_points(img_path, pts_sampled, pts_labels, model):
+    model = model.to(DEVICE)
+    image_np = np.array(Image.open(img_path))
+    img_tensor = ToTensor()(image_np)
+    img_tensor = img_tensor.to(DEVICE)
+    pts_sampled = torch.reshape(torch.tensor(pts_sampled), [1, 1, -1, 2])
+    pts_labels = torch.reshape(torch.tensor(pts_labels), [1, 1, -1])
+    pts_sampled = pts_sampled.to(DEVICE)
+    pts_labels = pts_labels.to(DEVICE)
+    predicted_logits, predicted_iou = model(
+        img_tensor[None, ...],
+        pts_sampled,
+        pts_labels,
+    )
+    sorted_ids = torch.argsort(predicted_iou, dim=-1, descending=True)
+    predicted_iou = torch.take_along_dim(predicted_iou, sorted_ids, dim=2)
+    predicted_logits = torch.take_along_dim(
+        predicted_logits, sorted_ids[..., None, None], dim=2
+    )
+
+    return torch.ge(predicted_logits[0, 0, 0, :, :], 0).cpu().detach().numpy()
+
+def show_mask(mask, ax, random_color=False):
+    if random_color:
+        color = np.concatenate([np.random.random(3), np.array([0.6])], axis=0)
+    else:
+        color = np.array([30 / 255, 144 / 255, 255 / 255, 0.8])
+    h, w = mask.shape[-2:]
+    mask_image = mask.reshape(h, w, 1) * color.reshape(1, 1, -1)
+    ax.imshow(mask_image)
+
+
+def show_points(coords, labels, ax, marker_size=375):
+    pos_points = coords[labels == 1]
+    neg_points = coords[labels == 0]
+    ax.scatter(
+        pos_points[:, 0],
+        pos_points[:, 1],
+        color="green",
+        marker="*",
+        s=marker_size,
+        edgecolor="white",
+        linewidth=1.25,
+    )
+    ax.scatter(
+        neg_points[:, 0],
+        neg_points[:, 1],
+        color="red",
+        marker="*",
+        s=marker_size,
+        edgecolor="white",
+        linewidth=1.25,
+    )
+
+
+def show_box(box, ax):
+    x0, y0 = box[0], box[1]
+    w, h = box[2] - box[0], box[3] - box[1]
+    ax.add_patch(
+        plt.Rectangle((x0, y0), w, h, edgecolor="yellow", facecolor=(0, 0, 0, 0), lw=5)
+    )
+
+def show_anns_ours(mask, ax):
+    ax.set_autoscale_on(False)
+    img = np.ones((mask.shape[0], mask.shape[1], 4))
+    img[:, :, 3] = 0
+    color_mask = [0, 1, 0, 0.7]
+    img[np.logical_not(mask)] = color_mask
+    ax.imshow(img)
+from efficient_sam.build_efficient_sam import build_efficient_sam_vitt, build_efficient_sam_vits
+# from squeeze_sam.build_squeeze_sam import build_squeeze_sam
+import zipfile
+
+efficient_sam_vitt_model = build_efficient_sam_vitt()
+efficient_sam_vitt_model.eval()
+
+# Since EfficientSAM-S checkpoint file is >100MB, we store the zip file.
+with zipfile.ZipFile("weights/efficient_sam_vits.pt.zip", 'r') as zip_ref:
+    zip_ref.extractall("weights")
+efficient_sam_vits_model = build_efficient_sam_vits()
+efficient_sam_vits_model.eval()
+
+# squeeze_sam_model = build_squeeze_sam()
+# squeeze_sam_model.eval()
+fig, ax = plt.subplots(1, 3, figsize=(30, 30))
+input_label = np.array([1, 1])
+image_path = "figs/examples/dogs.jpg"
+input_point = np.array([[580, 350], [650, 350]])
+image = np.array(Image.open(image_path))
+show_points(input_point, input_label, ax[0])
+ax[0].imshow(image)
+
+
+ax[1].imshow(image)
+mask_efficient_sam_vitt = run_ours_box_or_points(image_path, input_point, input_label, efficient_sam_vitt_model)
+show_anns_ours(mask_efficient_sam_vitt, ax[1])
+ax[1].title.set_text("EfficientSAM (VIT-tiny)")
+ax[1].axis('off')
+
+ax[2].imshow(image)
+mask_efficient_sam_vits = run_ours_box_or_points(image_path, input_point, input_label, efficient_sam_vits_model)
+show_anns_ours(mask_efficient_sam_vits, ax[2])
+ax[2].title.set_text("EfficientSAM (VIT-small)")
+ax[2].axis('off')
+
+
+# ax[3].imshow(image)
+# mask_squeeze_sam = run_ours_box_or_points(image_path, input_point, input_label, squeeze_sam_model)
+# show_anns_ours(mask_squeeze_sam, ax[3])
+# ax[3].title.set_text("SqueezeSAM")
+# ax[3].axis('off')
+
+plt.savefig("results/efficientsam_point.png", bbox_inches='tight')
\ No newline at end of file

inference_segment_everything.py

+import matplotlib.pyplot as plt
+import numpy as np
+import torch
+from torchvision.transforms import ToTensor
+from PIL import Image
+import io
+import cv2
+GRID_SIZE = 32
+from segment_anything.utils.amg import (
+    batched_mask_to_box,
+    calculate_stability_score,
+    mask_to_rle_pytorch,
+    remove_small_regions,
+    rle_to_mask,
+)
+from torchvision.ops.boxes import batched_nms, box_area
+DEVICE = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
+def process_small_region(rles):
+        new_masks = []
+        scores = []
+        min_area = 100
+        nms_thresh = 0.7
+        for rle in rles:
+            mask = rle_to_mask(rle[0])
+
+            mask, changed = remove_small_regions(mask, min_area, mode="holes")
+            unchanged = not changed
+            mask, changed = remove_small_regions(mask, min_area, mode="islands")
+            unchanged = unchanged and not changed
+
+            new_masks.append(torch.as_tensor(mask).unsqueeze(0))
+            # Give score=0 to changed masks and score=1 to unchanged masks
+            # so NMS will prefer ones that didn't need postprocessing
+            scores.append(float(unchanged))
+
+        # Recalculate boxes and remove any new duplicates
+        masks = torch.cat(new_masks, dim=0)
+        boxes = batched_mask_to_box(masks)
+        keep_by_nms = batched_nms(
+            boxes.float(),
+            torch.as_tensor(scores),
+            torch.zeros_like(boxes[:, 0]),  # categories
+            iou_threshold=nms_thresh,
+        )
+
+        # Only recalculate RLEs for masks that have changed
+        for i_mask in keep_by_nms:
+            if scores[i_mask] == 0.0:
+                mask_torch = masks[i_mask].unsqueeze(0)
+                rles[i_mask] = mask_to_rle_pytorch(mask_torch)
+        masks = [rle_to_mask(rles[i][0]) for i in keep_by_nms]
+        return masks
+def get_predictions_given_embeddings_and_queries(img, points, point_labels, model):
+    predicted_masks, predicted_iou = model(
+        img[None, ...], points, point_labels
+    )
+    sorted_ids = torch.argsort(predicted_iou, dim=-1, descending=True)
+    predicted_iou_scores = torch.take_along_dim(predicted_iou, sorted_ids, dim=2)
+    predicted_masks = torch.take_along_dim(
+        predicted_masks, sorted_ids[..., None, None], dim=2
+    )
+    predicted_masks = predicted_masks[0]
+    iou = predicted_iou_scores[0, :, 0]
+    index_iou = iou > 0.7
+    iou_ = iou[index_iou]
+    masks = predicted_masks[index_iou]
+    score = calculate_stability_score(masks, 0.0, 1.0)
+    score = score[:, 0]
+    index = score > 0.9
+    score_ = score[index]
+    masks = masks[index]
+    iou_ = iou_[index]
+    masks = torch.ge(masks, 0.0)
+    return masks, iou_
+
+def run_everything_ours(img_path, model):
+    model = model.to(DEVICE)
+    image = cv2.imread(image_path)
+    image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
+    img_tensor = ToTensor()(image)
+    _, original_image_h, original_image_w = img_tensor.shape
+    xy = []
+    for i in range(GRID_SIZE):
+        curr_x = 0.5 + i / GRID_SIZE * original_image_w
+        for j in range(GRID_SIZE):
+            curr_y = 0.5 + j / GRID_SIZE * original_image_h
+            xy.append([curr_x, curr_y])
+    xy = torch.from_numpy(np.array(xy))
+    points = xy
+    num_pts = xy.shape[0]
+    point_labels = torch.ones(num_pts, 1)
+    with torch.no_grad():
+      predicted_masks, predicted_iou = get_predictions_given_embeddings_and_queries(
+              img_tensor.to(DEVICE),
+              points.reshape(1, num_pts, 1, 2).to(DEVICE),
+              point_labels.reshape(1, num_pts, 1).to(DEVICE),
+              model.to(DEVICE),
+          )
+    rle = [mask_to_rle_pytorch(m[0:1]) for m in predicted_masks]
+    predicted_masks = process_small_region(rle)
+    return predicted_masks
+def show_anns_ours(mask, ax):
+    ax.set_autoscale_on(False)
+    img = np.ones((mask[0].shape[0], mask[0].shape[1], 4))
+    img[:,:,3] = 0
+    for ann in mask:
+        m = ann
+        color_mask = np.concatenate([np.random.random(3), [0.5]])
+        img[m] = color_mask
+    ax.imshow(img)
+from efficient_sam.build_efficient_sam import build_efficient_sam_vitt, build_efficient_sam_vits
+# from squeeze_sam.build_squeeze_sam import build_squeeze_sam
+import zipfile
+
+efficient_sam_vitt_model = build_efficient_sam_vitt()
+efficient_sam_vitt_model.eval()
+
+# Since EfficientSAM-S checkpoint file is >100MB, we store the zip file.
+with zipfile.ZipFile("weights/efficient_sam_vits.pt.zip", 'r') as zip_ref:
+    zip_ref.extractall("weights")
+efficient_sam_vits_model = build_efficient_sam_vits()
+efficient_sam_vits_model.eval()
+fig, ax = plt.subplots(1, 3, figsize=(30, 30))

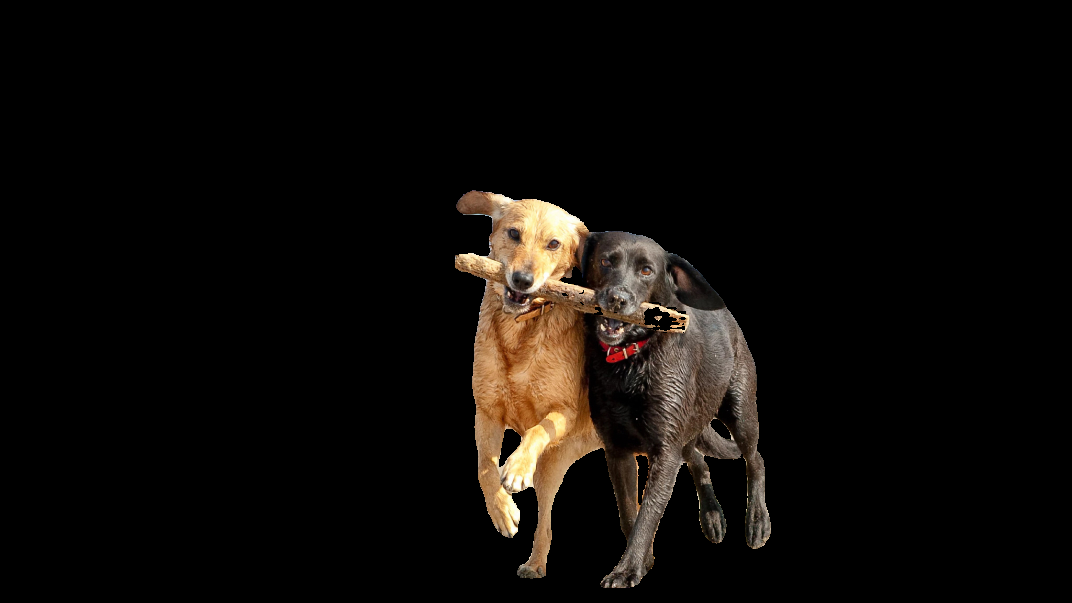

+image_path = "figs/examples/dogs.jpg"
+image = np.array(Image.open(image_path))
+ax[0].imshow(image)
+ax[0].title.set_text("Original")
+ax[0].axis('off')
+
+ax[1].imshow(image)
+mask_efficient_sam_vitt = run_everything_ours(image_path, efficient_sam_vitt_model)
+show_anns_ours(mask_efficient_sam_vitt, ax[1])
+ax[1].title.set_text("EfficientSAM (VIT-tiny)")
+ax[1].axis('off')
+
+ax[2].imshow(image)
+mask_efficient_sam_vits = run_everything_ours(image_path, efficient_sam_vits_model)
+show_anns_ours(mask_efficient_sam_vits, ax[2])
+ax[2].title.set_text("EfficientSAM (VIT-small)")
+ax[2].axis('off')
+

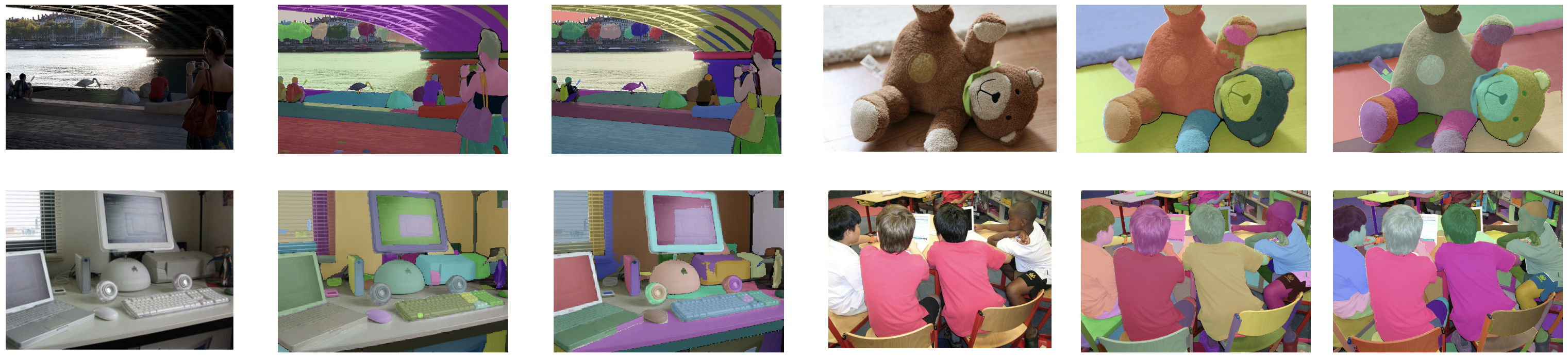

+plt.savefig("results/segmenteverything.png", bbox_inches='tight')
\ No newline at end of file

linter.sh

+#!/bin/bash -e
+# Copyright (c) Facebook, Inc. and its affiliates.
+
+{
+  black --version | grep -E "23\." > /dev/null
+} || {
+  echo "Linter requires 'black==23.*' !"
+  exit 1
+}
+
+ISORT_VERSION=$(isort --version-number)
+if [[ "$ISORT_VERSION" != 5.12* ]]; then
+  echo "Linter requires isort==5.12.0 !"
+  exit 1
+fi
+
+echo "Running isort ..."
+isort . --atomic
+
+echo "Running black ..."
+black -l 100 .
+
+echo "Running flake8 ..."
+if [ -x "$(command -v flake8)" ]; then
+  flake8 .
+else
+  python3 -m flake8 .
+fi
+
+echo "Running mypy..."
+
+mypy --exclude 'setup.py|notebooks' .

model.properties

+# 模型唯一标识
+modelCode=638
+# 模型名称
+modelName=efficientsam_pytorch
+# 模型描述
+modelDescription=EfficientSAM基于point、box和分割一切推理
+# 应用场景
+appScenario=推理,制造,广媒,能源,医疗,家居,教育
+# 框架类型
+frameType=pytorch
