Commit 715e39c4 authored by chenych's avatar chenych
Browse files

Add experimental version

parent 1fac49dc
Expand all Hide whitespace changes
Inline Side-by-side
Showing with 242 additions and 1524 deletions
README.md
View file @ 715e39c4
......@@ -24,6 +24,11 @@ DCU型号：K100AI,节点数量：4台,卡数：32 张。
dcoker pull image.sourcefind.cn:5000/dcu/admin/base/vllm:0.9.2-ubuntu22.04-dtk25.04.1-rc5-rocblas104381-0915-das1.6-py3.10-20250916-rc2
docker run -it --shm-size 200g --network=host --name {docker_name} --privileged --device=/dev/kfd --device=/dev/dri --device=/dev/mkfd --group-add video --cap-add=SYS_PTRACE --security-opt seccomp=unconfined -u root -v /path/your_code_data/:/path/your_code_data/ -v /opt/hyhal/:/opt/hyhal/:ro {imageID} bash
## 安装transformers
git clone -b add-deepseek-exp https://github.com/huggingface/transformers.git
cd transformers
pip install -e .
cd /your_code_path/deepseek-v3.2-exp_pytorch
```
......@@ -35,6 +40,11 @@ docker build --no-cache -t deepseek-v3.2-exp:latest .
docker run -it --shm-size 200g --network=host --name {docker_name} --privileged --device=/dev/kfd --device=/dev/dri --device=/dev/mkfd --group-add video --cap-add=SYS_PTRACE --security-opt seccomp=unconfined -u root -v /path/your_code_data/:/path/your_code_data/ -v /opt/hyhal/:/opt/hyhal/:ro {imageID} bash
## 安装transformers
git clone -b add-deepseek-exp https://github.com/huggingface/transformers.git
cd transformers
pip install -e .
cd /your_code_path/deepseek-v3.2-exp_pytorch
```
......@@ -45,10 +55,17 @@ cd /your_code_path/deepseek-v3.2-exp_pytorch
DTK: 25.04.1
python: 3.10.12
torch: 2.5.1+das.opt1.dtk25041
vllm: 0.9.2+das.opt1.rc2.dtk25041
transformers: 4.55.0
```
`Tips：以上dtk驱动、pytorch等DCU相关工具版本需要严格一一对应`
`Tips：以上dtk驱动、pytorch等DCU相关工具版本需要严格一一对应`, 其他组件安装方法如下：
```bash
## 安装transformers
git clone -b add-deepseek-exp https://github.com/huggingface/transformers.git
cd transformers
pip install -e .
cd /your_code_path/deepseek-v3.2-exp_pytorch
```
## 数据集
无
......@@ -57,32 +74,113 @@ transformers: 4.55.0
暂无
## 推理
1. 首先将模型转换成bf16格式
样例模型：[DeepSeek-V3.2-Exp](https://huggingface.co/deepseek-ai/DeepSeek-V3.2-Exp)
首先将模型转换成bf16格式
```bash
cd inference
# fp8转bf16
python fp8_cast_bf16.py --input-fp8-hf-path /path/to/DeepSeek-V3.2-Exp --output-bf16-hf-path /path/to/DeepSeek-V3.2-Exp-bf16
python inference/fp8_cast_bf16.py --input-fp8-hf-path /path/to/DeepSeek-V3.2-Exp --output-bf16-hf-path /path/to/DeepSeek-V3.2-Exp-bf16
```
### vllm推理方法
#### server 多机
1. 加入环境变量
> 请注意：
> 每个节点上的环境变量都写到.sh文件中，保存后各个计算节点分别source `.sh` 文件
>
> VLLM_HOST_IP：节点本地通信口ip，尽量选择IB网卡的IP，**避免出现rccl超时问题**
>
> NCCL_SOCKET_IFNAME和GLOO_SOCKET_IFNAME：节点本地通信网口ip对应的名称
>
> 通信口和ip查询方法：ifconfig
>
> IB口状态查询：ibstat !!!一定要active激活状态才可用，各个节点要保持统一
<div align=center>
<img src="./doc/ip_bw.png"/>
</div>
```bash
export ALLREDUCE_STREAM_WITH_COMPUTE=1
export VLLM_HOST_IP=x.x.x.x # 对应计算节点的IP，建议选择IB口SOCKET_IFNAME对应IP地址
export NCCL_SOCKET_IFNAME=ibxxxx
export GLOO_SOCKET_IFNAME=ibxxxx
export NCCL_IB_HCA=mlx5_0:1 # 环境中的IB网卡名字
unset NCCL_ALGO
export NCCL_MIN_NCHANNELS=16
export NCCL_MAX_NCHANNELS=16
export NCCL_NET_GDR_READ=1
export HIP_VISIBLE_DEVICES=0,1,2,3,4,5,6,7
# 海光CPU绑定核
export VLLM_NUMA_BIND=1
export VLLM_RANK0_NUMA=0
export VLLM_RANK1_NUMA=1
export VLLM_RANK2_NUMA=2
export VLLM_RANK3_NUMA=3
export VLLM_RANK4_NUMA=4
export VLLM_RANK5_NUMA=5
export VLLM_RANK6_NUMA=6
export VLLM_RANK7_NUMA=7
#BW集群需要额外设置的环境变量：
export NCCL_NET_GDR_LEVEL=7
export NCCL_SDMA_COPY_ENABLE=0
export VLLM_RPC_TIMEOUT=1800000
```
2. 进行模型划分
2. 启动RAY集群
> x.x.x.x 对应第一步 Master节点的 VLLM_HOST_IP
```bash
python convert.py --hf-ckpt-path /path/to/DeepSeek-V3.2-Exp-bf16 --save-path /path/to/DeepSeek-V3.2-Demo --n-experts 256 --model-parallel 32
# head节点执行
ray start --head --node-ip-address=x.x.x.x --port=6379 --num-gpus=8 --num-cpus=32
# worker节点执行
ray start --address='x.x.x.x:6379' --num-gpus=8 --num-cpus=32
```
> 注意：需要将/path/to/DeepSeek-V3.2-Exp中的json文件复制到/path/to/DeepSeek-V3.2-Demo中。
3. 启动推理
3. 启动vllm server
> intel cpu 需要加参数：`--enforce-eager`
```bash
export NCCL_ALGO=Ring
export NCCL_PROTO=Simple
# chat
torchrun --nnodes 4 --nproc-per-node 8 --node-rank $RANK --master-addr $ADDR generate.py --ckpt-path /path/to/DeepSeek-V3-Demo --config config_671B_v3.2.json --interactive --temperature 0.7 --max-new-tokens 200
vllm serve deepseek-v3.2/DeepSeek-V3.2-Exp-bf16 \
--enforce-eager \
--trust-remote-code \
--distributed-executor-backend ray \
--dtype bfloat16 \
--tensor-parallel-size 32 \
--max-model-len 32768 \
--max-num-seqs 128 \
--no-enable-chunked-prefill \
--no-enable-prefix-caching \
--gpu-memory-utilization 0.85 \
--host 127.0.0.1 \
--port 8001 \
--kv-cache-dtype bfloat16
```
## result
启动完成后可通过以下方式访问：
```bash
curl http://127.0.0.1:8001/v1/chat/completions \
-H "Content-Type: application/json" \
-d '{
"model": "deepseek-ai/DeepSeek-V3.2-Exp",
"messages": [
{
"role": "user",
"content": "Explain Machine Learning to me in a nutshell."
}
],
"temperature": 0.15,
"top_p": 1.0,
"max_tokens": 2048,
"stream": false
}'
```

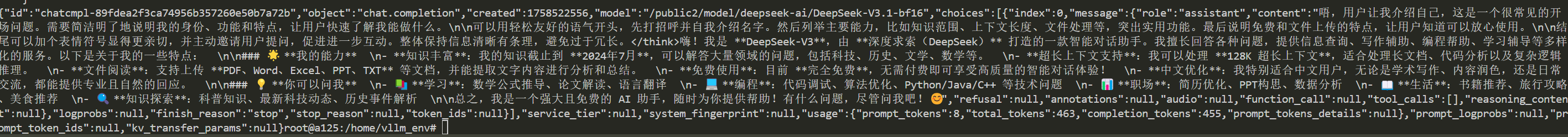

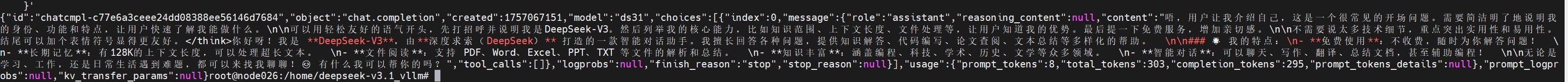

## result
### 精度
DCU与GPU精度一致，推理框架：vllm。
## 应用场景
### 算法类别
......@@ -93,6 +191,7 @@ torchrun --nnodes 4 --nproc-per-node 8 --node-rank $RANK --master-addr $ADDR gen
## 预训练权重
- [DeepSeek-V3.2-Exp](https://huggingface.co/deepseek-ai/DeepSeek-V3.2-Exp)
- [DeepSeek-V3.2-Exp-Base](https://huggingface.co/deepseek-ai/DeepSeek-V3.2-Exp-Base)
## 源码仓库及问题反馈
- https://developer.sourcefind.cn/codes/modelzoo/deepseek-v3.2-exp_pytorch
......

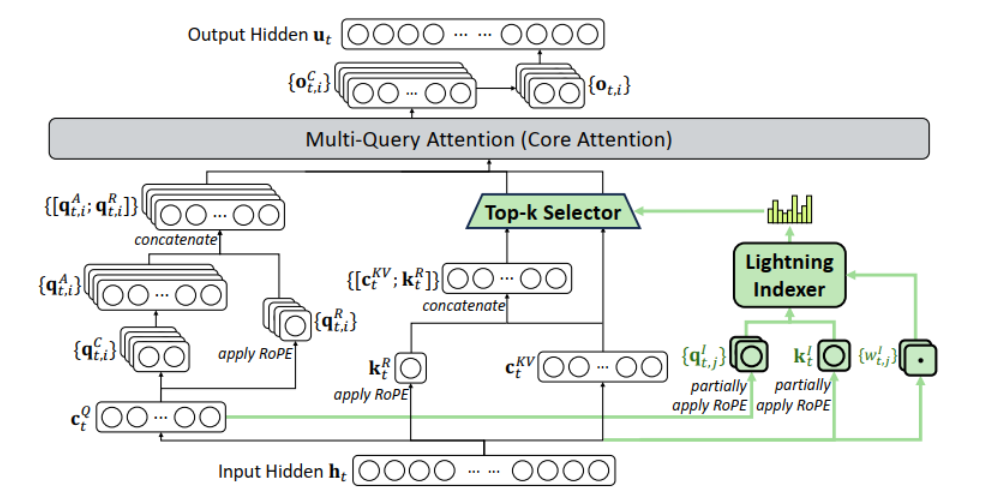

doc/arch.png
View replaced file @ 1fac49dc View file @ 715e39c4
doc/arch.png

89.2 KB | W: | H:

doc/arch.png

150 KB | W: | H:

doc/arch.png
doc/arch.png
doc/arch.png
doc/arch.png
  • 2-up
  • Swipe
  • Onion skin
inference/README.md deleted 100644 → 0
View file @ 1fac49dc
# DeepSeek V3.2
First convert huggingface model weights to the the format required by our inference demo. Set `MP` to match your available GPU count:
```bash
cd inference
export EXPERTS=256
python convert.py --hf-ckpt-path ${HF_CKPT_PATH} --save-path ${SAVE_PATH} --n-experts ${EXPERTS} --model-parallel ${MP}
```
Launch the interactive chat interface and start exploring DeepSeek's capabilities:
```bash
export CONFIG=config_671B_v3.2.json
torchrun --nproc-per-node ${MP} generate.py --ckpt-path ${SAVE_PATH} --config ${CONFIG} --interactive
```
\ No newline at end of file
inference/config_671B_v3.2.json deleted 100644 → 0
View file @ 1fac49dc
{
"vocab_size": 129280,
"dim": 7168,
"inter_dim": 18432,
"moe_inter_dim": 2048,
"n_layers": 61,
"n_dense_layers": 3,
"n_heads": 128,
"n_routed_experts": 256,
"n_shared_experts": 1,
"n_activated_experts": 8,
"n_expert_groups": 8,
"n_limited_groups": 4,
"route_scale": 2.5,
"score_func": "sigmoid",
"q_lora_rank": 1536,
"kv_lora_rank": 512,
"qk_nope_head_dim": 128,
"qk_rope_head_dim": 64,
"v_head_dim": 128,
"dtype": "bf16",
"scale_fmt": "ue8m0",
"index_n_heads": 64,
"index_head_dim": 128,
"index_topk": 2048
}
\ No newline at end of file
inference/convert.py deleted 100644 → 0
View file @ 1fac49dc
import os
import shutil
from argparse import ArgumentParser
from glob import glob
from tqdm import tqdm, trange
import torch
from safetensors.torch import safe_open, save_file
mapping = {
"embed_tokens": ("embed", 0),
"input_layernorm": ("attn_norm", None),
"post_attention_layernorm": ("ffn_norm", None),
"q_proj": ("wq", 0),
"q_a_proj": ("wq_a", None),
"q_a_layernorm": ("q_norm", None),
"q_b_proj": ("wq_b", 0),
"kv_a_proj_with_mqa": ("wkv_a", None),
"kv_a_layernorm": ("kv_norm", None),
"kv_b_proj": ("wkv_b", 0),
"o_proj": ("wo", 1),
"gate": ("gate", None),
"gate_proj": ("w1", 0),
"down_proj": ("w2", 1),
"up_proj": ("w3", 0),
"norm": ("norm", None),
"lm_head": ("head", 0),
"scale": ("scale", None),
"wq_b": ("wq_b", None),
"wk": ("wk", None),
"k_norm": ("k_norm", None),
"weights_proj": ("weights_proj", None),
}
def main(hf_ckpt_path, save_path, n_experts, mp):
"""
Converts and saves model checkpoint files into a specified format.
Args:
hf_ckpt_path (str): Path to the directory containing the input checkpoint files.
save_path (str): Path to the directory where the converted checkpoint files will be saved.
n_experts (int): Total number of experts in the model.
mp (int): Model parallelism factor.
Returns:
None
"""
torch.set_num_threads(8)
n_local_experts = n_experts // mp
state_dicts = [{} for _ in range(mp)]
for file_path in tqdm(glob(os.path.join(hf_ckpt_path, "*.safetensors"))):
with safe_open(file_path, framework="pt", device="cpu") as f:
for name in f.keys():
if "model.layers.61" in name:
continue
param: torch.Tensor = f.get_tensor(name)
if name.startswith("model."):
name = name[len("model."):]
name = name.replace("self_attn", "attn")
name = name.replace("mlp", "ffn")
name = name.replace("weight_scale_inv", "scale")
name = name.replace("e_score_correction_bias", "bias")
key = name.split(".")[-2]
assert key in mapping, f"Key {key} not found in mapping"
new_key, dim = mapping[key]
name = name.replace(key, new_key)
for i in range(mp):
new_param = param
if "experts" in name and "shared_experts" not in name:
idx = int(name.split(".")[-3])
if idx < i * n_local_experts or idx >= (i + 1) * n_local_experts:
continue
elif dim is not None:
assert param.size(dim) % mp == 0, f"Dimension {dim} must be divisible by {mp}"
shard_size = param.size(dim) // mp
new_param = param.narrow(dim, i * shard_size, shard_size).contiguous()
state_dicts[i][name] = new_param
os.makedirs(save_path, exist_ok=True)
for i in trange(mp):
save_file(state_dicts[i], os.path.join(save_path, f"model{i}-mp{mp}.safetensors"))
for file_path in glob(os.path.join(hf_ckpt_path, "*token*")):
new_file_path = os.path.join(save_path, os.path.basename(file_path))
shutil.copyfile(file_path, new_file_path)
if __name__ == "__main__":
parser = ArgumentParser()
parser.add_argument("--hf-ckpt-path", type=str, required=True)
parser.add_argument("--save-path", type=str, required=True)
parser.add_argument("--n-experts", type=int, required=True)
parser.add_argument("--model-parallel", type=int, required=True)
args = parser.parse_args()
assert args.n_experts % args.model_parallel == 0, "Number of experts must be divisible by model parallelism"
main(args.hf_ckpt_path, args.save_path, args.n_experts, args.model_parallel)
inference/generate.py deleted 100644 → 0
View file @ 1fac49dc
import os
import json
from argparse import ArgumentParser
from typing import List
import torch
import torch.distributed as dist
from transformers import AutoTokenizer
from safetensors.torch import load_model
from model import Transformer, ModelArgs
def sample(logits, temperature: float = 1.0):
"""
Samples a token from the logits using temperature scaling.
Args:
logits (torch.Tensor): The logits tensor for token predictions.
temperature (float, optional): Temperature for scaling logits. Defaults to 1.0.
Returns:
torch.Tensor: The sampled token.
"""
logits = logits / max(temperature, 1e-5)
probs = torch.softmax(logits, dim=-1, dtype=torch.float32)
return probs.div_(torch.empty_like(probs).exponential_(1)).argmax(dim=-1)
@torch.inference_mode()
def generate(
model: Transformer,
prompt_tokens: List[List[int]],
max_new_tokens: int,
eos_id: int,
temperature: float = 1.0
) -> List[List[int]]:
"""
Generates new tokens based on the given prompt tokens using the specified model.
Args:
model (Transformer): The transformer model used for token generation.
prompt_tokens (List[List[int]]): A list of lists containing the prompt tokens for each sequence.
max_new_tokens (int): The maximum number of new tokens to generate.
eos_id (int): The end-of-sequence token ID.
temperature (float, optional): The temperature value for sampling. Defaults to 1.0.
Returns:
List[List[int]]: A list of lists containing the generated tokens for each sequence.
"""
prompt_lens = [len(t) for t in prompt_tokens]
assert max(prompt_lens) <= model.max_seq_len, f"Prompt length exceeds model maximum sequence length (max_seq_len={model.max_seq_len})"
total_len = min(model.max_seq_len, max_new_tokens + max(prompt_lens))
tokens = torch.full((len(prompt_tokens), total_len), -1, dtype=torch.long, device="cuda")
for i, t in enumerate(prompt_tokens):
tokens[i, :len(t)] = torch.tensor(t, dtype=torch.long, device="cuda")
prev_pos = 0
finished = torch.tensor([False] * len(prompt_tokens), device="cuda")
prompt_mask = tokens != -1
for cur_pos in range(min(prompt_lens), total_len):
logits = model.forward(tokens[:, prev_pos:cur_pos], prev_pos)
if temperature > 0:
next_token = sample(logits, temperature)
else:
next_token = logits.argmax(dim=-1)
next_token = torch.where(prompt_mask[:, cur_pos], tokens[:, cur_pos], next_token)
tokens[:, cur_pos] = next_token
finished |= torch.logical_and(~prompt_mask[:, cur_pos], next_token == eos_id)
prev_pos = cur_pos
if finished.all():
break
completion_tokens = []
for i, toks in enumerate(tokens.tolist()):
toks = toks[prompt_lens[i]:prompt_lens[i]+max_new_tokens]
if eos_id in toks:
toks = toks[:toks.index(eos_id)]
completion_tokens.append(toks)
return completion_tokens
def main(
ckpt_path: str,
config: str,
input_file: str = "",
interactive: bool = True,
max_new_tokens: int = 100,
temperature: float = 1.0,
) -> None:
"""
Main function to load the model and perform interactive or batch text generation.
Args:
ckpt_path (str): Path to the model checkpoint directory.
config (str): Path to the model configuration file.
input_file (str, optional): Path to a file containing input prompts. Defaults to "".
interactive (bool, optional): Whether to run in interactive mode. Defaults to True.
max_new_tokens (int, optional): Maximum number of new tokens to generate. Defaults to 100.
temperature (float, optional): Temperature for sampling. Defaults to 1.0.
"""
world_size = int(os.getenv("WORLD_SIZE", "1"))
rank = int(os.getenv("RANK", "0"))
local_rank = int(os.getenv("LOCAL_RANK", "0"))
if world_size > 1:
dist.init_process_group("nccl")
global print
if rank != 0:
print = lambda *_, **__: None
torch.cuda.set_device(local_rank)
torch.set_default_dtype(torch.bfloat16)
torch.set_num_threads(8)
torch.manual_seed(33377335)
with open(config) as f:
args = ModelArgs(**json.load(f))
print(args)
with torch.device("cuda"):
model = Transformer(args)
tokenizer = AutoTokenizer.from_pretrained(ckpt_path)
print("load model")
load_model(model, os.path.join(ckpt_path, f"model{rank}-mp{world_size}.safetensors"))
print("I'm DeepSeek 👋")
if interactive:
messages = []
while True:
if world_size == 1:
prompt = input(">>> ")
elif rank == 0:
prompt = input(">>> ")
objects = [prompt]
dist.broadcast_object_list(objects, 0)
else:
objects = [None]
dist.broadcast_object_list(objects, 0)
prompt = objects[0]
if prompt == "/exit":
break
elif prompt == "/clear":
messages.clear()
continue
messages.append({"role": "user", "content": prompt})
prompt_tokens = tokenizer.apply_chat_template(messages, add_generation_prompt=True)
completion_tokens = generate(model, [prompt_tokens], max_new_tokens, tokenizer.eos_token_id, temperature)
completion = tokenizer.decode(completion_tokens[0], skip_special_tokens=True)
print(completion)
messages.append({"role": "assistant", "content": completion})
else:
with open(input_file) as f:
prompts = f.read().split("\n\n")
assert len(prompts) <= args.max_batch_size, f"Number of prompts exceeds maximum batch size ({args.max_batch_size})"
prompt_tokens = [tokenizer.apply_chat_template([{"role": "user", "content": prompt}], add_generation_prompt=True) for prompt in prompts]
completion_tokens = generate(model, prompt_tokens, max_new_tokens, tokenizer.eos_token_id, temperature)
completions = tokenizer.batch_decode(completion_tokens, skip_special_tokens=True)
for prompt, completion in zip(prompts, completions):
print("Prompt:", prompt)
print("Completion:", completion)
print()
if world_size > 1:
dist.destroy_process_group()
if __name__ == "__main__":
"""
Command-line interface for distributed text generation.
Arguments:
--ckpt-path (str): Path to the model checkpoint directory.
--config (str): Path to the model configuration file.
--input-file (str, optional): File containing prompts for batch processing.
--interactive (bool, optional): Enable interactive mode for generating text.
--max-new-tokens (int, optional): Maximum number of new tokens to generate. Defaults to 200.
--temperature (float, optional): Temperature for sampling. Defaults to 0.2.
Raises:
AssertionError: If neither input-file nor interactive mode is specified.
"""
parser = ArgumentParser()
parser.add_argument("--ckpt-path", type=str, required=True)
parser.add_argument("--config", type=str, required=True)
parser.add_argument("--input-file", type=str, default="")
parser.add_argument("--interactive", action="store_true")
parser.add_argument("--max-new-tokens", type=int, default=200)
parser.add_argument("--temperature", type=float, default=0.6)
args = parser.parse_args()
assert args.input_file or args.interactive, "Either input-file or interactive mode must be specified"
main(args.ckpt_path, args.config, args.input_file, args.interactive, args.max_new_tokens, args.temperature)
inference/kernel.py
View file @ 715e39c4
import torch
import tilelang
import tilelang.language as T
from typing import Tuple, Optional
tilelang.set_log_level("WARNING")
pass_configs = {
tilelang.PassConfigKey.TL_DISABLE_WARP_SPECIALIZED: True,
tilelang.PassConfigKey.TL_DISABLE_TMA_LOWER: True,
tilelang.PassConfigKey.TL_DISABLE_FAST_MATH: True,
}
FP8 = "float8_e4m3"
BF16 = "bfloat16"
FP32 = "float32"
def fast_log2_ceil(x):
bits_x = T.reinterpret("uint32", x)
exp_x = (bits_x >> 23) & 0xFF
man_bits = bits_x & ((1 << 23) - 1)
return T.Cast("int32", exp_x - 127 + T.if_then_else(man_bits != 0, 1, 0))
def fast_pow2(x):
bits_x = (x + 127) << 23
return T.reinterpret("float32", bits_x)
def fast_round_scale(amax, fp8_max_inv):
return fast_pow2(fast_log2_ceil(amax * fp8_max_inv))
from typing import Tuple
@tilelang.jit(pass_configs=pass_configs)
def act_quant_kernel(
N, in_dtype=BF16, out_dtype=FP8, scale_dtype=FP32, round_scale=False
):
M = T.symbolic("M")
fp8_min = -448.0
fp8_max = 448.0
fp8_max_inv = 1 / fp8_max
num_stages = 0 if round_scale else 2
blk_m = 32
group_size = 128
@T.prim_func
def act_quant_kernel_(
X: T.Tensor[(M, N), in_dtype],
Y: T.Tensor[(M, N), out_dtype],
S: T.Tensor[(M, T.ceildiv(N, group_size)), scale_dtype],
):
with T.Kernel(T.ceildiv(M, blk_m), T.ceildiv(N, group_size), threads=128) as (
pid_m,
pid_n,
):
x_shared = T.alloc_shared((blk_m, group_size), in_dtype)
x_local = T.alloc_fragment((blk_m, group_size), in_dtype)
amax_local = T.alloc_fragment((blk_m,), scale_dtype)
s_local = T.alloc_fragment((blk_m,), scale_dtype)
y_local = T.alloc_fragment((blk_m, group_size), out_dtype)
y_shared = T.alloc_shared((blk_m, group_size), out_dtype)
for _ in T.Pipelined(1, num_stages=num_stages):
T.copy(X[pid_m * blk_m, pid_n * group_size], x_shared)
T.copy(x_shared, x_local)
T.reduce_absmax(x_local, amax_local, dim=1)
for i in T.Parallel(blk_m):
amax_local[i] = T.max(amax_local[i], 1e-4)
if round_scale:
s_local[i] = fast_round_scale(amax_local[i], fp8_max_inv)
else:
s_local[i] = amax_local[i] * fp8_max_inv
for i, j in T.Parallel(blk_m, group_size):
y_local[i, j] = T.clamp(
x_local[i, j] / s_local[i], fp8_min, fp8_max
)
for i in T.Parallel(blk_m):
S[pid_m * blk_m + i, pid_n] = s_local[i]
T.copy(y_local, y_shared)
T.copy(y_shared, Y[pid_m * blk_m, pid_n * group_size])
return act_quant_kernel_
def act_quant(
x: torch.Tensor, block_size: int = 128, scale_fmt: Optional[str] = None
) -> Tuple[torch.Tensor, torch.Tensor]:
"""
Quantizes the input tensor `x` using block-wise quantization.
Args:
x (torch.Tensor): The input tensor to be quantized. Must be contiguous and its last dimension size must be divisible by `block_size`.
block_size (int, optional): The size of the blocks to be used for quantization. Default is 128.
scale_fmt (Optional[str], optional): The format of the scale. Default is None.
Returns:
Tuple[torch.Tensor, torch.Tensor]: A tuple containing:
- The quantized tensor with dtype `torch.float8_e4m3fn`.
- A tensor of scaling factors with dtype `torch.float32`.
"""
assert x.is_contiguous(), "Input tensor must be contiguous"
assert x.size(-1) % block_size == 0, (
f"Last dimension size must be divisible by block_size (block_size={block_size})"
)
N = x.size(-1)
import torch
import triton
import triton.language as tl
from triton import Config
@triton.jit
def act_quant_kernel(x_ptr, y_ptr, s_ptr, BLOCK_SIZE: tl.constexpr):
pid = tl.program_id(axis=0)
offs = pid * BLOCK_SIZE + tl.arange(0, BLOCK_SIZE)
x = tl.load(x_ptr + offs).to(tl.float32)
s = tl.max(tl.abs(x)) / 448.
y = x / s
y = y.to(y_ptr.dtype.element_ty)
tl.store(y_ptr + offs, y)
tl.store(s_ptr + pid, s)
def act_quant(x: torch.Tensor, block_size: int = 128) -> Tuple[torch.Tensor, torch.Tensor]:
assert x.is_contiguous()
assert x.size(-1) % block_size == 0
y = torch.empty_like(x, dtype=torch.float8_e4m3fn)
s = x.new_empty(*x.size()[:-1], N // block_size, dtype=torch.float32)
kernel = act_quant_kernel(N, round_scale=scale_fmt is not None)
kernel(x.view(-1, N), y.view(-1, N), s.view(-1, N // block_size))
s = x.new_empty(*x.size()[:-1], x.size(-1) // block_size, dtype=torch.float32)
grid = lambda meta: (triton.cdiv(x.numel(), meta['BLOCK_SIZE']), )
act_quant_kernel[grid](x, y, s, BLOCK_SIZE=block_size)
return y, s
@tilelang.jit(pass_configs=pass_configs)
def fp8_gemm_kernel(N, K, out_dtype=BF16, accum_dtype="float32"):
assert out_dtype in [BF16, "float32"]
M = T.symbolic("M")
group_size = 128
block_M = 32
block_N = 128
block_K = 128
@T.prim_func
def fp8_gemm_kernel_(
A: T.Tensor[(M, K), FP8],
B: T.Tensor[(N, K), FP8],
C: T.Tensor[(M, N), out_dtype],
scales_a: T.Tensor[(M, T.ceildiv(K, group_size)), FP32],
scales_b: T.Tensor[(T.ceildiv(N, group_size), T.ceildiv(K, group_size)), FP32],
):
with T.Kernel(T.ceildiv(N, block_N), T.ceildiv(M, block_M), threads=128) as (
bx,
by,
):
A_shared = T.alloc_shared((block_M, block_K), FP8)
B_shared = T.alloc_shared((block_N, block_K), FP8)
C_shared = T.alloc_shared((block_M, block_N), out_dtype)
Scale_C_shared = T.alloc_shared((block_M), FP32)
C_local = T.alloc_fragment((block_M, block_N), accum_dtype)
C_local_accum = T.alloc_fragment((block_M, block_N), accum_dtype)
# Improve L2 Cache
T.use_swizzle(panel_size=10)
T.clear(C_local)
T.clear(C_local_accum)
K_iters = T.ceildiv(K, block_K)
for k in T.Pipelined(K_iters, num_stages=4):
# Load A into shared memory
T.copy(A[by * block_M, k * block_K], A_shared)
# Load B into shared memory
T.copy(B[bx * block_N, k * block_K], B_shared)
# Load scale into shared memory
Scale_B = scales_b[bx * block_N // group_size, k]
for i in T.Parallel(block_M):
Scale_C_shared[i] = scales_a[by * block_M + i, k] * Scale_B
T.gemm(A_shared, B_shared, C_local, transpose_B=True)
# Promote to enable 2xAcc
for i, j in T.Parallel(block_M, block_N):
C_local_accum[i, j] += C_local[i, j] * Scale_C_shared[i]
T.clear(C_local)
# TMA store
T.copy(C_local_accum, C_shared)
T.copy(C_shared, C[by * block_M, bx * block_N])
return fp8_gemm_kernel_
def fp8_gemm(
a: torch.Tensor, a_s: torch.Tensor, b: torch.Tensor, b_s: torch.Tensor
) -> torch.Tensor:
"""
Perform a matrix multiplication using FP8 precision.
Args:
a (torch.Tensor): The first input matrix, must be contiguous.
a_s (torch.Tensor): The scaling factor for the first input matrix, must be contiguous.
b (torch.Tensor): The second input matrix, must be contiguous.
b_s (torch.Tensor): The scaling factor for the second input matrix, must be contiguous.
Returns:
torch.Tensor: The result of the matrix multiplication.
"""
assert a.is_contiguous() and b.is_contiguous(), "Input tensors must be contiguous"
assert a_s.is_contiguous() and b_s.is_contiguous(), (
"Scaling factor tensors must be contiguous"
)
# @triton.jit
# def weight_dequant_kernel(x_ptr, s_ptr, y_ptr, M, N, BLOCK_SIZE: tl.constexpr):
# pid_m = tl.program_id(axis=0)
# pid_n = tl.program_id(axis=1)
# n = tl.cdiv(N, BLOCK_SIZE)
# offs_m = pid_m * BLOCK_SIZE + tl.arange(0, BLOCK_SIZE)
# offs_n = pid_n * BLOCK_SIZE + tl.arange(0, BLOCK_SIZE)
# offs = offs_m[:, None] * N + offs_n[None, :]
# mask = (offs_m[:, None] < M) & (offs_n[None, :] < N)
# x = tl.load(x_ptr + offs, mask=mask).to(tl.float32)
# s = tl.load(s_ptr + pid_m * n + pid_n)
# y = x * s
# tl.store(y_ptr + offs, y, mask=mask)
# def weight_dequant(x: torch.Tensor, s: torch.Tensor, block_size: int = 128) -> torch.Tensor:
# assert x.is_contiguous() and s.is_contiguous()
# assert x.dim() == 2 and s.dim() == 2
# M, N = x.size()
# y = torch.empty_like(x, dtype=torch.get_default_dtype())
# grid = lambda meta: (triton.cdiv(M, meta['BLOCK_SIZE']), triton.cdiv(N, meta['BLOCK_SIZE']))
# weight_dequant_kernel[grid](x, s, y, M, N, BLOCK_SIZE=block_size)
# return y
def weight_dequant(x: torch.Tensor, s: torch.Tensor, block_size: int = 128) -> torch.Tensor:
assert x.is_contiguous() and s.is_contiguous()
assert x.dim() == 2 and s.dim() == 2
M, N = x.size()
y = torch.empty_like(x, dtype=torch.get_default_dtype())
# 计算 s 的目标形状
s_M = (M + block_size - 1) // block_size # 向上取整
s_N = (N + block_size - 1) // block_size # 向上取整
# 检查 s 的形状是否正确
assert s.size(0) == s_M and s.size(1) == s_N, \
f"s 的形状应为 ({s_M}, {s_N}), 但实际为 {s.size()}"
# 将 s 扩展到与 x 相同的形状
s_expanded = s.repeat_interleave(block_size, dim=0).repeat_interleave(block_size, dim=1)
# 裁剪 s_expanded 以匹配 x 的形状
s_expanded = s_expanded[:M, :N]
# 逐元素乘法
y = x.to(torch.float32) * s_expanded
y = y.to(torch.bfloat16)
return y
fp8_gemm_configs = [
Config({'BLOCK_SIZE_M': block_m, 'BLOCK_SIZE_N': block_n, 'BLOCK_SIZE_K': 128}, num_stages=num_stages, num_warps=8)
for block_m in [16, 32, 64] for block_n in [32, 64, 128] for num_stages in [3, 4, 5, 6]
]
@triton.autotune(configs=fp8_gemm_configs, key=['N', 'K'])
@triton.jit
def fp8_gemm_kernel(a_ptr, b_ptr, c_ptr,
a_s_ptr, b_s_ptr,
M, N: tl.constexpr, K: tl.constexpr,
BLOCK_SIZE_M: tl.constexpr,
BLOCK_SIZE_N: tl.constexpr,
BLOCK_SIZE_K: tl.constexpr):
pid_m = tl.program_id(axis=0)
pid_n = tl.program_id(axis=1)
k = tl.cdiv(K, BLOCK_SIZE_K)
offs_m = (pid_m * BLOCK_SIZE_M + tl.arange(0, BLOCK_SIZE_M)) % M
offs_n = (pid_n * BLOCK_SIZE_N + tl.arange(0, BLOCK_SIZE_N)) % N
offs_k = tl.arange(0, BLOCK_SIZE_K)
a_ptrs = a_ptr + offs_m[:, None] * K + offs_k[None, :]
b_ptrs = b_ptr + offs_n[None, :] * K + offs_k[:, None]
a_s_ptrs = a_s_ptr + offs_m * k
b_s_ptrs = b_s_ptr + (offs_n // BLOCK_SIZE_K) * k
accumulator = tl.zeros((BLOCK_SIZE_M, BLOCK_SIZE_N), dtype=tl.float32)
for i in range(k):
a = tl.load(a_ptrs, mask=offs_k[None, :] < K - i * BLOCK_SIZE_K, other=0.0)
b = tl.load(b_ptrs, mask=offs_k[:, None] < K - i * BLOCK_SIZE_K, other=0.0)
a_s = tl.load(a_s_ptrs)
b_s = tl.load(b_s_ptrs)
accumulator += tl.dot(a, b) * a_s[:, None] * b_s[None, :]
a_ptrs += BLOCK_SIZE_K
b_ptrs += BLOCK_SIZE_K
a_s_ptrs += 1
b_s_ptrs += 1
c = accumulator.to(c_ptr.dtype.element_ty)
offs_m = pid_m * BLOCK_SIZE_M + tl.arange(0, BLOCK_SIZE_M)
offs_n = pid_n * BLOCK_SIZE_N + tl.arange(0, BLOCK_SIZE_N)
c_ptrs = c_ptr + offs_m[:, None] * N + offs_n[None, :]
mask = (offs_m[:, None] < M) & (offs_n[None, :] < N)
tl.store(c_ptrs, c, mask=mask)
def fp8_gemm(a: torch.Tensor, a_s: torch.Tensor, b: torch.Tensor, b_s: torch.Tensor):
assert a.is_contiguous() and b.is_contiguous()
assert a_s.is_contiguous() and b_s.is_contiguous()
K = a.size(-1)
M = a.numel() // K
N = b.size(0)
c = a.new_empty(*a.size()[:-1], N, dtype=torch.get_default_dtype())
kernel = fp8_gemm_kernel(N, K)
kernel(a.view(M, K), b, c.view(M, N), a_s.view(M, -1), b_s)
grid = lambda META: (triton.cdiv(M, META['BLOCK_SIZE_M']), triton.cdiv(N, META['BLOCK_SIZE_N']))
fp8_gemm_kernel[grid](a, b, c, a_s, b_s, M, N, K)
return c
@tilelang.jit(out_idx=[4], pass_configs=pass_configs)
def fp8_index_kernel(h: int, d: int):
b = T.symbolic("b")
m = T.symbolic("m")
n = T.symbolic("n")
blk_n1 = 512
blk_n2 = 128
@T.prim_func
def fp8_index_kernel_(
q: T.Tensor[(b, m, h, d), FP8],
q_s: T.Tensor[(b, m, h), FP32],
k: T.Tensor[(b, n, d), FP8],
k_s: T.Tensor[(b, n), FP32],
o: T.Tensor[(b, m, n), FP32],
) -> None:
with T.Kernel(b, m, T.ceildiv(n, blk_n1)) as (i_b, i_m, i1_n):
q_smem = T.alloc_shared((h, d), FP8)
T.copy(q[i_b, i_m, 0, 0], q_smem)
q_s_frag = T.alloc_fragment(h, FP32)
T.copy(q_s[i_b, i_m, 0], q_s_frag)
for i2_n in T.Pipelined(blk_n1 // blk_n2, num_stages=2):
k_smem = T.alloc_shared((blk_n2, d), FP8)
T.copy(k[i_b, i1_n * blk_n1 + i2_n * blk_n2, 0], k_smem)
k_s_frag = T.alloc_fragment(blk_n2, FP32)
T.copy(k_s[i_b, i1_n * blk_n1 + i2_n * blk_n2], k_s_frag)
logits = T.alloc_fragment((blk_n2, h), FP32)
T.gemm(
k_smem,
q_smem,
logits,
transpose_A=False,
transpose_B=True,
clear_accum=True,
)
for i_h, i3_n in T.Parallel(h, blk_n2):
logits[i3_n, i_h] = T.max(logits[i3_n, i_h], 0) * q_s_frag[i_h]
logits_sum = T.alloc_fragment(blk_n2, FP32)
T.reduce_sum(logits, logits_sum, dim=1)
for i3_n in T.Parallel(blk_n2):
logits_sum[i3_n] *= k_s_frag[i3_n]
T.copy(logits_sum, o[i_b, i_m, i1_n * blk_n1 + i2_n * blk_n2])
return fp8_index_kernel_
def fp8_index(
q: torch.Tensor,
q_s: torch.Tensor,
k: torch.Tensor,
k_s: torch.Tensor,
) -> torch.Tensor:
"""
Perform index score using FP8 precision.
Args:
q (torch.Tensor): The Q tensor, must be contiguous.
q_s (torch.Tensor): The scaling factor for Q (float), must be contiguous.
k (torch.Tensor): The K tensor, must be contiguous.
k_s (torch.Tensor): The scaling factor for K (e8m0 here), must be contiguous.
fp8 q @ fp8 k -> fp32 logits
relu(fp32 logits) * q_s (weights) -> fp32 logits
fp32 logits -> fp32 logits_sum
fp32 logits_sum * k_s (e8m0) -> fp32 index_score
"""
return fp8_index_kernel(q.shape[2], q.shape[3])(q, q_s, k, k_s)
inference/model.py deleted 100644 → 0
View file @ 1fac49dc
This diff is collapsed.
inference/requirements.txt deleted 100644 → 0
View file @ 1fac49dc
torch
transformers
safetensors
fast_hadamard_transform
tilelang==0.1.6
\ No newline at end of file
model.properties
View file @ 715e39c4
......@@ -3,7 +3,7 @@ modelCode=1761
# 模型名称
modelName=deepseek-v3.2-exp_pytorch
# 模型描述
modelDescription=DeepSeek-V3.2
modelDescription=DeepSeek-V3.2-Exp模型是一个实验版本，作为迈向下一代架构的中间步骤。
# 应用场景
appScenario=推理,对话问答,制造,金融,教育,广媒
# 框架类型
......
Markdown is supported
0% or .
You are about to add 0 people to the discussion. Proceed with caution.
Finish editing this message first!
Please register or to comment
