+# Fused MoE Modular Kernel
+
+## Introduction
+FusedMoEModularKernel is implemented [here](gh-file:/vllm/model_executor/layers/fused_moe/modular_kernel.py)
+
+Based on the format of the input activations, FusedMoE implementations are broadly classified into 2 types.
+
+* Contiguous / Standard / Non-Batched, and
+* Batched
+
+!!! note
+    The terms Contiguous, Standard, and Non-Batched are used interchangeably throughout the document.
+
+The input activation format completely depends on the All2All Dispatch being used.
+
+* In the Contiguous variant, the All2All Dispatch returns the activations as a contiguous tensor of shape (M, K) along with TopK Ids and TopK weights of shape (M, num_topk). Look at `DeepEPHTPrepareAndFinalize` for an example.
+* In the Batched variant, the All2All Dispatch returns the activations as a tensor of shape (num_experts, max_tokens, K). Here, the activations/tokens that subscribe to the same expert are batched together. Note that not all entries of the tensor are valid. The activations tensor is typically accompanied by an `expert_num_tokens` tensor of size `num_experts`, where `expert_num_tokens[i]` indicates the number of valid tokens that subscribe to the ith expert. Look at `PplxPrepareAndFinalize` or `DeepEPLLPrepareAndFinalize` for an example.
+
+The FusedMoE operation is generally made of multiple operations, in both the Contiguous and Batched variants, as described in the diagrams below
+
+![](../assets/design/fused_moe_modular_kernel/fused_moe_non_batched.png "FusedMoE Non-Batched")
+

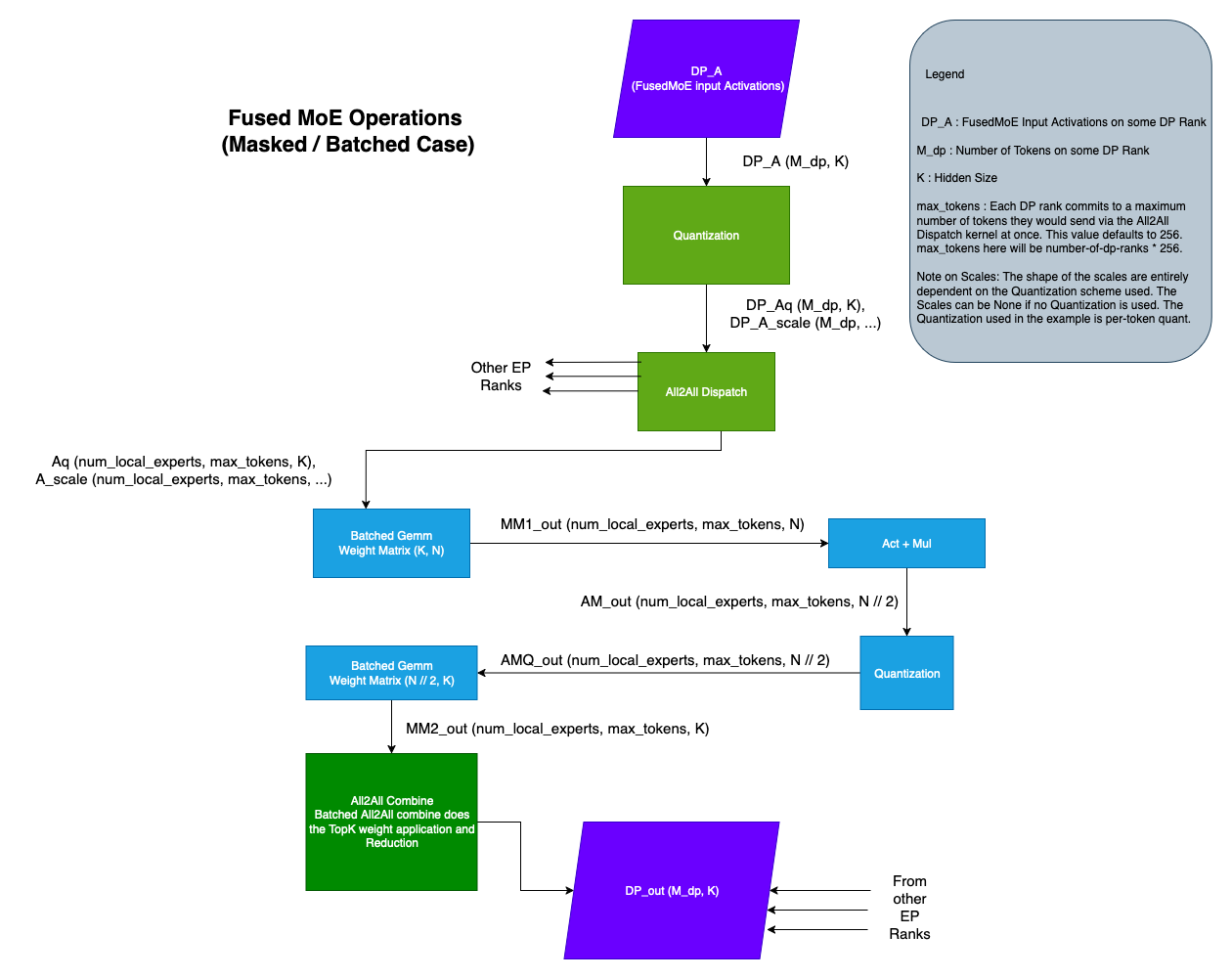

+![](../assets/design/fused_moe_modular_kernel/fused_moe_batched.png "FusedMoE Batched")
+
+!!! note
+    The main difference, in terms of operations, between the Batched and Non-Batched cases is the Permute / Unpermute operations. All other operations remain.
+
+## Motivation
+
+As can be seen from the diagrams, there are a lot of operations and there can be a variety of implementations for each operation. The set of ways the operations can be put together to make a valid FusedMoE implementation quickly becomes intractable. The Modular Kernel framework addresses this issue,  by grouping the operations into logical components. This broad categorization makes the combinations manageable and prevents code-duplication. This also decouples the All2All Dispatch & Combine implementations from the FusedMoE implementations and allows for their independent development and testing. Furthermore, the Modular Kernel framework introduces Abstract classes for the different components thus providing a well-defined skeleton for future implementations.
+
+The rest of the document will focus on the Contiguous / Non-Batched case. Extrapolating to the Batched case should be straight-forward.
+
+## ModularKernel Components:
+FusedMoEModularKernel splits the FusedMoE operation into 3 parts,
+
+1. TopKWeightAndReduce
+2. FusedMoEPrepareAndFinalize
+3. FusedMoEPermuteExpertsUnpermute
+
+### TopKWeightAndReduce
+The TopK Weight Application and Reduction components happen right after the Unpermute operation and before the All2All Combine. Note that the `FusedMoEPermuteExpertsUnpermute` is responsible for the Unpermute and `FusedMoEPrepareAndFinalize` is responsible for the All2All Combine. There is value in doing the TopK Weight Application and Reduction in the `FusedMoEPermuteExpertsUnpermute`. But some implementations choose to do it `FusedMoEPrepareAndFinalize`. In order to enable this flexibility, we have a TopKWeightAndReduce abstract class.
+
+Please find the implementations of TopKWeightAndReduce [here](gh-file:vllm/model_executor/layers/fused_moe/topk_weight_and_reduce.py).
+
+`FusedMoEPrepareAndFinalize::finalize()` method accepts a `TopKWeightAndReduce` argument that is invoked inside the method.
+The `FusedMoEModularKernel` acts as a bridge between the `FusedMoEPermuteExpertsUnpermute` and `FusedMoEPerpareAndFinalize` implementations to determine where the TopK Weight Application and Reduction happens.
+
+* `FusedMoEPermuteExpertsUnpermute::finalize_weight_and_reduce_impl` method returns `TopKWeightAndReduceNoOp` if the `FusedMoEPermuteExpertsUnpermute` implementation does the weight application and reduction itself.
+* `FusedMoEPermuteExpertsUnpermute::finalize_weight_and_reduce_impl` method returns `TopKWeightAndReduceContiguous` / `TopKWeightAndReduceNaiveBatched` / `TopKWeightAndReduceDelegate` if the `FusedMoEPermuteExpertsUnpermute` implementation needs the `FusedMoEPrepareAndFinalize::finalize()` to do the weight application and reduction.
+
+### FusedMoEPrepareAndFinalize
+The `FusedMoEPrepareAndFinalize` abstract class exposes `prepare` and `finalize` functions.
+The `prepare` function is responsible for input activation Quantization and All2All Dispatch. The `finalize` function is responsible for invoking the All2All Combine. Additionally the `finalize` function may or may not do the TopK weight application and reduction (Please refer to the TopKWeightAndReduce section)
+
+![](../assets/design/fused_moe_modular_kernel/prepare_and_finalize_blocks.png "FusedMoEPrepareAndFinalize Blocks")
+
+### FusedMoEPermuteExpertsUnpermute
+The `FusedMoEPermuteExpertsUnpermute` class is where the crux of the MoE operations happen. The `FusedMoEPermuteExpertsUnpermute` abstract class exposes a few important functions,
+
+* apply()
+* workspace_shapes()
+* finalize_weight_and_reduce_impl()
+
+#### apply()
+The `apply` method is where the implementations perform
+
+* Permute
+* Matmul with weight W1
+* Act + Mul
+* Quantization
+* Matmul with weight W2
+* Unpermute
+* Maybe TopK Weight Application + Reduction
+
+#### workspace_shapes()
+The core FusedMoE implementation performs a series of operations. It would be inefficient to create output memory for each of these operations separately. To that effect, implementations are required to declare 2 workspace shapes, the workspace datatype and the FusedMoE output shape as outputs of the workspace_shapes() method. This information is used to allocate the workspace tensors and the output tensor in `FusedMoEModularKernel::forward()` and passed on to the `FusedMoEPermuteExpertsUnpermute::apply()` method. The workspaces could then be used as intermediate buffers in the FusedMoE implementation.
+
+#### finalize_weight_and_reduce_impl()
+It is sometimes efficient to perform TopK weight application and Reduction inside the `FusedMoEPermuteExpertsUnpermute::apply()`. Find an example [here](https://github.com/vllm-project/vllm/pull/20228). We have a `TopKWeightAndReduce` abstract class to facilitate such implementations. Please refer to the TopKWeightAndReduce section.
+`FusedMoEPermuteExpertsUnpermute::finalize_weight_and_reduce_impl()` returns the `TopKWeightAndReduce` object that the implementation wants the `FusedMoEPrepareAndFinalize::finalize()` to use.
+

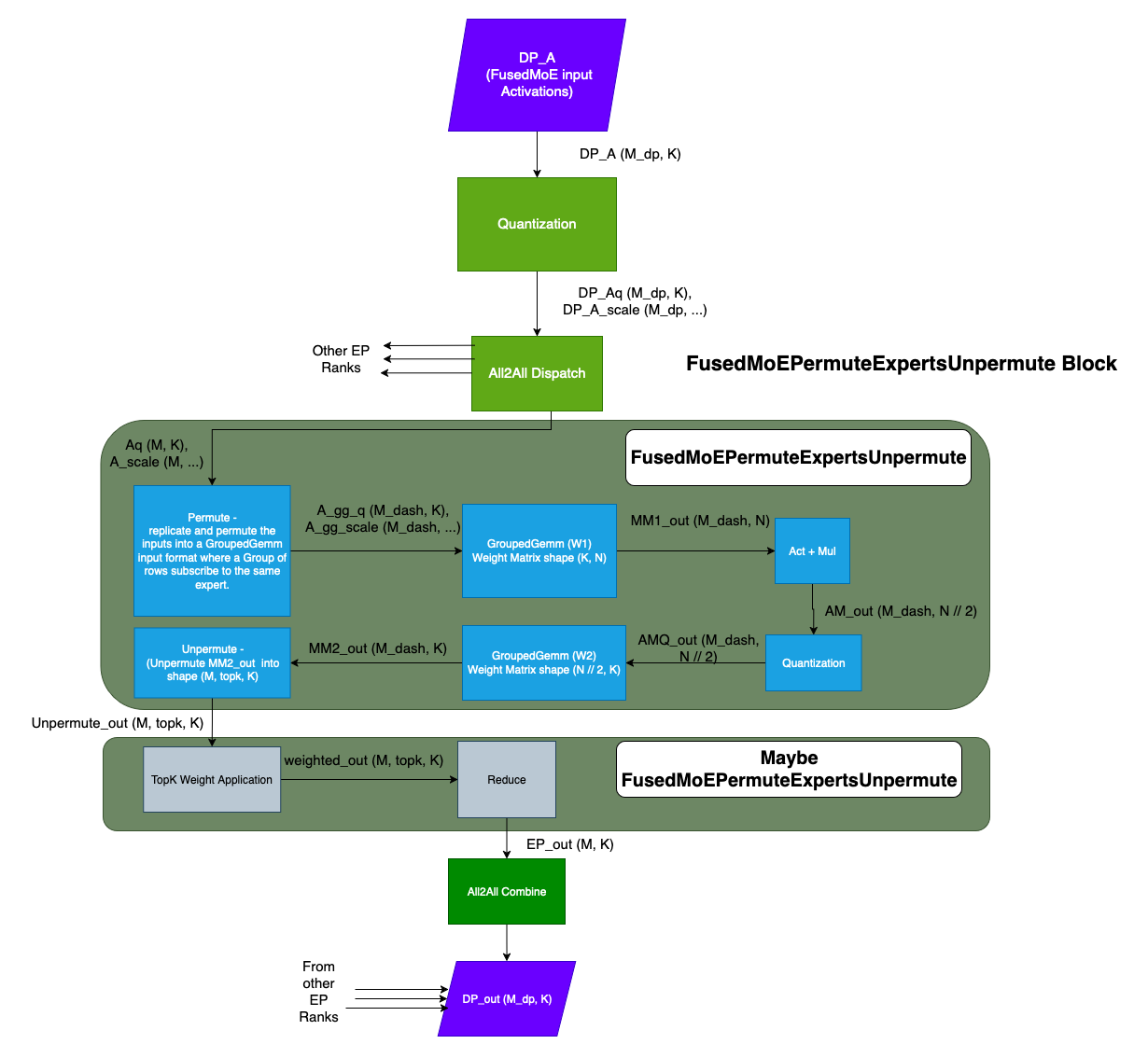

+![](../assets/design/fused_moe_modular_kernel/fused_experts_blocks.png "FusedMoEPermuteExpertsUnpermute Blocks")
+
+### FusedMoEModularKernel
+`FusedMoEModularKernel` is composed of the `FusedMoEPrepareAndFinalize` and `FusedMoEPermuteExpertsUnpermute` objects.
+`FusedMoEModularKernel` pseudocode/sketch,
+
+```
+FusedMoEModularKernel::__init__(self,
+            prepare_finalize: FusedMoEPrepareAndFinalize,
+            fused_experts: FusedMoEPermuteExpertsUnpermute):
+
+    self.prepare_finalize = prepare_finalize
+    self.fused_experts = fused_experts
+
+FusedMoEModularKernel::forward(self, DP_A):
+
+    Aq, A_scale, _, _, _ = self.prepare_finalize.prepare(DP_A, ...)
+
+    workspace13_shape, workspace2_shape, _, _ = self.fused_experts.workspace_shapes(...)
+
+    # allocate workspaces
+    workspace_13 = torch.empty(workspace13_shape, ...)
+    workspace_2 = torch.empty(workspace2_shape, ...)
+
+    # execute fused_experts
+    fe_out = self.fused_experts.apply(Aq, A_scale, workspace13, workspace2, ...)
+
+    # war_impl is an object of type TopKWeightAndReduceNoOp if the fused_experts implementations performs the TopK Weight Application and Reduction.
+    war_impl = self.fused_experts.finalize_weight_and_reduce_impl()
+
+    output = self.prepare_finalize.finalize(fe_out, war_impl,...)
+
+    return output
+```
+
+## How-To
+
+### How To Add a FusedMoEPrepareAndFinalize Type
+Typically a FusedMoEPrepareAndFinalize type is backed by an All2All Dispatch & Combine implementation / kernel. For example,
+
+* PplxPrepareAndFinalize type is backed by Pplx All2All kernels,
+* DeepEPHTPrepareAndFinalize type is backed by DeepEP High-Throughtput All2All kernels, and
+* DeepEPLLPrepareAndFinalize type is backed by DeepEP Low-Latency All2All kernels.
+
+#### Step 1: Add an All2All manager
+The purpose of the All2All Manager is to setup the All2All kernel implementations. The `FusedMoEPrepareAndFinalize` implementations typically fetch a kernel-implementation "handle" from the All2All Manager to invoke the Dispatch and Combine functions. Please look at the All2All Manager implementations [here](gh-file:vllm/distributed/device_communicators/all2all.py).
+
+#### Step 2: Add a FusedMoEPrepareAndFinalize Type
+This section describes the significance of the various functions exposed by the `FusedMoEPrepareAndFinalize` abstract class.
+
+`FusedMoEPrepareAndFinalize::prepare()`: The prepare method implements the Quantization and All2All Dispatch. Typically the Dispatch function from the relevant All2All Manager is invoked.
+
+`FusedMoEPrepareAndFinalize::finalize()`: Maybe perform TopK Weight Application and Reduction and All2All Combine. Typically the Combine function from the relevant All2AllManager is invoked.
+
+`FusedMoEPrepareAndFinalize::activation_format()`: Return `FusedMoEActivationFormat.BatchedExperts` if the output of the prepare method (i.e. the All2All dispatch) is Batched. Return `FusedMoEActivationFormat.Standard` otherwise.
+
+`FusedMoEPrepareAndFinalize::topk_indices_dtype()`: Data type of the TopK ids. Some All2All kernels have strict requirements pertaining to the data type of the TopK ids. This requirement is passed on to the `FusedMoe::select_experts` function so it could be respected. If there are no strict requirements return None.
+
+`FusedMoEPrepareAndFinalize::max_num_tokens_per_rank()`: This is the maximum number of tokens that would be submitted to the All2All Dispatch at once.
+
+`FusedMoEPrepareAndFinalize::num_dispatchers()`: Total number of dispatching units. This value determines the size of the Dispatch output. The Dispatch output is of shape (num_local_experts, max_num_tokens, K). Here max_num_tokens = num_dispatchers() * max_num_tokens_per_rank().
+
+We suggest picking an already existing `FusedMoEPrepareAndFinalize` implementation that matches your All2All implementation closely and using it as a reference.
+
+### How To Add a FusedMoEPermuteExpertsUnpermute Type
+FusedMoEPermuteExpertsUnpermute performs the core of the FusedMoE operations. The various functions exposed by the abstract class and their significance is as follows,
+
+`FusedMoEPermuteExpertsUnpermute::activation_formats()`: Return the supported Input and Output activation formats. i.e. Contiguous / Batched format.
+
+`FusedMoEPermuteExpertsUnpermute::supports_chunking()`: Return True if the implementation supports chunking. Typically
+implementations that input `FusedMoEActivationFormat.Standard` support chunking and `FusedMoEActivationFormat.BatchedExperts` do not.
+
+`FusedMoEPermuteExpertsUnpermute::supports_expert_map()`: Return True if the implementation supports expert map.
+
+`FusedMoEPermuteExpertsUnpermute::workspace_shapes()` /
+`FusedMoEPermuteExpertsUnpermute::finalize_weight_and_reduce_impl` /
+`FusedMoEPermuteExpertsUnpermute::apply`: Refer to `FusedMoEPermuteExpertsUnpermute` section above.
+
+### FusedMoEModularKernel Initialization
+`FusedMoEMethodBase` class has 2 methods that are collectively responsible in creating the `FusedMoEModularKernel` object. They are,
+
+* select_gemm_impl, and
+* init_prepare_finalize
+
+#### select_gemm_impl
+The `select_gemm_impl` method is undefined in the base class. It is the responsibility of the derived class to implement a method that constructs a valid/appropriate `FusedMoEPermuteExpertsUnpermute` object.
+Please refer to the implementations in,
+
+* `UnquantizedFusedMoEMethod`
+* `CompressedTensorsW8A8Fp8MoEMethod`
+* `CompressedTensorsW8A8Fp8MoECutlassMethod`
+* `Fp8MoEMethod`
+* `ModelOptNvFp4FusedMoE`
+dervied classes.
+
+#### init_prepare_finalize
+Based on the input and env settings, the `init_prepare_finalize` method creates the appropriate `FusedMoEPrepareAndFinalize` object. The method then queries `select_gemm_impl` for the appropriate `FusedMoEPermuteExpertsUnpermute` object and builds the `FusedMoEModularKernel` object
+
+Please take a look at [init_prepare_finalize](https://github.com/vllm-project/vllm/blob/1cbf951ba272c230823b947631065b826409fa62/vllm/model_executor/layers/fused_moe/layer.py#L188).
+**Important**: The `FusedMoEMethodBase` derived classes use the `FusedMoEMethodBase::fused_experts` object in their `apply` methods. When settings permit the construction of a valid `FusedMoEModularKernel` object, we override `FusedMoEMethodBase::fused_experts` with it. This essentially makes the derived classes agnostic to what FusedMoE implementation is used.
+
+### How To Unit Test
+We have `FusedMoEModularKernel` unit tests at [test_modular_kernel_combinations.py](gh-file:tests/kernels/moe/test_modular_kernel_combinations.py).
+
+The unit test iterates through all combinations of `FusedMoEPrepareAndFinalize` and `FusedMoEPremuteExpertsUnpermute` types and if they are
+compatible, runs some correctness tests.
+If you are adding some `FusedMoEPrepareAndFinalize` / `FusedMoEPermuteExpertsUnpermute` implementations,
+
+1. Add the implementation type to `MK_ALL_PREPARE_FINALIZE_TYPES` and `MK_FUSED_EXPERT_TYPES` in [mk_objects.py](gh-file:tests/kernels/moe/modular_kernel_tools/mk_objects.py) respectively.
+2. Update `Config::is_batched_prepare_finalize()`, `Config::is_batched_fused_experts()`, `Config::is_standard_fused_experts()`,
+`Config::is_fe_16bit_supported()`,  `Config::is_fe_fp8_supported()`, `Config::is_fe_block_fp8_supported()`,
+`Config::is_fe_supports_chunking()` methods in [/tests/kernels/moe/modular_kernel_tools/common.py](gh-file:tests/kernels/moe/modular_kernel_tools/common.py)
+
+Doing this will add the new implementation to the test suite.
+
+### How To Check `FusedMoEPrepareAndFinalize` & `FusedMoEPermuteExpertsUnpermute` Compatibility
+The unit test file [test_modular_kernel_combinations.py](gh-file:tests/kernels/moe/test_modular_kernel_combinations.py) can also be executed as a standalone script.
+Example: `python3 -m tests.kernels.moe.test_modular_kernel_combinations --pf-type PplxPrepareAndFinalize --experts-type BatchedTritonExperts`
+As a side-effect, this script can be used to test `FusedMoEPrepareAndFinalize` & `FusedMoEPermuteExpertsUnpermute` compatibility. When invoked
+with incompatible types, the script will error.
+
+### How To Profile
+Please take a look at [profile_modular_kernel.py](gh-file:tests/kernels/moe/modular_kernel_tools/profile_modular_kernel.py)
+The script can be used to generate Torch traces for a single `FusedMoEModularKernel::forward()` call for any compatible
+`FusedMoEPrepareAndFinalize` and `FusedMoEPermuteExpertsUnpermute` types.
+Example: `python3 -m tests.kernels.moe.modular_kernel_tools.profile_modular_kernel --pf-type PplxPrepareAndFinalize --experts-type BatchedTritonExperts`
+
+## FusedMoEPrepareAndFinalize Implementations
+The following table lists the `FusedMoEPrepareAndFinalize` implementations at the time of writing,
+
+| Implementation | Type | Comments |
+| :--- | :--- | :--- |
+| DeepEPHTPrepareAndFinalize | Contiguous / Non-Batched | Uses the DeepEP High-Throughput all2all kernels. |
+| DeepEPLLPrepareAndFinalize | Batched | Uses the DeepEP Low-Latency all2all kernels. |
+| PplxPrepareAndFinalize | Batched | Uses the Perplexity all2all kernels. |
+| FlashInferCutlassMoEPrepareAndFinalize | Contiguous | |
+| MoEPrepareAndFinalizeNoEP | Contiguous | This implementation is used when there is no EP. i.e. no all2all kernels are invoked. |
+| BatchedPrepareAndFinalize | Batched | A reference prepare/finalize class that reorganizes the tokens into expert batched format, i.e. E x max_num_tokens x K. (Doesn’t use any all2all kernels. This is primarily used in unit testing) |
+
+## FusedMoEPermuteExpertsUnpermute
+The following table lists the `FusedMoEPermuteExpertsUnpermute` implementations at the time of writing,
+
+| Implementation | Type | Comment |
+| :--- | :--- | :--- |
+| BatchedDeepGemmExperts | Batched | Uses the DeepGemm’s Masked Grouped Gemm kernels for the fused_moe operation. |
+| BatchedTritonExperts | Batched | Uses a Triton Kernel for the Batched matmuls. |
+| BatchedTritonOrDeepGemmExperts | Batched | Chooses either the `BatchedDeepGemmExperts` or `BatchedTritonExperts` based on environment settings. |
+| DeepGemmExperts | Contiguous / Non-Batched | Uses DeepGemm’s Grouped Gemm kernels for fused_moe operation. |
+| TritonExperts | Contiguous / Non-Batched | Uses a Triton Kernel for fused_moe matmuls. |
+| TritonOrDeepGemmExperts | Contiguous / Non-Batched | Chooses either the `DeepGemmExperts` or `TritonExperts` based on fused_moe inputs. |
+| CutlassExpertsFP8 | Supports both Batched and Contiguous formats | Uses Cutlass Grouped Gemm implementations for the fp8 matmuls. |
+| CutlassExpertsFP4 | Supports both Batched and Contiguous formats | Uses Cutlass Grouped Gemm implementations for the fp4 matmuls. |
+| FlashInferExperts | Contiguous | Uses fused_moe operation from FlashInfer |
+| NaiveBatchedExperts | Batched | Reference Batched Experts implementation. Primarily used in unit tests. |
