Initial commit

fbshipit-source-id: ad58e416e3ceeca85fae0583308968d04e78fe0d

README.md

+<img src="https://github.com/facebookresearch/pytorch3d/blob/master/.github/pytorch3dlogo.png" width="900"/>
+
+[![CircleCI](https://circleci.com/gh/facebookresearch/pytorch3d.svg?style=svg)](https://circleci.com/gh/facebookresearch/pytorch3d)
+[![Anaconda-Server Badge](https://anaconda.org/pytorch3d/pytorch3d/badges/version.svg)](https://anaconda.org/pytorch3d/pytorch3d)
+
+# Introduction
+
+PyTorch3d provides efficient, reusable components for 3D Computer Vision research with [PyTorch](https://pytorch.org).
+
+Key features include:
+
+- Data structure for storing and manipulating triangle meshes
+- Efficient operations on triangle meshes (projective transformations, graph convolution, sampling, loss functions)
+- A differentiable mesh renderer
+
+PyTorch3d is designed to integrate smoothly with deep learning methods for predicting and manipulating 3D data.
+For this reason, all operators in PyTorch3d:
+
+- Are implemented using PyTorch tensors
+- Can handle minibatches of hetereogenous data
+- Can be differentiated
+- Can utilize GPUs for acceleration
+

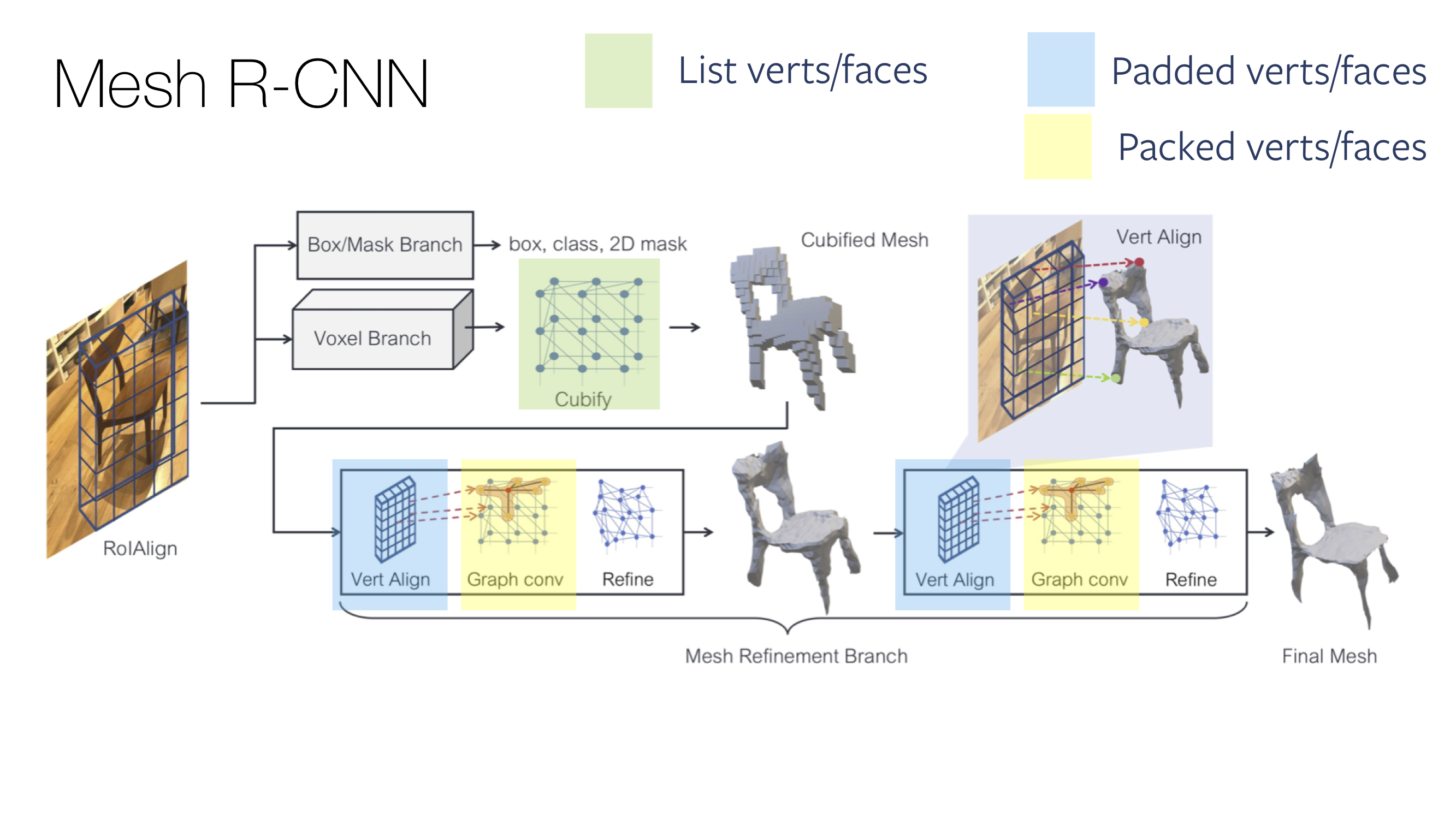

+Within FAIR, PyTorch3d has been used to power research projects such as [Mesh R-CNN](https://arxiv.org/abs/1906.02739).
+
+## Installation
+
+For detailed instructions refer to [INSTALL.md](INSTALL.md).
+
+## License
+
+PyTorch3d is released under the [BSD-3-Clause License](LICENSE).
+
+## Tutorials
+
+Get started with PyTorch3d by trying one of the tutorial notebooks.
+
+|<img src="https://github.com/facebookresearch/pytorch3d/blob/master/.github/dolphin_deform.gif" width="310"/>|<img src="https://github.com/facebookresearch/pytorch3d/blob/master/.github/bundle_adjust.gif" width="310"/>|
+|:-----------------------------------------------------------------------------------------------------------:|:--------------------------------------------------:|
+| [Deform a sphere mesh to dolphin](https://github.com/fairinternal/pytorch3d/blob/master/docs/tutorials/deform_source_mesh_to_target_mesh.ipynb)| [Bundle adjustment](https://github.com/fairinternal/pytorch3d/blob/master/docs/tutorials/bundle_adjustment.ipynb) |
+
+| <img src="https://github.com/facebookresearch/pytorch3d/blob/master/.github/render_textured_mesh.gif" width="310"/> | <img src="https://github.com/facebookresearch/pytorch3d/blob/master/.github/camera_position_teapot.gif" width="310" height="310"/>
+|:------------------------------------------------------------:|:--------------------------------------------------:|
+| [Render textured meshes](https://github.com/fairinternal/pytorch3d/blob/master/docs/tutorials/render_textured_meshes.ipynb)| [Camera position optimization](https://github.com/fairinternal/pytorch3d/blob/master/docs/tutorials/camera_position_optimization_with_differentiable_rendering.ipynb)|
+
+## Documentation
+
+Learn more about the API by reading the PyTorch3d [documentation](https://pytorch3d.readthedocs.org/).
+
+We also have deep dive notes on several API components:
+

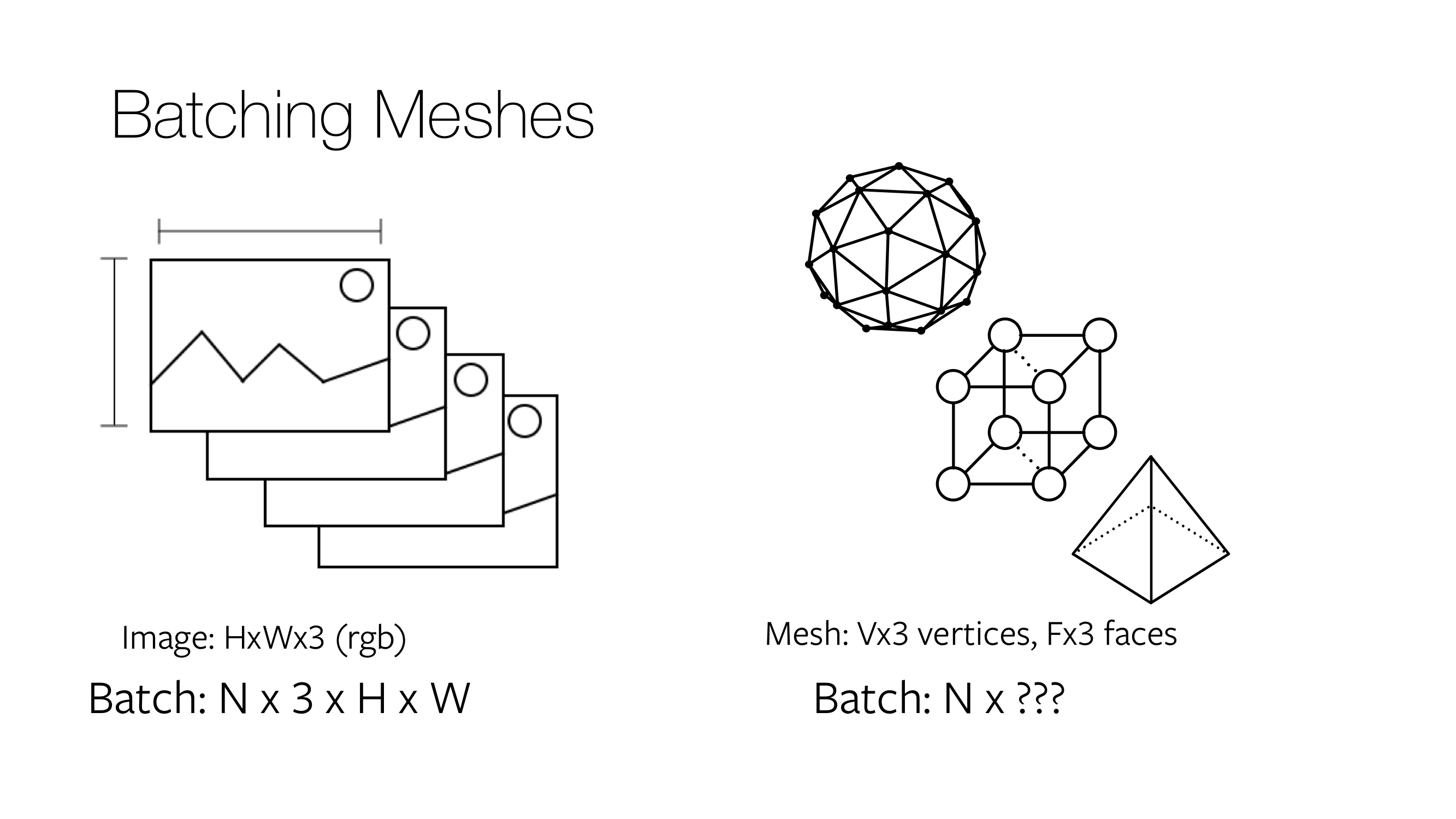

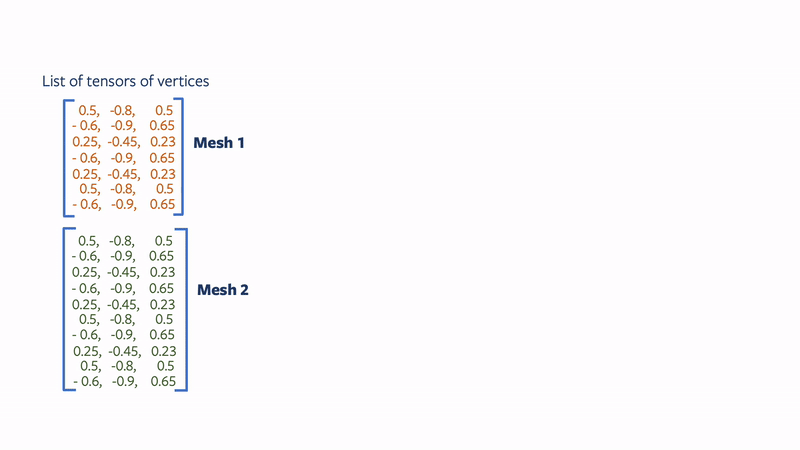

+- [Heterogeneous Batching](https://github.com/facebookresearch/pytorch3d/tree/master/docs/notes/batching.md)
+- [Mesh IO](https://github.com/facebookresearch/pytorch3d/tree/master/docs/notes/meshes_io.md)
+- [Differentiable Rendering](https://github.com/facebookresearch/pytorch3d/tree/master/docs/notes/renderer_getting_started.md)
+
+## Development
+
+We welcome new contributions to Pytorch3d and we will be actively maintaining this library! Please refer to [CONTRIBUTING.md](./.github/CONTRIBUTING.md) for full instructions on how to run the code, tests and linter, and submit your pull requests.
+
+
+## Contributors
+
+PyTorch3d is written and maintained by the Facebook AI Research Computer Vision Team.
+
+## Citation
+
+If you find PyTorch3d useful in your research, please cite:
+
+```bibtex
+@misc{ravi2020pytorch3d,
+  author =       {Nikhila Ravi and Jeremy Reizenstein and David Novotny and Taylor Gordon
+                  and Wan-Yen Lo and Justin Johnson and Georgia Gkioxari},
+  title =        {PyTorch3D},
+  howpublished = {\url{https://github.com/facebookresearch/pytorch3d}},
+  year =         {2020}
+}
+```

dev/linter.sh

+#!/bin/bash -e
+# Copyright (c) Facebook, Inc. and its affiliates. All rights reserved.
+
+# Run this script at project root by "./dev/linter.sh" before you commit
+
+{
+  V=$(black --version|cut '-d ' -f3)
+  code='import distutils.version; assert "19.3" < distutils.version.LooseVersion("'$V'")'
+  python -c "${code}" 2> /dev/null
+} || {
+  echo "Linter requires black 19.3b0 or higher!"
+  exit 1
+}
+
+DIR="$( cd "$( dirname "${BASH_SOURCE[0]}" )" >/dev/null 2>&1 && pwd )"
+DIR="${DIR}/.."
+
+echo "Running isort..."
+isort -y -sp "${DIR}"
+
+echo "Running black..."
+black -l 80 "${DIR}"
+
+echo "Running flake..."
+flake8 "${DIR}"
+
+echo "Running clang-format ..."
+find "${DIR}" -regex ".*\.\(cpp\|c\|cc\|cu\|cuh\|cxx\|h\|hh\|hpp\|hxx\|tcc\|mm\|m\)" -print0 | xargs -0 clang-format -i
+
+(cd "${DIR}"; command -v arc > /dev/null && arc lint) || true

docs/.gitignore

+source
+_build
+_static
+_template
+*-checkpoint.ipynb
+.ipynb_checkpoints
+.ipynb_checkpoints/**

docs/Makefile

+# Copyright (c) Facebook, Inc. and its affiliates. All Rights Reserved
+
+# Minimal makefile for Sphinx documentation
+
+# You can set these variables from the command line, and also
+# from the environment for the first two.
+SPHINXOPTS    =
+SPHINXBUILD   = sphinx-build
+SOURCEDIR     = .
+BUILDDIR      = _build
+
+# Put it first so that "make" without argument is like "make help".
+help:
+	@$(SPHINXBUILD) -M help "$(SOURCEDIR)" "$(BUILDDIR)" $(SPHINXOPTS) $(O)
+
+.PHONY: help Makefile
+
+# Catch-all target: route all unknown targets to Sphinx using the new
+# "make mode" option.  $(O) is meant as a shortcut for $(SPHINXOPTS).
+%: Makefile
+	@$(SPHINXBUILD) -M $@ "$(SOURCEDIR)" "$(BUILDDIR)" $(SPHINXOPTS) $(O)

docs/README.md

+
+## Setup
+
+### Install dependencies
+
+```
+pip install -U recommonmark mock sphinx sphinx_rtd_theme sphinx_markdown_tables
+```
+
+### Add symlink to the root README.md
+
+We want to include the root readme as an overview. Before generating the docs create a symlink to the root readme.
+
+```
+cd docs
+ln -s ../README.md  overview.md
+```
+
+In `conf.py` for deployment this is done using `subprocess.call`.
+
+### Add a new file
+
+Add a new `.md` or `.rst` file and add the name to the doc tree in `index.rst` e.g
+
+```
+.. toctree::
+   :maxdepth: 1
+   :caption: Intro Documentation
+
+   overview
+```
+
+To autogenerate docs from docstrings in the source code, add the import path for the function e.g.
+
+```
+Chamfer Loss
+--------------------
+
+.. autoclass:: loss.chamfer.chamfer_distance
+    :members:
+    :undoc-members:
+
+    .. automethod:: __init__
+
+````
+
+### Build
+
+From `pytorch3d/docs` run:
+
+```
+> make html
+```
+
+The website is generated in `_build/html`.
+
+### Common Issues
+
+Sphinx can be fussy, and sometimes about things you weren’t expecting. For example, you might encounter something like:
+
+WARNING: toctree contains reference to nonexisting document u'overview'
+...
+checking consistency...
+<pytorch3d>/docs/overview.rst::
+WARNING: document isn't included in any toctree
+
+You might have indented overview in the .. toctree:: in index.rst with four spaces, when Sphinx is expecting three.
+
+
+### View
+
+Start a python simple server:
+
+```
+> python -m http.server
+```
+
+Navigate to: `http://0.0.0.0:8000/`

docs/conf.py

+# -*- coding: utf-8 -*-
+# Copyright (c) Facebook, Inc. and its affiliates. All Rights Reserved
+
+# flake8: noqa
+
+# Configuration file for the Sphinx documentation builder.
+#
+# This file only contains a selection of the most common options. For a full
+# list see the documentation:
+# https://www.sphinx-doc.org/en/master/usage/configuration.html
+
+# If extensions (or modules to document with autodoc) are in another directory,
+# add these directories to sys.path here. If the directory is relative to the
+# documentation root, use os.path.abspath to make it absolute, like shown here.
+#
+import os
+import sys
+
+import pytorch3d  # isort: skip
+
+import mock
+from recommonmark.parser import CommonMarkParser
+from recommonmark.states import DummyStateMachine
+from sphinx.builders.html import StandaloneHTMLBuilder
+from sphinx.ext.autodoc import between
+
+# Monkey patch to fix recommonmark 0.4 doc reference issues.
+orig_run_role = DummyStateMachine.run_role
+
+
+def run_role(self, name, options=None, content=None):
+    if name == "doc":
+        name = "any"
+    return orig_run_role(self, name, options, content)
+
+
+DummyStateMachine.run_role = run_role
+
+
+StandaloneHTMLBuilder.supported_image_types = [
+    "image/svg+xml",
+    "image/gif",
+    "image/png",
+    "image/jpeg",
+]
+
+# -- Path setup --------------------------------------------------------------
+
+
+sys.path.insert(0, os.path.abspath("../"))
+sys.path.insert(0, os.path.abspath("../pytorch3d"))
+sys.path.insert(0, os.path.abspath("../../"))
+
+DEPLOY = os.environ.get("READTHEDOCS") == "True"
+needs_sphinx = "1.7"
+
+
+# The short X.Y version
+version = pytorch3d.__version__
+# The full version, including alpha/beta/rc tags
+release = version
+
+try:
+    import torch  # noqa
+except ImportError:
+    for m in [
+        "torch",
+        "torchvision",
+        "torch.nn",
+        "torch.autograd",
+        "torch.autograd.function",
+        "torch.nn.modules",
+        "torch.nn.modules.utils",
+        "torch.utils",
+        "torch.utils.data",
+        "torchvision",
+        "torchvision.ops",
+    ]:
+        sys.modules[m] = mock.Mock(name=m)
+
+for m in ["cv2", "scipy", "numpy", "pytorch3d._C", "np.eye", "np.zeros"]:
+    sys.modules[m] = mock.Mock(name=m)
+
+# -- Project information -----------------------------------------------------
+
+project = "PyTorch3D"
+copyright = "2019, facebookresearch"
+author = "facebookresearch"
+
+# The full version, including alpha/beta/rc tags
+release = "v0.1"
+
+# -- General configuration ---------------------------------------------------
+
+# Add any Sphinx extension module names here, as strings. They can be
+# extensions coming with Sphinx (named 'sphinx.ext.*') or your custom
+# ones.
+
+extensions = [
+    "sphinx_markdown_tables",
+    "sphinx.ext.autodoc",
+    "sphinx.ext.mathjax",
+    "sphinx.ext.napoleon",
+    "sphinx.ext.intersphinx",
+    "sphinx.ext.todo",
+    "sphinx.ext.coverage",
+    "sphinx.ext.viewcode",
+    "sphinx.ext.githubpages",
+]
+
+# -- Configurations for plugins ------------
+napoleon_google_docstring = True
+napoleon_include_init_with_doc = True
+napoleon_include_special_with_doc = True
+napoleon_numpy_docstring = False
+# napoleon_use_param = False
+napoleon_use_rtype = False
+autodoc_inherit_docstrings = False
+autodoc_member_order = "bysource"
+
+source_parsers = {".md": CommonMarkParser}
+
+
+# The suffix(es) of source filenames.
+# You can specify multiple suffix as a list of string:
+#
+source_suffix = [".rst", ".md"]
+
+# The master toctree document.
+master_doc = "index"
+
+# Add any paths that contain templates here, relative to this directory.
+templates_path = ["_templates"]
+
+# List of patterns, relative to source directory, that match files and
+# directories to ignore when looking for source files.
+# This pattern also affects html_static_path and html_extra_path.
+exclude_patterns = ["_build", "Thumbs.db", ".DS_Store", "build", "README.md"]
+
+# The name of the Pygments (syntax highlighting) style to use.
+pygments_style = "sphinx"
+
+# -- Options for HTML output -------------------------------------------------
+
+# The theme to use for HTML and HTML Help pages.  See the documentation for
+# a list of builtin themes.
+#
+html_theme = "sphinx_rtd_theme"
+
+# Add any paths that contain custom static files (such as style sheets) here,
+# relative to this directory. They are copied after the builtin static files,
+# so a file named "default.css" will overwrite the builtin "default.css".
+html_static_path = ["_static"]
+
+html_theme_options = {"collapse_navigation": True}
+
+
+def url_resolver(url):
+    if ".html" not in url:
+        url = url.replace("../", "")
+        return (
+            "https://github.com/facebookresearch/pytorch3d/blob/master/" + url
+        )
+    else:
+        if DEPLOY:
+            return "http://pytorch3d.readthedocs.io/" + url
+        else:
+            return "/" + url
+
+
+def setup(app):
+    # Add symlink to root README
+    if DEPLOY:
+        import subprocess
+
+        subprocess.call(["ln", "-s", "../README.md", "overview.md"])
+
+    from recommonmark.transform import AutoStructify
+
+    app.add_config_value(
+        "recommonmark_config",
+        {
+            "url_resolver": url_resolver,
+            "auto_toc_tree_section": "Contents",
+            "enable_math": True,
+            "enable_inline_math": True,
+            "enable_eval_rst": True,
+            "enable_auto_toc_tree": True,
+        },
+        True,
+    )
+
+    # Register a sphinx.ext.autodoc.between listener to ignore everything
+    # between lines that contain the word IGNORE
+    app.connect(
+        "autodoc-process-docstring", between("^.*IGNORE.*$", exclude=True)
+    )
+    app.add_transform(AutoStructify)
+
+    return app

docs/index.rst

+Welcome to PyTorch3D's documentation!
+=====================================
+
+PyTorch3D is a library of reusable components for Deep Learning with 3D data.
+
+Table of Contents
+=================
+
+.. toctree::
+   :maxdepth: 2
+
+   overview
+
+.. toctree::
+   :maxdepth: 2
+
+   modules/index

docs/modules/index.rst

+API Documentation
+==================
+
+.. toctree::
+
+    structures
+    io
+    loss
+    ops
+    renderer/index
+    transforms
+    utils
+
\ No newline at end of file

docs/modules/io.rst

+pytorch3d.io
+===========================
+
+.. automodule:: pytorch3d.io
+    :members:
+    :undoc-members:
+    :show-inheritance:
\ No newline at end of file

docs/modules/loss.rst

+pytorch3d.loss
+====================
+
+Loss functions for meshes and point clouds.
+
+.. automodule:: pytorch3d.loss
+    :members:
+    :undoc-members:
+    :show-inheritance:

docs/modules/ops.rst

+pytorch3d.ops
+===========================
+
+.. automodule:: pytorch3d.ops
+    :members:
+    :undoc-members:
\ No newline at end of file
