Fix coordinate system conventions in point cloud renderer

Summary:
Applying the changes added for mesh rasterization to ensure that +Y is up and +X is left so that the coordinate system is right handed.

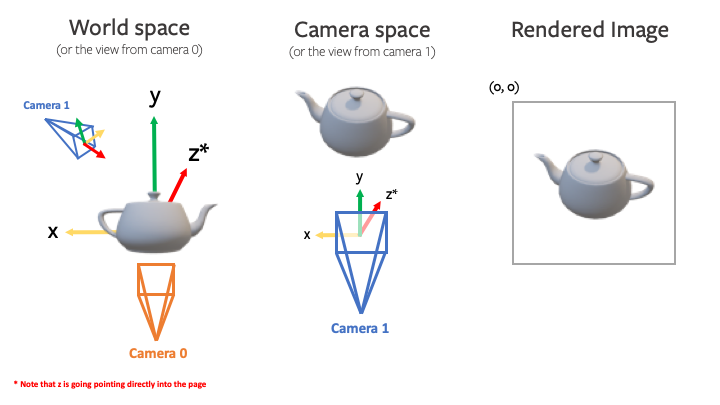

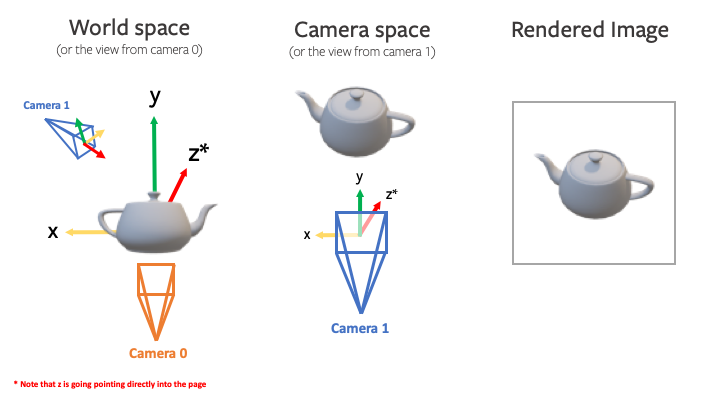

Also updated the diagram in the docs to indicate that (0,0) is in the top left hand corner.

Reviewed By: gkioxari

Differential Revision: D20394849

fbshipit-source-id: cfb7c79090eb1f55ad38b92327a74a70a8dc541e

pytorch3d/csrc/rasterize_meshes/rasterize_meshes.cu

@@ -208,7 +208,7 @@ __global__ void RasterizeMeshesNaiveCudaKernel(
     const int n = i / (H * W); // batch index.
     const int pix_idx = i % (H * W);

-    // Determine ordering based on axis convention.
+    // Reverse ordering of X and Y axes
     const int yi = H - 1 - pix_idx / W;
     const int xi = W - 1 - pix_idx % W;

@@ -353,7 +353,7 @@ __global__ void RasterizeMeshesBackwardCudaKernel(
     const int n = t_i / (H * W); // batch index.
     const int pix_idx = t_i % (H * W);

-    // Determine ordering based on axis convention.
+    // Reverse ordering of X and Y axes.
     const int yi = H - 1 - pix_idx / W;
     const int xi = W - 1 - pix_idx % W;

@@ -557,8 +557,8 @@ __global__ void RasterizeMeshesCoarseCudaKernel(
         // need to add/subtract a half pixel to get the true extent of the bin.
         // Reverse ordering of Y axis so that +Y is upwards in the image.
         const int yidx = num_bins - by;
-        float bin_y_max = PixToNdc(yidx * bin_size - 1, H) + half_pix;
-        float bin_y_min = PixToNdc((yidx - 1) * bin_size, H) - half_pix;
+        const float bin_y_max = PixToNdc(yidx * bin_size - 1, H) + half_pix;
+        const float bin_y_min = PixToNdc((yidx - 1) * bin_size, H) - half_pix;

         const bool y_overlap = (ymin <= bin_y_max) && (bin_y_min < ymax);

@@ -566,8 +566,8 @@ __global__ void RasterizeMeshesCoarseCudaKernel(
           // X coordinate of the left and right of the bin.
           // Reverse ordering of x axis so that +X is left.
           const int xidx = num_bins - bx;
-          float bin_x_max = PixToNdc(xidx * bin_size - 1, W) + half_pix;
-          float bin_x_min = PixToNdc((xidx - 1) * bin_size, W) - half_pix;
+          const float bin_x_max = PixToNdc(xidx * bin_size - 1, W) + half_pix;
+          const float bin_x_min = PixToNdc((xidx - 1) * bin_size, W) - half_pix;

           const bool x_overlap = (xmin <= bin_x_max) && (bin_x_min < xmax);
           if (y_overlap && x_overlap) {

pytorch3d/csrc/rasterize_meshes/rasterize_meshes_cpu.cpp

@@ -473,11 +473,11 @@ torch::Tensor RasterizeMeshesCoarseCpu(
           }
         }

-        // Shift the bin down for the next loop iteration.
+        // Shift the bin to the left for the next loop iteration.
         bin_x_max = bin_x_min;
         bin_x_min = bin_x_min - bin_width;
       }
-      // Shift the bin left for the next loop iteration.
+      // Shift the bin down for the next loop iteration.
       bin_y_max = bin_y_min;
       bin_y_min = bin_y_min - bin_width;
     }

pytorch3d/csrc/rasterize_points/rasterize_points.cu

@@ -94,8 +94,10 @@ __global__ void RasterizePointsNaiveCudaKernel(
     // Convert linear index to 3D index
     const int n = i / (S * S); // Batch index
     const int pix_idx = i % (S * S);
-    const int yi = pix_idx / S;
-    const int xi = pix_idx % S;
+
+    // Reverse ordering of X and Y axes.
+    const int yi = S - 1 - pix_idx / S;
+    const int xi = S - 1 - pix_idx % S;

     const float xf = PixToNdc(xi, S);
     const float yf = PixToNdc(yi, S);
@@ -126,7 +128,7 @@ __global__ void RasterizePointsNaiveCudaKernel(
           points, p_idx, q_size, q_max_z, q_max_idx, q, radius2, xf, yf, K);
     }
     BubbleSort(q, q_size);
-    int idx = n * S * S * K + yi * S * K + xi * K;
+    int idx = n * S * S * K + pix_idx * K;
     for (int k = 0; k < q_size; ++k) {
       point_idxs[idx + k] = q[k].idx;
       zbuf[idx + k] = q[k].z;
@@ -258,18 +260,23 @@ __global__ void RasterizePointsCoarseCudaKernel(
         // Get y extent for the bin. PixToNdc gives us the location of
         // the center of each pixel, so we need to add/subtract a half
         // pixel to get the true extent of the bin.
-        const float by0 = PixToNdc(by * bin_size, S) - half_pix;
-        const float by1 = PixToNdc((by + 1) * bin_size - 1, S) + half_pix;
-        const bool y_overlap = (py0 <= by1) && (by0 <= py1);
+        // Reverse ordering of Y axis so that +Y is upwards in the image.
+        const int yidx = num_bins - by;
+        const float bin_y_max = PixToNdc(yidx * bin_size - 1, S) + half_pix;
+        const float bin_y_min = PixToNdc((yidx - 1) * bin_size, S) - half_pix;
+
+        const bool y_overlap = (py0 <= bin_y_max) && (bin_y_min <= py1);
         if (!y_overlap) {
           continue;
         }
         for (int bx = 0; bx < num_bins; ++bx) {
           // Get x extent for the bin; again we need to adjust the
           // output of PixToNdc by half a pixel.
-          const float bx0 = PixToNdc(bx * bin_size, S) - half_pix;
-          const float bx1 = PixToNdc((bx + 1) * bin_size - 1, S) + half_pix;
-          const bool x_overlap = (px0 <= bx1) && (bx0 <= px1);
+          // Reverse ordering of x axis so that +X is left.
+          const int xidx = num_bins - bx;
+          const float bin_x_max = PixToNdc(xidx * bin_size - 1, S) + half_pix;
+          const float bin_x_min = PixToNdc((xidx - 1) * bin_size, S) - half_pix;
+          const bool x_overlap = (px0 <= bin_x_max) && (bin_x_min <= px1);
           if (x_overlap) {
             binmask.set(by, bx, p);
           }
@@ -395,8 +402,14 @@ __global__ void RasterizePointsFineCudaKernel(

     if (yi >= S || xi >= S)
       continue;
-    const float xf = PixToNdc(xi, S);
-    const float yf = PixToNdc(yi, S);
+
+    // Reverse ordering of the X and Y axis so that
+    // in the image +Y is pointing up and +X is pointing left.
+    const int yidx = S - 1 - yi;
+    const int xidx = S - 1 - xi;
+
+    const float xf = PixToNdc(xidx, S);
+    const float yf = PixToNdc(yidx, S);

     // This part looks like the naive rasterization kernel, except we use
     // bin_points to only look at a subset of points already known to fall
@@ -493,8 +506,12 @@ __global__ void RasterizePointsBackwardCudaKernel(
     const int xk = yxk % (W * K);
     const int xi = xk / K;
     // k = xk % K (We don't actually need k, but this would be it.)
-    const float xf = PixToNdc(xi, W);
-    const float yf = PixToNdc(yi, H);
+    // Reverse ordering of X and Y axes.
+    const int yidx = H - 1 - yi;
+    const int xidx = W - 1 - xi;
+
+    const float xf = PixToNdc(xidx, W);
+    const float yf = PixToNdc(yidx, H);

     const int p = idxs[i];
     if (p < 0)

pytorch3d/csrc/rasterize_points/rasterize_points_cpu.cpp

@@ -47,9 +47,16 @@ std::tuple<torch::Tensor, torch::Tensor, torch::Tensor> RasterizePointsNaiveCpu(
         (point_start_idx + num_points_per_cloud[n].item().to<int32_t>());

     for (int yi = 0; yi < S; ++yi) {
-      float yf = PixToNdc(yi, S);
+      // Reverse the order of yi so that +Y is pointing upwards in the image.
+      const int yidx = S - 1 - yi;
+      const float yf = PixToNdc(yidx, S);
+
       for (int xi = 0; xi < S; ++xi) {
-        float xf = PixToNdc(xi, S);
+        // Reverse the order of xi so that +X is pointing to the left in the
+        // image.
+        const int xidx = S - 1 - xi;
+        const float xf = PixToNdc(xidx, S);
+
         // Use a priority queue to hold (z, idx, r)
         std::priority_queue<std::tuple<float, int, float>> q;
         for (int p = point_start_idx; p < point_stop_idx; ++p) {
@@ -118,11 +125,15 @@ torch::Tensor RasterizePointsCoarseCpu(
     const int point_stop_idx =
         (point_start_idx + num_points_per_cloud[n].item().to<int32_t>());

-    float bin_y_min = -1.0f;
-    float bin_y_max = bin_y_min + bin_width;
+    float bin_y_max = 1.0f;
+    float bin_y_min = bin_y_max - bin_width;
+
+    // Iterate through the horizontal bins from top to bottom.
     for (int by = 0; by < B; by++) {
-      float bin_x_min = -1.0f;
-      float bin_x_max = bin_x_min + bin_width;
+      float bin_x_max = 1.0f;
+      float bin_x_min = bin_x_max - bin_width;
+
+      // Iterate through bins on this horizontal line, left to right.
       for (int bx = 0; bx < B; bx++) {
         int32_t points_hit = 0;
         for (int p = point_start_idx; p < point_stop_idx; ++p) {
@@ -136,6 +147,7 @@ torch::Tensor RasterizePointsCoarseCpu(
           float point_x_max = px + radius;
           float point_y_min = py - radius;
           float point_y_max = py + radius;
+
           // Use a half-open interval so that points exactly on the
           // boundary between bins will fall into exactly one bin.
           bool x_hit = (point_x_min <= bin_x_max) && (bin_x_min <= point_x_max);
@@ -154,13 +166,13 @@ torch::Tensor RasterizePointsCoarseCpu(
         // Record the number of points found in this bin
         points_per_bin_a[n][by][bx] = points_hit;

-        // Shift the bin to the right for the next loop iteration
-        bin_x_min = bin_x_max;
-        bin_x_max = bin_x_min + bin_width;
+        // Shift the bin to the left for the next loop iteration.
+        bin_x_max = bin_x_min;
+        bin_x_min = bin_x_min - bin_width;
       }
-      // Shift the bin down for the next loop iteration
-      bin_y_min = bin_y_max;
-      bin_y_max = bin_y_min + bin_width;
+      // Shift the bin down for the next loop iteration.
+      bin_y_max = bin_y_min;
+      bin_y_min = bin_y_min - bin_width;
     }
   }
   return bin_points;
@@ -193,9 +205,18 @@ torch::Tensor RasterizePointsBackwardCpu(

   for (int n = 0; n < N; ++n) { // Loop over images in the batch
     for (int y = 0; y < H; ++y) { // Loop over rows in the image
-      const float yf = PixToNdc(y, H);
+      // Reverse the order of yi so that +Y is pointing upwards in the image.
+      const int yidx = H - 1 - y;
+      // Y coordinate of the top of the pixel.
+      const float yf = PixToNdc(yidx, H);
+
+      // Iterate through pixels on this horizontal line, left to right.
       for (int x = 0; x < W; ++x) { // Loop over pixels in the row
-        const float xf = PixToNdc(x, W);
+
+        // Reverse the order of xi so that +X is pointing to the left in the
+        // image.
+        const int xidx = W - 1 - x;
+        const float xf = PixToNdc(xidx, W);
         for (int k = 0; k < K; ++k) { // Loop over points for the pixel
           const int p = idxs_a[n][y][x][k];
           if (p < 0) {

pytorch3d/renderer/mesh/rasterize_meshes.py

@@ -283,7 +283,7 @@ def rasterize_meshes_python(
                 # X coordinate of one end of the image. Reverse the ordering
                 # of xi so that +X is pointing to the left in the image.
                 xfix = W - 1 - xi
-                xf = pix_to_ndc(xfix, H)
+                xf = pix_to_ndc(xfix, W)
                 top_k_points = []

                 # Check whether each face in the mesh affects this pixel.
