Fix coordinate system conventions in renderer

Summary:
## Updates

- Defined the world and camera coordinates according to this figure. The world coordinates are defined as having +Y up, +X left and +Z in.

{F230888499}

- Removed all flipping from blending functions.
- Updated the rasterizer to return images with +Y up and +X left.
- Updated all the mesh rasterizer tests
    - The expected values are now defined in terms of the default +Y up, +X left
    - Added tests where the triangles in the meshes are non symmetrical so that it is clear which direction +X and +Y are

## Questions:
- Should we have **scene settings** instead of raster settings?
    - To be more correct we should be [z clipping in the rasterizer based on the far/near clipping planes](https://github.com/ShichenLiu/SoftRas/blob/master/soft_renderer/cuda/soft_rasterize_cuda_kernel.cu#L400) - these values are also required in the blending functions so should we make these scene level parameters and have a scene settings tuple which is available to the rasterizer and shader?

Reviewed By: gkioxari

Differential Revision: D20208604

fbshipit-source-id: 55787301b1bffa0afa9618f0a0886cc681da51f3

tests/test_blending.py

@@ -41,7 +41,7 @@ def sigmoid_blend_naive_loop(colors, fragments, blend_params):
                 pixel_colors[n, h, w, :3] = colors[n, h, w, 0, :]
                 pixel_colors[n, h, w, 3] = 1.0 - alpha

-    return torch.flip(pixel_colors, [1])
+    return pixel_colors


 def sigmoid_blend_naive_loop_backward(
@@ -54,8 +54,6 @@ def sigmoid_blend_naive_loop_backward(
     N, H, W, K = pix_to_face.shape
     device = pix_to_face.device
     grad_distances = torch.zeros((N, H, W, K), dtype=dists.dtype, device=device)
-    images = torch.flip(images, [1])
-    grad_images = torch.flip(grad_images, [1])

     for n in range(N):
         for h in range(H):
@@ -130,7 +128,7 @@ def softmax_blend_naive(colors, fragments, blend_params):
                 pixel_colors[n, h, w, :3] += (delta / denom) * bk_color
                 pixel_colors[n, h, w, 3] = 1.0 - alpha

-    return torch.flip(pixel_colors, [1])
+    return pixel_colors


 class TestBlending(unittest.TestCase):

tests/test_cameras.py

@@ -173,12 +173,12 @@ class TestCameraHelpers(unittest.TestCase):
         grad_dist = (
             torch.cos(elev) * torch.sin(azim)
             + torch.sin(elev)
-            - torch.cos(elev) * torch.cos(azim)
+            + torch.cos(elev) * torch.cos(azim)
         )
         grad_elev = (
             -torch.sin(elev) * torch.sin(azim)
             + torch.cos(elev)
-            + torch.sin(elev) * torch.cos(azim)
+            - torch.sin(elev) * torch.cos(azim)
         )
         grad_elev = dist * (math.pi / 180.0) * grad_elev
         self.assertTrue(torch.allclose(elev_grad, grad_elev))
@@ -232,12 +232,12 @@ class TestCameraHelpers(unittest.TestCase):
         grad_dist = (
             torch.cos(elev) * torch.sin(azim)
             + torch.sin(elev)
-            - torch.cos(elev) * torch.cos(azim)
+            + torch.cos(elev) * torch.cos(azim)
         )
         grad_elev = (
             -torch.sin(elev) * torch.sin(azim)
             + torch.cos(elev)
-            + torch.sin(elev) * torch.cos(azim)
+            - torch.sin(elev) * torch.cos(azim)
         )
         grad_elev = (dist * (math.pi / 180.0) * grad_elev).sum()
         self.assertTrue(torch.allclose(elev_grad, grad_elev))

tests/test_rendering_meshes.py

@@ -72,20 +72,25 @@ class TestRenderingMeshes(unittest.TestCase):

         # Init rasterizer settings
         if elevated_camera:
-            R, T = look_at_view_transform(2.7, 45.0, 0.0)
+            # Elevated and rotated camera
+            R, T = look_at_view_transform(dist=2.7, elev=45.0, azim=45.0)
             postfix = "_elevated_camera"
+            # If y axis is up, the spot of light should
+            # be on the bottom left of the sphere.
         else:
+            # No elevation or azimuth rotation
             R, T = look_at_view_transform(2.7, 0.0, 0.0)
             postfix = ""
         cameras = OpenGLPerspectiveCameras(device=device, R=R, T=T)
-        raster_settings = RasterizationSettings(
-            image_size=512, blur_radius=0.0, faces_per_pixel=1, bin_size=0
-        )

         # Init shader settings
         materials = Materials(device=device)
         lights = PointLights(device=device)
-        lights.location = torch.tensor([0.0, 0.0, -2.0], device=device)[None]
+        lights.location = torch.tensor([0.0, 0.0, +2.0], device=device)[None]
+
+        raster_settings = RasterizationSettings(
+            image_size=512, blur_radius=0.0, faces_per_pixel=1, bin_size=0
+        )

         # Init renderer
         rasterizer = MeshRasterizer(
@@ -107,15 +112,16 @@ class TestRenderingMeshes(unittest.TestCase):

         # Load reference image
         image_ref_phong = load_rgb_image(
-            "test_simple_sphere_illuminated%s.png" % postfix
+            "test_simple_sphere_light%s.png" % postfix
         )
         self.assertTrue(torch.allclose(rgb, image_ref_phong, atol=0.05))

-        ###################################
-        # Move the light behind the object
-        ###################################
-        # Check the image is dark
-        lights.location[..., 2] = +2.0
+        ########################################################
+        # Move the light to the +z axis in world space so it is
+        # behind the sphere. Note that +Z is in, +Y up,
+        # +X left for both world and camera space.
+        ########################################################
+        lights.location[..., 2] = -2.0
         images = renderer(sphere_mesh, lights=lights)
         rgb = images[0, ..., :3].squeeze().cpu()
         if DEBUG:
@@ -133,7 +139,7 @@ class TestRenderingMeshes(unittest.TestCase):
         ######################################
         # Change the shader to a GouraudShader
         ######################################
-        lights.location = torch.tensor([0.0, 0.0, -2.0], device=device)[None]
+        lights.location = torch.tensor([0.0, 0.0, +2.0], device=device)[None]
         renderer = MeshRenderer(
             rasterizer=rasterizer,
             shader=HardGouraudShader(
@@ -143,7 +149,7 @@ class TestRenderingMeshes(unittest.TestCase):
         images = renderer(sphere_mesh)
         rgb = images[0, ..., :3].squeeze().cpu()
         if DEBUG:
-            filename = "DEBUG_simple_sphere_light_gourad%s.png" % postfix
+            filename = "DEBUG_simple_sphere_light_gouraud%s.png" % postfix
             Image.fromarray((rgb.numpy() * 255).astype(np.uint8)).save(
                 DATA_DIR / filename
             )
@@ -157,7 +163,6 @@ class TestRenderingMeshes(unittest.TestCase):
         ######################################
         # Change the shader to a HardFlatShader
         ######################################
-        lights.location = torch.tensor([0.0, 0.0, -2.0], device=device)[None]
         renderer = MeshRenderer(
             rasterizer=rasterizer,
             shader=HardFlatShader(
@@ -217,7 +222,7 @@ class TestRenderingMeshes(unittest.TestCase):
         # Init shader settings
         materials = Materials(device=device)
         lights = PointLights(device=device)
-        lights.location = torch.tensor([0.0, 0.0, -2.0], device=device)[None]
+        lights.location = torch.tensor([0.0, 0.0, +2.0], device=device)[None]

         # Init renderer
         renderer = MeshRenderer(
@@ -231,7 +236,7 @@ class TestRenderingMeshes(unittest.TestCase):
         images = renderer(sphere_meshes)

         # Load ref image
-        image_ref = load_rgb_image("test_simple_sphere_illuminated.png")
+        image_ref = load_rgb_image("test_simple_sphere_light.png")

         for i in range(batch_size):
             rgb = images[i, ..., :3].squeeze().cpu()
@@ -261,7 +266,7 @@ class TestRenderingMeshes(unittest.TestCase):
         )

         # Init rasterizer settings
-        R, T = look_at_view_transform(2.7, 10, 20)
+        R, T = look_at_view_transform(2.7, 0, 0)
         cameras = OpenGLPerspectiveCameras(device=device, R=R, T=T)

         # Init renderer
@@ -275,7 +280,7 @@ class TestRenderingMeshes(unittest.TestCase):
         alpha = images[0, ..., 3].squeeze().cpu()
         if DEBUG:
             Image.fromarray((alpha.numpy() * 255).astype(np.uint8)).save(
-                DATA_DIR / "DEBUG_silhouette_grad.png"
+                DATA_DIR / "DEBUG_silhouette.png"
             )

         with Image.open(image_ref_filename) as raw_image_ref:
@@ -292,7 +297,8 @@ class TestRenderingMeshes(unittest.TestCase):

     def test_texture_map(self):
         """
-        Test a mesh with a texture map is loaded and rendered correctly
+        Test a mesh with a texture map is loaded and rendered correctly.
+        The pupils in the eyes of the cow should always be looking to the left.
         """
         device = torch.device("cuda:0")
         DATA_DIR = (
@@ -304,7 +310,7 @@ class TestRenderingMeshes(unittest.TestCase):
         mesh = load_objs_as_meshes([obj_filename], device=device)

         # Init rasterizer settings
-        R, T = look_at_view_transform(2.7, 10, 20)
+        R, T = look_at_view_transform(2.7, 0, 0)
         cameras = OpenGLPerspectiveCameras(device=device, R=R, T=T)
         raster_settings = RasterizationSettings(
             image_size=512, blur_radius=0.0, faces_per_pixel=1, bin_size=0
@@ -313,7 +319,10 @@ class TestRenderingMeshes(unittest.TestCase):
         # Init shader settings
         materials = Materials(device=device)
         lights = PointLights(device=device)
-        lights.location = torch.tensor([0.0, 0.0, -2.0], device=device)[None]
+
+        # Place light behind the cow in world space. The front of
+        # the cow is facing the -z direction.
+        lights.location = torch.tensor([0.0, 0.0, 2.0], device=device)[None]

         # Init renderer
         renderer = MeshRenderer(
@@ -328,18 +337,13 @@ class TestRenderingMeshes(unittest.TestCase):
         rgb = images[0, ..., :3].squeeze().cpu()

         # Load reference image

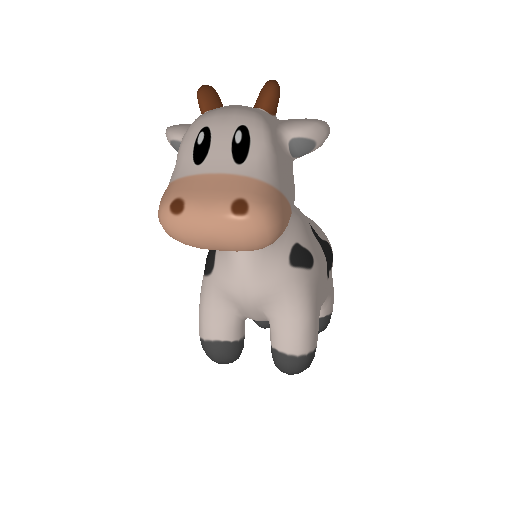

-        image_ref = load_rgb_image("test_texture_map.png")

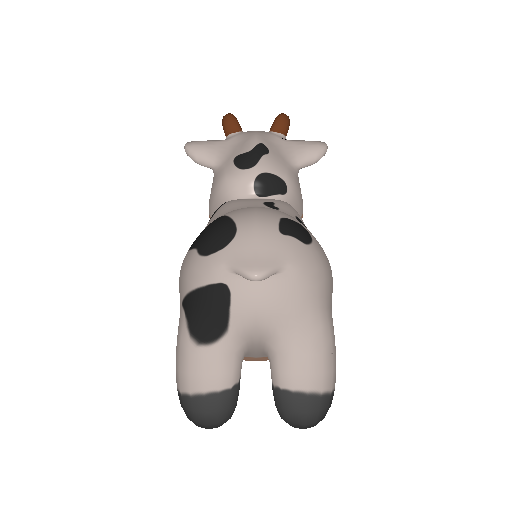

+        image_ref = load_rgb_image("test_texture_map_back.png")

         if DEBUG:
             Image.fromarray((rgb.numpy() * 255).astype(np.uint8)).save(
-                DATA_DIR / "DEBUG_texture_map.png"
+                DATA_DIR / "DEBUG_texture_map_back.png"
             )

-        # There's a calculation instability on the corner of the ear of the cow.
-        # We ignore that pixel.
-        image_ref[137, 166] = 0
-        rgb[137, 166] = 0
-
         self.assertTrue(torch.allclose(rgb, image_ref, atol=0.05))

         # Check grad exists
@@ -352,10 +356,31 @@ class TestRenderingMeshes(unittest.TestCase):
         images[0, ...].sum().backward()
         self.assertIsNotNone(verts.grad)

+        ##########################################
+        # Check rendering of the front of the cow
+        ##########################################
+
+        R, T = look_at_view_transform(2.7, 0, 180)
+        cameras = OpenGLPerspectiveCameras(device=device, R=R, T=T)
+
+        # Move light to the front of the cow in world space
+        lights.location = torch.tensor([0.0, 0.0, -2.0], device=device)[None]
+        images = renderer(mesh, cameras=cameras, lights=lights)
+        rgb = images[0, ..., :3].squeeze().cpu()
+
+        # Load reference image

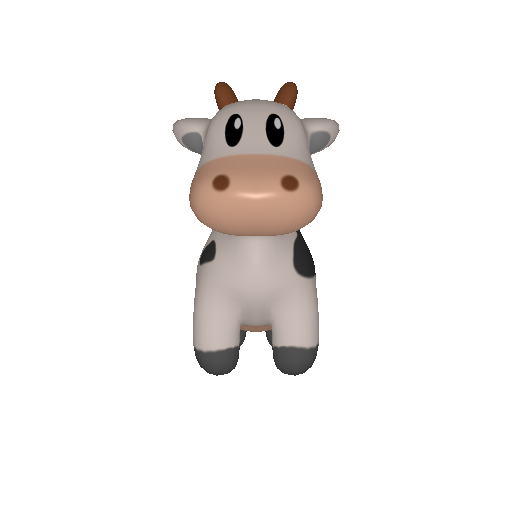

+        image_ref = load_rgb_image("test_texture_map_front.png")
+
+        if DEBUG:
+            Image.fromarray((rgb.numpy() * 255).astype(np.uint8)).save(
+                DATA_DIR / "DEBUG_texture_map_front.png"
+            )
+
         #################################
         # Add blurring to rasterization
         #################################
-
+        R, T = look_at_view_transform(2.7, 0, 180)
+        cameras = OpenGLPerspectiveCameras(device=device, R=R, T=T)
         blend_params = BlendParams(sigma=5e-4, gamma=1e-4)
         raster_settings = RasterizationSettings(
             image_size=512,
@@ -366,6 +391,7 @@ class TestRenderingMeshes(unittest.TestCase):

         images = renderer(
             mesh.clone(),
+            cameras=cameras,
             raster_settings=raster_settings,
             blend_params=blend_params,
         )
