Merge branch 'MarvinTeichmann-unittest'

.gitignore

@@ -5,3 +5,54 @@ build

 pydensecrf/eigen.cpp
 pydensecrf/densecrf.cpp
+
+
+# Byte-compiled / optimized / DLL files
+__pycache__/
+*.py[cod]
+*$py.class
+
+# C extensions
+*.so
+
+# Distribution / packaging
+.Python
+env/
+build/
+develop-eggs/
+dist/
+downloads/
+eggs/
+.eggs/
+lib/
+lib64/
+parts/
+sdist/
+var/
+wheels/
+*.egg-info/
+.installed.cfg
+*.egg
+
+
+# PyInstaller
+#  Usually these files are written by a python script from a template
+#  before PyInstaller builds the exe, so as to inject date/other infos into it.
+*.manifest
+*.spec
+
+# Installer logs
+pip-log.txt
+pip-delete-this-directory.txt
+
+# Unit test / coverage reports
+htmlcov/
+.tox/
+.coverage
+.coverage.*
+.cache
+nosetests.xml
+coverage.xml
+*.cover
+.hypothesis/
+

MANIFEST.in

+include pydensecrf/eigen.pxd
+include pydensecrf/eigen.pyx
+include pydensecrf/densecrf.pxd
+include pydensecrf/densecrf.pyx
+recursive-include pydensecrf/densecrf *

README.md

@@ -16,7 +16,9 @@ and provide a link to this repository as a footnote or a citation.
 Installation
 ============

-You can install this using `pip` by executing:
+The package is on PyPI, so simply run `pip install pydensecrf` to install it.
+
+If you want the newest and freshest version, you can install it by executing:

 ```
 pip install git+https://github.com/lucasb-eyer/pydensecrf.git
@@ -101,10 +103,14 @@ d.addPairwiseGaussian(sxy=3, compat=3)
 d.addPairwiseBilateral(sxy=80, srgb=13, rgbim=im, compat=10)
 ```

+### Non-RGB bilateral
+
 An important caveat is that `addPairwiseBilateral` only works for RGB images, i.e. three channels.
 If your data is of different type than this simple but common case, you'll need to compute your
 own pairwise energy using `utils.create_pairwise_bilateral`; see the [generic non-2D case](https://github.com/lucasb-eyer/pydensecrf#generic-non-2d) for details.

+A good [example of working with Non-RGB data](https://github.com/lucasb-eyer/pydensecrf/blob/master/examples/Non%20RGB%20Example.ipynb) is provided as a notebook in the examples folder.
+
 ### Compatibilities

 The `compat` argument can be any of the following:
@@ -145,6 +151,7 @@ According to the paper, `w(2)` was set to 1 and `w(1)` was cross-validated, but
 Looking through Philip's code (included in [pydensecrf/densecrf](https://github.com/lucasb-eyer/pydensecrf/tree/master/pydensecrf/densecrf)),
 I couldn't find such explicit weights, and my guess is they are thus hard-coded to 1.
 If anyone knows otherwise, please open an issue or, better yet, a pull-request.
+Update: user @waldol1 has an idea in [this issue](https://github.com/lucasb-eyer/pydensecrf/issues/37). Feel free to try it out!

 Inference
 ---------
@@ -230,3 +237,24 @@ Common Problems
 ---------------------------------

 If while importing pydensecrf you get an error about some undefined symbols (for example `.../pydensecrf/densecrf.so: undefined symbol: _ZTINSt8ios_base7failureB5cxx11E`), you most likely are inadvertently mixing different compilers or toolchains. Try to see what's going on using tools like `ldd`. If you're using Anaconda, [running `conda install libgcc` might be a solution](https://github.com/lucasb-eyer/pydensecrf/issues/28).
+
+Maintaining
+===========
+
+These are instructions for maintainers about how to release new versions. (Mainly instructions for myself.)
+
+```
+# Go increment the version in setup.py
+> python setup.py build_ext
+> python setup.py sdist
+> twine upload dist/pydensecrf-VERSION_NUM.tar.gz
+```
+
+And that's it. At some point, it would be cool to automate this on [TravisCI](https://docs.travis-ci.com/user/deployment/pypi/), but not worth it yet.
+At that point, looking into [creating "manylinux" wheels](https://github.com/pypa/python-manylinux-demo) might be nice, too.
+
+Testing
+=======
+
+Thanks to @MarvinTeichmann we now have proper tests, install the package and run `py.test`.
+Maybe there's a better way to run them, but both of us don't know :smile:

pydensecrf/densecrf.pxd

@@ -86,6 +86,8 @@ cdef extern from "densecrf/include/densecrf.h":

 cdef class DenseCRF:
     cdef c_DenseCRF *_this
+    cdef int _nlabel
+    cdef int _nvar


 cdef class DenseCRF2D(DenseCRF):

pydensecrf/densecrf.pyx

@@ -59,6 +59,9 @@ cdef class DenseCRF:
         else:
             self._this = NULL

+        self._nvar = nvar
+        self._nlabel = nlabels
+
     def __dealloc__(self):
         # Because destructors are virtual, this is enough to delete any object
         # of child classes too.
@@ -66,12 +69,20 @@ cdef class DenseCRF:
             del self._this

     def addPairwiseEnergy(self, float[:,::1] features not None, compat, KernelType kernel=DIAG_KERNEL, NormalizationType normalization=NORMALIZE_SYMMETRIC):
+        if features.shape[1] != self._nvar:
+            raise ValueError("Bad shape for pairwise energy (Need (?, {}), got {})".format(self._nvar, (features.shape[0], features.shape[1])))
+
         self._this.addPairwiseEnergy(eigen.c_matrixXf(features), _labelcomp(compat), kernel, normalization)

     def setUnary(self, Unary u):
         self._this.setUnaryEnergy(u.move())

     def setUnaryEnergy(self, float[:,::1] u not None, float[:,::1] f = None):
+        if u.shape[0] != self._nlabel or u.shape[1] != self._nvar:
+            raise ValueError("Bad shape for unary energy (Need {}, got {})".format((self._nlabel, self._nvar), (u.shape[0], u.shape[1])))
+        # TODO: I don't remember the exact shape `f` should have, so I'm not putting an assertion here.
+        #       If you get hit by a wrong shape of `f`, please open an issue with the necessary info!
+
         if f is None:
             self._this.setUnaryEnergy(eigen.c_matrixXf(u))
         else:
@@ -102,6 +113,10 @@ cdef class DenseCRF2D(DenseCRF):
         self._w = w
         self._h = h

+        # Also set these for the superclass
+        self._nvar = w*h
+        self._nlabel = nlabels
+
     def addPairwiseGaussian(self, sxy, compat, KernelType kernel=DIAG_KERNEL, NormalizationType normalization=NORMALIZE_SYMMETRIC):
         if isinstance(sxy, Number):
             sxy = (sxy, sxy)

pydensecrf/test.py

-import numpy as np
-import pydensecrf.densecrf as dcrf
-
-# TODO: Make this real unit-tests some time in the future...
-
-# Tests for specific issues
-###########################
-
-# Via e-mail: crash when non-float32 compat
-d = dcrf.DenseCRF2D(10,10,2)
-d.setUnaryEnergy(np.ones((2,10*10), dtype=np.float32))
-compat = np.array([1.0, 2.0])
-try:
-    d.addPairwiseBilateral(sxy=(3,3), srgb=(3,3,3), rgbim=np.zeros((10,10,3), np.uint8), compat=compat)
-    d.inference(2)
-    raise TypeError("Didn't raise an exception, but should because compat dtypes don't match!!")
-except ValueError:
-    pass  # That's what we want!
-
-
-# The following is not a really good unittest, but was the first tests.
-###########################
-
-# d = densecrf.PyDenseCRF2D(3, 2, 3)
-# U = np.full((3,6), 0.1, dtype=np.float32)
-# U[0,0] = U[1,1] = U[2,2] = U[0,3] = U[1,4] = U[2,5] = 0.8
-
-d = dcrf.DenseCRF2D(10, 10, 2)
-
-U1 = np.zeros((10, 10), dtype=np.float32)
-U1[:,[0,-1]] = U1[[0,-1],:] = 1
-
-U2 = np.zeros((10, 10), dtype=np.float32)
-U2[4:7,4:7] = 1
-
-U = np.vstack([U1.flat, U2.flat])
-Up = (U + 1) / (np.sum(U, axis=0) + 2)
-
-img = np.zeros((10,10,3), dtype=np.uint8)
-img[2:8,2:8,:] = 255
-
-d.setUnaryEnergy(-np.log(Up))
-#d.setUnaryEnergy(PyConstUnary(-np.log(Up)))
-
-d.addPairwiseBilateral(2, 2, img, 3)
-# d.addPairwiseBilateral(2, 2, img, 3)
-np.argmax(d.inference(10), axis=0).reshape(10,10)
-

pydensecrf/test_eigen.py

-import numpy as np
-import eigen as e
-
-V = np.random.randn(3).astype(np.float32)
-M = np.random.randn(3,3).astype(np.float32)
-
-foo = e.vectorXf(V)
-assert np.all(np.array(foo) == V)
-
-foo = e.matrixXf(M)
-assert np.all(np.array(foo) == M)

pydensecrf/tests/test_dcrf.py

+import numpy as np
+import pydensecrf.densecrf as dcrf
+import pydensecrf.utils as utils
+
+import pytest
+
+
+def _get_simple_unary():
+    unary1 = np.zeros((10, 10), dtype=np.float32)
+    unary1[:, [0, -1]] = unary1[[0, -1], :] = 1
+
+    unary2 = np.zeros((10, 10), dtype=np.float32)
+    unary2[4:7, 4:7] = 1
+
+    unary = np.vstack([unary1.flat, unary2.flat])
+    unary = (unary + 1) / (np.sum(unary, axis=0) + 2)
+
+    return unary
+
+
+def _get_simple_img():
+
+    img = np.zeros((10, 10, 3), dtype=np.uint8)
+    img[2:8, 2:8, :] = 255
+
+    return img
+
+
+def test_call_dcrf2d():
+
+    d = dcrf.DenseCRF2D(10, 10, 2)
+
+    unary = _get_simple_unary()
+    img = _get_simple_img()
+
+    d.setUnaryEnergy(-np.log(unary))
+    # d.setUnaryEnergy(PyConstUnary(-np.log(Up)))
+
+    d.addPairwiseBilateral(sxy=2, srgb=2, rgbim=img, compat=3)
+    # d.addPairwiseBilateral(2, 2, img, 3)
+    np.argmax(d.inference(10), axis=0).reshape(10, 10)
+
+
+def test_call_dcrf():
+
+    d = dcrf.DenseCRF(100, 2)
+
+    unary = _get_simple_unary()
+    img = _get_simple_img()
+
+    d.setUnaryEnergy(-np.log(unary))
+    # d.setUnaryEnergy(PyConstUnary(-np.log(Up)))
+
+    feats = utils.create_pairwise_bilateral(sdims=(2, 2), schan=2,
+                                            img=img, chdim=2)
+
+    d.addPairwiseEnergy(feats, compat=3)
+    # d.addPairwiseBilateral(2, 2, img, 3)
+    np.argmax(d.inference(10), axis=0).reshape(10, 10)
+
+
+def test_call_dcrf_eq_dcrf2d():
+
+    d = dcrf.DenseCRF(100, 2)
+    d2 = dcrf.DenseCRF2D(10, 10, 2)
+
+    unary = _get_simple_unary()
+    img = _get_simple_img()
+
+    d.setUnaryEnergy(-np.log(unary))
+    d2.setUnaryEnergy(-np.log(unary))
+
+    feats = utils.create_pairwise_bilateral(sdims=(2, 2), schan=2,
+                                            img=img, chdim=2)
+
+    d.addPairwiseEnergy(feats, compat=3)
+
+    d2.addPairwiseBilateral(sxy=2, srgb=2, rgbim=img, compat=3)
+    # d.addPairwiseBilateral(2, 2, img, 3)
+    res1 = np.argmax(d.inference(10), axis=0).reshape(10, 10)
+    res2 = np.argmax(d2.inference(10), axis=0).reshape(10, 10)
+
+    assert(np.all(res1 == res2))
+
+
+def test_compact_wrong():
+
+    # Tests whether expection is indeed raised
+    ##########################################
+
+    # Via e-mail: crash when non-float32 compat
+    d = dcrf.DenseCRF2D(10, 10, 2)
+    d.setUnaryEnergy(np.ones((2, 10 * 10), dtype=np.float32))
+    compat = np.array([1.0, 2.0])
+
+    with pytest.raises(ValueError):
+        d.addPairwiseBilateral(sxy=(3, 3), srgb=(3, 3, 3), rgbim=np.zeros(
+            (10, 10, 3), np.uint8), compat=compat)
+        d.inference(2)

pydensecrf/tests/test_eigen.py

+import numpy as np
+import pydensecrf.eigen as e
+
+import pytest
+
+
+def test_vector_conversion():
+    np_vector = np.random.randn(3).astype(np.float32)
+    c_vector = e.vectorXf(np_vector)
+    assert np.all(np.array(c_vector) == np_vector)
+
+
+def test_matrix_conversion():
+    np_matrix = np.random.randn(3, 3).astype(np.float32)
+    assert(np_matrix.ndim == 2)
+    c_matrix = e.matrixXf(np_matrix)
+    assert np.all(np.array(c_matrix) == np_matrix)
+
+
+def test_wrong_dims():
+    np_matrix = np.random.randn(3, 3, 3).astype(np.float32)
+    assert(np_matrix.ndim == 3)
+    # c_matrix only supports ndim == 2
+    with pytest.raises(ValueError):
+        # Check whether a Value Error is raised
+        e.matrixXf(np_matrix)
+
+
+def test_wrong_type():
+    np_matrix = np.random.randn(3, 3).astype(np.float64)
+    # c_matrix requies type np.float32
+    with pytest.raises(ValueError):
+        # Check whether a Value Error is raised
+        e.matrixXf(np_matrix)
+
+
+def test_none_type():
+    np_matrix = None
+    with pytest.raises(TypeError):
+        # Check whether a Value Error is raised
+        e.matrixXf(np_matrix)

setup.py

 # coding: UTF-8
-from distutils.core import setup
-from Cython.Build import cythonize
+from setuptools import setup

 # TODO:
 # - Wrap learning.
 # - Make LabelCompatibility, UnaryEnergy, PairwisePotential extensible? (Maybe overkill?)

+
+# If Cython is available, build using Cython.
+# Otherwise, use the pre-built (by someone who has Cython, i.e. me) wrapper `.cpp` files.
+try:
+    from Cython.Build import cythonize
+    ext_modules = cythonize(['pydensecrf/eigen.pyx', 'pydensecrf/densecrf.pyx'])
+except ImportError:
+    from setuptools.extension import Extension
+    ext_modules = [
+        Extension("pydensecrf/eigen", ["pydensecrf/eigen.cpp", "pydensecrf/eigen_impl.cpp"], language="c++", include_dirs=["pydensecrf/densecrf/include"]),
+        Extension("pydensecrf/densecrf", ["pydensecrf/densecrf.cpp", "pydensecrf/densecrf/src/densecrf.cpp", "pydensecrf/densecrf/src/unary.cpp", "pydensecrf/densecrf/src/pairwise.cpp", "pydensecrf/densecrf/src/permutohedral.cpp", "pydensecrf/densecrf/src/optimization.cpp", "pydensecrf/densecrf/src/objective.cpp", "pydensecrf/densecrf/src/labelcompatibility.cpp", "pydensecrf/densecrf/src/util.cpp", "pydensecrf/densecrf/external/liblbfgs/lib/lbfgs.c"], language="c++", include_dirs=["pydensecrf/densecrf/include", "pydensecrf/densecrf/external/liblbfgs/include"]),
+    ]
+
 setup(
     name="pydensecrf",
-    version="0.1",
-    description="A python interface to Philipp Krähenbühl's fully-connected CRF code.",
+    version="1.0rc2",
+    description="A python interface to Philipp Krähenbühl's fully-connected (dense) CRF code.",
+    long_description="See the README.md at http://github.com/lucasb-eyer/pydensecrf",
     author="Lucas Beyer",
     author_email="lucasb.eyer.be@gmail.com",
     url="http://github.com/lucasb-eyer/pydensecrf",
-    ext_modules=cythonize(['pydensecrf/eigen.pyx', 'pydensecrf/densecrf.pyx']),
-    packages=["pydensecrf"]
+    ext_modules=ext_modules,
+    packages=["pydensecrf"],
+    setup_requires=['cython>=0.22'],
+    classifiers=[
+        "Intended Audience :: Developers",
+        "License :: OSI Approved :: MIT License",
+        "Development Status :: 5 - Production/Stable",
+        "Programming Language :: C++",
+        "Programming Language :: Python",
+        "Operating System :: POSIX :: Linux",
+        "Topic :: Software Development :: Libraries",
+        "Topic :: Scientific/Engineering :: Image Recognition",
+        "Topic :: Scientific/Engineering :: Artificial Intelligence",
+    ],
 )
-

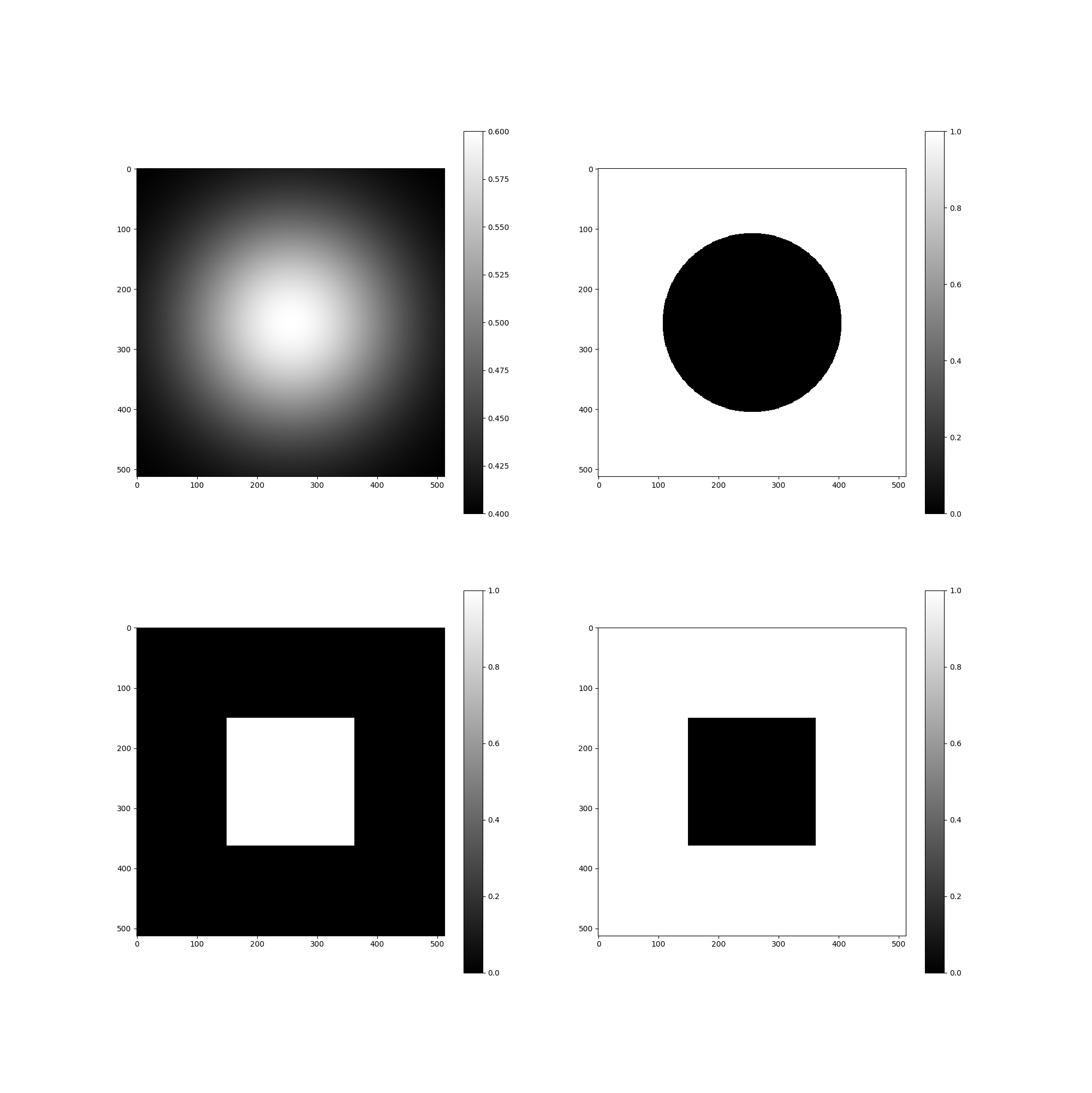

tests/issue26.py

+
+# coding: utf-8
+
+# In[1]:
+
+# import sys
+# sys.path.insert(0,'/home/dlr16/Applications/anaconda2/envs/PyDenseCRF/lib/python2.7/site-packages')
+
+
+# In[2]:
+
+import numpy as np
+import matplotlib.pyplot as plt
+# get_ipython().magic(u'matplotlib inline')
+plt.rcParams['figure.figsize'] = (20, 20)
+plt.rcParams['image.interpolation'] = 'nearest'
+plt.rcParams['image.cmap'] = 'gray'
+
+import pydensecrf.densecrf as dcrf
+from pydensecrf.utils import unary_from_softmax, create_pairwise_bilateral, create_pairwise_gaussian
+
+
+# ## Start from scratch
+
+# In[3]:
+
+from scipy.stats import multivariate_normal
+
+x, y = np.mgrid[0:512, 0:512]
+pos = np.empty(x.shape + (2,))
+pos[:, :, 0] = x; pos[:, :, 1] = y
+rv = multivariate_normal([256, 256], 128*128)
+
+
+# In[4]:
+
+probs = rv.pdf(pos)
+probs = (probs-probs.min()) / (probs.max()-probs.min())
+probs = 0.2 * (probs-0.5) + 0.5
+probs = np.tile(probs[:,:,np.newaxis],(1,1,2))
+probs[:,:,1] = 1 - probs[:,:,0]
+# plt.plot(probs[256,:,0])
+
+# transpose for graph
+probs = np.transpose(probs,(2,0,1))
+
+
+# In[17]:
+

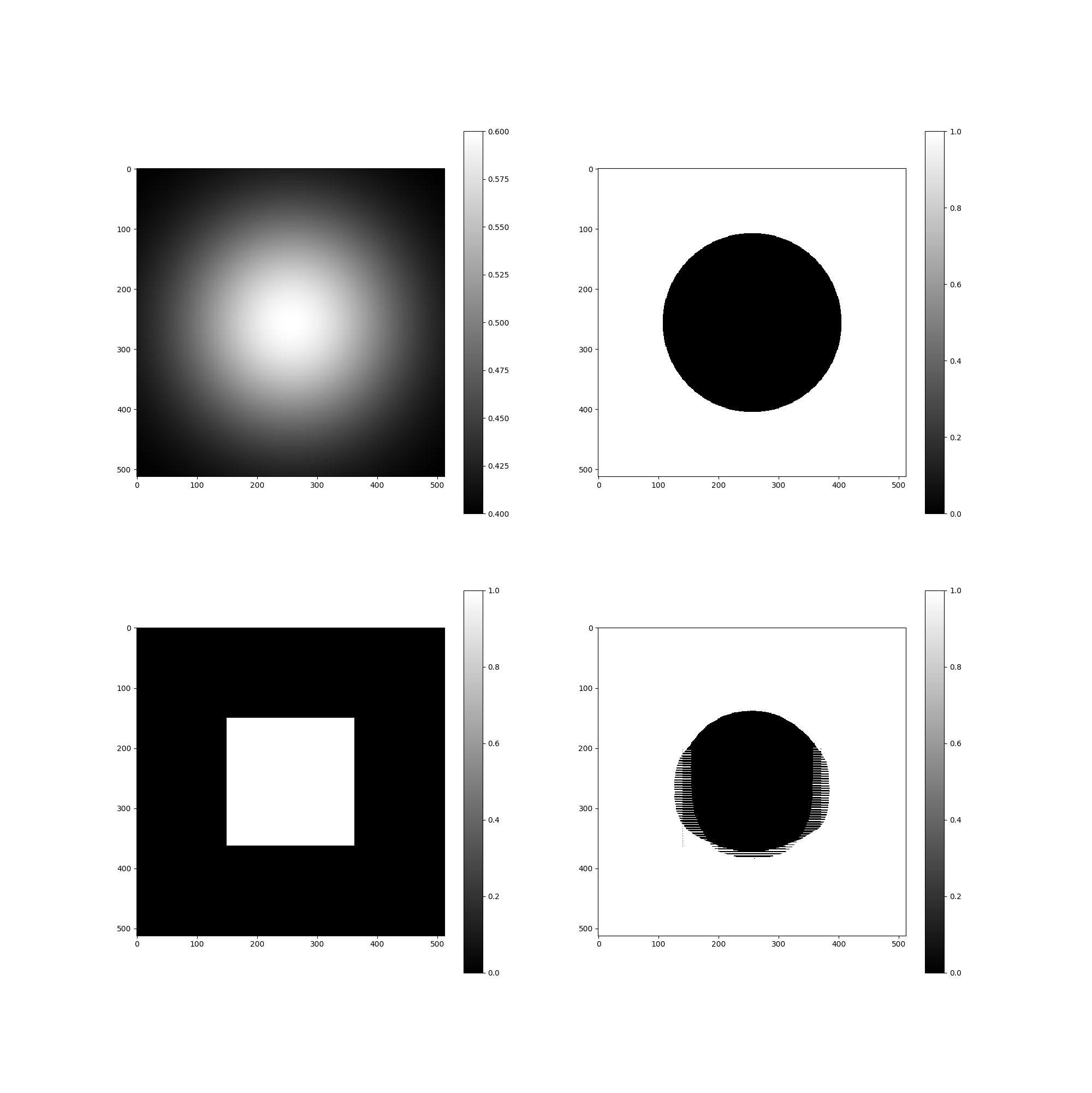

+# XX:IF NCHANNELS != 3, I GET ERRONEOUS OUTPUT
+nchannels=4
+
+U = unary_from_softmax(probs) # note: num classes is first dim
+d = dcrf.DenseCRF2D(probs.shape[1],probs.shape[2],probs.shape[0])
+d.setUnaryEnergy(U)
+
+Q_Unary = d.inference(10)
+map_soln_Unary = np.argmax(Q_Unary, axis=0).reshape((probs.shape[1],probs.shape[2]))
+
+tmp_img = np.zeros((probs.shape[1],probs.shape[2],nchannels)).astype(np.uint8)
+tmp_img[150:362,150:362,:] = 1
+
+energy = create_pairwise_bilateral(sdims=(10,10), schan=0.01, img=tmp_img, chdim=2)
+d.addPairwiseEnergy(energy, compat=10)
+
+# This is wrong and will now raise a ValueError:
+#d.addPairwiseBilateral(sxy=(10,10),
+#                       srgb=0.01,
+#                       rgbim=tmp_img,
+#                       compat=10)
+
+Q = d.inference(100)
+map_soln = np.argmax(Q, axis=0).reshape((probs.shape[1],probs.shape[2]))
+
+plt.subplot(2,2,1)
+plt.imshow(probs[0,:,:])
+plt.colorbar()
+plt.subplot(2,2,2)
+plt.imshow(map_soln_Unary)
+plt.colorbar()
+plt.subplot(2,2,3)
+plt.imshow(tmp_img[:,:,0])
+plt.colorbar()
+plt.subplot(2,2,4)
+plt.imshow(map_soln)
+plt.colorbar()
+plt.show()

tests/issue29.py

+# probs of shape 3d image per class: Nb_classes x Height x Width x Depth
+# assume the image has shape (69, 51, 72)
+import numpy as np
+import pydensecrf.densecrf as dcrf
+from pydensecrf.utils import unary_from_softmax, create_pairwise_gaussian
+
+###
+
+#shape = (69, 51, 72)
+#probs = np.random.randn(5, 69, 51).astype(np.float32)
+#probs /= probs.sum(axis=0, keepdims=True)
+#
+#d = dcrf.DenseCRF(np.prod(shape), probs.shape[0])
+#U = unary_from_softmax(probs)
+#print(U.shape)
+#d.setUnaryEnergy(U)
+#feats = create_pairwise_gaussian(sdims=(1.0, 1.0, 1.0), shape=shape)
+#d.addPairwiseEnergy(feats, compat=3, kernel=dcrf.FULL_KERNEL, normalization=dcrf.NORMALIZE_SYMMETRIC)
+#Q = d.inference(5)
+#new_image = np.argmax(Q, axis=0).reshape((shape[0], shape[1],shape[2]))
+
+
+###
+
+SHAPE, NLABELS = (69, 51, 72), 5
+probs = np.random.randn(NLABELS, 68, 50).astype(np.float32)  # WRONG shape here
+probs /= probs.sum(axis=0, keepdims=True)
+
+d = dcrf.DenseCRF(np.prod(SHAPE), NLABELS)
+
+d.setUnaryEnergy(unary_from_softmax(probs))  # THIS SHOULD THROW and not crash later
+feats = create_pairwise_gaussian(sdims=(1.0, 1.0, 1.0), shape=SHAPE)
+d.addPairwiseEnergy(feats, compat=3, kernel=dcrf.FULL_KERNEL, normalization=dcrf.NORMALIZE_SYMMETRIC)
+
+Q = d.inference(5)
+new_image = np.argmax(Q, axis=0).reshape(SHAPE)

tests/test_utils.py

+import unittest
+
+import numpy as np
+
+import pydensecrf.utils as utils
+
+
+class TestUnary(unittest.TestCase):
+
+    def test_unary(self):
+        M = 3
+        U, P, N = 1./M, 0.8, 0.2/(M-1)  # Uniform, Positive, Negative
+        labels = np.array([
+            [0, 1, 2, 3],
+            [3, 2, 1, 0],
+        ])
+        unary = -np.log(np.array([
+            [U, P, N, N, N, N, P, U],
+            [U, N, P, N, N, P, N, U],
+            [U, N, N, P, P, N, N, U],
+        ]))
+
+        np.testing.assert_almost_equal(utils.compute_unary(labels, M, GT_PROB=P), unary)
+
+
+if __name__ == "__main__":
+    unittest.main()
