Merge branch 'master' of github.com:Microsoft/nni into dev-nas-refactor

README.md

@@ -352,6 +352,7 @@ With authors' permission, we listed a set of NNI usage examples and relevant art
    * Run [Neural Network Architecture Search](examples/trials/nas_cifar10/README.md) with NNI
    * [Automatic Feature Engineering](examples/trials/auto-feature-engineering/README.md) with NNI
    * [Hyperparameter Tuning for Matrix Factorization](https://github.com/microsoft/recommenders/blob/master/notebooks/04_model_select_and_optimize/nni_surprise_svd.ipynb) with NNI
+   * [scikit-nni](https://github.com/ksachdeva/scikit-nni) Hyper-parameter search for scikit-learn pipelines using NNI

 * ### **Relevant Articles** ###

@@ -360,6 +361,7 @@ With authors' permission, we listed a set of NNI usage examples and relevant art
   * [Parallelizing a Sequential Algorithm TPE](docs/en_US/CommunitySharings/ParallelizingTpeSearch.md)
   * [Automatically tuning SVD with NNI](docs/en_US/CommunitySharings/RecommendersSvd.md)
   * [Automatically tuning SPTAG with NNI](docs/en_US/CommunitySharings/SptagAutoTune.md)
+  * [Find thy hyper-parameters for scikit-learn pipelines using Microsoft NNI](https://towardsdatascience.com/find-thy-hyper-parameters-for-scikit-learn-pipelines-using-microsoft-nni-f1015b1224c1)
   * **Blog (in Chinese)** - [AutoML tools (Advisor, NNI and Google Vizier) comparison](http://gaocegege.com/Blog/%E6%9C%BA%E5%99%A8%E5%AD%A6%E4%B9%A0/katib-new#%E6%80%BB%E7%BB%93%E4%B8%8E%E5%88%86%E6%9E%90) by [@gaocegege](https://github.com/gaocegege) - 总结与分析 section of design and implementation of kubeflow/katib

 ## **Feedback**

docs/en_US/Compressor/L1FilterPruner.md

+L1FilterPruner on NNI Compressor
+===
+
+## 1. Introduction
+
+L1FilterPruner is a general structured pruning algorithm for pruning filters in the convolutional layers.
+
+In ['PRUNING FILTERS FOR EFFICIENT CONVNETS'](https://arxiv.org/abs/1608.08710), authors Hao Li, Asim Kadav, Igor Durdanovic, Hanan Samet and Hans Peter Graf.
+
+![](../../img/l1filter_pruner.png)
+
+> L1Filter Pruner prunes filters in the **convolution layers**
+>
+> The procedure of pruning m filters from the ith convolutional layer is as follows:
+>
+> 1. For each filter ![](http://latex.codecogs.com/gif.latex?F_{i,j}), calculate the sum of its absolute kernel weights![](http://latex.codecogs.com/gif.latex?s_j=\sum_{l=1}^{n_i}\sum|K_l|)
+> 2. Sort the filters by ![](http://latex.codecogs.com/gif.latex?s_j).
+> 3. Prune ![](http://latex.codecogs.com/gif.latex?m) filters with the smallest sum values and their corresponding feature maps. The
+>   kernels in the next convolutional layer corresponding to the pruned feature maps are also
+>   removed.
+> 4. A new kernel matrix is created for both the ![](http://latex.codecogs.com/gif.latex?i)th and ![](http://latex.codecogs.com/gif.latex?i+1)th layers, and the remaining kernel
+>   weights are copied to the new model.
+
+## 2. Usage
+
+PyTorch code
+
+```
+from nni.compression.torch import L1FilterPruner
+config_list = [{ 'sparsity': 0.8, 'op_types': ['Conv2d'], 'op_names': ['conv1', 'conv2'] }]
+pruner = L1FilterPruner(model, config_list)
+pruner.compress()
+```
+
+#### User configuration for L1Filter Pruner
+
+- **sparsity:** This is to specify the sparsity operations to be compressed to
+- **op_types:** Only Conv2d is supported in L1Filter Pruner
+
+## 3. Experiment
+
+We implemented one of the experiments in ['PRUNING FILTERS FOR EFFICIENT CONVNETS'](https://arxiv.org/abs/1608.08710), we pruned **VGG-16** for CIFAR-10 to **VGG-16-pruned-A** in the paper, in which $64\%$ parameters are pruned. Our experiments results are as follows:
+
+| Model           | Error(paper/ours) | Parameters      | Pruned   |
+| --------------- | ----------------- | --------------- | -------- |
+| VGG-16          | 6.75/6.49     | 1.5x10^7 |          |
+| VGG-16-pruned-A | 6.60/6.47     | 5.4x10^6 | 64.0% |
+
+The experiments code can be found at [examples/model_compress]( https://github.com/microsoft/nni/tree/master/examples/model_compress/)
+
+
+
+
+

docs/en_US/Compressor/LotteryTicketHypothesis.md

+Lottery Ticket Hypothesis on NNI
+===
+
+## Introduction
+
+The paper [The Lottery Ticket Hypothesis: Finding Sparse, Trainable Neural Networks](https://arxiv.org/abs/1803.03635) is mainly a measurement and analysis paper, it delivers very interesting insights. To support it on NNI, we mainly implement the training approach for finding *winning tickets*.
+
+In this paper, the authors use the following process to prune a model, called *iterative prunning*:
+>1. Randomly initialize a neural network f(x;theta_0) (where theta_0 follows D_{theta}).
+>2. Train the network for j iterations, arriving at parameters theta_j.
+>3. Prune p% of the parameters in theta_j, creating a mask m.
+>4. Reset the remaining parameters to their values in theta_0, creating the winning ticket f(x;m*theta_0).
+>5. Repeat step 2, 3, and 4.
+
+If the configured final sparsity is P (e.g., 0.8) and there are n times iterative pruning, each iterative pruning prunes 1-(1-P)^(1/n) of the weights that survive the previous round.
+
+## Reproduce Results
+
+We try to reproduce the experiment result of the fully connected network on MNIST using the same configuration as in the paper. The code can be referred [here](https://github.com/microsoft/nni/tree/master/examples/model_compress/lottery_torch_mnist_fc.py). In this experiment, we prune 10 times, for each pruning we train the pruned model for 50 epochs.
+

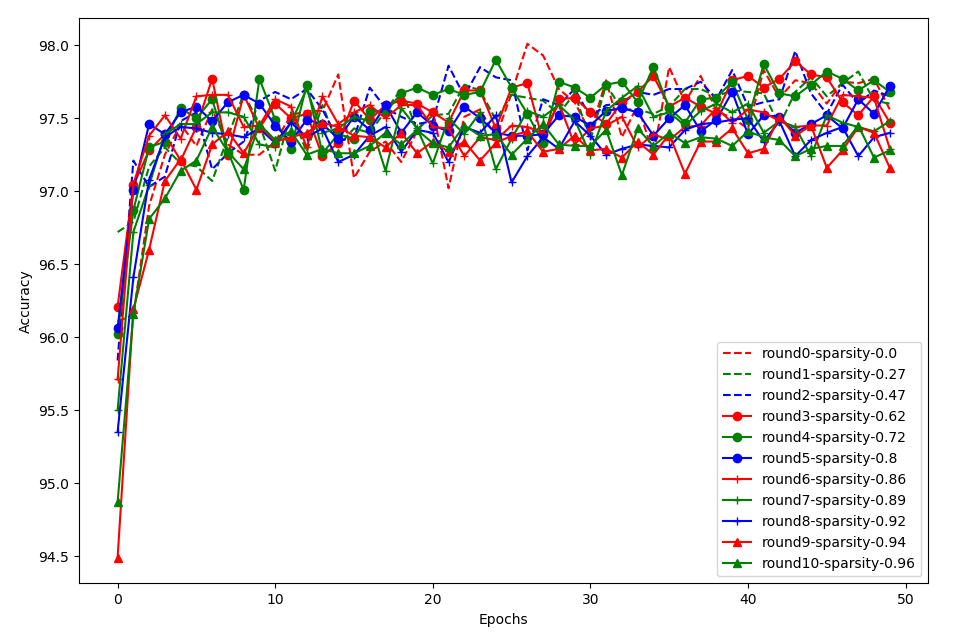

+![](../../img/lottery_ticket_mnist_fc.png)
+
+The above figure shows the result of the fully connected network. `round0-sparsity-0.0` is the performance without pruning. Consistent with the paper, pruning around 80% also obtain similar performance compared to non-pruning, and converges a little faster. If pruning too much, e.g., larger than 94%, the accuracy becomes lower and convergence becomes a little slower. A little different from the paper, the trend of the data in the paper is relatively more clear.

docs/en_US/Compressor/Overview.md

@@ -12,6 +12,9 @@ We have provided two naive compression algorithms and three popular ones for use
 |---|---|
 | [Level Pruner](./Pruner.md#level-pruner) | Pruning the specified ratio on each weight based on absolute values of weights |
 | [AGP Pruner](./Pruner.md#agp-pruner) | Automated gradual pruning (To prune, or not to prune: exploring the efficacy of pruning for model compression) [Reference Paper](https://arxiv.org/abs/1710.01878)|
+| [L1Filter Pruner](./Pruner.md#l1filter-pruner) | Pruning least important filters in convolution layers(PRUNING FILTERS FOR EFFICIENT CONVNETS)[Reference Paper](https://arxiv.org/abs/1608.08710) |
+| [Slim Pruner](./Pruner.md#slim-pruner) | Pruning channels in convolution layers by pruning scaling factors in BN layers(Learning Efficient Convolutional Networks through Network Slimming)[Reference Paper](https://arxiv.org/abs/1708.06519) |
+| [Lottery Ticket Pruner](./Pruner.md#agp-pruner) | The pruning process used by "The Lottery Ticket Hypothesis: Finding Sparse, Trainable Neural Networks". It prunes a model iteratively. [Reference Paper](https://arxiv.org/abs/1803.03635)|
 | [FPGM Pruner](./Pruner.md#fpgm-pruner) | Filter Pruning via Geometric Median for Deep Convolutional Neural Networks Acceleration [Reference Paper](https://arxiv.org/pdf/1811.00250.pdf)|
 | [Naive Quantizer](./Quantizer.md#naive-quantizer) |  Quantize weights to default 8 bits |
 | [QAT Quantizer](./Quantizer.md#qat-quantizer) | Quantization and Training of Neural Networks for Efficient Integer-Arithmetic-Only Inference. [Reference Paper](http://openaccess.thecvf.com/content_cvpr_2018/papers/Jacob_Quantization_and_Training_CVPR_2018_paper.pdf)|

docs/en_US/Compressor/Pruner.md

@@ -3,7 +3,7 @@ Pruner on NNI Compressor

 ## Level Pruner

-This is one basic pruner: you can set a target sparsity level (expressed as a fraction, 0.6 means we will prune 60%).
+This is one basic one-shot pruner: you can set a target sparsity level (expressed as a fraction, 0.6 means we will prune 60%).

 We first sort the weights in the specified layer by their absolute values. And then mask to zero the smallest magnitude weights until the desired sparsity level is reached.

@@ -31,7 +31,7 @@ pruner.compress()
 ***

 ## AGP Pruner
-In [To prune, or not to prune: exploring the efficacy of pruning for model compression](https://arxiv.org/abs/1710.01878), authors Michael Zhu and Suyog Gupta provide an algorithm to prune the weight gradually.
+This is an iterative pruner, In [To prune, or not to prune: exploring the efficacy of pruning for model compression](https://arxiv.org/abs/1710.01878), authors Michael Zhu and Suyog Gupta provide an algorithm to prune the weight gradually.

 >We introduce a new automated gradual pruning algorithm in which the sparsity is increased from an initial sparsity value si (usually 0) to a final sparsity value sf over a span of n pruning steps, starting at training step t0 and with pruning frequency ∆t:
 ![](../../img/agp_pruner.png)
@@ -65,7 +65,7 @@ config_list = [{
     'start_epoch': 0,
     'end_epoch': 10,
     'frequency': 1,
-    'op_types': 'default'
+    'op_types': ['default']
 }]
 pruner = AGP_Pruner(model, config_list)
 pruner.compress()
@@ -92,8 +92,49 @@ You can view example for more information

 ***

+## Lottery Ticket Hypothesis
+[The Lottery Ticket Hypothesis: Finding Sparse, Trainable Neural Networks](https://arxiv.org/abs/1803.03635), authors Jonathan Frankle and Michael Carbin,provides comprehensive measurement and analysis, and articulate the *lottery ticket hypothesis*: dense, randomly-initialized, feed-forward networks contain subnetworks (*winning tickets*) that -- when trained in isolation -- reach test accuracy comparable to the original network in a similar number of iterations.
+
+In this paper, the authors use the following process to prune a model, called *iterative prunning*:
+>1. Randomly initialize a neural network f(x;theta_0) (where theta_0 follows D_{theta}).
+>2. Train the network for j iterations, arriving at parameters theta_j.
+>3. Prune p% of the parameters in theta_j, creating a mask m.
+>4. Reset the remaining parameters to their values in theta_0, creating the winning ticket f(x;m*theta_0).
+>5. Repeat step 2, 3, and 4.
+
+If the configured final sparsity is P (e.g., 0.8) and there are n times iterative pruning, each iterative pruning prunes 1-(1-P)^(1/n) of the weights that survive the previous round.
+
+### Usage
+
+PyTorch code
+```python
+from nni.compression.torch import LotteryTicketPruner
+config_list = [{
+    'prune_iterations': 5,
+    'sparsity': 0.8,
+    'op_types': ['default']
+}]
+pruner = LotteryTicketPruner(model, config_list, optimizer)
+pruner.compress()
+for _ in pruner.get_prune_iterations():
+    pruner.prune_iteration_start()
+    for epoch in range(epoch_num):
+        ...
+```
+
+The above configuration means that there are 5 times of iterative pruning. As the 5 times iterative pruning are executed in the same run, LotteryTicketPruner needs `model` and `optimizer` (**Note that should add `lr_scheduler` if used**) to reset their states every time a new prune iteration starts. Please use `get_prune_iterations` to get the pruning iterations, and invoke `prune_iteration_start` at the beginning of each iteration. `epoch_num` is better to be large enough for model convergence, because the hypothesis is that the performance (accuracy) got in latter rounds with high sparsity could be comparable with that got in the first round. Simple reproducing results can be found [here](./LotteryTicketHypothesis.md).
+
+
+*Tensorflow version will be supported later.*
+
+#### User configuration for LotteryTicketPruner
+
+* **prune_iterations:** The number of rounds for the iterative pruning, i.e., the number of iterative pruning.
+* **sparsity:** The final sparsity when the compression is done.
+
+***
 ## FPGM Pruner
-FPGM Pruner is an implementation of paper [Filter Pruning via Geometric Median for Deep Convolutional Neural Networks Acceleration](https://arxiv.org/pdf/1811.00250.pdf)
+This is an one-shot pruner, FPGM Pruner is an implementation of paper [Filter Pruning via Geometric Median for Deep Convolutional Neural Networks Acceleration](https://arxiv.org/pdf/1811.00250.pdf)

 >Previous works utilized “smaller-norm-less-important” criterion to prune filters with smaller norm values in a convolutional neural network. In this paper, we analyze this norm-based criterion and point out that its effectiveness depends on two requirements that are not always met: (1) the norm deviation of the filters should be large; (2) the minimum norm of the filters should be small. To solve this problem, we propose a novel filter pruning method, namely Filter Pruning via Geometric Median (FPGM), to compress the model regardless of those two requirements. Unlike previous methods, FPGM compresses CNN models by pruning filters with redundancy, rather than those with “relatively less” importance.

@@ -138,3 +179,57 @@ You can view example for more information
 * **sparsity:** How much percentage of convolutional filters are to be pruned.

 ***
+
+## L1Filter Pruner
+
+This is an one-shot pruner, In ['PRUNING FILTERS FOR EFFICIENT CONVNETS'](https://arxiv.org/abs/1608.08710), authors Hao Li, Asim Kadav, Igor Durdanovic, Hanan Samet and Hans Peter Graf.
+
+![](../../img/l1filter_pruner.png)
+
+> L1Filter Pruner prunes filters in the **convolution layers**
+>
+> The procedure of pruning m filters from the ith convolutional layer is as follows:
+>
+> 1. For each filter ![](http://latex.codecogs.com/gif.latex?F_{i,j}), calculate the sum of its absolute kernel weights![](http://latex.codecogs.com/gif.latex?s_j=\sum_{l=1}^{n_i}\sum|K_l|)
+> 2. Sort the filters by ![](http://latex.codecogs.com/gif.latex?s_j).
+> 3. Prune ![](http://latex.codecogs.com/gif.latex?m) filters with the smallest sum values and their corresponding feature maps. The
+>   kernels in the next convolutional layer corresponding to the pruned feature maps are also
+>   removed.
+> 4. A new kernel matrix is created for both the ![](http://latex.codecogs.com/gif.latex?i)th and ![](http://latex.codecogs.com/gif.latex?i+1)th layers, and the remaining kernel
+>   weights are copied to the new model.
+
+```
+from nni.compression.torch import L1FilterPruner
+config_list = [{ 'sparsity': 0.8, 'op_types': ['Conv2d'] }]
+pruner = L1FilterPruner(model, config_list)
+pruner.compress()
+```
+
+#### User configuration for L1Filter Pruner
+
+- **sparsity:** This is to specify the sparsity operations to be compressed to
+- **op_types:** Only Conv2d is supported in L1Filter Pruner
+
+## Slim Pruner
+
+This is an one-shot pruner, In ['Learning Efficient Convolutional Networks through Network Slimming'](https://arxiv.org/pdf/1708.06519.pdf), authors Zhuang Liu, Jianguo Li, Zhiqiang Shen, Gao Huang, Shoumeng Yan and Changshui Zhang.
+

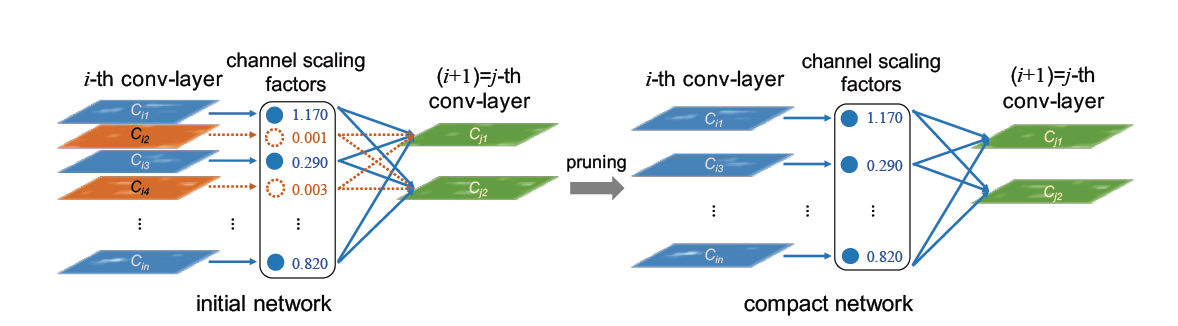

+![](../../img/slim_pruner.png)
+
+> Slim Pruner **prunes channels in the convolution layers by masking corresponding scaling factors in the later BN layers**, L1 regularization on the scaling factors should be applied in batch normalization (BN) layers while training, scaling factors of BN layers are **globally ranked** while pruning, so the sparse model can be automatically found given sparsity.
+
+### Usage
+
+PyTorch code
+
+```
+from nni.compression.torch import SlimPruner
+config_list = [{ 'sparsity': 0.8, 'op_types': ['BatchNorm2d'] }]
+pruner = SlimPruner(model, config_list)
+pruner.compress()
+```
+
+#### User configuration for Slim Pruner
+
+- **sparsity:** This is to specify the sparsity operations to be compressed to
+- **op_types:** Only BatchNorm2d is supported in Slim Pruner

docs/en_US/Compressor/SlimPruner.md

+SlimPruner on NNI Compressor
+===
+
+## 1. Slim Pruner
+
+SlimPruner is a structured pruning algorithm for pruning channels in the convolutional layers by pruning corresponding scaling factors in the later BN layers.
+
+In ['Learning Efficient Convolutional Networks through Network Slimming'](https://arxiv.org/pdf/1708.06519.pdf), authors Zhuang Liu, Jianguo Li, Zhiqiang Shen, Gao Huang, Shoumeng Yan and Changshui Zhang.
+
+![](../../img/slim_pruner.png)
+
+> Slim Pruner **prunes channels in the convolution layers by masking corresponding scaling factors in the later BN layers**, L1 regularization on the scaling factors should be applied in batch normalization (BN) layers while training, scaling factors of BN layers are **globally ranked** while pruning, so the sparse model can be automatically found given sparsity.
+
+## 2. Usage
+
+PyTorch code
+
+```
+from nni.compression.torch import SlimPruner
+config_list = [{ 'sparsity': 0.8, 'op_types': ['BatchNorm2d'] }]
+pruner = SlimPruner(model, config_list)
+pruner.compress()
+```
+
+#### User configuration for Filter Pruner
+
+- **sparsity:** This is to specify the sparsity operations to be compressed to
+- **op_types:** Only BatchNorm2d is supported in Slim Pruner
+
+## 3. Experiment
+
+We implemented one of the experiments in ['Learning Efficient Convolutional Networks through Network Slimming'](https://arxiv.org/pdf/1708.06519.pdf), we pruned $70\%$ channels in the **VGGNet** for CIFAR-10 in the paper, in which $88.5\%$ parameters are pruned. Our experiments results are as follows:
+
+| Model         | Error(paper/ours) | Parameters | Pruned    |
+| ------------- | ----------------- | ---------- | --------- |
+| VGGNet        | 6.34/6.40     | 20.04M   |           |
+| Pruned-VGGNet | 6.20/6.39     | 2.03M    | 88.5% |
+
+The experiments code can be found at [examples/model_compress]( https://github.com/microsoft/nni/tree/master/examples/model_compress/)

docs/en_US/TrainingService/LocalMode.md

@@ -96,7 +96,7 @@ This command will be filled in the YAML configure file below. Please refer to [h

 **Prepare configure file**: Since you have already known which trial code you are going to run and which tuner you are going to use, it is time to prepare the YAML configure file. NNI provides a demo configure file for each trial example, `cat ~/nni/examples/trials/mnist-annotation/config.yml` to see it. Its content is basically shown below:

-```
+```yaml
 authorName: your_name
 experimentName: auto_mnist

@@ -112,6 +112,9 @@ maxTrialNum: 100
 # choice: local, remote
 trainingServicePlatform: local

+# search space file
+searchSpacePath: search_space.json
+
 # choice: true, false
 useAnnotation: true
 tuner:

docs/en_US/TrainingService/PaiMode.md

@@ -19,6 +19,8 @@ maxExecDuration: 3h
 maxTrialNum: 100
 # choice: local, remote, pai
 trainingServicePlatform: pai
+# search space file
+searchSpacePath: search_space.json
 # choice: true, false
 useAnnotation: true
 tuner:

docs/en_US/TrainingService/RemoteMachineMode.md

@@ -28,6 +28,8 @@ maxExecDuration: 1h
 maxTrialNum: 10
 #choice: local, remote, pai
 trainingServicePlatform: remote
+# search space file
+searchSpacePath: search_space.json
 #choice: true, false
 useAnnotation: true
 tuner:

docs/zh_CN/TrainingService/LocalMode.md

@@ -98,33 +98,36 @@
 *builtinTunerName* 用来指定 NNI 中的 Tuner，*classArgs* 是传入到 Tuner的参数（内置 Tuner 在[这里](../Tuner/BuiltinTuner.md)），*optimization_mode* 表明需要最大化还是最小化 Trial 的结果。

 **准备配置文件**：实现 Trial 的代码，并选择或实现自定义的 Tuner 后，就要准备 YAML 配置文件了。 NNI 为每个 Trial 样例都提供了演示的配置文件，用命令`cat ~/nni/examples/trials/mnist-annotation/config.yml` 来查看其内容。 大致内容如下：
-
-    authorName: your_name
-    experimentName: auto_mnist
-
-    # 并发运行数量
-    trialConcurrency: 2
-
-    # Experiment 运行时间
-    maxExecDuration: 3h
-
-    # 可为空，即数量不限
-    maxTrialNum: 100
-
-    # 可选值为: local, remote
-    trainingServicePlatform: local
-
-    # 可选值为: true, false
-    useAnnotation: true
-    tuner:
-      builtinTunerName: TPE
-      classArgs:
-        optimize_mode: maximize
-    trial:
-      command: python mnist.py
-      codeDir: ~/nni/examples/trials/mnist-annotation
-      gpuNum: 0
-
+```yaml
+authorName: your_name
+experimentName: auto_mnist
+
+# 并发运行数量
+trialConcurrency: 2
+
+# Experiment 运行时间
+maxExecDuration: 3h
+
+# 可为空，即数量不限
+maxTrialNum: 100
+
+# 可选值为: local, remote
+trainingServicePlatform: local
+
+# 搜索空间文件
+searchSpacePath: search_space.json
+
+# 可选值为: true, false
+useAnnotation: true
+tuner:
+  builtinTunerName: TPE
+  classArgs:
+    optimize_mode: maximize
+trial:
+  command: python mnist.py
+  codeDir: ~/nni/examples/trialsmnist-annotation
+  gpuNum: 0
+ ```

 因为这个 Trial 代码使用了 NNI Annotation 的方法（参考[这里](../Tutorial/AnnotationSpec.md) ），所以*useAnnotation* 为 true。 *command* 是运行 Trial 代码所需要的命令，*codeDir* 是 Trial 代码的相对位置。 命令会在此目录中执行。 同时，也需要提供每个 Trial 进程所需的 GPU 数量。


docs/zh_CN/TrainingService/PaiMode.md

@@ -21,6 +21,8 @@ maxExecDuration: 3h
 maxTrialNum: 100
 # 可选项: local, remote, pai
 trainingServicePlatform: pai
+# 搜索空间文件
+searchSpacePath: search_space.json
 # 可选项: true, false
 useAnnotation: true
 tuner:

docs/zh_CN/TrainingService/RemoteMachineMode.md

@@ -28,6 +28,8 @@ maxExecDuration: 1h
 maxTrialNum: 10
 #可选项: local, remote, pai
 trainingServicePlatform: remote
+# 搜索空间文件
+searchSpacePath: search_space.json
 #可选项: true, false
 useAnnotation: true
 tuner:

examples/model_compress/L1_filter_pruner_torch_vgg16.py

+import math
+import torch
+import torch.nn as nn
+import torch.nn.functional as F
+from torchvision import datasets, transforms
+from nni.compression.torch import L1FilterPruner
+
+
+class vgg(nn.Module):
+    def __init__(self, init_weights=True):
+        super(vgg, self).__init__()
+        cfg = [64, 64, 'M', 128, 128, 'M', 256, 256, 256, 'M', 512, 512, 512, 'M', 512, 512, 512]
+        self.cfg = cfg
+        self.feature = self.make_layers(cfg, True)
+        num_classes = 10
+        self.classifier = nn.Sequential(
+            nn.Linear(cfg[-1], 512),
+            nn.BatchNorm1d(512),
+            nn.ReLU(inplace=True),
+            nn.Linear(512, num_classes)
+        )
+        if init_weights:
+            self._initialize_weights()
+
+    def make_layers(self, cfg, batch_norm=True):
+        layers = []
+        in_channels = 3
+        for v in cfg:
+            if v == 'M':
+                layers += [nn.MaxPool2d(kernel_size=2, stride=2)]
+            else:
+                conv2d = nn.Conv2d(in_channels, v, kernel_size=3, padding=1, bias=False)
+                if batch_norm:
+                    layers += [conv2d, nn.BatchNorm2d(v), nn.ReLU(inplace=True)]
+                else:
+                    layers += [conv2d, nn.ReLU(inplace=True)]
+                in_channels = v
+        return nn.Sequential(*layers)
+
+    def forward(self, x):
+        x = self.feature(x)
+        x = nn.AvgPool2d(2)(x)
+        x = x.view(x.size(0), -1)
+        y = self.classifier(x)
+        return y
+
+    def _initialize_weights(self):
+        for m in self.modules():
+            if isinstance(m, nn.Conv2d):
+                n = m.kernel_size[0] * m.kernel_size[1] * m.out_channels
+                m.weight.data.normal_(0, math.sqrt(2. / n))
+                if m.bias is not None:
+                    m.bias.data.zero_()
+            elif isinstance(m, nn.BatchNorm2d):
+                m.weight.data.fill_(0.5)
+                m.bias.data.zero_()
+            elif isinstance(m, nn.Linear):
+                m.weight.data.normal_(0, 0.01)
+                m.bias.data.zero_()
+
+
+def train(model, device, train_loader, optimizer):
+    model.train()
+    for batch_idx, (data, target) in enumerate(train_loader):
+        data, target = data.to(device), target.to(device)
+        optimizer.zero_grad()
+        output = model(data)
+        loss = F.cross_entropy(output, target)
+        loss.backward()
+        optimizer.step()
+        if batch_idx % 100 == 0:
+            print('{:2.0f}%  Loss {}'.format(100 * batch_idx / len(train_loader), loss.item()))
+
+
+def test(model, device, test_loader):
+    model.eval()
+    test_loss = 0
+    correct = 0
+    with torch.no_grad():
+        for data, target in test_loader:
+            data, target = data.to(device), target.to(device)
+            output = model(data)
+            test_loss += F.nll_loss(output, target, reduction='sum').item()
+            pred = output.argmax(dim=1, keepdim=True)
+            correct += pred.eq(target.view_as(pred)).sum().item()
+    test_loss /= len(test_loader.dataset)
+    acc = 100 * correct / len(test_loader.dataset)
+
+    print('Loss: {}  Accuracy: {}%)\n'.format(
+        test_loss, acc))
+    return acc
+
+
+def main():
+    torch.manual_seed(0)
+    device = torch.device('cuda')
+    train_loader = torch.utils.data.DataLoader(
+        datasets.CIFAR10('./data.cifar10', train=True, download=True,
+                         transform=transforms.Compose([
+                             transforms.Pad(4),
+                             transforms.RandomCrop(32),
+                             transforms.RandomHorizontalFlip(),
+                             transforms.ToTensor(),
+                             transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010))
+                         ])),
+        batch_size=64, shuffle=True)
+    test_loader = torch.utils.data.DataLoader(
+        datasets.CIFAR10('./data.cifar10', train=False, transform=transforms.Compose([
+            transforms.ToTensor(),
+            transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010))
+        ])),
+        batch_size=200, shuffle=False)
+
+    model = vgg()
+    model.to(device)
+
+    # Train the base VGG-16 model
+    print('=' * 10 + 'Train the unpruned base model' + '=' * 10)
+    optimizer = torch.optim.SGD(model.parameters(), lr=0.1, momentum=0.9, weight_decay=1e-4)
+    lr_scheduler = torch.optim.lr_scheduler.CosineAnnealingLR(optimizer, 160, 0)
+    for epoch in range(160):
+        train(model, device, train_loader, optimizer)
+        test(model, device, test_loader)
+        lr_scheduler.step(epoch)
+    torch.save(model.state_dict(), 'vgg16_cifar10.pth')
+
+    # Test base model accuracy
+    print('=' * 10 + 'Test on the original model' + '=' * 10)
+    model.load_state_dict(torch.load('vgg16_cifar10.pth'))
+    test(model, device, test_loader)
+    # top1 = 93.51%
+
+    # Pruning Configuration, in paper 'PRUNING FILTERS FOR EFFICIENT CONVNETS',
+    # Conv_1, Conv_8, Conv_9, Conv_10, Conv_11, Conv_12 are pruned with 50% sparsity, as 'VGG-16-pruned-A'
+    configure_list = [{
+        'sparsity': 0.5,
+        'op_types': ['default'],
+        'op_names': ['feature.0', 'feature.24', 'feature.27', 'feature.30', 'feature.34', 'feature.37']
+    }]
+
+    # Prune model and test accuracy without fine tuning.
+    print('=' * 10 + 'Test on the pruned model before fine tune' + '=' * 10)
+    pruner = L1FilterPruner(model, configure_list)
+    model = pruner.compress()
+    test(model, device, test_loader)
+    # top1 = 88.19%
+
+    # Fine tune the pruned model for 40 epochs and test accuracy
+    print('=' * 10 + 'Fine tuning' + '=' * 10)
+    optimizer_finetune = torch.optim.SGD(model.parameters(), lr=0.001, momentum=0.9, weight_decay=1e-4)
+    best_top1 = 0
+    for epoch in range(40):
+        pruner.update_epoch(epoch)
+        print('# Epoch {} #'.format(epoch))
+        train(model, device, train_loader, optimizer_finetune)
+        top1 = test(model, device, test_loader)
+        if top1 > best_top1:
+            best_top1 = top1
+            # Export the best model, 'model_path' stores state_dict of the pruned model,
+            # mask_path stores mask_dict of the pruned model
+            pruner.export_model(model_path='pruned_vgg16_cifar10.pth', mask_path='mask_vgg16_cifar10.pth')
+
+    # Test the exported model
+    print('=' * 10 + 'Test on the pruned model after fine tune' + '=' * 10)
+    new_model = vgg()
+    new_model.to(device)
+    new_model.load_state_dict(torch.load('pruned_vgg16_cifar10.pth'))
+    test(new_model, device, test_loader)
+    # top1 = 93.53%
+
+
+if __name__ == '__main__':
+    main()

examples/model_compress/lottery_torch_mnist_fc.py

+import torch
+import torch.nn as nn
+import torch.nn.functional as F
+import torch.utils.data
+import torchvision.datasets as datasets
+import torchvision.transforms as transforms
+from nni.compression.torch import LotteryTicketPruner
+
+class fc1(nn.Module):
+
+    def __init__(self, num_classes=10):
+        super(fc1, self).__init__()
+        self.classifier = nn.Sequential(
+            nn.Linear(28*28, 300),
+            nn.ReLU(inplace=True),
+            nn.Linear(300, 100),
+            nn.ReLU(inplace=True),
+            nn.Linear(100, num_classes),
+        )
+
+    def forward(self, x):
+        x = torch.flatten(x, 1)
+        x = self.classifier(x)
+        return x
+
+def train(model, train_loader, optimizer, criterion):
+    device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
+    model.train()
+    for batch_idx, (imgs, targets) in enumerate(train_loader):
+        optimizer.zero_grad()
+        imgs, targets = imgs.to(device), targets.to(device)
+        output = model(imgs)
+        train_loss = criterion(output, targets)
+        train_loss.backward()
+        optimizer.step()
+    return train_loss.item()
+
+def test(model, test_loader, criterion):
+    device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
+    model.eval()
+    test_loss = 0
+    correct = 0
+    with torch.no_grad():
+        for data, target in test_loader:
+            data, target = data.to(device), target.to(device)
+            output = model(data)
+            test_loss += F.nll_loss(output, target, reduction='sum').item()  # sum up batch loss
+            pred = output.data.max(1, keepdim=True)[1]  # get the index of the max log-probability
+            correct += pred.eq(target.data.view_as(pred)).sum().item()
+        test_loss /= len(test_loader.dataset)
+        accuracy = 100. * correct / len(test_loader.dataset)
+    return accuracy
+
+
+if __name__ == '__main__':
+    transform = transforms.Compose([transforms.ToTensor(), transforms.Normalize((0.1307,), (0.3081,))])
+    traindataset = datasets.MNIST('./data', train=True, download=True, transform=transform)
+    testdataset = datasets.MNIST('./data', train=False, transform=transform)
+    train_loader = torch.utils.data.DataLoader(traindataset, batch_size=60, shuffle=True, num_workers=0, drop_last=False)
+    test_loader = torch.utils.data.DataLoader(testdataset, batch_size=60, shuffle=False, num_workers=0, drop_last=True)
+
+    model = fc1().to("cuda" if torch.cuda.is_available() else "cpu")
+    optimizer = torch.optim.Adam(model.parameters(), lr=1.2e-3)
+    criterion = nn.CrossEntropyLoss()
+
+    configure_list = [{
+        'prune_iterations': 10,
+        'sparsity': 0.96,
+        'op_types': ['default']
+    }]
+    pruner = LotteryTicketPruner(model, configure_list, optimizer)
+    pruner.compress()
+
+    for i in pruner.get_prune_iterations():
+        pruner.prune_iteration_start()
+        loss = 0
+        accuracy = 0
+        for epoch in range(50):
+            loss = train(model, train_loader, optimizer, criterion)
+            accuracy = test(model, test_loader, criterion)
+            print('current epoch: {0}, loss: {1}, accuracy: {2}'.format(epoch, loss, accuracy))
+        print('prune iteration: {0}, loss: {1}, accuracy: {2}'.format(i, loss, accuracy))
+    pruner.export_model('model.pth', 'mask.pth')

examples/model_compress/slim_pruner_torch_vgg19.py

+import math
+import torch
+import torch.nn as nn
+import torch.nn.functional as F
+from torchvision import datasets, transforms
+from nni.compression.torch import SlimPruner
+
+
+class vgg(nn.Module):
+    def __init__(self, init_weights=True):
+        super(vgg, self).__init__()
+        cfg = [64, 64, 'M', 128, 128, 'M', 256, 256, 256, 256, 'M', 512, 512, 512, 512, 'M', 512, 512, 512, 512]
+        self.feature = self.make_layers(cfg, True)
+        num_classes = 10
+        self.classifier = nn.Linear(cfg[-1], num_classes)
+        if init_weights:
+            self._initialize_weights()
+
+    def make_layers(self, cfg, batch_norm=False):
+        layers = []
+        in_channels = 3
+        for v in cfg:
+            if v == 'M':
+                layers += [nn.MaxPool2d(kernel_size=2, stride=2)]
+            else:
+                conv2d = nn.Conv2d(in_channels, v, kernel_size=3, padding=1, bias=False)
+                if batch_norm:
+                    layers += [conv2d, nn.BatchNorm2d(v), nn.ReLU(inplace=True)]
+                else:
+                    layers += [conv2d, nn.ReLU(inplace=True)]
+                in_channels = v
+        return nn.Sequential(*layers)
+
+    def forward(self, x):
+        x = self.feature(x)
+        x = nn.AvgPool2d(2)(x)
+        x = x.view(x.size(0), -1)
+        y = self.classifier(x)
+        return y
+
+    def _initialize_weights(self):
+        for m in self.modules():
+            if isinstance(m, nn.Conv2d):
+                n = m.kernel_size[0] * m.kernel_size[1] * m.out_channels
+                m.weight.data.normal_(0, math.sqrt(2. / n))
+                if m.bias is not None:
+                    m.bias.data.zero_()
+            elif isinstance(m, nn.BatchNorm2d):
+                m.weight.data.fill_(0.5)
+                m.bias.data.zero_()
+            elif isinstance(m, nn.Linear):
+                m.weight.data.normal_(0, 0.01)
+                m.bias.data.zero_()
+
+
+def updateBN(model):
+    for m in model.modules():
+        if isinstance(m, nn.BatchNorm2d):
+            m.weight.grad.data.add_(0.0001 * torch.sign(m.weight.data))  # L1
+
+
+def train(model, device, train_loader, optimizer, sparse_bn=False):
+    model.train()
+    for batch_idx, (data, target) in enumerate(train_loader):
+        data, target = data.to(device), target.to(device)
+        optimizer.zero_grad()
+        output = model(data)
+        loss = F.cross_entropy(output, target)
+        loss.backward()
+        # L1 regularization on BN layer
+        if sparse_bn:
+            updateBN(model)
+        optimizer.step()
+        if batch_idx % 100 == 0:
+            print('{:2.0f}%  Loss {}'.format(100 * batch_idx / len(train_loader), loss.item()))
+
+
+def test(model, device, test_loader):
+    model.eval()
+    test_loss = 0
+    correct = 0
+    with torch.no_grad():
+        for data, target in test_loader:
+            data, target = data.to(device), target.to(device)
+            output = model(data)
+            test_loss += F.nll_loss(output, target, reduction='sum').item()
+            pred = output.argmax(dim=1, keepdim=True)
+            correct += pred.eq(target.view_as(pred)).sum().item()
+    test_loss /= len(test_loader.dataset)
+    acc = 100 * correct / len(test_loader.dataset)
+
+    print('Loss: {}  Accuracy: {}%)\n'.format(
+        test_loss, acc))
+    return acc
+
+
+def main():
+    torch.manual_seed(0)
+    device = torch.device('cuda')
+    train_loader = torch.utils.data.DataLoader(
+        datasets.CIFAR10('./data.cifar10', train=True, download=True,
+                         transform=transforms.Compose([
+                             transforms.Pad(4),
+                             transforms.RandomCrop(32),
+                             transforms.RandomHorizontalFlip(),
+                             transforms.ToTensor(),
+                             transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010))
+                         ])),
+        batch_size=64, shuffle=True)
+    test_loader = torch.utils.data.DataLoader(
+        datasets.CIFAR10('./data.cifar10', train=False, transform=transforms.Compose([
+            transforms.ToTensor(),
+            transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010))
+        ])),
+        batch_size=200, shuffle=False)
+
+    model = vgg()
+    model.to(device)
+
+    # Train the base VGG-19 model
+    print('=' * 10 + 'Train the unpruned base model' + '=' * 10)
+    epochs = 160
+    optimizer = torch.optim.SGD(model.parameters(), lr=0.1, momentum=0.9, weight_decay=1e-4)
+    for epoch in range(epochs):
+        if epoch in [epochs * 0.5, epochs * 0.75]:
+            for param_group in optimizer.param_groups:
+                param_group['lr'] *= 0.1
+        train(model, device, train_loader, optimizer, True)
+        test(model, device, test_loader)
+    torch.save(model.state_dict(), 'vgg19_cifar10.pth')
+
+    # Test base model accuracy
+    print('=' * 10 + 'Test the original model' + '=' * 10)
+    model.load_state_dict(torch.load('vgg19_cifar10.pth'))
+    test(model, device, test_loader)
+    # top1 = 93.60%
+
+    # Pruning Configuration, in paper 'Learning efficient convolutional networks through network slimming',
+    configure_list = [{
+        'sparsity': 0.7,
+        'op_types': ['BatchNorm2d'],
+    }]
+
+    # Prune model and test accuracy without fine tuning.
+    print('=' * 10 + 'Test the pruned model before fine tune' + '=' * 10)
+    pruner = SlimPruner(model, configure_list)
+    model = pruner.compress()
+    test(model, device, test_loader)
+    # top1 = 93.55%
+
+    # Fine tune the pruned model for 40 epochs and test accuracy
+    print('=' * 10 + 'Fine tuning' + '=' * 10)
+    optimizer_finetune = torch.optim.SGD(model.parameters(), lr=0.001, momentum=0.9, weight_decay=1e-4)
+    best_top1 = 0
+    for epoch in range(40):
+        pruner.update_epoch(epoch)
+        print('# Epoch {} #'.format(epoch))
+        train(model, device, train_loader, optimizer_finetune)
+        top1 = test(model, device, test_loader)
+        if top1 > best_top1:
+            best_top1 = top1
+            # Export the best model, 'model_path' stores state_dict of the pruned model,
+            # mask_path stores mask_dict of the pruned model
+            pruner.export_model(model_path='pruned_vgg19_cifar10.pth', mask_path='mask_vgg19_cifar10.pth')
+
+    # Test the exported model
+    print('=' * 10 + 'Test the export pruned model after fine tune' + '=' * 10)
+    new_model = vgg()
+    new_model.to(device)
+    new_model.load_state_dict(torch.load('pruned_vgg19_cifar10.pth'))
+    test(new_model, device, test_loader)
+    # top1 = 93.61%
+
+
+if __name__ == '__main__':
+    main()

examples/trials/sklearn/classification/main.py

@@ -23,13 +23,13 @@ from sklearn.svm import SVC
 import logging
 import numpy as np

-
 LOG = logging.getLogger('sklearn_classification')

 def load_data():
     '''Load dataset, use 20newsgroups dataset'''
     digits = load_digits()
-    X_train, X_test, y_train, y_test = train_test_split(digits.data, digits.target, random_state=99, test_size=0.25)
+    X_train, X_test, y_train, y_test = train_test_split(
+        digits.data, digits.target, random_state=99, test_size=0.25)

     ss = StandardScaler()
     X_train = ss.fit_transform(X_train)
@@ -59,7 +59,7 @@ def get_model(PARAMS):

     return model

-def run(X_train, X_test, y_train, y_test, PARAMS):
+def run(X_train, X_test, y_train, y_test, model):
     '''Train model and predict result'''
     model.fit(X_train, y_train)
     score = model.score(X_test, y_test)

examples/trials/sklearn/regression/main.py

@@ -33,23 +33,22 @@ LOG = logging.getLogger('sklearn_regression')
 def load_data():
     '''Load dataset, use boston dataset'''
     boston = load_boston()
-    X_train, X_test, y_train, y_test = train_test_split(boston.data, boston.target, random_state=99, test_size=0.25)
+    X_train, X_test, y_train, y_test = train_test_split(
+        boston.data, boston.target, random_state=99, test_size=0.25)
     #normalize data
     ss_X = StandardScaler()
     ss_y = StandardScaler()

     X_train = ss_X.fit_transform(X_train)
     X_test = ss_X.transform(X_test)
-    y_train = ss_y.fit_transform(y_train[:, None])[:,0]
-    y_test = ss_y.transform(y_test[:, None])[:,0]
+    y_train = ss_y.fit_transform(y_train[:, None])[:, 0]
+    y_test = ss_y.transform(y_test[:, None])[:, 0]

     return X_train, X_test, y_train, y_test

 def get_default_parameters():
     '''get default parameters'''
-    params = {
-        'model_name': 'LinearRegression'
-    }
+    params = {'model_name': 'LinearRegression'}
     return params

 def get_model(PARAMS):
@@ -76,8 +75,7 @@ def get_model(PARAMS):
         raise
     return model

-
-def run(X_train, X_test, y_train, y_test, PARAMS):
+def run(X_train, X_test, y_train, y_test, model):
     '''Train model and predict result'''
     model.fit(X_train, y_train)
     predict_y = model.predict(X_test)
