The sparsity of each layer is set the same as the overall sparsity in this experiment.
- Only **filter pruning** performances are compared here.
For the pruners with scheduling, `L1Filter Pruner` is used as the base algorithm. That is to say, after the sparsities distribution is decided by the scheduling algorithm, `L1Filter Pruner` is used to performn real pruning.
- All the pruners listed above are implemented in [nni](https://github.com/microsoft/nni/tree/master/docs/en_US/Compressor/Overview.md).
## Experiment Result
For each dataset/model/pruner combination, we prune the model to different levels by setting a series of target sparsities for the pruner.
Here we plot both **Number of Weights - Performances** curve and **FLOPs - Performance** curve.
As a reference, we also plot the result declared in the paper [AutoCompress: An Automatic DNN Structured Pruning Framework for Ultra-High Compression Rates](http://arxiv.org/abs/1907.03141) for models VGG16 and ResNet18 on CIFAR-10.

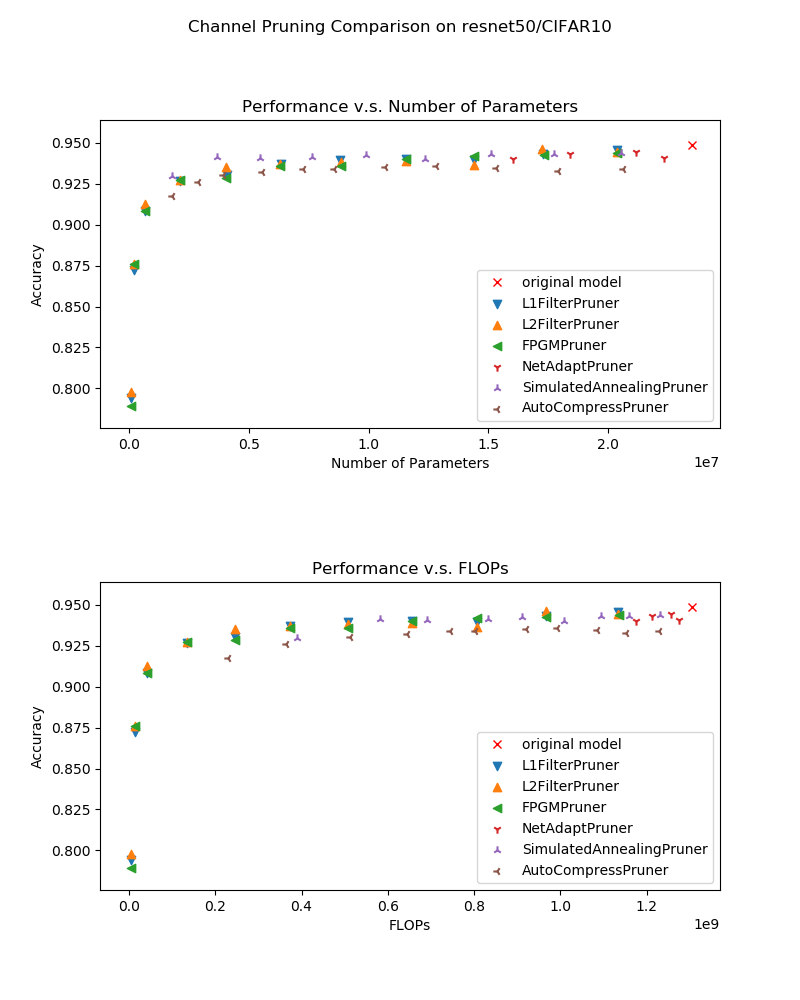

The experiment result are shown in the following figures:
From the experiment result, we get the following conclusions:
* Given the constraint on the number of parameters, the pruners with scheduling ( `AutoCompress Pruner` , `SimualatedAnnealing Pruner` ) performs better than the others when the constraint is strict. However, they have no such advantage in FLOPs/Performances comparison since only number of parameters constraint is considered in the optimization process;
* The basic algorithms `L1Filter Pruner` , `L2Filter Pruner` , `FPGM Pruner` performs very similarly in these experiments;
*`NetAdapt Pruner` can not achieve very high compression rate. This is caused by its mechanism that it prunes only one layer each pruning iteration. This leads to un-acceptable complexity if the sparsity per iteration is much lower than the overall sparisity constraint.
## Experiments Reproduction
### Implementation Details
* The experiment results are all collected with the default configuration of the pruners in nni, which means that when we call a pruner class in nni, we don't change any default class arguments.
* Both FLOPs and the number of parameters are counted with [Model FLOPs/Parameters Counter](https://github.com/microsoft/nni/blob/master/docs/en_US/Compressor/CompressionUtils.md#model-flopsparameters-counter) after [model speed up](https://github.com/microsoft/nni/blob/master/docs/en_US/Compressor/ModelSpeedup.md). This avoids potential issues of counting them of masked models.
* The experiment code can be found [here](https://github.com/microsoft/nni/tree/master/examples/model_compress/auto_pruners_torch.py).
### Experiment Result Rendering
* If you follow the practice in the [example](https://github.com/microsoft/nni/tree/master/examples/model_compress/auto_pruners_torch.py), for every single pruning experiment, the experiment result will be saved in JSON format as follows:
* The experiment results are saved [here](https://github.com/microsoft/nni/tree/master/examples/model_compress/experiment_data).
You can refer to [analyze](https://github.com/microsoft/nni/tree/master/examples/model_compress/experiment_data/analyze.py) to plot new performance comparison figures.
## Contribution
### TODO Items
* Pruners constrained by FLOPS/latency
* More pruning algorithms/datasets/models
### Issues
For algorithm implementation & experiment issues, please [create an issue](https://github.com/microsoft/nni/issues/new/).
@@ -42,6 +42,7 @@ Pruning algorithms compress the original network by removing redundant weights o
...
@@ -42,6 +42,7 @@ Pruning algorithms compress the original network by removing redundant weights o
| [SimulatedAnnealing Pruner](https://nni.readthedocs.io/en/latest/Compressor/Pruner.html#simulatedannealing-pruner) | Automatic pruning with a guided heuristic search method, Simulated Annealing algorithm [Reference Paper](https://arxiv.org/abs/1907.03141) |
| [SimulatedAnnealing Pruner](https://nni.readthedocs.io/en/latest/Compressor/Pruner.html#simulatedannealing-pruner) | Automatic pruning with a guided heuristic search method, Simulated Annealing algorithm [Reference Paper](https://arxiv.org/abs/1907.03141) |
| [AutoCompress Pruner](https://nni.readthedocs.io/en/latest/Compressor/Pruner.html#autocompress-pruner) | Automatic pruning by iteratively call SimulatedAnnealing Pruner and ADMM Pruner [Reference Paper](https://arxiv.org/abs/1907.03141) |
| [AutoCompress Pruner](https://nni.readthedocs.io/en/latest/Compressor/Pruner.html#autocompress-pruner) | Automatic pruning by iteratively call SimulatedAnnealing Pruner and ADMM Pruner [Reference Paper](https://arxiv.org/abs/1907.03141) |
You can refer to this [benchmark](https://github.com/microsoft/nni/tree/master/docs/en_US/Benchmark.md) for the performance of these pruners on some benchmark problems.
