+**Run an Experiment on Azure Machine Learning**
+===
+NNI supports running an experiment on [AML](https://azure.microsoft.com/en-us/services/machine-learning/) , called aml mode.
+
+## Setup environment
+Step 1. Install NNI, follow the install guide [here](../Tutorial/QuickStart.md).
+
+Step 2. Create AML account, follow the document [here](https://docs.microsoft.com/en-us/azure/machine-learning/how-to-manage-workspace-cli).
+

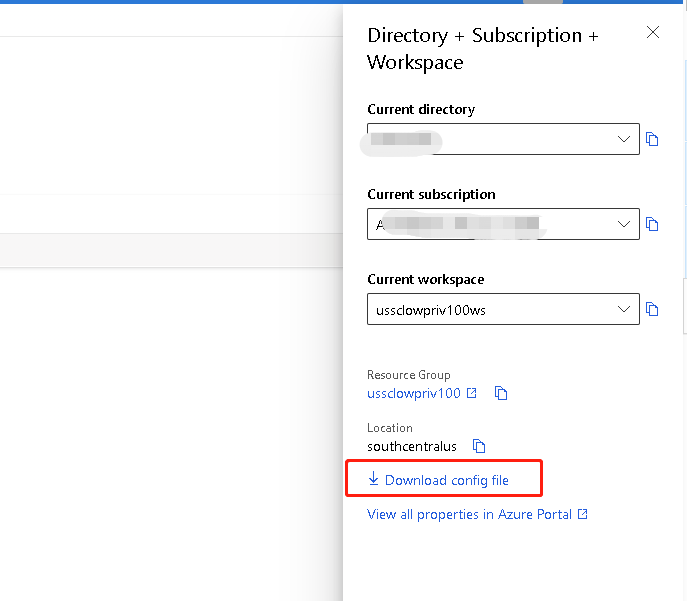

+Step 3. Get your account information.
+![](../../img/aml_account.png)
+
+Step4. Install AML package environment.
+```
+python3 -m pip install azureml --user
+python3 -m pip install azureml-sdk --user
+```
+
+## Run an experiment
+Use `examples/trials/mnist-tfv1` as an example. The NNI config YAML file's content is like:
+
+```yaml
+authorName: default
+experimentName: example_mnist
+trialConcurrency: 1
+maxExecDuration: 1h
+maxTrialNum: 10
+trainingServicePlatform: aml
+searchSpacePath: search_space.json
+#choice: true, false
+useAnnotation: false
+tuner:
+  #choice: TPE, Random, Anneal, Evolution, BatchTuner, MetisTuner, GPTuner
+  #SMAC (SMAC should be installed through nnictl)
+  builtinTunerName: TPE
+  classArgs:
+    #choice: maximize, minimize
+    optimize_mode: maximize
+trial:
+  command: python3 mnist.py
+  codeDir: .
+  computeTarget: ${replace_to_your_computeTarget}
+  image: msranni/nni
+amlConfig:
+  subscriptionId: ${replace_to_your_subscriptionId}
+  resourceGroup: ${replace_to_your_resourceGroup}
+  workspaceName: ${replace_to_your_workspaceName}
+
+```
+
+Note: You should set `trainingServicePlatform: aml` in NNI config YAML file if you want to start experiment in aml mode.
+
+Compared with [LocalMode](LocalMode.md) trial configuration in aml mode have these additional keys:
+* computeTarget
+    * required key. The computer cluster name you want to use in your AML workspace.
+* image
+    * required key. The docker image name used in job.
+
+amlConfig:
+* subscriptionId
+    * the subscriptionId of your account
+* resourceGroup
+    * the resourceGroup of your account
+* workspaceName
+    * the workspaceName of your account
+
\ No newline at end of file

docs/en_US/training_services.rst

@@ -10,3 +10,4 @@ Introduction to NNI Training Services
     Kubeflow<./TrainingService/KubeflowMode>
     FrameworkController<./TrainingService/FrameworkControllerMode>
     DLTS<./TrainingService/DLTSMode>
+    AML<./TrainingService/AMLMode>

examples/trials/mnist-pytorch/config_aml.yml

+authorName: default
+experimentName: example_mnist_pytorch
+trialConcurrency: 1
+maxExecDuration: 1h
+maxTrialNum: 10
+trainingServicePlatform: aml
+searchSpacePath: search_space.json
+#choice: true, false
+useAnnotation: false
+tuner:
+  #choice: TPE, Random, Anneal, Evolution, BatchTuner, MetisTuner, GPTuner
+  #SMAC (SMAC should be installed through nnictl)
+  builtinTunerName: TPE
+  classArgs:
+    #choice: maximize, minimize
+    optimize_mode: maximize
+trial:
+  command: python3 mnist.py
+  codeDir: .
+  computeTarget: ${replace_to_your_computeTarget}
+  image: msranni/nni
+amlConfig:
+  subscriptionId: ${replace_to_your_subscriptionId}
+  resourceGroup: ${replace_to_your_resourceGroup}
+  workspaceName: ${replace_to_your_workspaceName}

examples/trials/mnist-tfv1/config_aml.yml

+authorName: default
+experimentName: example_mnist
+trialConcurrency: 1
+maxExecDuration: 1h
+maxTrialNum: 10
+trainingServicePlatform: aml
+searchSpacePath: search_space.json
+#choice: true, false
+useAnnotation: false
+tuner:
+  #choice: TPE, Random, Anneal, Evolution, BatchTuner, MetisTuner, GPTuner
+  #SMAC (SMAC should be installed through nnictl)
+  builtinTunerName: TPE
+  classArgs:
+    #choice: maximize, minimize
+    optimize_mode: maximize
+trial:
+  command: python3 mnist.py
+  codeDir: .
+  computeTarget: ${replace_to_your_computeTarget}
+  image: msranni/nni
+amlConfig:
+  subscriptionId: ${replace_to_your_subscriptionId}
+  resourceGroup: ${replace_to_your_resourceGroup}
+  workspaceName: ${replace_to_your_workspaceName}

src/nni_manager/config/aml/amlUtil.py

+# Copyright (c) Microsoft Corporation.
+# Licensed under the MIT license.
+
+import os
+import sys
+import time
+import json
+from argparse import ArgumentParser
+from azureml.core import Experiment, RunConfiguration, ScriptRunConfig
+from azureml.core.compute import ComputeTarget
+from azureml.core.run import RUNNING_STATES, RunStatus, Run
+from azureml.core import Workspace
+from azureml.core.conda_dependencies import CondaDependencies
+
+if __name__ == "__main__":
+    parser = ArgumentParser()
+    parser.add_argument('--subscription_id', help='the subscription id of aml')
+    parser.add_argument('--resource_group', help='the resource group of aml')
+    parser.add_argument('--workspace_name', help='the workspace name of aml')
+    parser.add_argument('--compute_target', help='the compute cluster name of aml')
+    parser.add_argument('--docker_image', help='the docker image of job')
+    parser.add_argument('--experiment_name', help='the experiment name')
+    parser.add_argument('--script_dir', help='script directory')
+    parser.add_argument('--script_name', help='script name')
+    args = parser.parse_args()
+
+    ws = Workspace(args.subscription_id, args.resource_group, args.workspace_name)
+    compute_target = ComputeTarget(workspace=ws, name=args.compute_target)
+    experiment = Experiment(ws, args.experiment_name)
+    run_config = RunConfiguration()
+    dependencies = CondaDependencies()
+    dependencies.add_pip_package("azureml-sdk")
+    dependencies.add_pip_package("azureml")
+    run_config.environment.python.conda_dependencies = dependencies
+    run_config.environment.docker.enabled = True
+    run_config.environment.docker.base_image = args.docker_image
+    run_config.target = compute_target
+    run_config.node_count = 1
+    config = ScriptRunConfig(source_directory=args.script_dir, script=args.script_name, run_config=run_config)
+    run = experiment.submit(config)
+    print(run.get_details()["runId"])
+    while True:
+        line = sys.stdin.readline().rstrip()
+        if line == 'update_status':
+            print('status:' + run.get_status())
+        elif line == 'tracking_url':
+            print('tracking_url:' + run.get_portal_url())
+        elif line == 'stop':
+            run.cancel()
+            exit(0)
+        elif line == 'receive':
+            print('receive:' + json.dumps(run.get_metrics()))
+        elif line:
+            items = line.split(':')
+            if items[0] == 'command':
+                run.log('nni_manager', line[8:])

src/nni_manager/main.ts

@@ -65,6 +65,10 @@ async function initContainer(foreground: boolean, platformMode: string, logFileN
         Container.bind(TrainingService)
             .to(DLTSTrainingService)
             .scope(Scope.Singleton);
+    } else if (platformMode === 'aml') {
+        Container.bind(TrainingService)
+            .to(RouterTrainingService)
+            .scope(Scope.Singleton);
     } else {
         throw new Error(`Error: unsupported mode: ${platformMode}`);
     }
@@ -93,7 +97,7 @@ async function initContainer(foreground: boolean, platformMode: string, logFileN

 function usage(): void {
     console.info('usage: node main.js --port <port> --mode \
-    <local/remote/pai/kubeflow/frameworkcontroller/paiYarn> --start_mode <new/resume> --experiment_id <id> --foreground <true/false>');
+    <local/remote/pai/kubeflow/frameworkcontroller/paiYarn/aml> --start_mode <new/resume> --experiment_id <id> --foreground <true/false>');
 }

 const strPort: string = parseArg(['--port', '-p']);
@@ -113,7 +117,7 @@ const foreground: boolean = foregroundArg.toLowerCase() === 'true' ? true : fals
 const port: number = parseInt(strPort, 10);

 const mode: string = parseArg(['--mode', '-m']);
-if (!['local', 'remote', 'pai', 'kubeflow', 'frameworkcontroller', 'paiYarn', 'dlts'].includes(mode)) {
+if (!['local', 'remote', 'pai', 'kubeflow', 'frameworkcontroller', 'paiYarn', 'dlts', 'aml'].includes(mode)) {
     console.log(`FATAL: unknown mode: ${mode}`);
     usage();
     process.exit(1);

src/nni_manager/package.json

@@ -19,6 +19,7 @@
     "ignore": "^5.1.4",
     "js-base64": "^2.4.9",
     "kubernetes-client": "^6.5.0",
+    "python-shell": "^2.0.1",
     "rx": "^4.1.0",
     "sqlite3": "^4.0.2",
     "ssh2": "^0.6.1",

src/nni_manager/rest_server/restValidationSchemas.ts

@@ -39,6 +39,8 @@ export namespace ValidationSchemas {
                 nniManagerNFSMountPath: joi.string().min(1),
                 containerNFSMountPath: joi.string().min(1),
                 paiConfigPath: joi.string(),
+                computeTarget: joi.string(),
+                nodeCount: joi.number(),
                 paiStorageConfigName: joi.string().min(1),
                 nasMode: joi.string().valid('classic_mode', 'enas_mode', 'oneshot_mode', 'darts_mode'),
                 portList: joi.array().items(joi.object({
@@ -150,6 +152,11 @@ export namespace ValidationSchemas {
                 email: joi.string().min(1),
                 password: joi.string().min(1)
             }),
+            aml_config: joi.object({ // eslint-disable-line @typescript-eslint/camelcase
+                subscriptionId: joi.string().min(1),
+                resourceGroup: joi.string().min(1),
+                workspaceName: joi.string().min(1)
+            }),
             nni_manager_ip: joi.object({ // eslint-disable-line @typescript-eslint/camelcase
                 nniManagerIp: joi.string().min(1)
             })

src/nni_manager/training_service/common/trialConfigMetadataKey.ts

@@ -19,6 +19,7 @@ export enum TrialConfigMetadataKey {
     NNI_MANAGER_IP = 'nni_manager_ip',
     FRAMEWORKCONTROLLER_CLUSTER_CONFIG = 'frameworkcontroller_config',
     DLTS_CLUSTER_CONFIG = 'dlts_config',
+    AML_CLUSTER_CONFIG = 'aml_config',
     VERSION_CHECK = 'version_check',
     LOG_COLLECTION = 'log_collection'
 }

src/nni_manager/training_service/reusable/aml/amlClient.ts

+// Copyright (c) Microsoft Corporation.
+// Licensed under the MIT license.
+
+'use strict';
+
+import { Deferred } from 'ts-deferred';
+import { PythonShell } from 'python-shell';
+
+export class AMLClient {
+    public subscriptionId: string;
+    public resourceGroup: string;
+    public workspaceName: string;
+    public experimentId: string;
+    public image: string;
+    public scriptName: string;
+    public pythonShellClient: undefined | PythonShell;
+    public codeDir: string;
+    public computeTarget: string;
+
+    constructor(
+        subscriptionId: string,
+        resourceGroup: string,
+        workspaceName: string,
+        experimentId: string,
+        computeTarget: string,
+        image: string,
+        scriptName: string,
+        codeDir: string,
+        ) {
+        this.subscriptionId = subscriptionId;
+        this.resourceGroup = resourceGroup;
+        this.workspaceName = workspaceName;
+        this.experimentId = experimentId;
+        this.image = image;
+        this.scriptName = scriptName;
+        this.codeDir = codeDir;
+        this.computeTarget = computeTarget;
+    }
+
+    public submit(): Promise<string> {
+        const deferred: Deferred<string> = new Deferred<string>();
+        this.pythonShellClient = new PythonShell('amlUtil.py', {
+            scriptPath: './config/aml',
+            pythonOptions: ['-u'], // get print results in real-time
+            args: [
+                '--subscription_id', this.subscriptionId,
+                '--resource_group', this.resourceGroup,
+                '--workspace_name', this.workspaceName,
+                '--compute_target', this.computeTarget,
+                '--docker_image', this.image,
+                '--experiment_name', `nni_exp_${this.experimentId}`,
+                '--script_dir', this.codeDir,
+                '--script_name', this.scriptName
+              ]
+        });
+        this.pythonShellClient.on('message', function (envId: any) {
+            // received a message sent from the Python script (a simple "print" statement)
+            deferred.resolve(envId);
+        });
+        return deferred.promise;
+    }
+
+    public stop(): void {
+        if (this.pythonShellClient === undefined) {
+            throw Error('python shell client not initialized!');
+        }
+        this.pythonShellClient.send('stop');
+    }
+
+    public getTrackingUrl(): Promise<string> {
+        const deferred: Deferred<string> = new Deferred<string>();
+        if (this.pythonShellClient === undefined) {
+            throw Error('python shell client not initialized!');
+        }
+        this.pythonShellClient.send('tracking_url');
+        let trackingUrl = '';
+        this.pythonShellClient.on('message', function (status: any) {
+            const items = status.split(':');
+            if (items[0] === 'tracking_url') {
+                trackingUrl = items.splice(1, items.length).join('')
+            }
+            deferred.resolve(trackingUrl);
+        });
+        return deferred.promise;
+    }
+
+    public updateStatus(oldStatus: string): Promise<string> {
+        const deferred: Deferred<string> = new Deferred<string>();
+        if (this.pythonShellClient === undefined) {
+            throw Error('python shell client not initialized!');
+        }
+        let newStatus = oldStatus;
+        this.pythonShellClient.send('update_status');
+        this.pythonShellClient.on('message', function (status: any) {
+            const items = status.split(':');
+            if (items[0] === 'status') {
+                newStatus = items.splice(1, items.length).join('')
+            }
+            deferred.resolve(newStatus);
+        });
+        return deferred.promise;
+    }
+
+    public sendCommand(message: string): void {
+        if (this.pythonShellClient === undefined) {
+            throw Error('python shell client not initialized!');
+        }
+        this.pythonShellClient.send(`command:${message}`);
+    }
+
+    public receiveCommand(): Promise<any> {
+        const deferred: Deferred<any> = new Deferred<any>();
+        if (this.pythonShellClient === undefined) {
+            throw Error('python shell client not initialized!');
+        }
+        this.pythonShellClient.send('receive');
+        this.pythonShellClient.on('message', function (command: any) {
+            const items = command.split(':')
+            if (items[0] === 'receive') {
+                deferred.resolve(JSON.parse(command.slice(8)))
+            }
+        });
+        return deferred.promise;
+    }
+}

src/nni_manager/training_service/reusable/aml/amlConfig.ts

+// Copyright (c) Microsoft Corporation.
+// Licensed under the MIT license.
+
+'use strict';
+
+import { TrialConfig } from '../../common/trialConfig';
+import { EnvironmentInformation } from '../environment';
+import { AMLClient } from '../aml/amlClient';
+
+export class AMLClusterConfig {
+    public readonly subscriptionId: string;
+    public readonly resourceGroup: string;
+    public readonly workspaceName: string;
+
+    constructor(subscriptionId: string, resourceGroup: string, workspaceName: string) {
+        this.subscriptionId = subscriptionId;
+        this.resourceGroup = resourceGroup;
+        this.workspaceName = workspaceName;
+    }
+}
+
+export class AMLTrialConfig extends TrialConfig {
+    public readonly image: string;
+    public readonly command: string;
+    public readonly codeDir: string;
+    public readonly computeTarget: string;
+
+    constructor(codeDir: string, command: string, image: string, computeTarget: string) {
+        super("", codeDir, 0);
+        this.codeDir = codeDir;
+        this.command = command;
+        this.image = image;
+        this.computeTarget = computeTarget;
+    }
+}
+
+export class AMLEnvironmentInformation extends EnvironmentInformation {
+    public amlClient?: AMLClient;
+}

src/nni_manager/training_service/reusable/channels/amlCommandChannel.ts

+// Copyright (c) Microsoft Corporation.
+// Licensed under the MIT license.
+
+'use strict';
+
+import { EventEmitter } from 'events';
+import { delay } from "../../../common/utils";
+import { AMLEnvironmentInformation } from '../aml/amlConfig';
+import { CommandChannel, RunnerConnection } from "../commandChannel";
+import { Channel, EnvironmentInformation } from "../environment";
+
+class AMLRunnerConnection extends RunnerConnection {
+}
+
+export class AMLCommandChannel extends CommandChannel {
+    private stopping: boolean = false;
+    private currentMessageIndex: number = -1;
+    private sendQueues: [EnvironmentInformation, string][] = [];
+    private readonly NNI_METRICS_PATTERN: string = `NNISDK_MEb'(?<metrics>.*?)'`;
+
+    public constructor(commandEmitter: EventEmitter) {
+        super(commandEmitter);
+    }
+    public get channelName(): Channel {
+        return "aml";
+    }
+
+    public async config(_key: string, _value: any): Promise<void> {
+        // do nothing
+    }
+
+    public async start(): Promise<void> {
+        // do nothing
+    }
+
+    public async stop(): Promise<void> {
+        this.stopping = true;
+    }
+
+    public async run(): Promise<void> {
+        // start command loops
+        await Promise.all([
+            this.receiveLoop(),
+            this.sendLoop()
+        ]);
+    }
+
+    protected async sendCommandInternal(environment: EnvironmentInformation, message: string): Promise<void> {
+        this.sendQueues.push([environment, message]);
+    }
+
+    protected createRunnerConnection(environment: EnvironmentInformation): RunnerConnection {
+        return new AMLRunnerConnection(environment);
+    }
+
+    private async sendLoop(): Promise<void> {
+        const intervalSeconds = 0.5;
+        while (!this.stopping) {
+            const start = new Date();
+            if (this.sendQueues.length > 0) {
+                while (this.sendQueues.length > 0) {
+                    const item = this.sendQueues.shift();
+                    if (item === undefined) {
+                        break;
+                    }
+                    const environment = item[0];
+                    const message = item[1];
+                    const amlClient = (environment as AMLEnvironmentInformation).amlClient;
+                    if (!amlClient) {
+                        throw new Error('aml client not initialized!');
+                    }
+                    amlClient.sendCommand(message);
+                }
+            }
+
+            const end = new Date();
+            const delayMs = intervalSeconds * 1000 - (end.valueOf() - start.valueOf());
+            if (delayMs > 0) {
+                await delay(delayMs);
+            }
+        }
+    }
+
+    private async receiveLoop(): Promise<void> {
+        const intervalSeconds = 2;
+
+        while (!this.stopping) {
+            const start = new Date();
+            const runnerConnections = [...this.runnerConnections.values()] as AMLRunnerConnection[];
+            for (const runnerConnection of runnerConnections) {
+                // to loop all commands
+                const amlClient = (runnerConnection.environment as AMLEnvironmentInformation).amlClient;
+                if (!amlClient) {
+                    throw new Error('AML client not initialized!');
+                }
+                const command = await amlClient.receiveCommand();
+                if (command && Object.prototype.hasOwnProperty.call(command, "trial_runner")) {
+                    const messages = command['trial_runner'];
+                    if (messages) {
+                        if (messages instanceof Object && this.currentMessageIndex < messages.length - 1) {
+                            for (let index = this.currentMessageIndex + 1; index < messages.length; index ++) {
+                                this.handleCommand(runnerConnection.environment, messages[index]);
+                            }
+                            this.currentMessageIndex = messages.length - 1;
+                        } else if (this.currentMessageIndex === -1){
+                            this.handleCommand(runnerConnection.environment, messages);
+                            this.currentMessageIndex += 1;
+                        }
+                    }
+                }
+            }
+
+            const end = new Date();
+            const delayMs = intervalSeconds * 1000 - (end.valueOf() - start.valueOf());
+            if (delayMs > 0) {
+                await delay(delayMs);
+            }
+        }
+    }
+}

src/nni_manager/training_service/reusable/channels/fileCommandChannel.ts

@@ -6,7 +6,7 @@
 import * as component from "../../../common/component";
 import { delay } from "../../../common/utils";
 import { CommandChannel, RunnerConnection } from "../commandChannel";
-import { EnvironmentInformation, Channel } from "../environment";
+import { Channel, EnvironmentInformation } from "../environment";
 import { StorageService } from "../storageService";

 class FileHandler {
@@ -38,15 +38,21 @@ export class FileCommandChannel extends CommandChannel {
     }

     public async start(): Promise<void> {
-        // start command loops
-        this.receiveLoop();
-        this.sendLoop();
+        // do nothing
     }

     public async stop(): Promise<void> {
         this.stopping = true;
     }

+    public async run(): Promise<void> {
+        // start command loops
+        await Promise.all([
+            this.receiveLoop(),
+            this.sendLoop()
+        ]);
+    }
+
     protected async sendCommandInternal(environment: EnvironmentInformation, message: string): Promise<void> {
         this.sendQueues.push([environment, message]);
     }

src/nni_manager/training_service/reusable/channels/webCommandChannel.ts

@@ -66,6 +66,10 @@ export class WebCommandChannel extends CommandChannel {
         }
     }

+    public async run(): Promise<void>{
+        // do nothing
+    }
+
     protected async sendCommandInternal(environment: EnvironmentInformation, message: string): Promise<void> {
         if (this.webSocketServer === undefined) {
             throw new Error(`WebCommandChannel: uninitialized!`)

src/nni_manager/training_service/reusable/commandChannel.ts

@@ -59,6 +59,9 @@ export abstract class CommandChannel {
     public abstract start(): Promise<void>;
     public abstract stop(): Promise<void>;

+    // Pull-based command channels need loop to check messages, the loop should be started with await here.
+    public abstract run(): Promise<void>;
+
     protected abstract sendCommandInternal(environment: EnvironmentInformation, message: string): Promise<void>;
     protected abstract createRunnerConnection(environment: EnvironmentInformation): RunnerConnection;


src/nni_manager/training_service/reusable/environment.ts

@@ -14,7 +14,6 @@ import { CommandChannel } from "./commandChannel";
 export type EnvironmentStatus = 'UNKNOWN' | 'WAITING' | 'RUNNING' | 'SUCCEEDED' | 'FAILED' | 'USER_CANCELED';
 export type Channel = "web" | "file" | "aml" | "ut";

-
 export class EnvironmentInformation {
     private log: Logger;

@@ -65,6 +64,7 @@ export class EnvironmentInformation {
         }
     }
 }
+
 export abstract class EnvironmentService {

     public abstract get hasStorageService(): boolean;

src/nni_manager/training_service/reusable/environments/amlEnvironmentService.ts

+// Copyright (c) Microsoft Corporation.
+// Licensed under the MIT license.
+
+'use strict';
+
+import * as fs from 'fs';
+import * as path from 'path';
+import * as component from '../../../common/component';
+import { getExperimentId } from '../../../common/experimentStartupInfo';
+import { getLogger, Logger } from '../../../common/log';
+import { TrialConfigMetadataKey } from '../../common/trialConfigMetadataKey';
+import { AMLClusterConfig, AMLTrialConfig } from '../aml/amlConfig';
+import { EnvironmentInformation, EnvironmentService } from '../environment';
+import { AMLEnvironmentInformation } from '../aml/amlConfig';
+import { AMLClient } from '../aml/amlClient';
+import {
+    NNIManagerIpConfig,
+} from '../../../common/trainingService';
+import { validateCodeDir } from '../../common/util';
+import { getExperimentRootDir } from '../../../common/utils';
+import { AMLCommandChannel } from '../channels/amlCommandChannel';
+import { CommandChannel } from "../commandChannel";
+import { EventEmitter } from "events";
+
+
+/**
+ * Collector PAI jobs info from PAI cluster, and update pai job status locally
+ */
+@component.Singleton
+export class AMLEnvironmentService extends EnvironmentService {
+
+    private readonly log: Logger = getLogger();
+    public amlClusterConfig: AMLClusterConfig | undefined;
+    public amlTrialConfig: AMLTrialConfig | undefined;
+    private amlJobConfig: any;
+    private stopping: boolean = false;
+    private versionCheck: boolean = true;
+    private isMultiPhase: boolean = false;
+    private nniVersion?: string;
+    private experimentId: string;
+    private nniManagerIpConfig?: NNIManagerIpConfig;
+    private experimentRootDir: string;
+
+    constructor() {
+        super();
+        this.experimentId = getExperimentId();
+        this.experimentRootDir = getExperimentRootDir();
+    }
+
+    public get hasStorageService(): boolean {
+        return false;
+    }
+
+    public getCommandChannel(commandEmitter: EventEmitter): CommandChannel {
+        return new AMLCommandChannel(commandEmitter);
+    }
+
+    public createEnviornmentInfomation(envId: string, envName: string): EnvironmentInformation {
+        return new AMLEnvironmentInformation(envId, envName);
+    }
+
+    public async config(key: string, value: string): Promise<void> {
+        switch (key) {
+            case TrialConfigMetadataKey.AML_CLUSTER_CONFIG:
+                this.amlClusterConfig = <AMLClusterConfig>JSON.parse(value);
+                break;
+
+            case TrialConfigMetadataKey.TRIAL_CONFIG: {
+                if (this.amlClusterConfig === undefined) {
+                    this.log.error('aml cluster config is not initialized');
+                    break;
+                }
+                this.amlTrialConfig = <AMLTrialConfig>JSON.parse(value);
+                // Validate to make sure codeDir doesn't have too many files
+                await validateCodeDir(this.amlTrialConfig.codeDir);
+                break;
+            }
+            default:
+                this.log.debug(`AML not proccessed metadata key: '${key}', value: '${value}'`);
+        }
+    }
+
+    public async refreshEnvironmentsStatus(environments: EnvironmentInformation[]): Promise<void> {
+        environments.forEach(async (environment) => {
+            const amlClient = (environment as AMLEnvironmentInformation).amlClient;
+                    if (!amlClient) {
+            throw new Error('AML client not initialized!');
+            }
+            const status = await amlClient.updateStatus(environment.status);
+            switch (status.toUpperCase()) {
+                case 'WAITING':
+                case 'RUNNING':
+                case 'QUEUED':
+                    // RUNNING status is set by runner, and ignore waiting status
+                    break;
+                case 'COMPLETED':
+                case 'SUCCEEDED':
+                    environment.setFinalStatus('SUCCEEDED');
+                    break;
+                case 'FAILED':
+                    environment.setFinalStatus('FAILED');
+                    break;
+                case 'STOPPED':
+                case 'STOPPING':
+                    environment.setFinalStatus('USER_CANCELED');
+                    break;
+                default:
+                    environment.setFinalStatus('UNKNOWN');
+            }
+        });
+    }
+
+    public async startEnvironment(environment: EnvironmentInformation): Promise<void> {
+        if (this.amlClusterConfig === undefined) {
+            throw new Error('AML Cluster config is not initialized');
+        }
+        if (this.amlTrialConfig === undefined) {
+            throw new Error('AML trial config is not initialized');
+        }
+        const amlEnvironment: AMLEnvironmentInformation = environment as AMLEnvironmentInformation;
+        const environmentLocalTempFolder = path.join(this.experimentRootDir, this.experimentId, "environment-temp");
+        environment.command = `import os\nos.system('${amlEnvironment.command}')`;
+        await fs.promises.writeFile(path.join(environmentLocalTempFolder, 'nni_script.py'), amlEnvironment.command ,{ encoding: 'utf8' });
+        const amlClient = new AMLClient(
+            this.amlClusterConfig.subscriptionId,
+            this.amlClusterConfig.resourceGroup,
+            this.amlClusterConfig.workspaceName,
+            this.experimentId,
+            this.amlTrialConfig.computeTarget,
+            this.amlTrialConfig.image,
+            'nni_script.py',
+            environmentLocalTempFolder
+        );
+        amlEnvironment.id = await amlClient.submit();
+        amlEnvironment.trackingUrl = await amlClient.getTrackingUrl();
+        amlEnvironment.amlClient = amlClient;
+    }
+
+    public async stopEnvironment(environment: EnvironmentInformation): Promise<void> {
+        const amlEnvironment: AMLEnvironmentInformation = environment as AMLEnvironmentInformation;
+        const amlClient = amlEnvironment.amlClient;
+        if (!amlClient) {
+            throw new Error('AML client not initialized!');
+        }
+        amlClient.stop();
+    }
+}

src/nni_manager/training_service/reusable/environments/openPaiEnvironmentService.ts

@@ -167,8 +167,9 @@ export class OpenPaiEnvironmentService extends EnvironmentService {
         }

         // Step 1. Prepare PAI job configuration
-        environment.runnerWorkingFolder = `${this.paiTrialConfig.containerNFSMountPath}/${this.experimentId}/envs/${environment.id}`;
-        environment.command = `cd ${environment.runnerWorkingFolder} && ${environment.command}`
+        const environmentRoot = `${this.paiTrialConfig.containerNFSMountPath}/${this.experimentId}`;
+        environment.runnerWorkingFolder = `${environmentRoot}/envs/${environment.id}`;
+        environment.command = `cd ${environmentRoot} && ${environment.command}`
         environment.trackingUrl = `${this.protocol}://${this.paiClusterConfig.host}/job-detail.html?username=${this.paiClusterConfig.userName}&jobName=${environment.jobId}`

         // Step 2. Generate Job Configuration in yaml format

src/nni_manager/training_service/reusable/routerTrainingService.ts

@@ -13,6 +13,7 @@ import { PAIClusterConfig } from '../pai/paiConfig';
 import { PAIK8STrainingService } from '../pai/paiK8S/paiK8STrainingService';
 import { EnvironmentService } from './environment';
 import { OpenPaiEnvironmentService } from './environments/openPaiEnvironmentService';
+import { AMLEnvironmentService } from './environments/amlEnvironmentService';
 import { MountedStorageService } from './storages/mountedStorageService';
 import { StorageService } from './storageService';
 import { TrialDispatcher } from './trialDispatcher';
@@ -120,6 +121,25 @@ class RouterTrainingService implements TrainingService {
                 }
                 await this.internalTrainingService.setClusterMetadata(key, value);

+                this.metaDataCache.clear();
+            } else if (key === TrialConfigMetadataKey.AML_CLUSTER_CONFIG) {
+                this.internalTrainingService = component.get(TrialDispatcher);
+
+                Container.bind(EnvironmentService)
+                    .to(AMLEnvironmentService)
+                    .scope(Scope.Singleton);
+                for (const [key, value] of this.metaDataCache) {
+                    if (this.internalTrainingService === undefined) {
+                        throw new Error("TrainingService is not assigned!");
+                    }
+                    await this.internalTrainingService.setClusterMetadata(key, value);
+                }
+
+                if (this.internalTrainingService === undefined) {
+                    throw new Error("TrainingService is not assigned!");
+                }
+                await this.internalTrainingService.setClusterMetadata(key, value);
+
                 this.metaDataCache.clear();
             } else {
                 this.log.debug(`caching metadata key:{} value:{}, as training service is not determined.`);
