Merge branch 'master' of git://github.com/microsoft/nni

README.md

@@ -155,7 +155,7 @@ Windows
 ```bash
   git clone -b v0.7 https://github.com/Microsoft/nni.git
   cd nni
-  powershell ./install.ps1
+  powershell .\install.ps1
 ```

 For the system requirements of NNI, please refer to [Install NNI](docs/en_US/Installation.md)
@@ -185,7 +185,7 @@ Windows
 * Run the MNIST example.

 ```bash
-    nnictl create --config nni/examples/trials/mnist/config_windows.yml
+    nnictl create --config nni\examples\trials\mnist\config_windows.yml
 ```

 * Wait for the message `INFO: Successfully started experiment!` in the command line. This message indicates that your experiment has been successfully started. You can explore the experiment using the `Web UI url`.

README_zh_CN.md

@@ -109,7 +109,7 @@ NNI (Neural Network Intelligence) 是自动机器学习（AutoML）的工具包

 **通过 pip 命令安装**

-* 当前支持 Linux，MacOS 和 Windows（本机模式），在 Ubuntu 16.04 或更高版本，MacOS 10.14.1 以及 Windows 10.1809 上进行了测试。 在 `python >= 3.5` 的环境中，只需要运行 `pip install` 即可完成安装。
+* 当前支持 Linux，MacOS 和 Windows（本机，远程，OpenPAI 模式），在 Ubuntu 16.04 或更高版本，MacOS 10.14.1 以及 Windows 10.1809 上进行了测试。 在 `python >= 3.5` 的环境中，只需要运行 `pip install` 即可完成安装。

 Linux 和 macOS

@@ -126,12 +126,12 @@ python -m pip install --upgrade nni
 注意：

 * 如果需要将 NNI 安装到自己的 home 目录中，可使用 `--user`，这样也不需要任何特殊权限。
-* 当前 NNI 在 Windows 上仅支持本机模式。 强烈推荐使用 Anaconda 或 Miniconda 在 Windows 上安装 NNI。
+* 目前，Windows 上的 NNI 支持本机，远程和 OpenPAI 模式。 强烈推荐使用 Anaconda 或 Miniconda 在 Windows 上安装 NNI。
 * 如果遇到如`Segmentation fault` 这样的任何错误请参考[常见问题](docs/zh_CN/FAQ.md)。

 **通过源代码安装**

-* 当前支持 Linux（Ubuntu 16.04 或更高版本），MacOS（10.14.1）以及 Windows 10（1809 版）下的本机模式。
+* 当前支持 Linux（Ubuntu 16.04 或更高版本），MacOS（10.14.1）以及 Windows 10（1809 版）。

 Linux 和 macOS

@@ -155,7 +155,7 @@ Windows

 参考[安装 NNI](docs/zh_CN/Installation.md) 了解系统需求。

-参考 [NNI Windows 本机模式](docs/zh_CN/WindowsLocalMode.md)，了解更多信息。
+Windows 上参考 [Windows 上使用 NNI](docs/zh_CN/NniOnWindows.md)。

 **验证安装**


docs/en_US/AnnotationSpec.md

@@ -36,8 +36,8 @@ There are 10 types to express your search space as follows:

 * `@nni.variable(nni.choice(option1,option2,...,optionN),name=variable)`
   Which means the variable value is one of the options, which should be a list The elements of options can themselves be stochastic expressions
-* `@nni.variable(nni.randint(upper),name=variable)`
-  Which means the variable value is a random integer in the range [0, upper).
+* `@nni.variable(nni.randint(lower, upper),name=variable)`
+  Which means the variable value is a value like round(uniform(low, high)). For now, the type of chosen value is float. If you want to use integer value, please convert it explicitly.
 * `@nni.variable(nni.uniform(low, high),name=variable)`
   Which means the variable value is a value uniformly between low and high.
 * `@nni.variable(nni.quniform(low, high, q),name=variable)`

docs/en_US/ExperimentConfig.md

@@ -399,6 +399,15 @@ machineList:

     __gpuIndices__ is used to specify designated GPU devices for NNI, if it is set, only the specified GPU devices are used for NNI trial jobs. Single or multiple GPU indices can be specified, multiple GPU indices are seperated by comma(,), such as `1` or  `0,1,3`.

+  * __maxTrialNumPerGpu__
+
+    __maxTrialNumPerGpu__ is used to specify the max concurrency trial number on a GPU device.
+
+  * __useActiveGpu__
+
+    __useActiveGpu__ is used to specify whether to use a GPU if there is another process. By default, NNI will use the GPU only if there is no another active process in the GPU, if __useActiveGpu__ is set to true, NNI will use the GPU regardless of another processes. This field is not applicable for NNI on Windows.
+
+
 * __machineList__

   __machineList__ should be set if __trainingServicePlatform__ is set to remote, or it should be empty.
@@ -433,6 +442,14 @@ machineList:

     __gpuIndices__ is used to specify designated GPU devices for NNI on this remote machine, if it is set, only the specified GPU devices are used for NNI trial jobs. Single or multiple GPU indices can be specified, multiple GPU indices are seperated by comma(,), such as `1` or  `0,1,3`.

+  * __maxTrialNumPerGpu__
+
+    __maxTrialNumPerGpu__ is used to specify the max concurrency trial number on a GPU device.
+
+  * __useActiveGpu__
+
+    __useActiveGpu__ is used to specify whether to use a GPU if there is another process. By default, NNI will use the GPU only if there is no another active process in the GPU, if __useActiveGpu__ is set to true, NNI will use the GPU regardless of another processes. This field is not applicable for NNI on Windows.
+
 * __kubeflowConfig__:

   * __operator__

docs/en_US/GeneralNasInterfaces.md

+# General Programming Interface for Neural Architecture Search
+
+Automatic neural architecture search is taking an increasingly important role on finding better models. Recent research works have proved the feasibility of automatic NAS, and also found some models that could beat manually designed and tuned models. Some of representative works are [NASNet][2], [ENAS][1], [DARTS][3], [Network Morphism][4], and [Evolution][5]. There are new innovations keeping emerging. However, it takes great efforts to implement those algorithms, and it is hard to reuse code base of one algorithm for implementing another.
+
+To facilitate NAS innovations (e.g., design/implement new NAS models, compare different NAS models side-by-side), an easy-to-use and flexibile programming interface is crucial.
+
+## Programming interface
+
+ A new programming interface for designing and searching for a model is often demanded in two scenarios. 1) When designing a neural network, the designer may have multiple choices for a layer, sub-model, or connection, and not sure which one or a combination performs the best. It would be appealing to have an easy way to express the candidate layers/sub-models they want to try. 2) For the researchers who are working on automatic NAS, they want to have an unified way to express the search space of neural architectures. And making unchanged trial code adapted to different searching algorithms.
+
+ We designed a simple and flexible programming interface based on [NNI annotation](./AnnotationSpec.md). It is elaborated through examples below.
+
+ ### Example: choose an operator for a layer
+
+When designing the following model there might be several choices in the fourth layer that may make this model perform good. In the script of this model, we can use annotation for the fourth layer as shown in the figure. In this annotation, there are five fields in total:
+
+![](../img/example_layerchoice.png)
+
+* __layer_choice__: It is a list of function calls, each function should have defined in user's script or imported libraries. The input arguments of the function should follow the format: `def XXX(inputs, arg2, arg3, ...)`, where `inputs` is a list with two elements. One is the list of `fixed_inputs`, and the other is a list of the chosen inputs from `optional_inputs`. `conv` and `pool` in the figure are examples of function definition. For the function calls in this list, no need to write the first argument (i.e., `input`). Note that only one of the function calls are chosen for this layer.
+* __fixed_inputs__: It is a list of variables, the variable could be an output tensor from a previous layer. The variable could be `layer_output` of another nni.mutable_layer before this layer, or other python variables before this layer. All the variables in this list will be fed into the chosen function in `layer_choice` (as the first element of the `input` list).
+* __optional_inputs__: It is a list of variables, the variable could be an output tensor from a previous layer. The variable could be `layer_output` of another nni.mutable_layer before this layer, or other python variables before this layer. Only `input_num` variables will be fed into the chosen function in `layer_choice` (as the second element of the `input` list).
+* __optional_input_size__: It indicates how many inputs are chosen from `input_candidates`. It could be a number or a range. A range [1,3] means it chooses 1, 2, or 3 inputs.
+* __layer_output__: The name of the output(s) of this layer, in this case it represents the return of the function call in `layer_choice`. This will be a variable name that can be used in the following python code or nni.mutable_layer(s).
+
+There are two ways to write annotation for this example. For the upper one, `input` of the function calls is `[[],[out3]]`. For the bottom one, `input` is `[[out3],[]]`.
+
+### Example: choose input connections for a layer
+

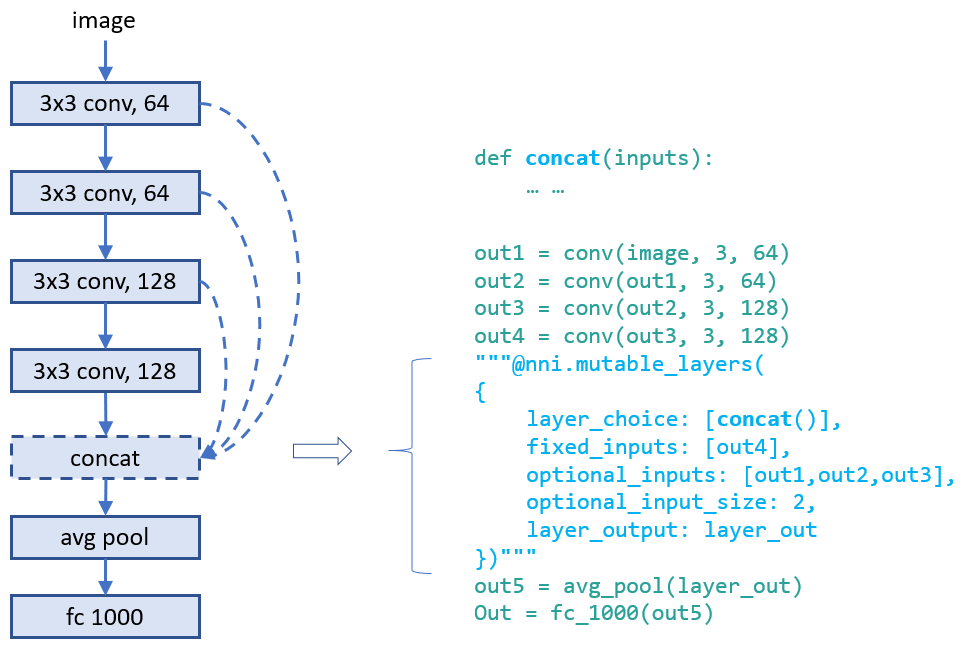

+Designing connections of layers is critical for making a high performance model. With our provided interface, users could annotate which connections a layer takes (as inputs). They could choose several ones from a set of connections. Below is an example which chooses two inputs from three candidate inputs for `concat`. Here `concat` always takes the output of its previous layer using `fixed_inputs`.
+
+![](../img/example_connectchoice.png)
+
+### Example: choose both operators and connections
+

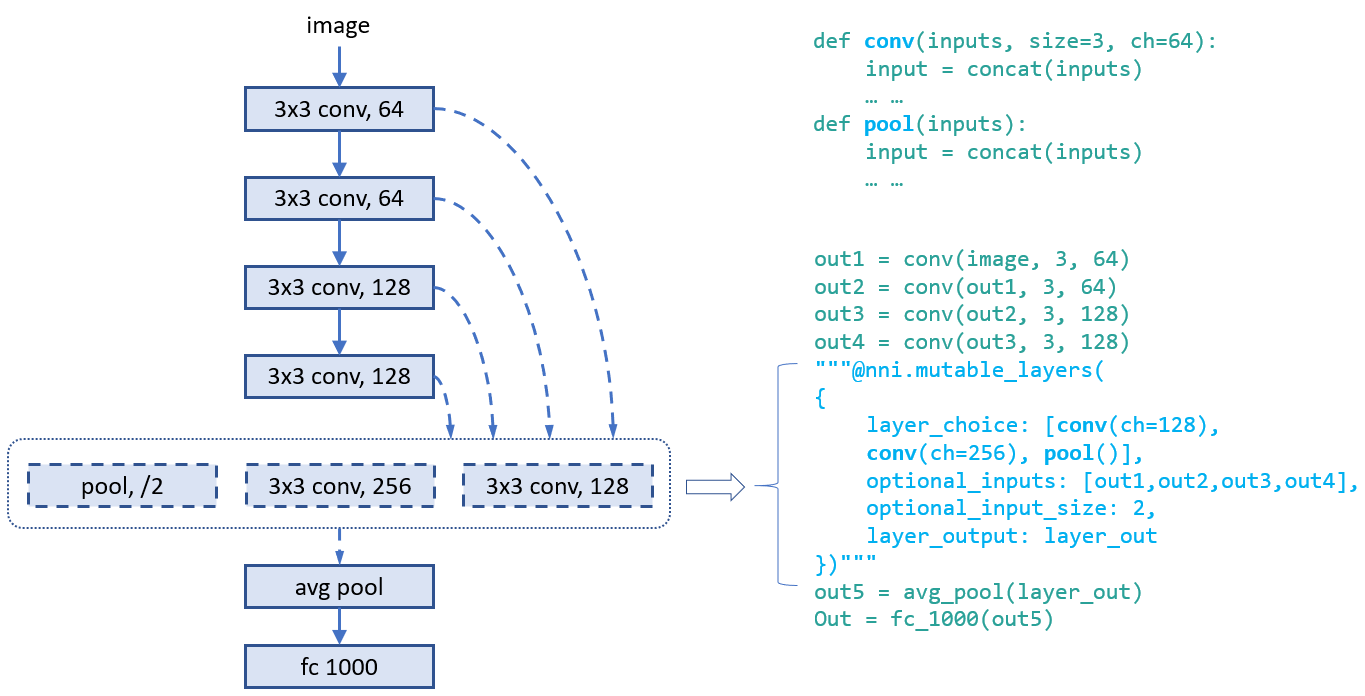

+In this example, we choose one from the three operators and choose two connections for it. As there are multiple variables in `inputs`, we call `concat` at the beginning of the functions.
+
+![](../img/example_combined.png)
+
+### Example: [ENAS][1] macro search space
+

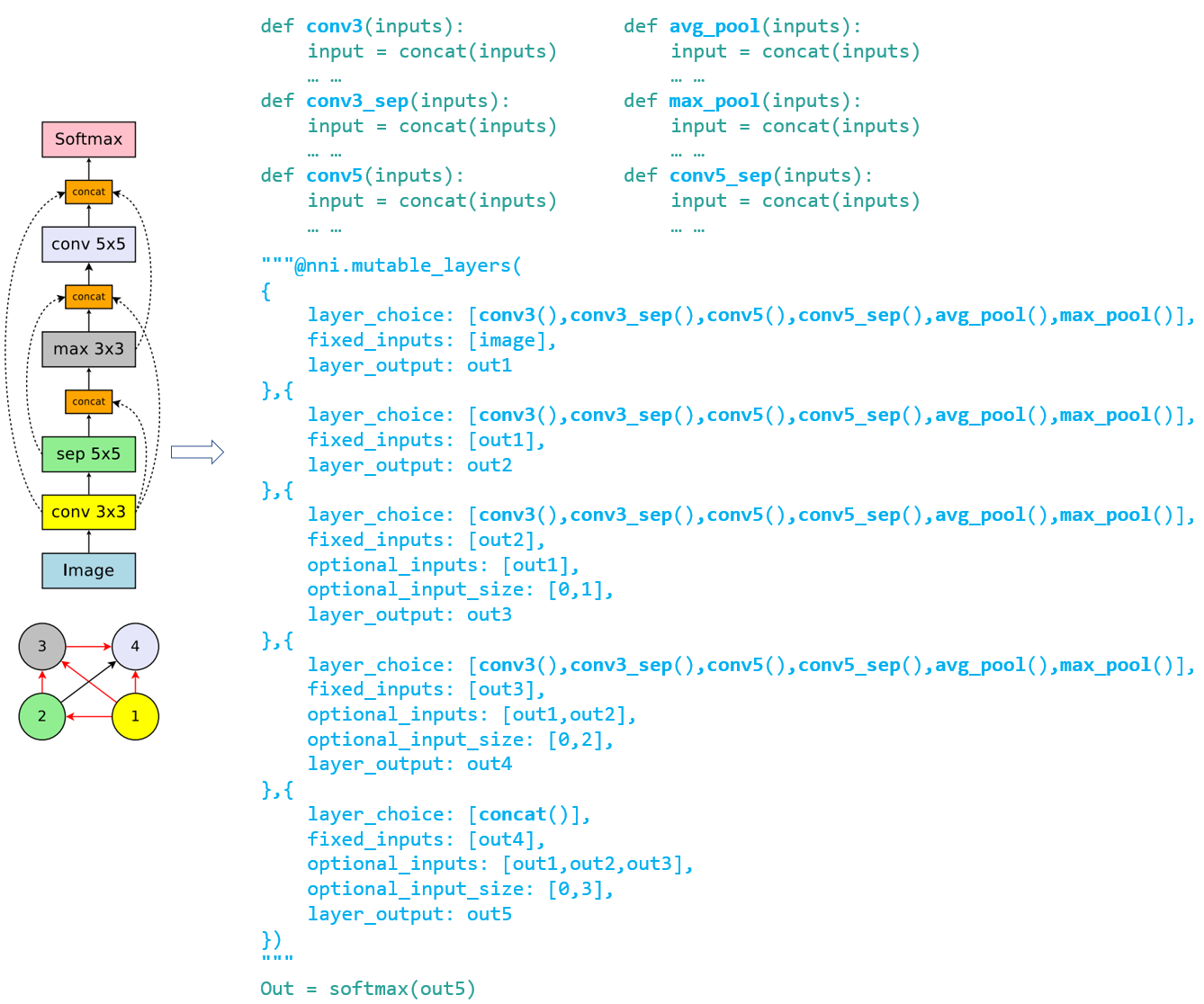

+To illustrate the convenience of the programming interface, we use the interface to implement the trial code of "ENAS + macro search space". The left figure is the macro search space in ENAS paper.
+
+![](../img/example_enas.png)
+
+
+## Unified NAS search space specification
+
+After finishing the trial code through the annotation above, users have implicitly specified the search space of neural architectures in the code. Based on the code, NNI will automatcailly generate a search space file which could be fed into tuning algorithms. This search space file follows the following `json` format.
+
+```json
+{
+    "mutable_1": {
+        "layer_1": {
+            "layer_choice": ["conv(ch=128)", "pool", "identity"],
+            "optional_inputs": ["out1", "out2", "out3"],
+            "optional_input_size": 2
+        },
+        "layer_2": {
+            ...
+        }
+    }
+}
+```
+
+Accordingly, a specified neural architecture (generated by tuning algorithm) is expressed as follows:
+
+```json
+{
+    "mutable_1": {
+        "layer_1": {
+            "chosen_layer": "pool",
+            "chosen_inputs": ["out1", "out3"]
+        },
+        "layer_2": {
+            ...
+        }
+    }
+}
+```
+
+With the specification of the format of search space and architecture (choice) expression, users are free to implement various (general) tuning algorithms for neural architecture search on NNI. One future work is to provide a general NAS algorihtm.
+
+=============================================================
+
+## Neural architecture search on NNI
+
+### Basic flow of experiment execution
+
+NNI's annotation compiler transforms the annotated trial code to the code that could receive architecture choice and build the corresponding model (i.e., graph). The NAS search space can be seen as a full graph (here, full graph means enabling all the provided operators and connections to build a graph), the architecture chosen by the tuning algorithm is a subgraph in it. By default, the compiled trial code only builds and executes the subgraph.
+

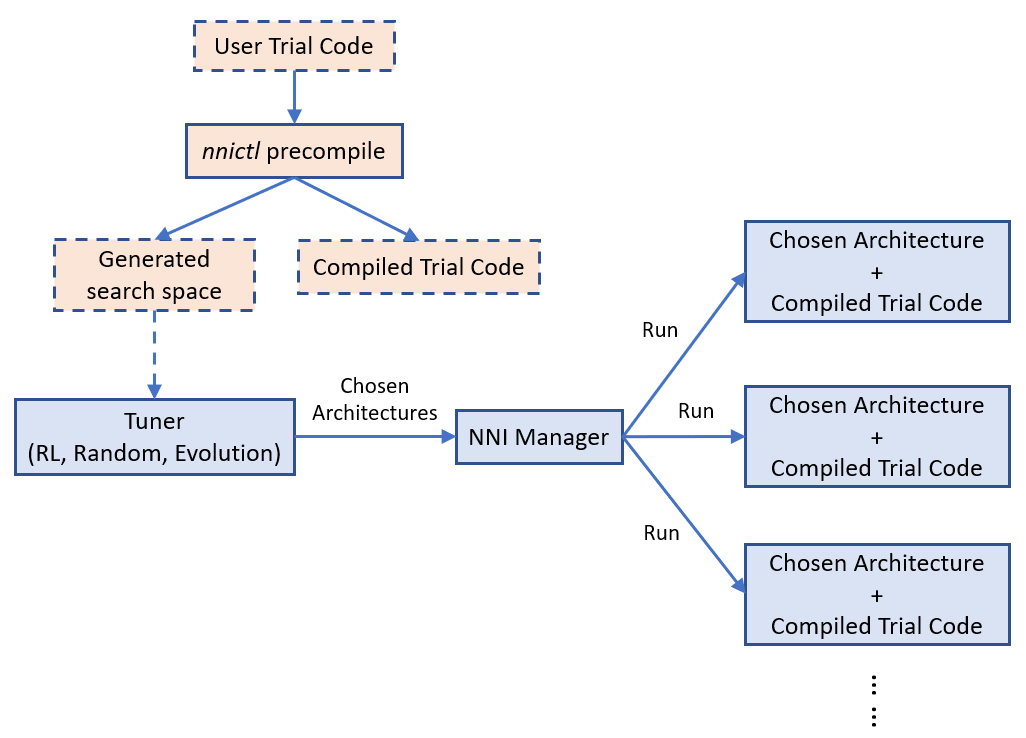

+![](../img/nas_on_nni.png)
+
+The above figure shows how the trial code runs on NNI. `nnictl` processes user trial code to generate a search space file and compiled trial code. The former is fed to tuner, and the latter is used to run trilas.
+
+[__TODO__] Simple example of NAS on NNI.
+
+### Weight sharing
+

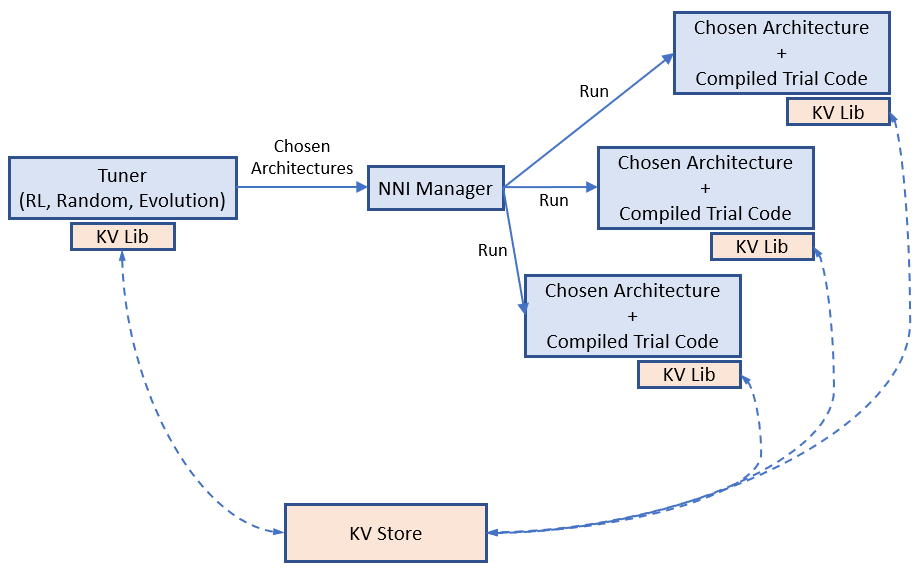

+Sharing weights among chosen architectures (i.e., trials) could speedup model search. For example, properly inheriting weights of completed trials could speedup the converge of new trials. One-Shot NAS (e.g., ENAS, Darts) is more aggressive, the training of different architectures (i.e., subgraphs) shares the same copy of the weights in full graph.
+
+![](../img/nas_weight_share.png)
+
+We believe weight sharing (transferring) plays a key role on speeding up NAS, while finding efficient ways of sharing weights is still a hot research topic. We provide a key-value store for users to store and load weights. Tuners and Trials use a provided KV client lib to access the storage.
+
+[__TODO__] Example of weight sharing on NNI.
+
+### Support of One-Shot NAS
+
+One-Shot NAS is a popular approach to find good neural architecture within a limited time and resource budget. Basically, it builds a full graph based on the search space, and uses gradient descent to at last find the best subgraph. There are different training approaches, such as [training subgraphs (per mini-batch)][1], [training full graph through dropout][6], [training with architecture weights (regularization)][3]. Here we focus on the first approach, i.e., training subgraphs (ENAS).
+
+With the same annotated trial code, users could choose One-Shot NAS as execution mode on NNI. Specifically, the compiled trial code builds the full graph (rather than subgraph demonstrated above), it receives a chosen architecture and training this architecture on the full graph for a mini-batch, then request another chosen architecture. It is supported by [NNI multi-phase](./multiPhase.md). We support this training approach because training a subgraph is very fast, building the graph every time training a subgraph induces too much overhead.
+

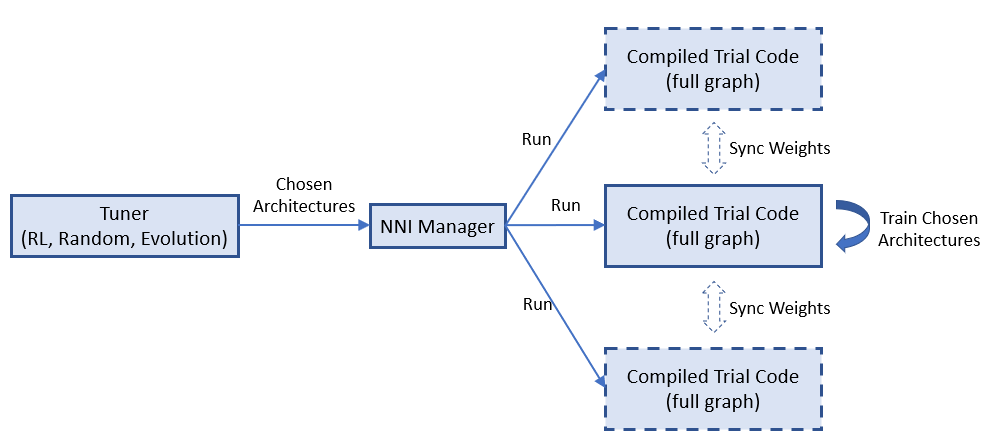

+![](../img/one-shot_training.png)
+
+The design of One-Shot NAS on NNI is shown in the above figure. One-Shot NAS usually only has one trial job with full graph. NNI supports running multiple such trial jobs each of which runs independently. As One-Shot NAS is not stable, running multiple instances helps find better model. Moreover, trial jobs are also able to synchronize weights during running (i.e., there is only one copy of weights, like asynchroneous parameter-server mode). This may speedup converge.
+
+[__TODO__] Example of One-Shot NAS on NNI.
+
+
+## General tuning algorithms for NAS
+
+Like hyperparameter tuning, a relatively general algorithm for NAS is required. The general programming interface makes this task easier to some extent. We have a RL-based tuner algorithm for NAS from our contributors. We expect efforts from community to design and implement better NAS algorithms.
+
+[__TODO__] More tuning algorithms for NAS.
+
+## Export best neural architecture and code
+
+[__TODO__] After the NNI experiment is done, users could run `nnictl experiment export --code` to export the trial code with the best neural architecture.
+
+## Conclusion and Future work
+
+There could be different NAS algorithms and execution modes, but they could be supported with the same programming interface as demonstrated above.
+
+There are many interesting research topics in this area, both system and machine learning.
+
+
+[1]: https://arxiv.org/abs/1802.03268
+[2]: https://arxiv.org/abs/1707.07012
+[3]: https://arxiv.org/abs/1806.09055
+[4]: https://arxiv.org/abs/1806.10282
+[5]: https://arxiv.org/abs/1703.01041
+[6]: http://proceedings.mlr.press/v80/bender18a/bender18a.pdf

docs/en_US/Installation.md

@@ -15,7 +15,7 @@ Currently we support installation on Linux, Mac and Windows(local, remote and pa

   Prerequisite: `python >=3.5`, `git`, `wget`
   ```bash
-  git clone -b v0.7 https://github.com/Microsoft/nni.git
+  git clone -b v0.8 https://github.com/Microsoft/nni.git
   cd nni
   ./install.sh
   ```
@@ -48,9 +48,9 @@ Currently we support installation on Linux, Mac and Windows(local, remote and pa
   you can install NNI as administrator or current user as follows:

   ```bash
-  git clone -b v0.7 https://github.com/Microsoft/nni.git
+  git clone -b v0.8 https://github.com/Microsoft/nni.git
   cd nni
-  powershell ./install.ps1
+  powershell .\install.ps1
   ```

 ## **System requirements**

docs/en_US/MnistExamples.md

@@ -51,7 +51,7 @@ This example is to show how to use hyperband to tune the model. There is one mor

 This example is to show that NNI also support nested search space. The search space file is an example of how to define nested search space.

-`code directory: examples/trials/mnist-cascading-search-space/`
+`code directory: examples/trials/mnist-nested-search-space/`

 <a name="mnist-kubeflow-tf"></a>
 **distributed MNIST (tensorflow) using kubeflow**

docs/en_US/NniOnWindows.md

@@ -4,31 +4,7 @@ Currently we support local, remote and pai mode on Windows. Windows 10.1809 is w

 ## **Installation on Windows**

-  **Anaconda or Miniconda python(64-bit) is highly recommended.**
-
-When you use PowerShell to run script for the first time, you need **run PowerShell as administrator** with this command:
-
-```bash
-Set-ExecutionPolicy -ExecutionPolicy Unrestricted
-```
-
-* __Install NNI through pip__
-
-  Prerequisite: `python(64-bit) >= 3.5`
-
-  ```bash
-  python -m pip install --upgrade nni
-  ```
-
-* __Install NNI through source code__
-
-  Prerequisite: `python >=3.5`, `git`, `PowerShell`
-
-  ```bash
-  git clone -b v0.8 https://github.com/Microsoft/nni.git
-  cd nni
-  powershell -file install.ps1
-  ```
+  please refer to [Installation](Installation.md#installation-on-windows) for more details.

 When these things are done, use the **config_windows.yml** configuration to start an experiment for validation.


docs/en_US/Nnictl.md

@@ -21,7 +21,6 @@ nnictl support commands:
 * [nnictl tensorboard](#tensorboard)
 * [nnictl package](#package)
 * [nnictl --version](#version)
-* [nnictl hdfs](#hdfs)

 ### Manage an experiment

@@ -125,21 +124,21 @@ Debug mode will disable version check function in Trialkeeper.
       nnictl stop
       ```

-  1. If there is an id specified, and the id matches the running experiment, nnictl will stop the corresponding experiment, or will print error message.
+  2. If there is an id specified, and the id matches the running experiment, nnictl will stop the corresponding experiment, or will print error message.

       ```bash
       nnictl stop [experiment_id]
       ```

-  1. Users could use 'nnictl stop all' to stop all experiments.
+  3. Users could use 'nnictl stop all' to stop all experiments.

       ```bash
       nnictl stop all
       ```

-  1. If the id ends with *, nnictl will stop all experiments whose ids matchs the regular.
-  1. If the id does not exist but match the prefix of an experiment id, nnictl will stop the matched experiment.
-  1. If the id does not exist but match multiple prefix of the experiment ids, nnictl will give id information.
+  4. If the id ends with *, nnictl will stop all experiments whose ids matchs the regular.
+  5. If the id does not exist but match the prefix of an experiment id, nnictl will stop the matched experiment.
+  6. If the id does not exist but match multiple prefix of the experiment ids, nnictl will give id information.

 <a name="update"></a>

@@ -651,37 +650,4 @@ Debug mode will disable version check function in Trialkeeper.
     ```bash
     nnictl --version
     ```
-
-<a name="hdfs"></a>
+
\ No newline at end of file
-
-![](https://placehold.it/15/1589F0/000000?text=+) `Manage hdfs`
-
-* __nnictl hdfs set__
-  * Description
-
-    set the host and userName of hdfs
-
-  * Usage
-
-    ```bash
-    nnictl hdfs set [OPTIONS]
-    ```
-
-  * Options
-
-  |Name, shorthand|Required|Default|Description|
-  |------|------|------ |------|
-  |--host|  True| |The host ip of hdfs, the format is xx.xx.xx.xx, for example, 10.10.10.10|
-  |--user_name|  True| |The userName of hdfs|
-
-* __nnictl hdfs clean__
-
-  * Description
-
-    Clean up the code files that nni automatically copied to hdfs. This command deletes all such files under the user_name.
-
-  * Usage
-
-    ```bash
-    nnictl hdfs clean
-    ```

docs/en_US/QuickStart.md

@@ -154,7 +154,7 @@ Run the **config_windows.yml** file from your command line to start MNIST experi
 **Note**, if you're using NNI on Windows, it needs to change `python3` to `python` in the config.yml file, or use the config_windows.yml file to start the experiment.

 ```bash
-    nnictl create --config nni/examples/trials/mnist/config_windows.yml
+    nnictl create --config nni\examples\trials\mnist\config_windows.yml
 ```

 Note, **nnictl** is a command line tool, which can be used to control experiments, such as start/stop/resume an experiment, start/stop NNIBoard, etc. Click [here](Nnictl.md) for more usage of `nnictl`

docs/en_US/SearchSpaceSpec.md

@@ -29,16 +29,16 @@ All types of sampling strategies and their parameter are listed here:

   * Which means the variable's value is one of the options. Here 'options' should be a list. Each element of options is a number of string. It could also be a nested sub-search-space, this sub-search-space takes effect only when the corresponding element is chosen. The variables in this sub-search-space could be seen as conditional variables.

-  * An simple [example](../../examples/trials/mnist-cascading-search-space/search_space.json) of [nested] search space definition. If an element in the options list is a dict, it is a sub-search-space, and for our built-in tuners you have to add a key '_name' in this dict, which helps you to identify which element is chosen. Accordingly, here is a [sample](../../examples/trials/mnist-cascading-search-space/sample.json) which users can get from nni with nested search space definition. Tuners which support nested search space is as follows:
+  * An simple [example](https://github.com/microsoft/nni/tree/master/examples/trials/mnist-nested-search-space/search_space.json) of [nested] search space definition. If an element in the options list is a dict, it is a sub-search-space, and for our built-in tuners you have to add a key '_name' in this dict, which helps you to identify which element is chosen. Accordingly, here is a [sample](https://github.com/microsoft/nni/tree/master/examples/trials/mnist-nested-search-space/sample.json) which users can get from nni with nested search space definition. Tuners which support nested search space is as follows:

     - Random Search
     - TPE
     - Anneal
     - Evolution

-* {"_type":"randint","_value":[upper]}
+* {"_type":"randint","_value":[lower, upper]}

-  * Which means the variable value is a random integer in the range [0, upper). The semantics of this distribution is that there is no more correlation in the loss function between nearby integer values, as compared with more distant integer values. This is an appropriate distribution for describing random seeds for example. If the loss function is probably more correlated for nearby integer values, then you should probably use one of the "quantized" continuous distributions, such as either quniform, qloguniform, qnormal or qlognormal. Note that if you want to change lower bound, you can use `quniform` for now.
+  * For now, we implment the "randint" distribution with "quniform", which means the variable value is a value like round(uniform(lower, upper)). The type of chosen value is float. If you want to use integer value, please convert it explicitly.

 * {"_type":"uniform","_value":[low, high]}
   * Which means the variable value is a value uniformly between low and high.
@@ -86,9 +86,19 @@ All types of sampling strategies and their parameter are listed here:
 | Hyperband Advisor | ✓ | ✓ | ✓ | ✓  | ✓    | ✓     | ✓ | ✓ | ✓   | ✓    |
 | Metis Tuner   | ✓ | ✓ | ✓ | ✓  |     |      |  |  |    |     |

-Note that In Grid Search Tuner, for users' convenience, the definition of `quniform` and `qloguniform` change, where q here specifies the number of values that will be sampled. Details about them are listed as follows

-* Type 'quniform' will receive three values [low, high, q], where [low, high] specifies a range and 'q' specifies the number of values that will be sampled evenly. Note that q should be at least 2. It will be sampled in a way that the first sampled value is 'low', and each of the following values is (high-low)/q larger that the value in front of it.
-* Type 'qloguniform' behaves like 'quniform' except that it will first change the range to [log(low), log(high)] and sample and then change the sampled value back.
+Known Limitations:

-Note that Metis Tuner only support numerical `choice` now
+* Note that In Grid Search Tuner, for users' convenience, the definition of `quniform` and `qloguniform` change, where q here specifies the number of values that will be sampled. Details about them are listed as follows
+
+    * Type 'quniform' will receive three values [low, high, q], where [low, high] specifies a range and 'q' specifies the number of values that will be sampled evenly. Note that q should be at least 2. It will be sampled in a way that the first sampled value is 'low', and each of the following values is (high-low)/q larger that the value in front of it.
+
+    * Type 'qloguniform' behaves like 'quniform' except that it will first change the range to [log(low), log(high)] and sample and then change the sampled value back.
+
+* Note that Metis Tuner only supports numerical `choice` now
+
+* Note that for nested search space:
+
+    * Only Random Search/TPE/Anneal/Evolution tuner supports nested search space
+
+    * We do not support nested search space "Hyper Parameter" parallel graph now, the enhancement is being considered in #1110(https://github.com/microsoft/nni/issues/1110), any suggestions or discussions or contributions are warmly welcomed

docs/zh_CN/FAQ.md

@@ -45,9 +45,9 @@ nnictl 在执行时，使用 tmp 目录作为临时目录来复制 codeDir 下
 * 如果使用服务器 IP 后还是无法看到 Web 界面，可检查此服务器上是否有防火墙或需要代理。 或使用此运行 NNI Experiment 的服务器上的浏览器来查看 Web 界面。
 * 另一个可能的原因是 Experiment 启动失败了，NNI 无法读取 Experiment 的信息。 可在如下目录中查看 NNIManager 的日志： ~/nni/experiment/[your_experiment_id] /log/nnimanager.log

-### Windows 本机模式
+### NNI 在 Windows 上的问题

-参考 [NNI Windows 本机模式](WindowsLocalMode.md)
+参考 [Windows 上使用 NNI](NniOnWindows.md)。

 ### 帮助改进


docs/zh_CN/Installation.md

 # 安装 NNI

-当前支持在 Linux，Mac 和 Windows（本机模式）下安装。
+当前支持在 Linux，Mac 和 Windows（本机，远程和 OpenPAI 模式）下安装。

 ## **在 Linux 和 Mac 下安装**
