Add documentation for NNI PAI mode experiment (#141)

* Add documentation for NNI PAI mode

* Fix typo based on PR comments

* Exit with subprocess return code of trial keeper

* Remove additional exit code

* Fix typo based on PR comments

README.md

@@ -35,7 +35,7 @@ pip Installation Prerequisites
 * git, wget

 ```
-python3 -m pip install -v --user git+https://github.com/Microsoft/nni.git@v0.1
+python3 -m pip install -v --user git+https://github.com/Microsoft/nni.git@v0.2
 source ~/.bashrc
 ```


docs/GetStarted.md

@@ -14,12 +14,12 @@

 * __Install NNI through pip__

-      python3 -m pip install -v --user git+https://github.com/Microsoft/nni.git@v0.1
+      python3 -m pip install -v --user git+https://github.com/Microsoft/nni.git@v0.2
       source ~/.bashrc

 * __Install NNI through source code__

-      git clone -b v0.1 https://github.com/Microsoft/nni.git
+      git clone -b v0.2 https://github.com/Microsoft/nni.git
       cd nni
       chmod +x install.sh
       source install.sh

docs/PAIMode.md

+**Run an Experiment on OpenPAI**
+===
+NNI supports running an experiment on [OpenPAI](https://github.com/Microsoft/pai) (aka pai), called pai mode. Before starting to use NNI pai mode, you should have an account to access an [OpenPAI](https://github.com/Microsoft/pai) cluster. See [here](https://github.com/Microsoft/pai#how-to-deploy) if you don't have any OpenPAI account and want to deploy an OpenPAI cluster. In pai mode, your trial program will run in pai's container created by Docker.
+
+## Setup environment
+Install NNI, follow the install guide [here](GetStarted.md).
+
+## Run an experiment
+Use `examples/trials/mnist-annotation` as an example. The nni config yaml file's content is like:
+```
+authorName: your_name
+experimentName: auto_mnist
+# how many trials could be concurrently running
+trialConcurrency: 2
+# maximum experiment running duration
+maxExecDuration: 3h
+# empty means never stop
+maxTrialNum: 100
+# choice: local, remote, pai
+trainingServicePlatform: pai
+# choice: true, false
+useAnnotation: true
+tuner:
+  builtinTunerName: TPE
+  classArgs:
+    optimize_mode: maximize
+trial:
+  command: python3 mnist.py
+  codeDir: ~/nni/examples/trials/mnist-annotation
+  gpuNum: 0
+  cpuNum: 1
+  memoryMB: 8196
+  image: openpai/pai.example.tensorflow
+  dataDir: hdfs://10.1.1.1:9000/nni
+  outputDir: hdfs://10.1.1.1:9000/nni
+# Configuration to access OpenPAI Cluster
+paiConfig:
+  userName: your_pai_nni_user
+  passWord: your_pai_password
+  host: 10.1.1.1
+```
+Note: You should set `trainingServicePlatform: pai` in nni config yaml file if you want to start experiment in pai mode.
+
+Compared with LocalMode and [RemoteMachineMode](RemoteMachineMode.md), trial configuration in pai mode have five additional keys:
+* cpuNum
+    * Required key. Should be positive number based on your trial program's CPU  requirement
+* memoryMB
+    * Required key. Should be positive number based on your trial program's memory requirement
+* image
+    * Required key. In pai mode, your trial program will be scheduled by OpenPAI to run in [Docker container](https://www.docker.com/). This key is used to specify the Docker image used to create the container in which your traill will run.
+* dataDir
+    * Optional key. It specifies the HDFS data direcotry for trial to download data. The format should be something like hdfs://{your HDFS host}:9000/{your data directory}
+* outputDir
+    * Optional key. It specifies the HDFS output direcotry for trial. Once the trial is completed (either succeed or fail), trial's stdout, stderr will be copied to this directory by NNI sdk automatically. The format should be something like hdfs://{your HDFS host}:9000/{your output directory}
+
+Once complete to fill nni experiment config file and save (for example, save as exp_pai.yaml), then run the following command
+```
+nnictl create --config exp_pai.yaml
+```
+to start the experiment in pai mode. NNI will create OpanPAI job for each trial, and the job name format is something like `nni_exp_{experiment_id}_trial_{trial_id}`.

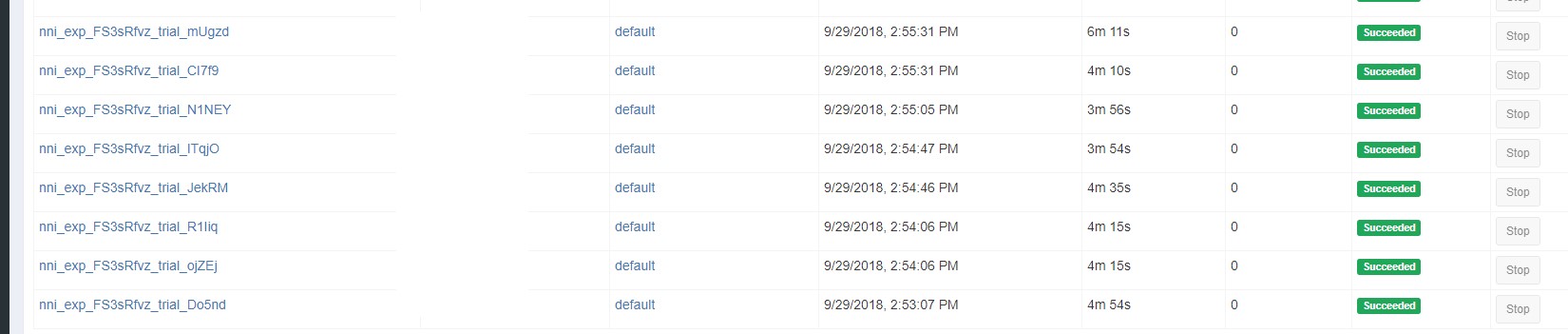

+You can see the pai jobs created by NNI in your OpenPAI cluster's web portal, like:
+![](./nni_pai_joblist.jpg)
+
+Notice: In pai mode, NNIManager will start a rest server and listen on `51189` port, to receive metrics from trial job running in PAI container. So you should `enable 51189` TCP port in your firewall rule to allow incoming traffic.
+
+Once a trial job is completed, you can goto NNI WebUI's overview page (like http://localhost:8080/oview) to check trial's information.
+

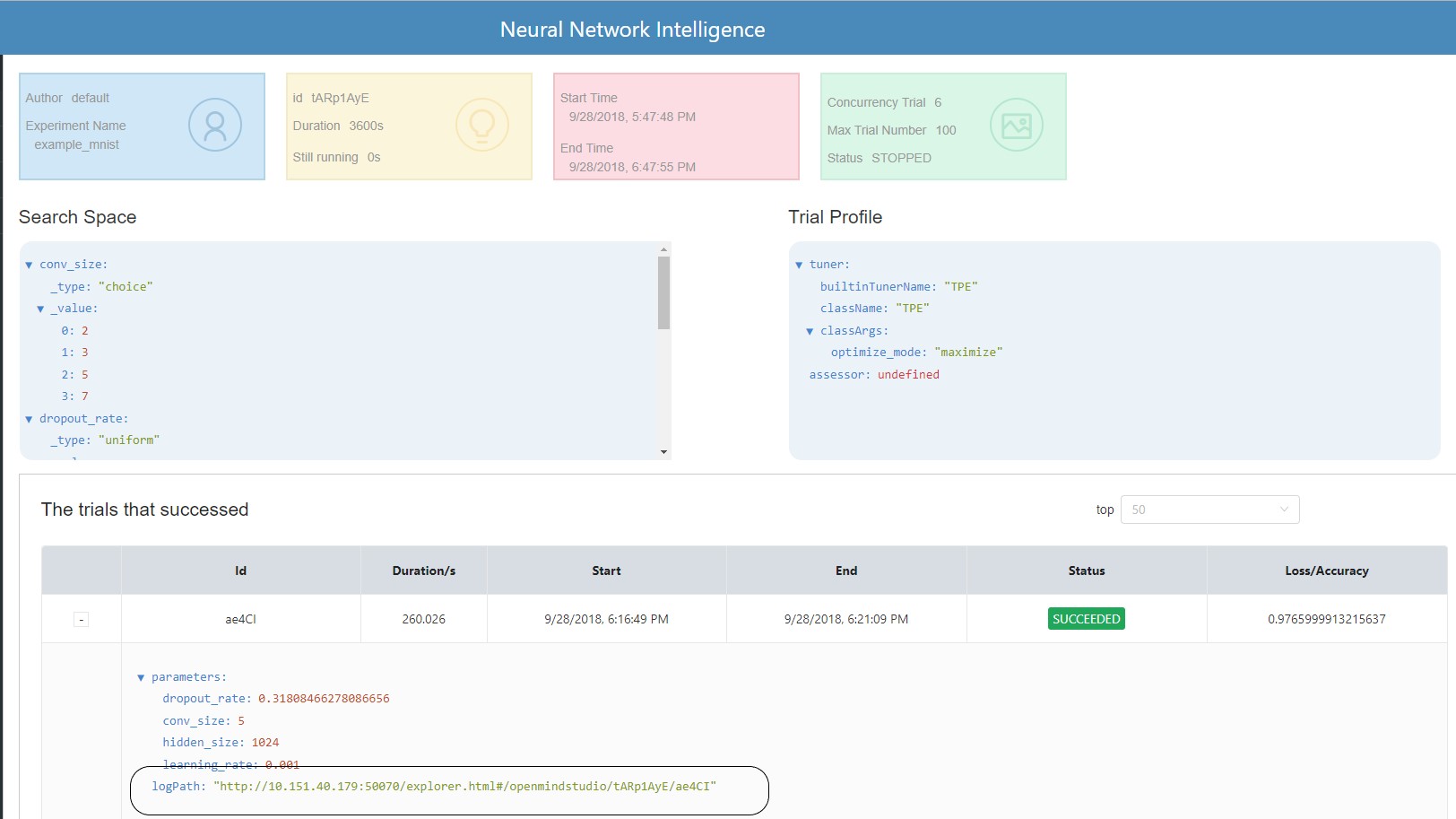

+Expand a trial information in trial list view, click the logPath link like:
+![](./nni_webui_joblist.jpg)
+

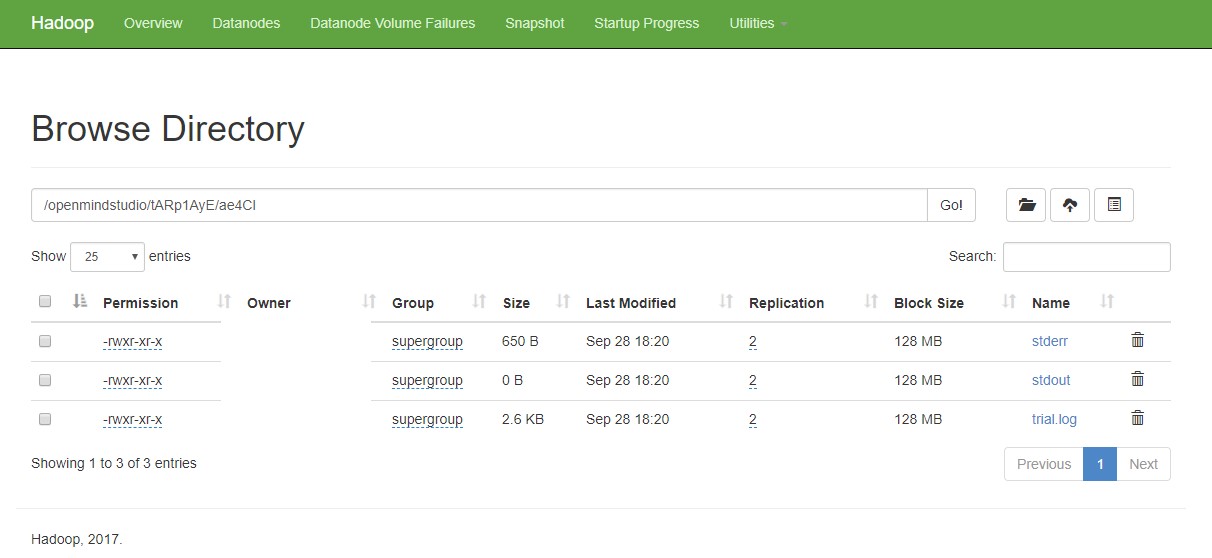

+And you will be redirected to HDFS web portal to browse the output files of that trial in HDFS:
+![](./nni_trial_hdfs_output.jpg)
+
+You can see there're three fils in output folder: stderr, stdout, and trial.log
+
+If you also want to save trial's other output into HDFS, like model files, you can use environment variable `NNI_OUTPUT_DIR` in your trial code to save your own output files, and NNI SDK will copy all the files in `NNI_OUTPUT_DIR` from trial's container to HDFS.
+
+Any problems when using NNI in pai mode, plesae create issues on [NNI github repo](https://github.com/Microsoft/nni), or send mail to nni@microsoft.com
+
