[Compression V2] Movement pruning (#4308)

docs/en_US/Compression/v2_pruning_algo.rst

@@ -19,6 +19,7 @@ and how to schedule sparsity in each iteration are implemented as iterative prun
 * `Activation Mean Rank Pruner <#activation-mean-rank-pruner>`__
 * `Taylor FO Weight Pruner <#taylor-fo-weight-pruner>`__
 * `ADMM Pruner <#admm-pruner>`__
+* `Movement Pruner <#movement-pruner>`__

 **Iterative Pruner**

@@ -292,6 +293,58 @@ User configuration for ADMM Pruner

 .. autoclass:: nni.algorithms.compression.v2.pytorch.pruning.ADMMPruner

+Movement Pruner
+---------------
+
+Movement pruner is an implementation of movement pruning.
+This is a "fine-pruning" algorithm, which means the masks may change during each fine-tuning step.
+Each weight element will be scored by the opposite of the sum of the product of weight and its gradient during each step.
+This means the weight elements moving towards zero will accumulate negative scores, the weight elements moving away from zero will accumulate positive scores.
+The weight elements with low scores will be masked during inference.
+

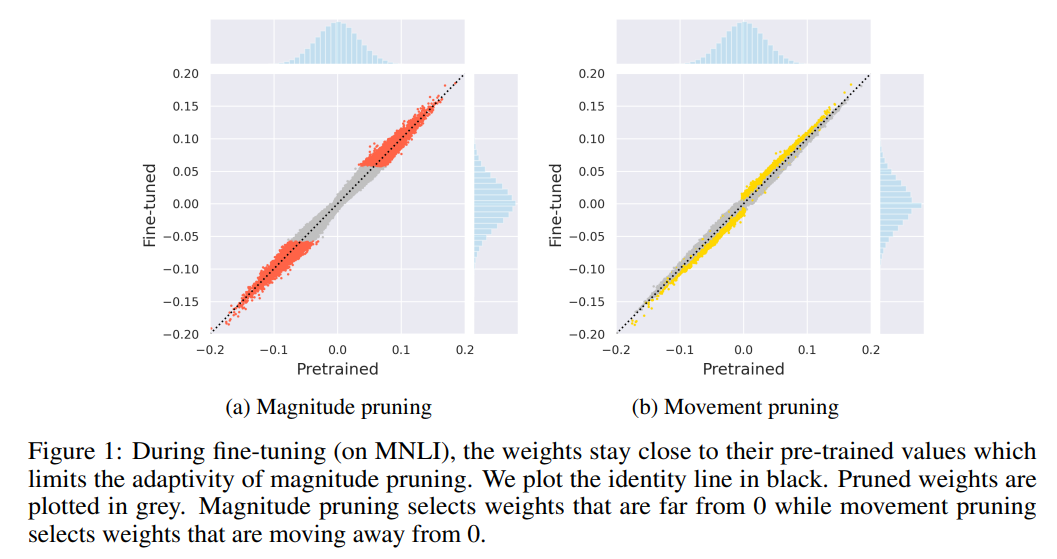

+The following figure from the paper shows the weight pruning by movement pruning.
+
+.. image:: ../../img/movement_pruning.png
+   :target: ../../img/movement_pruning.png
+   :alt:
+
+For more details, please refer to `Movement Pruning: Adaptive Sparsity by Fine-Tuning <https://arxiv.org/abs/2005.07683>`__.
+
+Usage
+^^^^^^
+
+.. code-block:: python
+
+   from nni.algorithms.compression.v2.pytorch.pruning import MovementPruner
+   config_list = [{'op_types': ['Linear'], 'op_partial_names': ['bert.encoder'], 'sparsity': 0.9}]
+   pruner = MovementPruner(model, config_list, p_trainer, optimizer, criterion, 10, 3000, 27000)
+   masked_model, masks = pruner.compress()
+
+User configuration for Movement Pruner
+^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
+
+**PyTorch**
+
+.. autoclass:: nni.algorithms.compression.v2.pytorch.pruning.MovementPruner
+
+Reproduced Experiment
+^^^^^^^^^^^^^^^^^^^^^
+
+.. list-table::
+   :header-rows: 1
+   :widths: auto
+
+   * - Model
+     - Dataset
+     - Remaining Weights
+     - MaP acc.(paper/ours)
+     - MvP acc.(paper/ours)
+   * - Bert base
+     - MNLI - Dev
+     - 10%
+     - 77.8% / 73.6%
+     - 79.3% / 78.8%
+
 Linear Pruner
 -------------


examples/model_compress/pruning/v2/movement_pruning_glue.py

+import functools
+from tqdm import tqdm
+
+import torch
+from torch.optim import Adam
+from torch.utils.data import DataLoader
+
+from datasets import load_metric, load_dataset
+from transformers import (
+    BertForSequenceClassification,
+    BertTokenizerFast,
+    DataCollatorWithPadding,
+    set_seed
+)
+
+from nni.algorithms.compression.v2.pytorch.pruning import MovementPruner
+
+
+task_to_keys = {
+    "cola": ("sentence", None),
+    "mnli": ("premise", "hypothesis"),
+    "mrpc": ("sentence1", "sentence2"),
+    "qnli": ("question", "sentence"),
+    "qqp": ("question1", "question2"),
+    "rte": ("sentence1", "sentence2"),
+    "sst2": ("sentence", None),
+    "stsb": ("sentence1", "sentence2"),
+    "wnli": ("sentence1", "sentence2"),
+}
+
+device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
+
+gradient_accumulation_steps = 16
+
+# a fake criterion because huggingface output already has loss
+def criterion(input, target):
+    return input.loss
+
+def trainer(model, optimizer, criterion, train_dataloader):
+    model.train()
+    counter = 0
+    for batch in tqdm(train_dataloader):
+        counter += 1
+        batch.to(device)
+        optimizer.zero_grad()
+        outputs = model(**batch)
+        # pruner may wrap the criterion, for example, loss = origin_loss + norm(weight), so call criterion to get loss here
+        loss = criterion(outputs, None)
+        loss = loss / gradient_accumulation_steps
+        loss.backward()
+        if counter % gradient_accumulation_steps == 0 or counter == len(train_dataloader):
+            optimizer.step()
+        if counter % 16000 == 0:
+            print('Step {}: {}'.format(counter // gradient_accumulation_steps, evaluator(model, metric, is_regression, validate_dataloader)))
+
+def evaluator(model, metric, is_regression, eval_dataloader):
+    model.eval()
+    for batch in tqdm(eval_dataloader):
+        batch.to(device)
+        outputs = model(**batch)
+        predictions = outputs.logits.argmax(dim=-1) if not is_regression else outputs.logits.squeeze()
+        metric.add_batch(
+            predictions=predictions,
+            references=batch["labels"],
+        )
+    return metric.compute()
+
+if __name__ == '__main__':
+    task_name = 'mnli'
+    is_regression = False
+    num_labels = 1 if is_regression else (3 if task_name == 'mnli' else 2)
+    train_batch_size = 8
+    eval_batch_size = 8
+
+    set_seed(1024)
+
+    tokenizer = BertTokenizerFast.from_pretrained('bert-base-cased')
+    sentence1_key, sentence2_key = task_to_keys[task_name]
+
+    # used to preprocess the raw data
+    def preprocess_function(examples):
+        # Tokenize the texts
+        args = (
+            (examples[sentence1_key],) if sentence2_key is None else (examples[sentence1_key], examples[sentence2_key])
+        )
+        result = tokenizer(*args, padding=False, max_length=128, truncation=True)
+
+        if "label" in examples:
+            # In all cases, rename the column to labels because the model will expect that.
+            result["labels"] = examples["label"]
+        return result
+
+    raw_datasets = load_dataset('glue', task_name, cache_dir='./data')
+    processed_datasets = raw_datasets.map(preprocess_function, batched=True, remove_columns=raw_datasets["train"].column_names)
+
+    train_dataset = processed_datasets['train']
+    validate_dataset = processed_datasets['validation_matched' if task_name == "mnli" else 'validation']
+
+    data_collator = DataCollatorWithPadding(tokenizer)
+    train_dataloader = DataLoader(train_dataset, shuffle=True, collate_fn=data_collator, batch_size=train_batch_size)
+    validate_dataloader = DataLoader(validate_dataset, collate_fn=data_collator, batch_size=eval_batch_size)
+
+    metric = load_metric("glue", task_name)
+
+    model = BertForSequenceClassification.from_pretrained('bert-base-cased', num_labels=num_labels).to(device)
+
+    print('Initial: {}'.format(evaluator(model, metric, is_regression, validate_dataloader)))
+
+    config_list = [{'op_types': ['Linear'], 'op_partial_names': ['bert.encoder'], 'sparsity': 0.9}]
+    p_trainer = functools.partial(trainer, train_dataloader=train_dataloader)
+    optimizer = Adam(model.parameters(), lr=2e-5)
+    pruner = MovementPruner(model, config_list, p_trainer, optimizer, criterion, training_epochs=10,
+                            warm_up_step=3000, cool_down_beginning_step=27000)
+
+    _, masks = pruner.compress()
+    pruner.show_pruned_weights()
+
+    print('Final: {}'.format(evaluator(model, metric, is_regression, validate_dataloader)))
+
+    optimizer = Adam(model.parameters(), lr=2e-5)
+    trainer(model, optimizer, criterion, train_dataloader)
+    print('After 1 epoch finetuning: {}'.format(evaluator(model, metric, is_regression, validate_dataloader)))

nni/algorithms/compression/v2/pytorch/base/pruner.py

@@ -18,7 +18,7 @@ __all__ = ['Pruner']
 class PrunerModuleWrapper(Module):
     def __init__(self, module: Module, module_name: str, config: Dict, pruner: Compressor):
         """
-        Wrap an module to enable data parallel, forward method customization and buffer registeration.
+        Wrap a module to enable data parallel, forward method customization and buffer registeration.

         Parameters
         ----------

nni/algorithms/compression/v2/pytorch/pruning/__init__.py

 from .basic_pruner import *
 from .basic_scheduler import PruningScheduler
 from .iterative_pruner import *
+from .movement_pruner import MovementPruner
 from .auto_compress_pruner import AutoCompressPruner

nni/algorithms/compression/v2/pytorch/pruning/movement_pruner.py

+# Copyright (c) Microsoft Corporation.
+# Licensed under the MIT license.
+
+from copy import deepcopy
+import logging
+from typing import Dict, List, Tuple, Callable
+
+import torch
+from torch import autograd, Tensor
+from torch.nn import Module, Parameter
+from torch.optim import Optimizer, Adam
+
+from nni.algorithms.compression.v2.pytorch.base.compressor import Compressor, _setattr, LayerInfo
+from nni.algorithms.compression.v2.pytorch.pruning.basic_pruner import BasicPruner, NORMAL_SCHEMA, EXCLUDE_SCHEMA, INTERNAL_SCHEMA
+from nni.algorithms.compression.v2.pytorch.utils import CompressorSchema
+
+from .tools.base import TrainerBasedDataCollector
+
+from .tools import (
+    StraightMetricsCalculator,
+    NormalSparsityAllocator
+)
+
+_logger = logging.getLogger(__name__)
+
+
+class PrunerScoredModuleWrapper(Module):
+    """
+    Wrap a module to enable data parallel, forward method customization and buffer registeration.
+    Different from `PrunerModuleWrapper`, `PrunerScoredModuleWrapper` will record the gradient.
+
+    Parameters
+    ----------
+    module
+        The module user wants to compress.
+    config
+        The configurations that users specify for compression.
+    module_name
+        The name of the module to compress, wrapper module shares same name.
+    pruner
+        The pruner used to calculate mask.
+    """
+    def __init__(self, module: Module, module_name: str, config: Dict, pruner: Compressor):
+        super().__init__()
+        # origin layer information
+        self.module = module
+        self.name = module_name
+        # config and pruner
+        self.config = config
+        self.pruner = pruner
+
+        self.weight = Parameter(torch.empty(self.module.weight.size()))
+        self.weight.data = self.module.weight.data
+
+        self.weight_score = Parameter(torch.empty(self.weight.size()))
+        torch.nn.init.constant_(self.weight_score, val=0.0)
+
+        # register buffer for mask
+        self.register_buffer("weight_mask", torch.ones(self.module.weight.shape))
+        if hasattr(self.module, 'bias') and self.module.bias is not None:
+            self.register_buffer("bias_mask", torch.ones(self.module.bias.shape))
+            self.bias = Parameter(torch.empty(self.module.bias.size()))
+            self.bias.data = self.module.bias.data
+        else:
+            self.register_buffer("bias_mask", None)
+
+    def _weight2buffer(self):
+        """
+        When using this wrapper to inference, call `_weight2buffer()` to make original weight untrainable.
+        The best place to call this function is in `Pruner._wrap_model()`.
+        """
+        delattr(self.module, 'weight')
+        self.module.register_buffer('weight', self.weight.data)
+        if hasattr(self.module, 'bias') and self.module.bias is not None:
+            delattr(self.module, 'bias')
+            self.module.register_buffer('bias', self.bias.data)
+
+    def _weight2parameter(self):
+        """
+        When don't need to record score or need to export the model, call `_weight2parameter()` to make the original weight trainable.
+        The best place to call this function is in `Pruner._unwrap_model()`.
+        """
+        delattr(self.module, 'weight')
+        self.module.weight = Parameter(torch.empty(self.weight.size()))
+        self.module.weight.data = torch.mul(self.weight, self.weight_mask)
+        if hasattr(self.module, 'bias') and self.module.bias is not None:
+            delattr(self.module, 'bias')
+            self.module.bias = Parameter(torch.empty(self.bias.size()))
+            self.module.bias.data = torch.mul(self.bias, self.bias_mask)
+
+    def forward(self, *inputs):
+        # apply mask to weight, bias
+        self.module.weight = torch.mul(self.weight, _StraightThrough.apply(self.weight_score, self.weight_mask))
+        if hasattr(self.module, 'bias') and self.module.bias is not None:
+            self.module.bias = torch.mul(self.bias, self.bias_mask)
+        return self.module(*inputs)
+
+
+class _StraightThrough(autograd.Function):
+    """
+    Straight through the gradient to the score, then the score = initial_score + sum(-lr * grad(weight) * weight).
+    """
+    @staticmethod
+    def forward(self, score, masks):
+        return masks
+
+    @staticmethod
+    def backward(ctx, gradOutput):
+        return gradOutput, None
+
+
+class WeightScoreTrainerBasedDataCollector(TrainerBasedDataCollector):
+    """
+    Collect all weight_score in wrappers as data used to calculate metrics.
+    """
+    def _reset_optimizer(self):
+        """
+        Weed out the weight_score from the parameters passed to optimizer, guaranteed to load the optimizer state dict.
+        """
+        if self._origin_optimizer_cls is not None:
+            optimizer_grouped_parameters = [{
+                "params": [p for n, p in self.compressor.bound_model.named_parameters() if "weight_score" not in n and p.requires_grad]
+            }]
+            if self._origin_optimizer_cls.__name__ == 'SGD':
+                self.optimizer = self._origin_optimizer_cls(optimizer_grouped_parameters, lr=0.001)
+            else:
+                self.optimizer = self._origin_optimizer_cls(optimizer_grouped_parameters)
+            self.optimizer.load_state_dict(self._origin_optimizer_state_dict)
+        else:
+            self.optimizer = None
+
+    def collect(self) -> Dict[str, Tensor]:
+        for _ in range(self.training_epochs):
+            self.trainer(self.compressor.bound_model, self.optimizer, self.criterion)
+
+        data = {}
+        for _, wrapper in self.compressor.get_modules_wrapper().items():
+            data[wrapper.name] = wrapper.weight_score.data.clone().detach()
+        return data
+
+
+class MovementPruner(BasicPruner):
+    """
+    Parameters
+    ----------
+    model : torch.nn.Module
+        Model to be pruned.
+    config_list : List[Dict]
+        Supported keys:
+            - sparsity : This is to specify the sparsity for each layer in this config to be compressed.
+            - sparsity_per_layer : Equals to sparsity.
+            - op_types : Operation types to prune.
+            - op_names : Operation names to prune.
+            - exclude : Set True then the layers setting by op_types and op_names will be excluded from pruning.
+    trainer : Callable[[Module, Optimizer, Callable]
+        A callable function used to train model or just inference. Take model, optimizer, criterion as input.
+        The model will be trained or inferenced `training_epochs` epochs.
+
+        Example::
+
+            def trainer(model: Module, optimizer: Optimizer, criterion: Callable[[Tensor, Tensor], Tensor]):
+                training = model.training
+                model.train(mode=True)
+                device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
+                for batch_idx, (data, target) in enumerate(train_loader):
+                    data, target = data.to(device), target.to(device)
+                    optimizer.zero_grad()
+                    output = model(data)
+                    loss = criterion(output, target)
+                    loss.backward()
+                    # If you don't want to update the model, you can skip `optimizer.step()`, and set train mode False.
+                    optimizer.step()
+                model.train(mode=training)
+    optimizer : torch.optim.Optimizer
+        The optimizer instance used in trainer. Note that this optimizer might be patched during collect data,
+        so do not use this optimizer in other places.
+    criterion : Callable[[Tensor, Tensor], Tensor]
+        The criterion function used in trainer. Take model output and target value as input, and return the loss.
+    training_epochs : int
+        The total epoch number for training the model.
+        Make sure the total `optimizer.step()` in `training_epochs` is bigger than `cool_down_beginning_step`.
+    warm_up_step : int
+        The total `optimizer.step()` number before start pruning for warm up.
+        Make sure `warm_up_step` is smaller than `cool_down_beginning_step`.
+    cool_down_beginning_step: int
+        The number of steps at which sparsity stops growing, note that the sparsity stop growing doesn't mean masks not changed.
+        The sparsity after each `optimizer.step()` is:
+        total_sparsity * (1 - (1 - (current_step - warm_up_step) / (cool_down_beginning_step - warm_up_step)) ** 3).
+    """
+    def __init__(self, model: Module, config_list: List[Dict], trainer: Callable[[Module, Optimizer, Callable], None],
+                 optimizer: Optimizer, criterion: Callable[[Tensor, Tensor], Tensor], training_epochs: int, warm_up_step: int,
+                 cool_down_beginning_step: int):
+        self.trainer = trainer
+        self.optimizer = optimizer
+        self.criterion = criterion
+        self.training_epochs = training_epochs
+        self.warm_up_step = warm_up_step
+        self.cool_down_beginning_step = cool_down_beginning_step
+        assert self.warm_up_step < self.cool_down_beginning_step, '`warm_up_step` should smaller than `cool_down_beginning_step`'
+        super().__init__(model, config_list)
+
+    def _validate_config_before_canonical(self, model: Module, config_list: List[Dict]):
+        schema_list = [deepcopy(NORMAL_SCHEMA), deepcopy(EXCLUDE_SCHEMA), deepcopy(INTERNAL_SCHEMA)]
+        schema = CompressorSchema(schema_list, model, _logger)
+        schema.validate(config_list)
+
+    def cubic_schedule(self, current_step: int):
+        if self.warm_up_step < current_step <= self.cool_down_beginning_step:
+            wrapper_dict = self.get_modules_wrapper()
+            for config in self.config_list:
+                current_sparsity = config['total_sparsity'] * (1 - (1 - (current_step - self.warm_up_step) / (self.cool_down_beginning_step - self.warm_up_step)) ** 3)
+                for op_name in config['op_names']:
+                    wrapper_dict[op_name].config['total_sparsity'] = current_sparsity
+
+    def reset_tools(self):
+        if self.metrics_calculator is None:
+            self.metrics_calculator = StraightMetricsCalculator()
+        if self.sparsity_allocator is None:
+            self.sparsity_allocator = NormalSparsityAllocator(self, continuous_mask=False)
+
+        # use Adam to update the weight_score
+        params = [{"params": [p for n, p in self.bound_model.named_parameters() if "weight_score" in n and p.requires_grad]}]
+        optimizer = Adam(params, 1e-2)
+        self.step_counter = 0
+
+        # update the masks after each optimzier step
+        def _optimizer_patch():
+            optimizer.step()
+            optimizer.zero_grad()
+            self.step_counter += 1
+            if self.step_counter > self.warm_up_step:
+                self.cubic_schedule(self.step_counter)
+                data = {}
+                for _, wrapper in self.get_modules_wrapper().items():
+                    data[wrapper.name] = wrapper.weight_score.data
+                metrics = self.metrics_calculator.calculate_metrics(data)
+                masks = self.sparsity_allocator.generate_sparsity(metrics)
+                self.load_masks(masks)
+
+        if self.data_collector is None:
+            self.data_collector = WeightScoreTrainerBasedDataCollector(self, self.trainer, self.optimizer, self.criterion, self.training_epochs, opt_after_tasks=[_optimizer_patch])
+        else:
+            self.data_collector.reset()
+
+    def _wrap_model(self):
+        """
+        Wrap all modules that needed to be compressed.
+        Different from the parent function, call `wrapper._weight2buffer()` after replace the origin module to wrapper.
+        """
+        if not self.is_wrapped:
+            for _, wrapper in reversed(self.get_modules_wrapper().items()):
+                _setattr(self.bound_model, wrapper.name, wrapper)
+                wrapper._weight2buffer()
+            self.is_wrapped = True
+
+    def _unwrap_model(self):
+        """
+        Unwrap all modules that needed to be compressed.
+        Different from the parent function, call `wrapper._weight2parameter()` after replace the wrapper to origin module.
+        """
+        if self.is_wrapped:
+            for _, wrapper in self.get_modules_wrapper().items():
+                _setattr(self.bound_model, wrapper.name, wrapper.module)
+                wrapper._weight2parameter()
+            self.is_wrapped = False
+
+    def _wrap_modules(self, layer: LayerInfo, config: Dict):
+        """
+        Create a wrapper module to replace the original one.
+        Different from the parent function, use `PrunerScoredModuleWrapper` instead of `PrunerModuleWrapper`.
+
+        Parameters
+        ----------
+        layer
+            The layer to instrument the mask.
+        config
+            The configuration for generating the mask.
+        """
+        _logger.debug("Module detected to compress : %s.", layer.name)
+        wrapper = PrunerScoredModuleWrapper(layer.module, layer.name, config, self)
+        assert hasattr(layer.module, 'weight'), "module %s does not have 'weight' attribute" % layer.name
+        # move newly registered buffers to the same device of weight
+        wrapper.to(layer.module.weight.device)
+        return wrapper
+
+    def compress(self) -> Tuple[Module, Dict]:
+        # sparsity grow from 0
+        for _, wrapper in self.get_modules_wrapper().items():
+            wrapper.config['total_sparsity'] = 0
+        result = super().compress()
+        # del weight_score
+        for _, wrapper in self.get_modules_wrapper().items():
+            wrapper.weight_score = None
+        return result

nni/algorithms/compression/v2/pytorch/pruning/tools/__init__.py

@@ -11,6 +11,7 @@ from .data_collector import (
     SingleHookTrainerBasedDataCollector
 )
 from .metrics_calculator import (
+    StraightMetricsCalculator,
     NormMetricsCalculator,
     MultiDataNormMetricsCalculator,
     DistMetricsCalculator,

nni/algorithms/compression/v2/pytorch/pruning/tools/base.py

@@ -133,7 +133,8 @@ class TrainerBasedDataCollector(DataCollector):
         super().__init__(compressor)
         self.trainer = trainer
         self.training_epochs = training_epochs
-        self._origin_optimizer = optimizer
+        self._origin_optimizer_cls = optimizer.__class__ if optimizer is not None else None
+        self._origin_optimizer_state_dict = optimizer.state_dict() if optimizer is not None else None
         self._origin_criterion = criterion
         self._opt_before_tasks = opt_before_tasks
         self._opt_after_tasks = opt_after_tasks
@@ -146,22 +147,12 @@ class TrainerBasedDataCollector(DataCollector):

     def reset(self):
         # refresh optimizer and criterion
-        self.compressor._unwrap_model()
-        if self._origin_optimizer is not None:
-            optimizer_cls = self._origin_optimizer.__class__
-            if optimizer_cls.__name__ == 'SGD':
-                self.optimizer = optimizer_cls(self.compressor.bound_model.parameters(), lr=0.001)
-            else:
-                self.optimizer = optimizer_cls(self.compressor.bound_model.parameters())
-            self.optimizer.load_state_dict(self._origin_optimizer.state_dict())
-        else:
-            self.optimizer = None
+        self._reset_optimizer()

         if self._criterion_patch is not None:
             self.criterion = self._criterion_patch(self._origin_criterion)
         else:
             self.criterion = self._origin_criterion
-        self.compressor._wrap_model()

         # patch optimizer
         self._patch_optimizer()
@@ -173,6 +164,18 @@ class TrainerBasedDataCollector(DataCollector):
         self._hook_buffer = {}
         self._add_all_hook()

+    def _reset_optimizer(self):
+        self.compressor._unwrap_model()
+        if self._origin_optimizer_cls is not None:
+            if self._origin_optimizer_cls.__name__ == 'SGD':
+                self.optimizer = self._origin_optimizer_cls(self.compressor.bound_model.parameters(), lr=0.001)
+            else:
+                self.optimizer = self._origin_optimizer_cls(self.compressor.bound_model.parameters())
+            self.optimizer.load_state_dict(self._origin_optimizer_state_dict)
+        else:
+            self.optimizer = None
+        self.compressor._wrap_model()
+
     def _patch_optimizer(self):
         def patch_step(old_step):
             def new_step(_, *args, **kwargs):
@@ -315,7 +318,7 @@ class SparsityAllocator:
     """

     def __init__(self, pruner: Compressor, dim: Optional[Union[int, List[int]]] = None,
-                 block_sparse_size: Optional[Union[int, List[int]]] = None):
+                 block_sparse_size: Optional[Union[int, List[int]]] = None, continuous_mask: bool = True):
         """
         Parameters
         ----------
@@ -339,6 +342,8 @@ class SparsityAllocator:
             Example:

             The metric size is (12,), and block_sparse_size=[64], then the mask will expand to (768,) at first before expand with `dim`.
+        continuous_mask
+            Inherit the mask already in the wrapper if set True.
         """
         self.pruner = pruner
         self.dim = dim if not isinstance(dim, int) else [dim]
@@ -350,6 +355,7 @@ class SparsityAllocator:
         if self.dim is not None:
             assert all(i >= 0 for i in self.dim)
             self.dim, self.block_sparse_size = (list(t) for t in zip(*sorted(zip(self.dim, self.block_sparse_size))))
+        self.continuous_mask = continuous_mask

     def generate_sparsity(self, metrics: Dict) -> Dict[str, Dict[str, Tensor]]:
         """

nni/algorithms/compression/v2/pytorch/pruning/tools/metrics_calculator.py

@@ -9,7 +9,18 @@ from torch import Tensor
 from .base import MetricsCalculator

 __all__ = ['NormMetricsCalculator', 'MultiDataNormMetricsCalculator', 'DistMetricsCalculator',
-           'APoZRankMetricsCalculator', 'MeanRankMetricsCalculator']
+           'APoZRankMetricsCalculator', 'MeanRankMetricsCalculator', 'StraightMetricsCalculator']
+
+
+class StraightMetricsCalculator(MetricsCalculator):
+    """
+    This metrics calculator directly returns a copy of data as metrics.
+    """
+    def calculate_metrics(self, data: Dict[str, Tensor]) -> Dict[str, Tensor]:
+        metrics = {}
+        for name, tensor in data.items():
+            metrics[name] = tensor.clone().detach()
+        return metrics


 class NormMetricsCalculator(MetricsCalculator):

nni/algorithms/compression/v2/pytorch/pruning/tools/sparsity_allocator.py

@@ -24,7 +24,9 @@ class NormalSparsityAllocator(SparsityAllocator):
             sparsity_rate = wrapper.config['total_sparsity']

             assert name in metrics, 'Metric of %s is not calculated.'
-            metric = metrics[name] * self._compress_mask(wrapper.weight_mask)
+            metric = metrics[name]
+            if self.continuous_mask:
+                metric *= self._compress_mask(wrapper.weight_mask)
             prune_num = int(sparsity_rate * metric.numel())
             if prune_num == 0:
                 threshold = metric.min() - 1
@@ -64,7 +66,8 @@ class GlobalSparsityAllocator(SparsityAllocator):

         for name, metric in group_metric_dict.items():
             wrapper = self.pruner.get_modules_wrapper()[name]
-            metric = metric * self._compress_mask(wrapper.weight_mask)
+            if self.continuous_mask:
+                metric = metric * self._compress_mask(wrapper.weight_mask)
             layer_weight_num = wrapper.module.weight.data.numel()
             total_weight_num += layer_weight_num
             expend_times = int(layer_weight_num / metric.numel())
@@ -113,7 +116,10 @@ class Conv2dDependencyAwareAllocator(SparsityAllocator):
         masks = {}
         grouped_metrics = {}
         for idx, names in enumerate(self.channel_depen):
-            grouped_metric = {name: metrics[name] * self._compress_mask(self.pruner.get_modules_wrapper()[name].weight_mask) for name in names if name in metrics}
+            grouped_metric = {name: metrics[name] for name in names if name in metrics}
+            if self.continuous_mask:
+                for name, metric in grouped_metric.items():
+                    metric *= self._compress_mask(self.pruner.get_modules_wrapper()[name].weight_mask)
             if len(grouped_metric) > 0:
                 grouped_metrics[idx] = grouped_metric
         for _, group_metric_dict in grouped_metrics.items():

nni/compression/pytorch/compressor.py

@@ -281,7 +281,7 @@ class Compressor:
 class PrunerModuleWrapper(torch.nn.Module):
     def __init__(self, module, module_name, module_type, config, pruner):
         """
-        Wrap an module to enable data parallel, forward method customization and buffer registeration.
+        Wrap a module to enable data parallel, forward method customization and buffer registeration.

         Parameters
         ----------
@@ -495,7 +495,7 @@ class Pruner(Compressor):
 class QuantizerModuleWrapper(torch.nn.Module):
     def __init__(self, module, module_name, module_type, config, quantizer, bn_module=None):
         """
-        Wrap an module to enable data parallel, forward method customization and buffer registeration.
+        Wrap a module to enable data parallel, forward method customization and buffer registeration.

         Parameters
         ----------

test/ut/sdk/test_v2_pruner_torch.py

@@ -15,7 +15,8 @@ from nni.algorithms.compression.v2.pytorch.pruning import (
     ActivationAPoZRankPruner,
     ActivationMeanRankPruner,
     TaylorFOWeightPruner,
-    ADMMPruner
+    ADMMPruner,
+    MovementPruner
 )
 from nni.algorithms.compression.v2.pytorch.utils import compute_sparsity_mask2compact

@@ -67,7 +68,7 @@ class PrunerTestCase(unittest.TestCase):
         pruned_model, masks = pruner.compress()
         pruner._unwrap_model()
         sparsity_list = compute_sparsity_mask2compact(pruned_model, masks, config_list)
-        assert 0.79 < sparsity_list[0]['total_sparsity'] < 0.81
+        assert 0.78 < sparsity_list[0]['total_sparsity'] < 0.82

     def test_l1_norm_pruner(self):
         model = TorchModel()
@@ -77,7 +78,7 @@ class PrunerTestCase(unittest.TestCase):
         pruned_model, masks = pruner.compress()
         pruner._unwrap_model()
         sparsity_list = compute_sparsity_mask2compact(pruned_model, masks, config_list)
-        assert 0.79 < sparsity_list[0]['total_sparsity'] < 0.81
+        assert 0.78 < sparsity_list[0]['total_sparsity'] < 0.82

     def test_l2_norm_pruner(self):
         model = TorchModel()
@@ -87,7 +88,7 @@ class PrunerTestCase(unittest.TestCase):
         pruned_model, masks = pruner.compress()
         pruner._unwrap_model()
         sparsity_list = compute_sparsity_mask2compact(pruned_model, masks, config_list)
-        assert 0.79 < sparsity_list[0]['total_sparsity'] < 0.81
+        assert 0.78 < sparsity_list[0]['total_sparsity'] < 0.82

     def test_fpgm_pruner(self):
         model = TorchModel()
@@ -97,7 +98,7 @@ class PrunerTestCase(unittest.TestCase):
         pruned_model, masks = pruner.compress()
         pruner._unwrap_model()
         sparsity_list = compute_sparsity_mask2compact(pruned_model, masks, config_list)
-        assert 0.79 < sparsity_list[0]['total_sparsity'] < 0.81
+        assert 0.78 < sparsity_list[0]['total_sparsity'] < 0.82

     def test_slim_pruner(self):
         model = TorchModel()
@@ -107,7 +108,7 @@ class PrunerTestCase(unittest.TestCase):
         pruned_model, masks = pruner.compress()
         pruner._unwrap_model()
         sparsity_list = compute_sparsity_mask2compact(pruned_model, masks, config_list)
-        assert 0.79 < sparsity_list[0]['total_sparsity'] < 0.81
+        assert 0.78 < sparsity_list[0]['total_sparsity'] < 0.82

     def test_activation_apoz_rank_pruner(self):
         model = TorchModel()
@@ -119,7 +120,7 @@ class PrunerTestCase(unittest.TestCase):
         pruned_model, masks = pruner.compress()
         pruner._unwrap_model()
         sparsity_list = compute_sparsity_mask2compact(pruned_model, masks, config_list)
-        assert 0.79 < sparsity_list[0]['total_sparsity'] < 0.81
+        assert 0.78 < sparsity_list[0]['total_sparsity'] < 0.82

     def test_activation_mean_rank_pruner(self):
         model = TorchModel()
@@ -131,7 +132,7 @@ class PrunerTestCase(unittest.TestCase):
         pruned_model, masks = pruner.compress()
         pruner._unwrap_model()
         sparsity_list = compute_sparsity_mask2compact(pruned_model, masks, config_list)
-        assert 0.79 < sparsity_list[0]['total_sparsity'] < 0.81
+        assert 0.78 < sparsity_list[0]['total_sparsity'] < 0.82

     def test_taylor_fo_pruner(self):
         model = TorchModel()
@@ -142,7 +143,7 @@ class PrunerTestCase(unittest.TestCase):
         pruned_model, masks = pruner.compress()
         pruner._unwrap_model()
         sparsity_list = compute_sparsity_mask2compact(pruned_model, masks, config_list)
-        assert 0.79 < sparsity_list[0]['total_sparsity'] < 0.81
+        assert 0.78 < sparsity_list[0]['total_sparsity'] < 0.82

     def test_admm_pruner(self):
         model = TorchModel()
@@ -152,7 +153,18 @@ class PrunerTestCase(unittest.TestCase):
         pruned_model, masks = pruner.compress()
         pruner._unwrap_model()
         sparsity_list = compute_sparsity_mask2compact(pruned_model, masks, config_list)
-        assert 0.79 < sparsity_list[0]['total_sparsity'] < 0.81
+        assert 0.78 < sparsity_list[0]['total_sparsity'] < 0.82
+
+    def test_movement_pruner(self):
+        model = TorchModel()
+        config_list = [{'op_types': ['Conv2d'], 'sparsity': 0.8}]
+        pruner = MovementPruner(model=model, config_list=config_list, trainer=trainer, optimizer=get_optimizer(model),
+                                criterion=criterion, training_epochs=5, warm_up_step=0, cool_down_beginning_step=4)
+        pruned_model, masks = pruner.compress()
+        pruner._unwrap_model()
+        sparsity_list = compute_sparsity_mask2compact(pruned_model, masks, config_list)
+        assert 0.78 < sparsity_list[0]['total_sparsity'] < 0.82
+

 if __name__ == '__main__':
     unittest.main()
