Megatron ([1](https://arxiv.org/pdf/1909.08053.pdf) and[2](https://arxiv.org/pdf/2104.04473.pdf)) is a large, powerful transformer developed by the Applied Deep Learning Research team at NVIDIA. This repository is for ongoing research on training large transformer language models at scale. We developed efficient, model-parallel (tensor and pipeline), and multi-node pre-training of transformer based models such as [GPT](https://arxiv.org/abs/2005.14165), [BERT](https://arxiv.org/pdf/1810.04805.pdf), and [T5](https://arxiv.org/abs/1910.10683) using mixed precision.
Megatron ([1](https://arxiv.org/pdf/1909.08053.pdf),[2](https://arxiv.org/pdf/2104.04473.pdf), and [3](https://arxiv.org/pdf/2205.05198)) is a large, powerful transformer developed by the Applied Deep Learning Research team at NVIDIA. This repository is for ongoing research on training large transformer language models at scale. We developed efficient, model-parallel ([tensor](https://arxiv.org/pdf/1909.08053.pdf), [sequence](https://arxiv.org/pdf/2205.05198), and [pipeline](https://arxiv.org/pdf/2104.04473.pdf)), and multi-node pre-training of transformer based models such as [GPT](https://arxiv.org/abs/2005.14165), [BERT](https://arxiv.org/pdf/1810.04805.pdf), and [T5](https://arxiv.org/abs/1910.10683) using mixed precision.
Below are some of the projects where we have directly used Megatron:
*[BERT and GPT Studies Using Megatron](https://arxiv.org/pdf/1909.08053.pdf)
...
...
@@ -8,19 +8,26 @@ Below are some of the projects where we have directly used Megatron:
*[MEGATRON-CNTRL: Controllable Story Generation with External Knowledge Using Large-Scale Language Models](https://www.aclweb.org/anthology/2020.emnlp-main.226.pdf)
*[Scaling Language Model Training to a Trillion Parameters Using Megatron](https://arxiv.org/pdf/2104.04473.pdf)
*[Training Question Answering Models From Synthetic Data](https://www.aclweb.org/anthology/2020.emnlp-main.468.pdf)
*[Few-shot Instruction Prompts for Pretrained Language Models to Detect Social Biases](https://arxiv.org/abs/2112.07868)
*[Exploring the Limits of Domain-Adaptive Training for Detoxifying Large-Scale Language Models](https://arxiv.org/abs/2202.04173)
*[Using DeepSpeed and Megatron to Train Megatron-Turing NLG 530B, A Large-Scale Generative Language Model](https://arxiv.org/abs/2201.11990)
*[Multi-Stage Prompting for Knowledgeable Dialogue Generation](https://arxiv.org/abs/2203.08745)
Megatron is also used in [NeMo Megatron](https://developer.nvidia.com/nvidia-nemo#nemo-megatron), a framework to help enterprises overcome the challenges of building and training sophisticated natural language processing models with billions and trillions of parameters.

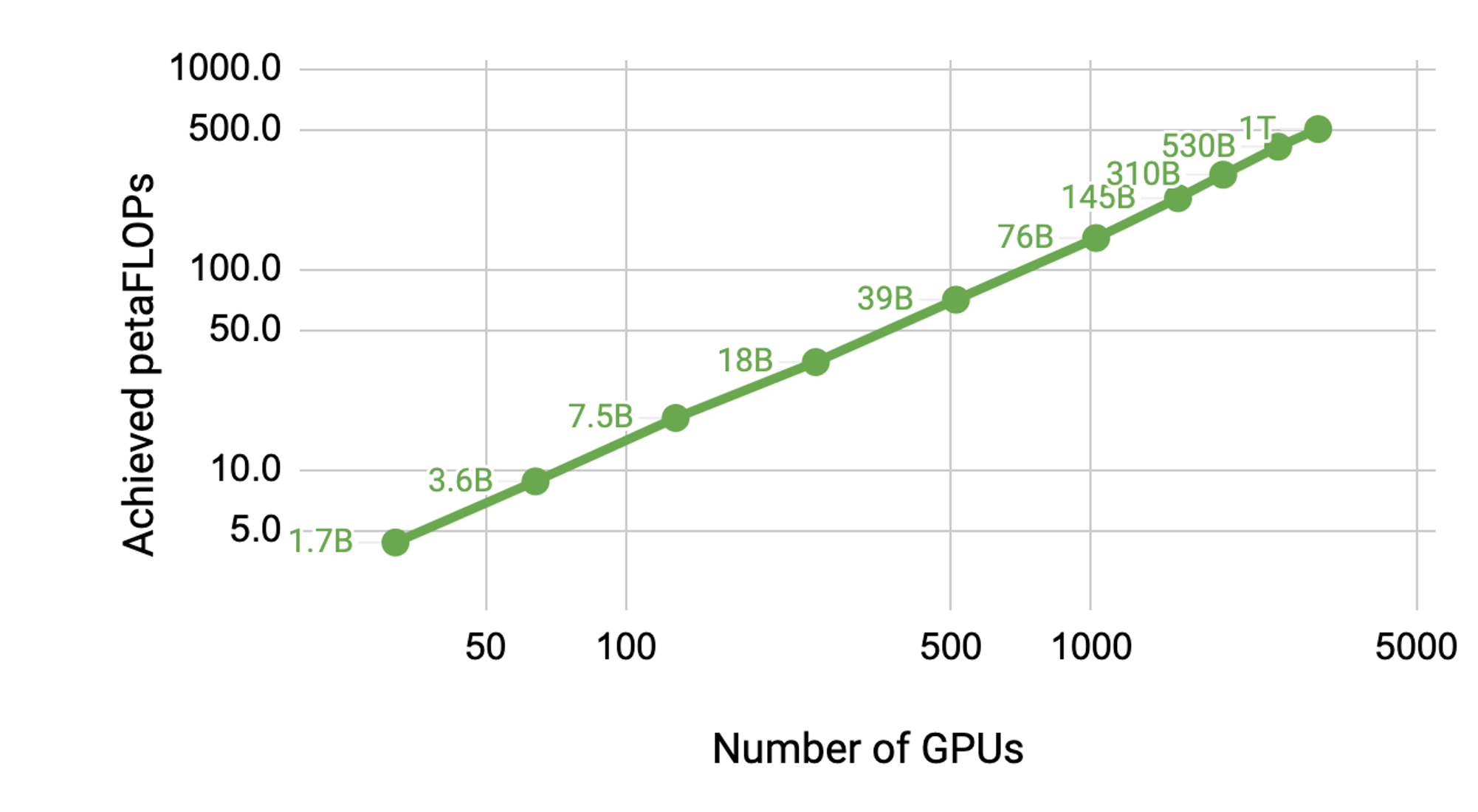

Our codebase is capable of efficiently training very large (hundreds of billions of parameters) language models with both model and data parallelism. To demonstrate how the code scales with multiple GPUs and model sizes, we consider GPT models from 1 billion all the way to 1 trillion parameters. All models use a vocabulary size of 51,200 and a sequence length of 2048. We vary hidden size, number of attention heads, and number of layers to arrive at a specifc model size. As the model size increases, we also modestly increase the batch size. We leverage [NVIDIA's Selene supercomputer](https://www.top500.org/system/179842/) to perform scaling studies and use up to 3072 [A100](https://www.nvidia.com/en-us/data-center/a100/) GPUs for the largest model. Each cluster node has 8 NVIDIA 80GB A100 GPUs. The table below shows the model configurations along with the achieved FLOPs (both per GPU and aggregate over all GPUs). Note that these results are from benchmark runs and these models were not trained to convergence; however, the FLOPs are measured for end-to-end training, i.e., includes all operations including data loading, optimization, and even logging.
Our codebase is capable of efficiently training very large (hundreds of billions of parameters) language models with both model and data parallelism. To demonstrate how the code scales with multiple GPUs and model sizes, we consider GPT models from 1 billion all the way to 1 trillion parameters. All models use a vocabulary size of 51,200 and a sequence length of 2048. We vary hidden size, number of attention heads, and number of layers to arrive at a specifc model size. As the model size increases, we also modestly increase the batch size. We leverage [NVIDIA's Selene supercomputer](https://www.top500.org/system/179842/) to perform scaling studies and use up to 3072 [A100](https://www.nvidia.com/en-us/data-center/a100/) GPUs for the largest model. Each cluster node has 8 NVIDIA 80GB A100 GPUs. The graph below shows that we scale nearly linear up to 1 trillion parameter models running on 3072 GPUs. Note that these results are from benchmark runs and these models were not trained to convergence; however, the FLOPs are measured for end-to-end training, i.e., includes all operations including data loading, optimization, and even logging.
Additionally, the model parallel size column reports a combined tensor and pipeline parallelism degrees. For numbers larger than 8, typically tensor parallel of size 8 was used. So, for example, the 145B model reports the total model parallel size of 64, which means that this setup used TP=8 and PP=8.
All the cases from 1 billion to 1 trillion parameters achieve more than 43% half precision utilization, which is high for an end-to-end application. We observe that initially the utilization remains constant but as hidden size increases for larger models, utilization starts increasing and reaches 52% for the largest model. We also note that achieved aggregate petaFLOPs across all GPUs increases almost linearly with number of GPUs, demonstrating good weak scaling.
The following table shows both model (MFU) and hardware (HFU) FLOPs utilization for select configurations up to 1T parameters (see [our paper](https://arxiv.org/pdf/2205.05198) for a description of how these are calculated). As the model size increases, we achieve better GPU utilization and for the one trillion parameter model, we reach a MFU and HFU of 56.3% and 57.0%, respectively. Note that these numbers are also measured on benchmark runs and in this case are measured using a data parallel size of one. Data parallelism introduces some overhead due to the gradient all-reduce required between the data parallel groups. However, for large transformer models, this overhead is not large and can almost entirely eliminted by overlapping the gradient all-reduce with backpropagation.
| Model Size | Model FLOPs Utilization | Hardware FLOPs Utilization |
| :---: | :---: | :---: |
| 22B | 41.5% | 43.7% |
| 175B | 51.4% | 52.8% |
| 530B | 56.0% | 57.0% |
| 1T | 56.3% | 57.0% |
# Contents
*[Contents](#contents)
...
...
@@ -257,7 +264,9 @@ The `examples/pretrain_{bert,gpt,t5}_distributed.sh` scripts use the PyTorch dis
We use two types of parallelism: data and model parallelism. We facilitate two distributed data parallel implementations: a simple one of our own that performs gradient all-reduce at the end of back propagation step, and Torch's distributed data parallel wrapper that overlaps gradient reduction with back propagation computation. To switch between these two options use `--DDP-impl local` or `--DDP-impl torch`, respectively. As expected, Torch distributed data parallelism is more efficient at larger model sizes. For example, for the 8.3 billion parameters model running on 512 GPUs, the scaling increases from 60% to 76% when Torch's distributed data parallel is used. However, the overlapping method requires more memory and for some configurations (e.g., 2.5 billion parameters using 2-way model parallel and 1.2 billion parameters with no model parallel) can make the overall training slower as a result. We empirically found that using a smaller model in those cases improves the training time.
Second, we developed a simple and efficient two-dimensional model-parallel approach. To use tensor model parallelism (splitting execution of a single transformer module over multiple GPUs), add the `--tensor-model-parallel-size` flag to specify the number of GPUs among which to split the model, along with the arguments passed to the distributed launcher as mentioned above. To use pipeline model parallelism (sharding the transformer modules into stages with an equal number of transformer modules on each stage, and then pipelining execution by breaking the batch into smaller microbatches), use the `--pipeline-model-parallel-size` flag to specify the number of stages to split the model into (e.g., splitting a model with 24 transformer layers across 4 stages would mean each stage gets 6 transformer layers each).
Second, we developed a simple and efficient two-dimensional model-parallel approach. To use tensor model parallelism (splitting execution of a single transformer module over multiple GPUs), add the `--tensor-model-parallel-size` flag to specify the number of GPUs among which to split the model, along with the arguments passed to the distributed launcher as mentioned above. To use sequence parallelism specify `--sequence-parallel`, which requires tensor model parallel as it split among the same GPUs.
To use pipeline model parallelism (sharding the transformer modules into stages with an equal number of transformer modules on each stage, and then pipelining execution by breaking the batch into smaller microbatches), use the `--pipeline-model-parallel-size` flag to specify the number of stages to split the model into (e.g., splitting a model with 24 transformer layers across 4 stages would mean each stage gets 6 transformer layers each).
<!-- The number of microbatches in a per-pipeline minibatch is controlled by the `--num-microbatches-in-minibatch` argument. With `WORLD_SIZE` GPUs, `TENSOR_MP_SIZE` tensor-model-parallel size, `PIPELINE_MP_SIZE` pipeline-model-parallel-size, `WORLD_SIZE`/(`TENSOR_MP_SIZE` * `PIPELINE_MP_SIZE`) GPUs will be used for data parallelism. The default values for `--tensor-model-parallel-size` and `--pipeline-model-parallel-size` is 1, which will not implement either form of model parallelism. -->
@@ -298,11 +308,13 @@ The interleaved pipelining schedule (more details in Section 2.2.2 of [our paper
## Activation Checkpointing and Recomputation
To reduce GPU memory usage so deploy a large model to a training system, we support activation checkpointing and recomputation. We use a Transformer layer as the unit of checkpointing because the activation size bloats in the middle of a Transformer layer so checkpointing the input of a Transformer layer is storage-efficient. We support two activation checkpointing methods: `uniform` and `block`.
To reduce GPU memory usage so deploy a large model to a training system, we support activation checkpointing and recomputation. We support two levels of recompute granularity: `selective` and `full`. Selective recomputation is the default and recommended in almost all cases. It saves the activations that take less space and are expensive to recompute and recomputes activations that take a lot of space but are relatively cheap to recompute (see [our paper](https://arxiv.org/pdf/2205.05198) for details). To enable selective activation recompute simply use `--recompute-activations`.
Uniform method uniformly divides the Transformer layers into groups of layers and stores the input activations of each group in the memory. The baseline group size is 1 and, in this case, the input activation of each Transformer layer is checkpointed. When the GPU memory is insufficient, increasing the number of layers per group reduces the memory usage thus enables running a bigger model. For example, when using the number of layers per group of 4, the input activation of each group of 4 Transformer layers is checkpointed.
For cases where memory is very tight, `full` checkpointing saves just the inputs to a transformer layer, or a block of transformer layers, and recomputes everything else. To turn on full activation recompute use `--recompute-granularity full`. When using full activation recomputation, there are two methods: `uniform` and `block`, chosen using the `--recompute-method` argument.
Block method checkpoints the input activations of a set number of individual Transformer layers per pipeline stage and do the rest of layers without any checkpointing. This method can be used to skip checkpointing some Transformer layers until the GPU memory is fully used, which is applicable only when there is unused GPU memory. Checkpointing fewer transformer layers avoids unnecessary activation recomputation in the backprop thus improves training performance. For example, when we specify 5 layers to checkpoint of 8 layers per pipeline stage, the input activations of only the first 5 Transformer layers are checkpointed and activation recomputation for the rest 3 layers is not needed in the backprop.
* Uniform method uniformly divides the Transformer layers into groups of layers and stores the input activations of each group in the memory. The baseline group size is 1 and, in this case, the input activation of each Transformer layer is checkpointed. When the GPU memory is insufficient, increasing the number of layers per group reduces the memory usage thus enables running a bigger model. For example, when using the number of layers per group of 4, the input activation of each group of 4 Transformer layers is checkpointed.
* Block method checkpoints the input activations of a set number of individual Transformer layers per pipeline stage and do the rest of layers without any checkpointing. This method can be used to skip checkpointing some Transformer layers until the GPU memory is fully used, which is applicable only when there is unused GPU memory. Checkpointing fewer transformer layers avoids unnecessary activation recomputation in the backprop thus improves training performance. For example, when we specify 5 layers to checkpoint of 8 layers per pipeline stage, the input activations of only the first 5 Transformer layers are checkpointed and activation recomputation for the rest 3 layers is not needed in the backprop.
We provide several command line arguments, detailed in the scripts listed below, to handle various zero-shot and fine-tuned downstream tasks. However, you can also finetune your model from a pretrained checkpoint on other corpora as desired. To do so, simply add the `--finetune` flag and adjust the input files and training parameters within the original training script. The iteration count will be reset to zero, and the optimizer and internal state will be reinitialized. If the fine-tuning is interrupted for any reason, be sure to remove the `--finetune` flag before continuing, otherwise the training will start again from the beginning.
Because evaluation requires substantially less memory than training, it may be advantageous to merge a model trained in parallel for use on a single GPU in downstream tasks. The following script accomplishes this. Currently only tensor model parallelism is supported on input and pipeline model parallelism on the output. This example reads in a model with 2-way tensor model parallelism and writes out a model with 2-way pipeline model parallelism.
Because evaluation requires substantially less memory than training, it may be advantageous to merge a model trained in parallel for use on fewer GPUs in downstream tasks. The following script accomplishes this. This example reads in a GPT model with 4-way tensor and 4-way pipeline model parallelism and writes out a model with 2-way tensor and 2-way pipeline model parallelism.
The motivation for the distributed optimizer is to save memory by distributing the optimizer state evenly across data parallel ranks, versus the current method of replicating the optimizer state across data parallel ranks. As described in https://arxiv.org/abs/1910.02054, this branch specifically implements the following:
- [yes] distribute all 'non-overlapping' optimizer state (i.e., model params already in fp32 are NOT distributed)
- [no] distribute model gradients
- [no] distribute model parameters
Theoretical memory savings vary depending on the combination of the model's param dtype and grad dtype. In the current implementation, the theoretical number of bytes per parameter is (where 'd' is the data parallel size):
| | Non-distributed optim | Distributed optim |
| ------ | ------ | ------ |
| float16 param, float16 grads | 20 | 4 + 16/d |
| float16 param, fp32 grads | 18 | 6 + 12/d |
| fp32 param, fp32 grads | 16 | 8 + 8/d |
The implementation of the distributed optimizer is centered on using the contiguous grad buffer for communicating grads & params between the model state and the optimizer state. The grad buffer at any given moment either holds:
1. all model grads
2. a 1/d size _copy_ of the main grads (before copying to the optimizer state)
3. a 1/d size _copy_ of the main params (after copying from the optimizer state)
4. all model params
5. zeros (or None), between iterations
The grad buffer is used for performing reduce-scatter and all-gather operations, for passing grads & params between the model state and optimizer state. With this implementation, no dynamic buffers are allocated.

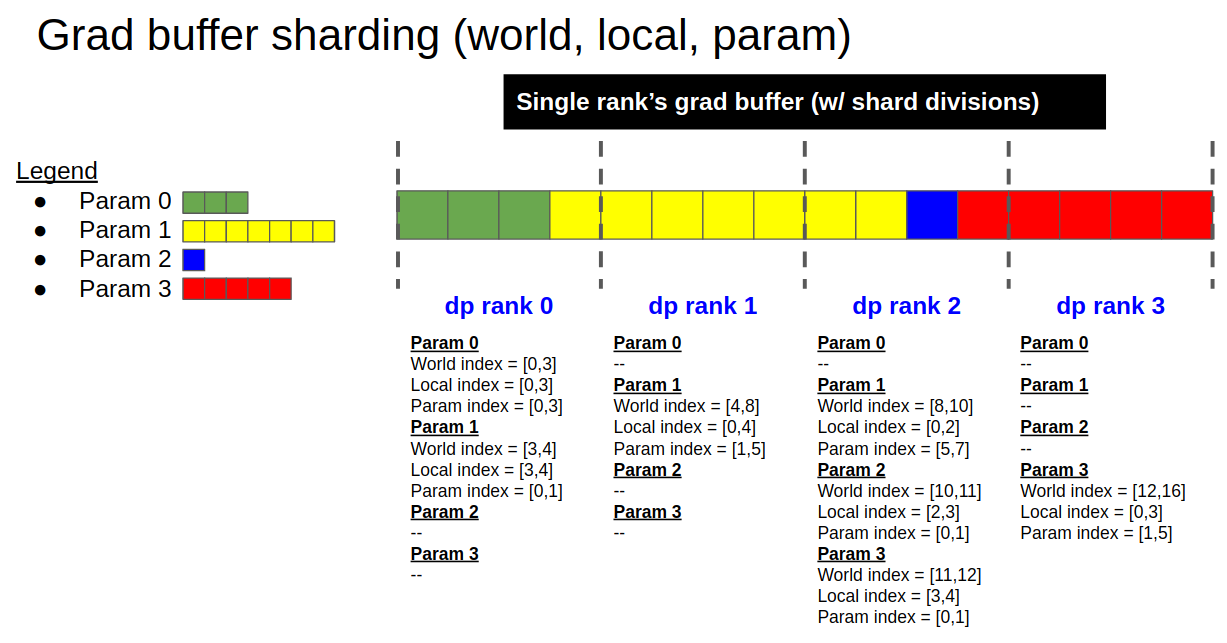

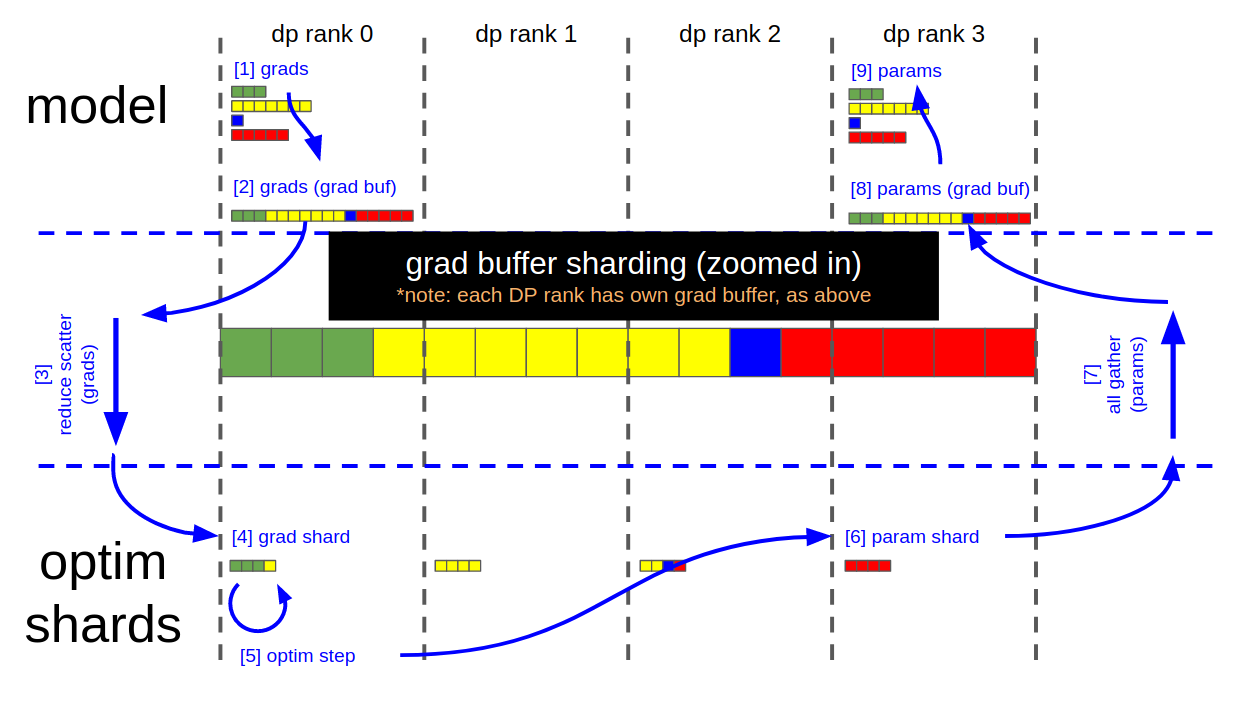

The figures below illustrate the grad buffer's sharding scheme, and the key steps of the distributed optimizer's param update:
- Each DP rank now has 4 elements within the grad buffer that are fully reduced (remaining 12 elements are garbage)
- Each DP rank copies its relevant 4 fp16 grad elements from the grad buffer into 4 fp32 main grad elements (separate buffer, owned by the optimizer); i.e.
- DP rank 0 copies elements [0:4]
- DP rank 1 copies elements [4:8]
- DP rank 2 copies elements [8:12]
- DP rank 3 copies elements [12:16]
- Optimizer.step()
- Each DP rank copies its 4 fp32 main (/optimizer) param elements into the corresponding 4 fp16 elements in the grad buffer
- Call all-gather on each DP rank
- Grad buffer now contains all 16, fully updated, fp16 model param elements
- Copy updated model params from grad buffer into their respective param tensors
- (At this point, grad buffer is ready to be zero'd for the next iteration)
