tutorial/capsule/Capsule Tutorial(WIP).ipynb

+{
+ "cells": [
+  {
+   "cell_type": "markdown",
+   "metadata": {},
+   "source": [
+    "Capsule Network\n",
+    "================\n",
+    "**Author**: `Jinjing Zhou`\n",
+    "\n",
+    "This tutorial explains how to use DGL library and its language to implement the [capsule network](http://arxiv.org/abs/1710.09829) proposed by Geoffrey Hinton and his team. The algorithm aims to provide a better alternative to current neural network structures. By using DGL library, users can implement the algorithm in a more intuitive way."
+   ]
+  },
+  {
+   "cell_type": "markdown",
+   "metadata": {},
+   "source": [
+    "## Model Overview\n",
+    "\n",
+    "### Introduction\n",
+    "Capsule Network were first introduced in 2011 by Geoffrey Hinton, et al., in a paper called [Transforming Autoencoders](https://www.cs.toronto.edu/~fritz/absps/transauto6.pdf), but it was only a few months ago, in November 2017, that Sara Sabour, Nicholas Frosst, and Geoffrey Hinton published a paper called Dynamic Routing between Capsules, where they introduced a CapsNet architecture that reached state-of-the-art performance on MNIST.\n",
+    "\n",
+    "### What's a capsule?\n",
+    "> A capsule is a group of neurons whose activity vector represents the instantiation parameters of a specific type of entity such as an object or an object part.    \n",
+    "\n",

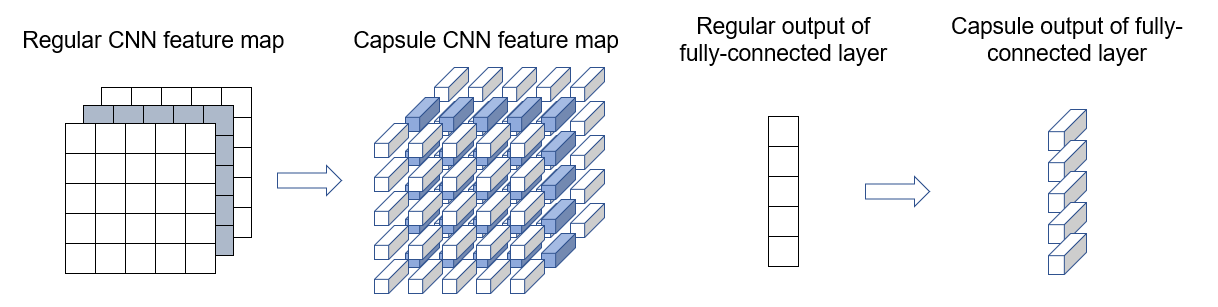

+    "Generally Speaking, the idea of capsule is to encode all the information about the features into a vector form, by substituting scalars in traditional neural network with vectors. And use the norm of the vector to represents the meaning of original scalars. \n",
+    "![figure_1](./capsule_f1.png)\n",
+    "\n",
+    "### Dynamic Routing Algorithm\n",
+    "Due to the different structure of network, capsules network has different operations to calculate results. This figure shows the comparison, drawn by [Max Pechyonkin](https://medium.com/ai%C2%B3-theory-practice-business/understanding-hintons-capsule-networks-part-ii-how-capsules-work-153b6ade9f66O).   \n",
+    "<img src=\"./capsule_f2.png\" style=\"height:250px;\"/><br/>\n",
+    "\n",
+    "The key idea is that the output of each capsule is the sum of weighted input vectors. We will go into details in the later section with code implementations.\n"
+   ]
+  },
+  {
+   "cell_type": "markdown",
+   "metadata": {},
+   "source": [
+    "## Model Implementations\n",
+    "\n",

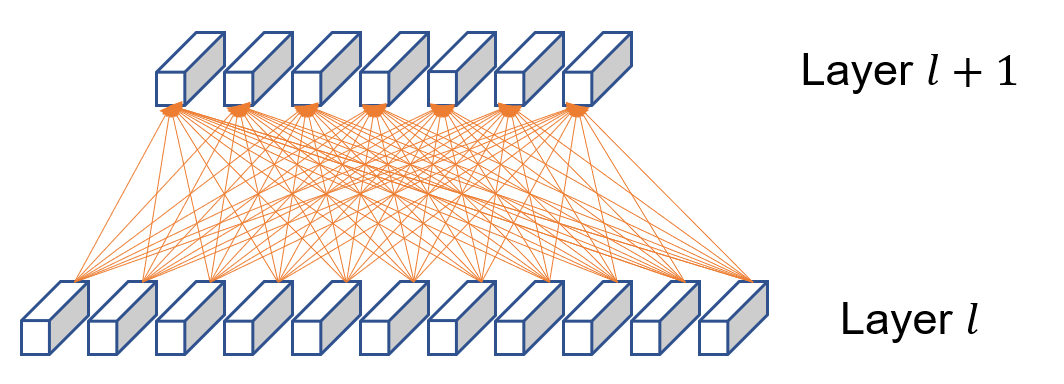

+    "### 1. Consider capsule routing  as a graph structure\n",
+    "\n",
+    "We can consider each capsule as a node in a graph, and connect all the nodes between layers.\n",
+    "<img src=\"./capsule_f3.png\" style=\"height:200px;\"/>"
+   ]
+  },
+  {
+   "cell_type": "code",
+   "execution_count": null,
+   "metadata": {},
+   "outputs": [],
+   "source": [
+    "def construct_graph(self):\n",
+    "    g = dgl.DGLGraph()\n",
+    "    g.add_nodes(self.input_capsule_num + self.output_capsule_num)\n",
+    "    input_nodes = list(range(self.input_capsule_num))\n",
+    "    output_nodes = list(range(self.input_capsule_num, self.input_capsule_num + self.output_capsule_num))\n",
+    "    u, v = [], []\n",
+    "    for i in input_nodes:\n",
+    "        for j in output_nodes:\n",
+    "            u.append(i)\n",
+    "            v.append(j)\n",
+    "    g.add_edges(u, v)\n",
+    "    return g, input_nodes, output_nodes"
+   ]
+  },
+  {
+   "cell_type": "markdown",
+   "metadata": {},
+   "source": [

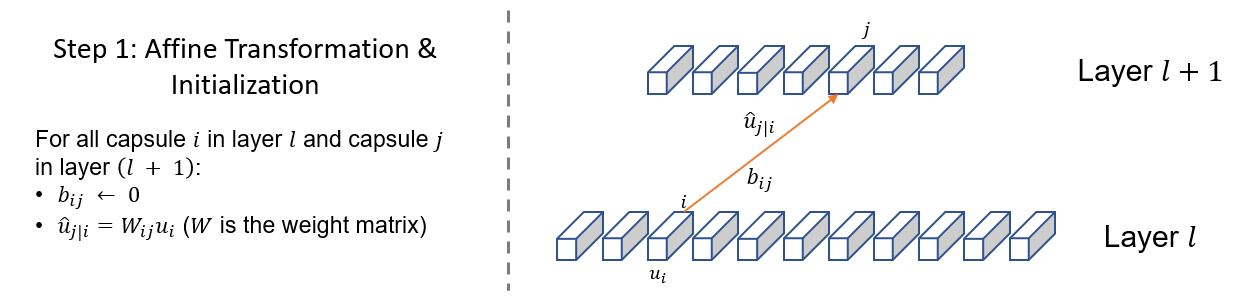

+    "### 2. Initialization & Affine Transformation\n",
+    "- Pre-compute $\\hat{u}_{j|i}$, initialize $b_{ij}$ and store them as edge attribute\n",
+    "- Initialize node features as zero\n",
+    "<img src=\"./capsule_f4.png\" style=\"height:200px;\"/>"
+   ]
+  },
+  {
+   "cell_type": "code",
+   "execution_count": null,
+   "metadata": {},
+   "outputs": [],
+   "source": [
+    "# x is the input vextor with shape [batch_size, input_capsule_dim, input_num]\n",
+    "# Transpose x to [batch_size, input_num, input_capsule_dim]        \n",
+    "x = x.transpose(1, 2)\n",
+    "# Expand x to [batch_size, input_num, output_num, input_capsule_dim, 1]\n",
+    "x = torch.stack([x] * self.output_capsule_num, dim=2).unsqueeze(4)\n",
+    "# Expand W from [input_num, output_num, input_capsule_dim, output_capsule_dim] \n",
+    "# to [batch_size, input_num, output_num, output_capsule_dim, input_capsule_dim] \n",
+    "W = self.weight.expand(self.batch_size, *self.weight.size())\n",
+    "# u_hat's shape is [input_num, output_num, batch_size, output_capsule_dim]\n",
+    "u_hat = torch.matmul(W, x).permute(1, 2, 0, 3, 4).squeeze().contiguous()\n",
+    "\n",
+    "b_ij = torch.zeros(self.input_capsule_num, self.output_capsule_num).to(self.device)\n",
+    "\n",
+    "self.g.set_e_repr({'b_ij': b_ij.view(-1)})\n",
+    "self.g.set_e_repr({'u_hat': u_hat.view(-1, self.batch_size, self.unit_size)})\n",
+    "\n",
+    "# Initialize all node features as zero\n",
+    "node_features = torch.zeros(self.input_capsule_num + self.output_capsule_num, self.batch_size,\n",
+    "                            self.output_capsule_dim).to(self.device)\n",
+    "self.g.set_n_repr({'h': node_features})"
+   ]
+  },
+  {
+   "cell_type": "markdown",
+   "metadata": {},
+   "source": [
+    "### 3. Write Message Passing functions and Squash function"
+   ]
+  },
+  {
+   "cell_type": "markdown",
+   "metadata": {},
+   "source": [
+    "#### 3.1 Squash function\n",
+    "Squashing function is to ensure that short vectors get shrunk to almost zero length and long vectors get shrunk to a length slightly below 1.\n",
+    "![squash](./squash.png)"
+   ]
+  },
+  {
+   "cell_type": "code",
+   "execution_count": 6,
+   "metadata": {},
+   "outputs": [],
+   "source": [
+    "def squash(s):\n",
+    "    msg_sq = torch.sum(s ** 2, dim=2, keepdim=True)\n",
+    "    msg = torch.sqrt(msg_sq)\n",
+    "    s = (msg_sq / (1.0 + msg_sq)) * (s / msg)\n",
+    "    return s"
+   ]
+  },
+  {
+   "cell_type": "markdown",
+   "metadata": {},
+   "source": [
+    "#### 3.2 Message Functions\n",
+    "At first stage, we need to define a message function to get all the attributes we need in the further computations."
+   ]
+  },
+  {
+   "cell_type": "code",
+   "execution_count": null,
+   "metadata": {},
+   "outputs": [],
+   "source": [
+    "def capsule_msg(src, edge):\n",
+    "    return {'b_ij': edge['b_ij'], 'h': src['h'], 'u_hat': edge['u_hat']}"
+   ]
+  },
+  {
+   "cell_type": "markdown",
+   "metadata": {},
+   "source": [

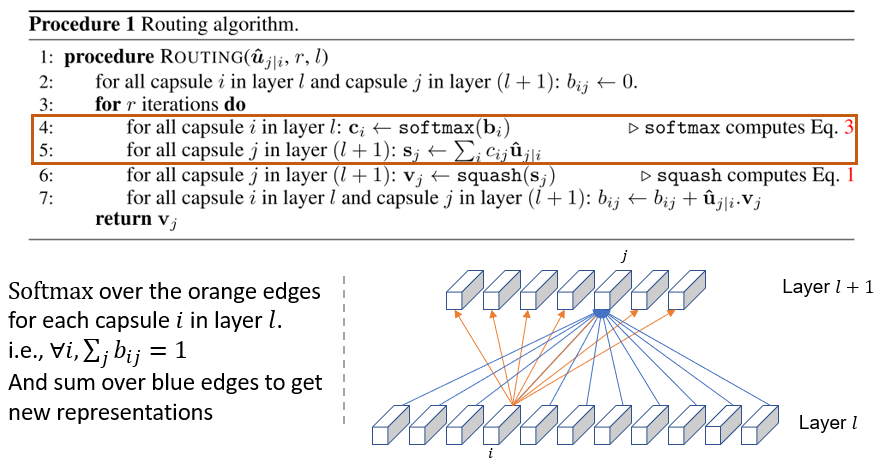

+    "#### 3.3 Reduce Functions\n",
+    "At this stage, we need to define a reduce function to aggregate all the information we get from message function into node features.\n",
+    "This step implements the line 4 and line 5 in routing algorithms, which softmax over $b_{ij}$ and calculate weighted sum of input features. Note that softmax operation is over dimension $j$ instead of $i$. \n",
+    "<img src=\"./capsule_f5.png\" style=\"height:300px\">"
+   ]
+  },
+  {
+   "cell_type": "code",
+   "execution_count": 8,
+   "metadata": {},
+   "outputs": [],
+   "source": [
+    "def capsule_reduce(node, msg):\n",
+    "    b_ij_c, u_hat = msg['b_ij'], msg['u_hat']\n",
+    "    # line 4\n",
+    "    c_i = F.softmax(b_ij_c, dim=0)\n",
+    "    # line 5\n",
+    "    s_j = (c_i.unsqueeze(2).unsqueeze(3) * u_hat).sum(dim=1)\n",
+    "    return {'h': s_j}"
+   ]
+  },
+  {
+   "cell_type": "markdown",
+   "metadata": {},
+   "source": [
+    "#### 3.4 Node Update Functions\n",
+    "Squash the intermidiate representations into node features $v_j$\n",
+    "![step6](./step6.png)"
+   ]
+  },
+  {
+   "cell_type": "code",
+   "execution_count": null,
+   "metadata": {},
+   "outputs": [],
+   "source": [
+    "def capsule_update(msg):\n",
+    "    # line 6\n",
+    "    v_j = squash(msg['h'])\n",
+    "    return {'h': v_j}"
+   ]
+  },
+  {
+   "cell_type": "markdown",
+   "metadata": {},
+   "source": [
+    "#### 3.5 Edge Update Functions\n",
+    "Update the routing parameters\n",
+    "![step7](./step7.png)"
+   ]
+  },
+  {
+   "cell_type": "code",
+   "execution_count": null,
+   "metadata": {},
+   "outputs": [],
+   "source": [
+    "def update_edge(self, u, v, edge):\n",
+    "    return {'b_ij': edge['b_ij'] + (v['h'] * edge['u_hat']).mean(dim=1).sum(dim=1)}"
+   ]
+  },
+  {
+   "cell_type": "markdown",
+   "metadata": {},
+   "source": [
+    "### 4. Executing algorithm\n",
+    "Call `update_all` and `update_edge` functions to execute the algorithms"
+   ]
+  },
+  {
+   "cell_type": "code",
+   "execution_count": null,
+   "metadata": {},
+   "outputs": [],
+   "source": [
+    "for i in range(self.num_routing):\n",
+    "    self.g.update_all(self.capsule_msg, self.capsule_reduce, self.capsule_update)\n",
+    "    self.g.update_edge(edge_func=self.update_edge)"
+   ]
+  },
+  {
+   "cell_type": "code",
+   "execution_count": null,
+   "metadata": {},
+   "outputs": [],
+   "source": []
+  }
+ ],
