add an example of ViT-B/16 and remove w_norm clipping in LAMB (#29)

colossalai/nn/optimizer/lamb.py

@@ -94,7 +94,7 @@ class Lamb(Optimizer):
                 # * math.sqrt(bias_correction2) / bias_correction1
                 step_size = group['lr']

-                weight_norm = p.data.pow(2).sum().sqrt().clamp(0, 10)
+                weight_norm = p.data.pow(2).sum().sqrt()

                 adam_step = exp_avg / exp_avg_sq.sqrt().add(group['eps'])
                 if group['weight_decay'] != 0:

examples/vit-b16/README.md

+# Overview
+
+Here is an example of training ViT-B/16 on Imagenet-1K. We use 8x A100 in this example. For simplicity and speed, we didn't apply `RandAug` and we just used `Mixup`. With `LAMB` optimizer, we can scale the batch size to 32K with a little accuracy loss.
+
+# How to run
+Using slurm:
+```shell
+srun python train_dali.py --local_rank=$SLURM_PROCID --world_size=$SLURM_NPROCS --host=$HOST --port=29500 --config=vit-b16.py
+```
+
+# Results
+

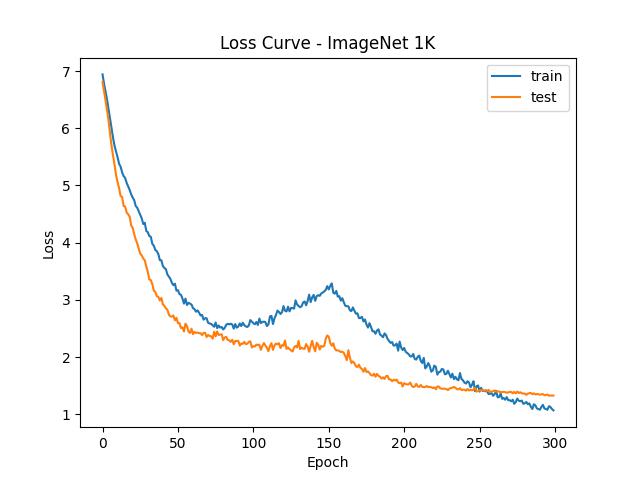

+![Loss Curve](./loss.jpeg)
+![Accuracy](./acc.jpeg)

examples/vit-b16/dataloader/imagenet_dali_dataloader.py

+from nvidia.dali.pipeline import Pipeline
+from nvidia.dali.plugin.pytorch import DALIClassificationIterator, LastBatchPolicy
+import nvidia.dali.fn as fn
+import nvidia.dali.types as types
+import nvidia.dali.tfrecord as tfrec
+import torch
+import numpy as np
+
+
+class DaliDataloader(DALIClassificationIterator):
+    def __init__(self,
+                 tfrec_filenames,
+                 tfrec_idx_filenames,
+                 shard_id=0,
+                 num_shards=1,
+                 batch_size=128,
+                 num_threads=4,
+                 resize=256,
+                 crop=224,
+                 prefetch=2,
+                 training=True,
+                 gpu_aug=False,
+                 cuda=True,
+                 mixup_alpha=0.0):
+        self.mixup_alpha = mixup_alpha
+        self.training = training
+        pipe = Pipeline(batch_size=batch_size,
+                        num_threads=num_threads,
+                        device_id=torch.cuda.current_device() if cuda else None,
+                        seed=1024)
+        with pipe:
+            inputs = fn.readers.tfrecord(
+                path=tfrec_filenames,
+                index_path=tfrec_idx_filenames,
+                random_shuffle=training,
+                shard_id=shard_id,
+                num_shards=num_shards,
+                initial_fill=10000,
+                read_ahead=True,
+                prefetch_queue_depth=prefetch,
+                name='Reader',
+                features={
+                    'image/encoded': tfrec.FixedLenFeature((), tfrec.string, ""),
+                    'image/class/label': tfrec.FixedLenFeature([1], tfrec.int64, -1),
+                })
+            images = inputs["image/encoded"]
+
+            if training:
+                images = fn.decoders.image(images,
+                                           device='mixed' if gpu_aug else 'cpu',
+                                           output_type=types.RGB)
+                images = fn.random_resized_crop(images,
+                                                size=crop,
+                                                device='gpu' if gpu_aug else 'cpu')
+                flip_lr = fn.random.coin_flip(probability=0.5)
+            else:
+                # decode jpeg and resize
+                images = fn.decoders.image(images,
+                                           device='mixed' if gpu_aug else 'cpu',
+                                           output_type=types.RGB)
+                images = fn.resize(images,
+                                   device='gpu' if gpu_aug else 'cpu',
+                                   resize_x=resize,
+                                   resize_y=resize,
+                                   dtype=types.FLOAT,
+                                   interp_type=types.INTERP_TRIANGULAR)
+                flip_lr = False
+
+            # center crop and normalise
+            images = fn.crop_mirror_normalize(images,
+                                              dtype=types.FLOAT,
+                                              crop=(crop, crop),
+                                              mean=[127.5],
+                                              std=[127.5],
+                                              mirror=flip_lr)
+            label = inputs["image/class/label"] - 1  # 0-999
+            # LSG: element_extract will raise exception, let's flatten outside
+            # label = fn.element_extract(label, element_map=0)  # Flatten
+            if cuda:  # transfer data to gpu
+                pipe.set_outputs(images.gpu(), label.gpu())
+            else:
+                pipe.set_outputs(images, label)
+
+        pipe.build()
+        last_batch_policy = 'DROP' if training else 'PARTIAL'
+        super().__init__(pipe, reader_name="Reader",
+                         auto_reset=True,
+                         last_batch_policy=last_batch_policy)
+
+    def __iter__(self):
+        # if not reset (after an epoch), reset; if just initialize, ignore
+        if self._counter >= self._size or self._size < 0:
+            self.reset()
+        return self
+
+    def __next__(self):
+        data = super().__next__()
+        img, label = data[0]['data'], data[0]['label']
+        label = label.squeeze()
+        if self.mixup_alpha > 0.0:
+            if self.training:
+                lam = np.random.beta(self.mixup_alpha, self.mixup_alpha)
+                idx = torch.randperm(img.size(0)).to(img.device)
+                img = lam * img + (1 - lam) * img[idx, :]
+                label_a, label_b = label, label[idx]
+                lam = torch.tensor([lam], device=img.device, dtype=img.dtype)
+                label = (label_a, label_b, lam)
+            else:
+                label = (label, label, torch.ones(
+                    1, device=img.device, dtype=img.dtype))
+            return (img,), label
+        return (img,), (label,)

examples/vit-b16/hooks.py

+from colossalai.registry import HOOKS
+from colossalai.trainer import BaseHook
+from colossalai.core import global_context as gpc
+from colossalai.context import ParallelMode
+
+
+@HOOKS.register_module
+class TotalBatchsizeHook(BaseHook):
+    def __init__(self, trainer, priority: int = 2) -> None:
+        super().__init__(trainer, priority)
+
+    def before_train(self):
+        total_batch_size = gpc.config.BATCH_SIZE * \
+            gpc.config.engine.gradient_accumulation * gpc.get_world_size(ParallelMode.DATA)
+        self.logger.info(f'Total batch size = {total_batch_size}', ranks=[0])

examples/vit-b16/mixup.py

+import torch.nn as nn
+from colossalai.registry import LOSSES
+
+@LOSSES.register_module
+class MixupLoss(nn.Module):
+    def __init__(self, loss_fn_cls):
+        super().__init__()
+        self.loss_fn = loss_fn_cls()
+
+    def forward(self, inputs, *args):
+        targets_a, targets_b, lam = args
+        return lam * self.loss_fn(inputs, targets_a) + (1 - lam) * self.loss_fn(inputs, targets_b)

examples/vit-b16/train_dali.py

+import glob
+import os
+import colossalai
+from colossalai.context import ParallelMode
+from colossalai.core import global_context as gpc
+from colossalai.logging import get_global_dist_logger
+from colossalai.trainer import Trainer
+from colossalai.utils import set_global_multitimer_status
+from dataloader.imagenet_dali_dataloader import DaliDataloader
+
+
+def build_dali_train():
+    root = gpc.config.dali.root
+    train_pat = os.path.join(root, 'train/*')
+    train_idx_pat = os.path.join(root, 'idx_files/train/*')
+    return DaliDataloader(
+        sorted(glob.glob(train_pat)),
+        sorted(glob.glob(train_idx_pat)),
+        batch_size=gpc.config.BATCH_SIZE,
+        shard_id=gpc.get_local_rank(ParallelMode.DATA),
+        num_shards=gpc.get_world_size(ParallelMode.DATA),
+        training=True,
+        gpu_aug=gpc.config.dali.gpu_aug,
+        cuda=True,
+        mixup_alpha=gpc.config.dali.mixup_alpha
+    )
+
+
+def build_dali_test():
+    root = gpc.config.dali.root
+    val_pat = os.path.join(root, 'validation/*')
+    val_idx_pat = os.path.join(root, 'idx_files/validation/*')
+    return DaliDataloader(
+        sorted(glob.glob(val_pat)),
+        sorted(glob.glob(val_idx_pat)),
+        batch_size=gpc.config.BATCH_SIZE,
+        shard_id=gpc.get_local_rank(ParallelMode.DATA),
+        num_shards=gpc.get_world_size(ParallelMode.DATA),
+        training=False,
+        # gpu_aug=gpc.config.dali.gpu_aug,
+        gpu_aug=False,
+        cuda=True,
+        mixup_alpha=gpc.config.dali.mixup_alpha
+    )
+
+
+def main():
+    engine, train_dataloader, test_dataloader = colossalai.initialize(
+        train_dataloader=build_dali_train,
+        test_dataloader=build_dali_test
+    )
+    logger = get_global_dist_logger()
+    set_global_multitimer_status(True)
+    timer = colossalai.utils.get_global_multitimer()
+    trainer = Trainer(engine=engine,
+                      verbose=True,
+                      timer=timer)
+
+    trainer.fit(
+        train_dataloader=train_dataloader,
+        test_dataloader=test_dataloader,
+        epochs=gpc.config.NUM_EPOCHS,
+        hooks_cfg=gpc.config.hooks,
+        display_progress=True,
+        test_interval=1
+    )
+
+
+if __name__ == '__main__':
+    main()

examples/vit-b16/vit-b16.py

+from colossalai.engine import AMP_TYPE
+from torch.nn import CrossEntropyLoss
+from mixup import MixupLoss
+from hooks import TotalBatchsizeHook
+from colossalai.registry import MODELS
+from timm.models import vit_base_patch16_224
+
+MODELS.register_module(vit_base_patch16_224)
+
+LOG_NAME = 'vit-b16-1k-32k-mixup-light2'
+# ViT Base
+BATCH_SIZE = 256
+DROP_RATE = 0.1
+NUM_EPOCHS = 300
+
+parallel = dict(
+    pipeline=dict(size=1),
+    tensor=dict(size=1, mode=None),
+)
+
+optimizer = dict(
+    type='Lamb',
+    lr=1.8e-2,
+    weight_decay=0.1,
+)
+
+
+loss = dict(
+    type='MixupLoss',
+    loss_fn_cls=CrossEntropyLoss
+)
+
+model = dict(
+    type='vit_base_patch16_224',
+    drop_rate=DROP_RATE,
+)
+
+hooks = [
+    dict(type='LogMetricByEpochHook'),
+    dict(type='AccuracyHook'),
+    dict(type='LossHook'),
+    dict(type='TotalBatchsizeHook'),
+    dict(type='TensorboardHook', log_dir=f'./tb_logs/{LOG_NAME}'),
+    dict(type='SaveCheckpointHook', interval=1,
+         checkpoint_dir=f'./ckpt/{LOG_NAME}'),
+    # dict(type='LoadCheckpointHook', epoch=10,
+    #      checkpoint_dir=f'./ckpt/{LOG_NAME}'),
+    dict(
+        type='LRSchedulerHook',
+        by_epoch=True,
+        lr_scheduler_cfg=dict(
+            type='LinearWarmupLR',
+            warmup_steps=150
+        )
+    ),
+]
+
+fp16 = dict(
+    mode=AMP_TYPE.TORCH,
+)
+
+
+logging = dict(
+    root_path=f"./logs/{LOG_NAME}"
+)
+
+dali = dict(
+    root='./dataset/ILSVRC2012_1k',
+    gpu_aug=True,
+    mixup_alpha=0.2
+)
+
+engine = dict(
+    schedule=None,
+    gradient_handlers=None,
+    gradient_accumulation=16,
+    gradient_clipping=1.0,
+)
