docs/debug.rst

+..
+    Copyright (c) 2022-2025, NVIDIA CORPORATION & AFFILIATES. All rights reserved.
+
+    See LICENSE for license information.
+Precision debug tools
+==============================================
+
+.. toctree::
+   :caption: Precision debug tools
+
+   debug/1_getting_started.rst
+   debug/2_config_file_structure.rst
+   debug/api
+   debug/4_distributed.rst
\ No newline at end of file

docs/debug/1_getting_started.rst

+..
+    Copyright (c) 2022-2025, NVIDIA CORPORATION & AFFILIATES. All rights reserved.
+
+    See LICENSE for license information.
+
+Getting started
+==============
+
+.. note::
+
+   Precision debug tools with `Nvidia-DL-Framework-Inspect <https://github.com/NVIDIA/nvidia-dlfw-inspect>`_ for Transformer Engine are currently supported only for PyTorch.
+
+Transformer Engine provides a set of precision debug tools which allow you to easily:
+
+- log the statistics for each of the tensors in every matrix multiply (GEMM) operation,
+- run selected GEMMs in higher precision,
+- run current scaling - with one scaling factor per tensor - for particular GEMMs,
+- test new precisions and integrate them with FP8 training,
+- ... and many more.
+
+There are 4 things one needs to do to use Transformer Engine debug features:
+
+1. Create a configuration YAML file to configure the desired features.
+2. Import, and initialize the `Nvidia-DL-Framework-Inspect <https://github.com/NVIDIA/nvidia-dlfw-inspect>`_ tool, which is installed as the dependency of the Transformer Engine.
+3. One can pass ``name="..."`` when creating TE layers to easier identify layer names. If this is not provided, names will be inferred automatically.
+4. Invoke ``debug_api.step()`` at the end of one forward-backward pass.
+
+To start debugging, one needs to create a configuration YAML file. This file lists the features to be used in particular layers. There are 2 kinds of features:
+
+- provided by the Transformer Engine - for example, DisableFP8GEMM or LogTensorStats - they are listed in the :doc:`debug features API <3_api_features>` section
+- defined by the user. For details on how to create a custom feature - please read the :doc:`calls to Nvidia-DL-Framework-Inspect <3_api_te_calls>` section.
+
+.. figure:: ./img/introduction.svg
+   :align: center
+
+   Fig 1: Example of Nvidia-DL-Framework-Inspect affecting training script with 3 TE Linear Layers.
+   ``config.yaml`` contains the specification of the features used for each Linear layer. Some feature classes are provided by TE,
+   one - ``UserProvidedPrecision`` - is a custom feature implemented by the user. Nvidia-DL-Framework-Inspect inserts features into the layers according to the config.
+
+Example training script
+----------------------
+
+Let's look at a simple example of training a Transformer layer using Transformer Engine with FP8 precision. This example demonstrates how to set up the layer, define an optimizer, and perform a few training iterations using synthetic data.
+
+.. code-block:: python
+
+    # train.py
+
+    from transformer_engine.pytorch import TransformerLayer
+    import torch
+    import torch.nn as nn
+    import torch.optim as optim
+    import transformer_engine.pytorch as te
+
+    hidden_size = 512
+    num_attention_heads = 8
+
+    transformer_layer = TransformerLayer(
+        hidden_size=hidden_size,
+        ffn_hidden_size=hidden_size,
+        num_attention_heads=num_attention_heads
+    ).cuda()
+
+    dummy_input = torch.randn(10, 32, hidden_size).cuda()
+    criterion = nn.MSELoss()
+    optimizer = optim.Adam(transformer_layer.parameters(), lr=1e-4)
+    dummy_target = torch.randn(10, 32, hidden_size).cuda()
+
+    for epoch in range(5):
+        transformer_layer.train()
+        optimizer.zero_grad()
+        with te.fp8_autocast(enabled=True):
+            output = transformer_layer(dummy_input)
+        loss = criterion(output, dummy_target)
+        loss.backward()
+        optimizer.step()
+
+We will demonstrate two debug features on the code above:
+
+1. Disabling FP8 precision for specific GEMM operations, such as the FC1 and FC2 forward propagation GEMM.
+2. Logging statistics for other GEMM operations, such as gradient statistics for data gradient GEMM within the LayerNormLinear sub-layer of the TransformerLayer.
+
+Config file
+----------
+
+We need to prepare the configuration YAML file, as below
+
+.. code-block:: yaml
+
+    # config.yaml
+
+    fc1_fprop_to_fp8:
+      enabled: True
+      layers:
+        layer_types: [fc1, fc2] # contains fc1 or fc2 in name
+      transformer_engine:
+        DisableFP8GEMM:
+          enabled: True
+          gemms: [fprop]
+
+    log_tensor_stats:
+      enabled: True
+      layers:
+        layer_types: [layernorm_linear] # contains layernorm_linear in name
+      transformer_engine:
+        LogTensorStats:
+          enabled: True
+          stats: [max, min, mean, std, l1_norm]
+          tensors: [activation]
+          freq: 1
+          start_step: 2
+          end_step: 5
+
+Further explanation on how to create config files is in the :doc:`next part of the documentation <2_config_file_structure>`.
+
+Adjusting Python file
+--------------------
+
+.. code-block:: python
+
+    # (...)
+
+    import nvdlfw_inspect.api as debug_api
+    debug_api.initialize(
+        config_file="./config.yaml",
+        feature_dirs=["/path/to/transformer_engine/debug/features"],
+        log_dir="./log",
+        default_logging_enabled=True)
+
+    # initialization of the TransformerLayer with the name
+    transformer_layer = TransformerLayer(
+      name="transformer_layer",
+      # ...)
+
+    # (...)
+    for epoch in range(5):
+      # forward and backward pass
+      # ...
+      debug_api.step()
+
+In the modified code above, the following changes were made:
+
+1. Added an import for ``nvdlfw_inspect.api``.
+2. Initialized the Nvidia-DL-Framework-Inspect by calling ``debug_api.initialize()`` with appropriate configuration, specifying the path to the config file, feature directories, and log directory.
+3. Added ``debug_api.step()`` after each of the forward-backward pass.
+
+Inspecting the logs
+------------------
+
+Let's look at the files with the logs. Two files will be created:
+
+1. debug logs.
+2. statistics logs.
+
+Let's look inside them!
+
+In the main log file, you can find detailed information about the transformer layer's GEMMs behavior. You can see that ``fc1`` and ``fc2`` fprop GEMMs are run in high precision, as intended.
+
+.. code-block:: text
+
+    # log/nvdlfw_inspect_logs/nvdlfw_inspect_globalrank-0.log
+
+    INFO - Default logging to file enabled at ./log
+    INFO - Reading config from ./config.yaml.
+    INFO - Loaded configs for dict_keys(['fc1_fprop_to_fp8', 'log_tensor_stats']).
+    INFO - transformer_layer.self_attention.layernorm_qkv: Tensor: activation, gemm fprop - FP8 quantization
+    INFO - transformer_layer.self_attention.layernorm_qkv: Tensor: activation, gemm wgrad - FP8 quantization
+    INFO - transformer_layer.self_attention.layernorm_qkv: Tensor: weight, gemm fprop - FP8 quantization
+    INFO - transformer_layer.self_attention.layernorm_qkv: Tensor: weight, gemm dgrad - FP8 quantization
+    INFO - transformer_layer.self_attention.layernorm_qkv: Tensor: gradient, gemm dgrad - FP8 quantization
+    INFO - transformer_layer.self_attention.layernorm_qkv: Tensor: gradient, gemm wgrad - FP8 quantization
+    INFO - transformer_layer.self_attention.proj: Tensor: activation, gemm fprop - FP8 quantization
+    INFO - transformer_layer.self_attention.proj: Tensor: activation, gemm wgrad - FP8 quantization
+    INFO - transformer_layer.self_attention.proj: Tensor: weight, gemm fprop - FP8 quantization
+    INFO - transformer_layer.self_attention.proj: Tensor: weight, gemm dgrad - FP8 quantization
+    INFO - transformer_layer.self_attention.proj: Tensor: gradient, gemm dgrad - FP8 quantization
+    INFO - transformer_layer.self_attention.proj: Tensor: gradient, gemm wgrad - FP8 quantization
+    INFO - transformer_layer.layernorm_mlp.fc1: Tensor: activation, gemm fprop - High precision
+    INFO - transformer_layer.layernorm_mlp.fc1: Tensor: activation, gemm wgrad - FP8 quantization
+    INFO - transformer_layer.layernorm_mlp.fc1: Tensor: weight, gemm fprop - High precision
+    INFO - transformer_layer.layernorm_mlp.fc1: Tensor: weight, gemm dgrad - FP8 quantization
+    INFO - transformer_layer.layernorm_mlp.fc1: Tensor: gradient, gemm dgrad - FP8 quantization
+    INFO - transformer_layer.layernorm_mlp.fc1: Tensor: gradient, gemm wgrad - FP8 quantization
+    INFO - transformer_layer.layernorm_mlp.fc2: Tensor: activation, gemm fprop - High precision
+    INFO - transformer_layer.layernorm_mlp.fc2: Tensor: activation, gemm wgrad - FP8 quantization
+    INFO - transformer_layer.layernorm_mlp.fc2: Tensor: weight, gemm fprop - High precision
+    INFO - transformer_layer.layernorm_mlp.fc2: Tensor: weight, gemm dgrad - FP8 quantization
+    INFO - transformer_layer.layernorm_mlp.fc2: Tensor: gradient, gemm dgrad - FP8 quantization
+    INFO - transformer_layer.layernorm_mlp.fc2: Tensor: gradient, gemm wgrad - FP8 quantization
+    INFO - transformer_layer.self_attention.layernorm_qkv: Feature=LogTensorStats, API=look_at_tensor_before_process: activation
+    ....
+
+The second log file (``nvdlfw_inspect_statistics_logs/nvdlfw_inspect_globalrank-0.log``) contains statistics for tensors we requested in ``config.yaml``.
+
+.. code-block:: text
+
+    # log/nvdlfw_inspect_statistics_logs/nvdlfw_inspect_globalrank-0.log
+
+    INFO - transformer_layer.self_attention.layernorm_qkv_activation_max                 iteration=000002                  value=4.3188
+    INFO - transformer_layer.self_attention.layernorm_qkv_activation_min                 iteration=000002                  value=-4.3386
+    INFO - transformer_layer.self_attention.layernorm_qkv_activation_mean                iteration=000002                  value=0.0000
+    INFO - transformer_layer.self_attention.layernorm_qkv_activation_std                 iteration=000002                  value=0.9998
+    INFO - transformer_layer.self_attention.layernorm_qkv_activation_l1_norm             iteration=000002                  value=130799.6953
+    INFO - transformer_layer.self_attention.layernorm_qkv_activation_max                 iteration=000003                  value=4.3184
+    INFO - transformer_layer.self_attention.layernorm_qkv_activation_min                 iteration=000003                  value=-4.3381
+    INFO - transformer_layer.self_attention.layernorm_qkv_activation_mean                iteration=000003                  value=0.0000
+    INFO - transformer_layer.self_attention.layernorm_qkv_activation_std                 iteration=000003                  value=0.9997
+    INFO - transformer_layer.self_attention.layernorm_qkv_activation_l1_norm             iteration=000003                  value=130788.1016
+    INFO - transformer_layer.self_attention.layernorm_qkv_activation_max                 iteration=000004                  value=4.3181
+    INFO - transformer_layer.self_attention.layernorm_qkv_activation_min                 iteration=000004                  value=-4.3377
+    INFO - transformer_layer.self_attention.layernorm_qkv_activation_mean                iteration=000004                  value=0.0000
+    INFO - transformer_layer.self_attention.layernorm_qkv_activation_std                 iteration=000004                  value=0.9996
+    INFO - transformer_layer.self_attention.layernorm_qkv_activation_l1_norm             iteration=000004                  value=130776.7969
+
+Logging using TensorBoard
+------------------------
+
+Precision debug tools support logging using `TensorBoard <https://www.tensorflow.org/tensorboard>`_. To enable it, one needs to pass the argument ``tb_writer`` to the ``debug_api.initialize()``.  Let's modify ``train.py`` file.
+
+.. code-block:: python
+
+    # (...)
+
+    from torch.utils.tensorboard import SummaryWriter
+    tb_writer = SummaryWriter('./tensorboard_dir/run1')
+
+    # add tb_writer to the Debug API initialization
+    debug_api.initialize(
+        config_file="./config.yaml",
+        feature_dirs=["/path/to/transformer_engine/debug/features"],
+        log_dir="./log",
+        tb_writer=tb_writer)
+
+    # (...)
+
+Let's run training and open TensorBoard by ``tensorboard --logdir=./tensorboard_dir/run1``:
+

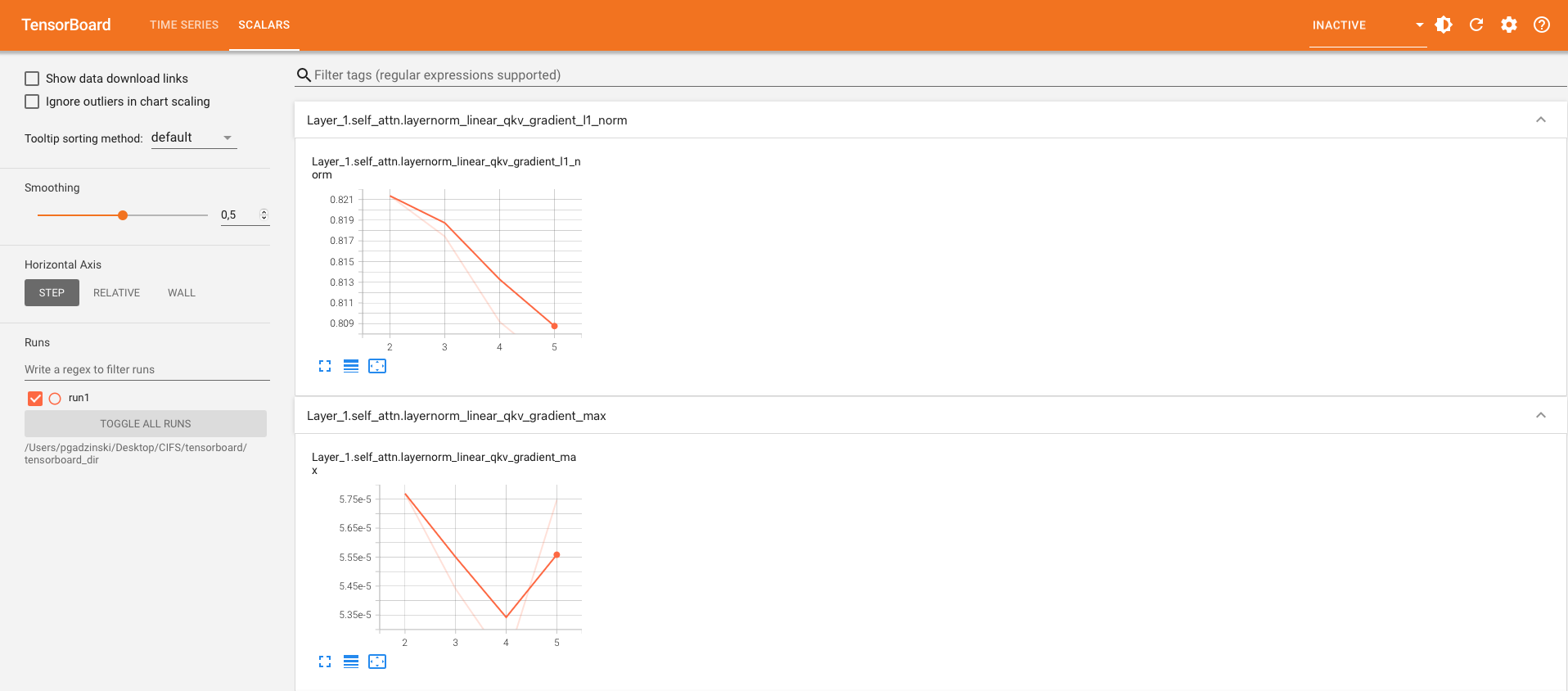

+.. figure:: ./img/tensorboard.png
+   :align: center
+
+   Fig 2: TensorBoard with plotted stats.
\ No newline at end of file

docs/debug/2_config_file_structure.rst

+..
+    Copyright (c) 2022-2025, NVIDIA CORPORATION & AFFILIATES. All rights reserved.
+
+    See LICENSE for license information.
+
+Config File Structure
+====================
+
+To enable debug features, create a configuration YAML file to specify the desired behavior, such as determining which GEMMs (General Matrix Multiply operations) should run in higher precision rather than FP8 and defining which statistics to log.
+Below, we outline how to structure the configuration YAML file.
+
+General Format
+-------------
+
+A config file can have one or more sections, each containing settings for specific layers and features:
+
+.. code-block:: yaml
+
+    section_name_1:
+      enabled: ...
+      layers:
+        # Specify layers here...
+      transformer_engine:
+        Feature1Name:
+          enabled: ...
+          # Feature details...
+        Feature2Name:
+          enabled: ...
+          # Feature details...
+
+    section_name_2:
+      enabled: ...
+      layers:
+        # Specify layers here...
+      Feature1Name: # If feature has no namespace, then it is in the default namespace.
+        enabled: ...
+        # Feature details...
+
+    section_name_3:
+      enabled: ...
+      layers:
+        # Specify layers here...
+      transformer_engine:
+        Feature1Name:
+          enabled: ...
+          # Feature details...
+        Feature2Name:
+          enabled: ...
+          # Feature details...
+
+Sections may have any name and must contain:
+
+1. An ``enabled`` field that specifies whether the features in that section will be active.
+2. A ``layers`` field specifying which layers the section applies to. Each layer can belong to only one section.
+3. Additional fields describing features for those layers.
+
+Layer Specification
+------------------
+
+Debug layers can be identified by a ``name`` parameter:
+
+.. code-block:: python
+
+    linear = transformer_engine.debug.pytorch.Linear(in_features, out_features, name="linear1")
+
+This name is used in the config file to identify the layer. To specify the ``layers`` field, you can use one of the following methods:
+
+1. ``layer_name_regex_pattern``: Use a regular expression to match layer names. This expression must adhere to the Python ``re`` module syntax.
+2. ``layer_types``: Provide a list of strings, where a layer will be selected if any string matches part of its name.
+
+Examples:
+
+.. code-block:: yaml
+
+    # Example 1: Using regular expression to select layers
+    my_section:
+      enabled: ...
+      layers:
+        layer_name_regex_pattern: 'self_attn.*'
+      transformer_engine:
+        (...)
+
+    # Example 2: Using layer type to select layers
+    another_section:
+      enabled: ...
+      layers:
+        layer_types: ['fc1', 'layernorm_linear']
+      transformer_engine:
+        (...)
+
+Names in Transformer Layers
+--------------------------
+
+There are three ways to assign a name to a layer in the Transformer Engine:
+
+- Initialize the layer with the ``name=...`` argument.
+- Use ``debug_api.infer_and_assign_layer_names(model)``, which assigns names based on class names.
+- Rely on the default names assigned during module initialization, such as ``Layer_n``, where ``n`` represents the layer number.
+
+The ``TransformerLayer`` in Transformer Engine is a composition of multiple sub-layers. We can modify some of these layers using precision debug tools, particularly those that contain exactly one linear layer. To see the names of all such layers, we can inspect log files. For instance, a ``TransformerLayer`` named ``transformer_layer`` might consist of:
+
+- ``transformer_layer.self_attn.layernorm_linear_qkv`` / ``transformer_layer.self_attn.linear_qkv`` / ``transformer_layer.self_attn.layernorm_linear_q`` / ``transformer_layer.self_attn.linear_q`` / ``transformer_layer.self_attn.linear_kv``,
+- ``transformer_layer.self_attn.proj``,
+- ``transformer_layer.inter_attn.*`` for ``layer_type="decoder"``,
+- ``transformer_layer.layernorm_mlp.fc1``,
+- ``transformer_layer.layernorm_mlp.fc2``,
+
+depending on the configuration. Some layers, like ``LayerNormLinear``, are fusions of two layers: ``LayerNorm`` and ``Linear``. When referring to such layers in precision debug tools, only the ``Linear`` part is affected.
+
+Below is an example ``TransformerLayer`` with four linear layers that can be influenced by the precision debug tools.
+
+.. figure:: ./img/names.svg
+   :align: center
+   :width: 80%
+
+   Fig 1: Names of layers in an example configuration of TransformerLayer. The most nested blocks represent the most basic layers, each containing one linear layer. Layers that do not contain linear layers, such as ``DotProductAttention``, are omitted.
+
+**Configuration File Example**
+
+.. code-block:: yaml
+
+    # Disables wgrad in all 4 GEMMs
+    section1:
+      enabled: True
+      layers:
+        layer_types: [transformer_layer]
+      transformer_engine:
+        DisableFP8GEMM:
+          enabled: True
+          gemms: [wgrad]
+
+    # Disables all GEMMs in layernorm_mlp layer
+    section2:
+      enabled: True
+      layers:
+        layer_types: [layernorm_mlp]
+      transformer_engine:
+        DisableFP8Layer:
+          enabled: True
+
+    # Logs wgrad stats in fc1
+    section3:
+      enabled: True
+      layers:
+        layer_types: [fc1]
+      transformer_engine:
+        LogTensorStats:
+          enabled: True
+          stats: [min]
+          tensors: [wgrad]
+          freq: 1
+          start_step: 0
+          end_step: 50
+
+
+Structured Configuration for GEMMs and Tensors
+---------------------------------------------
+
+Sometimes a feature is parameterized by a list of tensors or by a list of GEMMs.
+There are multiple ways of describing this parameterization.
+
+We can pass lists, as below.
+
+.. code-block:: yaml
+
+    Feature:
+      enabled: ...
+      gemms: [gemm1, gemm2]
+      tensors: [tensor1, tensor2]
+      ...
+
+We can use struct for tensors.
+
+.. code-block:: yaml
+
+    Feature:
+      gemms: [gemm1, gemm2]
+      tensors_struct:
+      - tensor: tensor1
+        feature_param1: value
+      - tensor: tensor2
+        feature_param1: value
+      gemm_feature_param1: value
+
+Similarly, we can use struct for GEMMs.
+
+.. code-block:: yaml
+
+    Feature:
+      enabled: ...
+      tensors: [tensor1, tensor2]
+      gemms_struct:
+      - gemm: gemm1
+        feature_param1: value
+      - gemm: gemm2
+        feature_param1: value
+      gemm_feature_param1: value
+
+We can use both structs for tensors and GEMMs. The tensors_struct should be nested inside gemms_struct.
+
+.. code-block:: yaml
+
+    Feature:
+      enabled: ...
+      gemms_struct:
+        - gemm: gemm1
+          tensors: [tensor1, tensor2]
+          tensor_feature_param1: value
+          gemm_feature_param1: value
+        - gemm: gemm2
+          tensors_struct:
+          - tensor: tensor1
+            tensor_feature_param1: value
+          - tensor: tensor2
+            tensor_feature_param2: value
+          gemm_feature_param1: value
+
+Enabling or Disabling Sections and Features
+------------------------------------------
+
+Debug features can be enabled or disabled with the ``enabled`` keyword:
+
+.. code-block:: yaml
+
+    section1:
+      enabled: True
+      layers:
+        layer_types: [self_attention]
+      transformer_engine:
+        LogTensorStats:
+          enabled: False # Disables the LogTensorStats feature
+          stats: [max, min, mean, std, l1_norm]
+
+    section2:
+      enabled: False # Disables entire section2
+      transformer_engine:
+        LogFp8TensorStats:
+          enabled: True # Does not enable the LogFp8TensorStats feature, because section2 is disabled
+          stats: [underflows, overflows]
+
+By organizing your ``config.yaml`` properly, you can easily manage debugging features, ensuring a more streamlined and customizable debugging experience.

docs/debug/3_api_debug_setup.rst

+..
+    Copyright (c) 2022-2025, NVIDIA CORPORATION & AFFILIATES. All rights reserved.
+
+    See LICENSE for license information.
+
+Setup
+=====
+
+Precision debug tools for the Transformer Engine use `Nvidia-DL-Framework-Inspect <https://github.com/NVIDIA/nvidia-dlfw-inspect>`_ package from NVIDIA.
+Please refer to the Nvidia-DL-Framework-Inspect `documentation <https://github.com/NVIDIA/nvidia-dlfw-inspect/tree/main/docs>`_ for more details.
+Below, we outline the steps for debug initialization.
+
+initialize()
+-----------
+
+Must be called once on every rank in the global context to initialize Nvidia-DL-Framework-Inspect.
+
+**Parameters**
+
+- **config_file** (*str*, default=""): Path to the configuration YAML file containing features to enable and layer names. If one wants to run without the configuration file, pass ``""``.
+- **feature_dirs** (*List[str] | str*): List of directories containing features to load and register. One needs to pass ``[/path/to/transformerengine/transformer_engine/debug/features]`` to use TE features.
+- **logger** (*Union[BaseLogger, None]*, default=None): Logger for logging tensor statistics. Should adhere to ``BaseLogger`` from the `Nvidia-DL-Framework-Inspect <https://github.com/NVIDIA/nvidia-dlfw-inspect>`_ package.
+- **log_dir** (*str*, default= "."): Directory path to hold ``debug_logs`` and ``debug_statistics_logs``.
+- **tb_writer** (*TensorBoardWriter*, default=None): TensorBoard writer for logging.
+- **default_logging_enabled** (*bool*, default=False): Enable default logging to the file.
+
+.. code-block:: python
+
+    import nvdlfw_inspect.api as debug_api
+
+    debug_api.initialize(
+        config_file="./config.yaml",
+        feature_dirs=["/path/to/transformer_engine/debug/features"],
+        log_dir="./log_dir")
+
+set_tensor_reduction_group()
+--------------------------
+
+Needed only for logging tensor stats. In multi-GPU training, activation and gradient tensors are distributed across multiple nodes. This method lets you specify the group for the reduction of stats; see the `reduction group section <./4_distributed.rst#reduction-groups>`_ for more details.
+
+If the tensor reduction group is not specified, then statistics are reduced across all nodes in the run.
+
+**Parameters**
+
+- **group** (torch.distributed.ProcessGroup): The process group across which tensors will be reduced to get stats.
+
+
+.. code-block:: python
+
+    import nvdlfw_inspect.api as debug_api
+
+    # initialization
+    # (...)
+
+    pipeline_parallel_group = initialize_pipeline_parallel_group()
+
+    debug_api.set_tensor_reduction_group(pipeline_parallel_group)
+
+    # training
+    # (...)
+    # activation/gradient tensor statistics are reduced along pipeline_parallel_group
+
+set_weight_tensor_tp_group_reduce()
+---------------------------------
+
+By default, weight tensor statistics are reduced within the tensor parallel group. This function allows you to disable that behavior; for more details, see `reduction group section <./4_distributed.rst#reduction-groups>`_.
+
+This method is not provided by the ``debug_api``, but by the ``transformer_engine.debug``.
+
+**Parameters**
+
+- **enabled** (*bool*, default=True): A boolean flag to enable or disable the reduction of weight tensor statistics within the tensor parallel group.
+
+
+.. code-block:: python
+
+    import nvdlfw_inspect.api as debug_api
+    from transformer_engine.debug import set_weight_tensor_tp_group_reduce
+
+    # initialization
+    # (...)
+
+    set_weight_tensor_tp_group_reduce(False)
+
+    # training
+    # (...)
+    # weight tensor statistics are not reduced

docs/debug/3_api_features.rst

+..
+    Copyright (c) 2022-2025, NVIDIA CORPORATION & AFFILIATES. All rights reserved.
+
+    See LICENSE for license information.
+
+Debug features
+==========
+
+.. autoapiclass:: transformer_engine.debug.features.log_tensor_stats.LogTensorStats
+.. autoapiclass:: transformer_engine.debug.features.log_fp8_tensor_stats.LogFp8TensorStats
+.. autoapiclass:: transformer_engine.debug.features.disable_fp8_gemm.DisableFP8GEMM
+.. autoapiclass:: transformer_engine.debug.features.disable_fp8_layer.DisableFP8Layer
+.. autoapiclass:: transformer_engine.debug.features.per_tensor_scaling.PerTensorScaling
+.. autoapiclass:: transformer_engine.debug.features.fake_quant.FakeQuant

docs/debug/3_api_te_calls.rst

+..
+    Copyright (c) 2022-2025, NVIDIA CORPORATION & AFFILIATES. All rights reserved.
+
+    See LICENSE for license information.
+
+Calls to Nvidia-DL-Framework-Inspect
+====================================
+Let's look deeper into how Nvidia-DL-Framework-Inspect with Transformer Engine work together. TransformerEngine layers have some hook calls inside each of the GEMMs. Users can define feature classes or use feature classes provided with TE. File ``config.yaml`` describes which hooks need to be used for which layers. Nvidia-DL-Framework-Inspect combines 3 things: TE training, feature classes and ``config.yaml`` and takes care of inserting hooks in the correct places. This process is illustrated in the image below.
+
+.. figure:: ./img/api_calls1.svg
+   :align: center
+
+   Fig 1: Example of Nvidia-DL-Framework-Inspect affecting training script with 1 Linear Layer. For tensors mentioned in ``config.yaml``, behavior of ``modify_tensor_enabled()`` and ``modify_tensor()`` calls are substituted with definitions from the feature class. Other calls return default values - in fact they do nothing.
+
+In this page, all calls from TransformerEngine to the Nvidia-DL-Framework-Inspect for each GEMM are listed. The order of these calls is illustrated in the image below.
+
+.. figure:: ./img/api_calls2.svg
+   :align: center
+
+   Fig 2: The calls to Nvidia-DL-Framework-Inspect done for Transformer Engine. There are 2 types of calls: GEMM calls and routing calls.
+
+
+There are 2 categories of API calls, each is used for different purposes:
+
+- GEMM calls - invoked during every GEMM, used to process or quantize tensors and collect information about them,
+- Routing calls - invoked at the beginning of every forward pass - they indicate whether a feature is going to use `modify_tensor()`, etc.
+
+If all routing calls for the layer return `False`, then the layer is invoked in an optimized version with Transformer Engine fusions.
+If any of the routing calls return `True`, layers are run without the fusions. This is necessary because otherwise some tensors cannot be accessed
+if fusions happen. An important remark is that if no feature is used for the layer, then it should perform as fast as the layer without initializing `debug_api`.
+
+
+.. autoapifunction:: transformer_engine.debug.features.api.TEDefaultFeatures.modify_tensor
+
+.. autoapifunction:: transformer_engine.debug.features.api.TEDefaultFeatures.inspect_tensor
+
+.. autoapifunction:: transformer_engine.debug.features.api.TEDefaultFeatures.inspect_tensor_postquantize
+
+.. autoapifunction:: transformer_engine.debug.features.api.TEDefaultFeatures.modify_tensor_enabled
+
+.. autoapifunction:: transformer_engine.debug.features.api.TEDefaultFeatures.fp8_gemm_enabled
+
+.. autoapifunction:: transformer_engine.debug.features.api.TEDefaultFeatures.inspect_tensor_enabled
+
+.. autoapifunction:: transformer_engine.debug.features.api.TEDefaultFeatures.inspect_tensor_postquantize_enabled

docs/debug/4_distributed.rst

+..
+    Copyright (c) 2022-2025, NVIDIA CORPORATION & AFFILIATES. All rights reserved.
+
+    See LICENSE for license information.
+
+Distributed training
+===================
+
+Nvidia-Pytorch-Inspect with Transformer Engine supports multi-GPU training. This guide describes how to run it and how the supported features work in the distributed setting.
+
+To use precision debug tools in multi-GPU training, one needs to:
+
+1. Run ``debug_api.initialize(...)`` and provide the same configuration YAML file on every node.
+2. If one wants to log stats, one may want to invoke ``debug_api.set_tensor_reduction_group`` with a proper reduction group.
+
+Behavior of the features
+-----------------------
+
+In a distributed setting, **DisableFP8GEMM** and **DisableFP8Layer** function similarly to the single-GPU case, with no notable differences.
+
+**PerTensorScaling** and **FakeQuant** calculate FP8 scaling factors independently on each node, meaning the number of GPUs may affect results. This differs from the delayed scaling FP8 recipe behavior, in which scaling factors are synchronized.
+
+.. figure:: ./img/scaling_factors.svg
+   :align: center
+
+   Fig 1:  For **PerTensorScaling** and **FakeQuant** tensor scaling factors are computed separately for each of the tensor shards. This is not the case for delayed scaling FP8 scaling factors, which are synchronized.
+
+Logging-related features are more complex and will be discussed further in the next sections.
+
+Reduction groups
+--------------
+
+In setups with tensor, data, or pipeline parallelism, some tensors are distributed across multiple GPUs, requiring a reduction operation to compute statistics for these tensors.
+
+The weight tensor is always split among the tensor parallel group, and debug tools automatically reduce statistics within this group by default. To disable this automatic reduction, use:
+
+.. code-block:: python
+
+    transformer_engine.debug.set_weight_tensor_tp_group_reduce(False)
+
+In cases of data parallelism, Transformer Engine modules lack the process group needed for reduction. To manually specify the group, use:
+
+.. code-block:: python
+
+    debug_api.set_tensor_reduction_group(group)
+
+This command ensures statistics are reduced across the defined group. Activation statistics are logged after the forward pass (immediately after exiting autocast), while gradient (dgrad and wgrad) statistics are logged following the backward pass.
+
+Below, we illustrate configurations for a 4-node setup with tensor parallelism size 2 and data parallelism size 2, showcasing different reduction configurations.
+
+.. figure:: ./img/reduction1.svg
+   :align: center
+
+   Fig 2: There is a single tensor reduction group composed of all nodes. As a result, each node logs the same statistics for the tensors, as they are fully reduced across all nodes.
+
+.. figure:: ./img/reduction2.svg
+   :align: center
+
+   Fig 3: Every node is set with a tensor reduction group consisting of itself. Every node prints the same statistics for weights (which are still synchronized within TP groups), but the statistics of activations and gradients are not synchronized.
+
+.. figure:: ./img/reduction3.svg
+   :align: center
+
+   Fig 4: Weight synchronization is disabled by ``set_weight_tensor_tp_group_reduce(False)``, so every node logs stats for its shard of the weight.
+
+
+Microbatching
+-----------
+
+Let's dive into how statistics collection works with microbatching. By microbatching, we mean invoking multiple ``forward()`` calls for each ``debug_api.step()``. The behavior is as follows:
+
+- For weight tensors, the stats remain the same for each microbatch because the weight does not change.
+- For other tensors, the stats are accumulated.
+
+Logging to files and TensorBoard
+------------------------------
+
+In a single-node setup with ``default_logging_enabled=True``, all logs are saved by default to ``log_dir/nvdlfw_inspect_statistics_logs/nvdlfw_inspect_globalrank-0.log``. In multi-GPU training, each node writes its reduced statistics to its unique file, named ``log_dir/nvdlfw_inspect_statistics_logs/nvdlfw_inspect_globalrank-i.log`` for rank i. Because these logs contain reduced statistics, the logged values are identical for all nodes within a reduction group.
+
+If certain nodes are given a TensorBoard writer, only those nodes will log to TensorBoard. This is useful in scenarios involving pipeline, data, and tensor parallelism, such as with two transformer layers and settings TP_SIZE = 2, DP_SIZE = 2, and PP_SIZE = 2. To log all stats to TensorBoard, you should pass a TensorBoard writer to one process in each pipeline parallel group.
+
+.. figure:: ./img/pipeline_logging.svg
+   :align: center
+
+   Fig 5: Example with pipeline parallelism, where a ``tb_writer`` is assigned to one node within each pipeline parallel group, setting these as tensor reduction groups.
+
+Alternatively, setting the tensor reduction group to None will yield unreduced statistics for wgrad and dgrad tensors on each node, allowing for post-processing. For weight statistics without reduction in the TP parallel group, use:
+
+.. code-block:: python
+
+    transformer_engine.debug.set_weight_tensor_tp_group_reduce(False)
\ No newline at end of file

docs/debug/api.rst

+..
+    Copyright (c) 2022-2025, NVIDIA CORPORATION & AFFILIATES. All rights reserved.
+
+    See LICENSE for license information.
+API
+============
+
+.. toctree::
+   :caption: Precision debug tools API
+
+   3_api_debug_setup.rst
+   3_api_features.rst
+   3_api_te_calls.rst
\ No newline at end of file

docs/debug/img/api_calls2.svg

+<svg width="4235" height="2342" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" xml:space="preserve" overflow="hidden"><g transform="translate(-41 -119)"><g><rect x="46.4999" y="1576.5" width="1564" height="734" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FFFFFF" fill-opacity="1"/><rect x="630.5" y="125.5" width="580" height="151" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FFFFFF" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 786.823 225)">Tensor A</text><rect x="303.5" y="337.5" width="1234" height="106" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 684.099 414)">inspect_tensor</text><rect x="1258.5" y="596.5" width="617" height="106" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FFFFFF" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1440.36 673)">fp8 </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1557.81 673)">cast</text><rect x="114.5" y="596.5" width="683" height="106" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 227.611 673)">modify_tensor</text><rect x="303.5" y="826.5" width="1234" height="106" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 460.753 903)">inspect_tensor_postquantize</text><rect x="1583.5" y="1123.5" width="1234" height="106" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FFFFFF" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2095.73 1200)">GEMM</text><rect x="1583.5" y="1310.5" width="1234" height="106" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1963.85 1387)">inspect_tensor</text><rect x="1859.5" y="1499.5" width="682" height="106" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1972.18 1576)">modify_tensor</text><rect x="115.5" y="1956.5" width="1402" height="106" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 434.13 2033)">inspect_tensor_enabled</text><rect x="115.5" y="2103.5" width="1402" height="106" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 210.785 2180)">inspect_tensor_postquantize_enabled</text><rect x="115.5" y="1660.5" width="1402" height="106" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 502.961 1737)">fp8_gemm_enabled</text><rect x="115.5" y="1808.5" width="1402" height="106" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 442.461 1885)">modify_tensor_enabled</text><path d="M1.07643-3.26461 444.129 142.822 441.977 149.351-1.07643 3.26461ZM443.006 131.593 464.817 153.263 434.395 157.71Z" fill="#000000" fill-rule="nonzero" fill-opacity="1" transform="matrix(-1 0 0 1 920.317 443.5)"/><path d="M921.293 440.155 1545.58 588.133 1543.99 594.822 919.707 446.845ZM1543.5 577.041 1567.09 596.763 1537.16 603.8Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><path d="M923.938 443.5 923.938 803.572 917.063 803.572 917.063 443.5ZM934.25 798.988 920.5 826.488 906.75 798.988Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><path d="M456.384 699.178 899.056 817.032 897.288 823.676 454.616 705.822ZM897.281 805.888 920.317 826.25 890.206 832.462Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><path d="M0.646175-3.37622 624.723 116.066 623.431 122.818-0.646175 3.37622ZM622.16 105.076 646.585 123.75 616.991 132.085Z" fill="#000000" fill-rule="nonzero" fill-opacity="1" transform="matrix(-1 0 0 1 1567.09 702.5)"/><rect x="2945.5" y="125.5" width="579" height="151" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FFFFFF" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3100.27 225)">Tensor B</text><rect x="2617.5" y="337.5" width="1234" height="106" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2998.12 414)">inspect_tensor</text><rect x="3572.5" y="596.5" width="617" height="106" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FFFFFF" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3754.39 673)">fp8 </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3871.84 673)">cast</text><rect x="2428.5" y="596.5" width="683" height="106" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2541.64 673)">modify_tensor</text><rect x="2617.5" y="826.5" width="1234" height="106" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2774.78 903)">inspect_tensor_postquantize</text><path d="M1.07643-3.26461 444.129 142.822 441.976 149.351-1.07643 3.26461ZM443.006 131.593 464.817 153.263 434.394 157.71Z" fill="#000000" fill-rule="nonzero" fill-opacity="1" transform="matrix(-1 0 0 1 3234.32 443.5)"/><path d="M3235.29 440.155 3859.58 588.133 3857.99 594.822 3233.71 446.845ZM3857.5 577.041 3881.09 596.763 3851.16 603.8Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><path d="M3237.94 443.5 3237.94 803.572 3231.06 803.572 3231.06 443.5ZM3248.25 798.988 3234.5 826.488 3220.75 798.988Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><path d="M2770.38 699.178 3213.06 817.032 3211.29 823.676 2768.62 705.822ZM3211.28 805.888 3234.32 826.25 3204.21 832.462Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><path d="M0.646175-3.37622 624.723 116.066 623.431 122.818-0.646175 3.37622ZM622.16 105.076 646.585 123.75 616.991 132.085Z" fill="#000000" fill-rule="nonzero" fill-opacity="1" transform="matrix(-1 0 0 1 3881.09 702.5)"/><path d="M921.009 929.1 2178.11 1117.2 2177.09 1124 919.991 935.9ZM2175.09 1106.33 2200.26 1123.99 2171.02 1133.52Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><path d="M0.625813-3.38005 1012.36 183.941 1011.11 190.702-0.625813 3.38005ZM1009.73 172.967 1034.27 191.493 1004.72 200.007Z" fill="#000000" fill-rule="nonzero" fill-opacity="1" transform="matrix(-1 0 0 1 3234.77 932.5)"/><path d="M3.4375-1.54131e-05 3.43776 57.5713-3.43724 57.5714-3.4375 1.54131e-05ZM13.7502 52.988 0.000360892 80.488-13.7498 52.9881Z" fill="#000000" fill-rule="nonzero" fill-opacity="1" transform="matrix(-1 0 0 1 2200.5 1229.5)"/><path d="M3.4375-1.54131e-05 3.43776 57.5713-3.43724 57.5714-3.4375 1.54131e-05ZM13.7502 52.988 0.000360892 80.488-13.7498 52.9881Z" fill="#000000" fill-rule="nonzero" fill-opacity="1" transform="matrix(-1 0 0 1 2200.5 1418.5)"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 623.083 2394)">Routing </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 882.041 2394)">calls</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3298.55 1286)">GEMM  </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3536.88 1286)">calls</text><path d="M923.938 276.5 923.938 314.619 917.063 314.62 917.063 276.5ZM934.25 310.036 920.5 337.536 906.75 310.036Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><path d="M3237.94 276.5 3237.94 314.619 3231.06 314.62 3231.06 276.5ZM3248.25 310.036 3234.5 337.536 3220.75 310.036Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/></g></g></svg>
\ No newline at end of file

docs/debug/img/fake_quant.svg

+<svg width="4111" height="1434" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" xml:space="preserve" overflow="hidden"><g transform="translate(-91 -426)"><g><rect x="986" y="1109" width="330" height="221" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1102.43 1203)">FP8 </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1066.64 1274)">GEMM</text><rect x="941" y="429" width="420" height="334" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1085.53 580)">BF16</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1066.92 651)">weight</text><rect x="95.9999" y="1052" width="420" height="334" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 239.829 1203)">BF16</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 239.256 1274)">input</text><rect x="600" y="1109" width="305" height="221" fill="#D9F2D0" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 703.883 1203)">FP8</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 686.397 1274)">input</text><rect x="999" y="831" width="305" height="221" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1102.44 925)">FP8</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1066.92 996)">weight</text><rect x="1510" y="1052" width="420" height="334" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1653.85 1203)">BF16</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1592.91 1274)">activation</text><path d="M1154.94 763.5 1154.94 808.797 1148.06 808.797 1148.06 763.5ZM1165.25 804.214 1151.5 831.714 1137.75 804.214Z" fill="#156082" fill-rule="nonzero" fill-opacity="1"/><path d="M1154.94 1046.5 1154.94 1091.8 1148.06 1091.8 1148.06 1046.5ZM1165.25 1087.21 1151.5 1114.71 1137.75 1087.21Z" fill="#156082" fill-rule="nonzero" fill-opacity="1"/><path d="M1.46568e-05-3.4375 61.7245-3.43724 61.7245 3.43776-1.46568e-05 3.4375ZM57.1412-13.7498 84.6412 0.000360892 57.1411 13.7502Z" fill="#156082" fill-rule="nonzero" fill-opacity="1" transform="matrix(1 0 0 -1 516.5 1219.5)"/><path d="M1.46568e-05-3.4375 61.7245-3.43724 61.7245 3.43776-1.46568e-05 3.4375ZM57.1412-13.7498 84.6412 0.000360892 57.1411 13.7502Z" fill="#156082" fill-rule="nonzero" fill-opacity="1" transform="matrix(1 0 0 -1 904.5 1219.5)"/><path d="M1316.5 1216.06 1486.89 1216.06 1486.89 1222.94 1316.5 1222.94ZM1482.31 1205.75 1509.81 1219.5 1482.31 1233.25Z" fill="#156082" fill-rule="nonzero" fill-opacity="1"/><rect x="3270" y="1052" width="332" height="334" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3370.09 1203)">BF16 </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3351.19 1274)">GEMM</text><rect x="3226" y="429" width="420" height="334" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3370.08 580)">BF16</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3351.48 651)">weight</text><rect x="2228" y="1052" width="420" height="334" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2371.88 1203)">BF16</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2371.31 1274)">input</text><rect x="3780" y="1052" width="420" height="334" fill="#DCEAF7" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3924.02 1203)">BF16</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3863.09 1274)">activation</text><path d="M3439.94 763.5 3439.94 1029.51 3433.06 1029.51 3433.06 763.5ZM3450.25 1024.93 3436.5 1052.43 3422.75 1024.93Z" fill="#156082" fill-rule="nonzero" fill-opacity="1"/><path d="M2648.5 1216.06 2736.92 1216.06 2736.92 1222.94 2648.5 1222.94ZM2732.33 1205.75 2759.83 1219.5 2732.33 1233.25Z" fill="#156082" fill-rule="nonzero" fill-opacity="1"/><path d="M1.46568e-05-3.4375 61.7245-3.43724 61.7245 3.43776-1.46568e-05 3.4375ZM57.1412-13.7498 84.6412 0.000360892 57.1411 13.7502Z" fill="#156082" fill-rule="nonzero" fill-opacity="1" transform="matrix(1 0 0 -1 3185.5 1219.5)"/><path d="M3602.5 1216.06 3757.44 1216.06 3757.44 1222.94 3602.5 1222.94ZM3752.86 1205.75 3780.36 1219.5 3752.86 1233.25Z" fill="#156082" fill-rule="nonzero" fill-opacity="1"/><rect x="2759" y="1052" width="420" height="334" fill="#D9F2D0" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2903.22 1142)">BF16 </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2902.07 1213)">Input</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="50" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2809.26 1277)">fake quantized</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="50" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2900.65 1337)">to FP8</text><rect x="1628" y="1600" width="305" height="220" fill="#D9F2D0" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1731.92 1693)">FP8</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1714.44 1764)">input</text><rect x="2228" y="1523" width="420" height="334" fill="#D9F2D0" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2371.88 1613)">BF16 </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="60" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2370.74 1684)">Input</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="50" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2277.92 1748)">fake quantized</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="50" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2369.31 1808)">to FP8</text><path d="M2020.39 1673.54 2155.61 1673.54 2155.61 1702.71 2020.39 1702.71ZM2020.39 1717.29 2155.61 1717.29 2155.61 1746.46 2020.39 1746.46Z" fill="#000000" fill-rule="evenodd" fill-opacity="1"/></g></g></svg>
\ No newline at end of file

docs/debug/img/names.svg

+<svg width="2622" height="2062" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" xml:space="preserve" overflow="hidden"><g transform="translate(-948 -183)"><g><rect x="956.5" y="193.5" width="1971" height="2048" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#F2F2F2" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="NVIDIA Sans,NVIDIA Sans_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1010.52 287)">Transformer Layer with name </text><text fill="#000000" fill-opacity="1" font-family="NVIDIA Sans,NVIDIA Sans_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="700" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2161.9 287)">transformer_layer</text><rect x="1229.5" y="555.5" width="1425" height="653" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#F2F2F2" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="NVIDIA Sans,NVIDIA Sans_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="700" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1519.58 630)">transformer_layer.self_attn</text><rect x="1475.5" y="988.5" width="933" height="95.9999" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#F2F2F2" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="700" font-stretch="normal" font-size="46" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1607.42 1046)">transformer_layer.self_attn.proj</text><rect x="1308.5" y="737.5" width="1267" height="97.0003" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#F2F2F2" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="700" font-stretch="normal" font-size="46" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1423.51 796)">transformer_layer.self_attn.layernorm_linear_qkv</text><rect x="1364.5" y="1404.5" width="1155" height="542" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#F2F2F2" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="NVIDIA Sans,NVIDIA Sans_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="700" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1432.23 1480)">transformer_layer.layernorm_mlp</text><rect x="1485.5" y="1576.5" width="913" height="90.0001" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#F2F2F2" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="NVIDIA Sans,NVIDIA Sans_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="700" font-stretch="normal" font-size="46" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1530.65 1635)">transformer_layer.layernorm_mlp.fc1</text><rect x="1485.5" y="1748.5" width="913" height="89.9998" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#F2F2F2" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="NVIDIA Sans,NVIDIA Sans_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="700" font-stretch="normal" font-size="46" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1530.65 1807)">transformer_layer.layernorm_mlp.fc2</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3208.71 811)">1 </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3269.44 811)">Linear</text><path d="M2574.5 787.5 3176.64 787.5" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="round" stroke-miterlimit="10" stroke-dasharray="27.5 20.625" stroke-opacity="1" fill="none" fill-rule="evenodd"/><path d="M0 0 767.947 3.92362" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="round" stroke-miterlimit="10" stroke-dasharray="27.5 20.625" stroke-opacity="1" fill="none" fill-rule="evenodd" transform="matrix(1 0 0 -1 2408.5 1036.42)"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3208.71 1058)">1 </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3269.44 1058)">Linear</text><path d="M0 0 767.947 3.92362" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="round" stroke-miterlimit="10" stroke-dasharray="27.5 20.625" stroke-opacity="1" fill="none" fill-rule="evenodd" transform="matrix(1 0 0 -1 2398.5 1624.42)"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3198.53 1646)">1 </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3259.26 1646)">Linear</text><path d="M0 0 767.947 3.92362" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="round" stroke-miterlimit="10" stroke-dasharray="27.5 20.625" stroke-opacity="1" fill="none" fill-rule="evenodd" transform="matrix(1 0 0 -1 2398.5 1796.42)"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3199.07 1818)">1 </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3259.8 1818)">Linear</text></g></g></svg>
\ No newline at end of file

docs/debug/img/pipeline_logging.svg

+<svg width="3956" height="1347" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" xml:space="preserve" overflow="hidden"><g transform="translate(-224 -527)"><g><rect x="652.5" y="567.5" width="497" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 772.973 660)">Node 1</text><rect x="1262.5" y="567.5" width="496" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1382.84 660)">Node 2</text><rect x="1871.5" y="567.5" width="497" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1992.71 660)">Node 3</text><rect x="2481.5" y="567.5" width="497" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2602.58 660)">Node 4</text><rect x="652.5" y="1238.5" width="497" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 772.973 1330)">Node 5</text><rect x="1262.5" y="1238.5" width="496" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1382.84 1330)">Node 6</text><rect x="1871.5" y="1238.5" width="497" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1992.71 1330)">Node 7</text><rect x="2481.5" y="1238.5" width="497" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2602.58 1330)">Node 8</text><rect x="3243.5" y="1117.5" width="932" height="241" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3404.16 1264)">TensorBoard logs</text><rect x="2528.5" y="1486.5" width="403" height="110" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2572.13 1568)">tb_writer</text><rect x="2528.5" y="853.5" width="403" height="111" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="83" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2572.13 935)">tb_writer</text><path d="M2934 906.136 3230.16 1218.8 3225.17 1223.53 2929 910.864ZM3234.5 1208.39 3243.43 1237.81 3214.53 1227.3Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><path d="M2.39725-2.46366 297.902 285.075 293.107 290.003-2.39725 2.46366ZM301.808 274.488 311.929 303.52 282.63 294.197Z" fill="#000000" fill-rule="nonzero" fill-opacity="1" transform="matrix(1 0 0 -1 2931.5 1542.02)"/><path d="M652.5 1182.5C638.969 1182.5 628 1180.67 628 1178.42L628 861.583C628 859.328 617.031 857.5 603.5 857.5 617.031 857.5 628 855.672 628 853.417L628 536.583C628 534.328 638.97 532.5 652.501 532.5" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none" fill-rule="evenodd"/><path d="M651.5 1867.5C637.969 1867.5 627 1865.67 627 1863.42L627 1547.08C627 1544.83 616.031 1543 602.5 1543 616.031 1543 627 1541.17 627 1538.92L627 1222.58C627 1220.33 637.97 1218.5 651.501 1218.5" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none" fill-rule="evenodd"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 331.324 679)">tensor </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 286.339 756)">reduction </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 316.704 833)">group 1</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 402.779 910)">=</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 308.522 987)">pipeline </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 316.062 1064)">parallel </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 316.704 1141)">group 1</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 314.139 1313)">tensor </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 269.154 1390)">reduction </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 299.519 1467)">group 2</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 385.594 1544)">=</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 291.337 1621)">pipeline </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 298.877 1698)">parallel </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 299.519 1775)">group 2</text></g></g></svg>
\ No newline at end of file

docs/debug/img/reduction2.svg

+<svg width="3250" height="1773" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" xml:space="preserve" overflow="hidden"><g transform="translate(-499 -449)"><g><rect x="594.5" y="829.5" width="497" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><rect x="1258.5" y="829.5" width="496" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><path d="M1430.5 1186.5 1582.5 1186.5 1582.5 1363.5 1430.5 1363.5 1430.5 1312.05C1450.75 1312.05 1467.17 1296.82 1467.17 1278.04 1467.17 1259.25 1450.75 1244.02 1430.5 1244.02Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M1430.5 895.5 1582.77 895.5 1582.77 949.68C1603.05 949.68 1619.5 964.821 1619.5 983.5 1619.5 1002.18 1603.05 1017.32 1582.77 1017.32L1582.77 1071.5 1430.5 1071.5 1430.5 1017 1443.06 1014.66C1456.24 1009.53 1465.49 997.509 1465.49 983.5 1465.49 969.491 1456.24 957.472 1443.06 952.338L1430.5 950.003Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M748.5 895.5 900.768 895.5 900.768 949.68C921.055 949.68 937.5 964.821 937.5 983.5 937.5 1002.18 921.055 1017.32 900.768 1017.32L900.768 1071.5 748.5 1071.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M748.5 1186.5 900.768 1186.5 900.768 1240.99C921.055 1240.99 937.5 1256.22 937.5 1275 937.5 1293.78 921.055 1309.01 900.768 1309.01L900.768 1363.5 748.5 1363.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><rect x="1876.5" y="829.5" width="496" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><rect x="2539.5" y="829.5" width="497" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><path d="M2711.5 1186.5 2864.5 1186.5 2864.5 1363.5 2711.5 1363.5 2711.5 1312.05C2731.88 1312.05 2748.41 1296.82 2748.41 1278.04 2748.41 1259.25 2731.88 1244.02 2711.5 1244.02Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M2030.5 1186.5 2182.77 1186.5 2182.77 1240.99C2203.05 1240.99 2219.5 1256.22 2219.5 1275 2219.5 1293.78 2203.05 1309.01 2182.77 1309.01L2182.77 1363.5 2030.5 1363.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M2711.5 895.5 2864.5 895.5 2864.5 1071.5 2711.5 1071.5 2711.5 1020.34C2731.88 1020.34 2748.41 1005.2 2748.41 986.519 2748.41 967.841 2731.88 952.699 2711.5 952.699Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M2030.5 895.5 2182.77 895.5 2182.77 949.68C2203.05 949.68 2219.5 964.821 2219.5 983.5 2219.5 1002.18 2203.05 1017.32 2182.77 1017.32L2182.77 1071.5 2030.5 1071.5 2030.5 1017 2043.06 1014.66C2056.24 1009.53 2065.49 997.509 2065.49 983.5 2065.49 969.491 2056.24 957.472 2043.06 952.338L2030.5 950.003Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M784.5 1617.5 878.762 1617.5 878.762 1655.36C891.32 1655.36 901.5 1665.95 901.5 1679 901.5 1692.05 891.32 1702.64 878.762 1702.64L878.762 1740.5 784.5 1740.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M818.5 1788.5 945.5 1788.5 945.5 1911.5 818.5 1911.5 818.5 1875.75C835.42 1875.75 849.136 1865.16 849.136 1852.11 849.136 1839.06 835.42 1828.47 818.5 1828.47Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M740.5 1788.5 835.567 1788.5 835.567 1826.36C848.233 1826.36 858.5 1836.95 858.5 1850 858.5 1863.05 848.233 1873.64 835.567 1873.64L835.567 1911.5 740.5 1911.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M1445.5 1614.5 1543.79 1614.5 1543.79 1652.36C1556.88 1652.36 1567.5 1662.95 1567.5 1676 1567.5 1689.05 1556.88 1699.64 1543.79 1699.64L1543.79 1737.5 1445.5 1737.5 1445.5 1699.41 1453.61 1697.78C1462.12 1694.19 1468.09 1685.79 1468.09 1676 1468.09 1666.21 1462.12 1657.81 1453.61 1654.22L1445.5 1652.59Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M1473.5 1789.5 1599.5 1789.5 1599.5 1911.5 1473.5 1911.5 1473.5 1876.04C1490.29 1876.04 1503.89 1865.54 1503.89 1852.59 1503.89 1839.65 1490.29 1829.15 1473.5 1829.15Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M1395.5 1789.5 1489.76 1789.5 1489.76 1827.06C1502.32 1827.06 1512.5 1837.55 1512.5 1850.5 1512.5 1863.45 1502.32 1873.94 1489.76 1873.94L1489.76 1911.5 1395.5 1911.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M2063.5 1611.5 2161.79 1611.5 2161.79 1649.36C2174.88 1649.36 2185.5 1659.95 2185.5 1673 2185.5 1686.05 2174.88 1696.64 2161.79 1696.64L2161.79 1734.5 2063.5 1734.5 2063.5 1696.41 2071.61 1694.78C2080.12 1691.19 2086.09 1682.79 2086.09 1673 2086.09 1663.21 2080.12 1654.81 2071.61 1651.22L2063.5 1649.59Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M2088.5 1788.5 2214.5 1788.5 2214.5 1911.5 2088.5 1911.5 2088.5 1875.75C2105.29 1875.75 2118.89 1865.16 2118.89 1852.11 2118.89 1839.06 2105.29 1828.47 2088.5 1828.47Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M2010.5 1788.5 2104.76 1788.5 2104.76 1826.36C2117.32 1826.36 2127.5 1836.95 2127.5 1850 2127.5 1863.05 2117.32 1873.64 2104.76 1873.64L2104.76 1911.5 2010.5 1911.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M2733.5 1617.5 2842.5 1617.5 2842.5 1740.5 2733.5 1740.5 2733.5 1704.7 2743.5 1702.89C2752.96 1699.3 2759.6 1690.9 2759.6 1681.11L2759.49 1680.63 2759.86 1679C2759.86 1665.95 2748.06 1655.36 2733.5 1655.36Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M2767.5 1788.5 2893.5 1788.5 2893.5 1911.5 2767.5 1911.5 2767.5 1875.75C2784.29 1875.75 2797.89 1865.16 2797.89 1852.11 2797.89 1839.06 2784.29 1828.47 2767.5 1828.47Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M2689.5 1788.5 2783.76 1788.5 2783.76 1826.36C2796.32 1826.36 2806.5 1836.95 2806.5 1850 2806.5 1863.05 2796.32 1873.64 2783.76 1873.64L2783.76 1911.5 2689.5 1911.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M577.5 655.5C577.5 630.923 580.82 611 584.917 611L827.083 611C831.179 611 834.5 591.077 834.5 566.5 834.5 591.077 837.82 611 841.917 611L1084.08 611C1088.18 611 1091.5 630.923 1091.5 655.5" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none" fill-rule="evenodd"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1031.56 731)">TP group 1</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3175.14 1003)">activation/gradient </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3330.42 1080)">tensors</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3215.24 1294)">weight tensors</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="55" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 584.658 519)">Tensor reduction group</text><path d="M577.5 838.5C577.5 813.923 580.82 793.999 584.917 793.999L1175.08 793.999C1179.18 793.999 1182.5 774.076 1182.5 749.499 1182.5 774.076 1185.82 793.999 1189.92 793.999L1780.08 793.999C1784.18 793.999 1787.5 813.923 1787.5 838.5" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none" fill-rule="evenodd"/><path d="M1848.5 836.5C1848.5 811.923 1851.82 791.999 1855.92 791.999L2446.08 791.999C2450.18 791.999 2453.5 772.076 2453.5 747.499 2453.5 772.076 2456.82 791.999 2460.92 791.999L3051.08 791.999C3055.18 791.999 3058.5 811.923 3058.5 836.5" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none" fill-rule="evenodd"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2285.23 713)">TP group 2</text><path d="M841.937 1945.5 841.938 2033.56 835.063 2033.56 835.062 1945.5ZM852.25 2028.97 838.5 2056.47 824.75 2028.97Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 771.787 2164)">Stats</text><path d="M1491.94 1945.5 1491.94 2033.56 1485.06 2033.56 1485.06 1945.5ZM1502.25 2028.97 1488.5 2056.47 1474.75 2028.97Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1421.78 2164)">Stats</text><path d="M2106.94 1945.5 2106.94 2033.56 2100.06 2033.56 2100.06 1945.5ZM2117.25 2028.97 2103.5 2056.47 2089.75 2028.97Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2036.58 2164)">Stats</text><path d="M2786.94 1945.5 2786.94 2033.56 2780.06 2033.56 2780.06 1945.5ZM2797.25 2028.97 2783.5 2056.47 2769.75 2028.97Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2716.75 2164)">Stats</text><path d="M1237.5 655.5C1237.5 630.923 1240.82 611 1244.92 611L1487.08 611C1491.18 611 1494.5 591.077 1494.5 566.5 1494.5 591.077 1497.82 611 1501.92 611L1744.08 611C1748.18 611 1751.5 630.923 1751.5 655.5" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none" fill-rule="evenodd"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="55" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1245.05 519)">Tensor reduction group</text><path d="M1846.5 656.5C1846.5 631.923 1849.82 612 1853.92 612L2096.08 612C2100.18 612 2103.5 592.077 2103.5 567.5 2103.5 592.077 2106.82 612 2110.92 612L2353.08 612C2357.18 612 2360.5 631.923 2360.5 656.5" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none" fill-rule="evenodd"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="55" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1853.18 520)">Tensor reduction group</text><path d="M2531.5 656.5C2531.5 631.647 2534.86 611.5 2539 611.5L2781 611.5C2785.14 611.5 2788.5 591.353 2788.5 566.5 2788.5 591.353 2791.86 611.5 2796 611.5L3038 611.5C3042.14 611.5 3045.5 631.647 3045.5 656.5" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none" fill-rule="evenodd"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="55" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2538.46 520)">Tensor reduction group</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 743.462 1529)">Node </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 907.316 1529)">1</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1393.45 1529)">Node </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1557.31 1529)">2</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2008.25 1529)">Node </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2172.11 1529)">3</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2688.42 1530)">Node </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2852.28 1530)">4</text></g></g></svg>
\ No newline at end of file

docs/debug/img/reduction3.svg

+<svg width="3177" height="1801" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" xml:space="preserve" overflow="hidden"><g transform="translate(-572 -421)"><g><rect x="594.5" y="829.5" width="497" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><rect x="1258.5" y="829.5" width="496" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><path d="M1430.5 1186.5 1582.5 1186.5 1582.5 1363.5 1430.5 1363.5 1430.5 1312.05C1450.75 1312.05 1467.17 1296.82 1467.17 1278.04 1467.17 1259.25 1450.75 1244.02 1430.5 1244.02Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M1430.5 895.5 1582.77 895.5 1582.77 949.68C1603.05 949.68 1619.5 964.821 1619.5 983.5 1619.5 1002.18 1603.05 1017.32 1582.77 1017.32L1582.77 1071.5 1430.5 1071.5 1430.5 1017 1443.06 1014.66C1456.24 1009.53 1465.49 997.509 1465.49 983.5 1465.49 969.491 1456.24 957.472 1443.06 952.338L1430.5 950.003Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M748.5 895.5 900.768 895.5 900.768 949.68C921.055 949.68 937.5 964.821 937.5 983.5 937.5 1002.18 921.055 1017.32 900.768 1017.32L900.768 1071.5 748.5 1071.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M748.5 1186.5 900.768 1186.5 900.768 1240.99C921.055 1240.99 937.5 1256.22 937.5 1275 937.5 1293.78 921.055 1309.01 900.768 1309.01L900.768 1363.5 748.5 1363.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><rect x="1876.5" y="829.5" width="496" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><rect x="2539.5" y="829.5" width="497" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><path d="M2711.5 1186.5 2864.5 1186.5 2864.5 1363.5 2711.5 1363.5 2711.5 1312.05C2731.88 1312.05 2748.41 1296.82 2748.41 1278.04 2748.41 1259.25 2731.88 1244.02 2711.5 1244.02Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M2030.5 1186.5 2182.77 1186.5 2182.77 1240.99C2203.05 1240.99 2219.5 1256.22 2219.5 1275 2219.5 1293.78 2203.05 1309.01 2182.77 1309.01L2182.77 1363.5 2030.5 1363.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M2711.5 895.5 2864.5 895.5 2864.5 1071.5 2711.5 1071.5 2711.5 1020.34C2731.88 1020.34 2748.41 1005.2 2748.41 986.519 2748.41 967.841 2731.88 952.699 2711.5 952.699Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M2030.5 895.5 2182.77 895.5 2182.77 949.68C2203.05 949.68 2219.5 964.821 2219.5 983.5 2219.5 1002.18 2203.05 1017.32 2182.77 1017.32L2182.77 1071.5 2030.5 1071.5 2030.5 1017 2043.06 1014.66C2056.24 1009.53 2065.49 997.509 2065.49 983.5 2065.49 969.491 2056.24 957.472 2043.06 952.338L2030.5 950.003Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M743.5 1611.5 841.79 1611.5 841.79 1649.36C854.885 1649.36 865.5 1659.95 865.5 1673 865.5 1686.05 854.885 1696.64 841.79 1696.64L841.79 1734.5 743.5 1734.5 743.5 1696.41 751.607 1694.78C760.117 1691.19 766.088 1682.79 766.088 1673 766.088 1663.21 760.117 1654.81 751.607 1651.22L743.5 1649.59Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M653.5 1611.5 748.567 1611.5 748.567 1649.36C761.233 1649.36 771.5 1659.95 771.5 1673 771.5 1686.05 761.233 1696.64 748.567 1696.64L748.567 1734.5 653.5 1734.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M897.5 1611.5 1032.5 1611.5 1032.5 1734.5 897.5 1734.5 897.5 1698.7 909.883 1696.89C921.6 1693.3 929.821 1684.9 929.821 1675.11L929.688 1674.63 930.144 1673C930.144 1659.95 915.529 1649.36 897.5 1649.36Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M838.5 1611.5 936.79 1611.5 936.79 1649.36C949.885 1649.36 960.5 1659.95 960.5 1673 960.5 1686.05 949.885 1696.64 936.79 1696.64L936.79 1734.5 838.5 1734.5 838.5 1696.41 846.607 1694.78C855.117 1691.19 861.088 1682.79 861.088 1673 861.088 1663.21 855.117 1654.81 846.607 1651.22L838.5 1649.59Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M794.5 1789.5 888.762 1789.5 888.762 1827.36C901.32 1827.36 911.5 1837.95 911.5 1851 911.5 1864.05 901.32 1874.64 888.762 1874.64L888.762 1912.5 794.5 1912.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M1398.5 1612.5 1496.79 1612.5 1496.79 1650.36C1509.88 1650.36 1520.5 1660.95 1520.5 1674 1520.5 1687.05 1509.88 1697.64 1496.79 1697.64L1496.79 1735.5 1398.5 1735.5 1398.5 1697.41 1406.61 1695.78C1415.12 1692.19 1421.09 1683.79 1421.09 1674 1421.09 1664.21 1415.12 1655.81 1406.61 1652.22L1398.5 1650.59Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M1308.5 1612.5 1402.76 1612.5 1402.76 1650.36C1415.32 1650.36 1425.5 1660.95 1425.5 1674 1425.5 1687.05 1415.32 1697.64 1402.76 1697.64L1402.76 1735.5 1308.5 1735.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M1552.5 1612.5 1686.5 1612.5 1686.5 1735.5 1552.5 1735.5 1552.5 1699.7 1564.79 1697.89C1576.42 1694.3 1584.58 1685.9 1584.58 1676.11L1584.45 1675.63 1584.9 1674C1584.9 1660.95 1570.4 1650.36 1552.5 1650.36Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M1493.5 1612.5 1590.98 1612.5 1590.98 1650.36C1603.97 1650.36 1614.5 1660.95 1614.5 1674 1614.5 1687.05 1603.97 1697.64 1590.98 1697.64L1590.98 1735.5 1493.5 1735.5 1493.5 1697.41 1501.54 1695.78C1509.98 1692.19 1515.9 1683.79 1515.9 1674 1515.9 1664.21 1509.98 1655.81 1501.54 1652.22L1493.5 1650.59Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M1433.5 1788.5 1550.5 1788.5 1550.5 1911.5 1433.5 1911.5 1433.5 1875.75C1449.09 1875.75 1461.72 1865.16 1461.72 1852.11 1461.72 1839.06 1449.09 1828.47 1433.5 1828.47Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M2013.5 1611.5 2111.79 1611.5 2111.79 1649.36C2124.88 1649.36 2135.5 1659.95 2135.5 1673 2135.5 1686.05 2124.88 1696.64 2111.79 1696.64L2111.79 1734.5 2013.5 1734.5 2013.5 1696.41 2021.61 1694.78C2030.12 1691.19 2036.09 1682.79 2036.09 1673 2036.09 1663.21 2030.12 1654.81 2021.61 1651.22L2013.5 1649.59Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M1923.5 1611.5 2017.76 1611.5 2017.76 1649.36C2030.32 1649.36 2040.5 1659.95 2040.5 1673 2040.5 1686.05 2030.32 1696.64 2017.76 1696.64L2017.76 1734.5 1923.5 1734.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M2167.5 1611.5 2301.5 1611.5 2301.5 1734.5 2167.5 1734.5 2167.5 1698.7 2179.79 1696.89C2191.42 1693.3 2199.58 1684.9 2199.58 1675.11L2199.45 1674.63 2199.9 1673C2199.9 1659.95 2185.39 1649.36 2167.5 1649.36Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M2107.5 1611.5 2205.79 1611.5 2205.79 1649.36C2218.88 1649.36 2229.5 1659.95 2229.5 1673 2229.5 1686.05 2218.88 1696.64 2205.79 1696.64L2205.79 1734.5 2107.5 1734.5 2107.5 1696.41 2115.61 1694.78C2124.12 1691.19 2130.09 1682.79 2130.09 1673 2130.09 1663.21 2124.12 1654.81 2115.61 1651.22L2107.5 1649.59Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M2063.5 1789.5 2157.76 1789.5 2157.76 1827.36C2170.32 1827.36 2180.5 1837.95 2180.5 1851 2180.5 1864.05 2170.32 1874.64 2157.76 1874.64L2157.76 1912.5 2063.5 1912.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M2692.5 1611.5 2790.79 1611.5 2790.79 1649.36C2803.88 1649.36 2814.5 1659.95 2814.5 1673 2814.5 1686.05 2803.88 1696.64 2790.79 1696.64L2790.79 1734.5 2692.5 1734.5 2692.5 1696.41 2700.61 1694.78C2709.12 1691.19 2715.09 1682.79 2715.09 1673 2715.09 1663.21 2709.12 1654.81 2700.61 1651.22L2692.5 1649.59Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M2602.5 1611.5 2696.76 1611.5 2696.76 1649.36C2709.32 1649.36 2719.5 1659.95 2719.5 1673 2719.5 1686.05 2709.32 1696.64 2696.76 1696.64L2696.76 1734.5 2602.5 1734.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M2846.5 1611.5 2980.5 1611.5 2980.5 1734.5 2846.5 1734.5 2846.5 1698.7 2858.79 1696.89C2870.42 1693.3 2878.58 1684.9 2878.58 1675.11L2878.45 1674.63 2878.9 1673C2878.9 1659.95 2864.4 1649.36 2846.5 1649.36Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M2787.5 1611.5 2884.98 1611.5 2884.98 1649.36C2897.97 1649.36 2908.5 1659.95 2908.5 1673 2908.5 1686.05 2897.97 1696.64 2884.98 1696.64L2884.98 1734.5 2787.5 1734.5 2787.5 1696.41 2795.54 1694.78C2803.98 1691.19 2809.9 1682.79 2809.9 1673 2809.9 1663.21 2803.98 1654.81 2795.54 1651.22L2787.5 1649.59Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M2719.5 1789.5 2837.5 1789.5 2837.5 1912.5 2719.5 1912.5 2719.5 1876.75C2735.22 1876.75 2747.96 1866.16 2747.96 1853.11 2747.96 1840.06 2735.22 1829.47 2719.5 1829.47Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#D9F2D0" fill-rule="evenodd" fill-opacity="1"/><path d="M577.5 655.5C577.5 630.923 580.82 610.999 584.915 610.999L1810.58 610.999C1814.68 610.999 1818 591.075 1818 566.497 1818 591.075 1821.32 610.999 1825.42 610.999L3051.08 610.999C3055.18 610.999 3058.5 630.923 3058.5 655.5" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none" fill-rule="evenodd"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1036.2 713)">TP group 1</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3175.14 1003)">activation/gradient </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3330.42 1080)">tensors</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3215.24 1294)">weight tensors</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1483.27 505)">Tensor reduction group</text><path d="M577.5 838.5C577.5 813.923 580.82 793.999 584.917 793.999L1175.08 793.999C1179.18 793.999 1182.5 774.076 1182.5 749.499 1182.5 774.076 1185.82 793.999 1189.92 793.999L1780.08 793.999C1784.18 793.999 1787.5 813.923 1787.5 838.5" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none" fill-rule="evenodd"/><path d="M1848.5 836.5C1848.5 811.923 1851.82 791.999 1855.92 791.999L2446.08 791.999C2450.18 791.999 2453.5 772.076 2453.5 747.499 2453.5 772.076 2456.82 791.999 2460.92 791.999L3051.08 791.999C3055.18 791.999 3058.5 811.923 3058.5 836.5" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none" fill-rule="evenodd"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2285.23 713)">TP group 2</text><path d="M841.937 1945.5 841.938 2033.56 835.063 2033.56 835.062 1945.5ZM852.25 2028.97 838.5 2056.47 824.75 2028.97Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 771.787 2164)">Stats</text><path d="M1491.94 1945.5 1491.94 2033.56 1485.06 2033.56 1485.06 1945.5ZM1502.25 2028.97 1488.5 2056.47 1474.75 2028.97Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1421.78 2164)">Stats</text><path d="M2106.94 1945.5 2106.94 2033.56 2100.06 2033.56 2100.06 1945.5ZM2117.25 2028.97 2103.5 2056.47 2089.75 2028.97Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2036.58 2164)">Stats</text><path d="M2786.94 1945.5 2786.94 2033.56 2780.06 2033.56 2780.06 1945.5ZM2797.25 2028.97 2783.5 2056.47 2769.75 2028.97Z" fill="#000000" fill-rule="nonzero" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2716.75 2164)">Stats</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 743.462 1507)">Node </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 907.316 1507)">1</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1393.45 1507)">Node </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1557.31 1507)">2</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2008.25 1507)">Node </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2172.11 1507)">3</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2688.42 1508)">Node </text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2852.28 1508)">4</text></g></g></svg>
\ No newline at end of file

docs/debug/img/scaling_factors.svg

+<svg width="3350" height="1050" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" xml:space="preserve" overflow="hidden"><g transform="translate(-252 -728)"><g><rect x="1012.5" y="1003.5" width="497" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><rect x="1622.5" y="1003.5" width="497" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><rect x="277.5" y="1003.5" width="497" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><path d="M507.5 1222.5 633.5 1222.5 633.5 1345.5 507.5 1345.5 507.5 1309.75C524.286 1309.75 537.895 1299.16 537.895 1286.11 537.895 1273.06 524.286 1262.47 507.5 1262.47Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M429.5 1222.5 523.762 1222.5 523.762 1260.36C536.32 1260.36 546.5 1270.95 546.5 1284 546.5 1297.05 536.32 1307.64 523.762 1307.64L523.762 1345.5 429.5 1345.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M1202.5 1237.5 1296.76 1237.5 1296.76 1275.36C1309.32 1275.36 1319.5 1285.95 1319.5 1299 1319.5 1312.05 1309.32 1322.64 1296.76 1322.64L1296.76 1360.5 1202.5 1360.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M1807.5 1233.5 1934.5 1233.5 1934.5 1356.5 1807.5 1356.5 1807.5 1320.75C1824.42 1320.75 1838.14 1310.16 1838.14 1297.11 1838.14 1284.06 1824.42 1273.47 1807.5 1273.47Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M532.937 1360.5 532.938 1460.54 526.063 1460.54 526.062 1360.5ZM543.25 1455.95 529.5 1483.45 515.75 1455.95Z" fill="#156082" fill-rule="nonzero" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="50" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 322.919 1547)">One Scaling Factor</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="50" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1037.68 1547)">Scaling Factor No. 1</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="50" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1643.02 1548)">Scaling Factor No. 2</text><path d="M1870.94 1371.5 1870.94 1464.58 1864.06 1464.58 1864.06 1371.5ZM1881.25 1460 1867.5 1487.5 1853.75 1460Z" fill="#156082" fill-rule="nonzero" fill-opacity="1"/><path d="M1249.94 1378.5 1249.94 1471.58 1243.06 1471.58 1243.06 1378.5ZM1260.25 1467 1246.5 1494.5 1232.75 1467Z" fill="#156082" fill-rule="nonzero" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1170.72 975)">Node 1</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1757.09 975)">Node 2</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 453.544 975)">Node</text><path d="M2282.5 730.5 2282.5 1770.26" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none" fill-rule="evenodd"/><path d="M899.5 730.5 899.5 1770.26" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none" fill-rule="evenodd"/><rect x="2371.5" y="1003.5" width="497" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><rect x="2981.5" y="1003.5" width="497" height="577" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="none"/><path d="M2561.5 1237.5 2655.76 1237.5 2655.76 1275.36C2668.32 1275.36 2678.5 1285.95 2678.5 1299 2678.5 1312.05 2668.32 1322.64 2655.76 1322.64L2655.76 1360.5 2561.5 1360.5Z" stroke="#000000" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><path d="M3166.5 1233.5 3293.5 1233.5 3293.5 1356.5 3166.5 1356.5 3166.5 1320.75C3183.42 1320.75 3197.14 1310.16 3197.14 1297.11 3197.14 1284.06 3183.42 1273.47 3166.5 1273.47Z" stroke="#042433" stroke-width="6.875" stroke-linecap="butt" stroke-linejoin="miter" stroke-miterlimit="8" stroke-opacity="1" fill="#FBE3D6" fill-rule="evenodd" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="50" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2426.08 1547)">One Scaling Factor</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="50" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3023.31 1548)">One Scaling Factor</text><path d="M3228.94 1371.5 3228.94 1464.58 3222.06 1464.58 3222.06 1371.5ZM3239.25 1460 3225.5 1487.5 3211.75 1460Z" fill="#156082" fill-rule="nonzero" fill-opacity="1"/><path d="M2607.94 1378.5 2607.94 1471.58 2601.06 1471.58 2601.06 1378.5ZM2618.25 1467 2604.5 1494.5 2590.75 1467Z" fill="#156082" fill-rule="nonzero" fill-opacity="1"/><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2529.3 975)">Node 1</text><text fill="#000000" fill-opacity="1" font-family="Aptos,Aptos_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="64" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 3115.67 975)">Node 2</text><text fill="#404040" fill-opacity="1" font-family="NVIDIA Sans,NVIDIA Sans_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="700" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 959.215 839)">PerTensorScaling</text><text fill="#404040" fill-opacity="1" font-family="NVIDIA Sans,NVIDIA Sans_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1585.12 839)">and</text><text fill="#404040" fill-opacity="1" font-family="NVIDIA Sans,NVIDIA Sans_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="700" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 1732.35 839)">FakeQuant</text><text fill="#404040" fill-opacity="1" font-family="NVIDIA Sans,NVIDIA Sans_MSFontService,sans-serif" font-style="normal" font-variant="normal" font-weight="400" font-stretch="normal" font-size="73" text-anchor="start" direction="ltr" writing-mode="lr-tb" unicode-bidi="normal" text-decoration="none" transform="matrix(1 0 0 1 2610.45 839)">FP8 Delayed Scaling</text></g></g></svg>
\ No newline at end of file

docs/index.rst

@@ -52,4 +52,5 @@ Transformer Engine documentation
    :caption: Advanced

    api/c/index
+   debug
    examples/attention/attention.ipynb
