deploy/avh/include/tvm_runtime.h 0 → 100644
View file @ ed43fc11
/*
* Licensed to the Apache Software Foundation (ASF) under one
* or more contributor license agreements. See the NOTICE file
* distributed with this work for additional information
* regarding copyright ownership. The ASF licenses this file
* to you under the Apache License, Version 2.0 (the
* "License"); you may not use this file except in compliance
* with the License. You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing,
* software distributed under the License is distributed on an
* "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
* KIND, either express or implied. See the License for the
* specific language governing permissions and limitations
* under the License.
*/
#include <stdarg.h>
#include <stdio.h>
#include <stdlib.h>
#include <tvm/runtime/c_runtime_api.h>
#include <tvm/runtime/crt/stack_allocator.h>
#ifdef __cplusplus
extern "C" {
#endif
void __attribute__((noreturn)) TVMPlatformAbort(tvm_crt_error_t error_code) {
printf("TVMPlatformAbort: %d\n", error_code);
printf("EXITTHESIM\n");
exit(-1);
}
tvm_crt_error_t TVMPlatformMemoryAllocate(size_t num_bytes, DLDevice dev,
void **out_ptr) {
return kTvmErrorFunctionCallNotImplemented;
}
tvm_crt_error_t TVMPlatformMemoryFree(void *ptr, DLDevice dev) {
return kTvmErrorFunctionCallNotImplemented;
}
void TVMLogf(const char *msg, ...) {
va_list args;
va_start(args, msg);
vfprintf(stdout, msg, args);
va_end(args);
}
TVM_DLL int TVMFuncRegisterGlobal(const char *name, TVMFunctionHandle f,
int override) {
return 0;
}
#ifdef __cplusplus
}
#endif
deploy/avh/requirements.txt 0 → 100644
View file @ ed43fc11
paddlepaddle
numpy
opencv-python
typing-extensions
deploy/avh/run_demo.sh 0 → 100644
View file @ ed43fc11
#!/bin/bash
# Licensed to the Apache Software Foundation (ASF) under one
# or more contributor license agreements. See the NOTICE file
# distributed with this work for additional information
# regarding copyright ownership. The ASF licenses this file
# to you under the Apache License, Version 2.0 (the
# "License"); you may not use this file except in compliance
# with the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing,
# software distributed under the License is distributed on an
# "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
# KIND, either express or implied. See the License for the
# specific language governing permissions and limitations
# under the License.
set -e
set -u
set -o pipefail
# Show usage
function show_usage() {
cat <<EOF
Usage: run_demo.sh
-h, --help
Display this help message.
--cmsis_path CMSIS_PATH
Set path to CMSIS.
--ethosu_platform_path ETHOSU_PLATFORM_PATH
Set path to Arm(R) Ethos(TM)-U core platform.
--fvp_path FVP_PATH
Set path to FVP.
--cmake_path
Set path to cmake.
--enable_FVP
Set 1 to run application on local Fixed Virtual Platforms (FVPs) executables.
EOF
}
# Configure environment variables
FVP_enable=0
export PATH=/opt/arm/gcc-arm-none-eabi/bin:$PATH
# Install python libraries
echo -e "\e[36mInstall python libraries\e[0m"
sudo pip install -r ./requirements.txt
# Parse arguments
while (( $# )); do
case "$1" in
-h|--help)
show_usage
exit 0
;;
--cmsis_path)
if [ $# -gt 1 ]
then
export CMSIS_PATH="$2"
shift 2
else
echo 'ERROR: --cmsis_path requires a non-empty argument' >&2
show_usage >&2
exit 1
fi
;;
--ethosu_platform_path)
if [ $# -gt 1 ]
then
export ETHOSU_PLATFORM_PATH="$2"
shift 2
else
echo 'ERROR: --ethosu_platform_path requires a non-empty argument' >&2
show_usage >&2
exit 1
fi
;;
--fvp_path)
if [ $# -gt 1 ]
then
export PATH="$2/models/Linux64_GCC-6.4:$PATH"
shift 2
else
echo 'ERROR: --fvp_path requires a non-empty argument' >&2
show_usage >&2
exit 1
fi
;;
--cmake_path)
if [ $# -gt 1 ]
then
export CMAKE="$2"
shift 2
else
echo 'ERROR: --cmake_path requires a non-empty argument' >&2
show_usage >&2
exit 1
fi
;;
--enable_FVP)
if [ $# -gt 1 ] && [ "$2" == "1" -o "$2" == "0" ];
then
FVP_enable="$2"
shift 2
else
echo 'ERROR: --enable_FVP requires a right argument 1 or 0' >&2
show_usage >&2
exit 1
fi
;;
-*|--*)
echo "Error: Unknown flag: $1" >&2
show_usage >&2
exit 1
;;
esac
done
# Choose running environment: cloud(default) or local environment
Platform="VHT_Corstone_SSE-300_Ethos-U55"
if [ $FVP_enable == "1" ]; then
Platform="FVP_Corstone_SSE-300_Ethos-U55"
echo -e "\e[36mRun application on local Fixed Virtual Platforms (FVPs)\e[0m"
else
if [ ! -d "/opt/arm/" ]; then
sudo ./configure_avh.sh
fi
fi
# Directories
script_dir="$( cd "$( dirname "${BASH_SOURCE[0]}" )" &> /dev/null && pwd )"
# Make build directory
make cleanall
mkdir -p build
cd build
# Get PaddlePaddle inference model
echo -e "\e[36mDownload PaddlePaddle inference model\e[0m"
wget https://paddleocr.bj.bcebos.com/tvm/ocr_en.tar
tar -xf ocr_en.tar
# Compile model for Arm(R) Cortex(R)-M55 CPU and CMSIS-NN
# An alternative to using "python3 -m tvm.driver.tvmc" is to call
# "tvmc" directly once TVM has been pip installed.
python3 -m tvm.driver.tvmc compile --target=cmsis-nn,c \
--target-cmsis-nn-mcpu=cortex-m55 \
--target-c-mcpu=cortex-m55 \
--runtime=crt \
--executor=aot \
--executor-aot-interface-api=c \
--executor-aot-unpacked-api=1 \
--pass-config tir.usmp.enable=1 \
--pass-config tir.usmp.algorithm=hill_climb \
--pass-config tir.disable_storage_rewrite=1 \
--pass-config tir.disable_vectorize=1 ocr_en/inference.pdmodel \
--output-format=mlf \
--model-format=paddle \
--module-name=rec \
--input-shapes x:[1,3,32,320] \
--output=rec.tar
tar -xf rec.tar
# Create C header files
cd ..
python3 ./convert_image.py imgs_words_en/word_116.png
# Build demo executable
cd ${script_dir}
echo ${script_dir}
make
# Run demo executable on the AVH
$Platform -C cpu0.CFGDTCMSZ=15 \
-C cpu0.CFGITCMSZ=15 -C mps3_board.uart0.out_file=\"-\" -C mps3_board.uart0.shutdown_tag=\"EXITTHESIM\" \
-C mps3_board.visualisation.disable-visualisation=1 -C mps3_board.telnetterminal0.start_telnet=0 \
-C mps3_board.telnetterminal1.start_telnet=0 -C mps3_board.telnetterminal2.start_telnet=0 -C mps3_board.telnetterminal5.start_telnet=0 \
./build/demo --stat
deploy/avh/src/demo_bare_metal.c 0 → 100644
View file @ ed43fc11
/*
* Licensed to the Apache Software Foundation (ASF) under one
* or more contributor license agreements. See the NOTICE file
* distributed with this work for additional information
* regarding copyright ownership. The ASF licenses this file
* to you under the Apache License, Version 2.0 (the
* "License"); you may not use this file except in compliance
* with the License. You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing,
* software distributed under the License is distributed on an
* "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
* KIND, either express or implied. See the License for the
* specific language governing permissions and limitations
* under the License.
*/
#include <stdio.h>
#include <tvm_runtime.h>
#include <tvmgen_rec.h>
#include "uart.h"
// Header files generated by convert_image.py
#include "inputs.h"
#include "outputs.h"
int main(int argc, char **argv) {
char dict[] = {"#0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\\]^_`"
"abcdefghijklmnopqrstuvwxyz{|}~!\"#$%&'()*+,-./ "};
int char_dict_nums = 97;
uart_init();
printf("Starting ocr rec inference\n");
struct tvmgen_rec_outputs rec_outputs = {
.output = output,
};
struct tvmgen_rec_inputs rec_inputs = {
.x = input,
};
tvmgen_rec_run(&rec_inputs, &rec_outputs);
// post process
int char_nums = output_len / char_dict_nums;
int last_index = 0;
float score = 0.f;
int count = 0;
printf("text: ");
for (int i = 0; i < char_nums; i++) {
int argmax_idx = 0;
float max_value = 0.0f;
for (int j = 0; j < char_dict_nums; j++) {
if (output[i * char_dict_nums + j] > max_value) {
max_value = output[i * char_dict_nums + j];
argmax_idx = j;
}
}
if (argmax_idx > 0 && (!(i > 0 && argmax_idx == last_index))) {
score += max_value;
count += 1;
// printf("%d，%f，%c\n", argmax_idx, max_value, dict[argmax_idx]);
printf("%c", dict[argmax_idx]);
}
last_index = argmax_idx;
}
score /= count;
printf(", score: %f\n", score);
// The FVP will shut down when it receives "EXITTHESIM" on the UART
printf("EXITTHESIM\n");
while (1 == 1)
;
return 0;
}
deploy/cpp_infer/CMakeLists.txt 0 → 100644
View file @ ed43fc11
project(ppocr CXX C)
cmake_minimum_required(VERSION 3.14)
option(WITH_MKL "Compile demo with MKL/OpenBlas support, default use MKL." ON)
option(WITH_GPU "Compile demo with GPU/CPU, default use CPU." OFF)
option(WITH_STATIC_LIB "Compile demo with static/shared library, default use static." ON)
option(WITH_TENSORRT "Compile demo with TensorRT." OFF)
SET(PADDLE_LIB "" CACHE PATH "Location of libraries")
SET(OPENCV_DIR "" CACHE PATH "Location of libraries")
SET(CUDA_LIB "" CACHE PATH "Location of libraries")
SET(CUDNN_LIB "" CACHE PATH "Location of libraries")
SET(TENSORRT_DIR "" CACHE PATH "Compile demo with TensorRT")
set(DEMO_NAME "ppocr")
macro(safe_set_static_flag)
foreach(flag_var
CMAKE_CXX_FLAGS CMAKE_CXX_FLAGS_DEBUG CMAKE_CXX_FLAGS_RELEASE
CMAKE_CXX_FLAGS_MINSIZEREL CMAKE_CXX_FLAGS_RELWITHDEBINFO)
if(${flag_var} MATCHES "/MD")
string(REGEX REPLACE "/MD" "/MT" ${flag_var} "${${flag_var}}")
endif(${flag_var} MATCHES "/MD")
endforeach(flag_var)
endmacro()
if (WITH_MKL)
ADD_DEFINITIONS(-DUSE_MKL)
endif()
if(NOT DEFINED PADDLE_LIB)
message(FATAL_ERROR "please set PADDLE_LIB with -DPADDLE_LIB=/path/paddle/lib")
endif()
if(NOT DEFINED OPENCV_DIR)
message(FATAL_ERROR "please set OPENCV_DIR with -DOPENCV_DIR=/path/opencv")
endif()
if (WIN32)
include_directories("${PADDLE_LIB}/paddle/include")
link_directories("${PADDLE_LIB}/paddle/lib")
find_package(OpenCV REQUIRED PATHS ${OPENCV_DIR}/build/ NO_DEFAULT_PATH)
else ()
find_package(OpenCV REQUIRED PATHS ${OPENCV_DIR}/share/OpenCV NO_DEFAULT_PATH)
include_directories("${PADDLE_LIB}/paddle/include")
link_directories("${PADDLE_LIB}/paddle/lib")
endif ()
include_directories(${OpenCV_INCLUDE_DIRS})
if (WIN32)
add_definitions("/DGOOGLE_GLOG_DLL_DECL=")
if(WITH_MKL)
set(FLAG_OPENMP "/openmp")
endif()
set(CMAKE_C_FLAGS_DEBUG "${CMAKE_C_FLAGS_DEBUG} /bigobj /MTd ${FLAG_OPENMP}")
set(CMAKE_C_FLAGS_RELEASE "${CMAKE_C_FLAGS_RELEASE} /bigobj /MT ${FLAG_OPENMP}")
set(CMAKE_CXX_FLAGS_DEBUG "${CMAKE_CXX_FLAGS_DEBUG} /bigobj /MTd ${FLAG_OPENMP}")
set(CMAKE_CXX_FLAGS_RELEASE "${CMAKE_CXX_FLAGS_RELEASE} /bigobj /MT ${FLAG_OPENMP}")
if (WITH_STATIC_LIB)
safe_set_static_flag()
add_definitions(-DSTATIC_LIB)
endif()
message("cmake c debug flags " ${CMAKE_C_FLAGS_DEBUG})
message("cmake c release flags " ${CMAKE_C_FLAGS_RELEASE})
message("cmake cxx debug flags " ${CMAKE_CXX_FLAGS_DEBUG})
message("cmake cxx release flags " ${CMAKE_CXX_FLAGS_RELEASE})
else()
if(WITH_MKL)
set(FLAG_OPENMP "-fopenmp")
endif()
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -g -O3 ${FLAG_OPENMP} -std=c++11")
set(CMAKE_STATIC_LIBRARY_PREFIX "")
message("cmake cxx flags" ${CMAKE_CXX_FLAGS})
endif()
if (WITH_GPU)
if (NOT DEFINED CUDA_LIB OR ${CUDA_LIB} STREQUAL "")
message(FATAL_ERROR "please set CUDA_LIB with -DCUDA_LIB=/path/cuda-8.0/lib64")
endif()
if (NOT WIN32)
if (NOT DEFINED CUDNN_LIB)
message(FATAL_ERROR "please set CUDNN_LIB with -DCUDNN_LIB=/path/cudnn_v7.4/cuda/lib64")
endif()
endif(NOT WIN32)
endif()
include_directories("${PADDLE_LIB}/third_party/install/protobuf/include")
include_directories("${PADDLE_LIB}/third_party/install/glog/include")
include_directories("${PADDLE_LIB}/third_party/install/gflags/include")
include_directories("${PADDLE_LIB}/third_party/install/xxhash/include")
include_directories("${PADDLE_LIB}/third_party/install/zlib/include")
include_directories("${PADDLE_LIB}/third_party/install/onnxruntime/include")
include_directories("${PADDLE_LIB}/third_party/install/paddle2onnx/include")
include_directories("${PADDLE_LIB}/third_party/boost")
include_directories("${PADDLE_LIB}/third_party/eigen3")
include_directories("${CMAKE_SOURCE_DIR}/")
if (NOT WIN32)
if (WITH_TENSORRT AND WITH_GPU)
include_directories("${TENSORRT_DIR}/include")
link_directories("${TENSORRT_DIR}/lib")
endif()
endif(NOT WIN32)
link_directories("${PADDLE_LIB}/third_party/install/zlib/lib")
link_directories("${PADDLE_LIB}/third_party/install/protobuf/lib")
link_directories("${PADDLE_LIB}/third_party/install/glog/lib")
link_directories("${PADDLE_LIB}/third_party/install/gflags/lib")
link_directories("${PADDLE_LIB}/third_party/install/xxhash/lib")
link_directories("${PADDLE_LIB}/third_party/install/onnxruntime/lib")
link_directories("${PADDLE_LIB}/third_party/install/paddle2onnx/lib")
link_directories("${PADDLE_LIB}/paddle/lib")
if(WITH_MKL)
include_directories("${PADDLE_LIB}/third_party/install/mklml/include")
if (WIN32)
set(MATH_LIB ${PADDLE_LIB}/third_party/install/mklml/lib/mklml.lib
${PADDLE_LIB}/third_party/install/mklml/lib/libiomp5md.lib)
else ()
set(MATH_LIB ${PADDLE_LIB}/third_party/install/mklml/lib/libmklml_intel${CMAKE_SHARED_LIBRARY_SUFFIX}
${PADDLE_LIB}/third_party/install/mklml/lib/libiomp5${CMAKE_SHARED_LIBRARY_SUFFIX})
execute_process(COMMAND cp -r ${PADDLE_LIB}/third_party/install/mklml/lib/libmklml_intel${CMAKE_SHARED_LIBRARY_SUFFIX} /usr/lib)
endif ()
set(MKLDNN_PATH "${PADDLE_LIB}/third_party/install/onednn")
if(EXISTS ${MKLDNN_PATH})
include_directories("${MKLDNN_PATH}/include")
if (WIN32)
set(MKLDNN_LIB ${MKLDNN_PATH}/lib/mkldnn.lib)
else ()
set(MKLDNN_LIB ${MKLDNN_PATH}/lib/libmkldnn.so.0)
endif ()
endif()
else()
if (WIN32)
set(MATH_LIB ${PADDLE_LIB}/third_party/install/openblas/lib/openblas${CMAKE_STATIC_LIBRARY_SUFFIX})
else ()
set(MATH_LIB ${PADDLE_LIB}/third_party/install/openblas/lib/libopenblas${CMAKE_STATIC_LIBRARY_SUFFIX})
endif ()
endif()
# Note: libpaddle_inference_api.so/a must put before libpaddle_inference.so/a
if(WITH_STATIC_LIB)
if(WIN32)
set(DEPS
${PADDLE_LIB}/paddle/lib/paddle_inference${CMAKE_STATIC_LIBRARY_SUFFIX})
else()
set(DEPS
${PADDLE_LIB}/paddle/lib/libpaddle_inference${CMAKE_STATIC_LIBRARY_SUFFIX})
endif()
else()
if(WIN32)
set(DEPS
${PADDLE_LIB}/paddle/lib/paddle_inference${CMAKE_SHARED_LIBRARY_SUFFIX})
else()
set(DEPS
${PADDLE_LIB}/paddle/lib/libpaddle_inference${CMAKE_SHARED_LIBRARY_SUFFIX})
endif()
endif(WITH_STATIC_LIB)
if (NOT WIN32)
set(DEPS ${DEPS}
${MATH_LIB} ${MKLDNN_LIB}
glog gflags protobuf z xxhash
)
if(EXISTS "${PADDLE_LIB}/third_party/install/snappystream/lib")
set(DEPS ${DEPS} snappystream)
endif()
if (EXISTS "${PADDLE_LIB}/third_party/install/snappy/lib")
set(DEPS ${DEPS} snappy)
endif()
else()
set(DEPS ${DEPS}
${MATH_LIB} ${MKLDNN_LIB}
glog gflags_static libprotobuf xxhash)
set(DEPS ${DEPS} libcmt shlwapi)
if (EXISTS "${PADDLE_LIB}/third_party/install/snappy/lib")
set(DEPS ${DEPS} snappy)
endif()
if(EXISTS "${PADDLE_LIB}/third_party/install/snappystream/lib")
set(DEPS ${DEPS} snappystream)
endif()
endif(NOT WIN32)
if(WITH_GPU)
if(NOT WIN32)
if (WITH_TENSORRT)
set(DEPS ${DEPS} ${TENSORRT_DIR}/lib/libnvinfer${CMAKE_SHARED_LIBRARY_SUFFIX})
set(DEPS ${DEPS} ${TENSORRT_DIR}/lib/libnvinfer_plugin${CMAKE_SHARED_LIBRARY_SUFFIX})
endif()
set(DEPS ${DEPS} ${CUDA_LIB}/libcudart${CMAKE_SHARED_LIBRARY_SUFFIX})
set(DEPS ${DEPS} ${CUDNN_LIB}/libcudnn${CMAKE_SHARED_LIBRARY_SUFFIX})
else()
set(DEPS ${DEPS} ${CUDA_LIB}/cudart${CMAKE_STATIC_LIBRARY_SUFFIX} )
set(DEPS ${DEPS} ${CUDA_LIB}/cublas${CMAKE_STATIC_LIBRARY_SUFFIX} )
set(DEPS ${DEPS} ${CUDNN_LIB}/cudnn${CMAKE_STATIC_LIBRARY_SUFFIX})
endif()
endif()
if (NOT WIN32)
set(EXTERNAL_LIB "-ldl -lrt -lgomp -lz -lm -lpthread")
set(DEPS ${DEPS} ${EXTERNAL_LIB})
endif()
set(DEPS ${DEPS} ${OpenCV_LIBS})
include(FetchContent)
include(external-cmake/auto-log.cmake)
include_directories(${FETCHCONTENT_BASE_DIR}/extern_autolog-src)
AUX_SOURCE_DIRECTORY(./src SRCS)
add_executable(${DEMO_NAME} ${SRCS})
target_link_libraries(${DEMO_NAME} ${DEPS})
if (WIN32 AND WITH_MKL)
add_custom_command(TARGET ${DEMO_NAME} POST_BUILD
COMMAND ${CMAKE_COMMAND} -E copy_if_different ${PADDLE_LIB}/third_party/install/mklml/lib/mklml.dll ./mklml.dll
COMMAND ${CMAKE_COMMAND} -E copy_if_different ${PADDLE_LIB}/third_party/install/mklml/lib/libiomp5md.dll ./libiomp5md.dll
COMMAND ${CMAKE_COMMAND} -E copy_if_different ${PADDLE_LIB}/third_party/install/onednn/lib/mkldnn.dll ./mkldnn.dll
COMMAND ${CMAKE_COMMAND} -E copy_if_different ${PADDLE_LIB}/third_party/install/mklml/lib/mklml.dll ./release/mklml.dll
COMMAND ${CMAKE_COMMAND} -E copy_if_different ${PADDLE_LIB}/third_party/install/mklml/lib/libiomp5md.dll ./release/libiomp5md.dll
COMMAND ${CMAKE_COMMAND} -E copy_if_different ${PADDLE_LIB}/third_party/install/onednn/lib/mkldnn.dll ./release/mkldnn.dll
)
endif()
deploy/cpp_infer/docs/windows_vs2019_build.md 0 → 100644
View file @ ed43fc11
[English](windows_vs2022_build.md) | 简体中文
- [Visual Studio 2019 Community CMake 编译指南](#visual-studio-2019-community-cmake-编译指南)
- [1. 环境准备](#1-环境准备)
- [1.1 安装必须环境](#11-安装必须环境)
- [1.2 下载 PaddlePaddle C++ 预测库和 Opencv](#12-下载-paddlepaddle-c-预测库和-opencv)
- [1.2.1 下载 PaddlePaddle C++ 预测库](#121-下载-paddlepaddle-c-预测库)
- [1.2.2 安装配置OpenCV](#122-安装配置opencv)
- [1.2.3 下载PaddleOCR代码](#123-下载paddleocr代码)
- [2. 开始运行](#2-开始运行)
- [Step1: 构建Visual Studio项目](#step1-构建visual-studio项目)
- [Step2: 执行cmake配置](#step2-执行cmake配置)
- [Step3: 生成Visual Studio 项目](#step3-生成visual-studio-项目)
- [Step4: 预测](#step4-预测)
- [FAQ](#faq)
# Visual Studio 2019 Community CMake 编译指南
PaddleOCR在Windows 平台下基于`Visual Studio 2019 Community` 进行了测试。微软从`Visual Studio 2017`开始即支持直接管理`CMake`跨平台编译项目，但是直到`2019`才提供了稳定和完全的支持，所以如果你想使用CMake管理项目编译构建，我们推荐你使用`Visual Studio 2019`环境下构建。
**下面所有示例以工作目录为 `D:\projects\cpp`演示**。
## 1. 环境准备
### 1.1 安装必须环境
* Visual Studio 2019
* CUDA 10.2，cudnn 7+ （仅在使用GPU版本的预测库时需要）
* CMake 3.22+
请确保系统已经安装好上述基本软件，我们使用的是`VS2019`的社区版。
### 1.2 下载 PaddlePaddle C++ 预测库和 Opencv
#### 1.2.1 下载 PaddlePaddle C++ 预测库
PaddlePaddle C++ 预测库针对不同的`CPU`和`CUDA`版本提供了不同的预编译版本，请根据实际情况下载: [C++预测库下载列表](https://www.paddlepaddle.org.cn/inference/master/guides/install/download_lib.html#windows)
解压后`D:\projects\paddle_inference`目录包含内容为：
```
paddle_inference
├── paddle # paddle核心库和头文件
|
├── third_party # 第三方依赖库和头文件
|
└── version.txt # 版本和编译信息
```
#### 1.2.2 安装配置OpenCV
1. 在OpenCV官网下载适用于Windows平台的Opencv， [下载地址](https://github.com/opencv/opencv/releases)
2. 运行下载的可执行文件，将OpenCV解压至指定目录，如`D:\projects\cpp\opencv`
#### 1.2.3 下载PaddleOCR代码
```bash
git clone -b dygraph https://github.com/PaddlePaddle/PaddleOCR
```
## 2. 开始运行
### Step1: 构建Visual Studio项目
cmake安装完后后系统里会有一个cmake-gui程序，打开cmake-gui，在第一个输入框处填写源代码路径，第二个输入框处填写编译输出路径
![step1](imgs/cmake_step1.png)
### Step2: 执行cmake配置
点击界面下方的`Configure`按钮，第一次点击会弹出提示框进行Visual Studio配置，如下图，选择你的Visual Studio版本即可，目标平台选择x64。然后点击`finish`按钮即开始自动执行配置。
![step2](imgs/cmake_step2.png)
第一次执行会报错，这是正常现象，接下来进行Opencv和预测库的配置
* cpu版本，仅需考虑OPENCV_DIR、OpenCV_DIR、PADDLE_LIB三个参数
- OPENCV_DIR：填写opencv lib文件夹所在位置
- OpenCV_DIR：同填写opencv lib文件夹所在位置
- PADDLE_LIB：paddle_inference文件夹所在位置
* GPU版本，在cpu版本的基础上，还需填写以下变量
CUDA_LIB、CUDNN_LIB、TENSORRT_DIR、WITH_GPU、WITH_TENSORRT
- CUDA_LIB: CUDA地址，如 `C:\Program Files\NVIDIA GPU Computing Toolkit\CUDA\v11.2\lib\x64`
- CUDNN_LIB: 和CUDA_LIB一致
- TENSORRT_DIR：TRT下载后解压缩的位置，如 `D:\TensorRT-8.0.1.6`
- WITH_GPU: 打钩
- WITH_TENSORRT：打勾
配置好的截图如下
![step3](imgs/cmake_step3.png)
配置完成后，再次点击`Configure`按钮。
**注意：**
1. 如果使用的是`openblas`版本，请把`WITH_MKL`勾去掉
2. 遇到报错 `unable to access 'https://github.com/LDOUBLEV/AutoLog.git/': gnutls_handshake() failed: The TLS connection was non-properly terminated.`， 将 `deploy/cpp_infer/external-cmake/auto-log.cmake` 中的github地址改为 https://gitee.com/Double_V/AutoLog 地址即可。

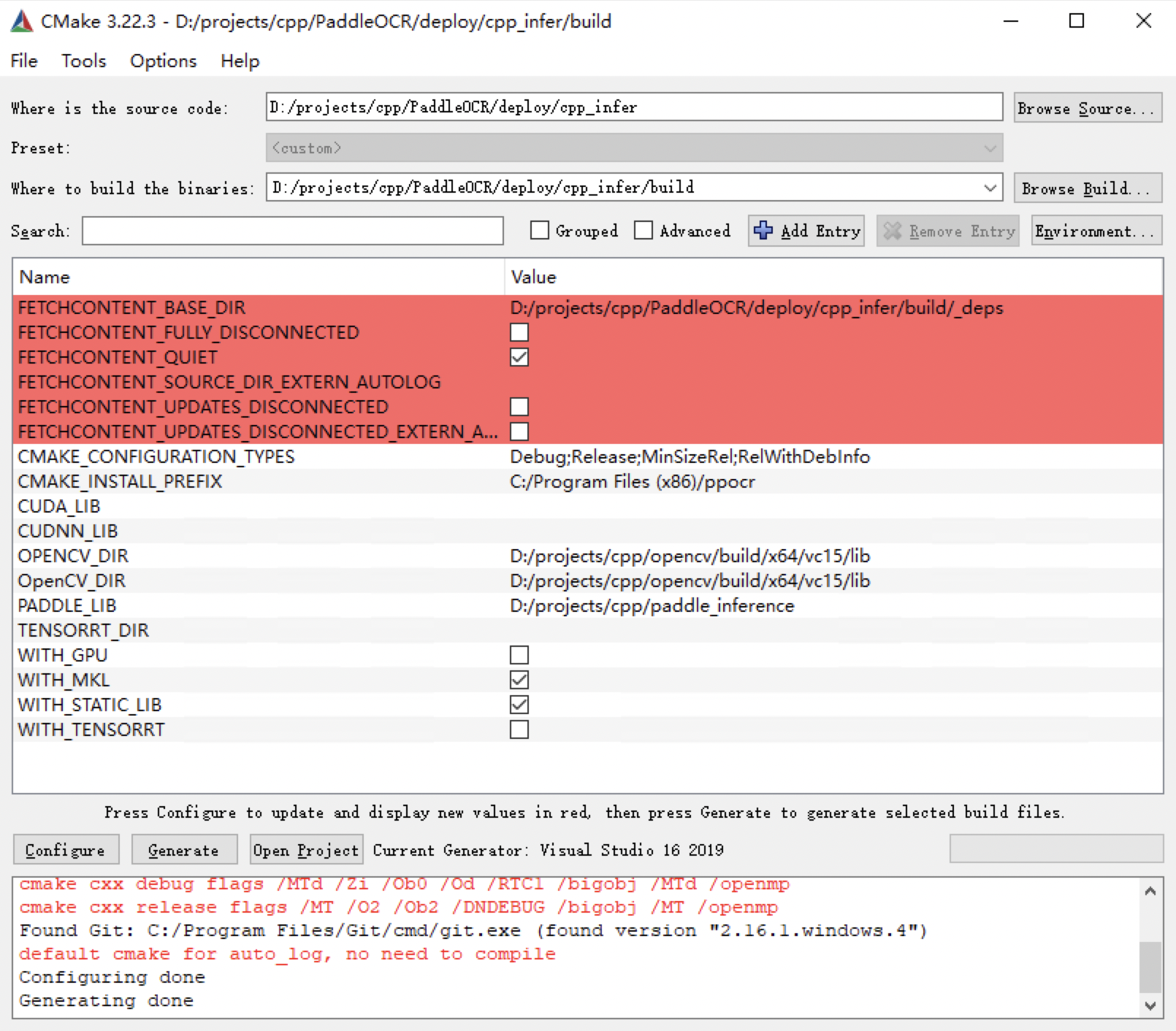

### Step3: 生成Visual Studio 项目
点击`Generate`按钮即可生成Visual Studio 项目的sln文件。
![step4](imgs/cmake_step4.png)
点击`Open Project`按钮即可在Visual Studio 中打开项目。打开后截图如下
![step5](imgs/vs_step1.png)
在开始生成解决方案之前，执行下面步骤：
1. 将`Debug`改为`Release`
2. 下载[dirent.h](https://paddleocr.bj.bcebos.com/deploy/cpp_infer/cpp_files/dirent.h)，并拷贝到 Visual Studio 的 include 文件夹下，如`C:\Program Files (x86)\Microsoft Visual Studio\2019\Community\VC\Auxiliary\VS\include`。
点击`生成->生成解决方案`，即可在`build/Release/`文件夹下看见`ppocr.exe`文件。
运行之前，将下面文件拷贝到`build/Release/`文件夹下
1. `paddle_inference/paddle/lib/paddle_inference.dll`
2. `paddle_inference/third_party/install/onnxruntime/lib/onnxruntime.dll`
3. `paddle_inference/third_party/install/paddle2onnx/lib/paddle2onnx.dll`
4. `opencv/build/x64/vc15/bin/opencv_world455.dll`
5. 如果使用openblas版本的预测库还需要拷贝 `paddle_inference/third_party/install/openblas/lib/openblas.dll`
### Step4: 预测
上述`Visual Studio 2019`编译产出的可执行文件在`build/Release/`目录下，打开`cmd`，并切换到`D:\projects\cpp\PaddleOCR\deploy\cpp_infer\`：
```
cd /d D:\projects\cpp\PaddleOCR\deploy\cpp_infer
```
可执行文件`ppocr.exe`即为样例的预测程序，其主要使用方法如下，更多使用方法可以参考[说明文档](../readme_ch.md)`运行demo`部分。
```shell
# 切换终端编码为utf8
CHCP 65001
# 执行预测
.\build\Release\ppocr.exe system --det_model_dir=D:\projects\cpp\ch_PP-OCRv2_det_slim_quant_infer --rec_model_dir=D:\projects\cpp\ch_PP-OCRv2_rec_slim_quant_infer --image_dir=D:\projects\cpp\PaddleOCR\doc\imgs\11.jpg
```
识别结果如下
![result](imgs/result.jpg)
## FAQ
* 运行时，弹窗报错提示`应用程序无法正常启动(0xc0000142)`，并且`cmd`窗口内提示`You are using Paddle compiled with TensorRT, but TensorRT dynamic library is not found.`，把tensort目录下的lib里面的所有dll文件复制到release目录下，再次运行即可。
deploy/cpp_infer/docs/windows_vs2022_build.md 0 → 100644
View file @ ed43fc11
English | [简体中文](windows_vs2019_build.md)
# Visual Studio 2022 Community CMake Compilation Guide
PaddleOCR has been tested on Windows using `Visual Studio 2022 Community`. Microsoft started supporting direct `CMake` project management from `Visual Studio 2017`, but it wasn't fully stable and reliable until `2019`. If you want to use CMake for project management and compilation, we recommend using `Visual Studio 2022`.
**All examples below assume the working directory is **`D:\projects\cpp`**.**
## 1. Environment Preparation
### 1.1 Install Required Dependencies
- Visual Studio 2019 or newer
- CUDA 10.2, cuDNN 7+ (only required for the GPU version of the prediction library). Additionally, the NVIDIA Computing Toolkit must be installed, and the NVIDIA cuDNN library must be downloaded.
- CMake 3.22+
Ensure that the above dependencies are installed before proceeding. In this tutorial the Community Edition of `VS2022` was used.
### 1.2 Download PaddlePaddle C++ Prediction Library and OpenCV
#### 1.2.1 Download PaddlePaddle C++ Prediction Library
PaddlePaddle C++ prediction libraries offer different precompiled versions for various `CPU` and `CUDA` configurations. Download the appropriate version from: [C++ Prediction Library Download List](https://www.paddlepaddle.org.cn/inference/master/guides/install/download_lib.html#windows)
After extraction, the `D:\projects\paddle_inference` directory should contain:
```
paddle_inference
├── paddle # Core Paddle library and header files
|
├── third_party # Third-party dependencies and headers
|
└── version.txt # Version and compilation information
```
#### 1.2.2 Install and Configure OpenCV
1. Download OpenCV for Windows from the [official release page](https://github.com/opencv/opencv/releases).
2. Run the downloaded executable and extract OpenCV to a specified directory, e.g., `D:\projects\cpp\opencv`.
#### 1.2.3 Download PaddleOCR Code
```bash
git clone https://github.com/PaddlePaddle/Paddle.git
git checkout develop
```
## 2. Running the Project
### Step 1: Create a Visual Studio Project
Once CMake is installed, open the `cmake-gui` application. Specify the source code directory in the first input box and the build output directory in the second input box.
![step1](imgs/cmake_step1.png)
### Step 2: Run CMake Configuration
Click the `Configure` button at the bottom of the interface. The first time you run it, a prompt will appear asking for the Visual Studio configuration. Select your `Visual Studio` version and set the target platform to `x64`. Click `Finish` to start the configuration process.
![step2](imgs/cmake_step2.png)
The first run will result in errors, which is expected. You now need to configure OpenCV and the prediction library.
- **For CPU version**, configure the following variables:
- `OPENCV_DIR`: Path to the OpenCV `lib` folder
- `OpenCV_DIR`: Same as `OPENCV_DIR`
- `PADDLE_LIB`: Path to the `paddle_inference` folder
- **For GPU version**, configure additional variables:
- `CUDA_LIB`: CUDA path, e.g., `C:\Program Files\NVIDIA GPU Computing Toolkit\CUDA\v11.2\lib\x64`
- `CUDNN_LIB`: Path to extracted CuDNN library, e.g., `D:\CuDNN-8.9.7.29`
- `TENSORRT_DIR`: Path to extracted TensorRT, e.g., `D:\TensorRT-8.0.1.6`
- `WITH_GPU`: Check this option
- `WITH_TENSORRT`: Check this option
Example configuration:
![step3](imgs/cmake_step3.png)
Once configured, click `Configure` again.
**Note:**
1. If using `openblas`, uncheck `WITH_MKL`.
2. If you encounter the error `unable to access 'https://github.com/LDOUBLEV/AutoLog.git/': gnutls_handshake() failed`, update `deploy/cpp_infer/external-cmake/auto-log.cmake` to use `https://gitee.com/Double_V/AutoLog`.
### Step 3: Generate Visual Studio Project
Click `Generate` to create the `.sln` file for the Visual Studio project.
![step4](imgs/cmake_step4.png)
Click `Open Project` to launch the project in Visual Studio. The interface should look like this:
![step5](imgs/vs_step1.png)
Before building the solution, perform the following steps:
1. Change `Debug` to `Release` mode.
2. Download [dirent.h](https://paddleocr.bj.bcebos.com/deploy/cpp_infer/cpp_files/dirent.h) and copy it to the Visual Studio include directory, e.g., `C:\Program Files\Microsoft Visual Studio\2022\Community\VC\Tools\MSVC\include`.
Click `Build -> Build Solution`. Once completed, the `ppocr.exe` file should appear in the `build/Release/` folder.
Before running, copy the following files to `build/Release/`:
1. `paddle_inference/paddle/lib/paddle_inference.dll`
2. `paddle_inference/paddle/lib/common.dll`
3. `paddle_inference/third_party/install/mklml/lib/mklml.dll`
4. `paddle_inference/third_party/install/mklml/lib/libiomp5md.dll`
5. `paddle_inference/third_party/install/onednn/lib/mkldnn.dll`
6. `opencv/build/x64/vc15/bin/opencv_world455.dll`
7. If using the `openblas` version, also copy `paddle_inference/third_party/install/openblas/lib/openblas.dll`.
### Step 4: Run the Prediction
The compiled executable is located in the `build/Release/` directory. Open `cmd` and navigate to `D:\projects\cpp\PaddleOCR\deploy\cpp_infer\`:
```
cd /d D:\projects\cpp\PaddleOCR\deploy\cpp_infer
```
Run the prediction using `ppocr.exe`. For more usage details, refer to the [documentation](../readme_ch.md).
```shell
# Switch terminal encoding to UTF-8
CHCP 65001
# If using PowerShell, run this command before execution to fix character encoding issues:
$OutputEncoding = [console]::InputEncoding = [console]::OutputEncoding = New-Object System.Text.UTF8Encoding
# Execute prediction
.\build\Release\ppocr.exe system --det_model_dir=D:\projects\cpp\ch_PP-OCRv2_det_slim_quant_infer --rec_model_dir=D:\projects\cpp\ch_PP-OCRv2_rec_slim_quant_infer --image_dir=D:\projects\cpp\PaddleOCR\doc\imgs\11.jpg
```
<br>
## Sample result:
![result](imgs/result.jpg)
## FAQ
- **Issue:** Application fails to start with error `(0xc0000142)` and `cmd` output shows `You are using Paddle compiled with TensorRT, but TensorRT dynamic library is not found.`
- **Solution:** Copy all `.dll` files from the `TensorRT` directory's `lib` folder into the `release` directory and try running it again.
deploy/cpp_infer/external-cmake/auto-log.cmake 0 → 100644
View file @ ed43fc11
find_package(Git REQUIRED)
include(FetchContent)
set(FETCHCONTENT_BASE_DIR "${CMAKE_CURRENT_BINARY_DIR}/third-party")
FetchContent_Declare(
extern_Autolog
PREFIX autolog
# If you don't have access to github, replace it with https://gitee.com/Double_V/AutoLog
GIT_REPOSITORY https://github.com/LDOUBLEV/AutoLog.git
GIT_TAG main
)
FetchContent_MakeAvailable(extern_Autolog)
deploy/cpp_infer/include/args.h 0 → 100644
View file @ ed43fc11
// Copyright (c) 2020 PaddlePaddle Authors. All Rights Reserved.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
#pragma once
#include <gflags/gflags.h>
// common args
DECLARE_bool(use_gpu);
DECLARE_bool(use_tensorrt);
DECLARE_int32(gpu_id);
DECLARE_int32(gpu_mem);
DECLARE_int32(cpu_threads);
DECLARE_bool(enable_mkldnn);
DECLARE_string(precision);
DECLARE_bool(benchmark);
DECLARE_string(output);
DECLARE_string(image_dir);
DECLARE_string(type);
// detection related
DECLARE_string(det_model_dir);
DECLARE_string(limit_type);
DECLARE_int32(limit_side_len);
DECLARE_double(det_db_thresh);
DECLARE_double(det_db_box_thresh);
DECLARE_double(det_db_unclip_ratio);
DECLARE_bool(use_dilation);
DECLARE_string(det_db_score_mode);
DECLARE_bool(visualize);
// classification related
DECLARE_bool(use_angle_cls);
DECLARE_string(cls_model_dir);
DECLARE_double(cls_thresh);
DECLARE_int32(cls_batch_num);
// recognition related
DECLARE_string(rec_model_dir);
DECLARE_int32(rec_batch_num);
DECLARE_string(rec_char_dict_path);
DECLARE_int32(rec_img_h);
DECLARE_int32(rec_img_w);
// layout model related
DECLARE_string(layout_model_dir);
DECLARE_string(layout_dict_path);
DECLARE_double(layout_score_threshold);
DECLARE_double(layout_nms_threshold);
// structure model related
DECLARE_string(table_model_dir);
DECLARE_int32(table_max_len);
DECLARE_int32(table_batch_num);
DECLARE_string(table_char_dict_path);
DECLARE_bool(merge_no_span_structure);
// forward related
DECLARE_bool(det);
DECLARE_bool(rec);
DECLARE_bool(cls);
DECLARE_bool(table);
DECLARE_bool(layout);
deploy/cpp_infer/include/clipper.h 0 → 100644
View file @ ed43fc11
/*******************************************************************************
* *
* Author : Angus Johnson * Version : 6.4.2 * Date : 27 February
*2017 * Website :
*http://www.angusj.com * Copyright :
*Angus Johnson 2010-2017 *
* *
* License: * Use, modification & distribution is subject to Boost Software
*License Ver 1. * http://www.boost.org/LICENSE_1_0.txt *
* *
* Attributions: * The code in this library is an extension of Bala Vatti's
*clipping algorithm: * "A generic solution to polygon clipping" *
* Communications of the ACM, Vol 35, Issue 7 (July 1992) pp 56-63. *
* http://portal.acm.org/citation.cfm?id=129906 *
* *
* Computer graphics and geometric modeling: implementation and algorithms * By
*Max K. Agoston *
* Springer; 1 edition (January 4, 2005) *
* http://books.google.com/books?q=vatti+clipping+agoston *
* *
* See also: * "Polygon Offsetting by Computing Winding Numbers" * Paper no.
*DETC2005-85513 pp. 565-575 * ASME 2005
*International Design Engineering Technical Conferences * and
*Computers and Information in Engineering Conference (IDETC/CIE2005) *
* September 24-28, 2005 , Long Beach, California, USA *
* http://www.me.berkeley.edu/~mcmains/pubs/DAC05OffsetPolygon.pdf *
* *
*******************************************************************************/
#pragma once
#ifndef clipper_hpp
#define clipper_hpp
#define CLIPPER_VERSION "6.4.2"
// use_int32: When enabled 32bit ints are used instead of 64bit ints. This
// improve performance but coordinate values are limited to the range +/- 46340
//#define use_int32
// use_xyz: adds a Z member to IntPoint. Adds a minor cost to performance.
//#define use_xyz
// use_lines: Enables line clipping. Adds a very minor cost to performance.
#define use_lines
// use_deprecated: Enables temporary support for the obsolete functions
//#define use_deprecated
#include <list>
#include <queue>
#include <string>
#include <vector>
namespace ClipperLib {
enum ClipType { ctIntersection, ctUnion, ctDifference, ctXor };
enum PolyType { ptSubject, ptClip };
// By far the most widely used winding rules for polygon filling are
// EvenOdd & NonZero (GDI, GDI+, XLib, OpenGL, Cairo, AGG, Quartz, SVG, Gr32)
// Others rules include Positive, Negative and ABS_GTR_EQ_TWO (only in OpenGL)
// see http://glprogramming.com/red/chapter11.html
enum PolyFillType { pftEvenOdd, pftNonZero, pftPositive, pftNegative };
#ifdef use_int32
typedef int cInt;
static cInt const loRange = 0x7FFF;
static cInt const hiRange = 0x7FFF;
#else
typedef signed long long cInt;
static cInt const loRange = 0x3FFFFFFF;
static cInt const hiRange = 0x3FFFFFFFFFFFFFFFLL;
typedef signed long long long64; // used by Int128 class
typedef unsigned long long ulong64;
#endif
struct IntPoint {
cInt X;
cInt Y;
#ifdef use_xyz
cInt Z;
IntPoint(cInt x = 0, cInt y = 0, cInt z = 0) noexcept : X(x), Y(y), Z(z) {}
IntPoint(IntPoint const &ip) noexcept : X(ip.X), Y(ip.Y), Z(ip.Z) {}
#else
IntPoint(cInt x = 0, cInt y = 0) noexcept : X(x), Y(y) {}
IntPoint(IntPoint const &ip) noexcept : X(ip.X), Y(ip.Y) {}
#endif
inline void reset(cInt x = 0, cInt y = 0) noexcept {
X = x;
Y = y;
}
friend inline bool operator==(const IntPoint &a, const IntPoint &b) noexcept {
return a.X == b.X && a.Y == b.Y;
}
friend inline bool operator!=(const IntPoint &a, const IntPoint &b) noexcept {
return a.X != b.X || a.Y != b.Y;
}
};
//------------------------------------------------------------------------------
typedef std::vector<IntPoint> Path;
typedef std::vector<Path> Paths;
inline Path &operator<<(Path &poly, IntPoint &&p) noexcept {
poly.emplace_back(std::forward<IntPoint>(p));
return poly;
}
inline Paths &operator<<(Paths &polys, Path &&p) noexcept {
polys.emplace_back(std::forward<Path>(p));
return polys;
}
std::ostream &operator<<(std::ostream &s, const IntPoint &p) noexcept;
std::ostream &operator<<(std::ostream &s, const Path &p) noexcept;
std::ostream &operator<<(std::ostream &s, const Paths &p) noexcept;
struct DoublePoint {
double X;
double Y;
DoublePoint(double x = 0, double y = 0) noexcept : X(x), Y(y) {}
DoublePoint(IntPoint const &ip) noexcept : X((double)ip.X), Y((double)ip.Y) {}
inline void reset(double x = 0, double y = 0) noexcept {
X = x;
Y = y;
}
};
//------------------------------------------------------------------------------
#ifdef use_xyz
typedef void (*ZFillCallback)(IntPoint &e1bot, IntPoint &e1top, IntPoint &e2bot,
IntPoint &e2top, IntPoint &pt);
#endif
enum InitOptions {
ioReverseSolution = 1,
ioStrictlySimple = 2,
ioPreserveCollinear = 4
};
enum JoinType { jtSquare, jtRound, jtMiter };
enum EndType {
etClosedPolygon,
etClosedLine,
etOpenButt,
etOpenSquare,
etOpenRound
};
class PolyNode;
typedef std::vector<PolyNode *> PolyNodes;
class PolyNode {
public:
PolyNode() noexcept;
virtual ~PolyNode() {}
Path Contour;
PolyNodes Children;
PolyNode *Parent;
PolyNode *GetNext() const noexcept;
bool IsHole() const noexcept;
bool IsOpen() const noexcept;
int ChildCount() const noexcept;
private:
// PolyNode& operator =(PolyNode& other);
unsigned Index; // node index in Parent.Children
bool m_IsOpen;
JoinType m_jointype;
EndType m_endtype;
PolyNode *GetNextSiblingUp() const noexcept;
void AddChild(PolyNode &child) noexcept;
friend class Clipper; // to access Index
friend class ClipperOffset;
};
class PolyTree : public PolyNode {
public:
~PolyTree() { Clear(); }
PolyNode *GetFirst() const noexcept;
void Clear() noexcept;
int Total() const noexcept;
private:
// PolyTree& operator =(PolyTree& other);
PolyNodes AllNodes;
friend class Clipper; // to access AllNodes
};
bool Orientation(const Path &poly) noexcept;
double Area(const Path &poly) noexcept;
int PointInPolygon(const IntPoint &pt, const Path &path) noexcept;
#if 0
void SimplifyPolygon(const Path &in_poly, Paths &out_polys,
PolyFillType fillType = pftEvenOdd);
void SimplifyPolygons(const Paths &in_polys, Paths &out_polys,
PolyFillType fillType = pftEvenOdd);
void SimplifyPolygons(Paths &polys, PolyFillType fillType = pftEvenOdd);
#endif
void CleanPolygon(const Path &in_poly, Path &out_poly,
double distance = 1.415) noexcept;
void CleanPolygon(Path &poly, double distance = 1.415) noexcept;
void CleanPolygons(const Paths &in_polys, Paths &out_polys,
double distance = 1.415) noexcept;
void CleanPolygons(Paths &polys, double distance = 1.415) noexcept;
#if 0
void MinkowskiSum(const Path &pattern, const Path &path, Paths &solution,
bool pathIsClosed);
void MinkowskiSum(const Path &pattern, const Paths &paths, Paths &solution,
bool pathIsClosed);
void MinkowskiDiff(const Path &poly1, const Path &poly2, Paths &solution);
#endif
void PolyTreeToPaths(const PolyTree &polytree, Paths &paths) noexcept;
void ClosedPathsFromPolyTree(const PolyTree &polytree, Paths &paths) noexcept;
void OpenPathsFromPolyTree(PolyTree &polytree, Paths &paths) noexcept;
void ReversePath(Path &p) noexcept;
void ReversePaths(Paths &p) noexcept;
struct IntRect {
cInt left;
cInt top;
cInt right;
cInt bottom;
};
// enums that are used internally ...
enum EdgeSide { esLeft = 1, esRight = 2 };
// forward declarations (for stuff used internally) ...
struct TEdge;
struct IntersectNode;
struct LocalMinimum;
struct OutPt;
struct OutRec;
struct Join;
typedef std::vector<OutRec *> PolyOutList;
typedef std::vector<TEdge *> EdgeList;
typedef std::vector<Join *> JoinList;
typedef std::vector<IntersectNode *> IntersectList;
//------------------------------------------------------------------------------
// ClipperBase is the ancestor to the Clipper class. It should not be
// instantiated directly. This class simply abstracts the conversion of sets of
// polygon coordinates into edge objects that are stored in a LocalMinima list.
class ClipperBase {
public:
ClipperBase() noexcept;
virtual ~ClipperBase();
virtual bool AddPath(const Path &pg, PolyType PolyTyp, bool Closed);
bool AddPaths(const Paths &ppg, PolyType PolyTyp, bool Closed);
virtual void Clear() noexcept;
IntRect GetBounds() noexcept;
bool PreserveCollinear() const noexcept { return m_PreserveCollinear; }
void PreserveCollinear(bool value) noexcept { m_PreserveCollinear = value; }
protected:
void DisposeLocalMinimaList() noexcept;
TEdge *AddBoundsToLML(TEdge *e, bool IsClosed) noexcept;
virtual void Reset() noexcept;
TEdge *ProcessBound(TEdge *E, bool IsClockwise) noexcept;
void InsertScanbeam(const cInt Y) noexcept;
bool PopScanbeam(cInt &Y) noexcept;
bool LocalMinimaPending() noexcept;
bool PopLocalMinima(cInt Y, const LocalMinimum *&locMin) noexcept;
OutRec *CreateOutRec() noexcept;
void DisposeAllOutRecs() noexcept;
void DisposeOutRec(PolyOutList::size_type index) noexcept;
void SwapPositionsInAEL(TEdge *edge1, TEdge *edge2) noexcept;
void DeleteFromAEL(TEdge *e) noexcept;
void UpdateEdgeIntoAEL(TEdge *&e);
typedef std::vector<LocalMinimum> MinimaList;
MinimaList::iterator m_CurrentLM;
MinimaList m_MinimaList;
bool m_UseFullRange;
EdgeList m_edges;
bool m_PreserveCollinear;
bool m_HasOpenPaths;
PolyOutList m_PolyOuts;
TEdge *m_ActiveEdges;
typedef std::priority_queue<cInt> ScanbeamList;
ScanbeamList m_Scanbeam;
};
//------------------------------------------------------------------------------
class Clipper : public virtual ClipperBase {
public:
Clipper(int initOptions = 0) noexcept;
bool Execute(ClipType clipType, Paths &solution,
PolyFillType fillType = pftEvenOdd);
bool Execute(ClipType clipType, Paths &solution, PolyFillType subjFillType,
PolyFillType clipFillType);
bool Execute(ClipType clipType, PolyTree &polytree,
PolyFillType fillType = pftEvenOdd) noexcept;
bool Execute(ClipType clipType, PolyTree &polytree, PolyFillType subjFillType,
PolyFillType clipFillType) noexcept;
bool ReverseSolution() const noexcept { return m_ReverseOutput; }
void ReverseSolution(bool value) noexcept { m_ReverseOutput = value; }
bool StrictlySimple() const noexcept { return m_StrictSimple; }
void StrictlySimple(bool value) noexcept { m_StrictSimple = value; }
// set the callback function for z value filling on intersections (otherwise Z
// is 0)
#ifdef use_xyz
void ZFillFunction(ZFillCallback zFillFunc) noexcept;
#endif
protected:
virtual bool ExecuteInternal() noexcept;
private:
JoinList m_Joins;
JoinList m_GhostJoins;
IntersectList m_IntersectList;
ClipType m_ClipType;
typedef std::list<cInt> MaximaList;
MaximaList m_Maxima;
TEdge *m_SortedEdges;
bool m_ExecuteLocked;
PolyFillType m_ClipFillType;
PolyFillType m_SubjFillType;
bool m_ReverseOutput;
bool m_UsingPolyTree;
bool m_StrictSimple;
#ifdef use_xyz
ZFillCallback m_ZFill; // custom callback
#endif
void SetWindingCount(TEdge &edge) noexcept;
bool IsEvenOddFillType(const TEdge &edge) const noexcept;
bool IsEvenOddAltFillType(const TEdge &edge) const noexcept;
void InsertLocalMinimaIntoAEL(const cInt botY) noexcept;
void InsertEdgeIntoAEL(TEdge *edge, TEdge *startEdge) noexcept;
void AddEdgeToSEL(TEdge *edge) noexcept;
bool PopEdgeFromSEL(TEdge *&edge) noexcept;
void CopyAELToSEL() noexcept;
void DeleteFromSEL(TEdge *e) noexcept;
void SwapPositionsInSEL(TEdge *edge1, TEdge *edge2) noexcept;
bool IsContributing(const TEdge &edge) const noexcept;
bool IsTopHorz(const cInt XPos) noexcept;
void DoMaxima(TEdge *e);
void ProcessHorizontals() noexcept;
void ProcessHorizontal(TEdge *horzEdge) noexcept;
void AddLocalMaxPoly(TEdge *e1, TEdge *e2, const IntPoint &pt) noexcept;
OutPt *AddLocalMinPoly(TEdge *e1, TEdge *e2, const IntPoint &pt) noexcept;
OutRec *GetOutRec(int idx) noexcept;
void AppendPolygon(TEdge *e1, TEdge *e2) noexcept;
void IntersectEdges(TEdge *e1, TEdge *e2, IntPoint &pt) noexcept;
OutPt *AddOutPt(TEdge *e, const IntPoint &pt) noexcept;
OutPt *GetLastOutPt(TEdge *e) noexcept;
bool ProcessIntersections(const cInt topY);
void BuildIntersectList(const cInt topY) noexcept;
void ProcessIntersectList() noexcept;
void ProcessEdgesAtTopOfScanbeam(const cInt topY);
void BuildResult(Paths &polys) noexcept;
void BuildResult2(PolyTree &polytree) noexcept;
void SetHoleState(TEdge *e, OutRec *outrec) noexcept;
void DisposeIntersectNodes() noexcept;
bool FixupIntersectionOrder() noexcept;
void FixupOutPolygon(OutRec &outrec) noexcept;
void FixupOutPolyline(OutRec &outrec) noexcept;
bool IsHole(TEdge *e) noexcept;
bool FindOwnerFromSplitRecs(OutRec &outRec, OutRec *&currOrfl) noexcept;
void FixHoleLinkage(OutRec &outrec) noexcept;
void AddJoin(OutPt *op1, OutPt *op2, const IntPoint offPt) noexcept;
void ClearJoins() noexcept;
void ClearGhostJoins() noexcept;
void AddGhostJoin(OutPt *op, const IntPoint offPt) noexcept;
bool JoinPoints(Join *j, OutRec *outRec1, OutRec *outRec2) noexcept;
void JoinCommonEdges() noexcept;
void DoSimplePolygons() noexcept;
void FixupFirstLefts1(OutRec *OldOutRec, OutRec *NewOutRec) noexcept;
void FixupFirstLefts2(OutRec *InnerOutRec, OutRec *OuterOutRec) noexcept;
void FixupFirstLefts3(OutRec *OldOutRec, OutRec *NewOutRec) noexcept;
#ifdef use_xyz
void SetZ(IntPoint &pt, TEdge &e1, TEdge &e2) noexcept;
#endif
};
//------------------------------------------------------------------------------
class ClipperOffset {
public:
ClipperOffset(double miterLimit = 2.0, double roundPrecision = 0.25) noexcept;
~ClipperOffset();
void AddPath(const Path &path, JoinType joinType, EndType endType) noexcept;
void AddPaths(const Paths &paths, JoinType joinType,
EndType endType) noexcept;
bool Execute(Paths &solution, double delta) noexcept;
bool Execute(PolyTree &solution, double delta) noexcept;
void Clear() noexcept;
private:
double MiterLimit;
double ArcTolerance;
Paths m_destPolys;
Path m_srcPoly;
Path m_destPoly;
std::vector<DoublePoint> m_normals;
double m_delta, m_sinA, m_sin, m_cos;
double m_miterLim, m_StepsPerRad;
IntPoint m_lowest;
PolyNode m_polyNodes;
void FixOrientations() noexcept;
void DoOffset(double delta) noexcept;
void OffsetPoint(int j, int &k, JoinType jointype) noexcept;
void DoSquare(int j, int k) noexcept;
void DoMiter(int j, int k, double r) noexcept;
void DoRound(int j, int k) noexcept;
};
//------------------------------------------------------------------------------
class clipperException : public std::exception {
public:
clipperException(const char *description) noexcept : m_descr(description) {}
~clipperException() {}
virtual const char *what() const noexcept { return m_descr.c_str(); }
private:
std::string m_descr;
};
//------------------------------------------------------------------------------
} // namespace ClipperLib
#endif // clipper_hpp
deploy/cpp_infer/include/ocr_cls.h 0 → 100644
View file @ ed43fc11
// Copyright (c) 2020 PaddlePaddle Authors. All Rights Reserved.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
#pragma once
#include <include/preprocess_op.h>
#include <include/utility.h>
#include <memory>
namespace paddle_infer {
class Predictor;
}
namespace PaddleOCR {
class Classifier {
public:
explicit Classifier(const std::string &model_dir, const bool &use_gpu,
const int &gpu_id, const int &gpu_mem,
const int &cpu_math_library_num_threads,
const bool &use_mkldnn, const double &cls_thresh,
const bool &use_tensorrt, const std::string &precision,
const int &cls_batch_num) noexcept {
this->use_gpu_ = use_gpu;
this->gpu_id_ = gpu_id;
this->gpu_mem_ = gpu_mem;
this->cpu_math_library_num_threads_ = cpu_math_library_num_threads;
this->use_mkldnn_ = use_mkldnn;
this->cls_thresh = cls_thresh;
this->use_tensorrt_ = use_tensorrt;
this->precision_ = precision;
this->cls_batch_num_ = cls_batch_num;
LoadModel(model_dir);
}
double cls_thresh = 0.9;
// Load Paddle inference model
void LoadModel(const std::string &model_dir) noexcept;
void Run(const std::vector<cv::Mat> &img_list, std::vector<int> &cls_labels,
std::vector<float> &cls_scores, std::vector<double> &times) noexcept;
private:
std::shared_ptr<paddle_infer::Predictor> predictor_;
bool use_gpu_ = false;
int gpu_id_ = 0;
int gpu_mem_ = 4000;
int cpu_math_library_num_threads_ = 4;
bool use_mkldnn_ = false;
std::vector<float> mean_ = {0.5f, 0.5f, 0.5f};
std::vector<float> scale_ = {1 / 0.5f, 1 / 0.5f, 1 / 0.5f};
bool is_scale_ = true;
bool use_tensorrt_ = false;
std::string precision_ = "fp32";
int cls_batch_num_ = 1;
// pre-process
ClsResizeImg resize_op_;
Normalize normalize_op_;
PermuteBatch permute_op_;
}; // class Classifier
} // namespace PaddleOCR
deploy/cpp_infer/include/ocr_det.h 0 → 100644
View file @ ed43fc11
// Copyright (c) 2020 PaddlePaddle Authors. All Rights Reserved.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
#pragma once
#include <include/postprocess_op.h>
#include <include/preprocess_op.h>
#include <memory>
namespace paddle_infer {
class Predictor;
}
namespace PaddleOCR {
class DBDetector {
public:
explicit DBDetector(const std::string &model_dir, const bool &use_gpu,
const int &gpu_id, const int &gpu_mem,
const int &cpu_math_library_num_threads,
const bool &use_mkldnn, const std::string &limit_type,
const int &limit_side_len, const double &det_db_thresh,
const double &det_db_box_thresh,
const double &det_db_unclip_ratio,
const std::string &det_db_score_mode,
const bool &use_dilation, const bool &use_tensorrt,
const std::string &precision) noexcept {
this->use_gpu_ = use_gpu;
this->gpu_id_ = gpu_id;
this->gpu_mem_ = gpu_mem;
this->cpu_math_library_num_threads_ = cpu_math_library_num_threads;
this->use_mkldnn_ = use_mkldnn;
this->limit_type_ = limit_type;
this->limit_side_len_ = limit_side_len;
this->det_db_thresh_ = det_db_thresh;
this->det_db_box_thresh_ = det_db_box_thresh;
this->det_db_unclip_ratio_ = det_db_unclip_ratio;
this->det_db_score_mode_ = det_db_score_mode;
this->use_dilation_ = use_dilation;
this->use_tensorrt_ = use_tensorrt;
this->precision_ = precision;
LoadModel(model_dir);
}
// Load Paddle inference model
void LoadModel(const std::string &model_dir) noexcept;
// Run predictor
void Run(const cv::Mat &img,
std::vector<std::vector<std::vector<int>>> &boxes,
std::vector<double> &times) noexcept;
private:
std::shared_ptr<paddle_infer::Predictor> predictor_;
bool use_gpu_ = false;
int gpu_id_ = 0;
int gpu_mem_ = 4000;
int cpu_math_library_num_threads_ = 4;
bool use_mkldnn_ = false;
std::string limit_type_ = "max";
int limit_side_len_ = 960;
double det_db_thresh_ = 0.3;
double det_db_box_thresh_ = 0.5;
double det_db_unclip_ratio_ = 2.0;
std::string det_db_score_mode_ = "slow";
bool use_dilation_ = false;
bool visualize_ = true;
bool use_tensorrt_ = false;
std::string precision_ = "fp32";
std::vector<float> mean_ = {0.485f, 0.456f, 0.406f};
std::vector<float> scale_ = {1 / 0.229f, 1 / 0.224f, 1 / 0.225f};
bool is_scale_ = true;
// pre-process
ResizeImgType0 resize_op_;
Normalize normalize_op_;
Permute permute_op_;
// post-process
DBPostProcessor post_processor_;
};
} // namespace PaddleOCR
deploy/cpp_infer/include/ocr_rec.h 0 → 100644
View file @ ed43fc11
// Copyright (c) 2020 PaddlePaddle Authors. All Rights Reserved.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
#pragma once
#include <include/preprocess_op.h>
#include <include/utility.h>
#include <memory>
namespace paddle_infer {
class Predictor;
}
namespace PaddleOCR {
class CRNNRecognizer {
public:
explicit CRNNRecognizer(const std::string &model_dir, const bool &use_gpu,
const int &gpu_id, const int &gpu_mem,
const int &cpu_math_library_num_threads,
const bool &use_mkldnn, const std::string &label_path,
const bool &use_tensorrt,
const std::string &precision,
const int &rec_batch_num, const int &rec_img_h,
const int &rec_img_w) noexcept {
this->use_gpu_ = use_gpu;
this->gpu_id_ = gpu_id;
this->gpu_mem_ = gpu_mem;
this->cpu_math_library_num_threads_ = cpu_math_library_num_threads;
this->use_mkldnn_ = use_mkldnn;
this->use_tensorrt_ = use_tensorrt;
this->precision_ = precision;
this->rec_batch_num_ = rec_batch_num;
this->rec_img_h_ = rec_img_h;
this->rec_img_w_ = rec_img_w;
std::vector<int> rec_image_shape = {3, rec_img_h, rec_img_w};
this->rec_image_shape_ = rec_image_shape;
this->label_list_ = Utility::ReadDict(label_path);
this->label_list_.emplace(this->label_list_.begin(),
"#"); // blank char for ctc
this->label_list_.emplace_back(" ");
LoadModel(model_dir);
}
// Load Paddle inference model
void LoadModel(const std::string &model_dir) noexcept;
void Run(const std::vector<cv::Mat> &img_list,
std::vector<std::string> &rec_texts,
std::vector<float> &rec_text_scores,
std::vector<double> &times) noexcept;
private:
std::shared_ptr<paddle_infer::Predictor> predictor_;
bool use_gpu_ = false;
int gpu_id_ = 0;
int gpu_mem_ = 4000;
int cpu_math_library_num_threads_ = 4;
bool use_mkldnn_ = false;
std::vector<std::string> label_list_;
std::vector<float> mean_ = {0.5f, 0.5f, 0.5f};
std::vector<float> scale_ = {1 / 0.5f, 1 / 0.5f, 1 / 0.5f};
bool is_scale_ = true;
bool use_tensorrt_ = false;
std::string precision_ = "fp32";
int rec_batch_num_ = 6;
int rec_img_h_ = 32;
int rec_img_w_ = 320;
std::vector<int> rec_image_shape_ = {3, rec_img_h_, rec_img_w_};
// pre-process
CrnnResizeImg resize_op_;
Normalize normalize_op_;
PermuteBatch permute_op_;
}; // class CrnnRecognizer
} // namespace PaddleOCR
deploy/cpp_infer/include/paddleocr.h 0 → 100644
View file @ ed43fc11
// Copyright (c) 2020 PaddlePaddle Authors. All Rights Reserved.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
#pragma once
#include <include/utility.h>
namespace PaddleOCR {
class PPOCR {
public:
explicit PPOCR() noexcept;
virtual ~PPOCR();
std::vector<std::vector<OCRPredictResult>>
ocr(const std::vector<cv::Mat> &img_list, bool det = true, bool rec = true,
bool cls = true) noexcept;
std::vector<OCRPredictResult> ocr(const cv::Mat &img, bool det = true,
bool rec = true, bool cls = true) noexcept;
void reset_timer() noexcept;
void benchmark_log(int img_num) noexcept;
protected:
std::vector<double> time_info_det = {0, 0, 0};
std::vector<double> time_info_rec = {0, 0, 0};
std::vector<double> time_info_cls = {0, 0, 0};
void det(const cv::Mat &img,
std::vector<OCRPredictResult> &ocr_results) noexcept;
void rec(const std::vector<cv::Mat> &img_list,
std::vector<OCRPredictResult> &ocr_results) noexcept;
void cls(const std::vector<cv::Mat> &img_list,
std::vector<OCRPredictResult> &ocr_results) noexcept;
private:
struct PPOCR_PRIVATE;
PPOCR_PRIVATE *pri_;
};
} // namespace PaddleOCR
Markdown is supported
0% or .
You are about to add 0 people to the discussion. Proceed with caution.
Finish editing this message first!
Please register or to comment
