Commit eca84f93 authored by root's avatar root
Browse files

Merge branch 'gemm_bf16_sk_muozturk' of...

Merge branch 'gemm_bf16_sk_muozturk' of https://github.com/ROCm/composable_kernel into gemm_bf16_sk_muozturk
parents 6f210155 c256f018
Hide whitespace changes
Inline Side-by-side
Showing with 1242 additions and 0 deletions
example/ck_tile/14_moe_smoothquant/script/smoke_test.sh 0 → 100755
View file @ eca84f93
#!/bin/sh
EXE=build/bin/tile_example_moe_smoothquant
for pr_i in "fp16" "bf16" ; do
$EXE -prec=$pr_i -t=99 -h=13
$EXE -prec=$pr_i -t=17 -h=16
$EXE -prec=$pr_i -t=1 -h=100
$EXE -prec=$pr_i -t=4 -h=128
$EXE -prec=$pr_i -t=80 -h=127
$EXE -prec=$pr_i -t=22 -h=255 -stride=256
$EXE -prec=$pr_i -t=7 -h=599
$EXE -prec=$pr_i -t=19 -h=512
$EXE -prec=$pr_i -t=33 -h=313 -stride=1000
$EXE -prec=$pr_i -t=11 -h=510
$EXE -prec=$pr_i -t=171 -h=676 -stride=818
$EXE -prec=$pr_i -t=91 -h=636
$EXE -prec=$pr_i -t=12 -h=768 -stride=800
$EXE -prec=$pr_i -t=100 -h=766 -stride=812
$EXE -prec=$pr_i -t=31 -h=1024
$EXE -prec=$pr_i -t=64 -h=1000 -stride=1004
$EXE -prec=$pr_i -t=8 -h=1501
$EXE -prec=$pr_i -t=3 -h=1826
$EXE -prec=$pr_i -t=5 -h=2040
$EXE -prec=$pr_i -t=7 -h=2734
$EXE -prec=$pr_i -t=1 -h=3182
$EXE -prec=$pr_i -t=9 -h=4096
$EXE -prec=$pr_i -t=3 -h=8192
$EXE -prec=$pr_i -t=1 -h=10547
$EXE -prec=$pr_i -t=3 -h=17134
done
example/ck_tile/15_fused_moe/CMakeLists.txt 0 → 100644
View file @ eca84f93
set(TILE_EXAPMLE_FUSED_MOE "tile_example_fused_moe")
# not using add_example_executable() to add this target, since we don't want this to have
# to be included in "make all/install/check"
message("adding ${TILE_EXAPMLE_FUSED_MOE}")
file(GLOB INSTANCE_SRCS instances/*.cpp)
add_executable(${TILE_EXAPMLE_FUSED_MOE} EXCLUDE_FROM_ALL main.cpp)
target_include_directories(${TILE_EXAPMLE_FUSED_MOE} PRIVATE ${CMAKE_CURRENT_LIST_DIR})
target_sources(${TILE_EXAPMLE_FUSED_MOE} PRIVATE ${INSTANCE_SRCS})
set(TILE_EXAPMLE_FUSED_MOE_COMPILE_OPTIONS)
# NOTE: we turn off undefined-func-template to let source compile without explicit declare function specializations
list(APPEND TILE_EXAPMLE_FUSED_MOE_COMPILE_OPTIONS -Wno-undefined-func-template -Wno-float-equal)
list(APPEND TILE_EXAPMLE_FUSED_MOE_COMPILE_OPTIONS -DCK_TILE_BUFFER_LOAD_AGPR=1) # TODO: enable load to a
list(APPEND TILE_EXAPMLE_FUSED_MOE_COMPILE_OPTIONS -DCK_TILE_FLOAT_TO_BFLOAT16_DEFAULT=4) # rta
# list(APPEND TILE_EXAPMLE_FUSED_MOE_COMPILE_OPTIONS -mllvm -greedy-reverse-local-assignment=1)
# list(APPEND TILE_EXAPMLE_FUSED_MOE_COMPILE_OPTIONS -v --save-temps -Wno-gnu-line-marker)
target_compile_options(${TILE_EXAPMLE_FUSED_MOE} PRIVATE ${TILE_EXAPMLE_FUSED_MOE_COMPILE_OPTIONS})
example/ck_tile/15_fused_moe/README.md 0 → 100644
View file @ eca84f93
# fused-moe
Implementing the fused-moe block operator using ck-tile. This is a scatter/gather-group-gemm based solution, similiar to that of [vllm moe](https://github.com/vllm-project/vllm/blob/main/benchmarks/kernels/benchmark_moe.py), but we introduce more kernel fusion to boost performance
![](misc/moe-0.png)
The benifit of this fused-moe:
* 1.5~2x perf boost compared with current vllm solution
* zero workspace to reduce memory footprint
* much less kernel instance, easy to maintain
# Implementation and feature support
## moe-sorting
this is a common pre-process step before the actual moe-gemm. The purpose is to transform the moe loop over from token-by-token to expert-by-expert, make sure very workgroup is working for a single expert (B matrix). Besides, we extend this op to do the zeroing of the output buffer(to be used for reduce buffer with atomic)
## moe-gemm
`moe-gemm` is a group-gemm based back-to-back gemm, where the row-id of input token comes from another buffer. Naive understanding of fused-moe is from token-by-token view as below picture:
![](misc/moe-1.png)

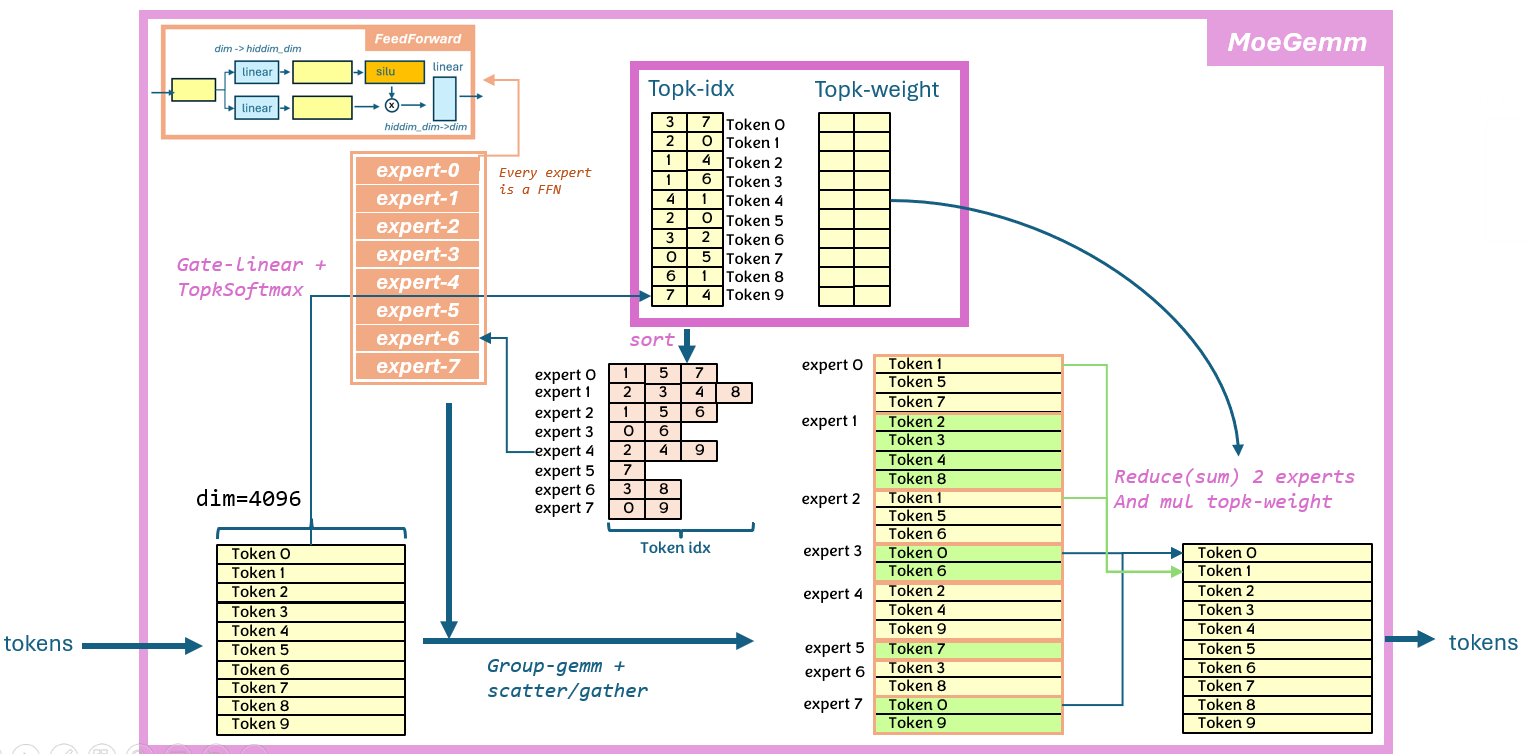

After `moe-sorting`, we can view this algorithm as expert-by-expert, as below:
![](misc/moe-2.png)
## optimization
summary of the key design of this fused-moe operator:
* fuse 2 group-gemm + activation + `topk-weight` multiply into single kernel, using atomic for 2nd gemm accumualation
* fuse buffer-zeroing in `moe-sorgin`, user no longer need call extra torch.zero() for the out buffer
* fused scatter-gather for row index(same as vllm)
* pre-shuffle B matric(weight) to maximize memory throughput. input(activation) keep original layout `[batch, hidden]`.
* extrem optimized pipeline using block-inline-asm(we call it `micro-kernel` or `uk`), while not breaking the *composable* design of ck
##
```
// [indexing implementation-1]
// using M_a as constexpr block_size to partition all tokens into different slices
// each slice map to one expert, and one expert can have multiple slices
// e.g. num_experts = 6, topk=3, M_a = 4, input_tokens = 5
// before sort, topk_ids is : [[0, 3, 5], [2, 3, 5], [1, 3, 5], [1, 2, 3], [1, 3, 5]]
// tok-0 tok-1 tok-2 tok-3 tok-4
// topk_weight is : [[a, b, c], [d, e, f], [g, h, i], [j, k, l], [m, n, o]] (some float number)
//
// token_id_per_expert is : [[0], [2, 3, 4], [1, 3], [0, 1, 2, 3, 4], [], [0, 1, 2, 5]]
// (only for reference) exp-0 exp-1 exp-2 exp-3 exp-4 exp-5
// weight_id_per_expert is: [[a], [g, j, m], [d, k], [b, e, h, l, n], [], [c, f, i, o]]
//
// max_num_tokens_padded : topk * input_tokens + num_experts * (M_a - 1)
// * this could be larger than actual, since actual tokens are on GPU
//
// sorted_token_ids_ptr : [0, 6, 6, 6, 2, 3, 4, 6, 1, 3, 6, 6, 0, 1, 2, 3, 4, 6, 6, 6, 6, 6, 6, 6, 0, 1, 2, 5]
// |- exp-0 -|- exp-1 -|- exp-2 -|- exp-3 -|- exp-4 -|- exp-5 -|
// sorted_weight_ptr : [a, *, *, *, g, j, m, *, d, k, *, *, b, e, h, l, n, *, *, *, *, *, *, *, c, f, i, o]
//
// * length is max_num_tokens_padded, actual size is num_tokens_post_padded_ptr
//
// sorted_expert_ids_ptr : [0, 1, 2, 3, 3, 4, 5]
// * length is (max_num_tokens_padded + block_size - 1) / block_size
//
// num_tokens_post_padded_ptr : [28]
// num_sorted_tiles_ptr : [7]
//
// * different from vLLM
// 1) token_id stored in sorted_token_ids_ptr is actual token_id, not token_id*top_K expanded id
// 2）need sorted_weight_ptr
// 3) use num_sorted_tiles_ptr, already divided by M_a
//
// * below used for indexing
// 1) sorted_token_ids_ptr [max_num_tokens_padded]
// 2) sorted_weight_ptr
// 3) sorted_expert_ids_ptr
// 4）num_tokens_post_padded_ptr/num_sorted_tiles_ptr (select one)
//
// max_num_tokens_padded: opk_ids.numel() + num_experts * (block_size - 1)
```
\ No newline at end of file
example/ck_tile/15_fused_moe/fused_moe.hpp 0 → 100644
View file @ eca84f93
// SPDX-License-Identifier: MIT
// Copyright (c) 2018-2024, Advanced Micro Devices, Inc. All rights reserved.
#pragma once
#include "fused_moesorting.hpp"
#include "fused_moegemm.hpp"
struct fused_moe_args
{
const void* a_ptr; // [m, k], input token
const void* a_scale_ptr; // [m, 1], token scale
const void* g_ptr; // [e, n, k]/[e, 2*n, k], pre-shuffle([e, nr, kr, w])
const void* d_ptr; // [e, n, k], pre-shuffle([e, nr, kr, w])
const void* g_scale_ptr; // [e, 1, n], gate(up) scale
const void* d_scale_ptr; // [e, 1, k], down scale
const void* y_smooth_scale_ptr; // [e, 1, n], smooth-quant-scale for 2nd gemm input
void* o_ptr; // [m, k], output token (no need to do zeroing)
const void* topk_ids_ptr; // [tokens, topk]
const void* topk_weight_ptr; // [tokens, topk]
void* sorted_token_ids_ptr; // [max_num_tokens_padded]
void* sorted_weight_ptr; // [max_num_tokens_padded]
void* sorted_expert_ids_ptr; // [(max_num_tokens_padded + block_size - 1) / block_size]
void* num_sorted_tiles_ptr; // [1]
ck_tile::index_t block_m; // block_m, used to devide the input
ck_tile::index_t hidden_size; // k
ck_tile::index_t intermediate_size; // n / TP, for Gate. if Gate+Up, Down need divide by 2
ck_tile::index_t num_tokens; // input number of tokens for current iteration
ck_tile::index_t num_experts; // number of groups
ck_tile::index_t topk; // need this?
ck_tile::index_t stride_token; // for input/output, stride for each row, should >= hidden_size
};
// This is the public API, will be generated by script
struct fused_moe_traits
{
std::string prec_i; // input precision
std::string prec_w; // weight precision
std::string prec_o; // output precision
std::string prec_st; // token scale data type
std::string prec_sw; // weight scale data type
std::string prec_sq; // smooth quant scale
std::string prec_kw; // topk-weight data type
int block_m;
int gate_only;
int fused_quant; // 0:no-sweep, 1:smooth-dynamic-quant, 2:dynamic-quant
};
float fused_moe(fused_moe_traits, fused_moe_args, const ck_tile::stream_config&);
example/ck_tile/15_fused_moe/fused_moegemm.hpp 0 → 100644
View file @ eca84f93
// SPDX-License-Identifier: MIT
// Copyright (c) 2018-2024, Advanced Micro Devices, Inc. All rights reserved.
#pragma once
#include "ck_tile/core.hpp"
#include "ck_tile/host/kernel_launch.hpp"
#include "ck_tile/ops/fused_moe.hpp"
#include <string>
// this is only a convenient structure for creating an example
// this is not part of the host API
template <typename I, typename W, typename O, typename ST, typename SW, typename SQ, typename KW>
struct FusedMoeGemmTypeConfig;
template <typename ST, typename SW, typename SQ, typename KW>
struct FusedMoeGemmTypeConfig<ck_tile::bf16_t, ck_tile::bf16_t, ck_tile::bf16_t, ST, SW, SQ, KW>
{
using ADataType = ck_tile::bf16_t;
using GDataType = ck_tile::bf16_t;
using DDataType = ck_tile::bf16_t;
using AccDataType = float;
using ODataType = ck_tile::bf16_t;
using AScaleDataType = ck_tile::remove_cvref_t<ST>;
using GScaleDataType = ck_tile::remove_cvref_t<SW>;
using DScaleDataType = ck_tile::remove_cvref_t<SW>;
using YSmoothScaleDataType = ck_tile::remove_cvref_t<SQ>;
using TopkWeightDataType = ck_tile::remove_cvref_t<KW>;
using IndexDataType = ck_tile::index_t;
};
template <typename ST, typename SW, typename SQ, typename KW>
struct FusedMoeGemmTypeConfig<ck_tile::fp16_t, ck_tile::fp16_t, ck_tile::fp16_t, ST, SW, SQ, KW>
{
using ADataType = ck_tile::fp16_t;
using GDataType = ck_tile::fp16_t;
using DDataType = ck_tile::fp16_t;
using AccDataType = float;
using ODataType = ck_tile::fp16_t;
using AScaleDataType = ck_tile::remove_cvref_t<ST>;
using GScaleDataType = ck_tile::remove_cvref_t<SW>;
using DScaleDataType = ck_tile::remove_cvref_t<SW>;
using YSmoothScaleDataType = ck_tile::remove_cvref_t<SQ>;
using TopkWeightDataType = ck_tile::remove_cvref_t<KW>;
using IndexDataType = ck_tile::index_t;
};
template <typename ST, typename SW, typename SQ, typename KW>
struct FusedMoeGemmTypeConfig<ck_tile::int8_t, ck_tile::int8_t, ck_tile::bf16_t, ST, SW, SQ, KW>
{
using ADataType = ck_tile::int8_t;
using GDataType = ck_tile::int8_t;
using DDataType = ck_tile::int8_t;
using AccDataType = int32_t;
using ODataType = ck_tile::bf16_t;
using AScaleDataType = ck_tile::remove_cvref_t<ST>;
using GScaleDataType = ck_tile::remove_cvref_t<SW>;
using DScaleDataType = ck_tile::remove_cvref_t<SW>;
using YSmoothScaleDataType = ck_tile::remove_cvref_t<SQ>;
using TopkWeightDataType = ck_tile::remove_cvref_t<KW>;
using IndexDataType = ck_tile::index_t;
};
// runtime args
struct fused_moegemm_args : public ck_tile::FusedMoeGemmHostArgs
{
};
// This is the public API, will be generated by script
struct fused_moegemm_traits
{
std::string prec_i; // input precision
std::string prec_w; // weight precision
std::string prec_o; // output precision
std::string prec_st; // token scale data type
std::string prec_sw; // weight scale data type
std::string prec_sq; // smooth quant scale
std::string prec_kw; // topk-weight data type
int block_m;
int gate_only;
int fused_quant; // 0:no-sweep, 1:smooth-dynamic-quant, 2:dynamic-quant
};
float fused_moegemm(fused_moegemm_traits, fused_moegemm_args, const ck_tile::stream_config&);
example/ck_tile/15_fused_moe/fused_moesorting.hpp 0 → 100644
View file @ eca84f93
// SPDX-License-Identifier: MIT
// Copyright (c) 2024, Advanced Micro Devices, Inc. All rights reserved.
#pragma once
#include <string>
#include "ck_tile/core.hpp"
#include "ck_tile/host.hpp"
#include "ck_tile/ops/fused_moe.hpp"
struct fused_moesorting_trait
{
std::string index_type;
std::string weight_type; // currently always float
};
struct fused_moesorting_args : public ck_tile::MoeSortingHostArgs
{
};
float fused_moesorting(fused_moesorting_trait t, fused_moesorting_args a, ck_tile::stream_config s);
example/ck_tile/15_fused_moe/instances/fused_moe_api.cpp 0 → 100644
View file @ eca84f93
// SPDX-License-Identifier: MIT
// Copyright (c) 2024, Advanced Micro Devices, Inc. All rights reserved.
#include "fused_moe.hpp"
float fused_moe(fused_moe_traits t, fused_moe_args a, const ck_tile::stream_config& s)
{
auto s_sub = ck_tile::stream_config{s.stream_id_, false, s.log_level_, 0, 1};
auto o_data_bytes = [&]() {
if(t.prec_o == "fp32")
return 4;
else if(t.prec_o == "fp16" || t.prec_o == "bf16")
return 2;
else if(t.prec_o == "int8" || t.prec_o == "fp8")
return 1;
return 1;
}();
auto t0 = fused_moesorting_trait{"int32", "fp32"};
auto a0 = fused_moesorting_args{
a.topk_ids_ptr, // const void* p_topk_ids;
a.topk_weight_ptr, // const void* p_weights;
a.sorted_token_ids_ptr, // void* p_sorted_token_ids;
a.sorted_weight_ptr, // void* p_sorted_weights;
a.sorted_expert_ids_ptr, // void* p_sorted_expert_ids;
a.num_sorted_tiles_ptr, // void* p_total_tokens_post_pad;
a.o_ptr, // void* p_moe_buf;
a.num_tokens, // index_t tokens;
a.block_m, // index_t unit_size;
a.num_experts, // index_t num_experts;
a.topk, // index_t topk;
a.num_tokens * a.stride_token * o_data_bytes // index_t moe_buf_bytes;
};
auto t1 = fused_moegemm_traits{t.prec_i,
t.prec_w,
t.prec_o,
t.prec_st,
t.prec_sw,
t.prec_sq,
t.prec_kw,
t.block_m,
t.gate_only,
t.fused_quant};
auto a1 = fused_moegemm_args{
a.a_ptr, // const void* a_ptr;
a.a_scale_ptr, // const void* a_scale_ptr;
a.g_ptr, // const void* g_ptr;
a.d_ptr, // const void* d_ptr;
a.g_scale_ptr, // const void* g_scale_ptr;
a.d_scale_ptr, // const void* d_scale_ptr;
a.y_smooth_scale_ptr, // const void* y_smooth_scale_ptr;
a.o_ptr, // void* o_ptr;
a.sorted_token_ids_ptr, // const void* sorted_token_ids_ptr;
a.sorted_weight_ptr, // const void* sorted_weight_ptr;
a.sorted_expert_ids_ptr, // const void* sorted_expert_ids_ptr;
a.num_sorted_tiles_ptr, // const void* num_sorted_tiles_ptr;
a.hidden_size, // index_t hidden_size;
a.intermediate_size, // index_t intermediate_size;
a.num_tokens, // index_t num_tokens;
a.num_experts, // index_t num_experts;
a.topk, // index_t topk;
a.stride_token // index_t stride_token;
};
float r0 = -1;
float r1 = -1;
float r = ck_tile::launch_kernel(
s,
[=, &r0](const ck_tile::stream_config&) { r0 = fused_moesorting(t0, a0, s_sub); },
[=, &r1](const ck_tile::stream_config&) { r1 = fused_moegemm(t1, a1, s_sub); });
// keep unsupported case return negative
if(r0 < 0 || r1 < 0)
return -1;
return r;
}
example/ck_tile/15_fused_moe/instances/fused_moegemm_api.cpp 0 → 100644
View file @ eca84f93
// SPDX-License-Identifier: MIT
// Copyright (c) 2024, Advanced Micro Devices, Inc. All rights reserved.
#include <ck_tile/core.hpp>
#include "fused_moegemm.hpp"
#include "fused_moegemm_api_traits.hpp"
// Note: this internal API only declare, not define here, otherwise will block `make -j`
template <typename Traits_>
float fused_moegemm_(const ck_tile::stream_config& s, fused_moegemm_args a);
template <ck_tile::index_t... Is>
using S = ck_tile::sequence<Is...>;
float fused_moegemm(fused_moegemm_traits t, fused_moegemm_args a, const ck_tile::stream_config& s)
{
// clang-format off
float r = -1;
if(t.prec_i == "bf16" && t.prec_w == "bf16" && t.prec_o == "bf16" && t.prec_st == "fp32" &&
t.prec_sw == "fp32" && t.prec_sq == "fp32" && t.prec_kw == "fp32" && t.block_m == 32 && t.gate_only == 1)
{
using t_ = fmoe_<ck_tile::bf16_t, ck_tile::bf16_t, ck_tile::bf16_t, float, float, float, float, S<32, 512, 128, 128>, S<1, 4, 1>, S<16, 16, 32>, 1, 0>;
r = fused_moegemm_<t_>(s, a);
}
else if(t.prec_i == "fp16" && t.prec_w == "fp16" && t.prec_o == "fp16" && t.prec_st == "fp32" &&
t.prec_sw == "fp32" && t.prec_sq == "fp32" && t.prec_kw == "fp32" && t.block_m == 32 && t.gate_only == 1)
{
using t_ = fmoe_<ck_tile::fp16_t, ck_tile::fp16_t, ck_tile::fp16_t, float, float, float, float, S<32, 512, 128, 128>, S<1, 4, 1>, S<16, 16, 32>, 1, 0>;
r = fused_moegemm_<t_>(s, a);
}
// clang-format on
return r;
}
example/ck_tile/15_fused_moe/instances/fused_moegemm_api_internal.hpp 0 → 100644
View file @ eca84f93
// SPDX-License-Identifier: MIT
// Copyright (c) 2024, Advanced Micro Devices, Inc. All rights reserved.
#pragma once
#include "fused_moegemm_api_traits.hpp"
#include "ck_tile/ops/fused_moe.hpp"
#include <iostream>
template <ck_tile::index_t... Is>
using S = ck_tile::sequence<Is...>;
// do not the define of this tepmlate function inside the _api.cpp, otherwise will block make -j
template <typename Ts_>
float fused_moegemm_(const ck_tile::stream_config& s, fused_moegemm_args a)
{
using f_traits = ck_tile::FusedMoeGemmTraits<Ts_::GateOnly, Ts_::FusedQuant == 1, 1 /*atomic*/>;
using f_shape = ck_tile::FusedMoeGemmShape<typename Ts_::BlockTile_0,
typename Ts_::WarpPerBlock_0,
typename Ts_::WarpTile_0,
typename Ts_::BlockTile_1,
typename Ts_::WarpPerBlock_0,
typename Ts_::WarpTile_0>;
using f_problem =
ck_tile::FusedMoeGemmPipelineProblem<typename Ts_::ADataType,
typename Ts_::GDataType,
typename Ts_::DDataType,
typename Ts_::AccDataType,
typename Ts_::ODataType,
typename Ts_::AScaleDataType,
typename Ts_::GScaleDataType,
typename Ts_::DScaleDataType,
typename Ts_::YSmoothScaleDataType,
typename Ts_::TopkWeightDataType,
typename Ts_::IndexDataType,
ck_tile::element_wise::FastGeluAsm, // TODO: hardcoded
f_shape,
f_traits>;
// using f_pipeline = ck_tile::FusedMoeGemmPipeline_FlatmmEx<f_problem>;
using f_pipeline = ck_tile::FusedMoeGemmPipeline_FlatmmUk<f_problem>;
using f_partitioner = ck_tile::FusedMoeGemmTilePartitioner_Linear<f_shape>;
using f_kernel = ck_tile::FusedMoeGemmKernel<f_partitioner, f_pipeline, void>;
const dim3 grids = f_kernel::GridSize(a);
constexpr dim3 blocks = f_kernel::BlockSize();
constexpr ck_tile::index_t kBlockPerCu = 1;
static int printed = 0;
auto kargs = f_kernel::MakeKargs(a);
if(s.log_level_ > 0 && printed == 0)
{
std::cout << ", " << f_kernel::GetName() << std::flush;
printed = 1;
}
return ck_tile::launch_kernel(
s, ck_tile::make_kernel<blocks.x, kBlockPerCu>(f_kernel{}, grids, blocks, 0, kargs));
}
example/ck_tile/15_fused_moe/instances/fused_moegemm_api_traits.hpp 0 → 100644
View file @ eca84f93
// SPDX-License-Identifier: MIT
// Copyright (c) 2024, Advanced Micro Devices, Inc. All rights reserved.
#pragma once
#include <ck_tile/core.hpp>
// this is used to pattern-match internl kernel implementation, not to instantiate kernel
template <typename I,
typename W,
typename O,
typename ST,
typename SW,
typename SQ,
typename KW,
typename BlockTIle_, // seq<b_token, b_interm, b_hidden, b_down>
typename WarpPerBlock_,
typename WarpTile_, // seq<*,*,*>, used to select mfma
ck_tile::index_t GateOnly_ = 0,
ck_tile::index_t FusedQuant_ = 0>
struct fmoe_ // traits, ugly name, only used for internal
{
using TypeConfig = FusedMoeGemmTypeConfig<I, W, O, ST, SW, SQ, KW>;
using ADataType = ck_tile::remove_cvref_t<typename TypeConfig::ADataType>;
using GDataType = ck_tile::remove_cvref_t<typename TypeConfig::GDataType>;
using DDataType = ck_tile::remove_cvref_t<typename TypeConfig::DDataType>;
using AccDataType = ck_tile::remove_cvref_t<typename TypeConfig::AccDataType>;
using ODataType = ck_tile::remove_cvref_t<typename TypeConfig::ODataType>;
using AScaleDataType = ck_tile::remove_cvref_t<typename TypeConfig::AScaleDataType>;
using GScaleDataType = ck_tile::remove_cvref_t<typename TypeConfig::GScaleDataType>;
using DScaleDataType = ck_tile::remove_cvref_t<typename TypeConfig::DScaleDataType>;
using YSmoothScaleDataType = ck_tile::remove_cvref_t<typename TypeConfig::YSmoothScaleDataType>;
using TopkWeightDataType = ck_tile::remove_cvref_t<typename TypeConfig::TopkWeightDataType>;
using IndexDataType = ck_tile::remove_cvref_t<typename TypeConfig::IndexDataType>;
static constexpr ck_tile::index_t BT_ = BlockTIle_::at(ck_tile::number<0>{}); // block token
static constexpr ck_tile::index_t BI_ =
BlockTIle_::at(ck_tile::number<1>{}); // block intermediate
static constexpr ck_tile::index_t BH_ = BlockTIle_::at(ck_tile::number<2>{}); // block hidden
static constexpr ck_tile::index_t BD_ = BlockTIle_::at(ck_tile::number<3>{}); // block down
using BlockTile_0 = ck_tile::sequence<BT_, BI_, BH_>;
using WarpPerBlock_0 = ck_tile::remove_cvref_t<WarpPerBlock_>;
using WarpTile_0 = ck_tile::remove_cvref_t<WarpTile_>;
using BlockTile_1 = ck_tile::sequence<BT_, BD_, BI_ / (GateOnly_ ? 1 : 2)>;
using WarpPerBlock_1 = ck_tile::remove_cvref_t<WarpPerBlock_>;
using WarpTile_1 = ck_tile::remove_cvref_t<WarpTile_>;
static constexpr ck_tile::index_t GateOnly = GateOnly_;
static constexpr ck_tile::index_t FusedQuant = FusedQuant_;
};
example/ck_tile/15_fused_moe/instances/fused_moegemm_bf16_m32.cpp 0 → 100644
View file @ eca84f93
// SPDX-License-Identifier: MIT
// Copyright (c) 2024, Advanced Micro Devices, Inc. All rights reserved.
#include <ck_tile/core.hpp>
#include "fused_moegemm.hpp"
#include "fused_moegemm_api_traits.hpp"
#include "fused_moegemm_api_internal.hpp"
// clang-format off
template float fused_moegemm_<
fmoe_<ck_tile::bf16_t, ck_tile::bf16_t, ck_tile::bf16_t, float, float, float, float, S<32, 512, 128, 128>, S<1, 4, 1>, S<16, 16, 32>, 1, 0>
>(const ck_tile::stream_config& s, fused_moegemm_args a);
// clang-format on
example/ck_tile/15_fused_moe/instances/fused_moegemm_fp16_m32.cpp 0 → 100644
View file @ eca84f93
// SPDX-License-Identifier: MIT
// Copyright (c) 2024, Advanced Micro Devices, Inc. All rights reserved.
#include <ck_tile/core.hpp>
#include "fused_moegemm.hpp"
#include "fused_moegemm_api_traits.hpp"
#include "fused_moegemm_api_internal.hpp"
// clang-format off
template float fused_moegemm_<
fmoe_<ck_tile::fp16_t, ck_tile::fp16_t, ck_tile::fp16_t, float, float, float, float, S<32, 512, 128, 128>, S<1, 4, 1>, S<16, 16, 32>, 1, 0>
>(const ck_tile::stream_config& s, fused_moegemm_args a);
// clang-format on
example/ck_tile/15_fused_moe/instances/fused_moesorting_api.cpp 0 → 100644
View file @ eca84f93
// SPDX-License-Identifier: MIT
// Copyright (c) 2024, Advanced Micro Devices, Inc. All rights reserved.
#include "fused_moesorting.hpp"
#define MOE_SORTING_DISPATCH(unroll_num_) \
constexpr ck_tile::index_t unroll_num = unroll_num_; \
using ms_problem = ck_tile::MoeSortingProblem<index_t, ms_weight_type, unroll_num>; \
using kernel = ck_tile::MoeSortingKernel<ms_problem>; \
auto kargs = kernel::MakeKargs(a); \
const dim3 grids = kernel::GridSize(a); \
const dim3 blocks = kernel::BlockSize(a); \
const auto lds_bytes = kernel::GetSmemSize(a); \
float ave_time = ck_tile::launch_kernel( \
s, ck_tile::make_kernel(kernel{}, grids, blocks, lds_bytes, kargs)); \
return ave_time;
float fused_moesorting(fused_moesorting_trait t, fused_moesorting_args a, ck_tile::stream_config s)
{
if(t.weight_type == "fp32" && t.index_type == "int32")
{
if(a.num_experts > 127)
{
printf("lds size exceed, only support experts <127 \n");
return -1;
}
if(a.moe_buf_bytes % 16)
{
printf("buf set size %d unaligned, must be multiple of 16\n", a.moe_buf_bytes);
return -1;
}
using index_t = ck_tile::index_t;
using ms_weight_type = float;
index_t smem_io_unroll_num = ck_tile::integer_divide_ceil(a.tokens * a.topk, 64);
switch(smem_io_unroll_num)
{
case(1): {
MOE_SORTING_DISPATCH(1);
}
case(2): {
MOE_SORTING_DISPATCH(2);
}
case(3): {
MOE_SORTING_DISPATCH(3);
}
case(5): {
MOE_SORTING_DISPATCH(5);
}
case(6): {
MOE_SORTING_DISPATCH(6);
}
case(7): {
MOE_SORTING_DISPATCH(7);
}
case(8): {
MOE_SORTING_DISPATCH(8);
}
case(9): {
MOE_SORTING_DISPATCH(9);
}
case(10): {
MOE_SORTING_DISPATCH(10);
}
case(11): {
MOE_SORTING_DISPATCH(11);
}
default: {
MOE_SORTING_DISPATCH(4);
}
}
}
return -1;
}
example/ck_tile/15_fused_moe/main.cpp 0 → 100644
View file @ eca84f93
#include <algorithm>
#include <cstring>
#include <unordered_set>
#include <vector>
#include <set>
#include "ck_tile/host.hpp"
#include "fused_moe.hpp"
// different threshold for different dtype
template <typename DataType>
auto get_elimit()
{
double rtol = 1e-2;
double atol = 1e-2;
return ck_tile::make_tuple(rtol, atol);
}
template <>
auto get_elimit<ck_tile::bf16_t>()
{
double rtol = 1e-2;
double atol = 1e-2;
return ck_tile::make_tuple(rtol, atol);
}
// mfma_type, 0:32x32, 1:16x16
// TODO: padding?
template <typename T>
auto shuffle_moe_weight(const ck_tile::HostTensor<T>& t, std::string mfma_dtype, int mfma_type = 0)
{
assert(t.get_lengths().size() == 3);
int b_ = t.get_lengths()[0];
int n_ = t.get_lengths()[1];
int k_ = t.get_lengths()[2];
if((mfma_dtype == "bf16" || mfma_dtype == "fp16") && mfma_type == 0)
{
ck_tile::HostTensor<T> t_view({b_, n_ / 32, 32, k_ / 16, 2, 8});
std::copy(t.begin(), t.end(), t_view.begin());
return ck_tile::reference_permute(t_view, {0, 1, 3, 4, 2, 5});
}
else if((mfma_dtype == "bf16" || mfma_dtype == "fp16") && mfma_type == 1)
{
ck_tile::HostTensor<T> t_view({b_, n_ / 16, 16, k_ / 32, 4, 8});
std::copy(t.begin(), t.end(), t_view.begin());
return ck_tile::reference_permute(t_view, {0, 1, 3, 4, 2, 5});
}
else if((mfma_dtype == "int8" || mfma_dtype == "fp8") && mfma_type == 0)
{
ck_tile::HostTensor<T> t_view({b_, n_ / 32, 32, k_ / 32, 2, 16});
std::copy(t.begin(), t.end(), t_view.begin());
return ck_tile::reference_permute(t_view, {0, 1, 3, 4, 2, 5});
}
else if((mfma_dtype == "int8" || mfma_dtype == "fp8") && mfma_type == 1)
{
ck_tile::HostTensor<T> t_view({b_, n_ / 16, 16, k_ / 64, 4, 16});
std::copy(t.begin(), t.end(), t_view.begin());
return ck_tile::reference_permute(t_view, {0, 1, 3, 4, 2, 5});
}
return t;
}
template <typename IndexType>
void topid_unique_gen(
std::vector<IndexType>& host_tensor, int tokens, int topk, int num_expert, int seed)
{
size_t total_size = topk * tokens;
std::srand(seed);
std::set<IndexType> unique_set;
IndexType current_v;
for(size_t i = 0; i < total_size; i++)
{
if(i % topk == 0)
{
unique_set.clear();
}
current_v = std::rand() % num_expert;
while(unique_set.find(current_v) != unique_set.end())
{
current_v = std::rand() % num_expert;
}
unique_set.insert(current_v);
host_tensor[i] = current_v;
}
}
auto create_args(int argc, char* argv[])
{
ck_tile::ArgParser arg_parser;
arg_parser.insert("t", "128", "num input tokens")
.insert("e", "32", "num of experts")
.insert("k", "5", "topk")
.insert("h", "8192", "hidden_size of this model")
.insert("i", "8192", "intermediate_size between 2 gemms of FFN")
.insert("stride", "-1", "stride per row, if -1 then equal to hidden_size")
.insert("bm", "32", "blocking factor for sorted tokens")
.insert("tp", "8", "tensor parallel size")
.insert("v", "1", "cpu validation or not")
.insert("kname", "1", "print kernel name or not")
.insert("prec_i", "bf16", "input precision")
.insert("prec_w", "bf16", "weight precision")
.insert("prec_o", "bf16", "output precision")
.insert("prec_st", "auto", "token scale data type. auto will set to fp32")
.insert("prec_sw", "auto", "weight scale data type. auto will set to fp32")
.insert("prec_sq", "auto", "(dynamic) smooth quant data type. auto will set to fp32")
.insert("prec_kw", "auto", "topk-weight data type. auto will set to fp32")
.insert("fquant", "0", "fused-quant, 0:no, 1:smooth-dynamic-quant, 2:dynamic-quant")
.insert(
"gate_only", "1", "w0(gate/up) style, 0:gate+up will double interm size, 1:only gate")
.insert("api", "0", "benchmark api set: 0:fused-moe(moe-gemm+moe-sorting), 1:moe-gemm")
.insert("balance",
"0",
"if set to 1, will try balance the expert in topk-ids(convenient for testing)")
.insert("init",
"2",
"init method. 0:random stepped float(fast). 1: random uniform, 2:rand normalized"
"normalized(slow)")
.insert("seed", "11939", "seed used to do random")
.insert("warmup", "5", "cold iter")
.insert("repeat", "20", "hot iter");
bool result = arg_parser.parse(argc, argv);
return std::make_tuple(result, arg_parser);
}
// I:input-type, W:weight-type, O:output-type, ST:toke-scale-tpye, SW:weight-scale-type,
// SQ:smooth-quant-type, KW:topk-weight-type
template <typename I, typename W, typename O, typename ST, typename SW, typename SQ, typename KW>
bool run(const ck_tile::ArgParser& arg_parser)
{
ck_tile::index_t tokens = arg_parser.get_int("t");
ck_tile::index_t experts = arg_parser.get_int("e");
ck_tile::index_t topk = arg_parser.get_int("k");
ck_tile::index_t hidden_size = arg_parser.get_int("h");
ck_tile::index_t intermediate_size = arg_parser.get_int("i");
ck_tile::index_t stride = arg_parser.get_int("stride");
ck_tile::index_t block_m = arg_parser.get_int("bm");
if(stride < 0)
stride = hidden_size;
std::string prec_i = arg_parser.get_str("prec_i");
std::string prec_w = arg_parser.get_str("prec_w");
std::string prec_o = arg_parser.get_str("prec_o");
std::string prec_st = arg_parser.get_str("prec_st");
std::string prec_sw = arg_parser.get_str("prec_sw");
std::string prec_sq = arg_parser.get_str("prec_sq");
std::string prec_kw = arg_parser.get_str("prec_kw");
prec_st = (prec_st == "auto") ? "fp32" : prec_st;
prec_sw = (prec_sw == "auto") ? "fp32" : prec_sw;
prec_sq = (prec_sq == "auto") ? "fp32" : prec_sq;
prec_kw = (prec_kw == "auto") ? "fp32" : prec_kw;
int kname = arg_parser.get_int("kname");
int do_validation = arg_parser.get_int("v");
int warmup = arg_parser.get_int("warmup");
int repeat = arg_parser.get_int("repeat");
int fused_quant = arg_parser.get_int("fquant");
int gate_only = arg_parser.get_int("gate_only");
int api = arg_parser.get_int("api");
int balance = arg_parser.get_int("balance");
int tp = arg_parser.get_int("tp");
int init = arg_parser.get_int("init");
uint32_t seed = arg_parser.get_uint32("seed");
// w0 (Gate+Up or Gate only, N size)
ck_tile::index_t shared_intermediate_size_0 = intermediate_size * (gate_only ? 1 : 2) / tp;
// w1 (Down, N size)
ck_tile::index_t shared_intermediate_size_1 = intermediate_size / tp;
auto prec_str = [&]() {
auto base_str = prec_i;
if(prec_i != prec_w)
base_str += "x" + prec_w;
if(prec_i != prec_o)
base_str += "=" + prec_o;
if(fused_quant != 0)
{
base_str += std::string("(") + prec_st + "|" + prec_sw + "|" + prec_sq + ")";
}
return base_str;
}();
auto api_str = [&]() {
if(api == 0)
return std::string("fmoe");
else if(api == 1)
return std::string("moeg");
else if(api == 2)
return std::string("moes");
return std::string("");
}();
auto stride_str = [&]() {
if(stride == hidden_size)
return std::string("");
else
return std::string(", st:") + std::to_string(stride);
}();
std::cout << "[" << api_str << "|" << prec_str << "]"
<< " t:" << tokens << ", e:" << experts << ", k:" << topk << stride_str
<< ", hidden:" << hidden_size << ", interm:" << intermediate_size << ", tp:" << tp
<< ", shrd_interm:" << shared_intermediate_size_0 << "|" << shared_intermediate_size_1
<< ", go:" << gate_only << ", q:" << fused_quant << std::flush;
using TypeConfig = FusedMoeGemmTypeConfig<I, W, O, ST, SW, SQ, KW>;
using ADataType = typename TypeConfig::ADataType;
using GDataType = typename TypeConfig::GDataType;
using DDataType = typename TypeConfig::DDataType;
using AccDataType = typename TypeConfig::AccDataType;
using ODataType = typename TypeConfig::ODataType;
using AScaleDataType = typename TypeConfig::AScaleDataType;
using GScaleDataType = typename TypeConfig::GScaleDataType;
using DScaleDataType = typename TypeConfig::DScaleDataType;
using YSmoothScaleDataType = typename TypeConfig::YSmoothScaleDataType;
using TopkWeightDataType = typename TypeConfig::TopkWeightDataType;
using IndexDataType = typename TypeConfig::IndexDataType;
// host verify
ck_tile::HostTensor<ADataType> a_host({tokens, hidden_size}, {stride, 1});
ck_tile::HostTensor<GDataType> g_host({experts, shared_intermediate_size_0, hidden_size});
ck_tile::HostTensor<DDataType> d_host({experts, hidden_size, shared_intermediate_size_1});
ck_tile::HostTensor<ODataType> o_host({tokens, hidden_size}, {stride, 1});
ck_tile::HostTensor<AScaleDataType> sa_host({tokens});
ck_tile::HostTensor<GScaleDataType> sg_host({shared_intermediate_size_0});
ck_tile::HostTensor<DScaleDataType> sd_host({shared_intermediate_size_1});
ck_tile::HostTensor<YSmoothScaleDataType> sy_host({shared_intermediate_size_1}); // smooth-quant
ck_tile::HostTensor<IndexDataType> topk_ids_host({tokens, topk}); // to be sort
ck_tile::HostTensor<TopkWeightDataType> topk_weight_host({tokens, topk}); // to be sort
int max_num_tokens_padded = topk * tokens + experts * block_m - topk;
ck_tile::HostTensor<IndexDataType> sorted_token_ids_host({max_num_tokens_padded});
ck_tile::HostTensor<TopkWeightDataType> sorted_weight_host({max_num_tokens_padded});
ck_tile::HostTensor<IndexDataType> sorted_expert_ids_host(
{(max_num_tokens_padded + block_m - 1) / block_m});
ck_tile::HostTensor<IndexDataType> num_sorted_tiles_host({1});
if(init == 0)
{
ck_tile::FillStepRange<ADataType>{-.5f, .5f, 0.01f}(a_host);
ck_tile::FillStepRange<GDataType>{-.5f, .5f, 0.01f}(g_host);
ck_tile::FillStepRange<DDataType, false>{.5f, -.5f, -0.01f}(d_host);
ck_tile::FillStepRange<AScaleDataType>{0.f, 1.f, 0.01f}(sa_host);
ck_tile::FillStepRange<GScaleDataType>{0.f, 1.f, 0.01f}(sg_host);
ck_tile::FillStepRange<DScaleDataType>{0.f, 1.f, 0.01f}(sd_host);
ck_tile::FillStepRange<YSmoothScaleDataType>{0.f, 1.f, 0.01f}(sy_host);
ck_tile::FillStepRange<TopkWeightDataType>{-.5f, .5f, 0.01f}(topk_weight_host);
}
else if(init == 1)
{
ck_tile::FillUniformDistribution<ADataType>{-.5f, .5f, seed, true}(a_host);
ck_tile::FillUniformDistribution<GDataType>{-.5f, .5f, seed, true}(g_host);
ck_tile::FillUniformDistribution<DDataType>{-.5f, .5f, seed, true}(d_host);
ck_tile::FillUniformDistribution<AScaleDataType>{-.5f, .5f, seed, true}(sa_host);
ck_tile::FillUniformDistribution<GScaleDataType>{-.5f, .5f, seed, true}(sg_host);
ck_tile::FillUniformDistribution<DScaleDataType>{-.5f, .5f, seed, true}(sd_host);
ck_tile::FillUniformDistribution<YSmoothScaleDataType>{-.5f, .5f, seed, true}(sy_host);
ck_tile::FillUniformDistribution<TopkWeightDataType>{-.5f, .5f, seed, true}(
topk_weight_host);
}
else if(init == 2)
{
ck_tile::FillNormalDistribution<ADataType>{0.f, 1.f, seed, true}(a_host);
ck_tile::FillNormalDistribution<GDataType>{0.f, 1.f, seed, true}(g_host);
ck_tile::FillNormalDistribution<DDataType>{0.f, 1.f, seed, true}(d_host);
ck_tile::FillNormalDistribution<AScaleDataType>{0.f, 1.f, seed, true}(sa_host);
ck_tile::FillNormalDistribution<GScaleDataType>{0.f, 1.f, seed, true}(sg_host);
ck_tile::FillNormalDistribution<DScaleDataType>{0.f, 1.f, seed, true}(sd_host);
ck_tile::FillNormalDistribution<YSmoothScaleDataType>{0.f, 1.f, seed, true}(sy_host);
ck_tile::FillNormalDistribution<TopkWeightDataType>{0.f, 1.f, seed, true}(topk_weight_host);
}
// permute weight
ck_tile::HostTensor<GDataType> g_perm_host = shuffle_moe_weight(g_host, prec_w, 1);
ck_tile::HostTensor<DDataType> d_perm_host = shuffle_moe_weight(d_host, prec_w, 1);
// do moe sorting
if(balance)
{
int e_cnt = 0;
for(int i = 0; i < static_cast<int>(topk_ids_host.mData.size()); i++)
{
topk_ids_host.mData[i] = e_cnt;
e_cnt++;
if(e_cnt >= experts)
e_cnt = 0;
}
}
else
{
topid_unique_gen<IndexDataType>(topk_ids_host.mData, tokens, topk, experts, 11913);
}
// leave it here for future debug purpose
#if 0
a_host.loadtxt("../../ater/input_torch.txt");
topk_ids_host.loadtxt("../../ater/topk_ids_torch.txt", "int");
// topk_ids_host.savetxt("topk_ids_2.txt");
topk_weight_host.loadtxt("../../ater/topk_weights_torch.txt", "float");
std::cout << "------- @@@ " << __LINE__ << std::flush << std::endl;
g_host.loadtxt("../../ater/w1_torch.txt", "float");
std::cout << "------- @@@ " << __LINE__ << std::flush << std::endl;
d_host.loadtxt("../../ater/w2_torch.txt", "float");
std::cout << "------- @@@ " << __LINE__ << std::flush << std::endl;
ck_tile::HostTensor<GDataType> g_perm_host = shuffle_moe_weight(g_host, prec_w, 1);
std::cout << "------- @@@ " << __LINE__ << std::flush << std::endl;
ck_tile::HostTensor<DDataType> d_perm_host = shuffle_moe_weight(d_host, prec_w, 1);
std::cout << "------- @@@ " << __LINE__ << std::flush << std::endl;
#endif
#if 0
std::cout << "sorted_token_ids_host:" << sorted_token_ids_host << std::endl;
std::cout << "num_sorted_tiles_host:" << num_sorted_tiles_host << std::endl;
std::cout << "sorted_expert_ids_host:" << sorted_expert_ids_host << std::endl;
std::cout << "topk_weight_host:" << topk_weight_host << std::endl;
std::cout << "sorted_weight_host:" << sorted_weight_host << std::endl;
#endif
auto cal_tflops = [&](auto ms) {
double flop_gemm_0 =
2 * static_cast<double>(tokens) * topk * shared_intermediate_size_0 * hidden_size;
double flop_gemm_1 =
2 * static_cast<double>(tokens) * topk * shared_intermediate_size_1 * hidden_size;
return (flop_gemm_0 + flop_gemm_1) / (static_cast<double>(ms) * 1e-3) / 1e12;
};
// TODO: this method we use expert-by-expert view, just for reference
auto cal_tbps = [&](auto ms) {
double token_bytes =
static_cast<double>(tokens) * topk / experts * hidden_size * sizeof(ADataType);
double w0_bytes = static_cast<double>(shared_intermediate_size_0) * experts * hidden_size *
sizeof(GDataType);
double w1_bytes = static_cast<double>(shared_intermediate_size_1) * experts * hidden_size *
sizeof(DDataType);
double o_bytes =
static_cast<double>(tokens) * topk / experts * hidden_size * sizeof(ODataType);
double topk_weights_bytes = static_cast<double>(tokens) * topk * sizeof(TopkWeightDataType);
// ignore index, they are too small
return (token_bytes + w0_bytes + w1_bytes + o_bytes + topk_weights_bytes) /
(static_cast<double>(ms) * 1e-3) / 1e12;
};
if(api == 0)
{
ck_tile::DeviceMem a_buf(a_host);
ck_tile::DeviceMem g_perm_buf(g_perm_host);
ck_tile::DeviceMem d_perm_buf(d_perm_host);
ck_tile::DeviceMem sa_buf(sa_host);
ck_tile::DeviceMem sg_buf(sg_host);
ck_tile::DeviceMem sd_buf(sd_host);
ck_tile::DeviceMem sy_buf(sy_host);
ck_tile::DeviceMem o_buf(o_host.get_element_space_size_in_bytes());
ck_tile::DeviceMem topk_ids_buf(topk_ids_host);
ck_tile::DeviceMem topk_weight_buf(topk_weight_host);
ck_tile::DeviceMem sorted_token_ids_buf(
sorted_token_ids_host.get_element_space_size_in_bytes());
ck_tile::DeviceMem sorted_weight_buf(sorted_weight_host.get_element_space_size_in_bytes());
ck_tile::DeviceMem sorted_expert_ids_buf(
sorted_expert_ids_host.get_element_space_size_in_bytes());
ck_tile::DeviceMem num_sorted_tiles_buf(
num_sorted_tiles_host.get_element_space_size_in_bytes());
fused_moe_traits traits{prec_i,
prec_w,
prec_o,
prec_st,
prec_sw,
prec_sq,
prec_kw,
block_m,
gate_only,
fused_quant};
fused_moe_args args{a_buf.GetDeviceBuffer(),
fused_quant != 0 ? sa_buf.GetDeviceBuffer() : nullptr,
g_perm_buf.GetDeviceBuffer(),
d_perm_buf.GetDeviceBuffer(),
fused_quant != 0 ? sg_buf.GetDeviceBuffer() : nullptr,
fused_quant != 0 ? sd_buf.GetDeviceBuffer() : nullptr,
fused_quant == 1 ? sy_buf.GetDeviceBuffer() : nullptr,
o_buf.GetDeviceBuffer(),
topk_ids_buf.GetDeviceBuffer(),
topk_weight_buf.GetDeviceBuffer(),
sorted_token_ids_buf.GetDeviceBuffer(),
sorted_weight_buf.GetDeviceBuffer(),
sorted_expert_ids_buf.GetDeviceBuffer(),
num_sorted_tiles_buf.GetDeviceBuffer(),
block_m,
hidden_size,
shared_intermediate_size_0,
tokens,
experts,
topk,
stride};
float ave_time = fused_moe(
traits, args, ck_tile::stream_config{nullptr, true, kname ? 1 : 0, warmup, repeat});
if(ave_time < 0)
{
std::cout << " not supported!" << std::endl << std::flush;
return false;
}
// float gb_per_sec = num_byte / 1.E6 / ave_time;
std::cout << ", " << ave_time * 1.E3 << " us, " << cal_tflops(ave_time) << " tflops, "
<< cal_tbps(ave_time) << " TB/s" << std::flush;
bool pass = true;
if(do_validation)
{
ck_tile::reference_moe_sorting<TopkWeightDataType, IndexDataType>(
topk_ids_host,
topk_weight_host,
sorted_token_ids_host,
sorted_weight_host,
sorted_expert_ids_host,
num_sorted_tiles_host.mData[0],
experts,
block_m);
ck_tile::reference_fused_moe<AccDataType, ck_tile::element_wise::Gelu>(
a_host,
g_host,
d_host,
sa_host,
sg_host,
sd_host,
sy_host,
o_host,
sorted_token_ids_host,
sorted_weight_host,
sorted_expert_ids_host,
num_sorted_tiles_host,
topk_ids_host,
block_m,
tokens,
experts,
hidden_size,
shared_intermediate_size_0,
topk,
gate_only);
auto o_dev = o_buf.ToHost<ODataType>();
// o_dev.savetxt("gpu-out.txt", "float");
auto [rtol, atol] = get_elimit<ADataType>();
pass &= ck_tile::check_err(
o_dev, o_host, std::string("OUT Error: Incorrect results!"), rtol, atol);
std::cout << ", valid:" << (pass ? "y" : "n") << std::flush;
}
std::cout << std::flush << std::endl;
return pass;
}
else if(api == 1)
{
ck_tile::reference_moe_sorting<TopkWeightDataType, IndexDataType>(
topk_ids_host,
topk_weight_host,
sorted_token_ids_host,
sorted_weight_host,
sorted_expert_ids_host,
num_sorted_tiles_host.mData[0],
experts,
block_m);
// done, preparing GPU buffer
ck_tile::DeviceMem a_buf(a_host);
ck_tile::DeviceMem g_perm_buf(g_perm_host);
ck_tile::DeviceMem d_perm_buf(d_perm_host);
ck_tile::DeviceMem sa_buf(sa_host);
ck_tile::DeviceMem sg_buf(sg_host);
ck_tile::DeviceMem sd_buf(sd_host);
ck_tile::DeviceMem sy_buf(sy_host);
ck_tile::DeviceMem o_buf(o_host);
// manually clear output buffer for atomic
o_buf.SetZero();
//
ck_tile::DeviceMem sorted_token_ids_buf(sorted_token_ids_host);
ck_tile::DeviceMem sorted_weight_buf(sorted_weight_host);
ck_tile::DeviceMem sorted_expert_ids_buf(sorted_expert_ids_host);
ck_tile::DeviceMem num_sorted_tiles_buf(num_sorted_tiles_host);
fused_moegemm_traits traits{prec_i,
prec_w,
prec_o,
prec_st,
prec_sw,
prec_sq,
prec_kw,
block_m,
gate_only,
fused_quant};
fused_moegemm_args args{a_buf.GetDeviceBuffer(),
fused_quant != 0 ? sa_buf.GetDeviceBuffer() : nullptr,
g_perm_buf.GetDeviceBuffer(),
d_perm_buf.GetDeviceBuffer(),
fused_quant != 0 ? sg_buf.GetDeviceBuffer() : nullptr,
fused_quant != 0 ? sd_buf.GetDeviceBuffer() : nullptr,
fused_quant == 1 ? sy_buf.GetDeviceBuffer() : nullptr,
o_buf.GetDeviceBuffer(),
sorted_token_ids_buf.GetDeviceBuffer(),
sorted_weight_buf.GetDeviceBuffer(),
sorted_expert_ids_buf.GetDeviceBuffer(),
num_sorted_tiles_buf.GetDeviceBuffer(),
hidden_size,
shared_intermediate_size_0,
tokens,
experts,
topk,
stride};
float ave_time = fused_moegemm(
traits, args, ck_tile::stream_config{nullptr, true, kname ? 1 : 0, warmup, repeat});
if(ave_time < 0)
{
std::cout << " not supported!" << std::endl << std::flush;
return false;
}
// float gb_per_sec = num_byte / 1.E6 / ave_time;
std::cout << ", " << ave_time * 1.E3 << " us, " << cal_tflops(ave_time) << " tflops, "
<< cal_tbps(ave_time) << " TB/s" << std::flush;
bool pass = true;
if(do_validation)
{
ck_tile::reference_fused_moe<AccDataType, ck_tile::element_wise::Gelu>(
a_host,
g_host,
d_host,
sa_host,
sg_host,
sd_host,
sy_host,
o_host,
sorted_token_ids_host,
sorted_weight_host,
sorted_expert_ids_host,
num_sorted_tiles_host,
topk_ids_host,
block_m,
tokens,
experts,
hidden_size,
shared_intermediate_size_0,
topk,
gate_only);
auto o_dev = o_buf.ToHost<ODataType>();
// o_dev.savetxt("gpu-out.txt", "float");
auto [rtol, atol] = get_elimit<ADataType>();
pass &= ck_tile::check_err(
o_dev, o_host, std::string("OUT Error: Incorrect results!"), rtol, atol);
std::cout << ", valid:" << (pass ? "y" : "n") << std::flush;
}
std::cout << std::flush << std::endl;
return pass;
}
return false;
}
int main(int argc, char* argv[])
{
auto [result, arg_parser] = create_args(argc, argv);
if(!result)
return -1;
std::string prec_i = arg_parser.get_str("prec_i");
std::string prec_w = arg_parser.get_str("prec_w");
std::string prec_o = arg_parser.get_str("prec_o");
std::string prec_st = arg_parser.get_str("prec_st");
std::string prec_sw = arg_parser.get_str("prec_sw");
std::string prec_sq = arg_parser.get_str("prec_sq");
std::string prec_kw = arg_parser.get_str("prec_kw");
prec_st = (prec_st == "auto") ? "fp32" : prec_st;
prec_sw = (prec_sw == "auto") ? "fp32" : prec_sw;
prec_sq = (prec_sq == "auto") ? "fp32" : prec_sq;
prec_kw = (prec_kw == "auto") ? "fp32" : prec_kw;
// no dynamic quant case
if(prec_i == "bf16" && prec_w == "bf16" && prec_o == "bf16" && prec_kw == "fp32")
{
return run<ck_tile::bf16_t, ck_tile::bf16_t, ck_tile::bf16_t, float, float, float, float>(
arg_parser)
? 0
: -2;
}
else if(prec_i == "fp16" && prec_w == "fp16" && prec_o == "fp16" && prec_kw == "fp32")
{
return run<ck_tile::fp16_t, ck_tile::fp16_t, ck_tile::fp16_t, float, float, float, float>(
arg_parser)
? 0
: -2;
}
return -3;
}
example/ck_tile/16_batched_gemm/CMakeLists.txt 0 → 100644
View file @ eca84f93
add_executable(tile_example_batched_gemm EXCLUDE_FROM_ALL batched_gemm.cpp)
example/ck_tile/16_batched_gemm/README.md 0 → 100644
View file @ eca84f93
# Batched GEMM
This folder contains example for batched GEMM using ck_tile tile-programming implementation.
## build
```
# in the root of ck_tile
mkdir build && cd build
# you can replace <arch> with the appropriate architecture (for example gfx90a or gfx942) or leave it blank
sh ../script/cmake-ck-dev.sh ../ <arch>
make tile_example_batched_gemm -j
```
This will result in an executable `build/bin/tile_example_batched_gemm`
## example
```
args:
-m m dimension (default:256)
-n n dimension (default:128)
-k k dimension (default:128)
-a_layout A tensor data layout (default:R) (R for Row, C for Col)
-b_layout B tensor data layout (default:R) (R for Row, C for Col)
-c_layout C tensor data layout (default:R) (R for Row, C for Col)
-stride_a Tensor A stride (default:128)
-stride_b Tensor B stride (default:128)
-stride_c Tensor C stride (default:128)
-batch_stride_a Batch A stride (default:32768)
-batch_stride_b Batch B stride (default:16384)
-batch_stride_c Batch C stride (default:32768)
-batch_count Batch count (default:16)
-v 0. No validation, 1. Validation on CPU, 2. Validation on GPU (default:2)
-e Absolute error tolerance (default:1e-5)
-prec data type. fp16/bf16/fp8/bf8 (default:fp16)
-warmup number of iterations before benchmark the kernel (default:10)
-repeat number of iterations to benchmark the kernel (default:100)
-timer gpu:gpu timer, cpu:cpu timer (default:gpu)
```
\ No newline at end of file
Markdown is supported
0% or .
You are about to add 0 people to the discussion. Proceed with caution.
Finish editing this message first!
Please register or to comment
