example/ck_tile/02_layernorm2d/generate.py

+# SPDX-License-Identifier: MIT
+# Copyright (c) 2018-2024, Advanced Micro Devices, Inc. All rights reserved.
+# generate kernel instances to speed up compilation
+
+import argparse
+from enum import IntEnum
+from pathlib import Path
+import sys
+from typing import List, Optional, Any
+import functools
+import itertools
+import copy
+from dataclasses import dataclass
+
+def get_if_str(idx, total, lase_else = True):
+    if idx == 0:
+        return 'if'
+    elif idx < total - 1:
+        return 'else if'
+    else:
+        if lase_else:
+            return 'else'
+        else:
+            return 'else if'
+
+FUSED_ADD_ENUM_STR_MAP = [
+    'no',

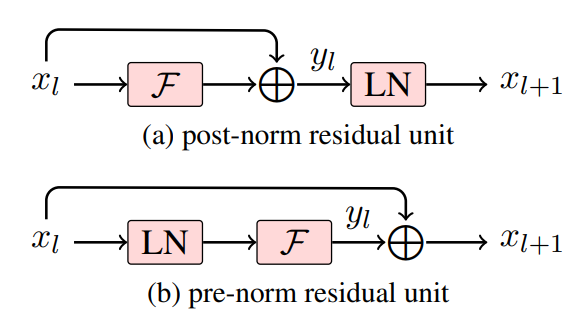

+    'pras',      # pre-norm
+    'pra' ]      # post-norm
+
+FUSED_FUSED_SWEEP_STR_MAP = [
+    'no',
+    'dquant' ]
+
+DATA_TYPE_MAP = {'fp32' : 'float',
+                 'fp16' : 'ck_tile::fp16_t',
+                 'bf16' : 'ck_tile::bf16_t',
+                 'int8' : 'ck_tile::int8_t'}
+
+def BOOL_MAP(b_) -> str:
+    if b_:
+        return 'true'
+    else:
+        return 'false'
+
+class layernorm_fwd_codegen:
+    API_TRAITS_DEFINE = """
+// this is used to pattern-match internl kernel implementation, not to instantiate kernel
+template <typename XDataType_,
+          typename YDataType_,
+          typename XScaleDataType_,
+          typename YScaleDataType_,
+          ck_tile::index_t Repeat_M_,         // each thread repeat along M
+          ck_tile::index_t Repeat_N_,         // each thread repeat along N
+          ck_tile::index_t ThreadPerBlock_M_, // num threads along M
+          ck_tile::index_t ThreadPerBlock_N_, // num threads along N
+          ck_tile::index_t Vector_N_,         // vector size along N
+          bool kPadN_,
+          bool kSaveMeanInvStd_,
+          bool kFastFDiv_,
+          bool kTwoPass_,
+          ck_tile::index_t kFusedAdd_ = 0,
+          ck_tile::index_t kFusedQuant_ = 0>
+struct layernorm2d_fwd_traits_
+{
+    using XDataType = ck_tile::remove_cvref_t<XDataType_>;
+    using YDataType = ck_tile::remove_cvref_t<YDataType_>;
+    using XScaleDataType = ck_tile::remove_cvref_t<XScaleDataType_>;
+    using YScaleDataType = ck_tile::remove_cvref_t<YScaleDataType_>;
+
+    static constexpr bool is_warp_per_row = ThreadPerBlock_N_ <= warpSize;
+    static_assert((ThreadPerBlock_M_ * ThreadPerBlock_N_) % warpSize == 0);
+    static constexpr ck_tile::index_t total_warps =
+        (ThreadPerBlock_M_ * ThreadPerBlock_N_) / warpSize;
+
+    // num of warps along m
+    static constexpr ck_tile::index_t BlockWarps_M = []() {
+        if constexpr(is_warp_per_row)
+        {
+            static_assert(warpSize % ThreadPerBlock_N_ == 0);
+            return total_warps * (warpSize / ThreadPerBlock_N_);
+        }
+        else
+        {
+            // static_assert(warpSize % ThreadPerBlock_M_ == 0);
+            return total_warps / (ThreadPerBlock_N_ / warpSize);
+        }
+    }();
+
+    // num of warps along n
+    static constexpr ck_tile::index_t BlockWarps_N = []() {
+        if constexpr(is_warp_per_row)
+        {
+            static_assert(warpSize % ThreadPerBlock_N_ == 0);
+            return 1;
+        }
+        else
+        {
+            static_assert(ThreadPerBlock_N_ % warpSize == 0);
+            return ThreadPerBlock_N_ / warpSize;
+        }
+    }();
+
+    static constexpr ck_tile::index_t Repeat_M = Repeat_M_;
+    static constexpr ck_tile::index_t Repeat_N = Repeat_N_;
+
+    static constexpr ck_tile::index_t Block_M = Repeat_M_ * ThreadPerBlock_M_;
+    static constexpr ck_tile::index_t Block_N = Repeat_N_ * ThreadPerBlock_N_ * Vector_N_;
+
+    static constexpr ck_tile::index_t Warp_M = ThreadPerBlock_M_ / BlockWarps_M;
+    static constexpr ck_tile::index_t Warp_N = ThreadPerBlock_N_ / BlockWarps_N * Vector_N_;
+
+    using BlockTile  = ck_tile::sequence<Block_M, Block_N>;
+    using BlockWarps = ck_tile::sequence<BlockWarps_M, BlockWarps_N>;
+    using WarpTile   = ck_tile::sequence<Warp_M, Warp_N>;
+    using Vector     = ck_tile::sequence<1, Vector_N_>;
+
+    using Shape = ck_tile::Generic2dBlockShape<BlockTile, BlockWarps, WarpTile, Vector>;
+
+    static constexpr bool kPadN           = kPadN_;
+    static constexpr bool kSaveMeanInvStd = kSaveMeanInvStd_;
+    static constexpr bool kFastFDiv       = kFastFDiv_;
+    static constexpr bool kTwoPass        = kTwoPass_;
+    static constexpr ck_tile::index_t kFusedAdd = kFusedAdd_;
+    static constexpr ck_tile::index_t kFusedQuant = kFusedQuant_;
+};
+
+template <typename XDataType_,
+          typename YDataType_,
+          typename XScaleDataType_,
+          typename YScaleDataType_,
+          ck_tile::index_t Repeat_M_,         // each thread repeat along M
+          ck_tile::index_t Repeat_N_,         // each thread repeat along N
+          ck_tile::index_t ThreadPerBlock_M_, // num threads along M
+          ck_tile::index_t ThreadPerBlock_N_, // num threads along N
+          ck_tile::index_t Vector_N_,         // vector size along N
+          bool kPadN_,
+          bool kSaveMeanInvStd_,
+          bool kFastFDiv_,
+          bool kTwoPass_,
+          int  kFusedAdd_,
+          int  kFusedQuant_>
+using traits_ = layernorm2d_fwd_traits_<XDataType_,
+                                       YDataType_,
+                                       XScaleDataType_,
+                                       YScaleDataType_,
+                                       Repeat_M_,
+                                       Repeat_N_,
+                                       ThreadPerBlock_M_,
+                                       ThreadPerBlock_N_,
+                                       Vector_N_,
+                                       kPadN_,
+                                       kSaveMeanInvStd_,
+                                       kFastFDiv_,
+                                       kTwoPass_,
+                                       kFusedAdd_,
+                                       kFusedQuant_>;
+"""
+    API_COMMON_HEADER = """
+// SPDX-License-Identifier: MIT
+// Copyright (c) 2024, Advanced Micro Devices, Inc. All rights reserved.
+
+#include <ck_tile/core.hpp>
+#include "layernorm2d_fwd.hpp"
+#include <ck_tile/ops/epilogue.hpp>
+#include <iostream>
+
+#pragma once
+
+using S = ck_tile::stream_config;
+using A = layernorm2d_fwd_args;
+
+{F_traits_define}
+
+template <typename Traits_>
+float layernorm2d_fwd_(const S& s, A a)
+{{
+    using XDataType = typename Traits_::XDataType;
+    using YDataType = typename Traits_::YDataType;
+    using XScaleDataType = typename Traits_::XScaleDataType;
+    using YScaleDataType = typename Traits_::YScaleDataType;
+    using ComputeDataType = typename LayerNormTypeConfig<XDataType, YDataType, XScaleDataType, YScaleDataType>::ComputeDataType;
+
+    using PipelineTraits = ck_tile::Layernorm2dFwdTraits<Traits_::kPadN,
+        Traits_::kSaveMeanInvStd,
+        Traits_::kFastFDiv,
+        Traits_::kTwoPass,
+        static_cast<ck_tile::Layernorm2dFusedAddEnum>(Traits_::kFusedAdd),
+        static_cast<ck_tile::Layernorm2dFusedQuantEnum>(Traits_::kFusedQuant)>;
+    using PipelineProblem = ck_tile::Layernorm2dFwdPipelineProblem<
+        typename LayerNormTypeConfig<XDataType, YDataType, XScaleDataType, YScaleDataType>::XDataType,
+        typename LayerNormTypeConfig<XDataType, YDataType, XScaleDataType, YScaleDataType>::GammaDataType,
+        typename LayerNormTypeConfig<XDataType, YDataType, XScaleDataType, YScaleDataType>::BetaDataType,
+        typename LayerNormTypeConfig<XDataType, YDataType, XScaleDataType, YScaleDataType>::ComputeDataType,
+        typename LayerNormTypeConfig<XDataType, YDataType, XScaleDataType, YScaleDataType>::YDataType,
+        typename LayerNormTypeConfig<XDataType, YDataType, XScaleDataType, YScaleDataType>::MeanDataType,
+        typename LayerNormTypeConfig<XDataType, YDataType, XScaleDataType, YScaleDataType>::InvStdDataType,
+        typename LayerNormTypeConfig<XDataType, YDataType, XScaleDataType, YScaleDataType>::XScaleDataType,
+        typename LayerNormTypeConfig<XDataType, YDataType, XScaleDataType, YScaleDataType>::YScaleDataType,
+        typename Traits_::Shape,
+        PipelineTraits>;
+
+    using OnePassPipeline = ck_tile::Layernorm2dFwdPipelineOnePass<PipelineProblem>;
+    using TwoPassPipeline = ck_tile::Layernorm2dFwdPipelineTwoPass<PipelineProblem>;
+    using Pipeline        = std::conditional_t<Traits_::kTwoPass, TwoPassPipeline, OnePassPipeline>;
+
+    using Default2DEpilogueProblem = ck_tile::Default2DEpilogueProblem<ComputeDataType, YDataType, false, Traits_::kPadN, false>;
+    using Default2DEpilogue = ck_tile::Default2DEpilogue<Default2DEpilogueProblem>;
+
+    static constexpr bool UseSmoothInputScale = Traits_::kFusedQuant == 1;
+    using DynamicQuantEpilogueProblem = ck_tile::DynamicQuantEpilogueProblem<ComputeDataType, XScaleDataType, YScaleDataType, YDataType, typename Traits_::Shape,
+            ck_tile::DynamicQuantEpilogueTraits<false, Traits_::kPadN, UseSmoothInputScale, false,  true/*max3*/>>;
+
+    using DynamicQuantEpilogue = ck_tile::DynamicQuantEpilogue<DynamicQuantEpilogueProblem>;
+
+    using Epilogue = std::conditional_t<Traits_::kFusedQuant == 1, DynamicQuantEpilogue,  Default2DEpilogue>;
+
+    using Kernel = ck_tile::Layernorm2dFwd<Pipeline, Epilogue>;
+
+    const dim3 grids                       = Kernel::GridSize(a);
+    constexpr dim3 blocks                  = Kernel::BlockSize();
+    constexpr ck_tile::index_t kBlockPerCu = 1;
+
+    auto kargs = Kernel::MakeKargs(a);
+    if(s.log_level_ > 0)
+        std::cout << ", " << Kernel::GetName() << std::flush;
+
+    return ck_tile::launch_kernel(
+        s, ck_tile::make_kernel<blocks.x, kBlockPerCu>(Kernel{{}}, grids, blocks, 0, kargs));
+}}
+
+"""
+
+    API_BASE = """
+// SPDX-License-Identifier: MIT
+// Copyright (c) 2024, Advanced Micro Devices, Inc. All rights reserved.
+
+#include <ck_tile/core.hpp>
+#include "layernorm2d_fwd.hpp"
+
+{F_traits_define}
+
+// Note: this internal API only declare, not define here, otherwise will block `make -j`
+template <typename Traits_>
+float layernorm2d_fwd_(const ck_tile::stream_config& s, layernorm2d_fwd_args a);
+
+float layernorm2d_fwd(layernorm2d_fwd_traits t,
+                      layernorm2d_fwd_args a,
+                      const ck_tile::stream_config& s)
+{{
+    float r = -1;
+{F_dispatch}
+    return r;
+}}
+
+"""
+
+    API_PER_DTYPE="""    {F_if}(t.prec_i == \"{F_i_type}\" && t.prec_o == \"{F_o_type}\"){{
+{F_per_n_case}
+    }}
+"""
+    API_PER_N_CASE="""        {F_if} {F_N_COND} {{
+{F_inner_dispatch}
+        }}
+"""
+    API_INNER_CASE="""            {F_if} {F_VEC_COND}
+                r={F_instance_func}(s, a);
+"""
+
+    INSTANCE_BASE = """
+// SPDX-License-Identifier: MIT
+// Copyright (c) 2024, Advanced Micro Devices, Inc. All rights reserved.
+
+#include "layernorm2d_fwd_api_common.hpp"
+
+// clang-format off
+//                                      prec_i           prec_o           prec_sy           rm  rn  tm    tn  vn  pd     mv    rpcf    2p      add  sweep
+{F_instance_def}
+// clang-format on
+
+"""
+
+    def __init__(self, working_path, kernel_filter):
+        self.working_path = working_path
+        self.kernel_filter = kernel_filter
+
+    class k_fuesd_add_enum(IntEnum):
+        F_NO_ADD = 0
+        F_PRE_ADD = 1
+        F_PRE_ADD_STORE_RESIDUAL = 2
+
+    class k_fused_sweep_enum(IntEnum):
+        F_NO_SWEEP = 0
+        F_RENORM = 1
+        F_DYNAMIC_QUANT = 2
+
+    @dataclass
+    class k_traits:
+        F_kPadN : bool
+        F_kSaveMeanInvStd : bool
+        F_kTwoPass : bool
+        F_kFusedAdd : Any #: layernorm_fwd_codegen.k_fuesd_add_enum
+        F_kFusedQuant : Any  #: layernorm_fwd_codegen.k_fused_sweep_enum
+
+    @dataclass
+    class k_shape:
+        F_BlockTile    : List[int]
+        F_WarpPerBlock : List[int]
+        F_WarpTile     : List[int]
+        F_Vector_      : List[int]
+        @property
+        def F_BlockSize(self) -> int:
+            return functools.reduce(lambda a, b: a*b, self.F_WarpTile)
+
+    @dataclass
+    class k_problem:
+        F_XDataType       : str
+        F_GammaDataType   : str
+        F_BetaDataType    : str
+        F_ComputeDataType : str
+        F_YDataType       : str
+        F_MeanDataType    : str
+        F_InvStdDataType  : str
+        F_BlockShape      : str
+        F_Traits          : Any #k_traits
+
+    @dataclass
+    class k_pipeline_one_pass:
+        F_Problem         : Any #k_problem
+
+    @dataclass
+    class k_pipeline_two_pass:
+        F_Problem         : Any #k_problem
+
+    @dataclass
+    class default_2d_epilogue_problem:
+        F_AccDataType : str
+        F_ODataType : str
+        F_kPadM : bool
+        F_kPadN : bool
+
+    @dataclass
+    class default_2d_epilogue:
+        F_problem : Any
+
+    @dataclass
+    class k_kernel:
+        F_pipeline : Any
+        F_epilogue : Any
+
+    @dataclass
+    class h_traits:
+        F_XDataType : str
+        F_YDataType : str
+        F_XScaleDataType : str
+        F_YScaleDataType : str
+        F_Repeat_M : int
+        F_Repeat_N : int
+        F_ThreadPerBlock_M : int
+        F_ThreadPerBlock_N : int
+        F_Vector_N : int
+        F_kPadN : bool
+        F_kSaveMeanInvStd_ : bool
+        F_kFastFDiv_ : bool
+        F_kTwoPass_ : bool
+        F_kFusedAdd : int
+        F_kFusedQuant : int
+
+        @property
+        def trait_name(self) ->str:
+            t_ = f'{DATA_TYPE_MAP[self.F_XDataType]}, {DATA_TYPE_MAP[self.F_YDataType]}, {DATA_TYPE_MAP[self.F_XScaleDataType]}, {DATA_TYPE_MAP[self.F_YScaleDataType]}, {self.F_Repeat_M:2}, {self.F_Repeat_N:2}, {self.F_ThreadPerBlock_M:2}, {self.F_ThreadPerBlock_N:4}'
+            t_ += f', {self.F_Vector_N:2}, {BOOL_MAP(self.F_kPadN):5}, {BOOL_MAP(self.F_kSaveMeanInvStd_):5}, {BOOL_MAP(self.F_kFastFDiv_):5}'
+            t_ += f', {BOOL_MAP(self.F_kTwoPass_):5}, {self.F_kFusedAdd:4}, {self.F_kFusedQuant:4}'
+            return t_
+
+        # string when calling this kernel
+        @property
+        def call_name(self) -> str:
+            return f'layernorm2d_fwd_<traits_<{self.trait_name}>>'
+
+        # string when define this kernel
+        @property
+        def def_name(self) -> str:
+            return f'template float layernorm2d_fwd_<traits_<{self.trait_name}>>(const S&, A);'
+
+    # this class hold kernel under same source file
+    @dataclass
+    class h_instance:
+        F_DataTypePair : str
+        F_N : str
+        F_add : int
+        F_sweep : int
+        instance_list : List[Any] # List[h_traits]
+
+        @property
+        def name(self) -> str:
+            prec_i, prec_o = self.F_DataTypePair.split(',')
+            dtype_str = f'{prec_i}' if prec_i == prec_o else f'{prec_i}_{prec_o}'
+            nnn = f'layernorm2d_fwd_{dtype_str}_n{self.F_N}'
+            if self.F_add != 0:
+                nnn = nnn + '_' + FUSED_ADD_ENUM_STR_MAP[self.F_add]
+            if self.F_sweep != 0:
+                nnn = nnn + '_' + FUSED_FUSED_SWEEP_STR_MAP[self.F_sweep]
+            return nnn
+
+        @property
+        def instance_name(self) ->str:
+            return self.name
+
+        @property
+        def content(self) ->str:
+            instance_defs = ''
+            for ins in self.instance_list:
+                instance_defs += ins.def_name + '\n'
+            return layernorm_fwd_codegen.INSTANCE_BASE.format(F_instance_def=instance_defs)
+
+    @property
+    def name_api(self) -> str:
+        return 'layernorm2d_fwd_api'
+
+    @property
+    def name_common_header(self) -> str:
+        return 'layernorm2d_fwd_api_common'
+
+    @property
+    def content_api(self) -> str:
+        # 1 sort based on dtype
+        t_dtype_dict = dict()
+        blobs = self.get_blobs()
+        for blob in blobs:
+            if blob.F_DataTypePair not in t_dtype_dict:
+                t_dtype_dict[blob.F_DataTypePair] = {}
+            if blob.F_N not in t_dtype_dict[blob.F_DataTypePair]:
+                t_dtype_dict[blob.F_DataTypePair][blob.F_N] = []
+            t_dtype_dict[blob.F_DataTypePair][blob.F_N].append(blob)
+
+        d_str = ''
+        for i_d, dtype_ in enumerate(t_dtype_dict):
+            blob_per_t = t_dtype_dict[dtype_]
+            n_str = ''
+            for i_n, n_ in enumerate(blob_per_t):
+                blob_per_n = blob_per_t[n_]
+                inner_str = ""
+                for i_b, b_ in enumerate(blob_per_n):
+                    # generate single kernel instance file
+                    #vec_str = ""
+                    for i_ins, ins in enumerate(b_.instance_list):
+                        idx_in_n = i_b * len(b_.instance_list) + i_ins
+                        len_in_n = len(blob_per_n) * len(b_.instance_list)
+                        # _if = 'if' if i_ins == 0 else 'else if'
+                        if ins.F_kFusedQuant == 0:
+                            _sweep_cond = 't.fused_quant == {f_fused_sweep}'.format(f_fused_sweep = ins.F_kFusedQuant)
+                        elif ins.F_kFusedQuant == 1:
+                            _sweep_cond = 't.fused_quant == {f_fused_sweep} && (t.prec_sx == \"{f_sx_type}\" && t.prec_sy == \"{f_sy_type}\")'.format(
+                                f_fused_sweep = ins.F_kFusedQuant, f_sx_type=ins.F_XScaleDataType, f_sy_type=ins.F_YScaleDataType)
+                        elif ins.F_kFusedQuant == 2:
+                            _sweep_cond = 't.fused_quant == {f_fused_sweep} && (t.prec_sy == \"{f_sy_type}\")'.format(
+                                f_fused_sweep = ins.F_kFusedQuant, f_sy_type=ins.F_YScaleDataType)
+                        _cond = '((a.n % {f_vec_n} == 0) && (t.fused_add == {f_fused_add}) && ({f_sweep_cond}))'.format(
+                                        f_vec_n = ins.F_Vector_N, f_fused_add = ins.F_kFusedAdd,
+                                        f_sweep_cond = _sweep_cond)
+                        inner_str += self.API_INNER_CASE.format(F_if = get_if_str(idx_in_n, len_in_n, False),
+                                            F_VEC_COND = _cond, F_instance_func=ins.call_name)
+                    #inner_str = inner_str + vec_str
+                n_cnd = f'(a.n <= {n_})' if (i_n < len(blob_per_t) - 1) else ''
+                n_str += self.API_PER_N_CASE.format(F_if = get_if_str(i_n, len(blob_per_t)), F_N_COND=n_cnd, F_inner_dispatch=inner_str)
+            prec_i, prec_o = dtype_.split(',')
+            d_str += self.API_PER_DTYPE.format(F_if = get_if_str(i_d, len(t_dtype_dict), False), F_i_type=prec_i, F_o_type=prec_o, F_per_n_case=n_str)
+
+        api_base = self.API_BASE.format(F_traits_define=self.API_TRAITS_DEFINE, F_dispatch=d_str)
+        return api_base
+
+    @property
+    def content_common_header(self) -> str:
+        return self.API_COMMON_HEADER.format(F_traits_define=self.API_TRAITS_DEFINE)
+
+    def get_blobs(self):
+        h_traits = layernorm_fwd_codegen.h_traits
+        h_instance = layernorm_fwd_codegen.h_instance
+
+        dynamic_quant_out_dtype = ['int8']
+        # some predefined support range
+        # (prec_i,prec_o) for simplicity this string will be used as key for dict
+        scale_list = [('fp32,fp32')]
+        dtype_list = [('fp16,fp16'), ('bf16,bf16'),
+                        ('fp16,int8'), ('bf16,int8')] # NOTE: only fused-dynamic-quant use int8 out
+        #fused_add_list = [0, 1, 2]
+        #fused_sweep_list = [0, 1, 2] # NOTE: only single pass can use fused dynamic quant
+        fused_add_list = [0, 1]
+        fused_sweep_list = [0, 1] # NOTE: only single pass can use fused dynamic quant
+
+        #                                                       rm  rn  tm   tn  vn  pd     mv     fdiv  2p     add    sweep
+        h_trait_dict = {'64'  : [ h_traits('x', 'y', 'xs', 'ys', 1,  1,  8,  8,  8,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  1,  4,  16, 4,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  1,  4,  64, 1,  True,  False, True, False,   0,    0)],
+                        '128' : [ h_traits('x', 'y', 'xs', 'ys', 1,  1,  4,  16, 8,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  1,  4,  64, 2,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  2,  4,  64, 1,  True,  False, True, False,   0,    0)],
+                        '256' : [ h_traits('x', 'y', 'xs', 'ys', 1,  1,  4,  64, 4,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  2,  4,  64, 2,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  4,  4,  64, 1,  True,  False, True, False,   0,    0)],
+                        '512' : [ h_traits('x', 'y', 'xs', 'ys', 1,  1,  4,  64, 8,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  2,  4,  64, 4,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  4,  4,  64, 2,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  8,  4,  64, 1,  True,  False, True, False,   0,    0)],
+                        '768' : [ h_traits('x', 'y', 'xs', 'ys', 1,  3,  4,  64, 4,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  6,  4,  64, 2,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1, 12,  4,  64, 1,  True,  False, True, False,   0,    0)],
+                        '1024' :[ h_traits('x', 'y', 'xs', 'ys', 1,  1,  2, 128, 8,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  2,  2, 128, 4,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  4,  2, 128, 2,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  4,  1, 256, 1,  True,  False, True, False,   0,    0)],
+                        '1536' :[ h_traits('x', 'y', 'xs', 'ys', 1,  3,  4,  64, 8,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  3,  2, 128, 4,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  3,  1, 256, 2,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  6,  1, 256, 1,  True,  False, True, False,   0,    0)],
+                        '2048' :[ h_traits('x', 'y', 'xs', 'ys', 1,  1,  1, 256, 8,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  2,  1, 256, 4,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  4,  1, 256, 2,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  8,  1, 256, 1,  True,  False, True, False,   0,    0)],
+                        '3072' :[ h_traits('x', 'y', 'xs', 'ys', 1,  3,  1, 128, 8,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  3,  1, 256, 4,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  6,  1, 256, 2,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  3,  1,1024, 1,  True,  False, True, False,   0,    0)],
+                        '4096' :[ h_traits('x', 'y', 'xs', 'ys', 1,  2,  1, 256, 8,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  4,  1, 256, 4,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  2,  1,1024, 2,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  4,  1,1024, 1,  True,  False, True, False,   0,    0)],
+                        '6144' :[ h_traits('x', 'y', 'xs', 'ys', 1,  3,  1, 256, 8,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  3,  1, 512, 4,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  3,  1,1024, 2,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  6,  1,1024, 1,  True,  False, True, False,   0,    0)],
+                        '8192' :[ h_traits('x', 'y', 'xs', 'ys', 1,  4,  1, 256, 8,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  4,  1, 512, 4,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  4,  1,1024, 2,  True,  False, True, False,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  8,  1,1024, 1,  True,  False, True, False,   0,    0)],
+                        'big'  :[ h_traits('x', 'y', 'xs', 'ys', 1,  2,  1, 256, 8,  True,  False, True,  True,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  4,  1, 256, 4,  True,  False, True,  True,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  2,  1,1024, 2,  True,  False, True,  True,   0,    0),
+                                  h_traits('x', 'y', 'xs', 'ys', 1,  4,  1,1024, 1,  True,  False, True,  True,   0,    0)]}
+        total_blob = list()
+        for hs_key in h_trait_dict:
+            hs = h_trait_dict[hs_key]
+            current_n = hs[0].F_Repeat_N * hs[0].F_ThreadPerBlock_N * hs[0].F_Vector_N
+            for dtype, scale_type, fused_add, fused_quant in itertools.product(dtype_list, scale_list, fused_add_list, fused_sweep_list):
+                prec_i, prec_o = dtype.split(',')
+                scale_x, scale_y = scale_type.split(',')
+                if prec_o in dynamic_quant_out_dtype and fused_quant != 1:
+                    continue # skip non dynamic quant case
+                if fused_quant == 1 and hs_key == 'big':
+                    continue
+                current_hs = list()
+                for chs_ in hs:
+                    h_ = copy.copy(chs_) # copy the base instance out
+                    h_.F_XDataType = prec_i
+                    h_.F_YDataType = prec_o
+                    h_.F_XScaleDataType = scale_y
+                    h_.F_YScaleDataType = scale_x
+                    h_.F_kFusedAdd = fused_add
+                    h_.F_kFusedQuant = fused_quant
+                    current_hs.append(h_) # + "\n"
+                #f.write(str(f.parent / GEN_DIR / (blobs.api_common_header_
+                current_n_str = 'big' if hs_key == 'big' else current_n
+                total_blob.append(h_instance(dtype, current_n_str, fused_add, fused_quant, current_hs))
+        return total_blob
+
+    def list_blobs(self) -> None:
+        w_p = Path(self.working_path)
+        list_p = w_p / 'layernorm2d_fwd_blobs.txt'
+        blobs = self.get_blobs()
+        with list_p.open('w') as list_f:
+            # api related file
+            list_f.write(str(w_p / (self.name_api + ".cpp"))  + "\n")
+            list_f.write(str(w_p / (self.name_common_header + ".hpp"))  + "\n")
+            # kernel instance file
+            for b in blobs:
+                list_f.write(str(w_p / (b.name + ".cpp")) + "\n")
+
+    def gen_blobs(self) -> None:
+        w_p = Path(self.working_path)
+        (w_p / (self.name_api + ".cpp")).write_text(self.content_api)
+        (w_p / (self.name_common_header + ".hpp")).write_text(self.content_common_header)
+        blobs = self.get_blobs()
+        for b in blobs:
+            (w_p / (b.name + ".cpp")).write_text(b.content)
+
+def list_blobs(args):
+    api_list = args.api.split(',')
+    for api in api_list:
+        if api == 'fwd':
+            layernorm_fwd_codegen(args.working_path, args.filter).list_blobs()
+
+
+def gen_blobs(args):
+    api_list = args.api.split(',')
+    for api in api_list:
+        if api == 'fwd':
+            layernorm_fwd_codegen(args.working_path, args.filter).gen_blobs()
+
+if __name__ == "__main__":
+    parser = argparse.ArgumentParser(
+        prog="generate",
+        description="gen API for CK layernorm kernel",
+    )
+    parser.add_argument(
+        "-a",
+        "--api",
+        default='fwd[all]',
+        required=False,
+        help="supply API(s) to generate (default: fwd). separated by comma."
+    )
+
+    # the directory for list_blobs/gen_blobs to write files into
+    parser.add_argument(
+        "-w",
+        "--working_path",
+        default="./",
+        required=False,
+        help="the path where all the blobs are going to be generated"
+    )
+
+    # this script have 2 modes
+    # 1) list_blobs mode, will generate a txt file with all the files going to be generated.
+    #    this is useful in build system like cmake to construct source code dependency, by
+    #    reading the content out of this file
+    # 2) gen_blobs mode, will generate the actuall kernel instance and api. If in framework
+    #    like FA, only need to use this mode
+    parser.add_argument(
+        "-l",
+        "--list_blobs",
+        action='store_true',
+        help="list all the kernels to a file, "
+    )
+
+    parser.add_argument(
+        "-g",
+        "--gen_blobs",
+        action='store_true',
+        help="generate all kernels into different tile"
+    )
+
+    # TODO: if using filter, must apply same value to output_dir and list_blobs
+    parser.add_argument(
+        "-f",
+        "--filter",
+        required=False,
+        help="filter out kernels that need to generate, using fnmatch module"
+    )
+
+    parser.add_argument(
+        "-t",
+        "--traits",
+        default="all",
+        required=False,
+        help="enable/disable some feature. default generate all"
+    )
+
+    parser.add_argument(
+        "-r",
+        "--receipt",
+        default=0,
+        required=False,
+        help="codegen receipt."
+    )
+
+    args = parser.parse_args()
+
+    # print(f'{args.list_blobs}-{args.gen_blobs}')
+    if (args.gen_blobs and args.list_blobs) or ((not args.gen_blobs) and (not args.list_blobs)):
+        print('gen_blobs/list_blobs must specify only one option')
+        sys.exit()
+
+    p = Path(args.working_path)
+    if not p.exists():
+        p.mkdir()
+
+    if args.list_blobs:
+        list_blobs(args)
+    else:
+        gen_blobs(args)

example/ck_tile/02_layernorm2d/layernorm2d_fwd.cpp

 #include "ck_tile/host.hpp"
 #include "layernorm2d_fwd.hpp"
+#include <algorithm>
 #include <cstring>

-// Host API implementation
-float layernorm2d_fwd(layernorm2d_fwd_traits t,
-                      layernorm2d_fwd_args a,
-                      const ck_tile::stream_config& s)
+// different threshold for different dtype
+template <typename DataType>
+auto get_elimit()
 {
-    if(t.data_type.compare("fp16") == 0)
-    {
-        using XDataType     = ck_tile::half_t;
-        using YDataType     = ck_tile::half_t;
-        using GammaDataType = ck_tile::half_t;
-        using BetaDataType  = ck_tile::half_t;
-#ifdef SAVE_MEAN_INV_STD
-        using MeanDataType   = ck_tile::half_t;
-        using InvStdDataType = ck_tile::half_t;
-#else
-        using MeanDataType   = ck_tile::null_type;
-        using InvStdDataType = ck_tile::null_type;
-#endif
-        using ComputeDataType = float;
-
-        using thread_tile = ck_tile::sequence<4, 4>;
-        using warp_tile   = ck_tile::sequence<8, 128>;
-        using block_tile  = ck_tile::sequence<32, 128>;
-
-        using Shape = ck_tile::TileLayernorm2dShape<thread_tile, warp_tile, block_tile>;
-
-        using PipelineProblem = ck_tile::BlockLayernorm2dFwdProblem<XDataType,
-                                                                    GammaDataType,
-                                                                    BetaDataType,
-                                                                    ComputeDataType,
-                                                                    YDataType,
-                                                                    MeanDataType,
-                                                                    InvStdDataType,
-                                                                    Shape,
-                                                                    true,
-                                                                    true>;
-
-        using Kernel = ck_tile::Layernorm2dFwd<PipelineProblem>;
-
-        auto kargs = Kernel::MakeKargs(
-            a.p_x, a.p_gamma, a.p_beta, a.p_y, a.p_mean, a.p_invStd, a.epsilon, a.M, a.N);
-
-        const dim3 grids      = Kernel::GridSize(a.M);
-        constexpr dim3 blocks = Kernel::BlockSize();
-
-        constexpr ck_tile::index_t kBlockPerCu = Shape::kMWarpPerBlock * Shape::kNWarpPerBlock;
-
-        float ave_time = ck_tile::launch_kernel(
-            s, ck_tile::make_kernel<blocks.x, kBlockPerCu>(Kernel{}, grids, blocks, 0, kargs));
-
-        return ave_time;
-    }
+    double rtol = 1e-2;
+    double atol = 1e-2;
+    return ck_tile::make_tuple(rtol, atol);
+}

-    return 0;
+template <>
+auto get_elimit<ck_tile::bf16_t>()
+{
+    double rtol = 1e-2;
+    double atol = 1e-2;
+    return ck_tile::make_tuple(rtol, atol);
 }

 auto create_args(int argc, char* argv[])
 {
     ck_tile::ArgParser arg_parser;
     arg_parser.insert("m", "3328", "m dimension")
-        .insert("n", "4096", "m dimension")
+        .insert("n", "4096", "n dimension")
+        .insert("x_stride", "-1", "x row_stride, if -1 then equal to n")
+        .insert("xr_stride", "-1", "x residule row_stride, if -1 then equal to n")
+        .insert("y_stride", "-1", "y row_stride, if -1 then equal to n")
+        .insert("yr_stride", "-1", "y residule row_stride, if -1 then equal to n")
         .insert("e", "1e-5", "epsilon")
+        .insert("save_mv", "0", "save mean/variance(invstd) or not. set to 1 in training case")
         .insert("v", "1", "cpu validation or not")
-        .insert("prec", "fp16", "precision");
+        .insert("kname", "1", "print kernel name or not")
+        .insert("prec_i", "fp16", "input precision")
+        .insert("prec_o", "auto", "output precision, set auto will be the same as input")
+        .insert("prec_sx",
+                "auto",
+                "output quant scale type, set auto will use fp32. used when fquant=1")
+        .insert("prec_sy",
+                "auto",
+                "output quant scale type, set auto will use fp32. used when fquant=1 or 2")
+        .insert("fadd", "0", "fused-add, 0:no fused add, 1:preadd+store, 2:preadd only")
+        .insert("fquant", "0", "fused-quant, 0:no, 1:smooth-dynamic-quant, 2:dynamic-quant")
+        .insert("warmup", "5", "cold iter")
+        .insert("repeat", "20", "hot iter");

     bool result = arg_parser.parse(argc, argv);
     return std::make_tuple(result, arg_parser);
 }

-int main(int argc, char* argv[])
+template <typename InDataType,
+          typename OutDataType,
+          typename XScaleDataType,
+          typename YScaleDataType,
+          bool SaveMeanVar>
+bool run(const ck_tile::ArgParser& arg_parser)
 {
+    ck_tile::index_t m        = arg_parser.get_int("m");
+    ck_tile::index_t n        = arg_parser.get_int("n");
+    ck_tile::index_t x_stride = arg_parser.get_int("x_stride");
+    if(x_stride < 0)
+        x_stride = n;
+    ck_tile::index_t xr_stride = arg_parser.get_int("xr_stride");
+    if(xr_stride < 0)
+        xr_stride = n;
+    ck_tile::index_t y_stride = arg_parser.get_int("y_stride");
+    if(y_stride < 0)
+        y_stride = n;
+    ck_tile::index_t yr_stride = arg_parser.get_int("yr_stride");
+    if(yr_stride < 0)
+        yr_stride = n;
+    float epsilon       = arg_parser.get_float("e");
+    std::string prec_i  = arg_parser.get_str("prec_i");
+    std::string prec_o  = arg_parser.get_str("prec_o");
+    std::string prec_sx = arg_parser.get_str("prec_sx");
+    std::string prec_sy = arg_parser.get_str("prec_sy");
+    if(prec_o == "auto")
+    {
+        prec_o = prec_i;
+    }
+    if(prec_sx == "auto")
+    {
+        prec_sx = "fp32";
+    }
+    if(prec_sy == "auto")
+    {
+        prec_sy = "fp32";
+    }

-    auto [result, arg_parser] = create_args(argc, argv);
-    if(!result)
-        return -1;
+    int kname         = arg_parser.get_int("kname");
+    int do_validation = arg_parser.get_int("v");
+    int warmup        = arg_parser.get_int("warmup");
+    int repeat        = arg_parser.get_int("repeat");
+    int fused_add     = arg_parser.get_int("fadd");
+    int fused_quant   = arg_parser.get_int("fquant");
+    if(fused_quant == 1 && prec_o != "int8")
+    {
+        std::cout << "if fused_quant is 1, only support \"-prec_o=int8\" case" << std::endl;
+        return false;
+    }
+
+    assert(x_stride >= n);
+
+    using TypeConfig = LayerNormTypeConfig<InDataType, OutDataType, XScaleDataType, YScaleDataType>;

-    float epsilon         = arg_parser.get_float("e");
-    ck_tile::index_t M    = arg_parser.get_int("m");
-    ck_tile::index_t N    = arg_parser.get_int("n");
-    std::string data_type = arg_parser.get_str("prec");
-    int do_validation     = arg_parser.get_int("v");
-
-    using XDataType     = ck_tile::half_t;
-    using YDataType     = ck_tile::half_t;
-    using GammaDataType = ck_tile::half_t;
-    using BetaDataType  = ck_tile::half_t;
-#ifdef SAVE_MEAN_INV_STD
-    using MeanDataType   = ck_tile::half_t;
-    using InvStdDataType = ck_tile::half_t;
-#else
-    using MeanDataType = ck_tile::null_type;
-    using InvStdDataType = ck_tile::null_type;
-#endif
-    using ComputeDataType = float;
+    using XDataType         = typename TypeConfig::XDataType;
+    using YDataType         = typename TypeConfig::YDataType;
+    using GammaDataType     = typename TypeConfig::GammaDataType;
+    using BetaDataType      = typename TypeConfig::BetaDataType;
+    using XResidualDataType = XDataType;
+    using YResidualDataType = XDataType;
+
+    using MeanDataType =
+        std::conditional_t<SaveMeanVar, typename TypeConfig::MeanDataType, ck_tile::null_type>;
+    using InvStdDataType =
+        std::conditional_t<SaveMeanVar, typename TypeConfig::InvStdDataType, ck_tile::null_type>;
+
+    using ComputeDataType = typename TypeConfig::ComputeDataType;

     // host verify
-    ck_tile::HostTensor<XDataType> x_host({M, N});
-    ck_tile::HostTensor<GammaDataType> gamma_host({N});
-    ck_tile::HostTensor<BetaDataType> beta_host({N});
+    ck_tile::HostTensor<XDataType> x_host({m, n}, {x_stride, 1});
+    ck_tile::HostTensor<GammaDataType> gamma_host({n});
+    ck_tile::HostTensor<BetaDataType> beta_host({n});
+
+    ck_tile::HostTensor<XResidualDataType> x_residual_host({m, n}, {xr_stride, 1});
+    ck_tile::HostTensor<YResidualDataType> y_residual_host({m, n}, {yr_stride, 1});

-    ck_tile::HostTensor<YDataType> y_host_ref({M, N});
-    ck_tile::HostTensor<YDataType> y_host_dev({M, N});
+    ck_tile::HostTensor<YDataType> y_host_ref({m, n}, {y_stride, 1});
+    ck_tile::HostTensor<YDataType> y_host_dev({m, n}, {y_stride, 1});

-    ck_tile::HostTensor<MeanDataType> mean_host_ref({M});
-    ck_tile::HostTensor<InvStdDataType> invStd_host_ref({M});
+    ck_tile::HostTensor<MeanDataType> mean_host_ref({m});
+    ck_tile::HostTensor<InvStdDataType> invStd_host_ref({m});
+    ck_tile::HostTensor<YScaleDataType> y_scale_host_ref({m});
+    ck_tile::HostTensor<YScaleDataType> y_scale_host_dev({m});

-#ifdef SAVE_MEAN_INV_STD
-    ck_tile::HostTensor<MeanDataType> mean_host_dev({M});
-    ck_tile::HostTensor<InvStdDataType> invStd_host_dev({M});
-#endif
+    ck_tile::HostTensor<XScaleDataType> x_scale_host({n});
+    ck_tile::HostTensor<XScaleDataType> x_scale_host_dev({n});

-    ck_tile::FillUniformDistribution<XDataType>{-5.f, 5.f}(x_host);
-    ck_tile::FillUniformDistribution<GammaDataType>{-5.f, 5.f}(gamma_host);
-    ck_tile::FillUniformDistribution<BetaDataType>{-5.f, 5.f}(beta_host);
+    ck_tile::FillUniformDistribution<XDataType>{-.5f, .5f}(x_host);
+    ck_tile::FillUniformDistribution<XResidualDataType>{-.5f, .5f}(x_residual_host);
+    ck_tile::FillUniformDistribution<XScaleDataType>{-1.f, 1.f}(x_scale_host);
+    ck_tile::FillUniformDistribution<GammaDataType>{-.5f, .5f}(gamma_host);
+    ck_tile::FillUniformDistribution<BetaDataType>{-.5f, .5f}(beta_host);

     ck_tile::DeviceMem x_buf(x_host.get_element_space_size_in_bytes());
     ck_tile::DeviceMem gamma_buf(gamma_host.get_element_space_size_in_bytes());
     ck_tile::DeviceMem beta_buf(beta_host.get_element_space_size_in_bytes());
     ck_tile::DeviceMem y_buf(y_host_dev.get_element_space_size_in_bytes());
+    ck_tile::DeviceMem y_scale_buf(y_scale_host_dev.get_element_space_size_in_bytes());
+    ck_tile::DeviceMem x_scale_buf(x_scale_host_dev.get_element_space_size_in_bytes());

-#ifdef SAVE_MEAN_INV_STD
-    ck_tile::DeviceMem mean_buf(mean_host_dev.get_element_space_size_in_bytes());
-    ck_tile::DeviceMem invStd_buf(invStd_host_dev.get_element_space_size_in_bytes());
-#endif
+    ck_tile::DeviceMem x_residual_buf(x_residual_host.get_element_space_size_in_bytes());
+    ck_tile::DeviceMem y_residual_buf(y_residual_host.get_element_space_size_in_bytes());

     x_buf.ToDevice(x_host.data());
     gamma_buf.ToDevice(gamma_host.data());
     beta_buf.ToDevice(beta_host.data());
-
-    layernorm2d_fwd_traits traits{data_type};
+    x_residual_buf.ToDevice(x_residual_host.data());
+    x_scale_buf.ToDevice(x_scale_host.data());
+
+    auto prec_str = [&]() {
+        auto base_str = prec_i;
+        if(prec_i != prec_o)
+        {
+            base_str += "|" + prec_o;
+        }
+        if(fused_quant == 1)
+        {
+            base_str += std::string("(") + prec_sy + ")";
+        }
+        return base_str;
+    }();
+
+    std::cout << "[" << prec_str << "]"
+              << " m:" << m << ", n:" << n << ", x_stride:" << x_stride
+              << ", xr_stride:" << xr_stride << ", y_stride:" << y_stride
+              << ", yr_stride:" << yr_stride << std::flush;
+
+    layernorm2d_fwd_traits traits{
+        prec_i, prec_o, prec_sx, prec_sy, SaveMeanVar, fused_add, fused_quant};

     layernorm2d_fwd_args args{x_buf.GetDeviceBuffer(),
+                              fused_add != 0 ? x_residual_buf.GetDeviceBuffer() : nullptr,
+                              fused_quant == 1 ? x_scale_buf.GetDeviceBuffer() : nullptr,
                               gamma_buf.GetDeviceBuffer(),
                               beta_buf.GetDeviceBuffer(),
+
                               y_buf.GetDeviceBuffer(),
-#ifdef SAVE_MEAN_INV_STD
-                              mean_buf.GetDeviceBuffer(),
-                              invStd_buf.GetDeviceBuffer(),
-#else
-                              nullptr,
-                              nullptr,
-#endif
+                              fused_add == 1 ? y_residual_buf.GetDeviceBuffer() : nullptr,
+                              fused_quant != 0 ? y_scale_buf.GetDeviceBuffer() : nullptr,
+                              nullptr, // p_mean, unsupported yet
+                              nullptr, // p_invStd, unsupported yet
+
                               epsilon,
-                              M,
-                              N};
+                              m,
+                              n,
+                              x_stride,   // x row_stride
+                              xr_stride,  // x residule row stride
+                              y_stride,   // y row stride
+                              yr_stride}; // y residule row stride

-    float ave_time = layernorm2d_fwd(traits, args, ck_tile::stream_config{nullptr, true});
+    float ave_time = layernorm2d_fwd(
+        traits, args, ck_tile::stream_config{nullptr, true, kname ? 1 : 0, warmup, repeat});
+
+    if(ave_time < 0)
+    {
+        std::cout << " not supported!" << std::endl << std::flush;
+        return false;
+    }

-    std::size_t num_byte = sizeof(XDataType) * M * N + sizeof(GammaDataType) * N +
-                           sizeof(BetaDataType) * N + sizeof(YDataType) * M * N;
+    std::size_t num_byte = sizeof(XDataType) * m * n + sizeof(GammaDataType) * n +
+                           sizeof(BetaDataType) * n + sizeof(YDataType) * m * n;

     float gb_per_sec = num_byte / 1.E6 / ave_time;
-    std::cout << "[" << data_type << "]"
-              << " m:" << M << ", n:" << N << ", " << ave_time << " ms, " << gb_per_sec << " GB/s"
-              << std::flush;
+    std::cout << ", " << ave_time * 1.E3 << " us, " << gb_per_sec << " GB/s" << std::flush;

     bool pass = true;

     if(do_validation)
     {
         // reference
+        if(fused_add != 0)
+        {
+            // fused pre_add/pre_add_store
+            // TODO we accumulate directly to x_host for simplcity here...
+
+            std::transform(x_host.mData.cbegin(),
+                           x_host.mData.cend(),
+                           x_residual_host.mData.cbegin(),
+                           x_host.mData.begin(),
+                           [](auto x_, auto r_) {
+                               auto o_ = ck_tile::type_convert<ComputeDataType>(x_) +
+                                         ck_tile::type_convert<ComputeDataType>(r_);
+                               return ck_tile::type_convert<XDataType>(o_);
+                           });
+        }
         ck_tile::reference_layernorm2d_fwd<XDataType,
                                            GammaDataType,
                                            BetaDataType,
@@ -172,22 +245,187 @@ int main(int argc, char* argv[])
                                            InvStdDataType>(
             x_host, gamma_host, beta_host, y_host_ref, mean_host_ref, invStd_host_ref, epsilon);

+        if(fused_quant != 0)
+        {
+            auto dquant_functor = [&](int m_, auto& o_, auto& acc_) {
+                int N_ = acc_.mDesc.get_lengths()[1];
+                if(fused_quant == 1)
+                {
+                    for(int n_ = 0; n_ < N_; n_++)
+                    {
+                        // input smooth outlier
+                        acc_(m_, n_) =
+                            acc_(m_, n_) * ck_tile::type_convert<ComputeDataType>(x_scale_host(n_));
+                    }
+                }
+                ComputeDataType absmax = static_cast<ComputeDataType>(0);
+                for(int n_ = 0; n_ < N_; n_++)
+                {
+                    const auto a = ck_tile::abs(acc_(m_, n_));
+                    absmax       = a > absmax ? a : absmax;
+                }
+                // printf("cpu:absmax:%f\n", absmax);
+                ComputeDataType y_scale = absmax / static_cast<ComputeDataType>(127.0);
+                y_scale_host_ref(m_)    = ck_tile::type_convert<YScaleDataType>(y_scale);
+                for(int n_ = 0; n_ < N_; n_++)
+                {
+                    o_(m_, n_) = ck_tile::type_convert<YDataType>(acc_(m_, n_) / y_scale);
+                }
+            };
+
+            ck_tile::reference_layernorm2d_fwd<XDataType,
+                                               GammaDataType,
+                                               BetaDataType,
+                                               ComputeDataType,
+                                               YDataType,
+                                               MeanDataType,
+                                               InvStdDataType>(x_host,
+                                                               gamma_host,
+                                                               beta_host,
+                                                               y_host_ref,
+                                                               mean_host_ref,
+                                                               invStd_host_ref,
+                                                               epsilon,
+                                                               dquant_functor);
+        }
+        else
+        {
+            ck_tile::reference_layernorm2d_fwd<XDataType,
+                                               GammaDataType,
+                                               BetaDataType,
+                                               ComputeDataType,
+                                               YDataType,
+                                               MeanDataType,
+                                               InvStdDataType>(
+                x_host, gamma_host, beta_host, y_host_ref, mean_host_ref, invStd_host_ref, epsilon);
+        }
+
         y_buf.FromDevice(y_host_dev.data());

-        pass = ck_tile::check_err(y_host_dev, y_host_ref);
+        ck_tile::HostTensor<YResidualDataType> y_residual_host_dev({m, n}, {yr_stride, 1});
+        if(fused_add == 1)
+        {
+            y_residual_buf.FromDevice(y_residual_host_dev.data());
+        }
+
+        auto [rtol, atol] = get_elimit<InDataType>();
+
+        if(x_stride == n)
+        {
+            pass = ck_tile::check_err(
+                y_host_dev, y_host_ref, std::string("OUT Error: Incorrect results!"), rtol, atol);
+            if(fused_add == 1)
+            {
+                pass &= ck_tile::check_err(y_residual_host_dev,
+                                           x_host,
+                                           std::string("ADD Error: Incorrect results!"),
+                                           rtol,
+                                           atol);
+            }
+        }
+        else
+        {
+            for(int i_r = 0; i_r < m; i_r++)
+            {
+                std::vector<YDataType> y_host_dev_row(y_host_dev.begin() + i_r * y_stride,
+                                                      y_host_dev.begin() + i_r * y_stride + n);
+                std::vector<YDataType> y_host_ref_row(y_host_ref.begin() + i_r * y_stride,
+                                                      y_host_ref.begin() + i_r * y_stride + n);
+                pass &= ck_tile::check_err(y_host_dev_row,
+                                           y_host_ref_row,
+                                           std::string("OUT[") + std::to_string(i_r) +
+                                               std::string("] Error: Incorrect results!"),
+                                           rtol,
+                                           atol);
+                if(fused_add == 1)
+                {
+                    std::vector<YResidualDataType> y_residual_host_dev_row(
+                        y_residual_host_dev.begin() + i_r * yr_stride,
+                        y_residual_host_dev.begin() + i_r * yr_stride + n);
+                    std::vector<YResidualDataType> y_residual_host_ref_row(
+                        x_host.begin() + i_r * yr_stride, x_host.begin() + i_r * yr_stride + n);
+                    pass &= ck_tile::check_err(y_residual_host_dev_row,
+                                               y_residual_host_ref_row,
+                                               std::string("ADD[") + std::to_string(i_r) +
+                                                   std::string("] Error: Incorrect results!"),
+                                               rtol,
+                                               atol);
+                }
+            }
+        }
+        if(fused_quant == 1)
+        {
+            y_scale_buf.FromDevice(y_scale_host_dev.data());
+            pass &= ck_tile::check_err(y_scale_host_dev,
+                                       y_scale_host_ref,
+                                       std::string("SCALE Error: Incorrect results!"),
+                                       rtol,
+                                       atol);
+        }
+
+        std::cout << ", valid:" << (pass ? "y" : "n") << std::flush << std::endl;
+    }
+
+    return pass;
+}

-#ifdef SAVE_MEAN_INV_STD
-        mean_buf.FromDevice(mean_host_dev.data());
-        pass &= ck_tile::check_err(mean_host_dev, mean_host_ref);
+int main(int argc, char* argv[])
+{
+    auto [result, arg_parser] = create_args(argc, argv);
+    if(!result)
+        return -1;

-        invStd_buf.FromDevice(invStd_host_dev.data());
-        pass &= ck_tile::check_err(invStd_host_dev, invStd_host_ref);
-#endif
+    std::string prec_i  = arg_parser.get_str("prec_i");
+    std::string prec_o  = arg_parser.get_str("prec_o");
+    std::string prec_sx = arg_parser.get_str("prec_sx");
+    std::string prec_sy = arg_parser.get_str("prec_sy");

-        std::cout << ", valid:" << (pass ? "y" : "n") << std::flush;
+    if(prec_o == "auto")
+    {
+        prec_o = prec_i;
+    }
+    if(prec_sx == "auto")
+    {
+        prec_sx = "fp32";
+    }
+    if(prec_sy == "auto")
+    {
+        prec_sy = "fp32";
     }
+    int save_mv = arg_parser.get_int("save_mv");

-    std::cout << std::endl << std::flush;
+    // no dynamic quant case
+    if(prec_i == "fp16" && prec_o == "fp16" && prec_sx == "fp32" && prec_sy == "fp32" && save_mv)
+    {
+        return run<ck_tile::half_t, ck_tile::half_t, float, float, true>(arg_parser) ? 0 : -2;
+    }
+    else if(prec_i == "fp16" && prec_o == "fp16" && prec_sx == "fp32" && prec_sy == "fp32" &&
+            !save_mv)
+    {
+        return run<ck_tile::half_t, ck_tile::half_t, float, float, false>(arg_parser) ? 0 : -2;
+    }
+    else if(prec_i == "bf16" && prec_o == "bf16" && prec_sx == "fp32" && prec_sy == "fp32" &&
+            save_mv)
+    {
+        return run<ck_tile::bf16_t, ck_tile::bf16_t, float, float, true>(arg_parser) ? 0 : -2;
+    }
+    else if(prec_i == "bf16" && prec_o == "bf16" && prec_sx == "fp32" && prec_sy == "fp32" &&
+            !save_mv)
+    {
+        return run<ck_tile::bf16_t, ck_tile::bf16_t, float, float, true>(arg_parser) ? 0 : -2;
+    }
+
+    // dynamic quant case, only in inference
+    else if(prec_i == "fp16" && prec_o == "int8" && prec_sx == "fp32" && prec_sy == "fp32" &&
+            !save_mv)
+    {
+        return run<ck_tile::half_t, ck_tile::int8_t, float, float, false>(arg_parser) ? 0 : -2;
+    }
+    else if(prec_i == "bf16" && prec_o == "int8" && prec_sx == "fp32" && prec_sy == "fp32" &&
+            !save_mv)
+    {
+        return run<ck_tile::bf16_t, ck_tile::int8_t, float, float, false>(arg_parser) ? 0 : -2;
+    }

-    return !pass;
+    return -3;
 }

example/ck_tile/02_layernorm2d/layernorm2d_fwd.hpp

@@ -8,23 +8,57 @@
 #include "ck_tile/ops/layernorm2d.hpp"
 #include <string>

-struct layernorm2d_fwd_traits
+template <typename InType, typename OutType, typename XScaleDataType_, typename YScaleDataType_>
+struct LayerNormTypeConfig;
+
+template <typename OutType, typename XScaleDataType_, typename YScaleDataType_>
+struct LayerNormTypeConfig<ck_tile::half_t, OutType, XScaleDataType_, YScaleDataType_>
+{
+    using XDataType       = ck_tile::half_t;
+    using YDataType       = OutType;
+    using GammaDataType   = ck_tile::half_t;
+    using BetaDataType    = ck_tile::half_t;
+    using MeanDataType    = ck_tile::half_t;
+    using InvStdDataType  = ck_tile::half_t;
+    using ComputeDataType = float;
+    using XScaleDataType  = XScaleDataType_;
+    using YScaleDataType  = YScaleDataType_;
+};
+
+template <typename OutType, typename XScaleDataType_, typename YScaleDataType_>
+struct LayerNormTypeConfig<ck_tile::bf16_t, OutType, XScaleDataType_, YScaleDataType_>
 {
-    std::string data_type;
+    using XDataType       = ck_tile::bf16_t;
+    using YDataType       = OutType;
+    using GammaDataType   = ck_tile::bf16_t;
+    using BetaDataType    = ck_tile::bf16_t;
+    using MeanDataType    = ck_tile::bf16_t;
+    using InvStdDataType  = ck_tile::bf16_t;
+    using ComputeDataType = float;
+    using XScaleDataType  = XScaleDataType_;
+    using YScaleDataType  = YScaleDataType_;
 };

-struct layernorm2d_fwd_args
+// runtime args
+struct layernorm2d_fwd_args : public ck_tile::Layernorm2dFwdHostArgs
 {
-    const void* p_x;
-    const void* p_gamma;
-    const void* p_beta;
-    void* p_y;
-    void* p_mean;
-    void* p_invStd;
-    float epsilon;
-    ck_tile::index_t M;
-    ck_tile::index_t N;
 };

-// host API
+// This is the public API, will be generated by script
+struct layernorm2d_fwd_traits
+{
+    std::string prec_i; // input precision
+    std::string prec_o; // output precision
+
+    // if fused_quant == 1, need set prec_sx/prec_sy to proper string, otherwise can set
+    // arbitrary(will skip check) if fused_quant == 2, need set prec_sy to proper string, otherwise
+    // can set arbitrary(will skip check)
+    std::string prec_sx; // x-scale, used for [1*N] input smooth quant
+    std::string prec_sy; // y-scale, used for [M*1] output for next layer
+
+    bool save_mean_var; //
+    int fused_add;      // 0:no-add, 1:pre-add-store, 2:pre-add
+    int fused_quant;    // 0:no-sweep, 1:smooth-dynamic-quant, 2:dynamic-quant
+};
+
 float layernorm2d_fwd(layernorm2d_fwd_traits, layernorm2d_fwd_args, const ck_tile::stream_config&);

example/ck_tile/02_layernorm2d/script/perf_test.sh

+#!/bin/sh
+EXE="$(find . -name tile_example_layernorm2d_fwd -type f | head -n 1)"
+
+$EXE -m=1 -n=1 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=80 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=128 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=144 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=168 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=184 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=256 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=288 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=344 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=376 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=448 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=512 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=924 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=1024 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=1078 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=1996 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+$EXE -m=700 -n=4080 -e=1e-12 -v=1 -prec_i=bf16 -repeat=1000
+
+$EXE -m=700 -n=80 -e=1e-12 -v=1  -prec_i=fp16 -repeat=1000
+$EXE -m=700 -n=128 -e=1e-12 -v=1 -prec_i=fp16 -repeat=1000
+$EXE -m=700 -n=144 -e=1e-12 -v=1 -prec_i=fp16 -repeat=1000
+$EXE -m=700 -n=168 -e=1e-12 -v=1 -prec_i=fp16 -repeat=1000
+$EXE -m=700 -n=184 -e=1e-12 -v=1 -prec_i=fp16 -repeat=1000
+$EXE -m=700 -n=256 -e=1e-12 -v=1 -prec_i=fp16 -repeat=1000
+$EXE -m=700 -n=288 -e=1e-12 -v=1 -prec_i=fp16 -repeat=1000
+$EXE -m=700 -n=344 -e=1e-12 -v=1 -prec_i=fp16 -repeat=1000
+$EXE -m=700 -n=376 -e=1e-12 -v=1 -prec_i=fp16 -repeat=1000
+$EXE -m=700 -n=448 -e=1e-12 -v=1 -prec_i=fp16 -repeat=1000
+$EXE -m=700 -n=512 -e=1e-12 -v=1 -prec_i=fp16 -repeat=1000
+$EXE -m=700 -n=924 -e=1e-12 -v=1 -prec_i=fp16 -repeat=1000
+$EXE -m=700 -n=1024 -e=1e-12 -v=1 -prec_i=fp16 -repeat=1000
+$EXE -m=700 -n=1078 -e=1e-12 -v=1 -prec_i=fp16 -repeat=1000
+$EXE -m=700 -n=1996 -e=1e-12 -v=1 -prec_i=fp16 -repeat=1000
+$EXE -m=700 -n=4080 -e=1e-12 -v=1 -prec_i=fp16 -repeat=1000
\ No newline at end of file

example/ck_tile/02_layernorm2d/script/smoke_test.sh

+#!/bin/sh
+EXE="$(find . -name tile_example_layernorm2d_fwd -type f | head -n 1)"
+
+for fquant in "" "-fquant=1 -prec_o=int8"; do
+for pr_i in "fp16" "bf16" ; do
+for fadd in "0" "1"; do
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=99  -n=13
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=17  -n=16
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=1   -n=100
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=4   -n=128
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=80  -n=127
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=22  -n=255 -stride=256
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=7   -n=599
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=19  -n=512
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=33  -n=313 -stride=1000
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=11  -n=510
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=171 -n=676 -stride=818
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=91  -n=636
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=12  -n=768 -stride=800
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=100 -n=766 -stride=812
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=31  -n=1024
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=64  -n=1000 -stride=1004
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=8   -n=1501
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=3   -n=1826
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=5   -n=2040
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=7   -n=2734
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=1   -n=3182
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=9   -n=4096
+$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=3   -n=8192
+#$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=1   -n=10547
+#$EXE -prec_i=$pr_i -fadd=$fadd $fquant -m=3   -n=17134
+done
+done
+done

example/ck_tile/03_gemm/CMakeLists.txt

-set(CMAKE_BUILD_TYPE Debug)
-add_executable(tile_example_gemm_basic EXCLUDE_FROM_ALL gemm_basic.cpp)
\ No newline at end of file
+add_executable(tile_example_gemm_basic EXCLUDE_FROM_ALL gemm_basic.cpp)
+add_executable(tile_example_universal_gemm EXCLUDE_FROM_ALL universal_gemm.cpp)

example/ck_tile/03_gemm/README.md

@@ -8,7 +8,10 @@ This folder contains example for GEMM using ck_tile tile-programming implementat
 mkdir build && cd build
 # you can replace <arch> with the appropriate architecture (for example gfx90a or gfx942) or leave it blank
 sh ../script/cmake-ck-dev.sh  ../ <arch>
+# The basic pipeline method on the gemm calculation
 make tile_example_gemm_basic -j
+# The memory bound pipeline on the gemm calculation
+make tile_example_gemm_mem_pipeline -j
 ```
 This will result in an executable `build/bin/tile_example_gemm_basic`


example/ck_tile/03_gemm/gemm_basic.cpp

-
 // SPDX-License-Identifier: MIT
 // Copyright (c) 2024, Advanced Micro Devices, Inc. All rights reserved.

-#include "gemm_basic.hpp"
 #include <hip/hip_runtime.h>

 #include <cstring>
@@ -11,231 +9,24 @@
 #include <string>
 #include <tuple>

-auto create_args(int argc, char* argv[])
-{
-    ck_tile::ArgParser arg_parser;
-    arg_parser.insert("b", "1", "batch size")
-        .insert("m", "1024", "m dimension")
-        .insert("n", "2048", "n dimension")
-        .insert("k", "64", "k dimension")
-        .insert("stride_a", "0", "Tensor A stride")
-        .insert("stride_b", "0", "Tensor B stride")
-        .insert("stride_c", "0", "Tensor C stride")
-        .insert("v", "2", "0. No validation, 1. Validation on CPU, 2. Validation on GPU")
-        .insert("e", "1e-5", "Absolute error tolerance")
-        .insert("prec", "fp16", "data type. fp16/bf16/fp8/bf8")
-        .insert("warmup", "10", "number of iterations before benchmark the kernel")
-        .insert("repeat", "100", "number of iterations to benchmark the kernel")
-        .insert("timer", "gpu", "gpu:gpu timer, cpu:cpu timer");
-
-    bool result = arg_parser.parse(argc, argv);
-    return std::make_tuple(result, arg_parser);
-}
+#include "ck_tile/ops/epilogue.hpp"
+#include "ck_tile/ops/gemm.hpp"
+#include "ck_tile/host.hpp"
+#include "gemm_basic.hpp"

-template <typename LayoutA,
-          typename LayoutB,
-          typename LayoutC,
-          typename PipelineProblem,
-          typename GemmPipeline,
-          typename GemmShape>
+template <typename ALayout, typename BLayout, typename CLayout>
 float gemm_calc(const gemm_basic_args& args, const ck_tile::stream_config& s)
 {
-    // The kPadA, kPadB, kPadC & kBlockPerCu should also come from the Codegen part.
-    constexpr bool kPadA = true;
-    constexpr bool kPadB = true;
-
-    constexpr int kBlockPerCu = 1;
-
-    using TilePartitioner = ck_tile::GemmTilePartitioner<GemmShape>;
-    using GemmEpilogue    = ck_tile::Default2DEpilogue<
-        ck_tile::Default2DEpilogueProblem<AccDataType, CDataType, kPadA, kPadB>>;
-    // ToDo: Will add the codegen part to test different pipeline policies in GEMM.
-    // Now we only use the BlockGemmASmemBSmemCRegV1DefaultPolicy.
-    using Kernel =
-        ck_tile::GemmKernel<TilePartitioner, GemmPipeline, GemmEpilogue, LayoutA, LayoutB, LayoutC>;
-
-    auto kargs = Kernel::MakeKargs(args.p_a,
-                                   args.p_b,
-                                   args.p_c,
-                                   args.epsilon,
-                                   args.M,
-                                   args.N,
-                                   args.K,
-                                   args.stride_A,
-                                   args.stride_B,
-                                   args.stride_C);
-
-    const dim3 grids      = Kernel::GridSize(args.M, args.N, args.kbatch);
-    constexpr dim3 blocks = Kernel::BlockSize();
+    // The kPadM, kPadN, kPadK & kBlockPerCu should also come from the Codegen part.
+    constexpr bool kPadM = false;
+    constexpr bool kPadN = false;
+    constexpr bool kPadK = false;

-    float ave_time = ck_tile::launch_kernel(
-        s, ck_tile::make_kernel<blocks.x, kBlockPerCu>(Kernel{}, grids, blocks, 0, kargs));
+    constexpr bool kTilePermute = false;
+    // The rank and permutation will also be generate out by the CodeGen part.
+    constexpr ck_tile::index_t kOutputRank = 2;

-    return ave_time;
-}
-
-template <typename DataType,
-          typename LayoutA,
-          typename LayoutB,
-          typename LayoutC,
-          typename PipelineProblem,
-          typename GemmPipeline,
-          typename GemmShape>
-float invoke_gemm(ck_tile::DeviceMem& a_buf,
-                  ck_tile::DeviceMem& b_buf,
-                  ck_tile::DeviceMem& c_buf,
-                  const ck_tile::ArgParser& arg_parser)
-{
-
-    std::string data_type = arg_parser.get_str("prec");
-
-    if(data_type != DataTypeTraits<DataType>::name)
-    {
-        std::cerr << "Data type mismatch: expected " << DataTypeTraits<DataType>::name << ", got "
-                  << data_type << std::endl;
-        return -1; // Or handle the error appropriately
-    }
-
-    float epsilon               = arg_parser.get_float("e");
-    ck_tile::index_t batch_size = arg_parser.get_int("b");
-    ck_tile::index_t M          = arg_parser.get_int("m");
-    ck_tile::index_t N          = arg_parser.get_int("n");
-    ck_tile::index_t K          = arg_parser.get_int("k");
-
-    ck_tile::index_t stride_a = arg_parser.get_int("stride_a");
-    ck_tile::index_t stride_b = arg_parser.get_int("stride_b");
-    ck_tile::index_t stride_c = arg_parser.get_int("stride_c");
-
-    gemm_basic_args args;
-    args.p_a     = a_buf.GetDeviceBuffer();
-    args.p_b     = b_buf.GetDeviceBuffer();
-    args.p_c     = c_buf.GetDeviceBuffer();
-    args.epsilon = epsilon;
-    args.kbatch  = batch_size;
-    args.M       = M;
-    args.N       = N;
-    args.K       = K;
-
-    // Only set stride_M and stride_N if they are non-zero and not equal to K.
-    if(stride_a != 0)
-    {
-        args.stride_A = stride_a;
-    }
-    else
-    {
-        args.stride_A = [&]() {
-            if constexpr(std::is_same_v<LayoutA, ck_tile::tensor_layout::gemm::ColumnMajor>)
-            {
-                return M;
-            }
-            else
-            {
-                return K;
-            }
-        }();
-    }
-
-    if(stride_b != 0)
-    {
-        args.stride_B = stride_b;
-    }
-    else
-    {
-        args.stride_B = [&]() {
-            if constexpr(std::is_same_v<LayoutB, ck_tile::tensor_layout::gemm::RowMajor>)
-            {
-                return N;
-            }
-            else
-            {
-                return K;
-            }
-        }();
-    }
-
-    if(stride_c != 0)
-    {
-        args.stride_C = stride_c;
-    }
-    else
-    {
-        args.stride_C = [&]() {
-            if constexpr(std::is_same_v<LayoutC, ck_tile::tensor_layout::gemm::ColumnMajor>)
-            {
-                return M;
-            }
-            else
-            {
-                return N;
-            }
-        }();
-    }
-
-    float ave_time = gemm_calc<LayoutA, LayoutB, LayoutC, PipelineProblem, GemmPipeline, GemmShape>(
-        args, ck_tile::stream_config{nullptr, true});
-    std::size_t num_byte =
-        sizeof(ADataType) * M * K + sizeof(BDataType) * N * K + sizeof(CDataType) * M * N;
-    float gb_per_sec = num_byte / 1.E6 / ave_time;
-
-    std::cout << "The overall perfomance of the GEMM with "
-              << "[" << data_type << "]"
-              << "batch size: " << batch_size << ". m:" << M << ", n:" << N << ", k:" << K
-              << " is: \n";
-    std::cout << "Running time: " << ave_time << "ms, Throughput " << gb_per_sec << "GB/s \n"
-              << std::flush;
-
-    return ave_time;
-}
-
-int main(int argc, char* argv[])
-{
-    auto [result, arg_parser] = create_args(argc, argv);
-    if(!result)
-        return -1;
-
-    ck_tile::index_t M = arg_parser.get_int("m");
-    ck_tile::index_t N = arg_parser.get_int("n");
-    ck_tile::index_t K = arg_parser.get_int("k");
-
-    // The Matrix Multiplication goes with Matrix A (M, K), Matrix B (N, K) = Matrix C (M, N).
-    using matrix_a_layout = ck_tile::tensor_layout::gemm::RowMajor;
-    using matrix_b_layout = ck_tile::tensor_layout::gemm::ColumnMajor;
-    using matrix_c_layout = ck_tile::tensor_layout::gemm::RowMajor;
-
-    // host verify
-    std::vector<int> a_dimensions =
-        (std::is_same_v<matrix_a_layout, ck_tile::tensor_layout::gemm::RowMajor>)
-            ? std::vector<int>{M, K}
-            : std::vector<int>{K, M};
-    std::vector<int> b_dimensions =
-        (std::is_same_v<matrix_b_layout, ck_tile::tensor_layout::gemm::ColumnMajor>)
-            ? std::vector<int>{N, K}
-            : std::vector<int>{K, N};
-    std::vector<int> c_dimensions =
-        (std::is_same_v<matrix_c_layout, ck_tile::tensor_layout::gemm::RowMajor>)
-            ? std::vector<int>{M, N}
-            : std::vector<int>{N, M};
-
-    ck_tile::HostTensor<ADataType> a_host(a_dimensions);
-    ck_tile::HostTensor<BDataType> b_host(b_dimensions);
-
-    ck_tile::HostTensor<CDataType> c_host_ref(c_dimensions);
-    ck_tile::HostTensor<CDataType> c_host_dev(c_dimensions);
-
-    ck_tile::FillUniformDistribution<ADataType>{-5.f, 5.f}(a_host);
-    ck_tile::FillUniformDistribution<BDataType>{-5.f, 5.f}(b_host);
-
-    ck_tile::DeviceMem a_buf(a_host.get_element_space_size_in_bytes());
-    ck_tile::DeviceMem b_buf(b_host.get_element_space_size_in_bytes());
-    ck_tile::DeviceMem c_buf(c_host_dev.get_element_space_size_in_bytes());
-
-    a_buf.ToDevice(a_host.data());
-    b_buf.ToDevice(b_host.data());
-
-    // The kPadA, kPadB, kPadC & kBlockPerCu should also come from the Codegen part.
-    constexpr bool kPadA = true;
-    constexpr bool kPadB = true;
-    constexpr bool kPadC = true;
+    constexpr int kBlockPerCu = 1;

     // This part comes from the Codegen
     constexpr ck_tile::index_t M_Tile = 128;
@@ -250,109 +41,76 @@ int main(int argc, char* argv[])
     constexpr ck_tile::index_t N_Warp_Tile = 32;
     constexpr ck_tile::index_t K_Warp_Tile = 8;

+    // Whether doing the CShuffle (transpose before the global memory), depending on the output
+    // layout.
+    constexpr bool CShuffleEpilogue =
+        std::is_same_v<CLayout, ck_tile::tensor_layout::gemm::ColumnMajor>;
+
     using CodegenGemmShape =
         ck_tile::TileGemmShape<ck_tile::sequence<M_Tile, N_Tile, K_Tile>,
                                ck_tile::sequence<M_Warp, N_Warp, K_Warp>,
                                ck_tile::sequence<M_Warp_Tile, N_Warp_Tile, K_Warp_Tile>>;

-    using CodegenPipelineProblem = ck_tile::BlockGemmPipelineProblem<ADataType,
-                                                                     BDataType,
-                                                                     AccDataType,
-                                                                     CodegenGemmShape,
-                                                                     kPadA,
-                                                                     kPadB,
-                                                                     kPadC>;
-
-    using CodegenGemmPipeline = ck_tile::BlockGemmPipelineAGmemBGmemCRegV1<CodegenPipelineProblem>;
-
-    invoke_gemm<ck_tile::half_t,
-                matrix_a_layout,
-                matrix_b_layout,
-                matrix_c_layout,
-                CodegenPipelineProblem,
-                CodegenGemmPipeline,
-                CodegenGemmShape>(a_buf, b_buf, c_buf, arg_parser);
+    using TilePartitioner = ck_tile::GemmTilePartitioner<CodegenGemmShape>;
+
+    using GemmEpilogue = std::conditional_t<
+        CShuffleEpilogue,
+        ck_tile::CShuffleEpilogue<ck_tile::CShuffleEpilogueProblem<AccDataType,
+                                                                   CDataType,
+                                                                   kPadM,
+                                                                   kPadN,
+                                                                   kTilePermute,
+                                                                   kOutputRank,
+                                                                   1,
+                                                                   0,
+                                                                   TilePartitioner::kM,
+                                                                   TilePartitioner::kN>>,
+        ck_tile::Default2DEpilogue<
+            ck_tile::Default2DEpilogueProblem<AccDataType, CDataType, kPadM, kPadN>>>;
+
+    using CodegenGemmTraits =
+        ck_tile::TileGemmTraits<kPadM, kPadN, kPadK, ALayout, BLayout, CLayout>;
+    using CodegenPipelineProblem = ck_tile::
+        GemmPipelineProblem<ADataType, BDataType, AccDataType, CodegenGemmShape, CodegenGemmTraits>;
+    using CodegenGemmPolicy = ck_tile::UniversalGemmPipelineAgBgCrPolicy;
+    using CodegenGemmPipeline =
+        ck_tile::GemmPipelineAGmemBGmemCRegV1<CodegenPipelineProblem, CodegenGemmPolicy>;
+    // ToDo: Will add the codegen part to test different pipeline policies in GEMM.
+    // Now we only use the BlockGemmASmemBSmemCRegV1DefaultPolicy.
+    using Kernel = ck_tile::GemmKernel<TilePartitioner, CodegenGemmPipeline, GemmEpilogue>;

-    c_buf.FromDevice(c_host_dev.data());
+    auto kargs = Kernel::MakeKargs(args.p_a,
+                                   args.p_b,
+                                   args.p_c,
+                                   args.M,
+                                   args.N,
+                                   args.K,
+                                   args.stride_A,
+                                   args.stride_B,
+                                   args.stride_C);

-    bool pass_cpu = true;
+    const dim3 grids      = Kernel::GridSize(args.M, args.N, args.kbatch);
+    constexpr dim3 blocks = Kernel::BlockSize();

-    if(arg_parser.get_int("v") == 1)
+    if(!Kernel::IsSupportedArgument(kargs))
     {
-        // ToDo: Will Add the Element Op (bias) verification in the future.
-        ck_tile::reference_gemm<ADataType,
-                                BDataType,
-                                AccDataType,
-                                CDataType,
-                                matrix_a_layout,
-                                matrix_b_layout,
-                                matrix_c_layout>(a_host, b_host, c_host_ref);
-
-        pass_cpu = ck_tile::check_err(c_host_dev, c_host_ref);
-
-        std::cout << "The CPU veification result is:" << (pass_cpu ? "correct" : "fail")
-                  << std::flush;
+        throw std::runtime_error("Wrong! Arguments not supported! Skipping gemm!\n");
     }

-    bool pass_gpu = true;
-
-    if(arg_parser.get_int("v") == 2)
+    if(s.log_level_ > 0)
     {
-        ck_tile::index_t stride_a = arg_parser.get_int("stride_a");
-        ck_tile::index_t stride_b = arg_parser.get_int("stride_b");
-        ck_tile::index_t stride_c = arg_parser.get_int("stride_c");
-
-        if(stride_a == 0)
-        {
-            if constexpr(std::is_same_v<matrix_a_layout, ck_tile::tensor_layout::gemm::ColumnMajor>)
-            {
-                stride_a = M;
-            }
-            else
-            {
-                stride_a = K;
-            }
-        }
-
-        if(stride_b == 0)
-        {
-            if constexpr(std::is_same_v<matrix_b_layout, ck_tile::tensor_layout::gemm::RowMajor>)
-            {
-                stride_b = N;
-            }
-            else
-            {
-                stride_b = K;
-            }
-        }
-
-        if(stride_c == 0)
-        {
-            if constexpr(std::is_same_v<matrix_c_layout, ck_tile::tensor_layout::gemm::ColumnMajor>)
-            {
-                stride_c = M;
-            }
-            else
-            {
-                stride_c = N;
-            }
-        }
-
-        ck_tile::HostTensor<CDataType> c_host_gpu_ref(c_dimensions);
-        ck_tile::DeviceMem c_gpu_buf(c_host_gpu_ref.get_element_space_size_in_bytes());
-
-        ck_tile::reference_gemm_gpu<ADataType, BDataType, AccDataType, CDataType>(
-            a_buf, b_buf, c_gpu_buf, M, N, K, stride_a, stride_b, stride_c);
-
-        c_buf.FromDevice(c_host_gpu_ref.data());
-
-        pass_gpu = ck_tile::check_err(c_host_dev, c_host_gpu_ref);
-
-        std::cout << "The GPU veification result is: " << (pass_gpu ? "correct" : "fail")
-                  << std::flush;
+        std::cout << "Launching kernel with args:"
+                  << " grid: {" << grids.x << ", " << grids.y << ", " << grids.z << "}"
+                  << ", blocks: {" << blocks.x << ", " << blocks.y << ", " << blocks.z << "}"
+                  << std::endl;
     }

-    std::cout << std::endl << std::flush;
+    float ave_time = ck_tile::launch_kernel(
+        s, ck_tile::make_kernel<blocks.x, kBlockPerCu>(Kernel{}, grids, blocks, 0, kargs));

-    return !pass_gpu;
+    return ave_time;
 }
+
+#include "run_gemm_example.inc"
+
+int main(int argc, char* argv[]) { return !run_gemm_example(argc, argv); }

example/ck_tile/03_gemm/gemm_basic.hpp

@@ -4,12 +4,10 @@

 #pragma once

+#include <string>
+
 #include "ck_tile/core.hpp"
 #include "ck_tile/host/kernel_launch.hpp"
-#include "ck_tile/ops/epilogue.hpp"
-#include "ck_tile/ops/gemm.hpp"
-#include "ck_tile/host.hpp"
-#include <string>

 template <typename DataType>
 struct GemmBasicTypeConfig;
@@ -20,7 +18,7 @@ struct GemmBasicTypeConfig<ck_tile::half_t>
     using ADataType   = ck_tile::half_t;
     using BDataType   = ck_tile::half_t;
     using AccDataType = float;
-    using CDataType   = ck_tile::half_t; // type convert
+    using CDataType   = ck_tile::half_t;
     // ToDo: Add more bias config to support different categories of GEMM.
 };

@@ -58,7 +56,6 @@ struct gemm_basic_args
     const void* p_a;
     const void* p_b;
     void* p_c;
-    float epsilon;
     ck_tile::index_t kbatch;
     ck_tile::index_t M;
     ck_tile::index_t N;
@@ -68,5 +65,28 @@ struct gemm_basic_args
     ck_tile::index_t stride_C;
 };

+auto create_args(int argc, char* argv[])
+{
+    ck_tile::ArgParser arg_parser;
+    arg_parser.insert("b", "1", "batch size")
+        .insert("m", "3840", "m dimension")
+        .insert("n", "4096", "n dimension")
+        .insert("k", "2048", "k dimension")
+        .insert("a_layout", "R", "A tensor data layout - Row by default")
+        .insert("b_layout", "R", "B tensor data layout - Row by default")
+        .insert("c_layout", "R", "C tensor data layout - Row by default")
+        .insert("stride_a", "0", "Tensor A stride")
+        .insert("stride_b", "0", "Tensor B stride")
+        .insert("stride_c", "0", "Tensor C stride")
+        .insert("v", "2", "0. No validation, 1. Validation on CPU, 2. Validation on GPU")
+        .insert("prec", "fp16", "data type. fp16/bf16/fp8/bf8")
+        .insert("warmup", "50", "number of iterations before benchmark the kernel")
+        .insert("repeat", "100", "number of iterations to benchmark the kernel")
+        .insert("timer", "gpu", "gpu:gpu timer, cpu:cpu timer");
+
+    bool result = arg_parser.parse(argc, argv);
+    return std::make_tuple(result, arg_parser);
+}
+
 // host API
 float gemm_calc(gemm_basic_args args, const ck_tile::stream_config& s);

example/ck_tile/03_gemm/run_gemm_example.inc

+// SPDX-License-Identifier: MIT
+// Copyright (c) 2024, Advanced Micro Devices, Inc. All rights reserved.
+#pragma once
+
+template <typename ALayout, typename BLayout, typename CLayout>
+float invoke_gemm(ck_tile::DeviceMem& a_m_k_dev_buf,
+                  ck_tile::DeviceMem& b_k_n_dev_buf,
+                  ck_tile::DeviceMem& c_m_n_dev_buf,
+                  ck_tile::index_t M,
+                  ck_tile::index_t N,
+                  ck_tile::index_t K,
+                  ck_tile::index_t stride_A,
+                  ck_tile::index_t stride_B,
+                  ck_tile::index_t stride_C,
+                  ck_tile::index_t kbatch,
+                  int n_warmup,
+                  int n_repeat)
+{
+    gemm_basic_args args;
+    args.p_a      = a_m_k_dev_buf.GetDeviceBuffer();
+    args.p_b      = b_k_n_dev_buf.GetDeviceBuffer();
+    args.p_c      = c_m_n_dev_buf.GetDeviceBuffer();
+    args.kbatch   = kbatch;
+    args.M        = M;
+    args.N        = N;
+    args.K        = K;
+    args.stride_A = stride_A;
+    args.stride_B = stride_B;
+    args.stride_C = stride_C;
+
+    float ave_time = gemm_calc<ALayout, BLayout, CLayout>(
+        args, ck_tile::stream_config{nullptr, true, 1, n_warmup, n_repeat});
+
+    std::size_t flop = std::size_t(2) * M * N * K;
+    std::size_t num_byte =
+        sizeof(ADataType) * M * K + sizeof(BDataType) * N * K + sizeof(CDataType) * M * N;
+    float tflops     = static_cast<float>(flop) / 1.E9 / ave_time;
+    float gb_per_sec = num_byte / 1.E6 / ave_time;
+
+    std::cout << "Run Gemm kernel with M =" << M << " N =" << N << " K =" << K
+              << " StrideA =" << stride_A << " StrideB =" << stride_B << " StrideC =" << stride_C
+              << " : " << ave_time << " ms, " << tflops << " TFlops, " << gb_per_sec << " GB/s, "
+              << std::endl;
+
+    return ave_time;
+}
+
+template <typename ALayout, typename BLayout, typename CLayout>
+int run_gemm_example_with_layouts(int argc,
+                                  char* argv[],
+                                  const ALayout a_layout                  = ALayout{},
+                                  const BLayout b_layout                  = BLayout{},
+                                  [[maybe_unused]] const CLayout c_layout = CLayout{})
+{
+    auto [result, arg_parser] = create_args(argc, argv);
+    if(!result)
+        return -1;
+
+    ck_tile::index_t M = arg_parser.get_int("m");
+    ck_tile::index_t N = arg_parser.get_int("n");
+    ck_tile::index_t K = arg_parser.get_int("k");
+
+    ck_tile::index_t stride_A = arg_parser.get_int("stride_a");
+    ck_tile::index_t stride_B = arg_parser.get_int("stride_b");
+    ck_tile::index_t stride_C = arg_parser.get_int("stride_c");
+
+    ck_tile::index_t batch_size = arg_parser.get_int("b");
+    int n_warmup                = arg_parser.get_int("warmup");
+    int n_repeat                = arg_parser.get_int("repeat");
+
+    using namespace ck_tile::literals;
+
+    auto f_host_tensor_descriptor =
+        [](std::size_t row, std::size_t col, std::size_t stride, auto layout) {
+            if constexpr(std::is_same_v<decltype(layout), ck_tile::tensor_layout::gemm::RowMajor>)
+            {
+                return ck_tile::HostTensorDescriptor({row, col}, {stride, 1_uz});
+            }
+            else
+            {
+                return ck_tile::HostTensorDescriptor({row, col}, {1_uz, stride});
+            }
+        };
+
+    auto f_get_default_stride = [](std::size_t row,
+                                   std::size_t col,
+                                   std::size_t stride,
+                                   auto layout) {
+        if(stride == 0)
+        {
+            // give a chance if stride is zero, return a default packed stride
+            if constexpr(std::is_same_v<decltype(layout), ck_tile::tensor_layout::gemm::RowMajor>)
+            {
+                return col;
+            }
+            else
+            {
+                return row;
+            }
+        }
+        else
+            return stride;
+    };
+
+    stride_A = f_get_default_stride(M, K, stride_A, a_layout);
+    stride_B = f_get_default_stride(K, N, stride_B, b_layout);
+    stride_C = f_get_default_stride(M, N, stride_C, CLayout{});
+
+    ck_tile::HostTensor<ADataType> a_m_k(f_host_tensor_descriptor(M, K, stride_A, a_layout));
+    ck_tile::HostTensor<BDataType> b_k_n(f_host_tensor_descriptor(K, N, stride_B, b_layout));
+    ck_tile::HostTensor<CDataType> c_m_n_dev_result(
+        f_host_tensor_descriptor(M, N, stride_C, CLayout{}));
+
+    // TODO: add different init types
+    ck_tile::FillUniformDistribution<ADataType>{-5.f, 5.f}(a_m_k);
+    ck_tile::FillUniformDistribution<BDataType>{-5.f, 5.f}(b_k_n);
+
+    ck_tile::DeviceMem a_m_k_dev_buf(a_m_k.get_element_space_size_in_bytes());
+    ck_tile::DeviceMem b_k_n_dev_buf(b_k_n.get_element_space_size_in_bytes());
+    ck_tile::DeviceMem c_m_n_dev_buf(c_m_n_dev_result.get_element_space_size_in_bytes());
+
+    a_m_k_dev_buf.ToDevice(a_m_k.data());
+    b_k_n_dev_buf.ToDevice(b_k_n.data());
+    c_m_n_dev_buf.SetZero();
+    c_m_n_dev_result.SetZero();
+
+    invoke_gemm<ALayout, BLayout, CLayout>(a_m_k_dev_buf,
+                                           b_k_n_dev_buf,
+                                           c_m_n_dev_buf,
+                                           M,
+                                           N,
+                                           K,
+                                           stride_A,
+                                           stride_B,
+                                           stride_C,
+                                           batch_size,
+                                           n_warmup,
+                                           n_repeat);
+
+    c_m_n_dev_buf.FromDevice(c_m_n_dev_result.data());
+    bool pass = true;
+
+    if(arg_parser.get_int("v") == 1)
+    {
+        ck_tile::HostTensor<CDataType> c_m_n_host_ref(
+            f_host_tensor_descriptor(M, N, stride_C, CLayout{}));
+        c_m_n_host_ref.SetZero();
+
+        ck_tile::reference_gemm<ADataType, BDataType, AccDataType, CDataType>(
+            a_m_k, b_k_n, c_m_n_host_ref);
+
+        pass = ck_tile::check_err(c_m_n_dev_result, c_m_n_host_ref);
+
+        std::cout << "The CPU veification result is:" << (pass ? "correct" : "fail") << std::endl;
+    }
+    else if(arg_parser.get_int("v") == 2)
+    {
+        ck_tile::HostTensor<CDataType> c_m_n_gpu_ref(
+            f_host_tensor_descriptor(M, N, stride_C, CLayout{}));
+        ck_tile::DeviceMem c_m_n_gpu_buf_ref(c_m_n_gpu_ref.get_element_space_size_in_bytes());
+        c_m_n_gpu_ref.SetZero();
+        c_m_n_gpu_buf_ref.SetZero();
+
+        ck_tile::reference_gemm_gpu<ADataType,
+                                    BDataType,
+                                    AccDataType,
+                                    CDataType,
+                                    ALayout,
+                                    BLayout,
+                                    CLayout>(
+            a_m_k_dev_buf, b_k_n_dev_buf, c_m_n_gpu_buf_ref, M, N, K, stride_A, stride_B, stride_C);
+
+        c_m_n_gpu_buf_ref.FromDevice(c_m_n_gpu_ref.data());
+        pass = ck_tile::check_err(c_m_n_dev_result, c_m_n_gpu_ref);
+
+        std::cout << "The GPU veification result is: " << (pass ? "correct" : "fail") << std::endl;
+    }
+
+    return pass;
+}
+
+int run_gemm_example(int argc, char* argv[])
+{
+    auto [result, arg_parser] = create_args(argc, argv);
+    if(!result)
+        return -1;
+
+    using Row = ck_tile::tensor_layout::gemm::RowMajor;
+    using Col = ck_tile::tensor_layout::gemm::ColumnMajor;
+
+    std::string a_layout = arg_parser.get_str("a_layout");
+    std::string b_layout = arg_parser.get_str("b_layout");
+
+    if(a_layout == "R" && b_layout == "R")
+    {
+        return run_gemm_example_with_layouts(argc, argv, Row{}, Row{}, Row{});
+    }
+    else if(a_layout == "R" && b_layout == "C")
+    {
+        return run_gemm_example_with_layouts(argc, argv, Row{}, Col{}, Row{});
+    }
+    // TODO: Fixme: with latest changes to GemmPipelineAGmemBGmemCRegV1DefaultPolicy below do not
+    // work.
+    // else if(a_layout == "C" && b_layout == "C")
+    // {
+    //     return run_gemm_example_with_layouts(argc, argv, Col{}, Col{}, Row{});
+    // }
+    // else if(a_layout == "C" && b_layout == "R")
+    // {
+    //     return run_gemm_example_with_layouts(argc, argv, Col{}, Row{}, Row{});
+    // }
+    else
+    {
+        throw std::runtime_error("Unsupported data layout configuration for A,B and C tensors!");
+    }
+}

example/ck_tile/03_gemm/universal_gemm.cpp

+// SPDX-License-Identifier: MIT
+// Copyright (c) 2024, Advanced Micro Devices, Inc. All rights reserved.
+
+#include <hip/hip_runtime.h>
+
+#include <cstring>
+#include <iostream>
+#include <sstream>
+#include <string>
+#include <tuple>
+
+#include "ck_tile/ops/epilogue.hpp"
+#include "ck_tile/ops/gemm.hpp"
+#include "ck_tile/host.hpp"
+#include "gemm_basic.hpp"
+
+#define CK_TILE_PIPELINE_COMPUTE 1
+#define CK_TILE_PIPELINE_MEMORY 2
+
+#ifndef CK_TILE_PIPELINE_DEFAULT
+#define CK_TILE_PIPELINE_DEFAULT CK_TILE_PIPELINE_COMPUTE
+#endif
+
+template <typename ALayout, typename BLayout, typename CLayout>
+float gemm_calc(const gemm_basic_args& args, const ck_tile::stream_config& s)
+{
+#if(CK_TILE_PIPELINE_DEFAULT == CK_TILE_PIPELINE_MEMORY)
+    // Memory friendly for Interwave scheduler
+    constexpr ck_tile::index_t M_Tile = 128;
+    constexpr ck_tile::index_t N_Tile = 32;
+    constexpr ck_tile::index_t K_Tile = 64;
+
+    constexpr ck_tile::index_t M_Warp = 4;
+    constexpr ck_tile::index_t N_Warp = 1;
+    constexpr ck_tile::index_t K_Warp = 1;
+
+    constexpr ck_tile::index_t M_Warp_Tile = 32;
+    constexpr ck_tile::index_t N_Warp_Tile = 32;
+    constexpr ck_tile::index_t K_Warp_Tile = 8;
+
+#elif(CK_TILE_PIPELINE_DEFAULT == CK_TILE_PIPELINE_COMPUTE)
+    // Compute friendly for Intrawave scheduler
+    constexpr ck_tile::index_t M_Tile = 256;
+    constexpr ck_tile::index_t N_Tile = 256;
+    constexpr ck_tile::index_t K_Tile = 32;
+
+    constexpr ck_tile::index_t M_Warp = 2;
+    constexpr ck_tile::index_t N_Warp = 2;
+    constexpr ck_tile::index_t K_Warp = 1;
+
+    constexpr ck_tile::index_t M_Warp_Tile = 32;
+    constexpr ck_tile::index_t N_Warp_Tile = 32;
+    constexpr ck_tile::index_t K_Warp_Tile = 16;
+#endif
+
+    constexpr bool kPadM = false;
+    constexpr bool kPadN = false;
+    constexpr bool kPadK = false;
+
+    constexpr int kBlockPerCu = 1;
+
+    // ===============================================
+
+    using GemmShape =
+        ck_tile::TileGemmShape<ck_tile::sequence<M_Tile, N_Tile, K_Tile>,
+                               ck_tile::sequence<M_Warp, N_Warp, K_Warp>,
+                               ck_tile::sequence<M_Warp_Tile, N_Warp_Tile, K_Warp_Tile>>;
+    using TilePartitioner = ck_tile::GemmTilePartitioner<GemmShape>;
+
+    using GemmEpilogue = ck_tile::Default2DEpilogue<
+        ck_tile::Default2DEpilogueProblem<AccDataType, CDataType, kPadM, kPadN>>;
+
+    using Traits = ck_tile::TileGemmTraits<kPadM, kPadN, kPadK, ALayout, BLayout, CLayout>;
+#if(CK_TILE_PIPELINE_DEFAULT == CK_TILE_PIPELINE_MEMORY)
+    using BaseGemmPipeline = ck_tile::BaseGemmPipelineAgBgCrMem<
+#elif(CK_TILE_PIPELINE_DEFAULT == CK_TILE_PIPELINE_COMPUTE)
+    using BaseGemmPipeline                 = ck_tile::BaseGemmPipelineAgBgCrCompV3<
+#endif
+        ck_tile::GemmPipelineProblem<ADataType, BDataType, AccDataType, GemmShape, Traits>>;
+
+    const ck_tile::index_t num_loop    = TilePartitioner::GetLoopNum(args.K);
+    const bool has_hot_loop            = BaseGemmPipeline::BlockHasHotloop(num_loop);
+    const ck_tile::TailNumber tail_num = BaseGemmPipeline::GetBlockLoopTailNum(num_loop);
+
+    float ave_time{0};
+
+    const auto Run = [&](const auto has_hot_loop_, const auto tail_number_) {
+        constexpr bool has_hot_loop_v = has_hot_loop_.value;
+        constexpr auto tail_number_v  = tail_number_.value;
+
+#if(CK_TILE_PIPELINE_DEFAULT == CK_TILE_PIPELINE_MEMORY)
+        using GemmPipeline = ck_tile::GemmPipelineAgBgCrMem<
+#elif(CK_TILE_PIPELINE_DEFAULT == CK_TILE_PIPELINE_COMPUTE)
+        using GemmPipeline = ck_tile::GemmPipelineAgBgCrCompV3<
+#endif
+            ck_tile::UniversalGemmPipelineProblem<ADataType,
+                                                  BDataType,
+                                                  AccDataType,
+                                                  GemmShape,
+                                                  Traits,
+#if(CK_TILE_PIPELINE_DEFAULT == CK_TILE_PIPELINE_MEMORY)
+                                                  ck_tile::GemmPipelineScheduler::Interwave,
+#elif(CK_TILE_PIPELINE_DEFAULT == CK_TILE_PIPELINE_COMPUTE)
+                                                  ck_tile::GemmPipelineScheduler::Intrawave,
+#endif
+                                                  has_hot_loop_v,
+                                                  tail_number_v>>;
+        using Kernel = ck_tile::GemmKernel<TilePartitioner, GemmPipeline, GemmEpilogue>;
+        auto kargs   = Kernel::MakeKargs(args.p_a,
+                                       args.p_b,
+                                       args.p_c,
+                                       args.M,
+                                       args.N,
+                                       args.K,
+                                       args.stride_A,
+                                       args.stride_B,
+                                       args.stride_C);
+
+        const dim3 grids      = Kernel::GridSize(args.M, args.N, args.kbatch);
+        constexpr dim3 blocks = Kernel::BlockSize();
+
+        if(!Kernel::IsSupportedArgument(kargs))
+        {
+            throw std::runtime_error("Wrong! Arguments not supported! Skipping gemm!\n");
+        }
+
+        if(s.log_level_ > 0)
+        {
+            std::cout << "Launching kernel with args:"
+                      << " grid: {" << grids.x << ", " << grids.y << ", " << grids.z << "}"
+                      << ", blocks: {" << blocks.x << ", " << blocks.y << ", " << blocks.z << "}"
+                      << std::endl;
+        }
+
+        ave_time = ck_tile::launch_kernel(
+            s, ck_tile::make_kernel<blocks.x, kBlockPerCu>(Kernel{}, grids, blocks, 0, kargs));
+        return ave_time;
+    };
+
+    if(has_hot_loop)
+    {
+        // Tail pipeline One to Seven
+        if(tail_num == ck_tile::TailNumber::One)
+        {
+            Run(ck_tile::bool_constant<true>{},
+                ck_tile::integral_constant<ck_tile::TailNumber, ck_tile::TailNumber::One>{});
+        }
+        else if(tail_num == ck_tile::TailNumber::Full)
+        {
+            Run(ck_tile::bool_constant<true>{},
+                ck_tile::integral_constant<ck_tile::TailNumber, ck_tile::TailNumber::Full>{});
+        }
+
+        if constexpr(BaseGemmPipeline::PrefetchStages > 2)
+        {
+            if(tail_num == ck_tile::TailNumber::Two)
+            {
+                Run(ck_tile::bool_constant<true>{},
+                    ck_tile::integral_constant<ck_tile::TailNumber, ck_tile::TailNumber::Two>{});
+            }
+        }
+        if constexpr(BaseGemmPipeline::PrefetchStages > 3)
+        {
+            if(tail_num == ck_tile::TailNumber::Three)
+            {
+                Run(ck_tile::bool_constant<true>{},
+                    ck_tile::integral_constant<ck_tile::TailNumber, ck_tile::TailNumber::Three>{});
+            }
+        }
+        if constexpr(BaseGemmPipeline::PrefetchStages > 4)
+        {
+            if(tail_num == ck_tile::TailNumber::Four)
+            {
+                Run(ck_tile::bool_constant<true>{},
+                    ck_tile::integral_constant<ck_tile::TailNumber, ck_tile::TailNumber::Four>{});
+            }
+        }
+        if constexpr(BaseGemmPipeline::PrefetchStages > 5)
+        {
+            if(tail_num == ck_tile::TailNumber::Five)
+            {
+                Run(ck_tile::bool_constant<true>{},
+                    ck_tile::integral_constant<ck_tile::TailNumber, ck_tile::TailNumber::Five>{});
+            }
+        }
+        if constexpr(BaseGemmPipeline::PrefetchStages > 6)
+        {
+            if(tail_num == ck_tile::TailNumber::Six)
+            {
+                Run(ck_tile::bool_constant<true>{},
+                    ck_tile::integral_constant<ck_tile::TailNumber, ck_tile::TailNumber::Six>{});
+            }
+        }
+        if constexpr(BaseGemmPipeline::PrefetchStages > 7)
+        {
+            if(tail_num == ck_tile::TailNumber::Seven)
+            {
+                Run(ck_tile::bool_constant<true>{},
+                    ck_tile::integral_constant<ck_tile::TailNumber, ck_tile::TailNumber::Seven>{});
+            }
+        }
+    }
+    else
+    {
+        // Tail number always Full - #PrefetchStages
+        if(tail_num == ck_tile::TailNumber::Full)
+        {
+            Run(ck_tile::bool_constant<false>{},
+                ck_tile::integral_constant<ck_tile::TailNumber, ck_tile::TailNumber::Full>{});
+        }
+        else
+        {
+            std::ostringstream err;
+            err << "When there's no hot loop, this tail number \"" << tail_num
+                << "\" is not supported! PrefetchStages: " << BaseGemmPipeline::PrefetchStages
+                << "\n File: " << __FILE__ << ":" << __LINE__ << ", in function: " << __func__;
+            throw std::runtime_error(err.str());
+        }
+    }
+
+    return ave_time;
+}
+
+#include "run_gemm_example.inc"
+
+int main(int argc, char* argv[]) { return !run_gemm_example(argc, argv); }

example/ck_tile/05_reduce/CMakeLists.txt

+set(EXAMPLE_REDUCE "tile_example_reduce")
+# not using add_example_executable() to add this target, since we don't want this to have
+# to be included in "make all/install/check"
+message("adding example ${EXAMPLE_REDUCE}")
+
+add_executable(${EXAMPLE_REDUCE} EXCLUDE_FROM_ALL reduce.cpp)
+target_include_directories(${EXAMPLE_REDUCE} PRIVATE ${CMAKE_CURRENT_LIST_DIR})
+set(EXAMPLE_REDUCE_COMPILE_OPTIONS)
+
+# NOTE: we turn off undefined-func-template to let source compile without explicit declare function specializations
+list(APPEND EXAMPLE_REDUCE_COMPILE_OPTIONS -Wno-undefined-func-template -Wno-float-equal)
+
+target_compile_options(${EXAMPLE_REDUCE} PRIVATE ${EXAMPLE_REDUCE_COMPILE_OPTIONS})
+
+# TODO: we have to turn off this global prop, otherwise the progress bar generated
+# by cmake will print too many files, execvp: /bin/sh: Argument list too long
+# however, this property may affect global
+# TODO: consider codegen a makefile by us
+set_property(GLOBAL PROPERTY RULE_MESSAGES OFF)
\ No newline at end of file

example/ck_tile/05_reduce/reduce.cpp

+#include "ck_tile/host.hpp"
+#include "reduce.hpp"
+#include <cstring>
+
+auto create_args(int argc, char* argv[])
+{
+    ck_tile::ArgParser arg_parser;
+    arg_parser.insert("m", "3328", "m dimension")
+        .insert("n", "4096", "n dimension")
+        .insert("v", "1", "cpu validation or not")
+        .insert("prec", "fp16", "precision")
+        .insert("warmup", "5", "cold iter")
+        .insert("repeat", "20", "hot iter");
+
+    bool result = arg_parser.parse(argc, argv);
+    return std::make_tuple(result, arg_parser);
+}
+
+template <typename DataType>
+bool run(const ck_tile::ArgParser& arg_parser)
+{
+    using XDataType       = DataType;
+    using ComputeDataType = float;
+    using YDataType       = DataType;
+
+    ck_tile::index_t m = arg_parser.get_int("m");
+    ck_tile::index_t n = arg_parser.get_int("n");
+    int do_validation  = arg_parser.get_int("v");
+    int warmup         = arg_parser.get_int("warmup");
+    int repeat         = arg_parser.get_int("repeat");
+
+    ck_tile::HostTensor<XDataType> x_host({m, n});
+    ck_tile::HostTensor<YDataType> y_host_ref({m});
+    ck_tile::HostTensor<YDataType> y_host_dev({m});
+
+    ck_tile::FillUniformDistribution<XDataType>{-5.f, 5.f}(x_host);
+
+    ck_tile::DeviceMem x_buf(x_host.get_element_space_size_in_bytes());
+    ck_tile::DeviceMem y_buf(y_host_dev.get_element_space_size_in_bytes());
+
+    x_buf.ToDevice(x_host.data());
+
+    using ReduceOp   = ck_tile::ReduceOp::Add;
+    using BlockWarps = ck_tile::sequence<4, 1>;
+    using BlockTile  = ck_tile::sequence<128, 128>;
+    using WarpTile   = ck_tile::sequence<32, 128>;
+    using Vector     = ck_tile::sequence<8, 8>;
+
+    // cross warp-reduce
+    // using BlockWarps = ck_tile::sequence<2, 2>;
+    // using BlockTile  = ck_tile::sequence<2, 1024>;
+    // using WarpTile   = ck_tile::sequence<1, 512>;
+    // using Vector = ck_tile::sequence<1, 8>;
+
+    constexpr ck_tile::index_t kBlockSize  = 512;
+    constexpr ck_tile::index_t kBlockPerCu = 1;
+    ck_tile::index_t kGridSize             = (m / BlockTile::at(ck_tile::number<0>{}));
+    std::cout << "grid size " << kGridSize << std::endl;
+
+    using Shape = ck_tile::Reduce2dShape<BlockWarps, BlockTile, WarpTile, Vector>;
+    using Porblem =
+        ck_tile::Reduce2dProblem<XDataType, ComputeDataType, YDataType, Shape, ReduceOp>;
+
+    using Kernel = ck_tile::Reduce<Porblem>;
+
+    float ave_time = launch_kernel(ck_tile::stream_config{nullptr, true, 0, warmup, repeat},
+                                   ck_tile::make_kernel<kBlockSize, kBlockPerCu>(
+                                       Kernel{},
+                                       kGridSize,
+                                       kBlockSize,
+                                       0,
+                                       static_cast<XDataType*>(x_buf.GetDeviceBuffer()),
+                                       static_cast<YDataType*>(y_buf.GetDeviceBuffer()),
+                                       m,
+                                       n));
+
+    std::size_t num_btype = sizeof(XDataType) * m * n + sizeof(YDataType) * m;
+
+    float gb_per_sec = num_btype / 1.E6 / ave_time;
+
+    std::cout << "Perf: " << ave_time << " ms, " << gb_per_sec << " GB/s" << std::endl;
+
+    bool pass = true;
+
+    if(do_validation)
+    {
+        // reference
+        ck_tile::reference_reduce<XDataType, ComputeDataType, YDataType>(
+            x_host, y_host_ref, ReduceOp{});
+        y_buf.FromDevice(y_host_dev.mData.data());
+        pass = ck_tile::check_err(y_host_dev, y_host_ref);
+
+        std::cout << "valid:" << (pass ? "y" : "n") << std::flush << std::endl;
+    }
+
+    return pass;
+}
+
+int main(int argc, char* argv[])
+{
+    auto [result, arg_parser] = create_args(argc, argv);
+    if(!result)
+        return -1;
+
+    const std::string data_type = arg_parser.get_str("prec");
+
+    if(data_type == "fp16")
+    {
+        return run<ck_tile::half_t>(arg_parser) ? 0 : -2;
+    }
+    // else if(data_type == "bf16")
+    // {
+    //     return run<ck_tile::bf16_t>(arg_parser) ? 0 : -2;
+    // }
+}

example/ck_tile/05_reduce/reduce.hpp

+// SPDX-License-Identifier: MIT
+// Copyright (c) 2018-2024, Advanced Micro Devices, Inc. All rights reserved.
+
+#pragma once
+
+#include "ck_tile/core.hpp"
+#include "ck_tile/ops/common.hpp"
+#include "ck_tile/ops/reduce/block/block_reduce.hpp"
+#include "ck_tile/ops/reduce/block/block_reduce2d_default_policy.hpp"
+
+namespace ck_tile {
+
+template <typename BlockWarps, // num warps along seq<M, N>
+          typename BlockTile,  // block size, seq<M, N>
+          typename WarpTile,   // warp size, seq<M, N>
+          typename Vector>     // contiguous pixels(vector size) along seq<M, N>
+struct Reduce2dShape
+{
+    static constexpr index_t Block_M = BlockTile::at(number<0>{});
+    static constexpr index_t Block_N = BlockTile::at(number<1>{});
+
+    static constexpr index_t Warp_M = WarpTile::at(number<0>{});
+    static constexpr index_t Warp_N = WarpTile::at(number<1>{});
+
+    static constexpr index_t Vector_M = Vector::at(number<0>{});
+    static constexpr index_t Vector_N = Vector::at(number<1>{});
+
+    static constexpr index_t WarpPerBlock_M = BlockWarps::at(number<0>{});
+    static constexpr index_t WarpPerBlock_N = BlockWarps::at(number<1>{});
+
+    static constexpr index_t ThreadPerWarp_M = Warp_M / Vector_M;
+    static constexpr index_t ThreadPerWarp_N = Warp_N / Vector_N;
+
+    static constexpr index_t Repeat_M = Block_M / (WarpPerBlock_M * Warp_M);
+    static constexpr index_t Repeat_N = Block_N / (WarpPerBlock_N * Warp_N);
+
+    static constexpr index_t BlockSize =
+        warpSize * reduce_on_sequence(BlockWarps{}, multiplies{}, number<1>{});
+};
+
+template <typename XDataType_,
+          typename ComputeDataType_,
+          typename YDataType_,
+          typename BlockShape_,
+          typename ReduceOp_>
+struct Reduce2dProblem
+{
+    using XDataType       = remove_cvref_t<XDataType_>;
+    using ComputeDataType = remove_cvref_t<ComputeDataType_>;
+    using YDataType       = remove_cvref_t<YDataType_>;
+    using BlockShape      = remove_cvref_t<BlockShape_>;
+    using ReduceOp        = ReduceOp_;
+
+    static constexpr bool kNeedCrossLaneSync = BlockShape::ThreadPerWarp_N > 1;
+    static constexpr bool kNeedCrossWarpSync = BlockShape::WarpPerBlock_N > 1;
+};
+
+template <typename Problem_, typename Policy_ = BlockReduce2dDefaultPolicy>
+struct Reduce
+{
+    using Problem = ck_tile::remove_cvref_t<Problem_>;
+    using Policy  = ck_tile::remove_cvref_t<Policy_>;
+
+    using XDataType       = ck_tile::remove_cvref_t<typename Problem::XDataType>;
+    using ComputeDataType = ck_tile::remove_cvref_t<typename Problem::ComputeDataType>;
+    using YDataType       = ck_tile::remove_cvref_t<typename Problem::YDataType>;
+
+#if 0
+    CK_TILE_DEVICE void operator()(const XDataType* p_x, YDataType* p_y, index_t M, index_t N)
+    const
+    {
+        using S = typename Problem::BlockShape;
+
+        const auto x_m_n = make_naive_tensor_view<address_space_enum::global>(
+            p_x, make_tuple(M, N), make_tuple(N, 1), number<S::Vector_N>{}, number<1>{});
+
+        const auto y_m = make_naive_tensor_view_packed<address_space_enum::global>(
+            p_y, make_tuple(M), number<1>{});
+
+        const auto iM = get_block_id() * S::Block_M;
+
+        auto x_window = make_tile_window(x_m_n,
+                                         make_tuple(number<S::Block_M>{}, number<S::Block_N>{}),
+                                         {iM, 0},
+                                         Policy::template MakeXBlockTileDistribution<Problem>());
+
+        auto y_window = make_tile_window(y_m, make_tuple(number<S::Block_M>{}), {iM});
+
+        const auto f_reduce = [](const auto& v0, const auto& v1) { return v0 + v1; };
+
+        const XDataType reduce_init_value = 0;
+
+        constexpr auto reduce_dims = sequence<1>{};
+
+        auto y_compute = decltype(block_tile_reduce<ComputeDataType>(
+            load_tile(x_window), reduce_dims, f_reduce, reduce_init_value)){};
+
+        set_tile(y_compute, reduce_init_value);
+
+        index_t num_n_tile_iteration =
+            __builtin_amdgcn_readfirstlane(integer_divide_ceil(N, S::Block_N));
+
+        for(int iN = __builtin_amdgcn_readfirstlane(0); iN < num_n_tile_iteration; ++iN)
+        {
+            const auto x = load_tile(x_window);
+            block_tile_reduce(y_compute, x, reduce_dims, f_reduce);
+            move_tile_window(x_window, {0, S::Block_N});
+        }
+
+        block_tile_reduce_sync(y_compute, f_reduce);
+
+        store_tile(y_window, cast_tile<YDataType>(y_compute));
+    }
+#else
+    CK_TILE_DEVICE void operator()(const XDataType* p_x, YDataType* p_y, index_t M, index_t N) const
+    {
+        using S = typename Problem::BlockShape;
+
+        const auto x_m_n = make_naive_tensor_view<address_space_enum::global>(
+            p_x, make_tuple(M, N), make_tuple(N, 1), number<S::Vector_N>{}, number<1>{});
+
+        const auto y_m = make_naive_tensor_view_packed<address_space_enum::global>(
+            p_y, make_tuple(M), number<1>{});
+
+        const auto iM = get_block_id() * S::Block_M;
+
+        auto x_window = make_tile_window(x_m_n,
+                                         make_tuple(number<S::Block_M>{}, number<S::Block_N>{}),
+                                         {iM, 0},
+                                         Policy::template MakeXBlockTileDistribution<Problem>());
+
+        auto y_window = make_tile_window(y_m, make_tuple(number<S::Block_M>{}), {iM});
+
+        __shared__ char smem[Policy::template GetSmemSize<Problem>()];
+
+        index_t num_n_tile_iteration =
+            __builtin_amdgcn_readfirstlane(integer_divide_ceil(N, S::Block_N));
+
+        auto reduce_func         = typename Problem::ReduceOp{};
+        auto block_reduce2d      = Policy::template GetBlockReduce2d<Problem>();
+        auto block_reduce2d_sync = Policy::template GetBlockReduce2dSync<Problem>();
+        auto block_reduce2d_cross_warp_sync =
+            Policy::template GetBlockReduce2dCrossWarpSync<Problem>();
+
+        using XTensorType = decltype(load_tile(x_window));
+        auto y_compute    = block_reduce2d.template MakeYBlockTile<XTensorType>();
+        set_tile(y_compute, reduce_func.template GetIdentityValue<ComputeDataType>());
+
+        for(int iN = __builtin_amdgcn_readfirstlane(0); iN < num_n_tile_iteration; ++iN)
+        {
+            const auto x = load_tile(x_window);
+            block_reduce2d(x, y_compute, reduce_func);
+            move_tile_window(x_window, {0, S::Block_N});
+        }
+
+        block_reduce2d_sync(y_compute, reduce_func);
+        block_reduce2d_cross_warp_sync(y_compute, smem, reduce_func);
+
+        store_tile(y_window, cast_tile<YDataType>(y_compute));
+    }
+#endif
+};
+
+} // namespace ck_tile

example/ck_tile/06_permute/CMakeLists.txt

+# not using add_example_executable() to add this target, since we don't want this to have
+# to be included in "make all/install/check"
+add_executable(tile_example_permute EXCLUDE_FROM_ALL permute.cpp)
+
+if(NOT DEFINED PERMUTE_USE_ALTERNATIVE_IMPL)
+# set(PERMUTE_USE_ALTERNATIVE_IMPL false)
+set(PERMUTE_USE_ALTERNATIVE_IMPL true)
+endif()
+if(PERMUTE_USE_ALTERNATIVE_IMPL)
+target_compile_options(tile_example_permute PRIVATE -DPERMUTE_USE_ALTERNATIVE_IMPL)
+target_sources(tile_example_permute PRIVATE alternative_impl/matrix_core_swizzle.cpp)
+endif()
+# target_compile_options(tile_example_permute PRIVATE -v --save-temps -Wno-gnu-line-marker)

example/ck_tile/06_permute/README.md

+# permute
+
+This folder contains example for permute kernel, which is similiar to [torch.permute](https://pytorch.org/docs/stable/generated/torch.permute.html) (combined with [torch.contiguous](https://pytorch.org/docs/stable/generated/torch.Tensor.contiguous.html)). Currently we implement a generic permute kernel that support up to rank 8 arbitrary permutation with a single kernel instance. Performance is not the first consideration, we prefer a simple and general kernel implementation using `ck_tile` in this example.
+
+
+```
+args:
+          -v    weather do CPU validation or not (default:1)
+       -prec    data type. fp16/bf16/fp32 (default:fp16)
+      -shape    the shape of the input tensor (default:2,3,4)
+       -perm    permute perm (default:2,1,0)
+```
+
+## build
+```
+# in the root of ck_tile
+mkdir build && cd build
+sh ../script/cmake-ck-dev.sh  ../ <arch>  # you can replace this <arch> to gfx90a, gfx942...
+make tile_example_permute -j
+```
+This will result in an executable `build/bin/tile_example_permute`
+
+
+## some examples
+```
+# torch
+x=torch.randn(2,3,4,6)
+y=x.permute(0,3,2,1).contiguous()
+
+# ck_tile
+./build/bin/tile_example_permute -shape=2,3,4,6 -perm=0,3,2,1
+```
+
+or you can try the smoke_test
+```
+# in the root of ck_tile, after you build this example
+sh example/ck_tile/06_permute/script/smoke_test.sh
+```
+
+### alternative implementation
+we have an alternative implementation under `alternative_impl/` folder, that can swizzle the tensor to be more friendly for data loading for matrix core layout. This can be enabled when dealing with a `rank-7` tensor, with a fixed pattern of either `0,1,4,2,5,3,6` or `0,1,2,4,5,3,6`. There are other shape limitation of this implementation, check the source code of `permute.cpp` for detail.
+```
+# example
+./build/bin/tile_example_permute -shape=3,6,4,32,16,2,8 -perm=0,1,4,2,5,3,6 # b_n0_k0_n1_k1_n2_k2
+./build/bin/tile_example_permute -shape=3,8,4,16,16,4,8 -perm=0,1,2,4,5,3,6 # b_n0_n1_k0_k1_n2_k2
+```

example/ck_tile/06_permute/alternative_impl/matrix_core_swizzle.cpp

+#include "matrix_core_swizzle.hpp"
+#include "matrix_core_swizzle_kernel.hpp"
+
+float matrix_core_swizzle(matrix_core_swizzle_traits t,
+                          matrix_core_swizzle_args a,
+                          const ck_tile::stream_config& s)
+{
+    if(t.data_type.compare("fp16") == 0)
+    {
+        if(t.inst.compare("32x32x8") == 0)
+        {
+            constexpr int BLOCK_SIZE             = 256;
+            constexpr int NPerBlock              = 256;
+            constexpr int KPerBlock              = 128;
+            constexpr matrix_core_inst_enum Inst = matrix_core_inst_enum::MFMA_32x32x8_F16;
+            if(t.permute.compare("0,1,4,2,5,3,6") == 0)
+            {
+                constexpr matrix_core_permute_style pstyle =
+                    matrix_core_permute_style::permute_b_n0_k0_n1_k1_n2_k2;
+                using Kernel =
+                    matrix_core_swizzle_kernel<BLOCK_SIZE, NPerBlock, KPerBlock, pstyle, Inst>;
+
+                auto k         = Kernel(a);
+                float ave_time = ck_tile::launch_kernel(s, k);
+
+                return ave_time;
+            }
+            else if(t.permute.compare("0,1,2,4,5,3,6") == 0)
+            {
+                constexpr matrix_core_permute_style pstyle =
+                    matrix_core_permute_style::permute_b_n0_n1_k0_k1_n2_k2;
+                using Kernel =
+                    matrix_core_swizzle_kernel<BLOCK_SIZE, NPerBlock, KPerBlock, pstyle, Inst>;
+
+                auto k         = Kernel(a);
+                float ave_time = ck_tile::launch_kernel(s, k);
+
+                return ave_time;
+            }
+            else if(t.permute.compare("0,1,3,4,2,5") == 0)
+            {
+                constexpr matrix_core_permute_style pstyle =
+                    matrix_core_permute_style::b_nr_kr_kw_nw_kv;
+                using Kernel =
+                    matrix_core_swizzle_kernel<BLOCK_SIZE, NPerBlock, KPerBlock, pstyle, Inst>;
+
+                auto k         = Kernel(a);
+                float ave_time = ck_tile::launch_kernel(s, k);
+
+                return ave_time;
+            }
+        }
+        else if(t.inst.compare("16x16x16") == 0)
+        {
+            constexpr int BLOCK_SIZE             = 256;
+            constexpr int NPerBlock              = 256;
+            constexpr int KPerBlock              = 128;
+            constexpr matrix_core_inst_enum Inst = matrix_core_inst_enum::MFMA_16x16x16_F16;
+            if(t.permute.compare("0,1,4,2,5,3,6") == 0)
+            {
+                constexpr matrix_core_permute_style pstyle =
+                    matrix_core_permute_style::permute_b_n0_k0_n1_k1_n2_k2;
+                using Kernel =
+                    matrix_core_swizzle_kernel<BLOCK_SIZE, NPerBlock, KPerBlock, pstyle, Inst>;
+
+                auto k         = Kernel(a);
+                float ave_time = ck_tile::launch_kernel(s, k);
+
+                return ave_time;
+            }
+            else if(t.permute.compare("0,1,2,4,5,3,6") == 0)
+            {
+                constexpr matrix_core_permute_style pstyle =
+                    matrix_core_permute_style::permute_b_n0_n1_k0_k1_n2_k2;
+                using Kernel =
+                    matrix_core_swizzle_kernel<BLOCK_SIZE, NPerBlock, KPerBlock, pstyle, Inst>;
+
+                auto k         = Kernel(a);
+                float ave_time = ck_tile::launch_kernel(s, k);
+
+                return ave_time;
+            }
+            else if(t.permute.compare("0,1,3,4,2,5") == 0)
+            {
+                constexpr matrix_core_permute_style pstyle =
+                    matrix_core_permute_style::b_nr_kr_kw_nw_kv;
+                using Kernel =
+                    matrix_core_swizzle_kernel<BLOCK_SIZE, NPerBlock, KPerBlock, pstyle, Inst>;
+
+                auto k         = Kernel(a);
+                float ave_time = ck_tile::launch_kernel(s, k);
+
+                return ave_time;
+            }
+        }
+    }
+    return -1;
+}

example/ck_tile/06_permute/alternative_impl/matrix_core_swizzle.hpp

+// SPDX-License-Identifier: MIT
+// Copyright (c) 2018-2024, Advanced Micro Devices, Inc. All rights reserved.
+
+#pragma once
+#include "matrix_core_swizzle_kernel.hpp"
+#include <string>
+
+struct matrix_core_swizzle_traits
+{
+    std::string data_type; // fp16 only
+    std::string inst;      // 32x32x8, 16x16x16
+    std::string permute;   //
+};
+
+using matrix_core_swizzle_args = matrix_core_swizzle_host_args;
+
+// host API
+float matrix_core_swizzle(matrix_core_swizzle_traits,
+                          matrix_core_swizzle_args,
+                          const ck_tile::stream_config&);
