# Nunchaku

Nunchaku is an inference engine designed for 4-bit diffusion models, as demonstrated in our paper [SVDQuant](http://arxiv.org/abs/2411.05007). Please check [DeepCompressor](https://github.com/mit-han-lab/deepcompressor) for the quantization library.

### [Paper](http://arxiv.org/abs/2411.05007) | [Project](https://hanlab.mit.edu/projects/svdquant) | [Blog](https://hanlab.mit.edu/blog/svdquant) | [Demo](https://svdquant.mit.edu)

- **[2025-02-11]** 🎉 **[SVDQuant](http://arxiv.org/abs/2411.05007) has been selected as a ICLR 2025 Spotlight! FLUX.1-tools Gradio demos are now available!** Check [here](#gradio-demos) for the usage details! Our new [depth-to-image demo](https://svdquant.mit.edu/flux1-depth-dev/) is also online—try it out!
- **[2025-02-04]** **🚀 4-bit [FLUX.1-tools](https://blackforestlabs.ai/flux-1-tools/) is here!** Enjoy a **2-3× speedup** over the original models. Check out the [examples](./examples) for usage. **ComfyUI integration is coming soon!**
- **[2025-01-23]** 🚀 **4-bit [SANA](https://nvlabs.github.io/Sana/) support is here!** Experience a 2-3× speedup compared to the 16-bit model. Check out the [usage example](./examples/sana_1600m_pag.py) and the [deployment guide](app/sana/t2i) for more details. Explore our live demo at [svdquant.mit.edu](https://svdquant.mit.edu)!
- **[2025-01-22]** 🎉 [**SVDQuant**](http://arxiv.org/abs/2411.05007) has been accepted to **ICLR 2025**!
- **[2024-12-08]** Support [ComfyUI](https://github.com/comfyanonymous/ComfyUI). Please check [comfyui/README.md](comfyui/README.md) for the usage.
- **[2024-11-07]** 🔥 Our latest **W4A4** Diffusion model quantization work [**SVDQuant**](https://hanlab.mit.edu/projects/svdquant) is publicly released! Check [**DeepCompressor**](https://github.com/mit-han-lab/deepcompressor) for the quantization library.

![teaser](./assets/teaser.jpg)

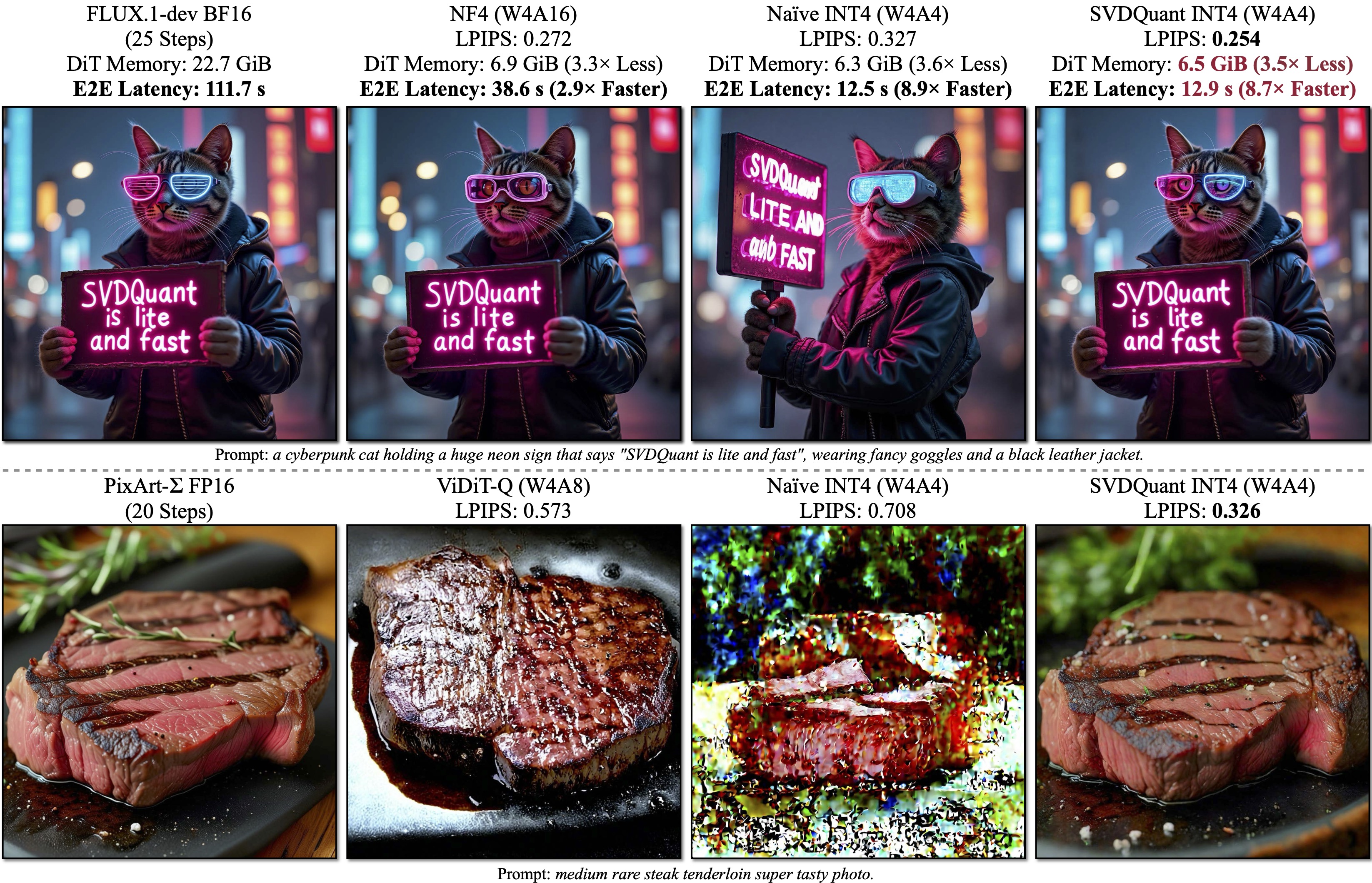

SVDQuant is a post-training quantization technique for 4-bit weights and activations that well maintains visual fidelity. On 12B FLUX.1-dev, it achieves 3.6× memory reduction compared to the BF16 model. By eliminating CPU offloading, it offers 8.7× speedup over the 16-bit model when on a 16GB laptop 4090 GPU, 3× faster than the NF4 W4A16 baseline. On PixArt-∑, it demonstrates significantly superior visual quality over other W4A4 or even W4A8 baselines. "E2E" means the end-to-end latency including the text encoder and VAE decoder.

**SVDQuant: Absorbing Outliers by Low-Rank Components for 4-Bit Diffusion Models**<br>
[Muyang Li](https://lmxyy.me)\*, [Yujun Lin](https://yujunlin.com)\*, [Zhekai Zhang](https://hanlab.mit.edu/team/zhekai-zhang)\*, [Tianle Cai](https://www.tianle.website/#/), [Xiuyu Li](https://xiuyuli.com), [Junxian Guo](https://github.com/JerryGJX), [Enze Xie](https://xieenze.github.io), [Chenlin Meng](https://cs.stanford.edu/~chenlin/), [Jun-Yan Zhu](https://www.cs.cmu.edu/~junyanz/), and [Song Han](https://hanlab.mit.edu/songhan) <br>
*MIT, NVIDIA, CMU, Princeton, UC Berkeley, SJTU, and Pika Labs* <br>

<p align="center">
  <img src="assets/demo.gif" width="100%"/>
</p>

## Method

#### Quantization Method -- SVDQuant

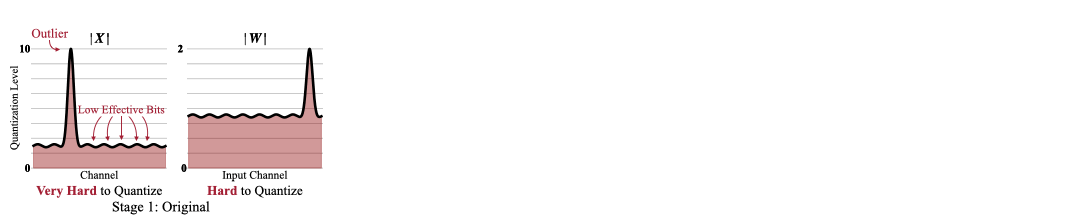

![intuition](./assets/intuition.gif)Overview of SVDQuant. Stage1: Originally, both the activation $\boldsymbol{X}$ and weights $\boldsymbol{W}$ contain outliers, making 4-bit quantization challenging.  Stage 2: We migrate the outliers from activations to weights, resulting in the updated activation $\hat{\boldsymbol{X}}$ and weights $\hat{\boldsymbol{W}}$. While $\hat{\boldsymbol{X}}$ becomes easier to quantize, $\hat{\boldsymbol{W}}$ now becomes more difficult. Stage 3: SVDQuant further decomposes $\hat{\boldsymbol{W}}$ into a low-rank component $\boldsymbol{L}_1\boldsymbol{L}_2$ and a residual $\hat{\boldsymbol{W}}-\boldsymbol{L}_1\boldsymbol{L}_2$ with SVD. Thus, the quantization difficulty is alleviated by the low-rank branch, which runs at 16-bit precision.

#### Nunchaku Engine Design

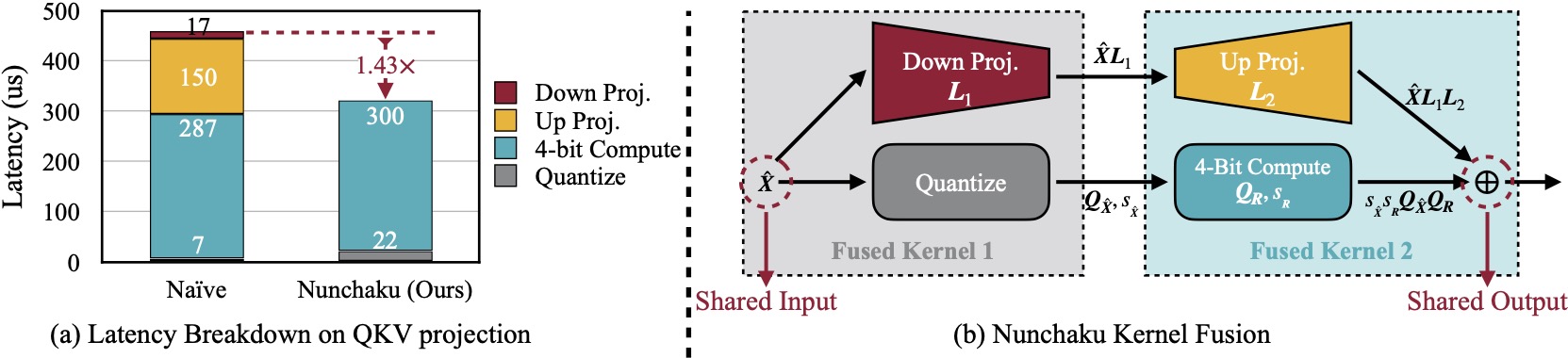

![engine](./assets/engine.jpg) (a) Naïvely running low-rank branch with rank 32 will introduce 57% latency overhead due to extra read of 16-bit inputs in *Down Projection* and extra write of 16-bit outputs in *Up Projection*. Nunchaku optimizes this overhead with kernel fusion. (b) *Down Projection* and *Quantize* kernels use the same input, while *Up Projection* and *4-Bit Compute* kernels share the same output. To reduce data movement overhead, we fuse the first two and the latter two kernels together.


## Performance

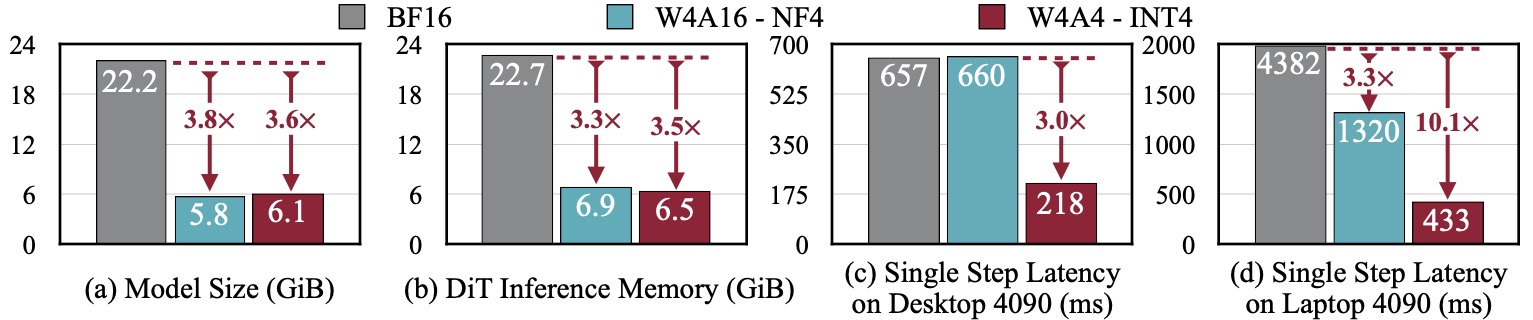

![efficiency](./assets/efficiency.jpg)SVDQuant reduces the model size of the 12B FLUX.1 by 3.6×. Additionally, Nunchaku, further cuts memory usage of the 16-bit model by 3.5× and delivers 3.0× speedups over the NF4 W4A16 baseline on both the desktop and laptop NVIDIA RTX 4090 GPUs. Remarkably, on laptop 4090, it achieves in total 10.1× speedup by eliminating CPU offloading.

## Installation

**Note**:

*  Ensure your CUDA version is **≥ 12.2 on Linux** and **≥ 12.6 on Windows**.

*  For Windows users, please refer to [this issue](https://github.com/mit-han-lab/nunchaku/issues/6) for the instruction. Please upgrade your MSVC compiler to the latest version.

*  We currently support only NVIDIA GPUs with architectures sm_86 (Ampere: RTX 3090, A6000), sm_89 (Ada: RTX 4090), and sm_80 (A100). See [this issue](https://github.com/mit-han-lab/nunchaku/issues/1) for more details.


1. Install dependencies:
	```shell
	conda create -n nunchaku python=3.11
	conda activate nunchaku
	pip install torch torchvision torchaudio
	pip install diffusers ninja wheel transformers accelerate sentencepiece protobuf
	pip install huggingface_hub peft opencv-python einops gradio spaces GPUtil
	```

2. Install `nunchaku` package:
    Make sure you have `gcc/g++>=11`. If you don't, you can install it via Conda:

	```shell
	conda install -c conda-forge gxx=11 gcc=11
	```

	Then build the package from source:
	```shell
	git clone https://github.com/mit-han-lab/nunchaku.git
	cd nunchaku
	git submodule init
	git submodule update
	pip install -e . --no-build-isolation
	```

## Usage Example

In [examples](examples), we provide minimal scripts for running INT4 [FLUX.1](https://github.com/black-forest-labs/flux) and [SANA](https://github.com/NVlabs/Sana) models with Nunchaku. For example, the [script](examples/flux.1-dev.py) for [FLUX.1-dev](https://huggingface.co/black-forest-labs/FLUX.1-dev) is as follows:

```python
import torch
from diffusers import FluxPipeline

from nunchaku.models.transformer_flux import NunchakuFluxTransformer2dModel

transformer = NunchakuFluxTransformer2dModel.from_pretrained("mit-han-lab/svdq-int4-flux.1-dev")
pipeline = FluxPipeline.from_pretrained(
    "black-forest-labs/FLUX.1-dev", transformer=transformer, torch_dtype=torch.bfloat16
).to("cuda")
image = pipeline("A cat holding a sign that says hello world", num_inference_steps=50, guidance_scale=3.5).images[0]
image.save("flux.1-dev.png")
```

Specifically, `nunchaku` shares the same APIs as [diffusers](https://github.com/huggingface/diffusers) and can be used in a similar way.

## ComfyUI

Please refer to [comfyui/README.md](comfyui/README.md) for the usage in [ComfyUI](https://github.com/comfyanonymous/ComfyUI).

## Gradio Demos

* FLUX.1 Models
  * Text-to-image: see [`app/flux.1/t2i`](app/flux.1/t2i).
  * Sketch-to-Image ([pix2pix-Turbo](https://github.com/GaParmar/img2img-turbo)): see [`app/flux.1/sketch`](app/flux.1/sketch).
  * Depth/Canny-to-Image ([FLUX.1-tools](https://blackforestlabs.ai/flux-1-tools/)): see [`app/flux.1/depth_canny`](app/flux.1/depth_canny).
  * Inpainting ([FLUX.1-Fill-dev](https://huggingface.co/black-forest-labs/FLUX.1-Depth-dev)): see [`app/flux.1/fill`](app/flux.1/fill).
  * Redux ([FLUX.1-Redux-dev](https://huggingface.co/black-forest-labs/FLUX.1-Redux-dev)): see [`app/flux.1/redux`](app/flux.1/redux).
* SANA:
  * Text-to-image: see [`app/sana/t2i`](app/sana/t2i).

## Benchmark

Please refer to [app/flux/t2i/README.md](app/flux/t2i/README.md) for instructions on reproducing our paper's quality results and benchmarking inference latency on FLUX.1 models.

## Roadmap

- [ ] Easy installation
- [x] Comfy UI node
- [ ] Customized LoRA conversion instructions
- [ ] Customized model quantization instructions
- [x] FLUX.1 tools support
- [ ] Modularization
- [ ] IP-Adapter integration
- [ ] Video Model support
- [ ] Metal backend

## Citation

If you find `nunchaku` useful or relevant to your research, please cite our paper:

```bibtex
@inproceedings{
  li2024svdquant,
  title={SVDQuant: Absorbing Outliers by Low-Rank Components for 4-Bit Diffusion Models},
  author={Li*, Muyang and Lin*, Yujun and Zhang*, Zhekai and Cai, Tianle and Li, Xiuyu and Guo, Junxian and Xie, Enze and Meng, Chenlin and Zhu, Jun-Yan and Han, Song},
  booktitle={The Thirteenth International Conference on Learning Representations},
  year={2025}
}
```

## Related Projects

* [Efficient Spatially Sparse Inference for Conditional GANs and Diffusion Models](https://arxiv.org/abs/2211.02048), NeurIPS 2022 & T-PAMI 2023
* [SmoothQuant: Accurate and Efficient Post-Training Quantization for Large Language Models](https://arxiv.org/abs/2211.10438), ICML 2023
* [Q-Diffusion: Quantizing Diffusion Models](https://arxiv.org/abs/2302.04304), ICCV 2023
* [AWQ: Activation-aware Weight Quantization for LLM Compression and Acceleration](https://arxiv.org/abs/2306.00978), MLSys 2024
* [DistriFusion: Distributed Parallel Inference for High-Resolution Diffusion Models](https://arxiv.org/abs/2402.19481), CVPR 2024
* [QServe: W4A8KV4 Quantization and System Co-design for Efficient LLM Serving](https://arxiv.org/abs/2405.04532), ArXiv 2024
* [SANA: Efficient High-Resolution Image Synthesis with Linear Diffusion Transformers](https://arxiv.org/abs/2410.10629), ICLR 2025
